Description

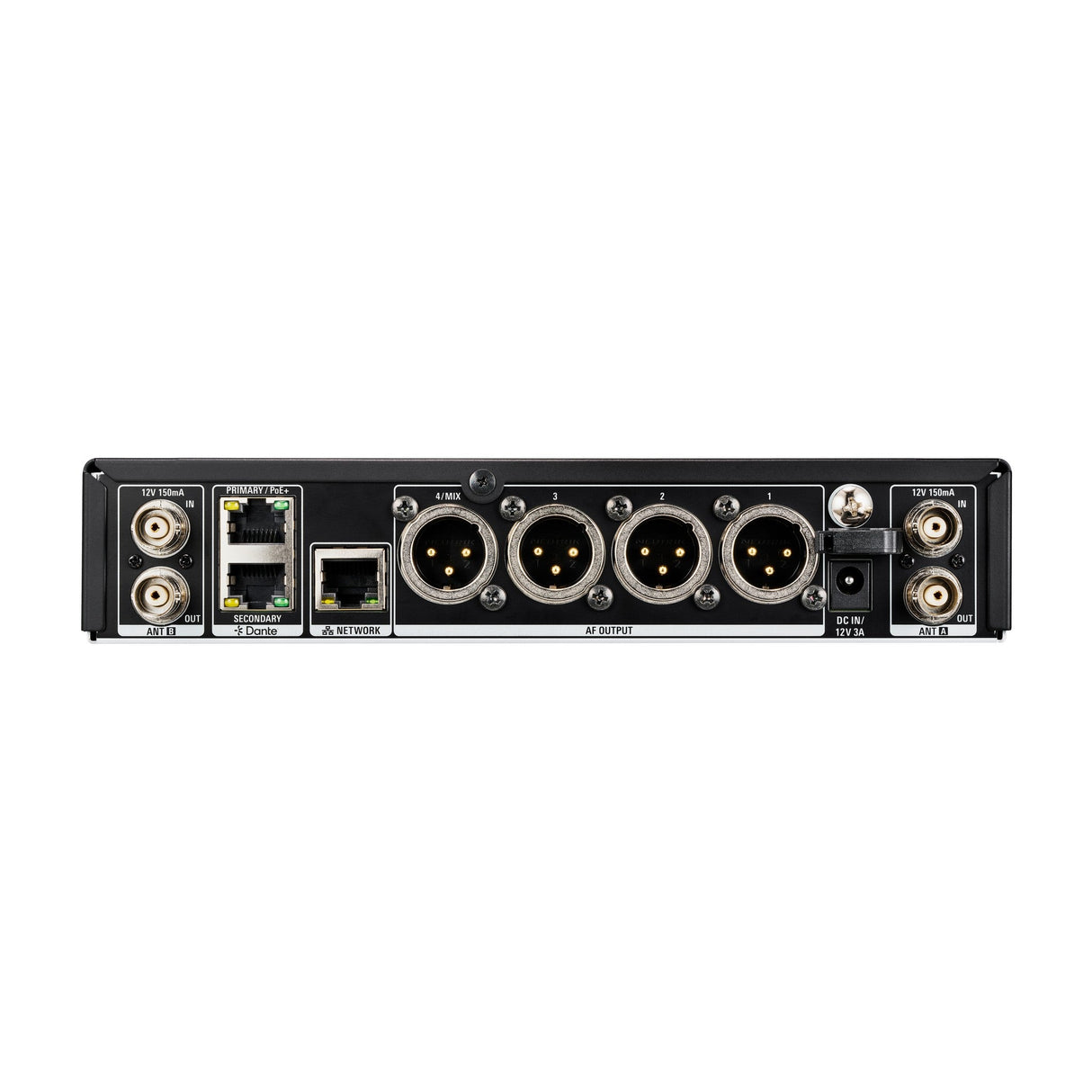

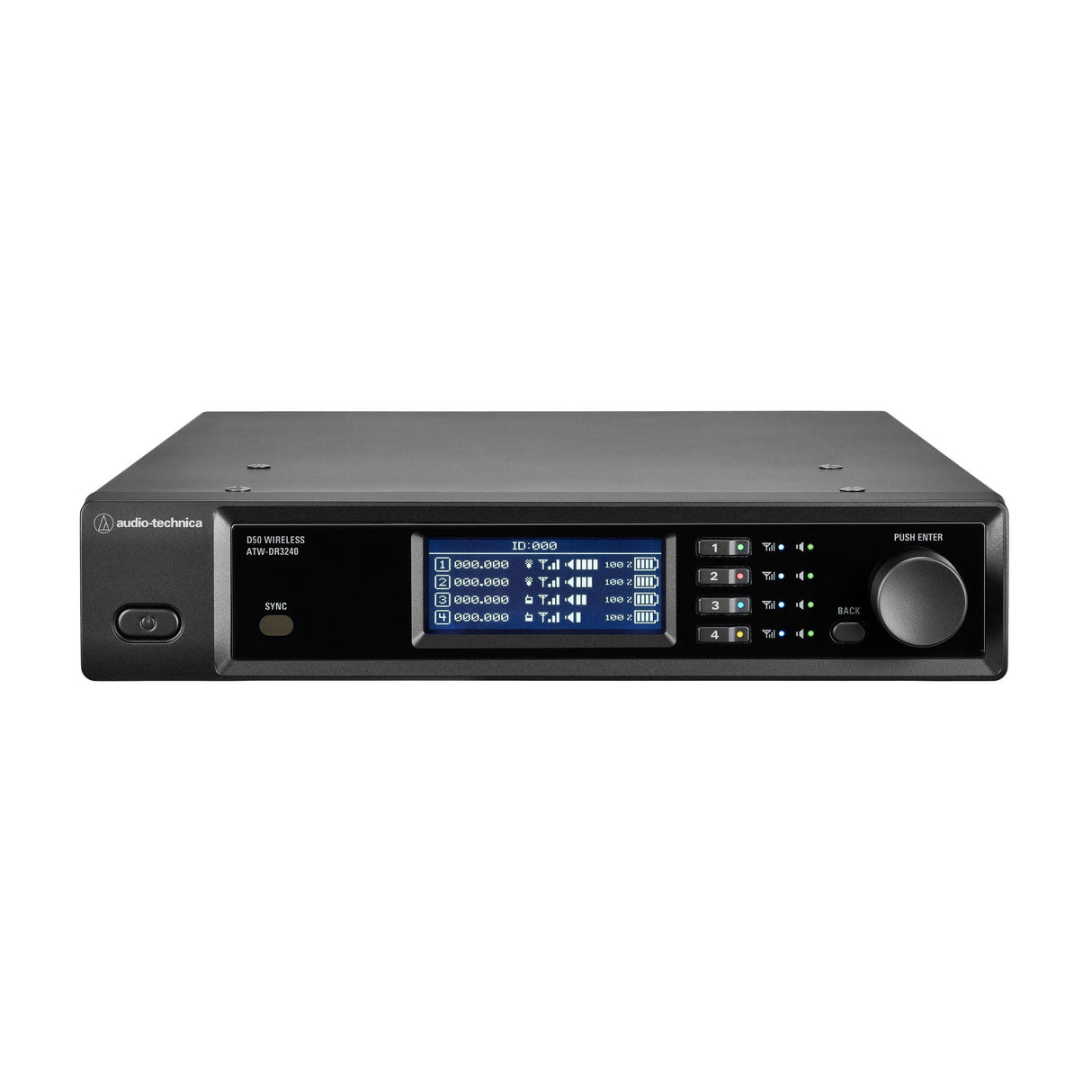

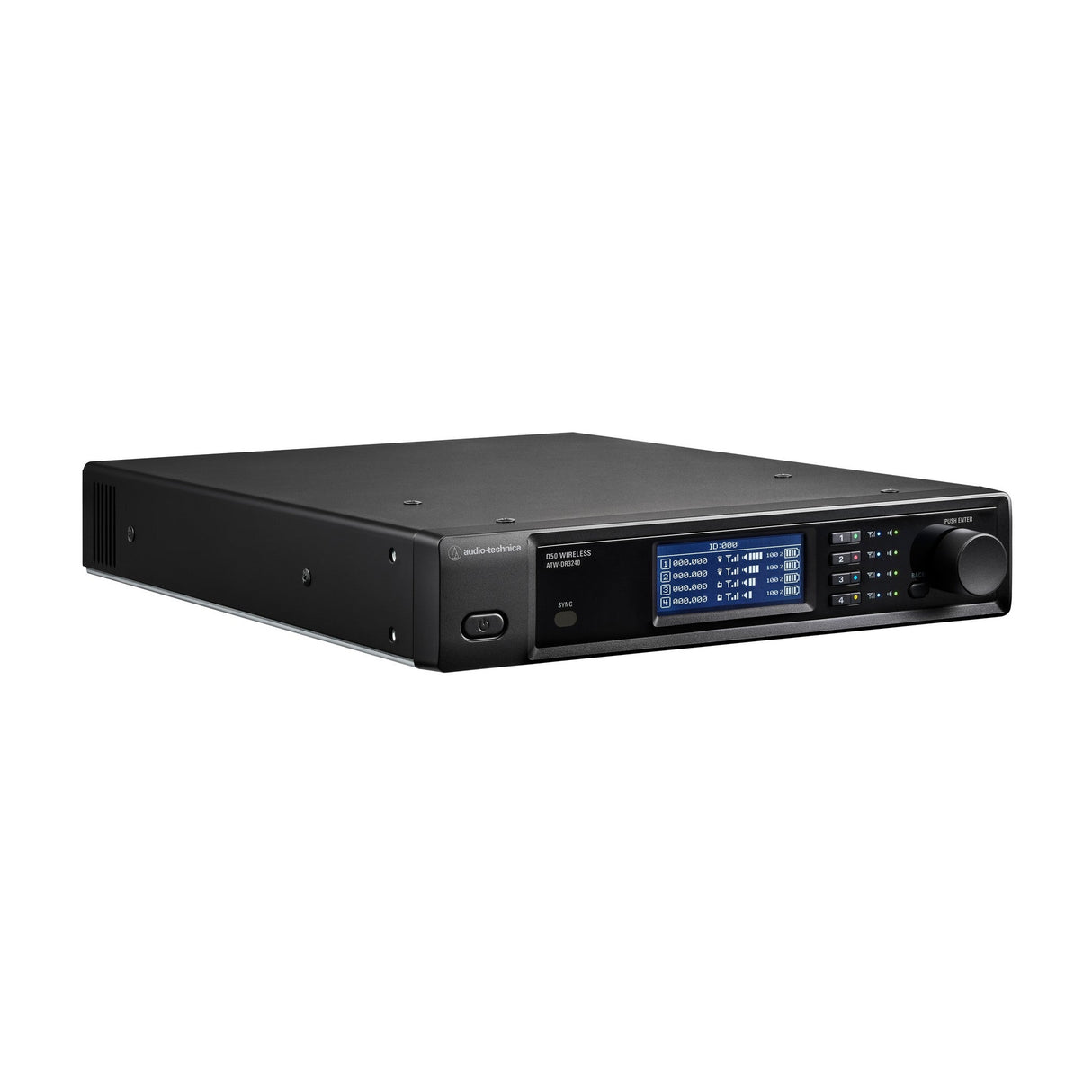

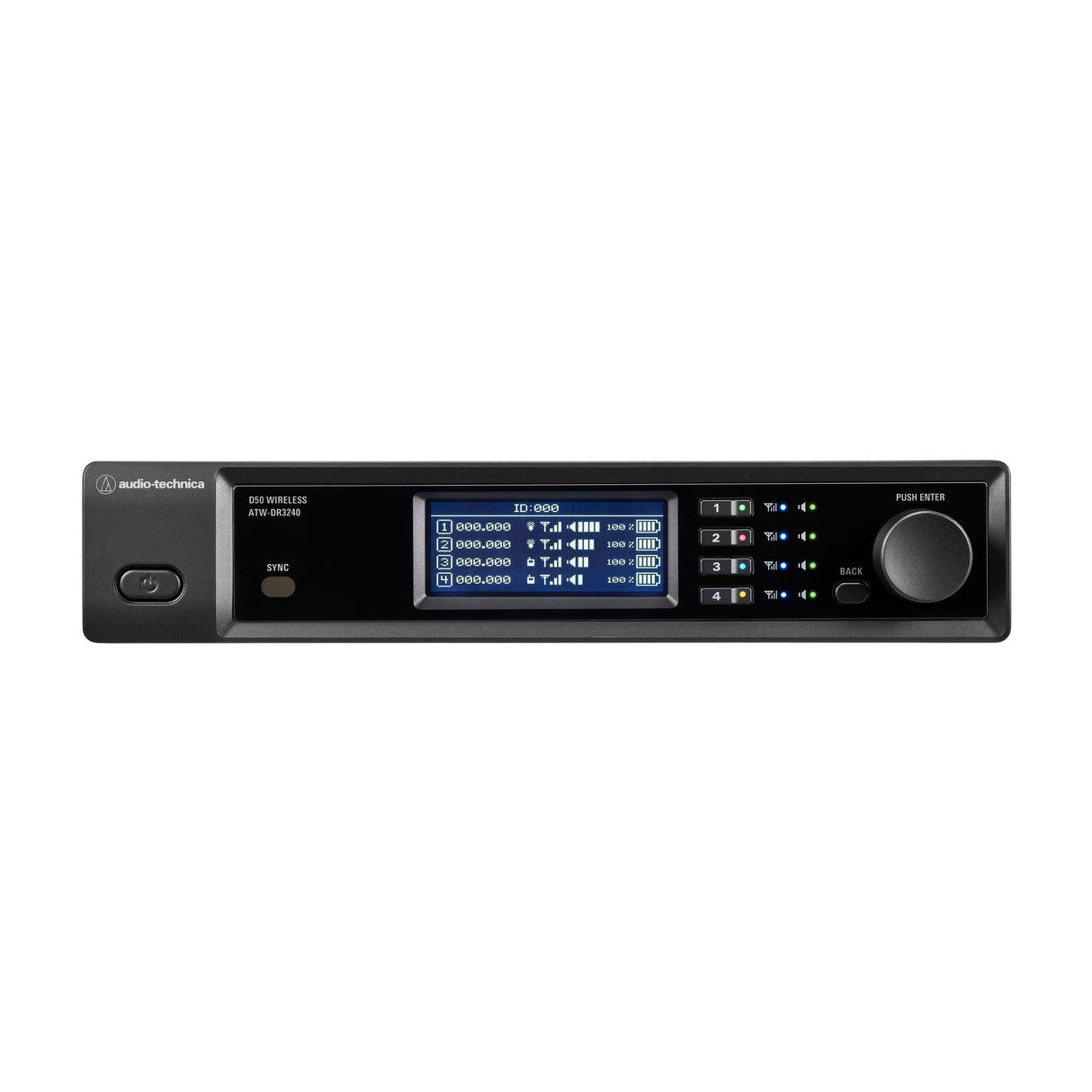

Audio-Technica ATW-DR3240DANDF2 D50 4-Channel Wireless Dante Rackmount Receiver, DF2 470-608 MHz
The Audio-Technica ATW-DR3240DANDF2 D50 4CH Dante® RX is a Dante-enabled 4-channel half-rack receiver designed for the D50 digital UHF wireless system. Built for professional audio installations, live production, broadcast environments, houses of worship, corporate AV, and performance venues, this receiver delivers flexible wireless operation with advanced network audio capabilities. With four channels of reception in a compact half-rack design, the ATW-DR3240DANDF2 helps streamline complex wireless setups while maintaining the reliability and performance expected from Audio-Technica professional wireless systems.
This receiver operates with two switchable RF modes to support different wireless environments. Normal mode uses Antenna Combining Diversity, while robust mode uses MRC True Diversity for enhanced RF stability when signal reliability is critical. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. This makes the system highly practical for multi-channel installations where rack space, antenna setup, and workflow efficiency matter.
The D50 system also includes an HD high-density mode, allowing users to expand from the standard 17 frequencies within a 6 MHz TV channel block to up to 47 frequencies in HD mode. This is especially useful in congested RF environments such as large cities, event venues, and production spaces where available spectrum may be limited. The receiver also supports AES256 encryption, onboard DSP, Dante redundancy, daisy-chaining, 96 kHz high-resolution audio, Wireless Manager monitoring, spectrum analysis, IR sync, and device configuration for a professional wireless audio workflow.
Key Features
- Dante-enabled 4-channel half-rack receiver for the Audio-Technica D50 digital UHF wireless system
- DF2 operating frequency range from 470.125 to 607.875 MHz
- Switchable RF operation between normal Antenna Combining Diversity and robust MRC True Diversity
- Standard mode supports up to 17 channels per 6 MHz TV channel
- HD mode expands channel density for congested RF environments
- Up to four receivers can be linked and operated without antenna distribution using a single antenna pair
- Dante primary and secondary ports support redundancy and daisy-chaining
- Receiver can be powered by the included AC adapter or PoE+
- PoE+ can function as a backup power source if AC power drops out
- Onboard DSP includes high-pass filter, 4-band EQ, and compressor settings for each channel
- AES256 encryption supports secure wireless audio transmission
- Spectrum analysis and IR sync help simplify setup and configuration
- Wireless Manager software supports monitoring, detailed EQ and compressor configuration, firmware updates, and advanced walk test features
- Multipoint receiver function allows a transmitter to be detected by multiple D50 networked receivers
- Includes rack-mount accessories for half-rack or full-rack mounting configurations
Technical Specifications
Overall System
Operating Frequencies: DF2: 470.125 to 607.875 MHz
Modulation Mode: Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth: Standard: 192 kHz
HD mode: 96 kHz
Frequency Response: Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range: 328 ft
Open range environment with no interfering signals.
Dynamic Range: ATW-DT3201 Mic input: 120 dB, A-weighted, typical
ATW-DT3201 Instrument input: 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Simultaneous Use Recommended: Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay: Standard: 2.1 ms typical
HD mode: 3.3 ms typical
Audio Sampling Rate: Standard: 48 kHz
HD mode: 48 kHz
Encryption System: AES256
Notes: For product improvement, the product is subject to modification without notice.
Receiver & Transmitter Specifications
ATW-DR3240DAN Receiver
Receiving System: Robust: MRC true diversity
Normal: Antenna combining diversity
Image Rejection: 70 dB
RF Sensitivity: -98 dBm, 10⁻⁵ BER
Maximum Output Level: +18 dBV
Antenna Input: BNC, 50 ohms
Antenna Power: 12 V DC, 150 mA x2
Maximum Power Consumption: AC adapter: 22 W, 75 Btu/h
PoE+: 22 W, 75 Btu/h
Power Supply: 100 to 240 V AC 50/60 Hz
PoE+ IEEE 802.3at Class 4
Network: IP control: 100 Mbps
Dante: 1 Gbps
Operating Temperature Range: 23°F to 104°F
Storage Temperature Range: -4°F to 131°F
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake / rear exhaust
Dimensions: 8.3" x 11" x 1.7" W x D x H
Weight Without Included Accessories: 5.0 lbs
What’s Included
Included Accessories: Whip antenna x2
AC adapter AD-SA1230XA
AC cable
Rubber foot x4
Rack-mount adapter, short
Rack-mount adapter, long
Fixing screw x7, 3 for the bottom and 4 for the sides
BNC cable kit x2
