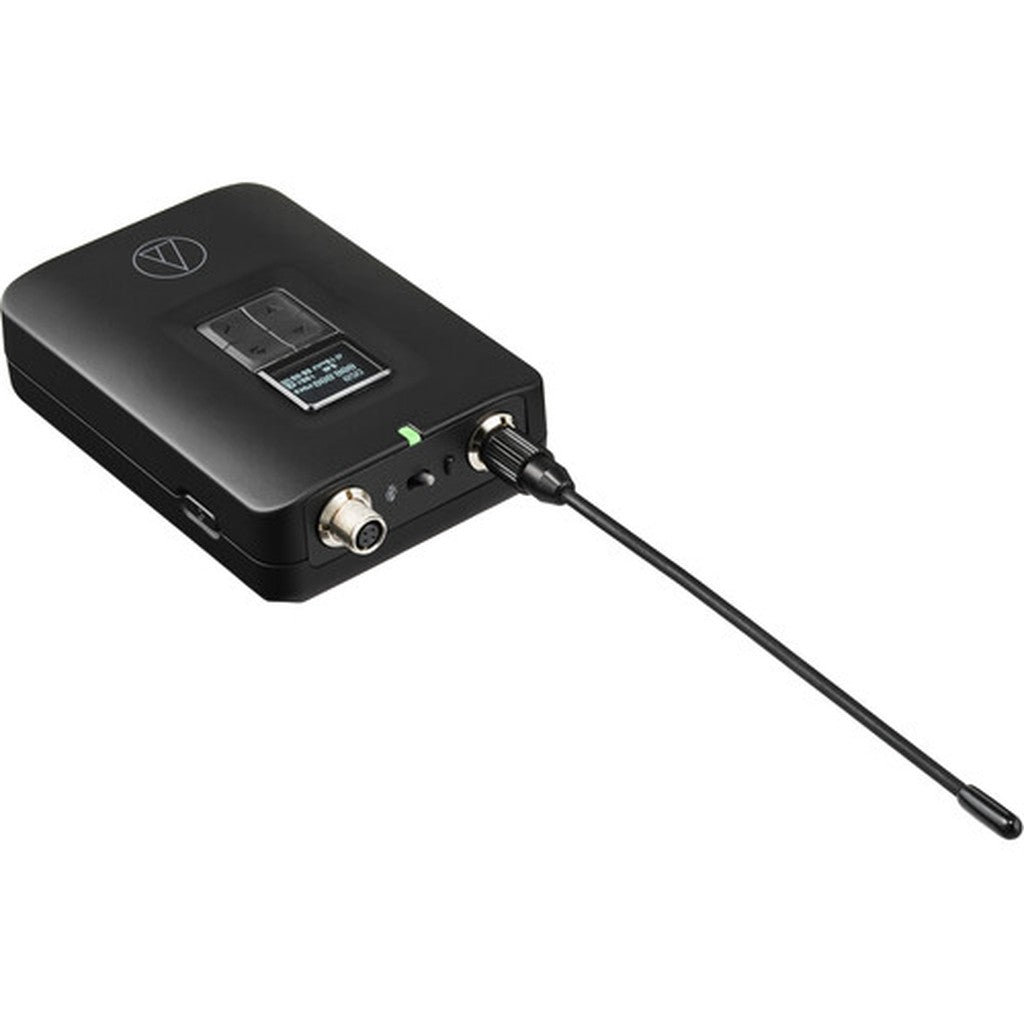

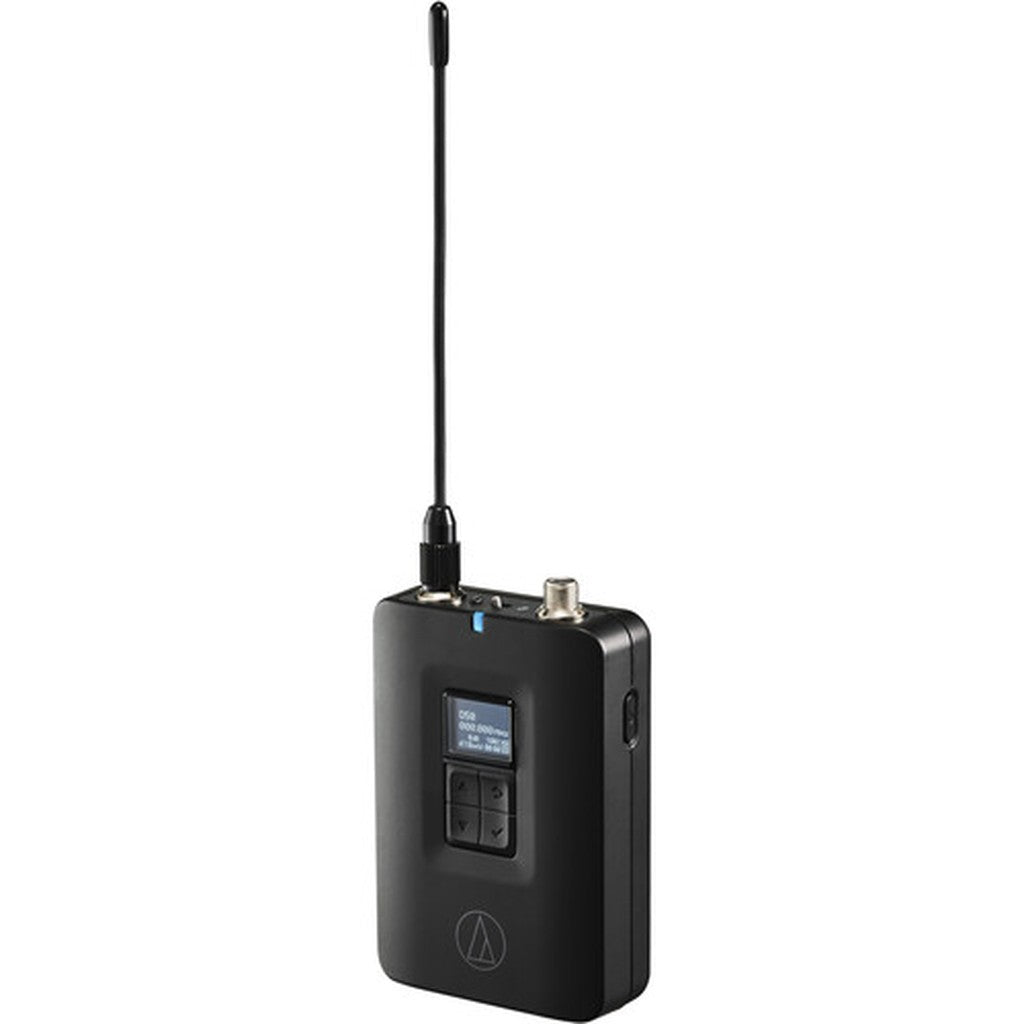

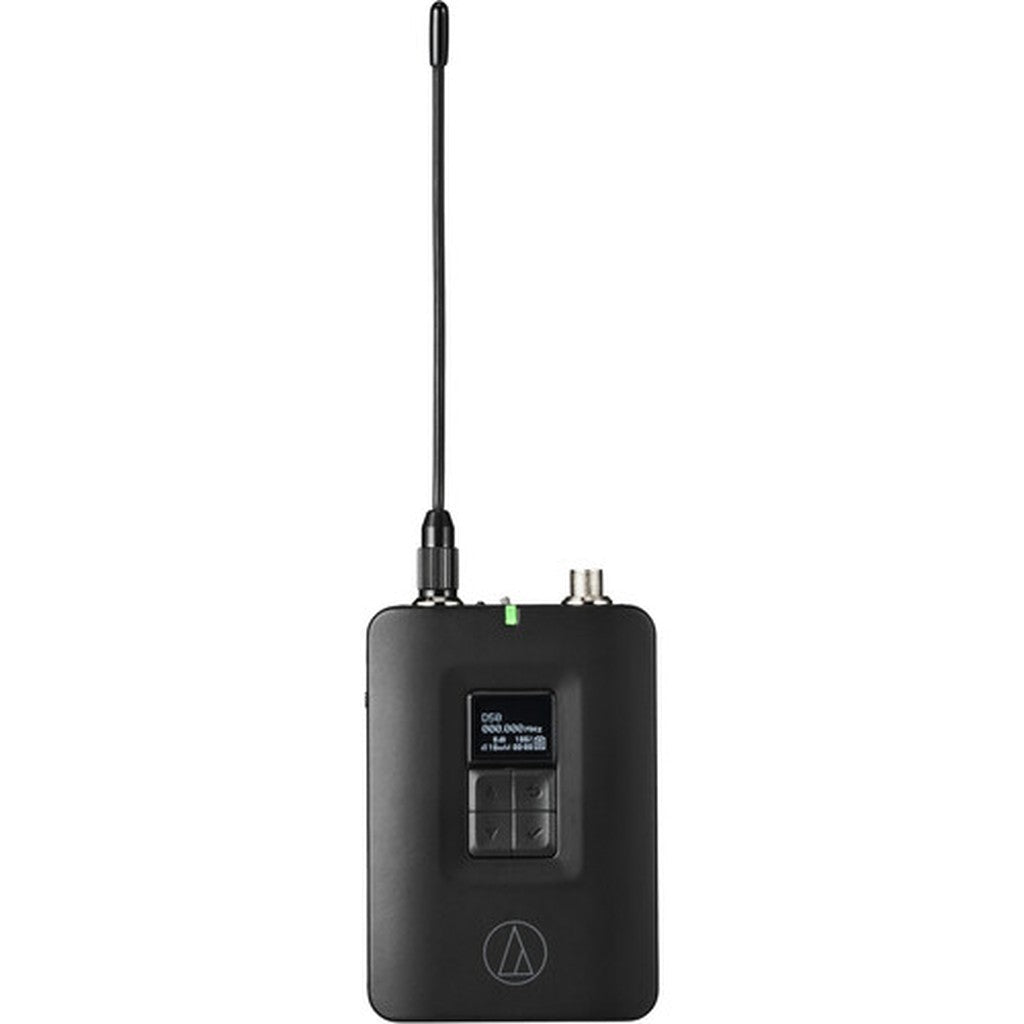

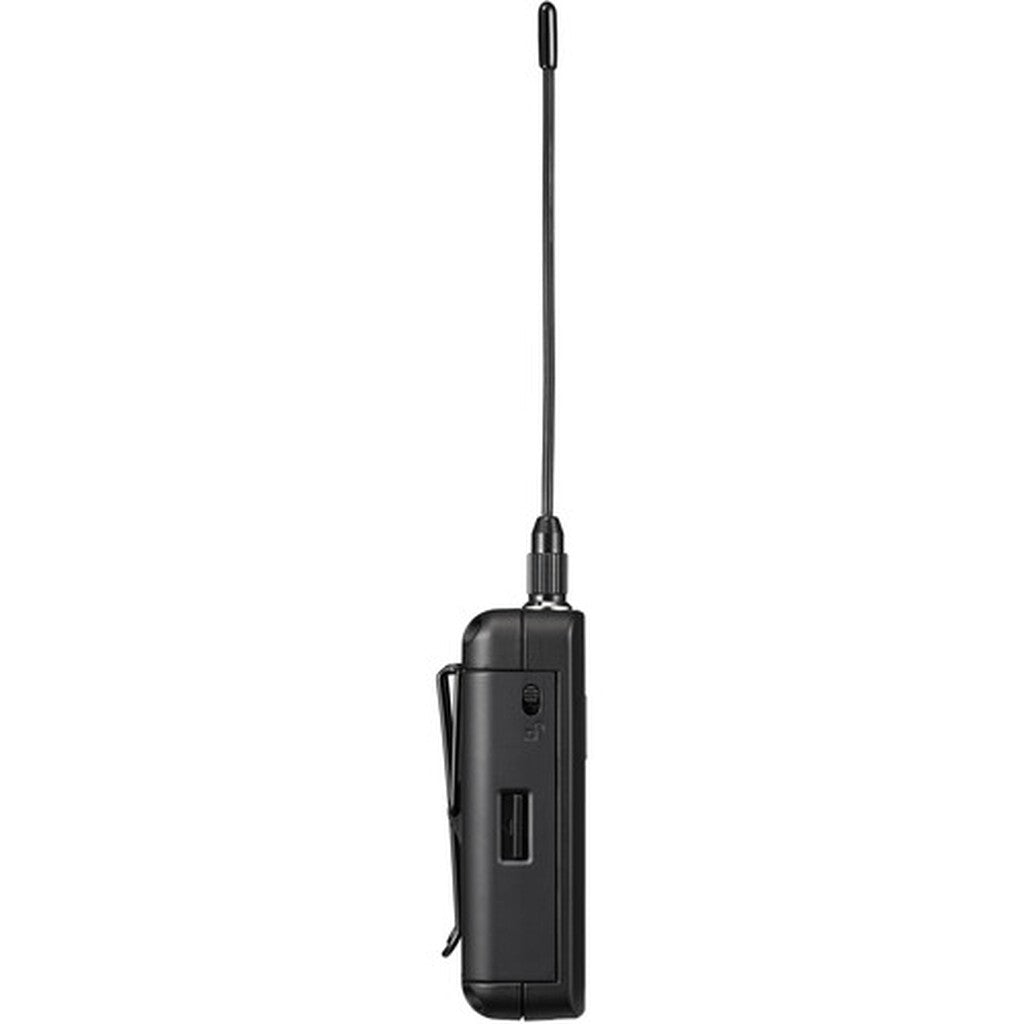

Audio-Technica ATW-DT3201DF2 D50 Digital UHF Body-Pack Transmitter

Audio-Technica ATW-DT3201DF2 D50 Digital UHF Body-Pack Transmitter

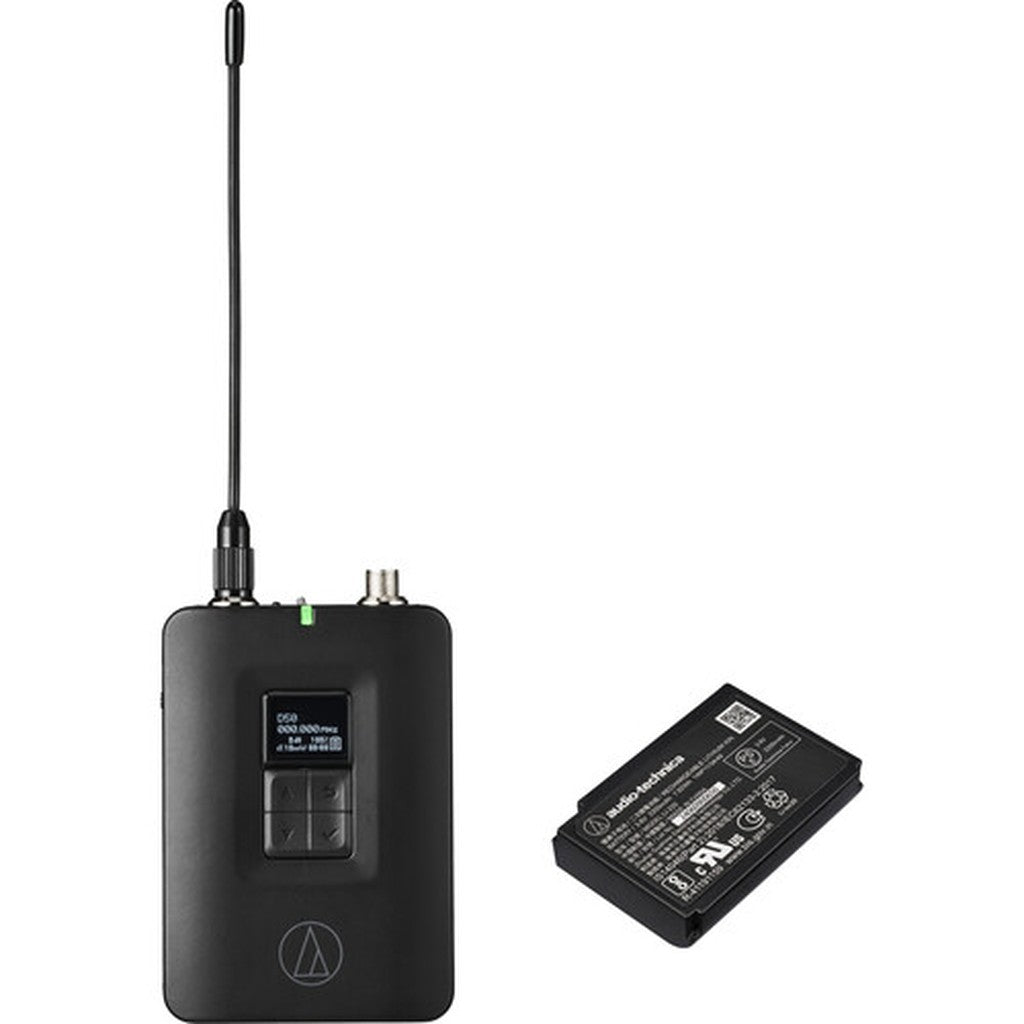

The Audio-Technica ATW-DT3201DF2 D50 digital UHF body-pack transmitter connects compatible lavalier microphones, headworn microphones, and instrument cables to a D50 wireless receiver. Its locking cH-style four-pin input, OLED display, mute switch, SideTrack routing, adjustable RF output, and rechargeable battery support secure professional audio transmission.

This compact D50 wireless body-pack transmitter suits live performances, theaters, houses of worship, corporate presentations, and professional productions. Presenters can build a wireless lavalier microphone system, while musicians can connect a compatible instrument cable. External controls provide quick adjustments without requiring access to concealed menus during an event.

AES256 encryption protects transmitted audio, while Standard and HD operating modes accommodate different RF requirements. The transmitter delivers a typical 120 dB dynamic range through its microphone input and 109 dB through its instrument input. IR synchronization, seven-color channel identification, and an all-metal housing support organized, dependable professional workflows.

D50 Wireless Body-Pack Transmitter Key Features

• D50 System Compatibility: Connects compatible microphones and instrument cables to an Audio-Technica D50 digital UHF receiver.

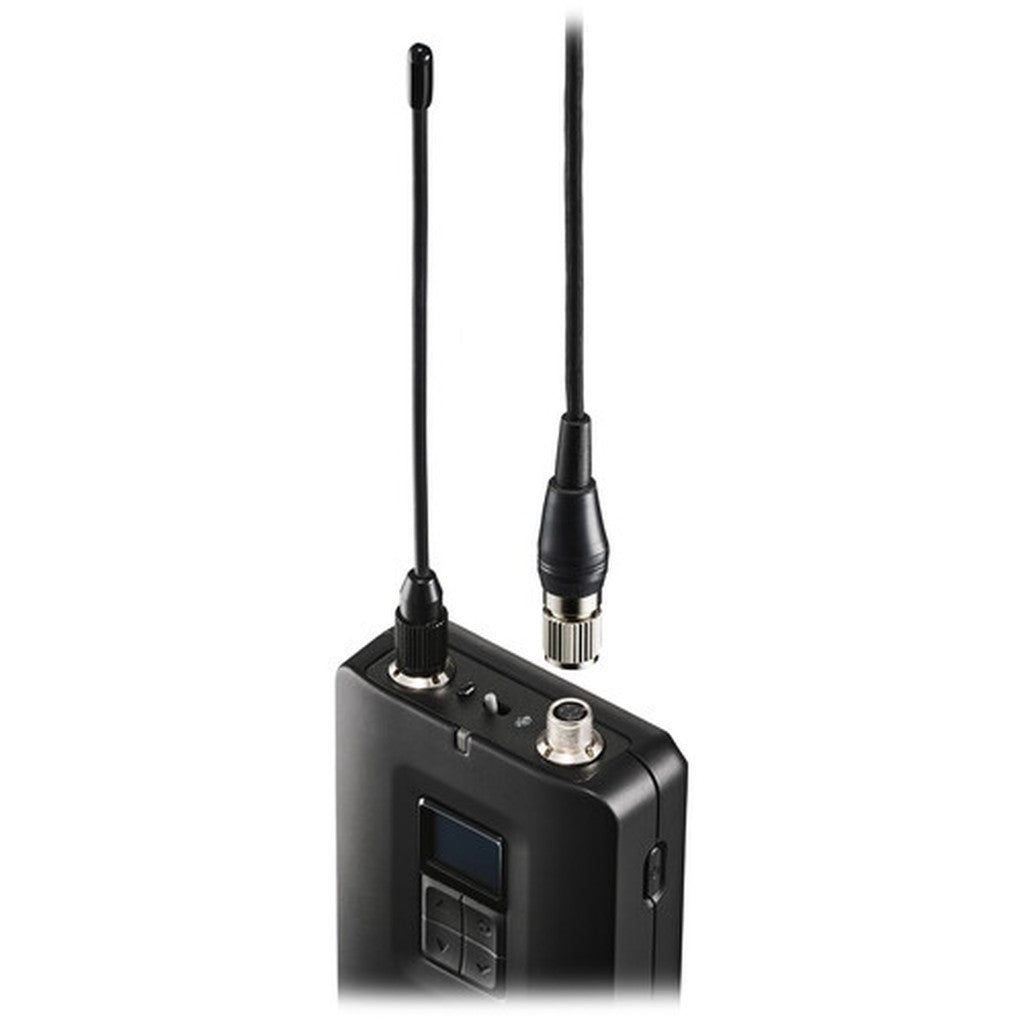

• Locking cH-Style Input: Secures compatible lavalier microphones, headworn microphones, and cables through a screw-down four-pin connector.
• Adjustable RF Output: Provides selectable 20 mW, 10 mW, and 1 mW output settings in Standard mode.
• SideTrack Function: Routes audio to a second output for discreet communication when used with a compatible Dante-enabled receiver.
• OLED Status Display: Presents essential operating information through a clear, compact interface.
• External Mute Control: Gives performers and presenters direct access to transmitter muting during professional productions.
• Rechargeable Battery: Delivers up to 12 hours of operation at the 10 mW RF setting.
• All-Metal Construction: Withstands regular use in touring, rental, broadcast, presentation, and installed AV environments.

Audio-Technica ATW-DT3201DF2 Technical Specifications

• Product Type: Digital UHF body-pack transmitter
• Compatible Wireless System: Audio-Technica D50
• Microphone Included: No
• Operating Frequency Band: DF2
• Operating Frequencies: 470.125 to 607.875 MHz
• Modulation Mode: Standard: 8-PSK; HD: 16QAM
• Occupied Bandwidth: Standard: 192 kHz; HD: 96 kHz
• RF Output Power: Standard: 20 mW, 10 mW, or 1 mW; HD: 1 mW
• Frequency Response: 20 Hz to 20 kHz, depending on the attached microphone element
• Operating Range: Up to 328' in an open environment without interfering signals
• Microphone Input Dynamic Range: 120 dB, A-weighted, typical
• Instrument Input Dynamic Range: 109 dB, A-weighted, typical
• Total Harmonic Distortion: 0.1% or less at 1 kHz and -20 dBFS
• Recommended Maximum Simultaneous Use: Standard mode: 17 channels per 6 MHz
• Latency: Standard: 2.1 ms typical; HD: 3.3 ms typical
• Audio Sampling Rate: 48 kHz
• Encryption: AES256

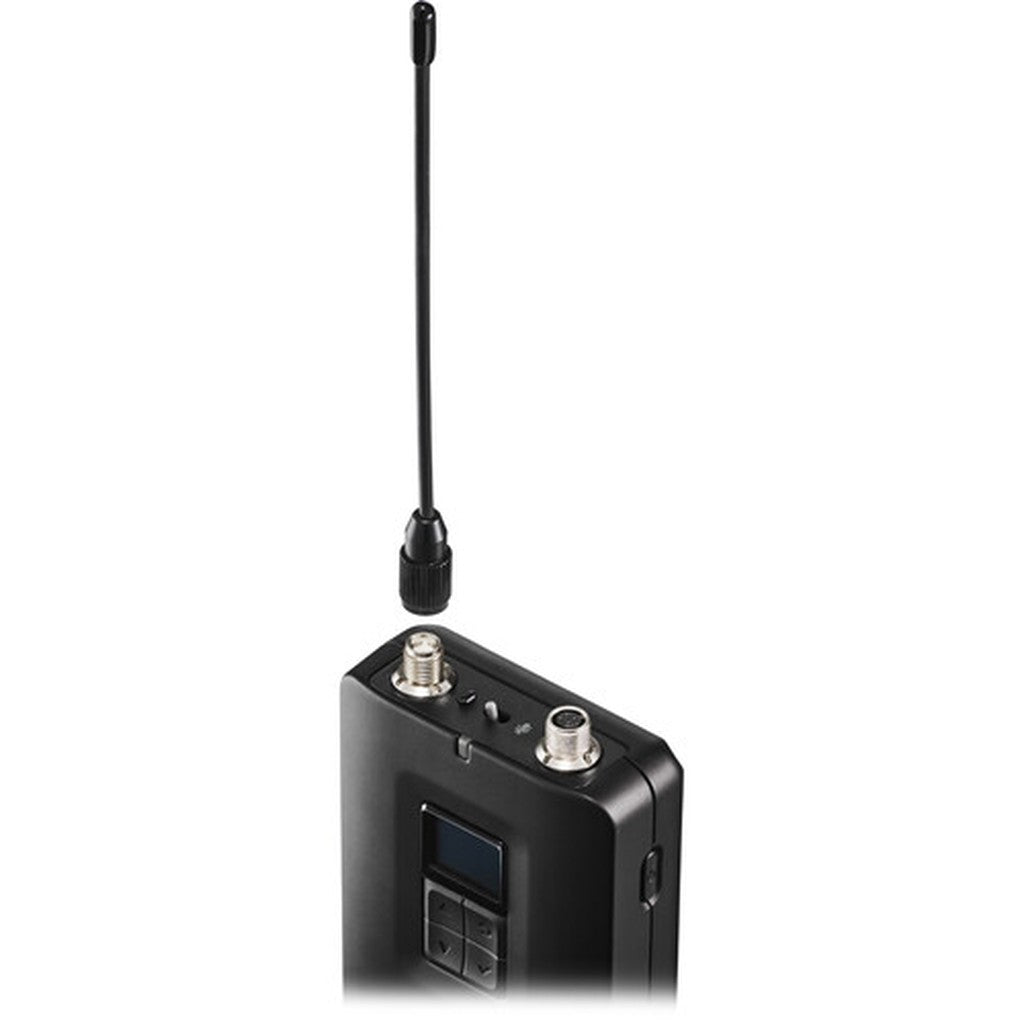

• Input Connector: Locking cH-style four-pin connector
• Connector Pin Configuration: Pin 1 ground, pin 2 instrument input, pin 3 microphone input, and pin 4 +10V DC bias
• High-Pass Filter: 120 Hz, 12 dB per octave
• Controls: External control buttons and mute switch
• Display: OLED status display
• Audio Routing: SideTrack secondary-output switching
• Synchronization: IR sync

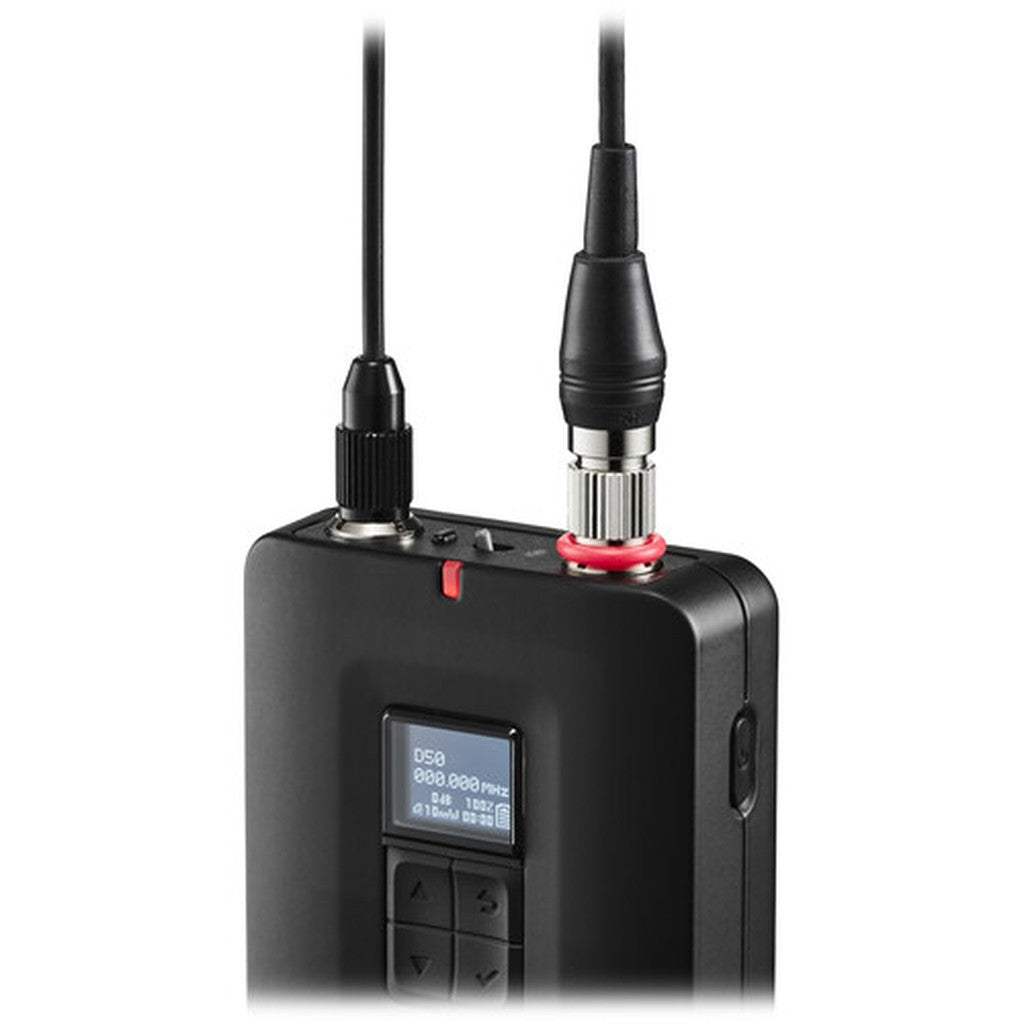

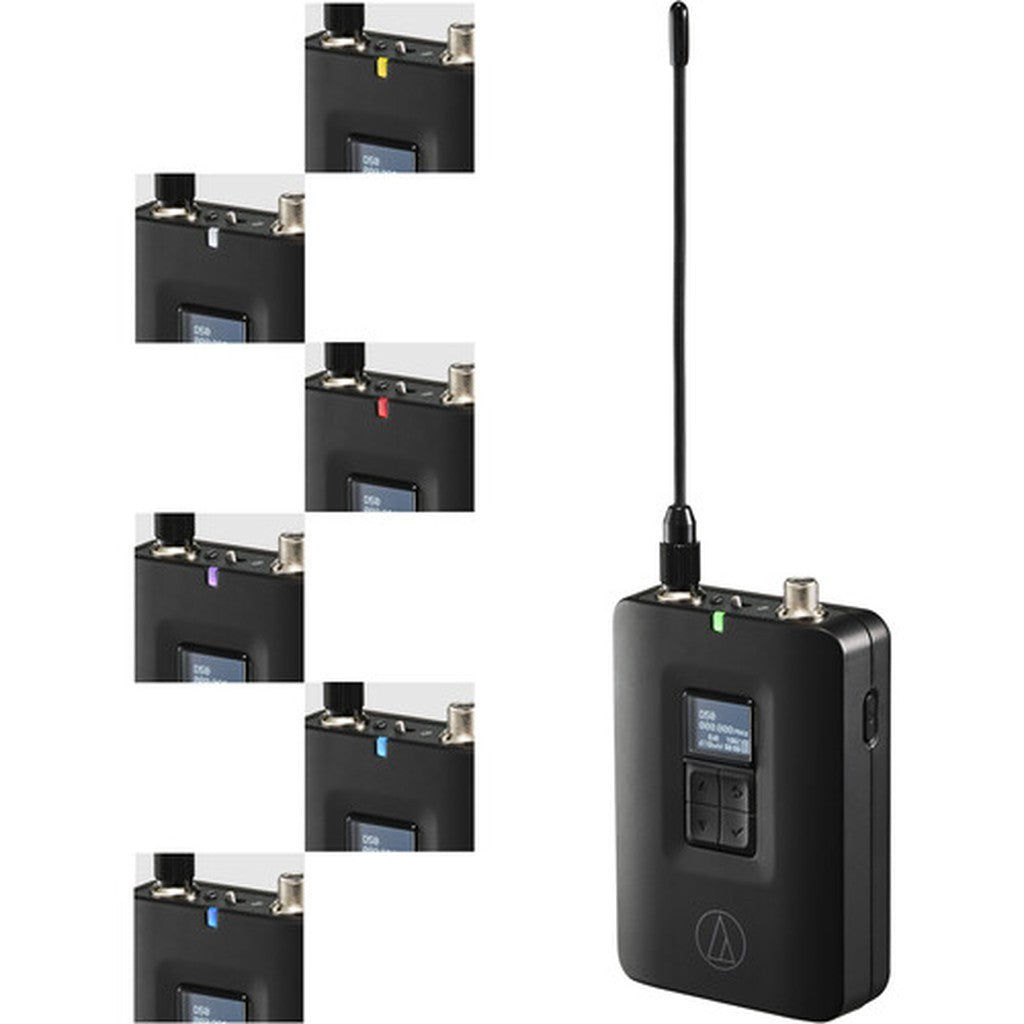

• Channel Identification: Seven-color LED and physical color rings

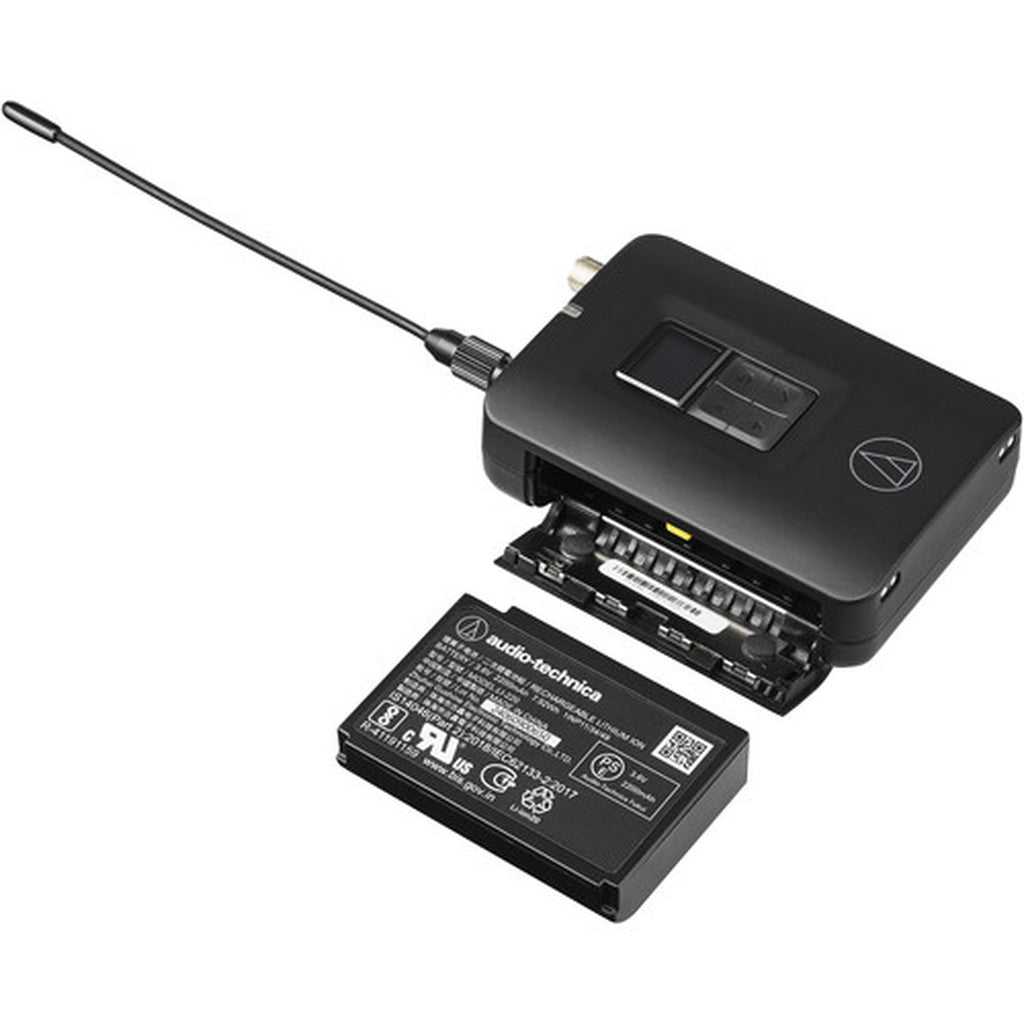

• Battery: LI-220 rechargeable lithium-ion battery
• Battery Life: Up to 12 hours at 10 mW, depending on operating conditions
• Compatible Chargers: ATW-CHG6 two-bay charging station and ATW-CHGA6 battery charger
• Operating Temperature: 23°F to 113°F
• Storage Temperature: -4°F to 131°F
• Construction: All-metal housing
• Dimensions: 3.1" L x 2.2" W x 0.94" H
• Weight: 0.38 lbs with included battery

What's In the Box

• Audio-Technica ATW-DT3201 body-pack transmitter
• LI-220 rechargeable lithium-ion battery
• ATW-TI10 seven-color ring indicator kit
• Transmitter pouch
