Audio-Technica ATW-DT3202/C510DF2 D50 UHF Handheld Transmitter

Audio-Technica ATW-DT3202/C510DF2 Handheld Wireless Transmitter

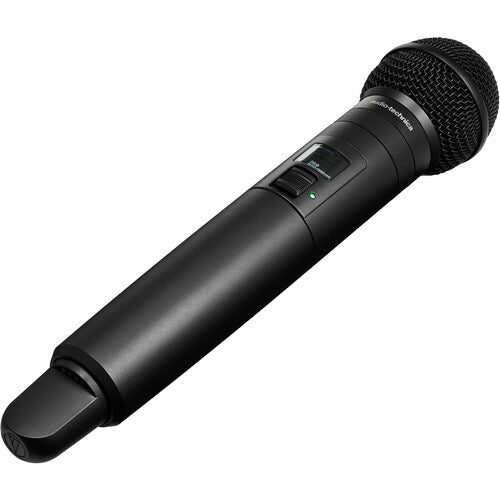

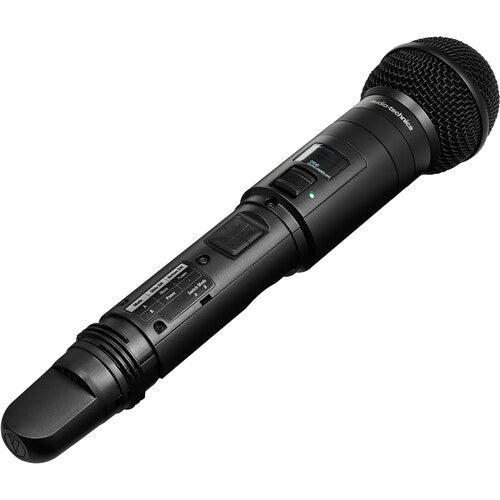

The Audio-Technica D50 TX510 is a rugged digital UHF microphone transmitter with an ATW-C510 cardioid dynamic capsule, OLED status display, programmable mute control, and SideTrack output switching. It delivers secure, high-fidelity voice transmission for professional performances, presentations, meetings, and installed sound systems.

Built for performers, presenters, houses of worship, education spaces, and corporate AV teams, this D50 handheld transmitter combines straightforward control with flexible capsule options. Buyers seeking a professional UHF handheld microphone transmitter, a D50 wireless microphone transmitter, or a handheld transmitter for live sound gain external controls, IR synchronization, channel color coding, and durable all-metal construction.

The interchangeable capsule interface supports Audio-Technica ATW-C4100, ATW-C6100, ATW-C3300, ATW-C5400, and ATW-C710 capsules. A rechargeable LI-320 lithium-ion battery provides up to 17.5 hours of operation at 10 mW. Within the D50 platform, AES256 encryption, 120 dB dynamic range, and Standard or HD modes support professional wireless workflows in complex RF environments.

D50 Digital UHF Transmitter Key Features

• ATW-C510 Cardioid Dynamic Capsule: Captures clear, focused vocals while reducing sound arriving from the sides and rear.

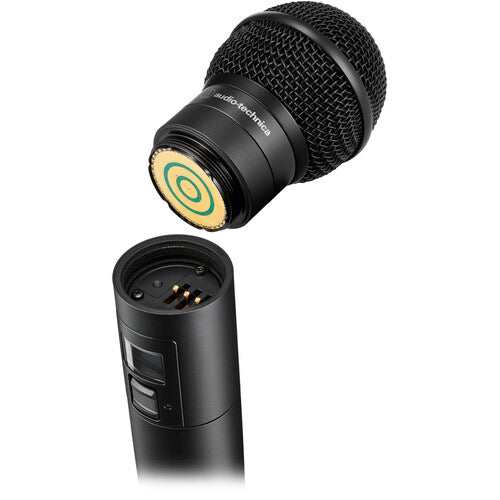

• Interchangeable Capsule Design: Supports multiple compatible Audio-Technica dynamic and condenser capsules for different performance applications.
• SideTrack Function: Switches audio between multiple outputs for discreet communication with performers, production staff, or audio engineers.

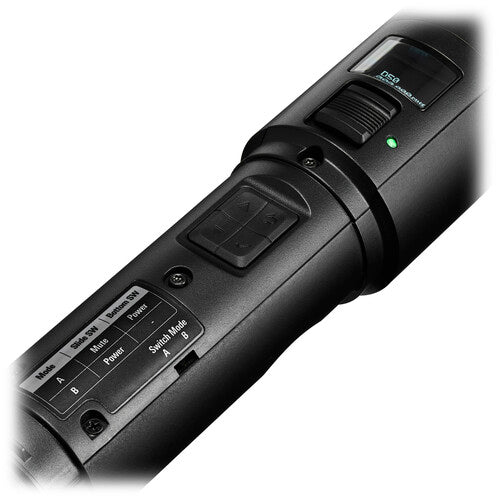

• OLED Status Display: Presents essential transmitter information through a clear, accessible interface.
• Programmable Mute Control: Provides flexible operation for presentations, live productions, meetings, and staged performances.
• IR Synchronization: Simplifies pairing and configuration with a compatible D50 receiver.

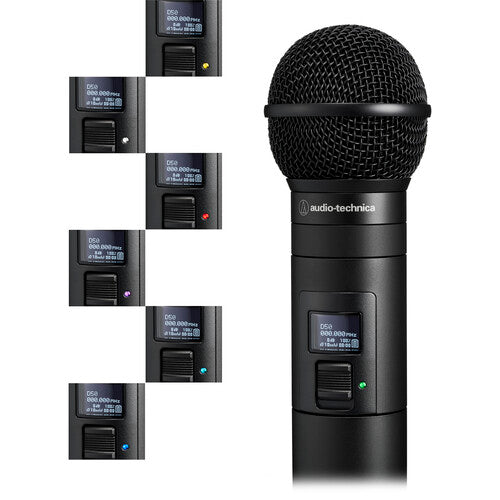

• Seven-Color Identification System: Uses an LED and physical color rings to help technicians identify assigned channels quickly.
• All-Metal Construction: Provides the durability required for professional touring, rental, production, and installed AV environments.

Audio-Technica ATW-DT3202/C510DF2 Technical Specifications

• Product Type: Digital UHF handheld wireless transmitter
• Compatible Wireless System: Audio-Technica D50

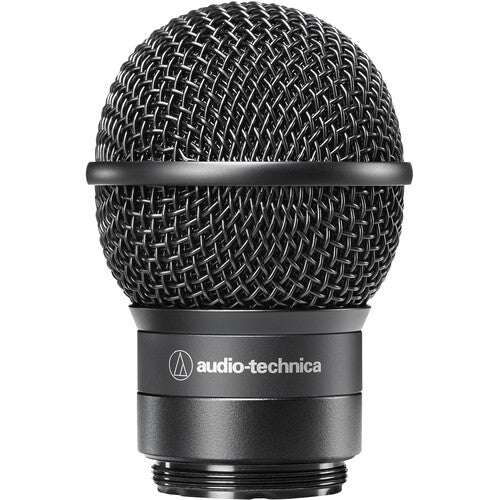

• Microphone Capsule: ATW-C510 cardioid dynamic capsule
• Capsule Interface: Interchangeable microphone capsule compatible
• Compatible Optional Capsules: ATW-C4100, ATW-C6100, ATW-C3300, ATW-C5400, and ATW-C710
• Operating Frequency Range: DF2 band, 470.125 to 607.875 MHz
• RF Output Power: Standard mode: 20 mW, 10 mW, or 1 mW; HD mode: 1 mW
• Modulation: Standard mode: 8-PSK; HD mode: 16QAM
• Occupied Bandwidth: Standard mode: 192 kHz; HD mode: 96 kHz
• Frequency Response: 20 Hz to 20 kHz, depending on the attached microphone capsule
• Operating Range: Up to 328' in an open environment without interfering signals
• Dynamic Range: 120 dB, A-weighted, typical
• Total Harmonic Distortion: 0.1% or less at 1 kHz and -20 dBFS
• Recommended Simultaneous Use: Standard mode: 17 channels per 6 MHz
• Latency: Standard mode: 2.1 ms typical; HD mode: 3.3 ms typical
• Audio Sampling Rate: 48 kHz
• Encryption: AES256
• High-Pass Filter: 120 Hz, 12 dB per octave
• Controls: External control buttons and programmable mute switch
• Display: OLED status display
• Synchronization: IR sync

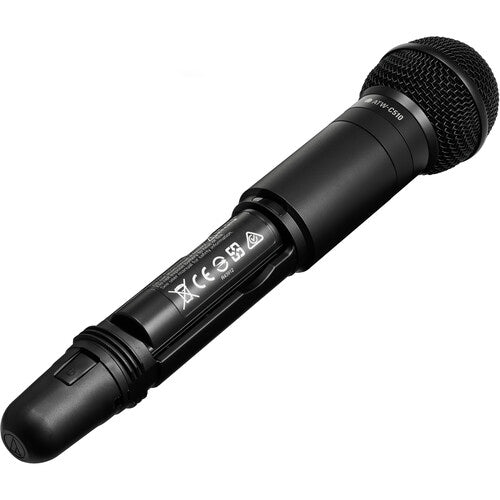

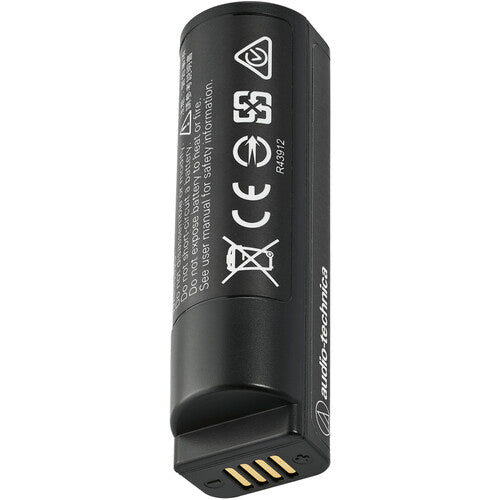

• Battery: LI-320 rechargeable lithium-ion battery
• Battery Life: Up to 17.5 hours at 10 mW, depending on operating conditions
• Charging Compatibility: ATW-CHG6 charging station or ATW-CHGA6 battery charger
• Operating Temperature: 23°F to 113°F
• Storage Temperature: -4°F to 131°F
• Construction: All-metal housing
• Dimensions: 10" long x 2.1" maximum diameter
• Weight: 0.81 lbs with included battery

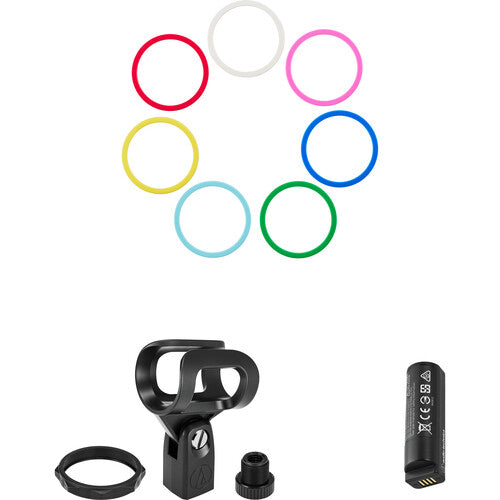

What's In the Box

• ATW-DT3202 handheld transmitter
• ATW-C510 cardioid dynamic microphone capsule
• LI-320 rechargeable lithium-ion battery
• AT8456a Quiet-Flex microphone stand clamp
• 5/8"-27 male to 3/8"-16 female threaded adapter
• ATW-RR1 removable anti-rolling ring
• Seven-color transmitter indicator set

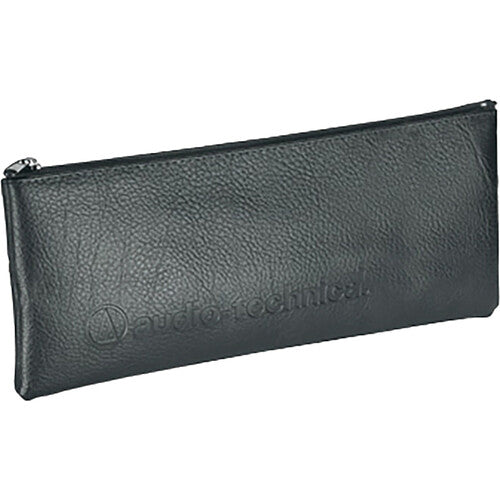

• Handheld transmitter storage pouch
