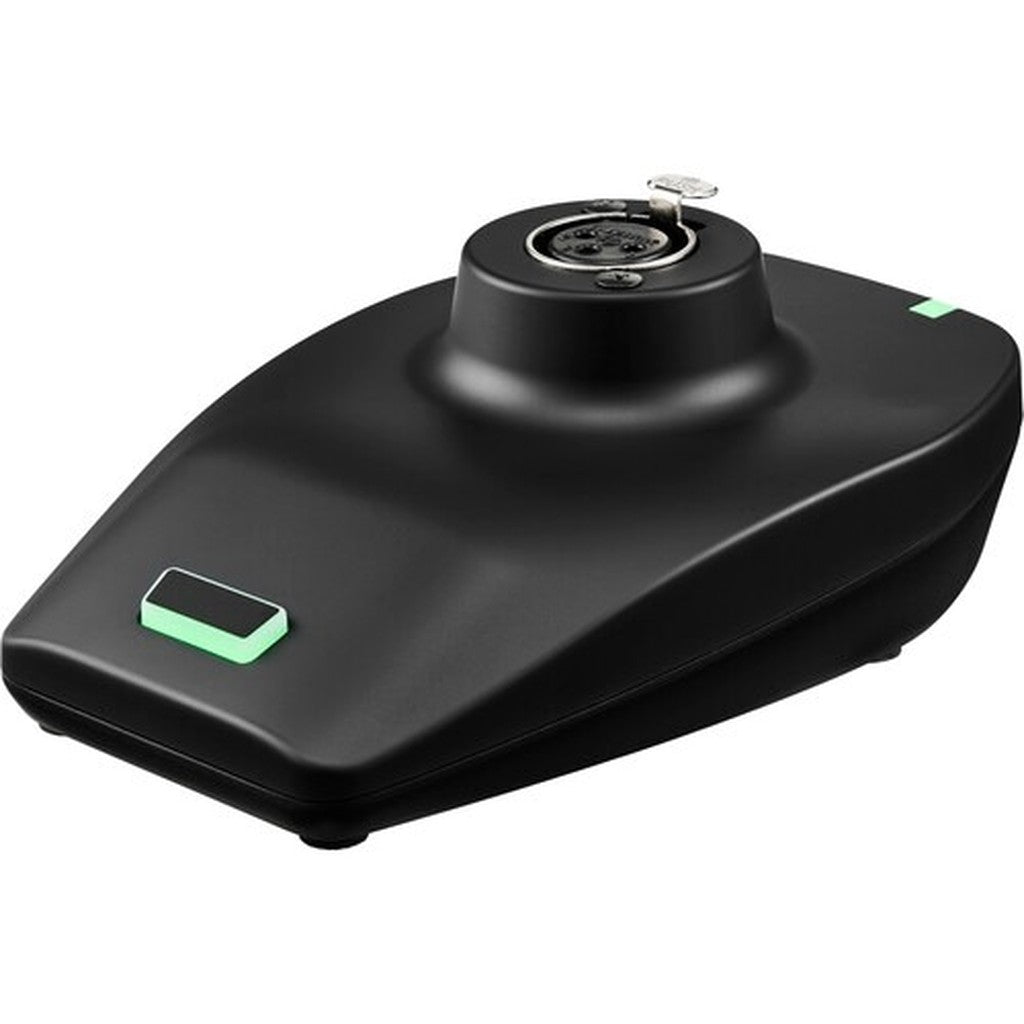

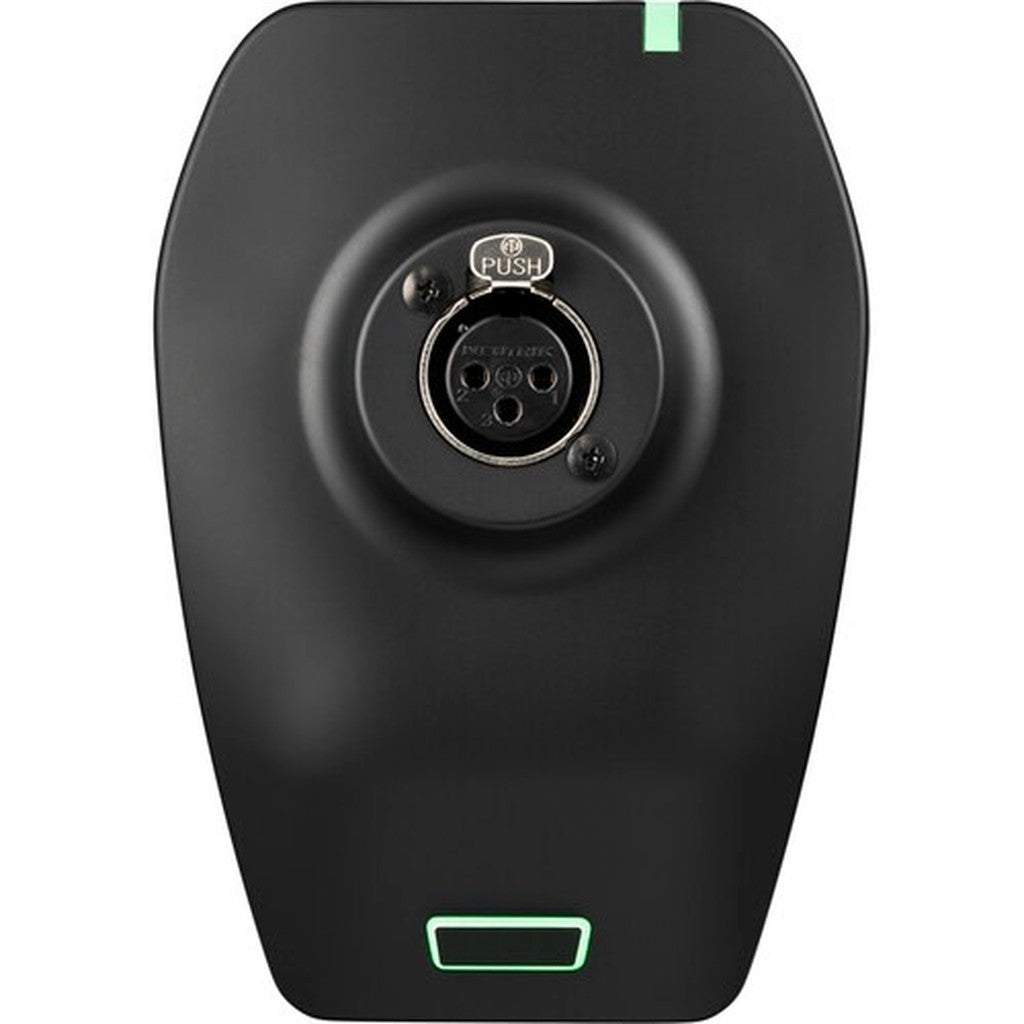

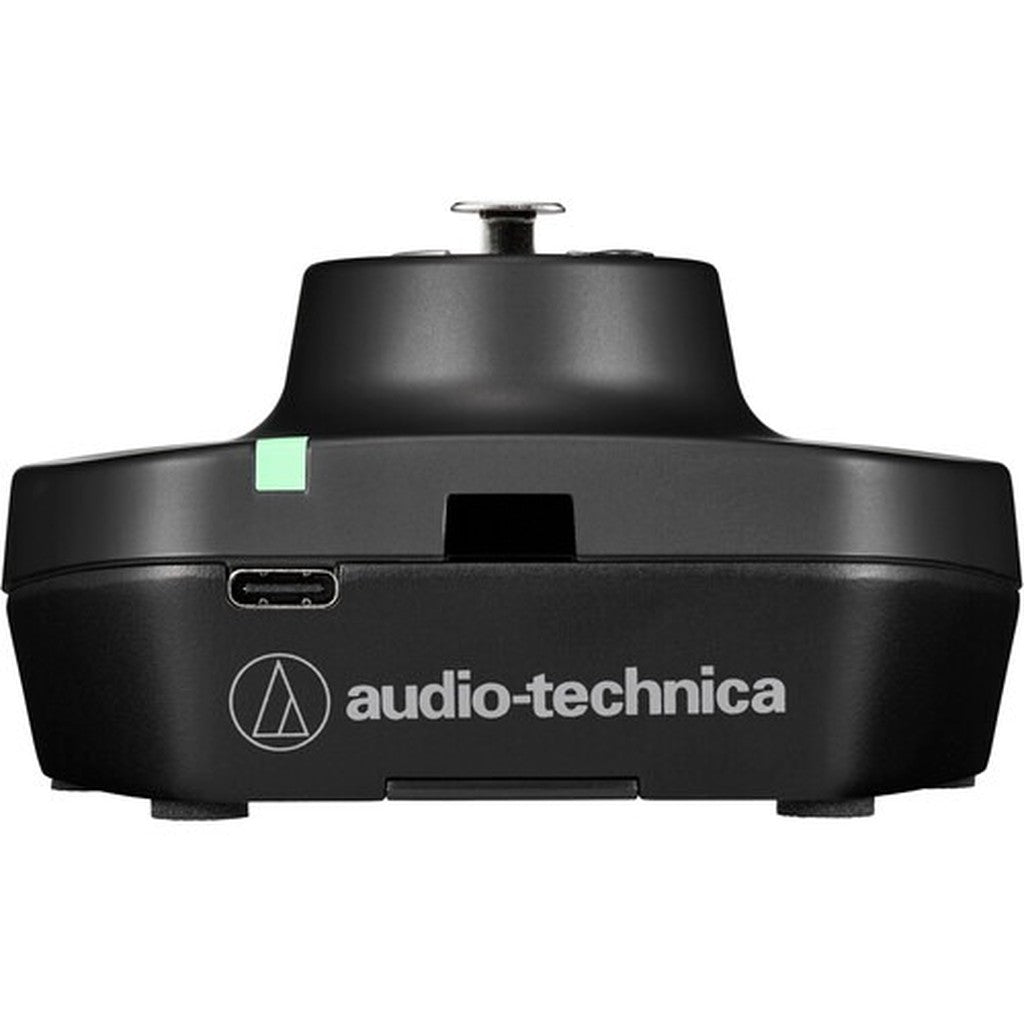

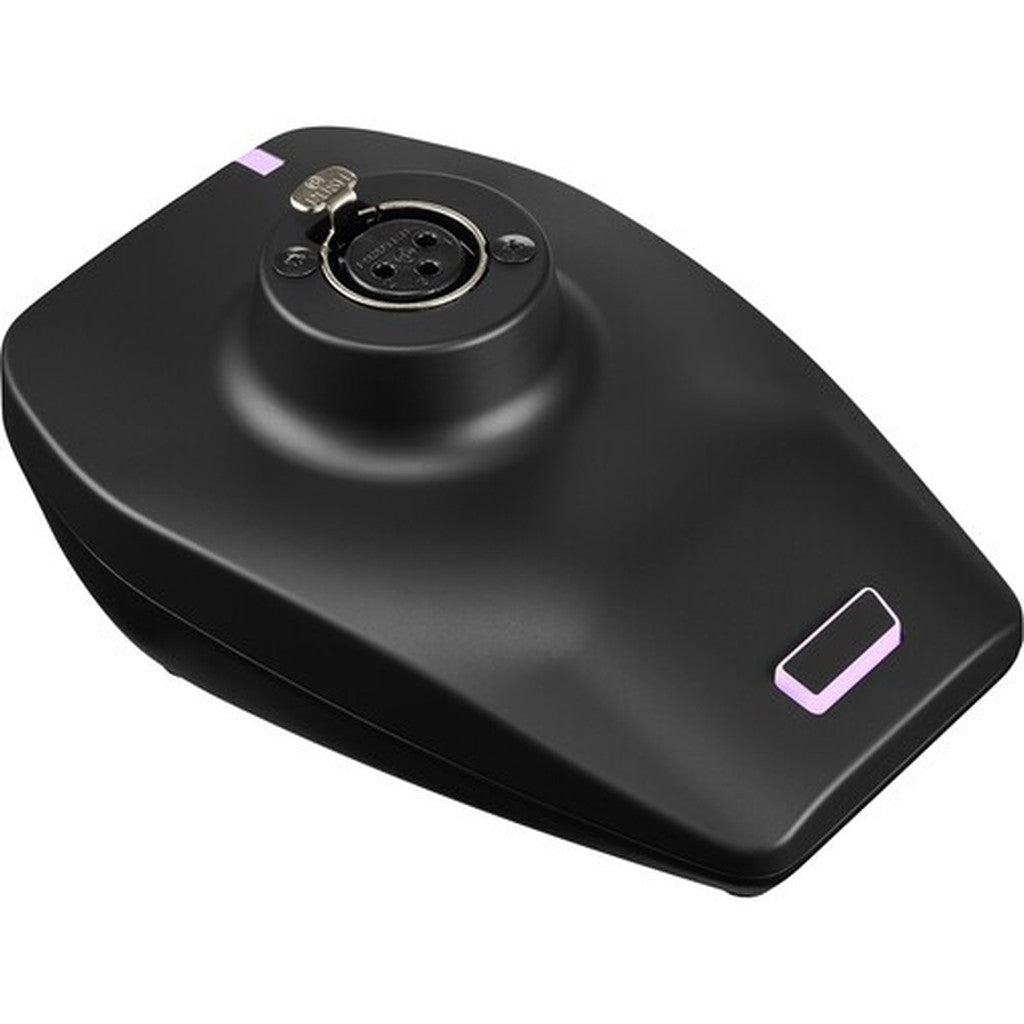

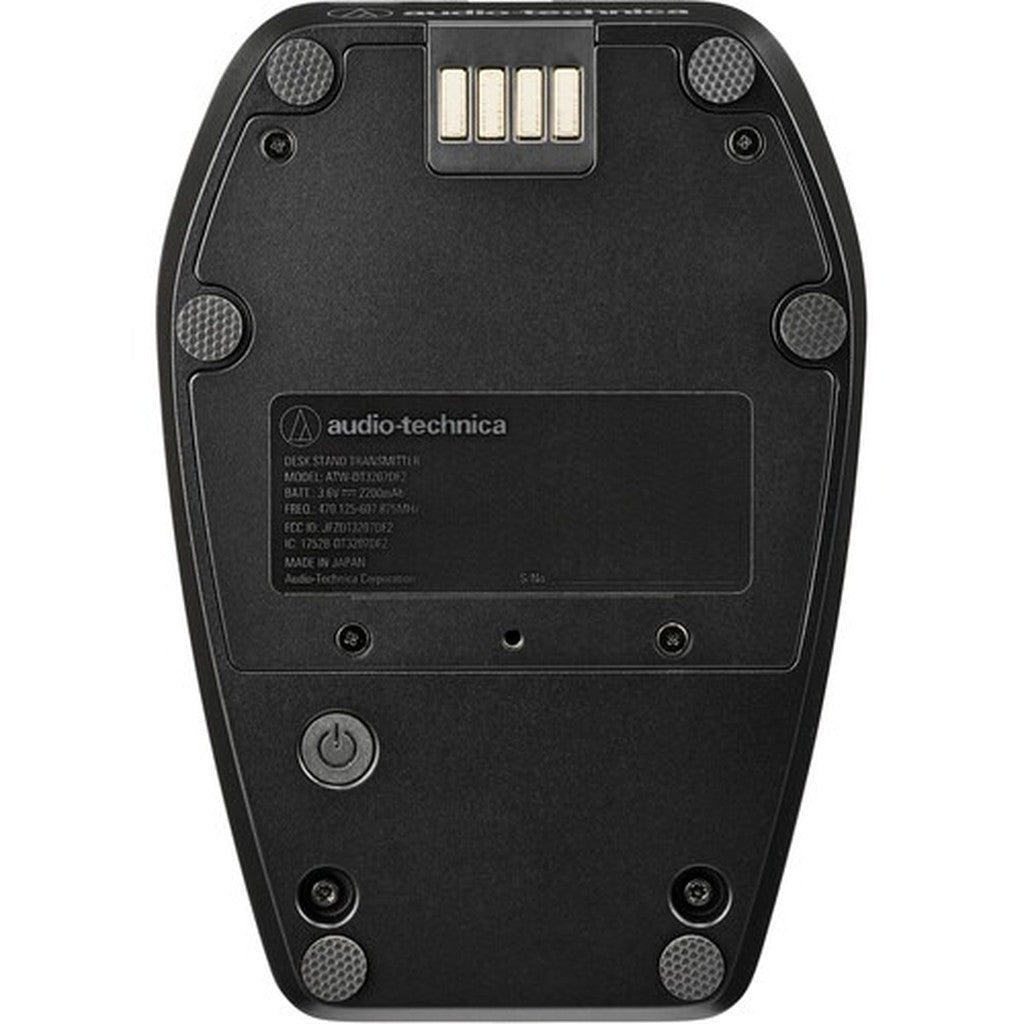

Audio-Technica ATW-DT3207DF2 D50 Wireless Desk Stand Transmitter

Audio-Technica ATW-DT3207DF2 D50 Wireless Desk Stand Transmitter

The Audio-Technica ATW-DT3207DF2 is a digital UHF desk stand transmitter built for D50 wireless conferencing systems. It connects compatible quick-mount gooseneck microphones through a 3-pin XLR female input, supplies 24V phantom power, and provides programmable talk-button control for meetings, presentations, panel discussions, and professional collaboration spaces.

This wireless gooseneck microphone base gives presenters and participants intuitive control without requiring a cable connection to the receiver. The talk button supports toggle mute, press-to-mute, and press-to-talk operation. Two configurable LEDs provide seven color choices and three illumination patterns, helping technicians identify channels and communicate microphone status across multi-user conference installations.

The DF2 tuning range covers 470.125 to 607.875 MHz, while selectable Standard and HD modes support different channel-density requirements. AES256 encryption protects sensitive discussions, and the metal enclosure withstands demanding commercial use. A replaceable lithium-ion battery, USB-C charging, IR synchronization, and compatibility with the optional four-bay charging station streamline daily operation in corporate, government, education, and meeting environments.

D50 Conference Transmitter Key Features

• Digital UHF Desk Stand: Creates a professional wireless microphone position for meetings, presentations, and moderated discussions.
• Gooseneck Microphone Connection: Accepts compatible quick-mount microphones through a 3-pin XLR female connector.
• 24V Phantom Power: Powers compatible condenser gooseneck microphones directly from the transmitter base.
• Programmable Talk Button: Supports toggle mute, press-to-mute, or press-to-talk operation for different conference workflows.
• Configurable LED Indicators: Offers seven colors and three operating patterns for clear microphone status and channel identification.
• Standard and HD Modes: Balances RF robustness with higher channel density in congested wireless environments.

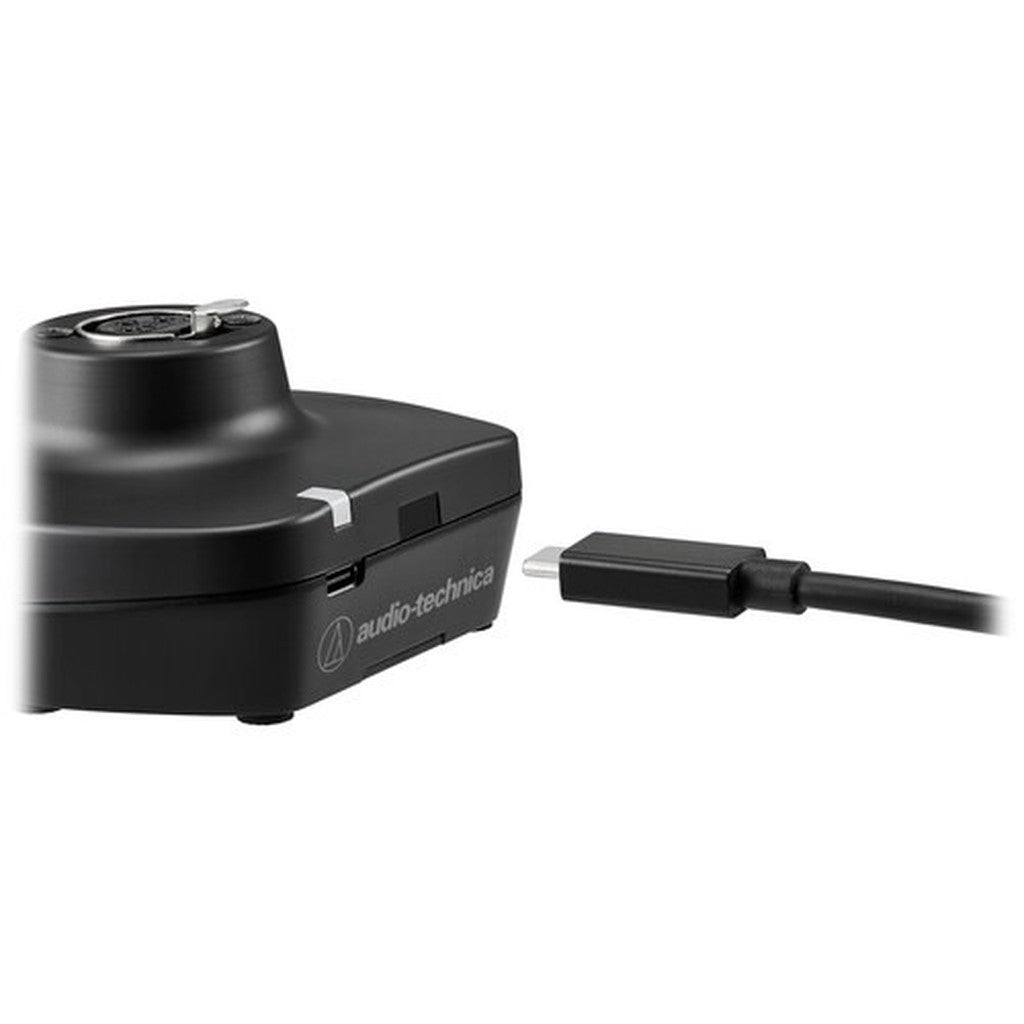

• Flexible Charging: Recharges through USB-C or the optional ATW-CHG7 four-bay charging station.
• Secure Wireless Audio: Uses AES256 encryption to protect professional meetings and confidential discussions.

Audio-Technica ATW-DT3207DF2 Technical Specifications

• Product Type: Digital UHF wireless desk stand transmitter
• Compatible Wireless System: Audio-Technica D50
• Application: Conferencing, meetings, presentations, and discussion systems
• Included Microphone: No microphone included
• Supported Microphone Type: Compatible quick-mount gooseneck microphone
• Microphone Input: 1 x 3-pin XLR female
• Input Level: Microphone level
• Phantom Power: 24V
• Operating Frequency Range: DF2 band, 470.125 to 607.875 MHz
• Wireless Technology: Digital UHF
• Modulation Mode: Standard mode: 8-PSK; HD mode: 16QAM
• Occupied Bandwidth: Standard mode: 192 kHz; HD mode: 96 kHz
• RF Output Power: Standard mode: 20 mW, 10 mW, or 1 mW; HD mode: 1 mW
• Operating Range: Up to 328' in an open environment without interfering signals
• Frequency Response: 20 Hz to 20 kHz, depending on the attached microphone
• Dynamic Range: 120 dB, A-weighted, typical
• Total Harmonic Distortion: 0.1% or less at 1 kHz and -20 dBFS
• Maximum Recommended Simultaneous Use: Standard mode: 17 channels per 6 MHz or 22 channels per 8 MHz; HD mode: 47 channels per 6 MHz or 63 channels per 8 MHz
• Latency: Standard mode: 2.1 ms typical; HD mode: 3.3 ms typical
• Audio Sampling Rate: 48 kHz
• Encryption: AES256
• High-Pass Filter: 120 Hz, 12 dB per octave
• Talk Button Modes: Toggle mute on/off, press to mute, and press to talk
• LED Indicators: Two configurable LEDs with seven colors and three operating patterns
• Synchronization: IR sync
• Antenna: Fixed
• USB Connection: USB-C with USB 2.0 for charging
• Charging During Operation: Supported through USB-C
• Battery: LI-220 replaceable rechargeable lithium-ion battery
• Battery Life without Microphone LED: Approximately 9.5 hours at 10 mW
• Battery Life with Microphone LED: Approximately 7.5 hours at 10 mW
• Compatible Charging Station: ATW-CHG7 four-bay charging station
• Operating Temperature: 23°F to 113°F
• Storage Temperature: -4°F to 131°F
• Housing: Metal
• Dimensions: 5.1" L x 3.56" W x 2.1" H
• Weight: 1.09 lbs with included battery

What's In the Box

• Audio-Technica ATW-DT3207DF2 desk stand transmitter
• LI-220 rechargeable lithium-ion battery
• ATW-TI70 seven-color ring indicator kit
