Audio-Technica BP892x-TH Omnidirectional Earset with Detachable Cable and AT8545 Power Module, Beige

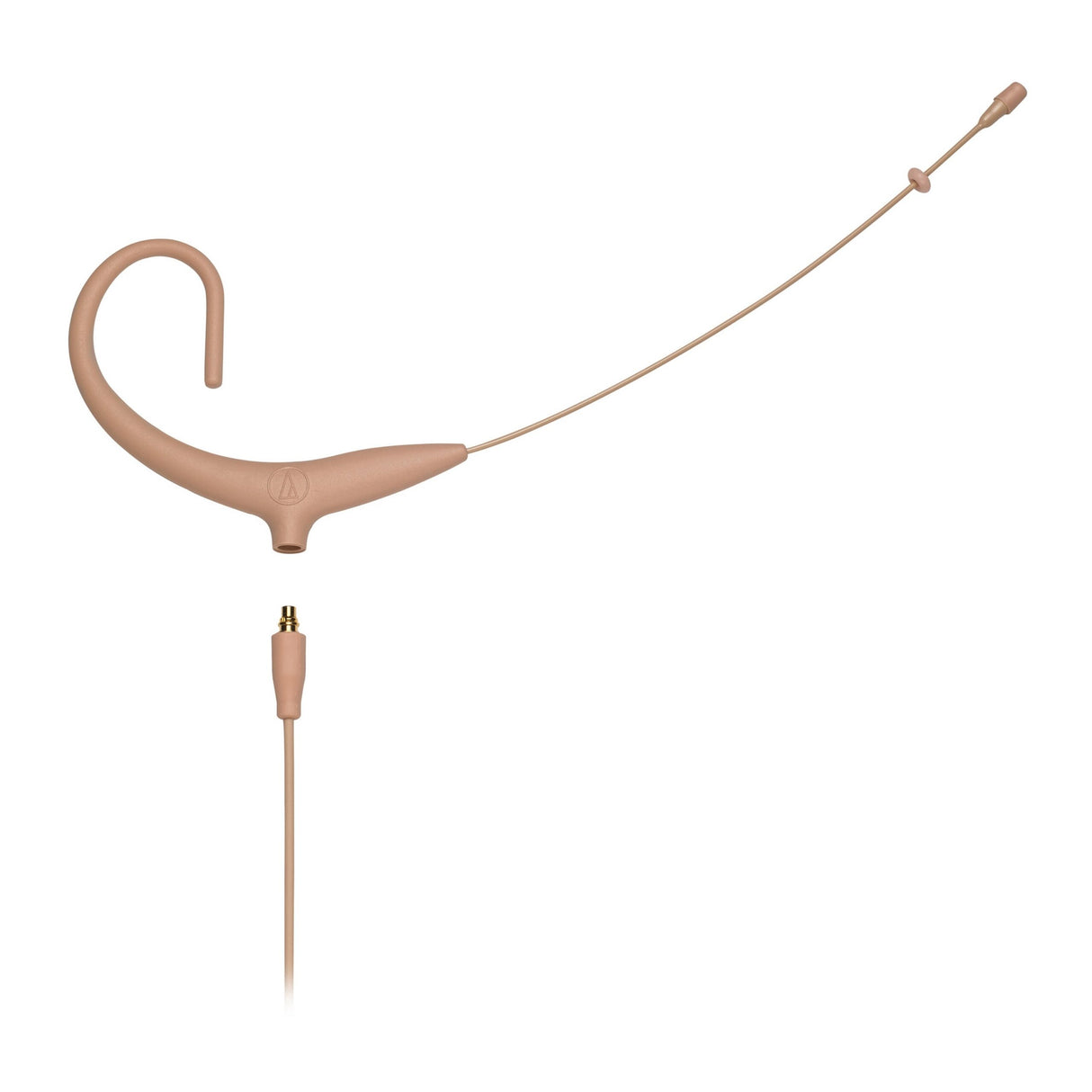

Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight, high-SPL BP892x MicroSet hooks securely behind either ear for hours of comfortable use. Its subminiature omnidirectional condenser capsule delivers clear, natural audio with a flat, extended frequency response. Like the other two BP89x models, the BP892x includes a detachable, field-replaceable cable with a variety of available terminations for use in wired and wireless applications.
Key Features
- Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
- Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
- Ergonomic under-ear designthe flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
- Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
- Handles high sound pressure levels with ease

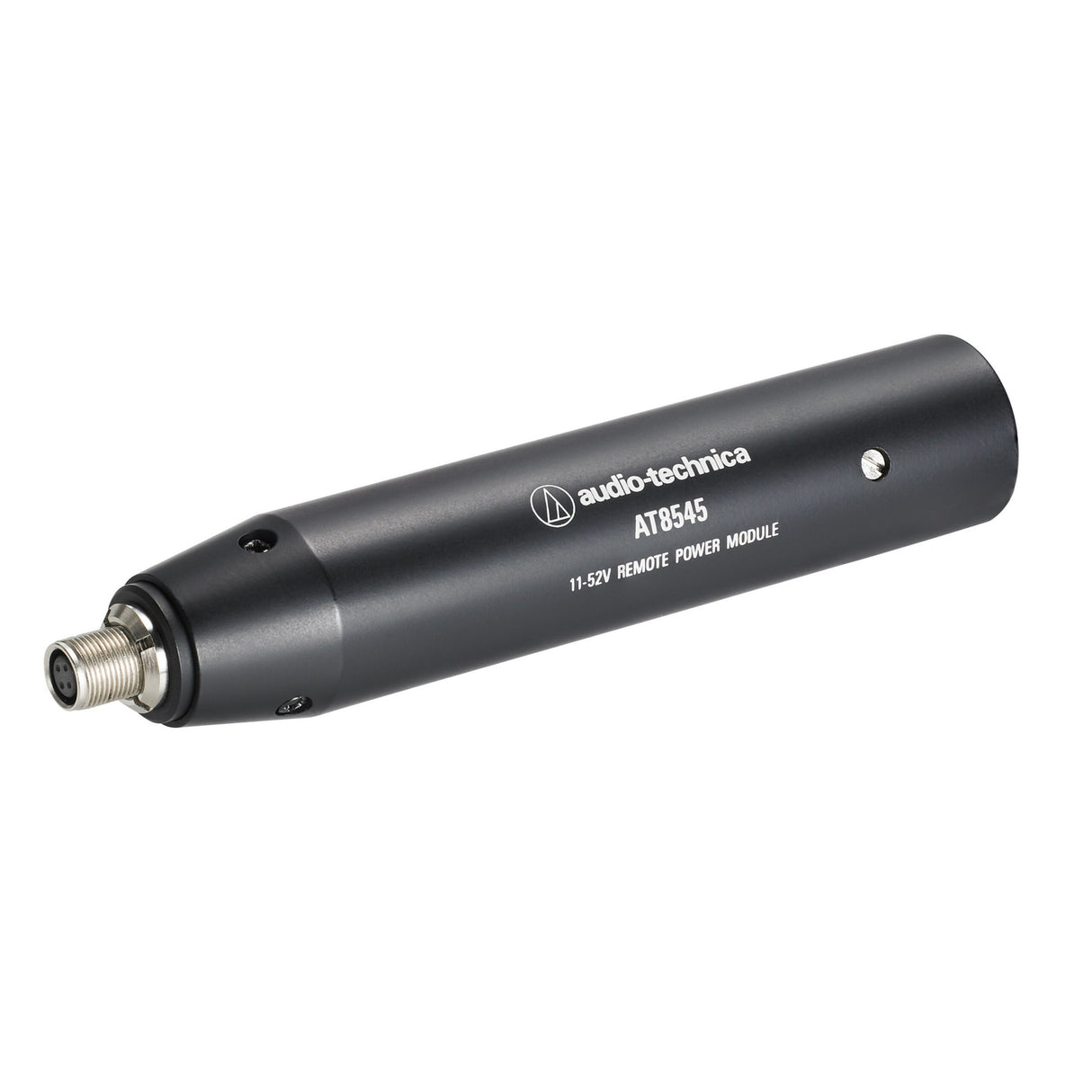

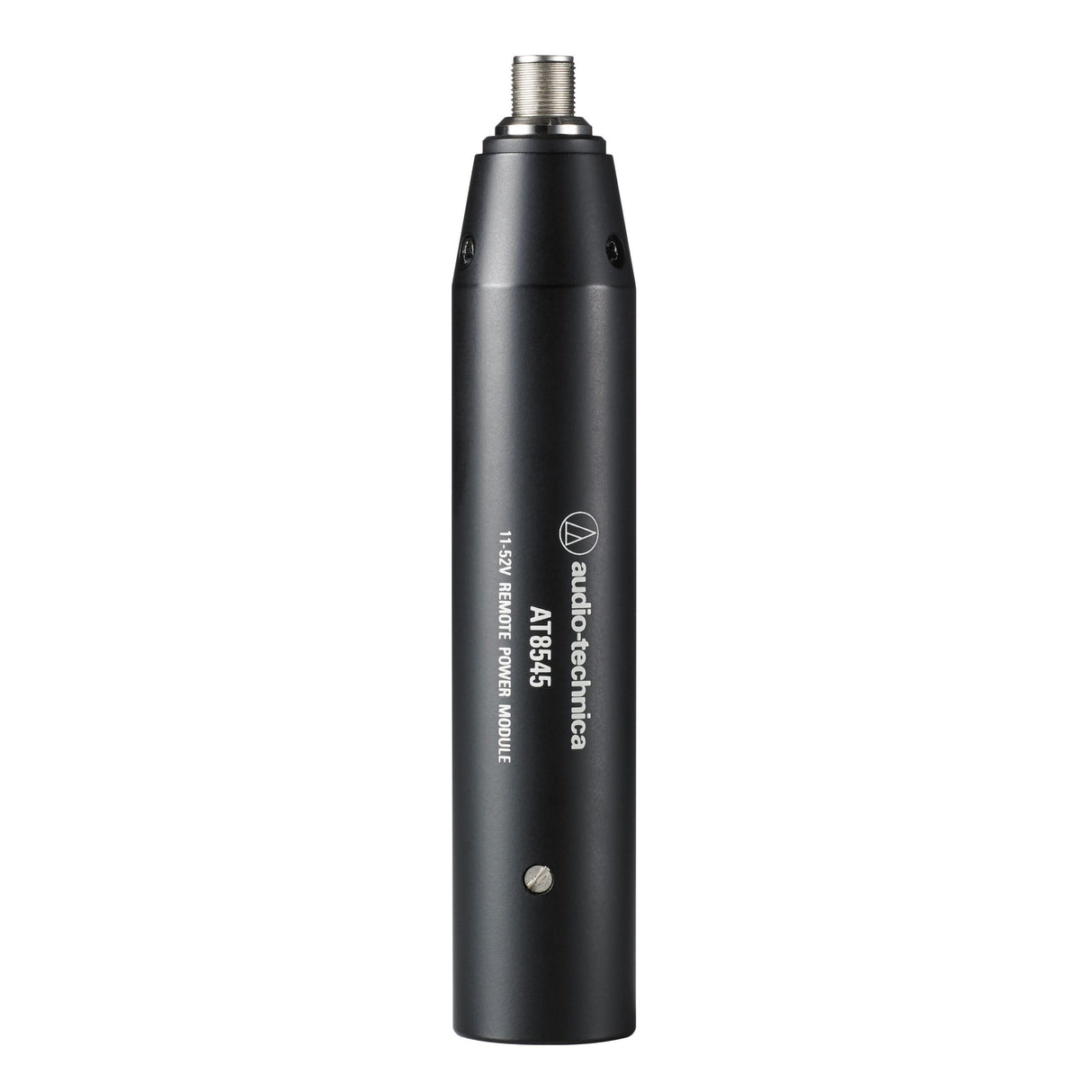

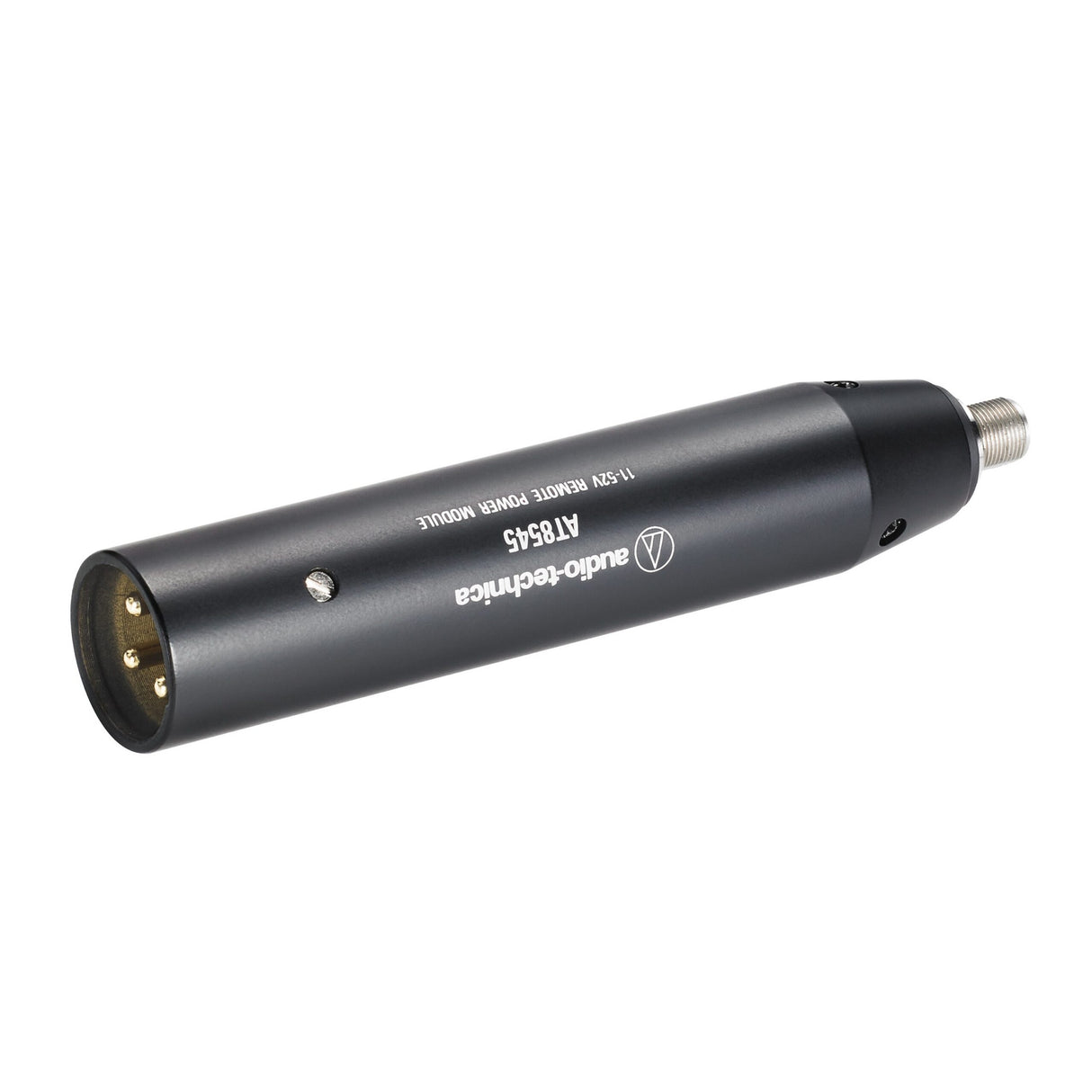

- Wired versionās power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit thatās worn on both ears for maximum stability and comfort
- Constructed of hypoallergenic materials
Technical Specifications
Element
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
Omnidirectional
Frequency Response
20-20,000 Hz
Low Frequency Roll-Off
80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity
-43 dB (7.2 mV) re 1V at 1 Pa
Impedance
250 ohms (wired only)
Maximum Input Sound Level
136 dB SPL, 1 kHz at 3% T.H.D.
Dynamic Range (Typical)
104 dB, 1 kHz at 3% T.H.D. Max SPL
(wired only)
Signal-to-Noise Ratio
63 dB, 1 kHz at 1 Pa
Phantom Power Requirements
11-52V DC, 2 mA typical (wired only)
Current Consumption
0.2 mA typical at 5V (wireless only)
Voltage Range
2.5-10V (wireless only)
Switch
Flat, roll-off (wired only)
Weight
Microphone, boom & earpiece:2.6 g (0.09 oz)
Power module (wired only): 85 g (3.0 oz)
Dimensions
Microphone: 9.5 mm (0.37") long, 2.6 mm (0.10") diameter
Boom: 98.5 mm (3.88") long, 1.07 mm (0.04") diameter
Power module (wired only): 100.0 mm (3.94") long, 18.9 mm (0.74") diameter
Output Connector (power module)
Integral 3-pin XLRM-type
Cable
Detachable 1.4 m (55") long, 1.6 mm (0.06") diameter, 2- or 3-conductor shielded cable (termination dependent)
Audio-Technica Case Style
M31
Accessories Furnished
AT8545 power module (wired only); AT8464x dual-ear adapter kit; AT8440 cable clip; AT8157 windscreen; AT8171 windscreen; two AT8156 element covers; moisture guard; belt clip (wired only); carrying case
