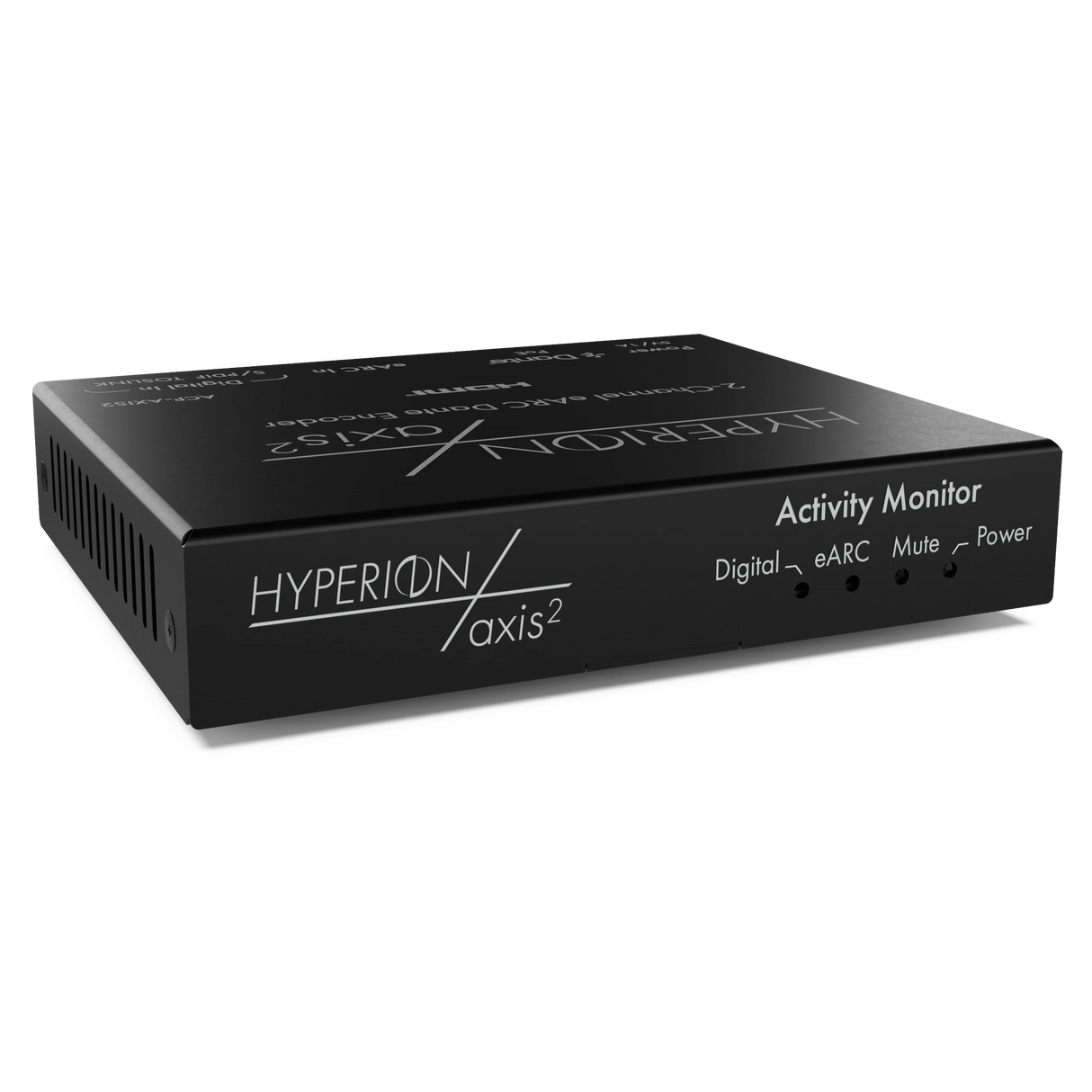

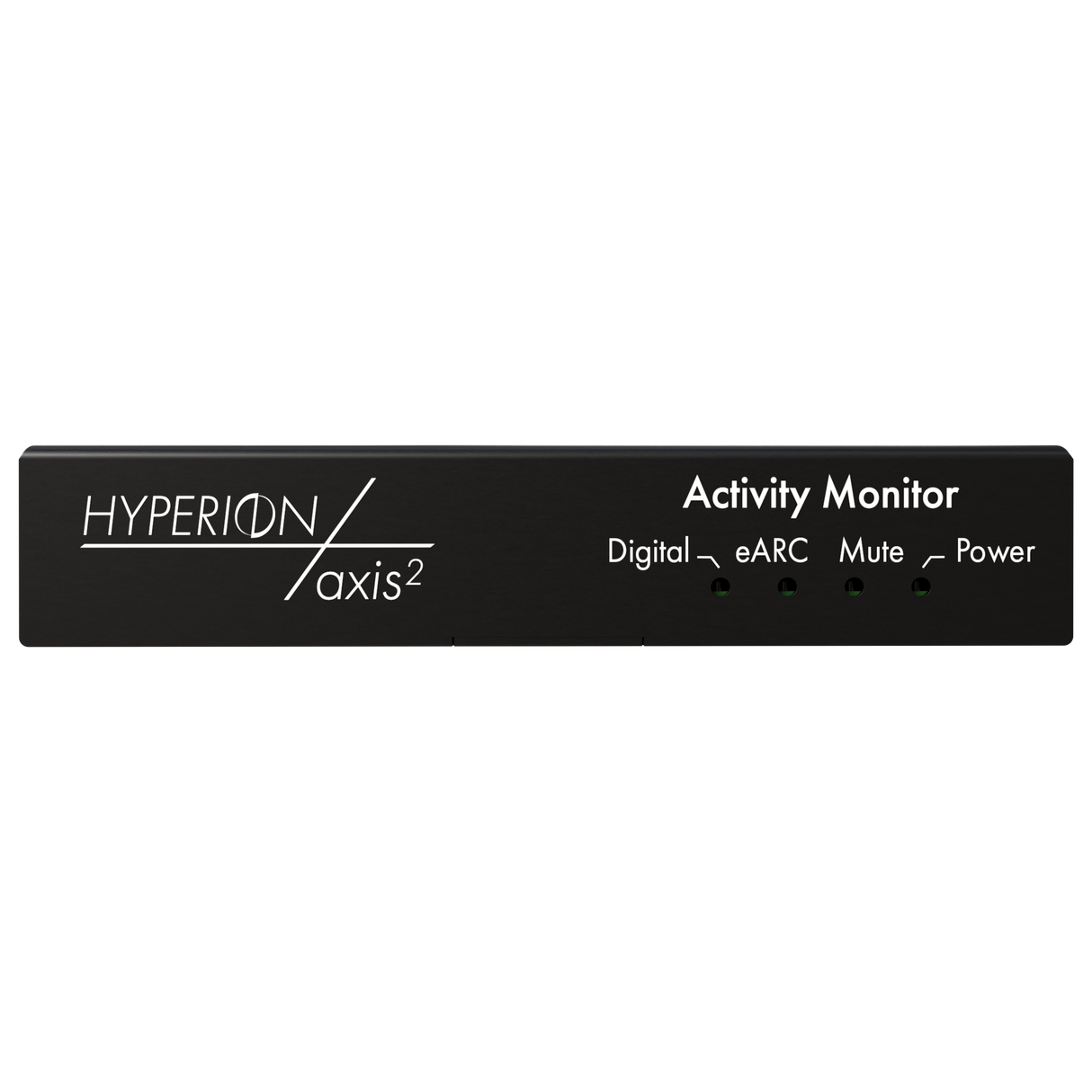

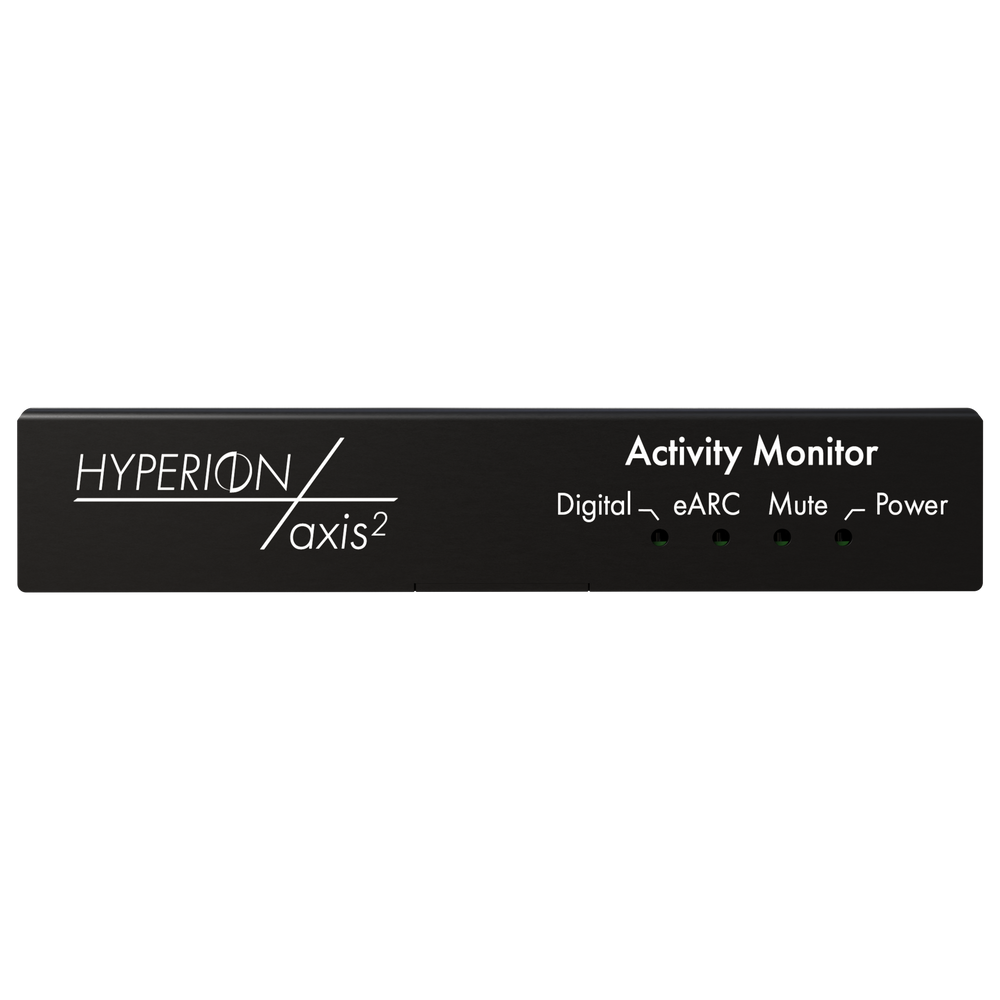

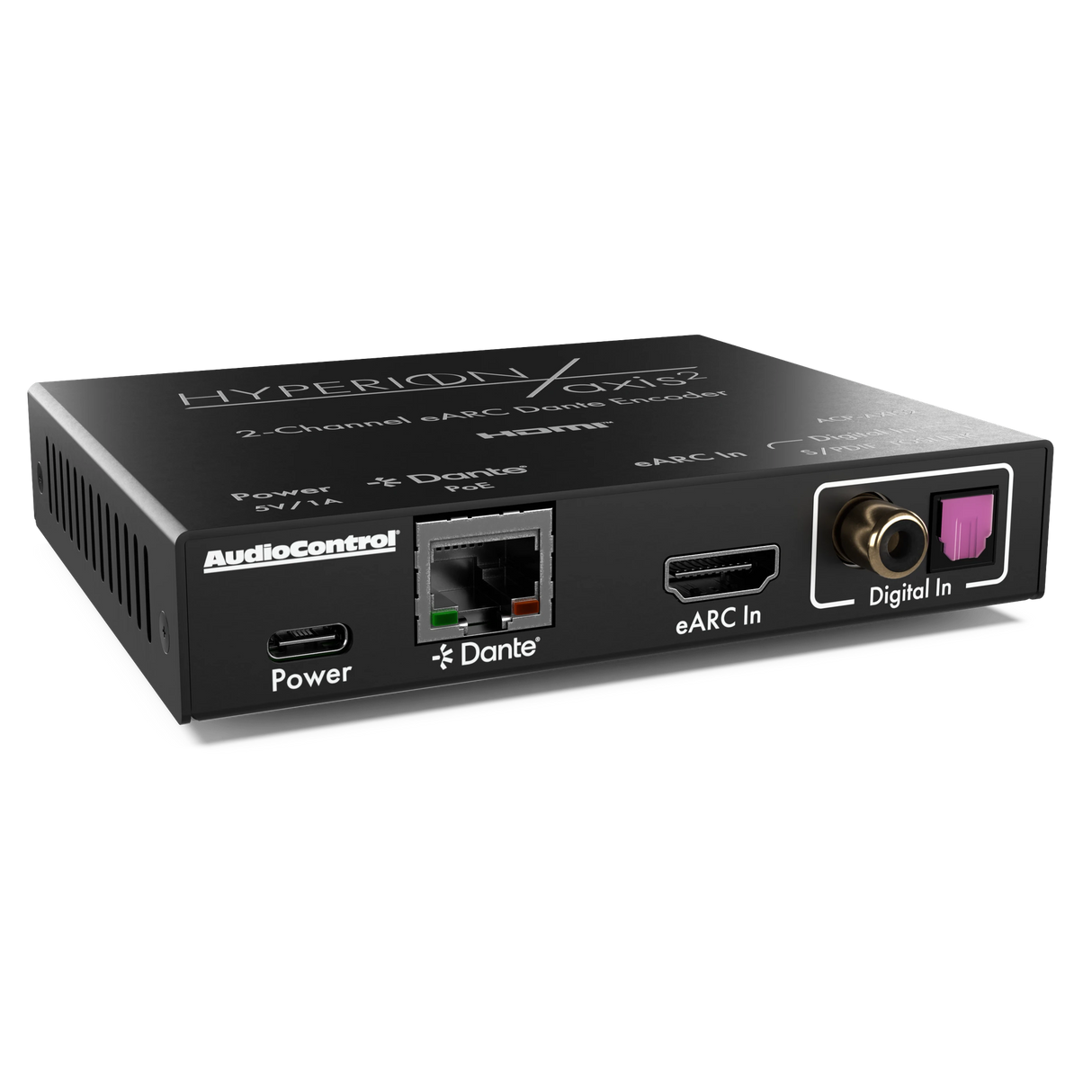

AudioControl ACP-AXIS2 Hyperion Axis2 eARC AoIP Processor, 2-Channel
The AudioControl ACP-AXIS2 Hyperion Axis2 2-Channel eARC AoIP Processor extracts high-bitrate PCM stereo audio from a display and distributes it over Dante or AES67 networks. It gives integrators a compact way to connect smart display audio to scalable networked audio systems without relying on a traditional AV receiver.
Axis2 is built for residential AV zones, classrooms, conference spaces, and commercial installations that need clean display audio routing. For buyers looking for a 2-channel eARC Dante processor, compact AoIP audio encoder, or display audio distribution solution, it delivers flexible integration with simple network deployment.
With PoE capability, CEC volume control, digital audio inputs, and signal-sense switching, Axis2 fits modern display-driven AV workflows. It pairs with Hyperion or Director ecosystem amplifiers and signal processors, helping professionals build scalable Dante/AES67 audio systems with high-quality stereo performance up to 96kHz.
2-Channel eARC Dante Audio Encoding
- Display-Driven Networked Audio: Converts stereo PCM audio from a display into Dante or AES67 network streams.
- High-Bitrate Audio Support: Handles audio up to 96kHz for clean, detailed stereo distribution across connected zones.
- Digital Input Flexibility: Includes TOSLINK and coaxial inputs for integrating additional digital audio sources.
- Signal-Sense Auto-Switching: Automatically switches to digital audio inputs when signal is detected.
- CEC Volume Control: Supports HDMI CEC pass-through volume control using the TV’s native remote.
- Dante/AES67 Connectivity: Sends 2-channel audio over a standard network using one RJ45 Dante/AES67 connection.
- PoE Operation: Supports 802.3af PoE for simplified installation with fewer local power requirements.
- Compact Installation Size: Fits easily behind displays, inside racks, or near distributed AV endpoints.
Technical Specifications
- SKU: ACP-AXIS2
- Product Type: 2-channel eARC AoIP processor
- Audio Format: PCM
- Frequency Response: 20 Hz to 20 kHz
- Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Bit Depths: 16-bit, 24-bit, 32-bit
- Channel Count: 2 channels
- Latency: Configurable at 1 ms, 2 ms, or 5 ms

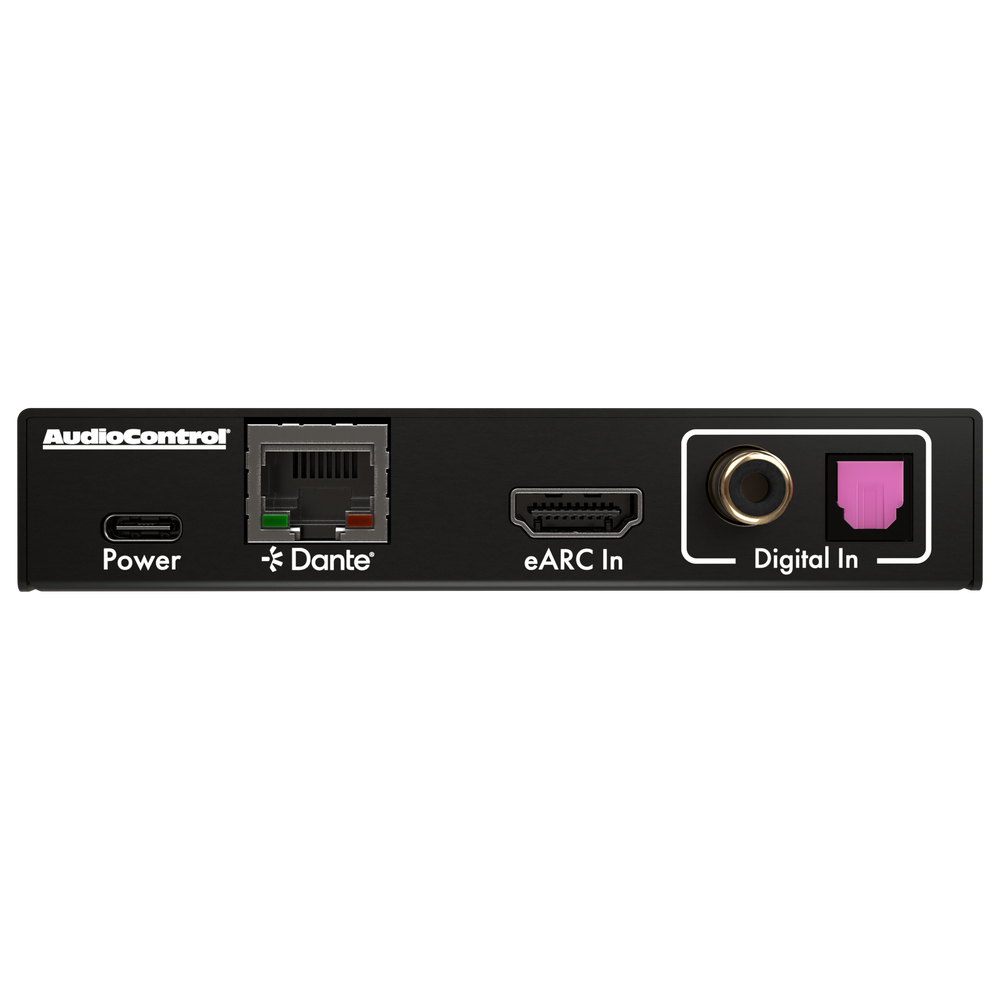

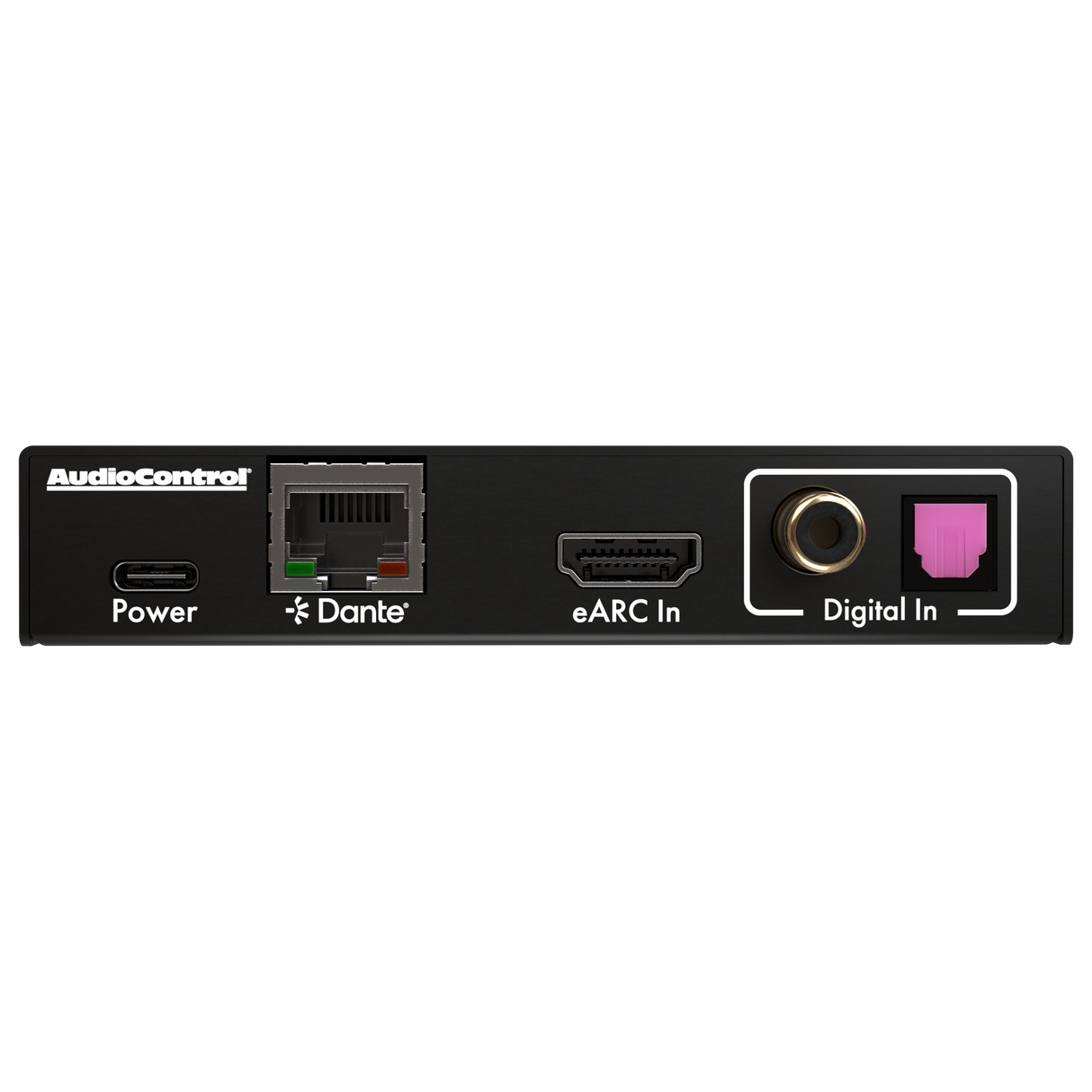

- eARC Input: 1 x HDMI
- Digital Audio Inputs: 1 x TOSLINK, 1 x coaxial
- Dante/AES67 Connection: 1 x RJ45 with PoE
- PoE Power: 802.3af PoE
- DC Power: 5 VDC, 1 A via USB Type-C
- Average Power Consumption: Approximately 2 W
- Dimensions: 4.3" x 3.5" x 0.81"
- Box Dimensions: 7.46" x 5.13" x 2.13"
- Weight: 0.5 lbs
- Operating Temperature: 23°F to 125°F
- Storage Temperature: -4°F to 140°F
- Humidity Range: 5% to 90% RH, no condensation
What's In the Box
- ACP-AXIS-2 Unit: Main 2-channel eARC AoIP processor
- 5V 1A USB Power Adapter: Power supply for USB-C DC operation
- European Adapter: Included regional power adapter
- USB-A to USB-C Cable: Cable for DC power connection
- Mounting Brackets: 2 brackets for installation mounting
- Mounting Screws: 4 screws for securing the mounting brackets
