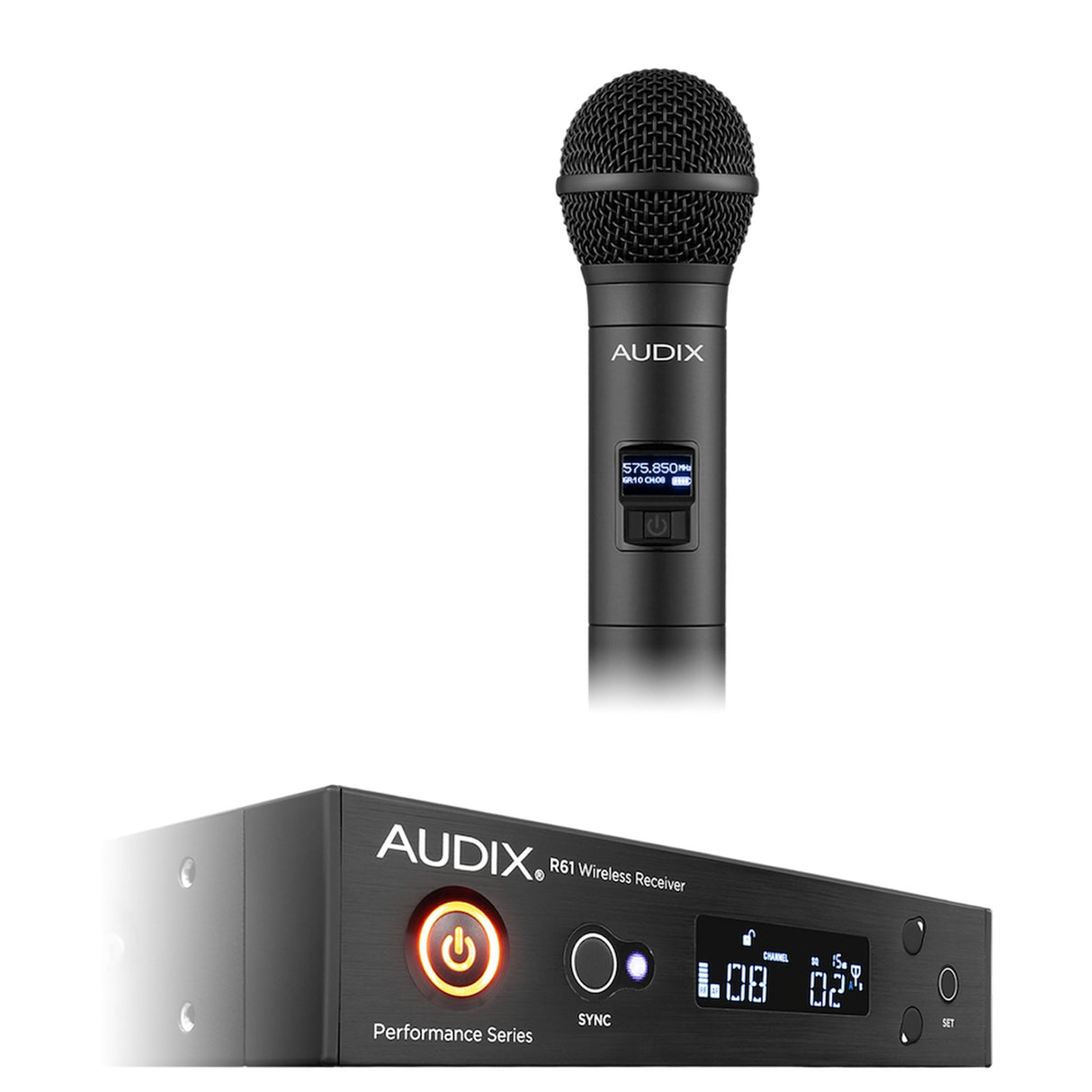

Audix AP61 OM5 Wireless Microphone System
The Audix AP61 OM5 is a professional-grade wireless microphone system designed for live sound applications, including performances, presentations, and broadcasts. It features the R61 true diversity receiver and the H60 handheld transmitter equipped with the OM5 hypercardioid dynamic microphone capsule. This system operates within the 522–586 MHz frequency range, offering a wide 64 MHz tuning bandwidth for reliable and interference-free audio transmission.
With 207 pre-coordinated frequencies and one-touch auto scan and sync functions, the AP61 OM5 ensures quick and easy setup. The R61 receiver provides a signal-to-noise ratio of 112 dB and a frequency response of 45 Hz to 18 kHz, delivering clear and accurate sound reproduction. The H60 transmitter offers up to 14 hours of battery life on two AA batteries and is housed in a durable metal casing, ensuring longevity and reliability in demanding environments.
Key Features

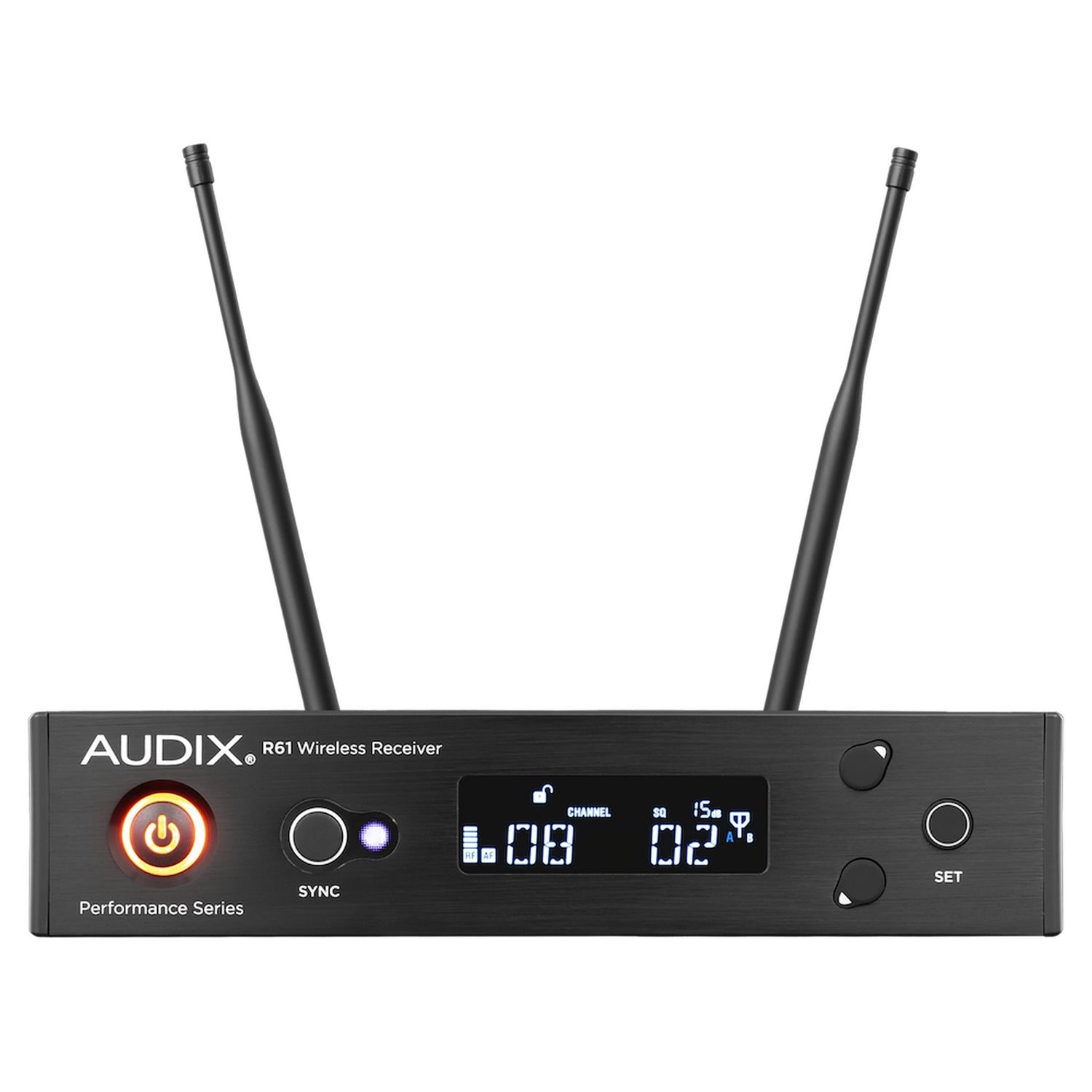

- True Diversity Receiver: R61 receiver with 207 pre-coordinated frequencies for reliable performance.

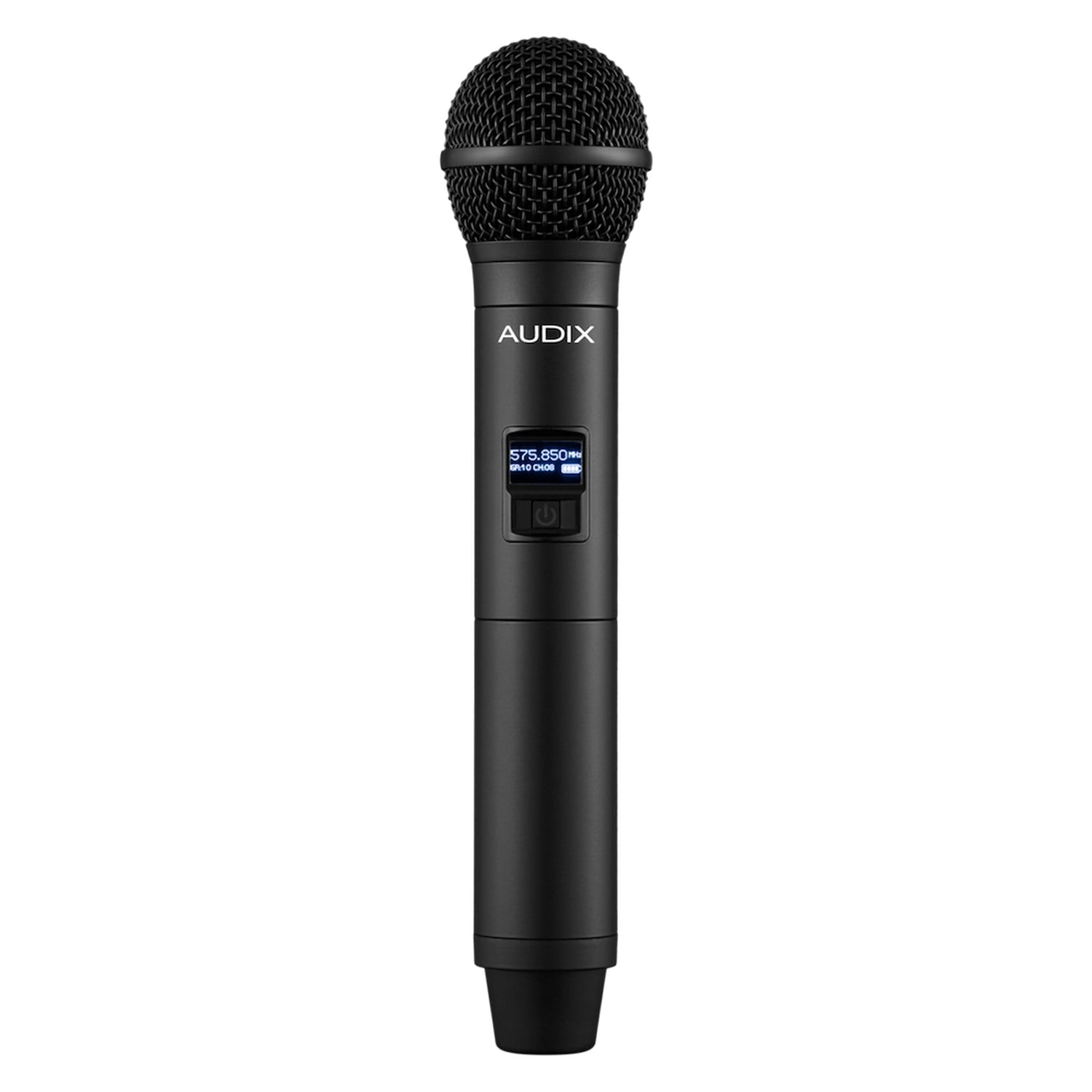

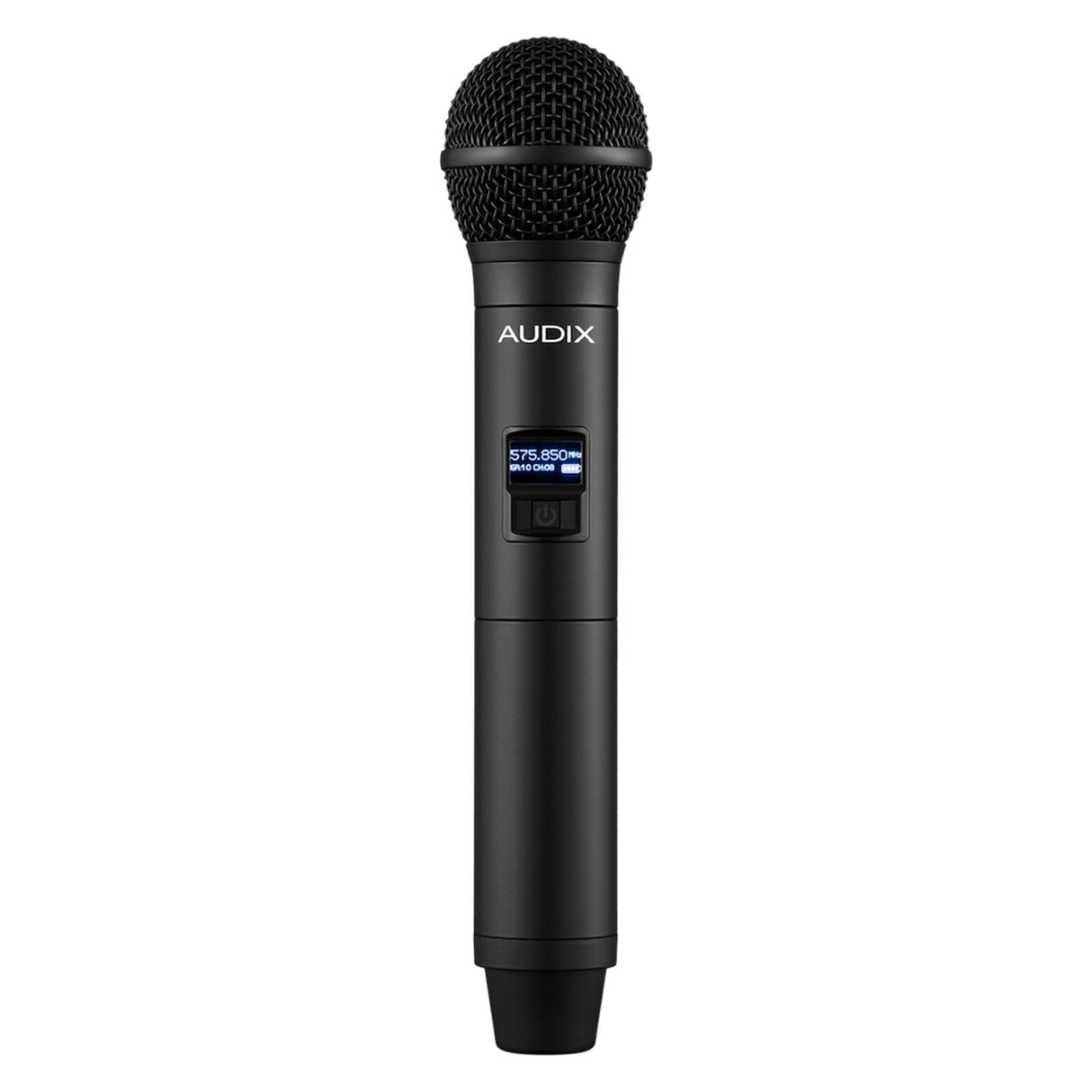

- Handheld Transmitter: H60 transmitter featuring OM5 hypercardioid dynamic capsule for clear and accurate sound.
- Wide Frequency Range: Operates within the 522–586 MHz frequency band, suitable for various environments.
- Easy Setup: One-touch auto scan and sync functions simplify the setup process.
- Long Battery Life: Up to 14 hours of operation on two AA batteries.
- Durable Construction: Metal housing on transmitters ensures durability and longevity.
- Rackmountable Design: 19" rackmount chassis included for easy integration into existing setups.
Technical Specifications
- Receiver Dimensions: 8.07" (W) x 8.11" (D) x 1.73" (H); Weight: 2.43 lbs
- Transmitter Dimensions: 10.43" (L) x 2.1" (Diameter); Weight: 0.68 lbs
- Frequency Response: 45 Hz – 18 kHz
- Signal-to-Noise Ratio: 112 dB (A-weighted)
- Maximum SPL: ≥140 dB
- Operating Range: Up to 450 feet (line-of-sight)
- Power Supply: 100–240V / 50–60 Hz, 12V DC, 1A
- Output Connectors: 1 x XLR, 1 x 1/4"
What's in the Box
- 1x R61 True Diversity Receiver
- 1x H60 Handheld Transmitter with OM5 Capsule
- 2x Antennas
- 1x Audio Cable
- 1x Microphone Clip
- 1x Pouch
- 2x AA Batteries
- 1x Carrying Case
- 1x Power Supply
- 1x User Guide
- 1x Rackmount Hardware
- 2x BNC Cables
