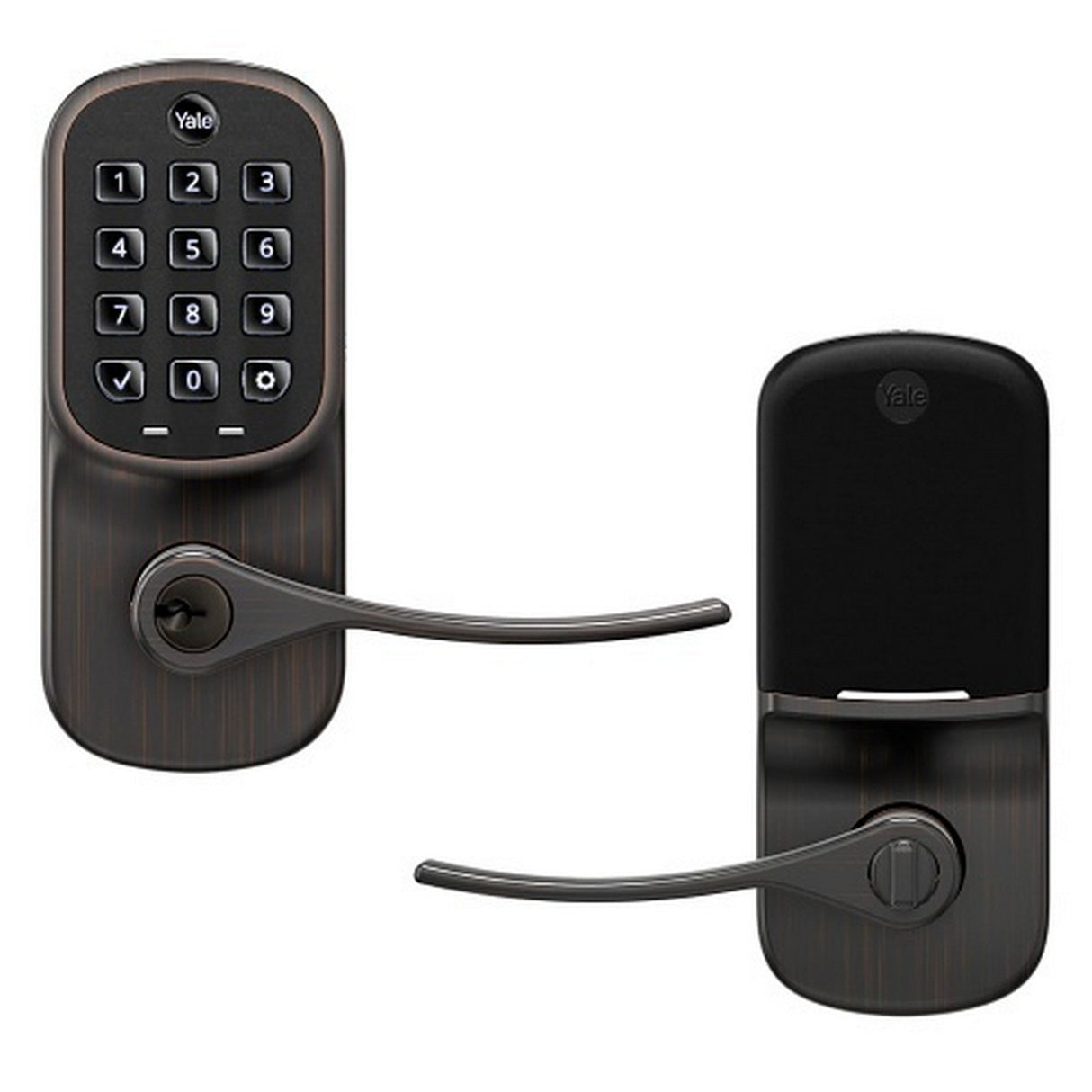

August Yale YRL216-WF1-0BP Assure Lever Smart Lock

Yale YRL216-WF1-0BP Assure Lever Smart Lock

The Yale YRL216-WF1-0BP Assure Lever smart lock combines a keyed push-button keypad with Wi-Fi and Bluetooth connectivity for doors without a separate deadbolt. It supports remote locking, unlocking, access sharing, activity monitoring, and automatic entry through the Yale Access App without requiring an additional smart-home hub.

Designed for garage entries, side doors, basements, home offices, and other single-bore doors, this Oil Rubbed Bronze smart lever replaces a conventional knob or lever. A backlit keypad provides phone-free entry, while the mechanical cylinder offers keyed backup. Auto-Unlock and Auto-Relock simplify everyday access, making it a practical Wi-Fi keypad lever lock for residential entrances and controlled interior spaces.

The Assure Lever supports Alexa, Google Assistant, and Siri voice control and accommodates standard North American door preparations. ANSI/BHMA Grade 2 construction, adjustable backset compatibility, and separate exterior and interior operating-temperature ratings support dependable installation planning. Yale specifies four AA batteries for operation and provides configurable PIN-based access through the keypad.

Key Features

• Wi-Fi and Bluetooth Connectivity: Control and monitor the lock through the Yale Access App without an additional hub.
• Backlit Push-Button Keypad: Enter a PIN directly at the door when a smartphone is unavailable.
• Keyed Backup Entry: A 5-pin cylinder and mechanical key provide an alternate method of unlocking the door.
• Automatic Locking: Auto-Unlock and Auto-Relock functions simplify arrival and help secure the door after use.
• Remote Access Sharing: Create permanent, scheduled, or temporary access for trusted users through the app.
• Voice Assistant Support: Works with Alexa, Google Assistant, and Siri for compatible voice-controlled lock functions.
• Standard-Door Compatibility: Fits single-bore doors without a separate deadbolt and supports 1-3/8" to 1-3/4" door thicknesses.
• Grade 2 Hardware: Meets ANSI/BHMA Grade 2 requirements for the Assure Lever platform.

Technical Specifications

• Brand: Yale
• Model: YRL216-WF1-0BP
• Product Line: Assure Lever
• Product Type: Keyed keypad smart lever lock
• Finish: Oil Rubbed Bronze
• Technology: Wi-Fi and Bluetooth
• Mobile App: Yale Access App
• Operating System Compatibility: Android, iOS
• Voice Assistant Compatibility: Alexa, Google Assistant, Siri
• Keypad Type: Backlit push-button keypad
• Mechanical Key Entry: Yes
• Number of Keys: 1
• Cylinder: 5-pin cylinder
• Keyway: KW-1 5-pin
• Security Grade: Grade 2, A156.36 ANSI/BHMA
• Door Application: Single-bore doors without a separate deadbolt
• Door Thickness: 1-3/8" to 1-3/4"
• Face Bore: 2-1/8"
• Edge Bore: 1"
• Backset: 2-3/8" or 2-3/4"
• Latch Front: RC (Round Corner)
• Strike: 1-1/8" x 2-3/4"
• Strike Front: RC (Round Corner)
• Power: 4 AA batteries
• Battery Chemistry: Alkaline
• Expected Battery Life: Up to 1 year under normal operating conditions
• Exterior Dimensions: 1-3/8" x 2-3/4" x 6-1/16"
• Interior Dimensions: 2-1/8" x 3" x 6-7/8"
• Weight: 7 lb
• Exterior Operating Temperature: -22°F to 140°F
• Interior Operating Temperature: 5°F to 158°F
• Electronics Warranty: 2 years under the current Yale warranty
• Finish and Mechanical Warranty: Consumer use covered while the original end user resides at the original single-family installation location; non-consumer use covered for 3 years

What's In the Box

• Yale Assure Lever
• Yale Wi-Fi Smart Module
• DoorSense
• Latch
• Strike Plate
• Mounting Hardware
• 4 AA Batteries
• Installation Manual
• 1 Key
