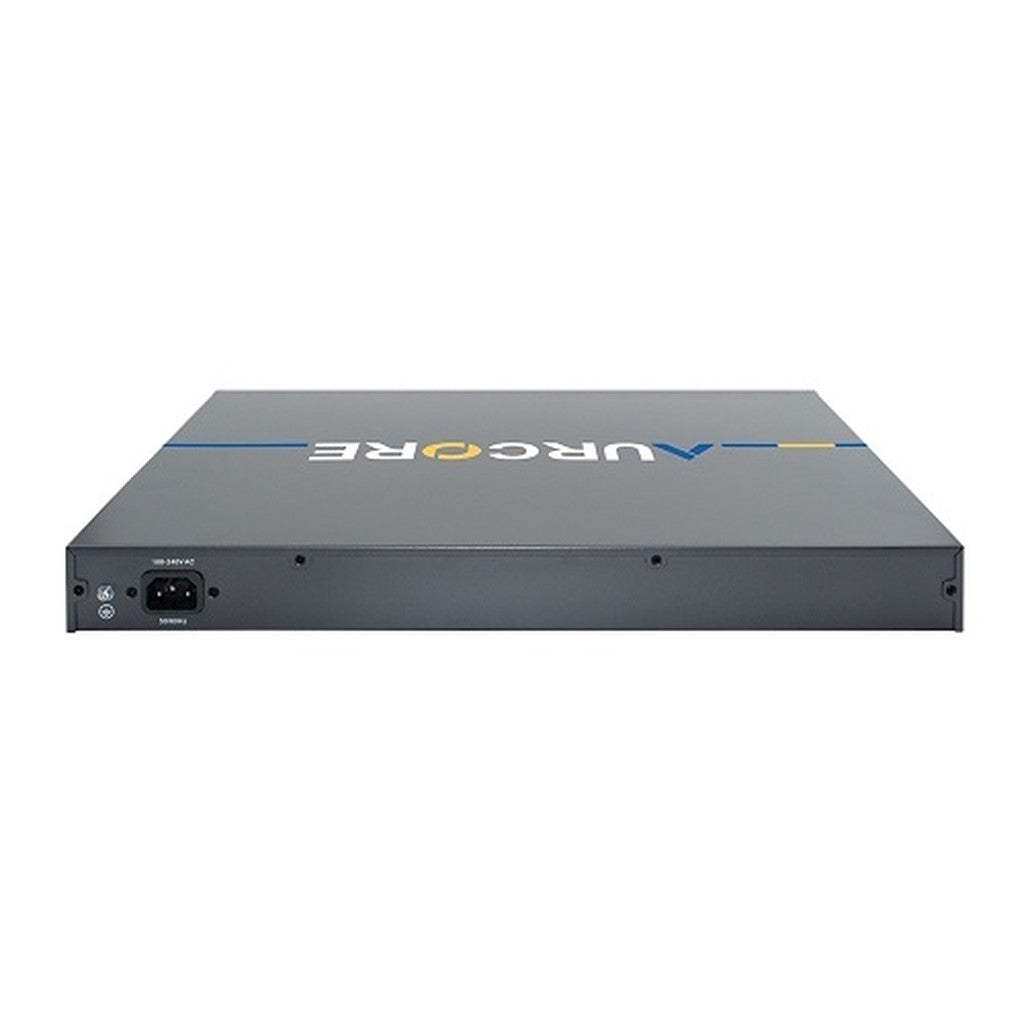

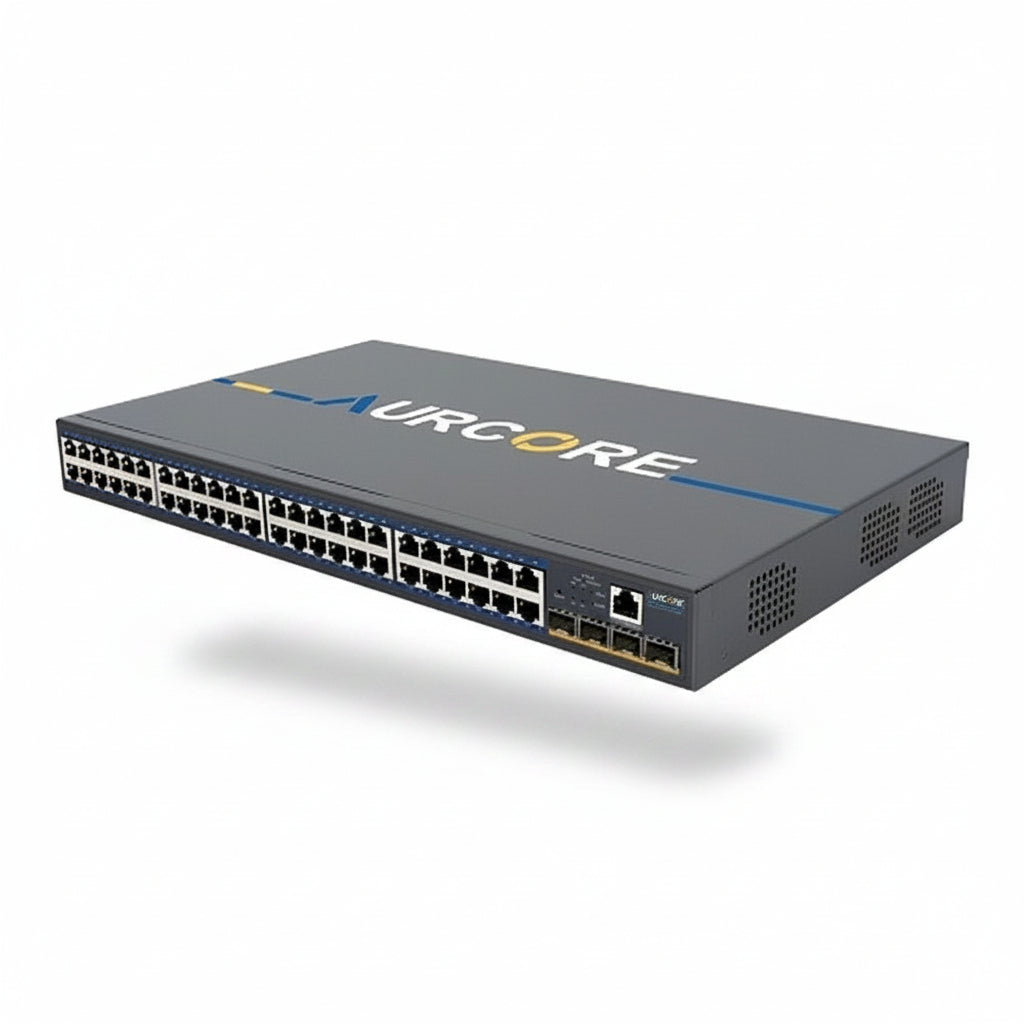

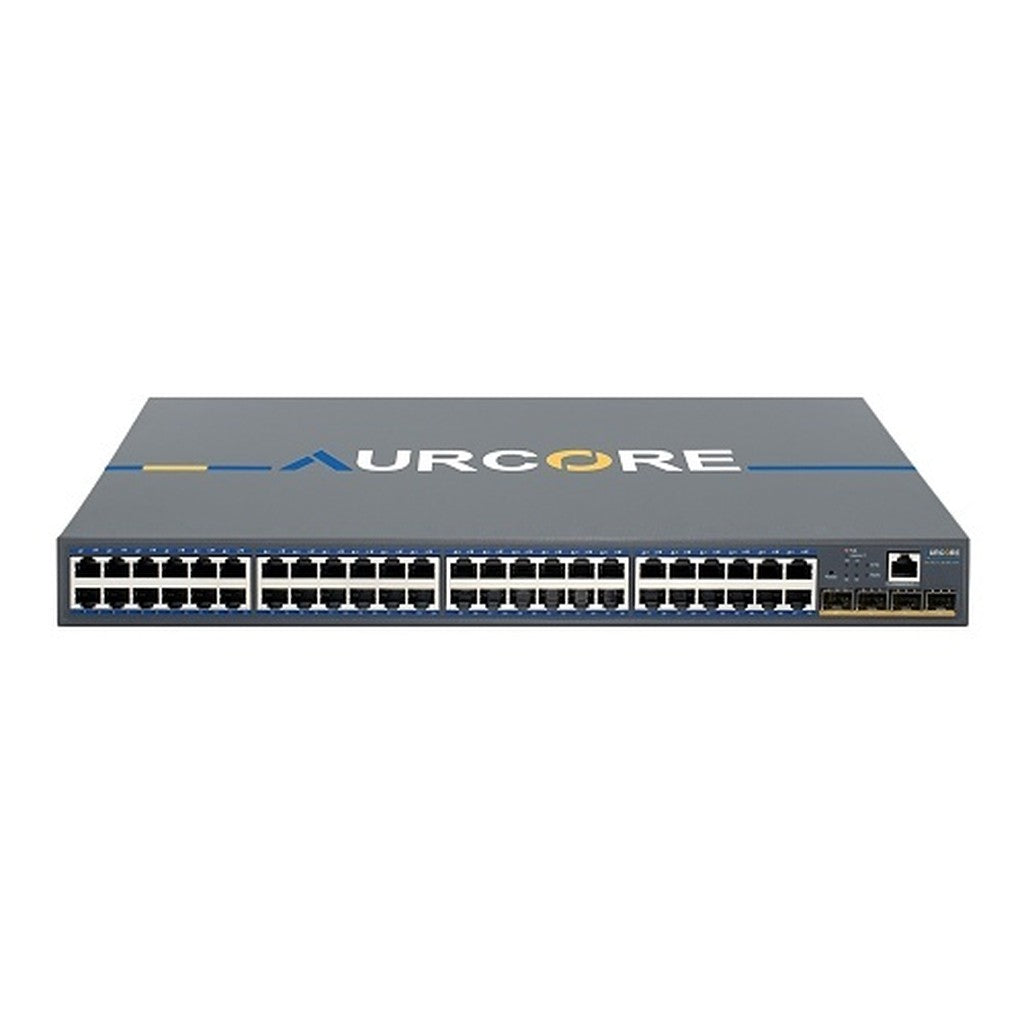

AurCore AES2003P 48-Port Gigabit PoE Plus Managed Network Switch

AurCore AES2003P 48-Port Gigabit PoE Plus Managed Network Switch

The AurCore AES2003P managed PoE+ network switch provides 48 Gigabit Ethernet PoE+ access ports, four Gigabit SFP uplinks, a 370W PoE budget, and 104 Gbps switching capacity. Its Layer 2+ feature set supports secure segmentation, traffic prioritization, resilient network paths, and centralized administration for enterprise, education, surveillance, and smart-building deployments.

Designed for high-density networks, the AES2003P can power compatible wireless access points, IP cameras, IoT devices, and other IEEE 802.3af or 802.3at endpoints through the network cabling. Buyers seeking a 48-port managed PoE+ switch gain flexible fiber uplinks, static routing, VLAN controls, spanning-tree protocols, QoS, and access control lists within a rackmountable 1U chassis.

AurCore’s AURC-NOS platform provides management through Telnet, SSH, SNMP, a web interface, and command-line controls. ACC cloud and ACN on-premises platforms add centralized monitoring and network administration. Integrated surge and electrostatic protection support reliable operation, while AurC-PoE tools help administrators schedule power, prioritize ports, monitor budgets, and restart unresponsive connected devices.

Key Features

• 48 Gigabit PoE+ Ports: Connects and powers high-density deployments of access points, surveillance cameras, and compatible network devices.
• Four Gigabit SFP Uplinks: Supports fiber-based uplink connections for network expansion and long-distance backbone integration.
• 370W PoE Budget: Distributes power across connected IEEE 802.3af and IEEE 802.3at endpoints.
• 104 Gbps Switching Capacity: Handles substantial network traffic with a forwarding rate of 77.376 million packets per second.
• Layer 2+ Network Controls: Supports static routing, VLAN, STP, RSTP, MSTP, QoS, and ACL functions.
• Flexible Administration: Provides Telnet, SSH, SNMP, web GUI, CLI, and centralized ACC or ACN management.
• Intelligent PoE Management: Includes watchdog, scheduling, port priority, budget management, legacy-device, high-inrush, and warm-start functions.
• Rack or Desktop Installation: Fits standard 1U equipment racks or desktop network installations.

Technical Specifications

• Product Type: Layer 2+ managed Gigabit PoE+ network switch
• Model: AES2003P
• Product Series: AES2000
• Product Line: Enterprise Switch
• Gigabit Ethernet Ports: 48 x GE PoE+ RJ45
• Uplink Ports: 4 x GE SFP
• Management Port: 1 x console port
• Switching Capacity: 104 Gbps
• Packet Forwarding Rate: 77.376 Mpps
• MAC Address Table: 16K entries
• Chipset: Realtek
• Flash Memory: 32MB
• System Memory: 128MB
• PoE Standards: IEEE 802.3af and IEEE 802.3at
• Total PoE Budget: 370W
• PoE Functions: PoE Watchdog, PoE Schedule, PoE Port Priority, PoE Power Budget Management, PoE Legacy, PoE High-Inrush Status, and PoE Warm Start
• Network Functions: Static Routing, VLAN, STP, RSTP, MSTP, QoS, and ACL
• Management Interfaces: Telnet, SSH, SNMP, web GUI, and CLI
• Centralized Management: ACC cloud and ACN on-premises platforms
• Network Operating System: AURC-NOS
• Power Supply: 438W
• Idle Power Consumption at 115V AC, 60Hz: 22.5W
• Idle Power Consumption at 230V AC, 50Hz: 22.3W
• Full-Load Power Consumption at 115V AC, 60Hz: 452.8W
• Full-Load Power Consumption at 230V AC, 50Hz: 437.1W
• Surge Protection: ±1kV differential mode and ±2kV common mode
• Electrostatic Protection: ±6kV contact and ±8kV air discharge
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -40°F to 158°F
• Dimensions: 17.32" L x 12.99" W x 1.73" H
• Rack Height: 1U
• Installation: Rackmount or desktop
• Compliance: NDAA and TAA
• Limited Warranty: 3 years

What's In the Box

• 2 x Rackmount brackets
• 4 x Rubber feet
• 8 x Screws
• 1 x Console cable
• 1 x Power cord
