Austrian Audio OC616 Multi-Pattern Large-Diaphragm Condenser Microphone

Austrian Audio OC616 Multi-Pattern Large-Diaphragm Condenser Microphone

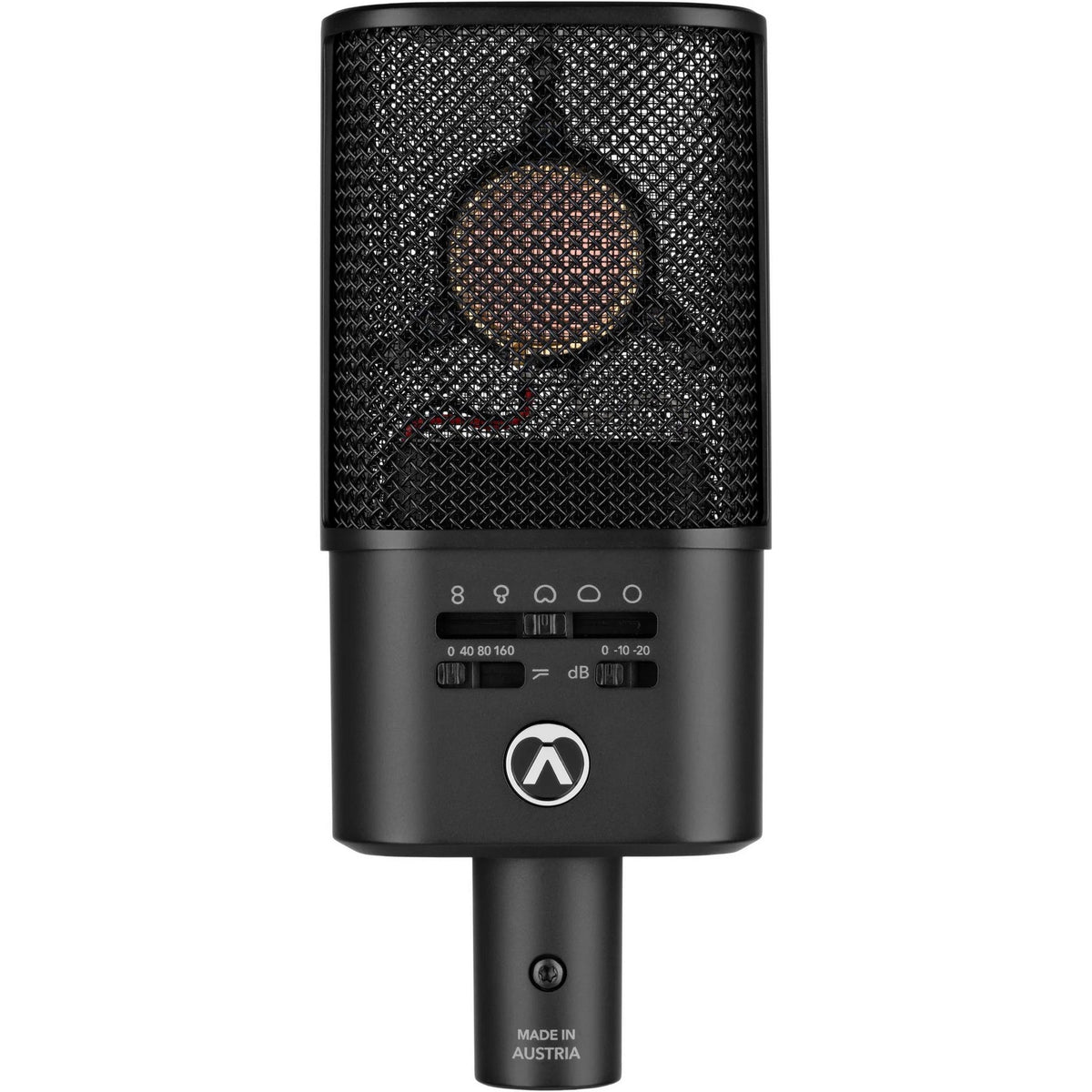

The Austrian Audio OC616 Multi-Pattern Large-Diaphragm Condenser Microphone is a versatile true condenser microphone built around the handcrafted CKR12 1" dual-diaphragm capsule. Five selectable polar patterns, three high-pass filters, and two attenuation pads let engineers adapt the microphone to vocals, instruments, room capture, stereo techniques, and high-SPL sources from a single platform.

Its cardioid, wide cardioid, hypercardioid, omnidirectional, and figure-eight patterns provide substantial flexibility for project studios, professional recording rooms, and mobile production. Selectable 40 Hz, 80 Hz, and 160 Hz filters help manage rumble, proximity buildup, and unwanted low-frequency energy. For drums, percussion, brass, guitar cabinets, and other loud sources, -10 dB and -20 dB pads extend the microphone's usable sound-pressure capability.

The OC616 uses Austrian Audio Open Acoustic Technology to minimize reflective surfaces around the capsule and reduce unwanted internal acoustic interference. Its 20 Hz to 20 kHz frequency range, 13 mV/Pa sensitivity, 13 dB SPL(A) equivalent noise level, and 134 dB dynamic range support detailed studio capture. Standard 48V phantom power and a 3-pin XLR connection integrate easily with professional microphone preamps, mixers, and audio interfaces.

Key Features

• CKR12 Capsule: Handcrafted 1" dual-diaphragm true condenser capsule provides detailed capture across a broad range of recording sources.
• Five Polar Patterns: Select cardioid, wide cardioid, hypercardioid, omnidirectional, or figure-eight pickup for changing recording techniques.
• Open Acoustic Technology: Reduces reflective surfaces and acoustic interference around the capsule for more controlled pickup behavior.
• Three High-Pass Filters: Switchable 40 Hz, 80 Hz, and 160 Hz settings help control rumble, proximity effect, and excessive low frequencies.
• Dual Attenuation Pads: -10 dB and -20 dB pad settings accommodate loud instruments, amplifiers, percussion, and other high-level sources.
• High SPL Capability: Handles up to 147 dB SPL normally and up to 157 dB SPL with attenuation engaged.
• Flexible Recording Applications: Suitable for vocals, speech, acoustic instruments, drum overheads, amplifiers, room microphones, and stereo recording.
• Professional XLR Connectivity: Operates from standard 48V phantom power through a balanced 3-pin XLR connection.

Technical Specifications

• Microphone Type: Large-diaphragm true condenser microphone
• Capsule: CKR12 1" dual-diaphragm condenser capsule
• Directional Characteristics: Cardioid, omnidirectional, figure-eight, hypercardioid, wide cardioid
• Frequency Range: 20 Hz to 20 kHz
• Sensitivity: 13 mV/Pa
• Equivalent Noise Level: 13 dB SPL(A)
• Dynamic Range: 134 dB
• Maximum SPL: 147 dB SPL; up to 157 dB SPL with pad
• Switchable Pads: -10 dB, -20 dB
• 40 Hz High-Pass Filter: 2nd order
• 80 Hz High-Pass Filter: 2nd order
• 160 Hz High-Pass Filter: 1st order down to 80 Hz, 2nd order below 80 Hz
• Impedance: 108 ohms, symmetrical
• Load Impedance: Greater than 1 kilohm
• Power Requirement: 48V phantom power, less than 3 mA
• Connector: 3-pin XLR
• Dimensions: 6.2 x 2.6 x 1.3"
• Weight: 0.8 lb

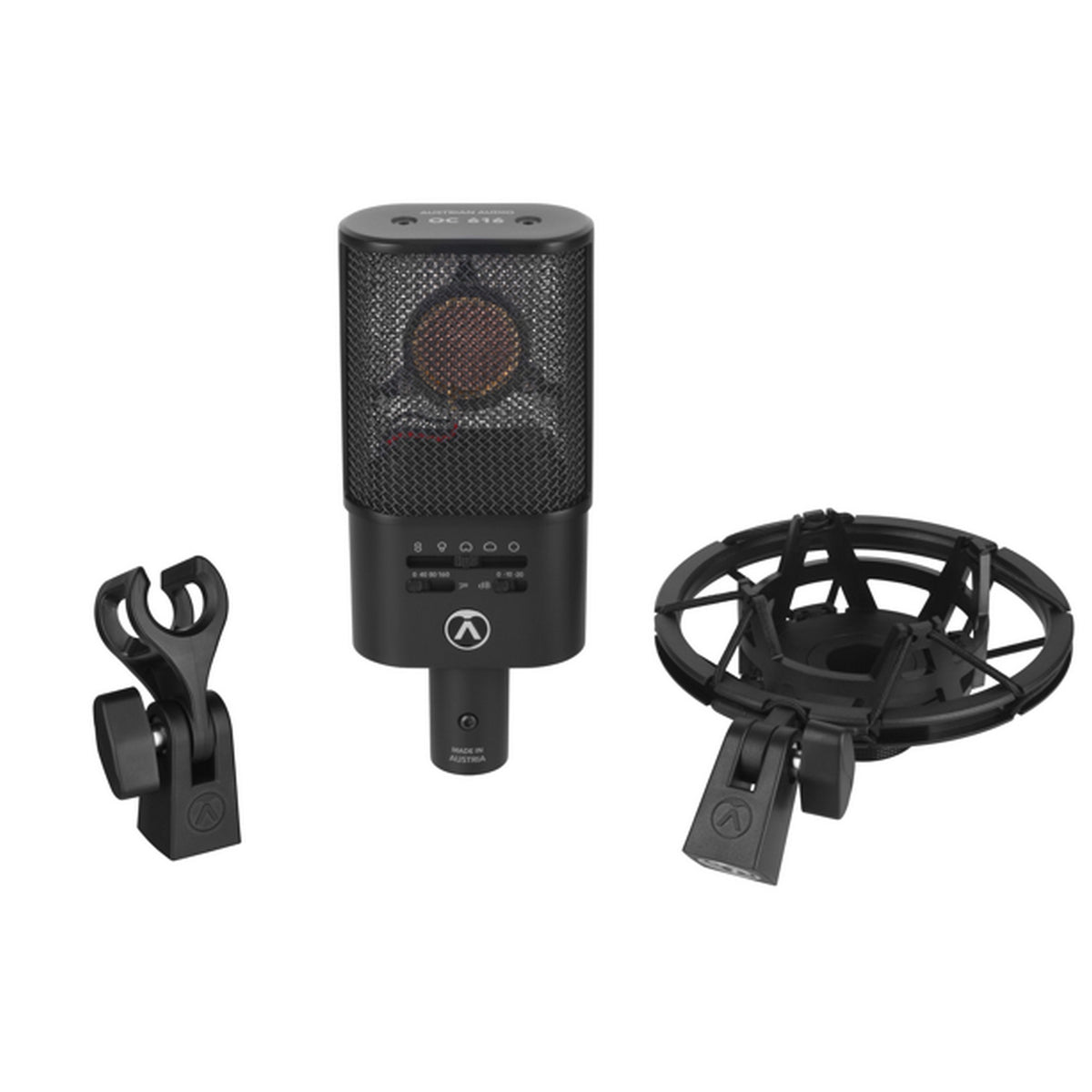

What's In the Box

• Austrian Audio OC616 Microphone
• OCS6 Elastic Suspension Mount
• OCH8 Microphone Clip

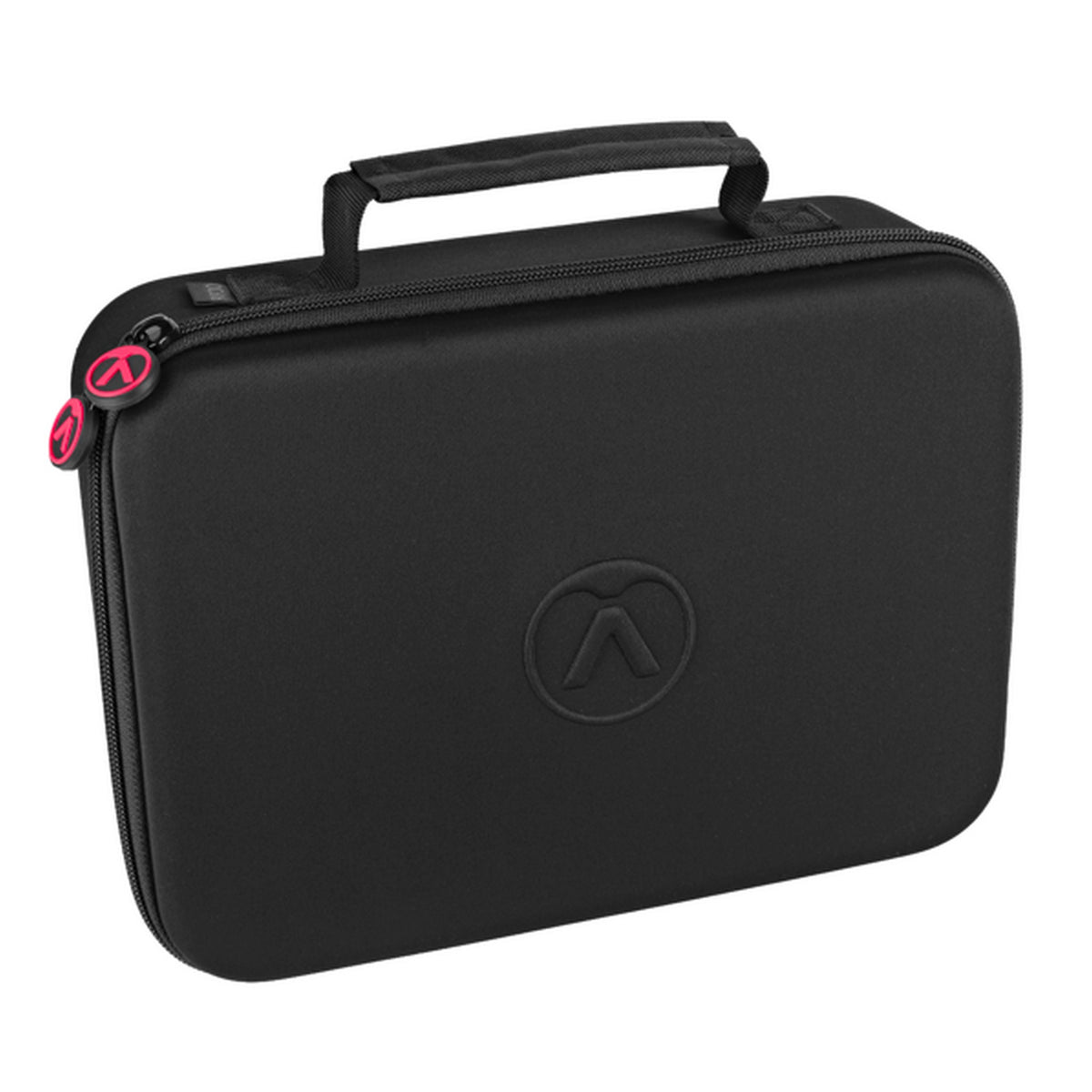

• MSC616 Carrying Case
