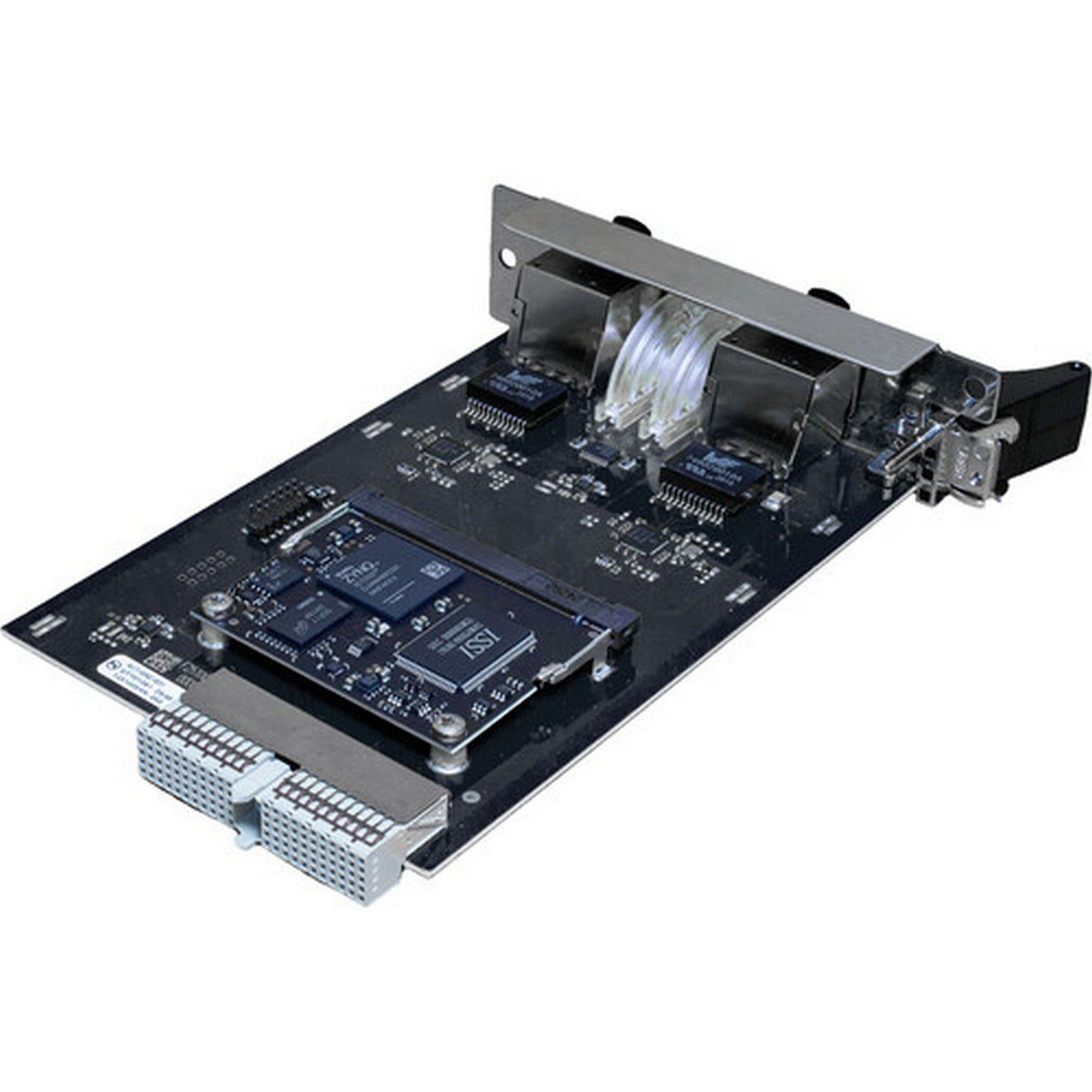

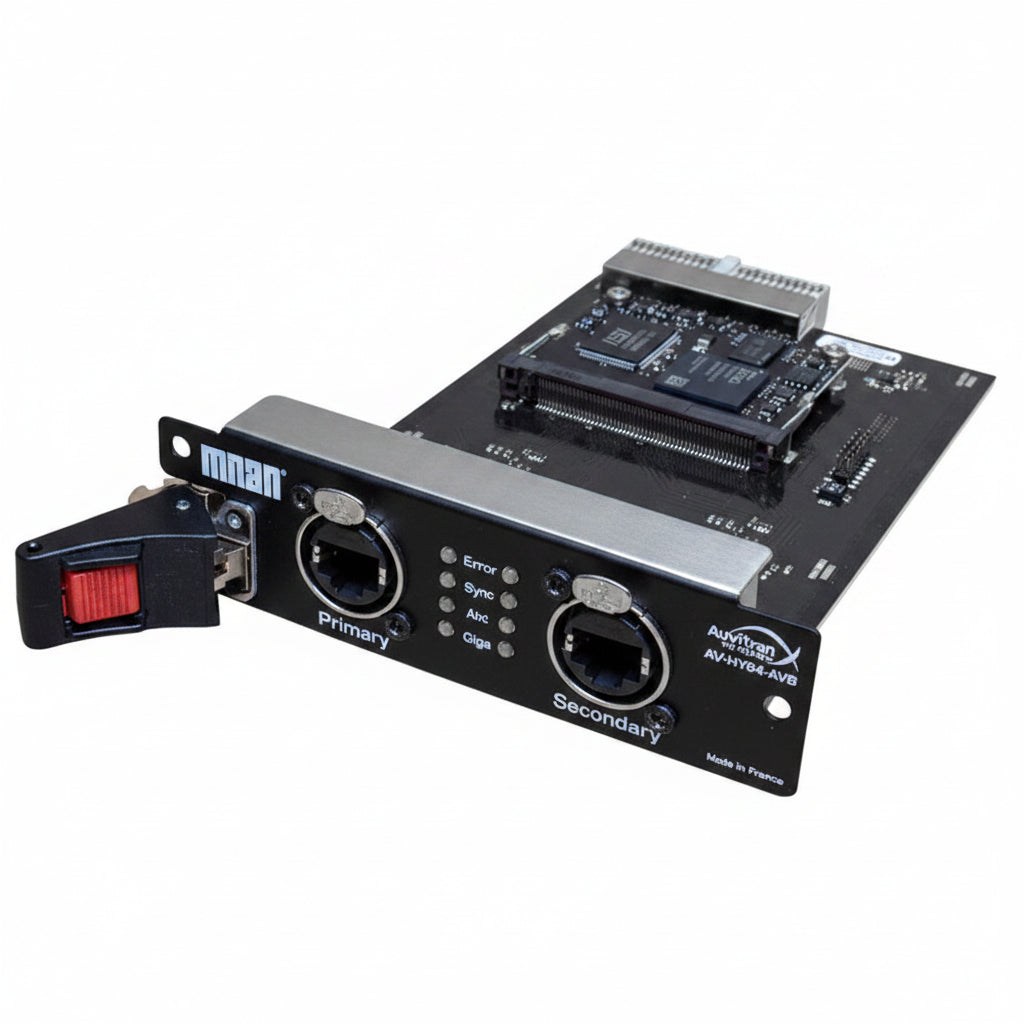

AuviTran AV-HY64-AVB 64x64 AVB Interface Card for Yamaha RIVAGE PM

AuviTran AV-HY64-AVB AVB Interface Card

The AuviTran AV-HY64-AVB AVB Interface Card adds direct 64x64 AVB audio networking to compatible Yamaha RIVAGE PM mixing systems. It supports 64 input and 64 output channels at both 48 and 96 kHz, providing a dedicated digital connection between the console and AVB-based amplifiers, processors, and networked audio equipment.

Built for professional live sound, fixed installations, public-address systems, and immersive audio applications, the card installs directly into the Yamaha HY architecture. This approach reduces external conversion stages while providing redundant primary and secondary AVB connections. Systems can accommodate up to four cards where the host RIVAGE PM configuration provides the required HY slots.

The AV-HY64-AVB supports AAF and CRF stream formats with CRF Stream, AAF Stream, or internal clock synchronization. Each of its two Neutrik EtherCon ports includes dedicated status indicators for network monitoring. AuviTran AVS-Monitor software on Windows 10 or 11 provides card configuration and firmware updating for streamlined system commissioning and maintenance.

Key Features

• 64x64 AVB Audio: Carries 64 input and 64 output channels at either 48 or 96 kHz.
• Yamaha RIVAGE PM Integration: Designed for compatible PM10, PM7, PM5, and PM3 mixing systems.
• Redundant Networking: Provides separate primary and secondary AVB connections for resilient professional audio infrastructures.

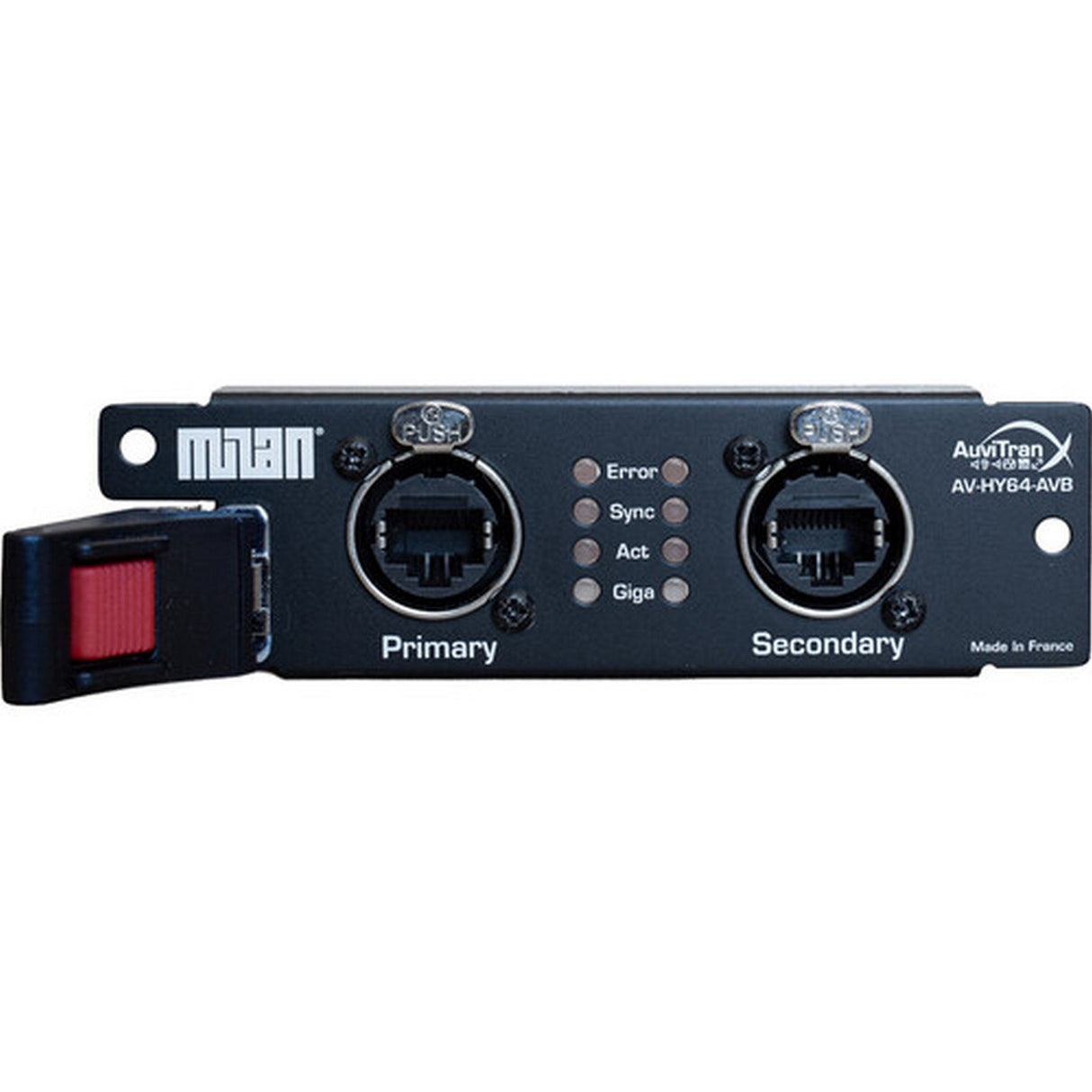

• Dual EtherCon Ports: Uses two rugged Neutrik EtherCon connections with four status LEDs assigned to each port.
• 32-Bit AVB Audio: Supports 32-bit audio sample formatting across its AVB audio transport.
• AAF and CRF Support: Works with standard AVB audio and clock-reference stream formats.
• Flexible Synchronization: Supports CRF Stream, AAF Stream, and internal clock synchronization methods.
• Software Configuration: Works with AVS-Monitor on Windows 10 and 11 for setup and card updates.

Technical Specifications

• Model: AV-HY64-AVB
• Product Type: AVB audio interface card for Yamaha RIVAGE PM mixing systems
• Compatible RIVAGE PM Systems: PM10, PM7, PM5, PM3
• Maximum Card Deployment: Up to 4 cards in supported mixing-system configurations
• Input Channels at 48 kHz: 64
• Output Channels at 48 kHz: 64
• Input Channels at 96 kHz: 64
• Output Channels at 96 kHz: 64
• Input Streams at 48 kHz: 8 streams of 8 channels
• Output Streams at 48 kHz: 8 streams of 8 channels
• Input Streams at 96 kHz: 8 streams of 8 channels
• Output Streams at 96 kHz: 8 streams of 8 channels
• Audio Sampling Frequencies: 48 kHz, 96 kHz
• Audio Sample Resolution: 32-bit
• Supported Stream Formats: AAF, CRF
• Clock Synchronization: CRF Stream, AAF Stream, Internal Clock
• AVB Connections: 2 x Neutrik EtherCon for primary and secondary AVB
• Port Status Indicators: 4 LEDs per EtherCon port
• AVB Redundancy: Supported
• Power Supply: +5.0 V through Yamaha HY backplane
• Operating Temperature: 32°F to 122°F
• Operating Humidity: 5% to 90%, non-condensing
• Storage Temperature: 23°F to 158°F
• Storage Humidity: 0% to 95%, non-condensing
• Configuration Software: AVS-Monitor
• Software Compatibility: Windows 10 and Windows 11
• Dimensions: 4.9 x 1.5 x 8.2 inches (W x H x D)
