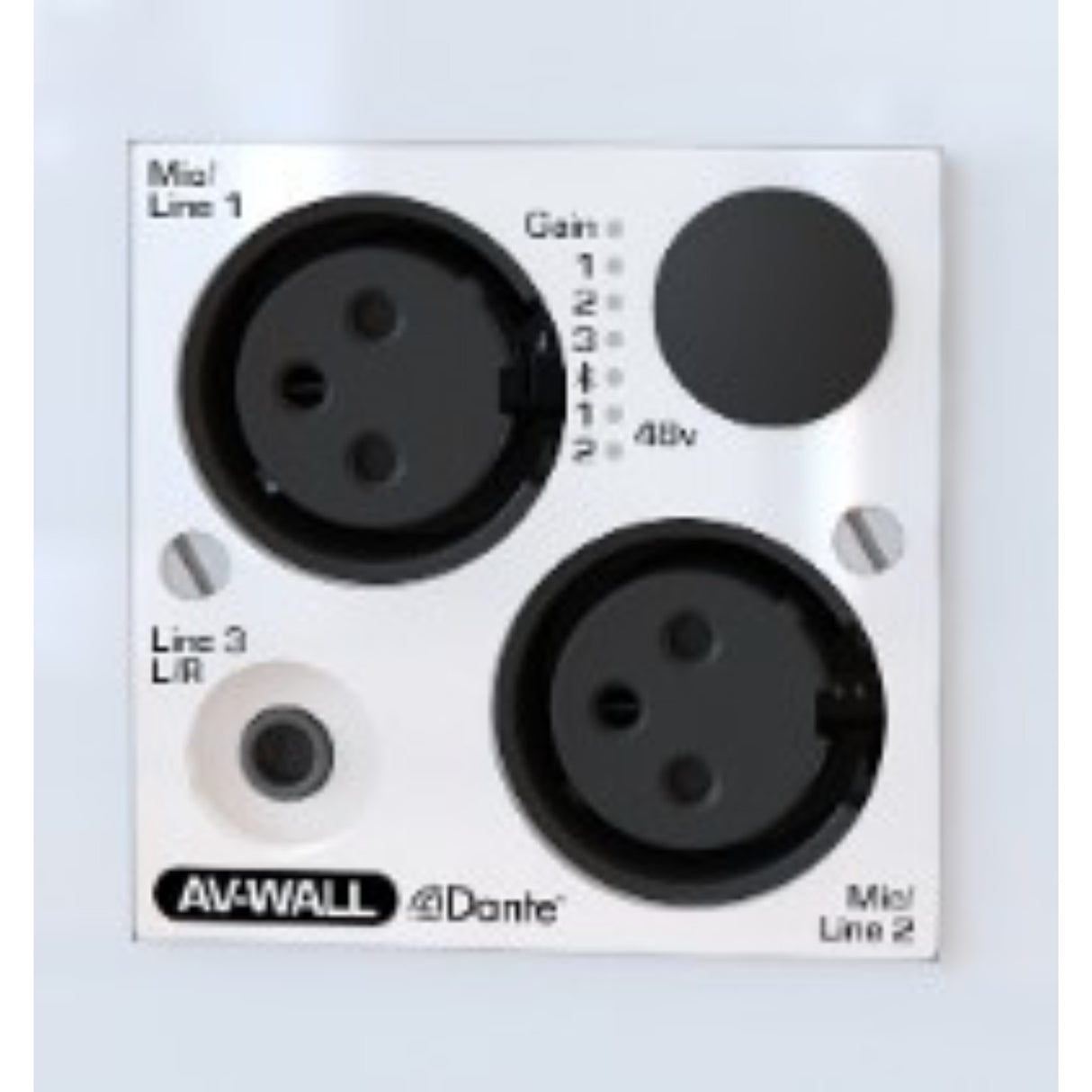

AuviTran AV-WALL-DT4i-LE Dante Wall Plate Mic/Line Interface with Dual XLR Inputs
Free Shipping
Estimated Shipping Widget will be displayed here!
Description
AuviTran AV-WALL-DT4i-LE Dante Wall Plate Mic/Line Audio Interface
The AuviTran AV-WALL-DT4i-LE is a compact Dante microphone and line input interface designed for professional audio installations requiring clean wall-mounted connectivity. This streamlined model provides the same Dante networking capabilities as the DT4i while removing the local rotary push button control.
With two XLR mic/line inputs, phantom power support, and a stereo mini-jack input, the DT4i-LE allows multiple audio sources to be mixed and transmitted across Dante network channels. Powered via PoE, installation requires only a single network cable for audio, control, and power.
Key Features
- Dante network mic/line input wall plate
- 2 XLR microphone/line inputs with phantom power
- Stereo 3.5 mm mini-jack input
- Internal mixing to Dante network channels
- Compact wall-mounted installation
- Remote configuration via AVS Monitor and Dante Controller
- PoE powered (IEEE 802.3af)
Technical Specifications
- Inputs: 2 XLR mic/line + stereo 3.5 mm mini-jack
- Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz
- Bit Depth: 24 or 32 bit
- Dynamic Range: >101 dB
- Frequency Response: 20 Hz – 20 kHz
- Phantom Power: +48 V per channel
- Power: PoE (IEEE 802.3af)
- Maximum Power Consumption: 5.5 W
- Dimensions: 49 x 47 x 46 mm
