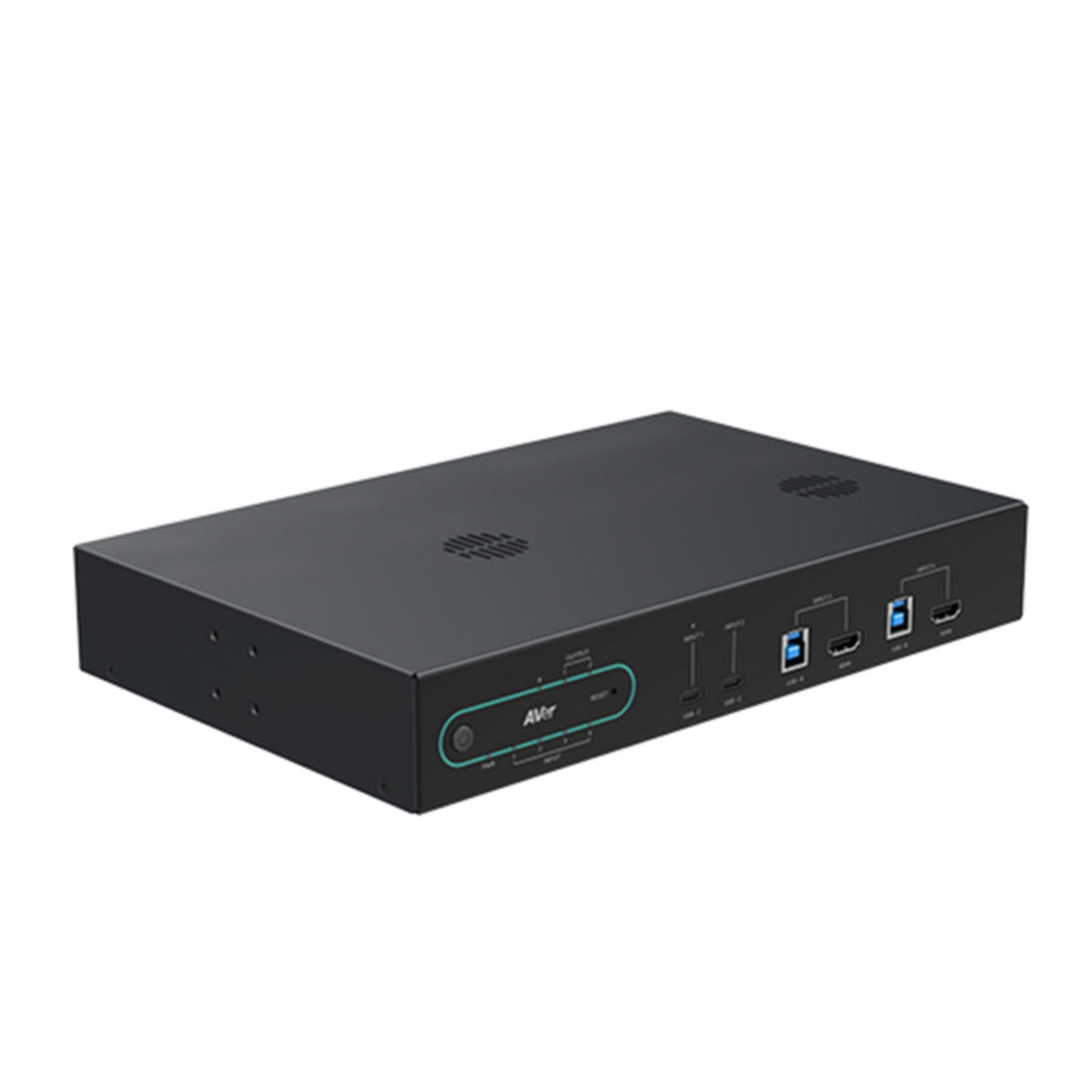

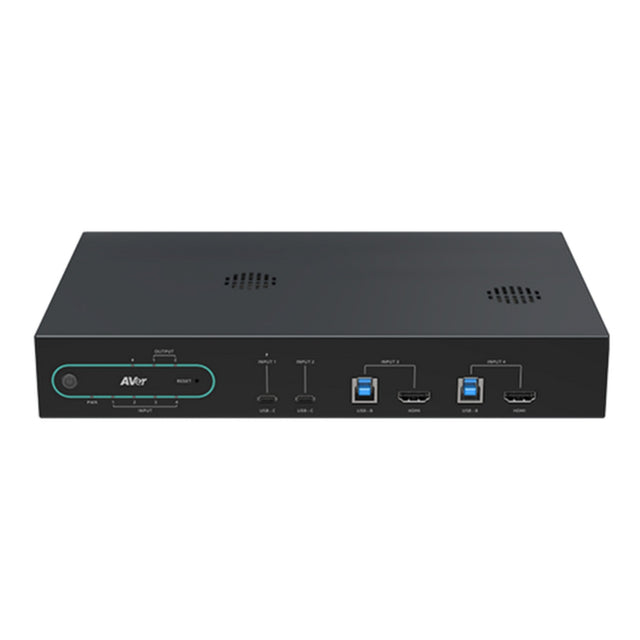

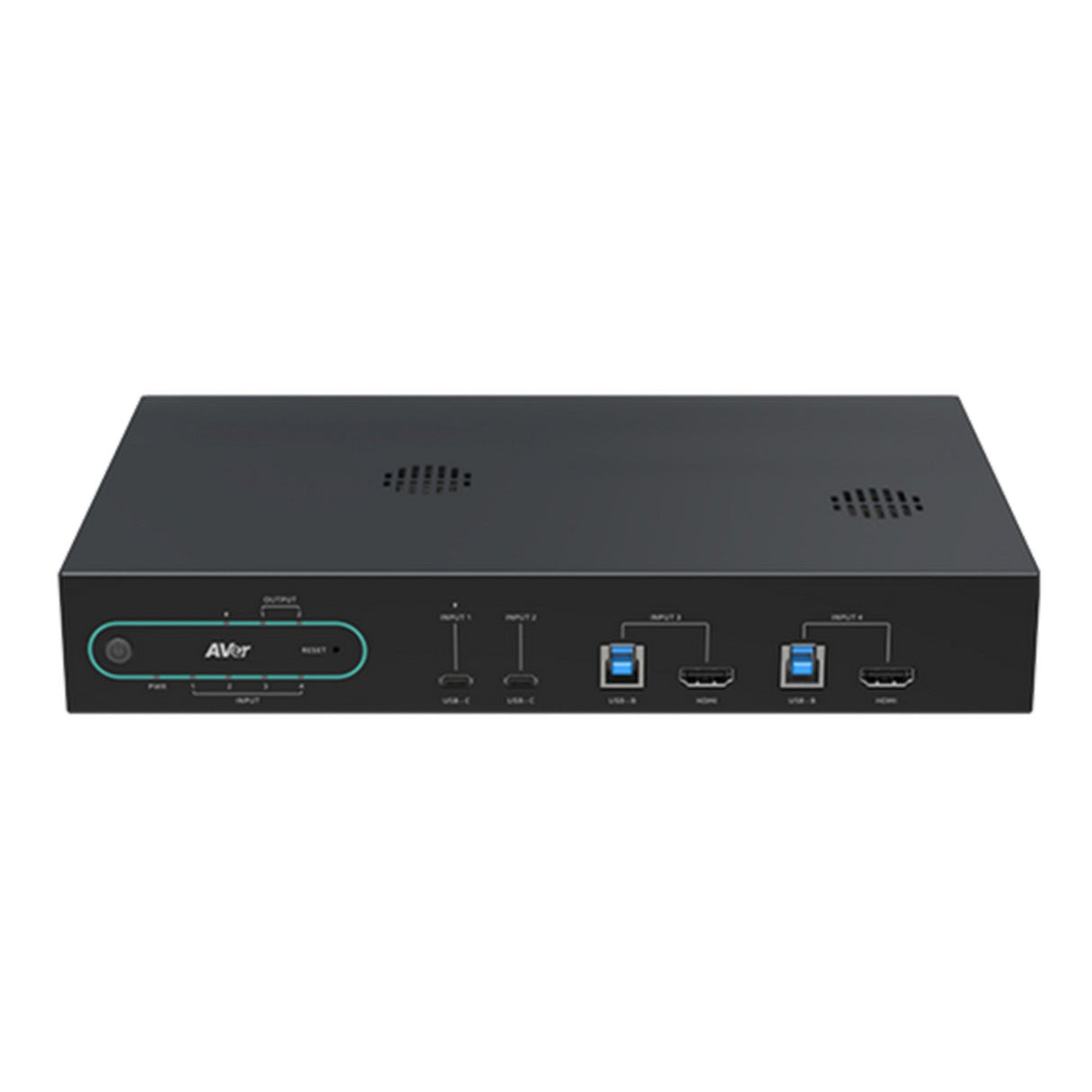

AVer HUB30 4K 4x2 USB/HDMI BYOM Switch

AVer HUB30 4K 4x2 USB/HDMI BYOM Switch

The AVer HUB30 4K 4x2 USB/HDMI BYOM Switch is a professional matrix switcher for modern meeting rooms, hybrid collaboration spaces, and AV environments. It combines 4K Ultra HD video output, USB-C Power Delivery, dual display support, and multi-source switching in one streamlined device.

Designed for teams searching for a 4K BYOM USB HDMI switcher, the HUB30 supports new room builds and upgrades to existing Microsoft Teams Rooms, Zoom Rooms, and conferencing systems. USB-C, HDMI, USB Type-B, and USB Type-A connectivity help users connect laptops, room PCs, displays, cameras, and USB peripherals with less cable friction.

For professional collaboration, the HUB30 supports AVer Room Management Software, CP10 G2 touch panel control, and ConnectAI multi-camera switching when paired with compatible AVer cameras. HDMI 2.0 support, audio pass-through, RS-232, Ethernet, and Kensington security make it practical for installed AV, education, enterprise, and production spaces.

Key Features

• 4x2 BYOM Switching: Routes USB and HDMI sources for flexible bring-your-own-meeting collaboration in conference and hybrid spaces.
• 4K Ultra HD Output: Supports up to 4K resolution for sharp presentation, conferencing, and collaboration visuals.
• USB-C Power Delivery: Input 1 provides USB Type-C charging up to 100W to help keep connected laptops powered.
• Dual Display Support: Two HDMI outputs support expanded display workflows with duplicate, extend, or independent content options.
• Multi-Camera AI Switching: ConnectAI enables intelligent speaker and presenter recognition when paired with compatible AVer cameras.
• Peripheral Connectivity: Four USB Type-A ports support connected USB audio and video peripherals.
• Touch Panel Control: Pairs with the optional AVer CP10 G2 Collaboration Touch Panel through the BYOM Controller App.
• Installation Flexibility: Supports rack mounting, under-table mounting, podium installation, and behind-display placement.

Technical Specifications

• Model: HUB30
• Manufacturer Part Number: PAT0HUB30
• Product Type: 4x2 USB/HDMI BYOM switch
• Host Input 1: 1 x USB Type-C with PD charging, 100W max
• Host Input 2: 1 x USB Type-C
• Host Input 3: 1 x USB Type-B, 1 x HDMI
• Host Input 4: 1 x USB Type-B, 1 x HDMI
• USB-C Charging: Yes
• USB Device Connections: 4 x USB Type-A
• USB Pass-Through: Yes
• HDMI Display Outputs: 2
• HDMI Display Output Modes: 2
• Video Resolution: Up to 4K Ultra HD
• Signal Type: DP Alt Mode, HDMI 2.0
• HDMI CEC: Yes
• Color Space: RGB, YCbCr
• Audio HDMI: Yes
• Audio Transmit Mode: Audio pass-through from input to output
• Audio Format: HDMI 2.0
• Ethernet: 1
• RS-232: 1
• Touch Control Panel Support: Yes, pairs with AVer CP10 G2 via BYOM Controller App
• Power Requirement: AC 100–240V to DC 24V / 7.5A
• Power Consumption: 150W
• Power Supply: External 180W power supply
• Security: Kensington slot
• Operating Conditions: 32°F to 113°F; 20% to 80% humidity
• Storage Conditions: -4°F to 140°F; 20% to 95% humidity
• Installation Methods: Rack mounted, under the table, inside the podium, behind the display

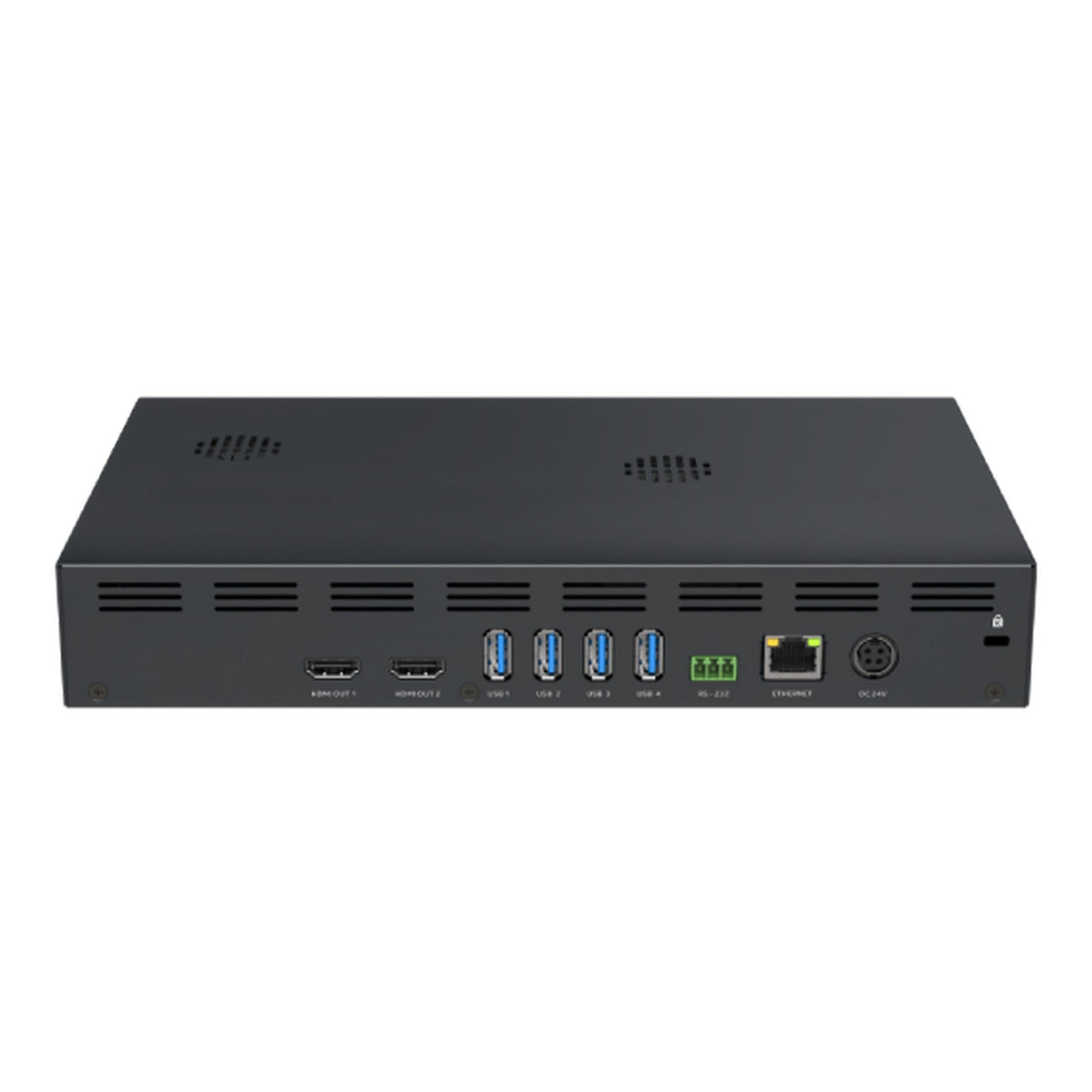

• Interfaces: 4 x USB Type-A, 2 x USB Type-B, 2 x USB Type-C, 2 x HDMI in, 2 x HDMI out, 1 x RJ-45, 1 x RS-232, 1 x power input
• Buttons: Power, reset
• Power/Status LED: Orange standby, green operating, flashing green firmware upgrading
• USB Type-C Charging/Status LED: Green charging
• Input Status LED: Green connected for inputs 1–4
• Output Status LED: Green connected for outputs 1–2
• Optional Accessory: AVer CP10 G2 Collaboration Touch Panel

What's Included

• HUB30: 1
• Power Adapter: 1
• Power Cord: 1
• Cable Fixing Plates: 2
• Cable Ties: 17
• M3 x 5.0 mm Truss Head Screws: 8
• M3 x 10 mm Screws: 4
• Rack Mount Brackets: 2
• USB 3.0 Type-A to Type-B Cable: 1
• USB 3.1 Type-C to Type-C Cable: 1
• Terminal Block 3-Pole: 1
• Quick Start Guide: 1
