AVer MT500 4K NDI Matrix Auto Tracking Box
The AVer MT500 4K NDI Matrix Auto Tracking Box is an AI-powered matrix tracking system for large lecture halls, boardrooms, government chambers, and professional AV spaces. It centralizes multi-camera switching, intelligent voice tracking, dual 4K outputs, and AV-over-IP distribution in one rack-mountable device.
Designed for teams searching for a professional matrix auto tracking box, the MT500 automates speaker-focused camera switching without a dedicated operator. It supports large-room production workflows, hybrid meetings, livestreaming, recording, and in-room display systems where multiple cameras, microphones, and output feeds need to work together reliably.
With built-in PTZ Link Premium, Dante audio support, Dante AV-H readiness, NDI HX2 and NDI HX3 support, and an 8-channel matrix mixer, the MT500 fits modern AV-over-IP installations. FaceFocus, IntelliSwitch, and InstaConfig AI tools help streamline setup and improve the viewing experience for remote and in-room audiences.
Key Features
- AI Multi-Camera Switching: Automatically detects active speakers and switches camera feeds for operator-free production in large spaces.
- Voice Tracking Integration: Built-in PTZ Link Premium coordinates compatible cameras and microphone systems for synchronized speaker tracking.
- Dual Independent 4K Outputs: Sends separate 4K feeds for in-room displays, recording, streaming, or remote audiences.
- AV-over-IP Support: Supports RTSP, RTMP, HLS, NDI HX2, NDI HX3, Dante audio, and Dante AV-H workflows.

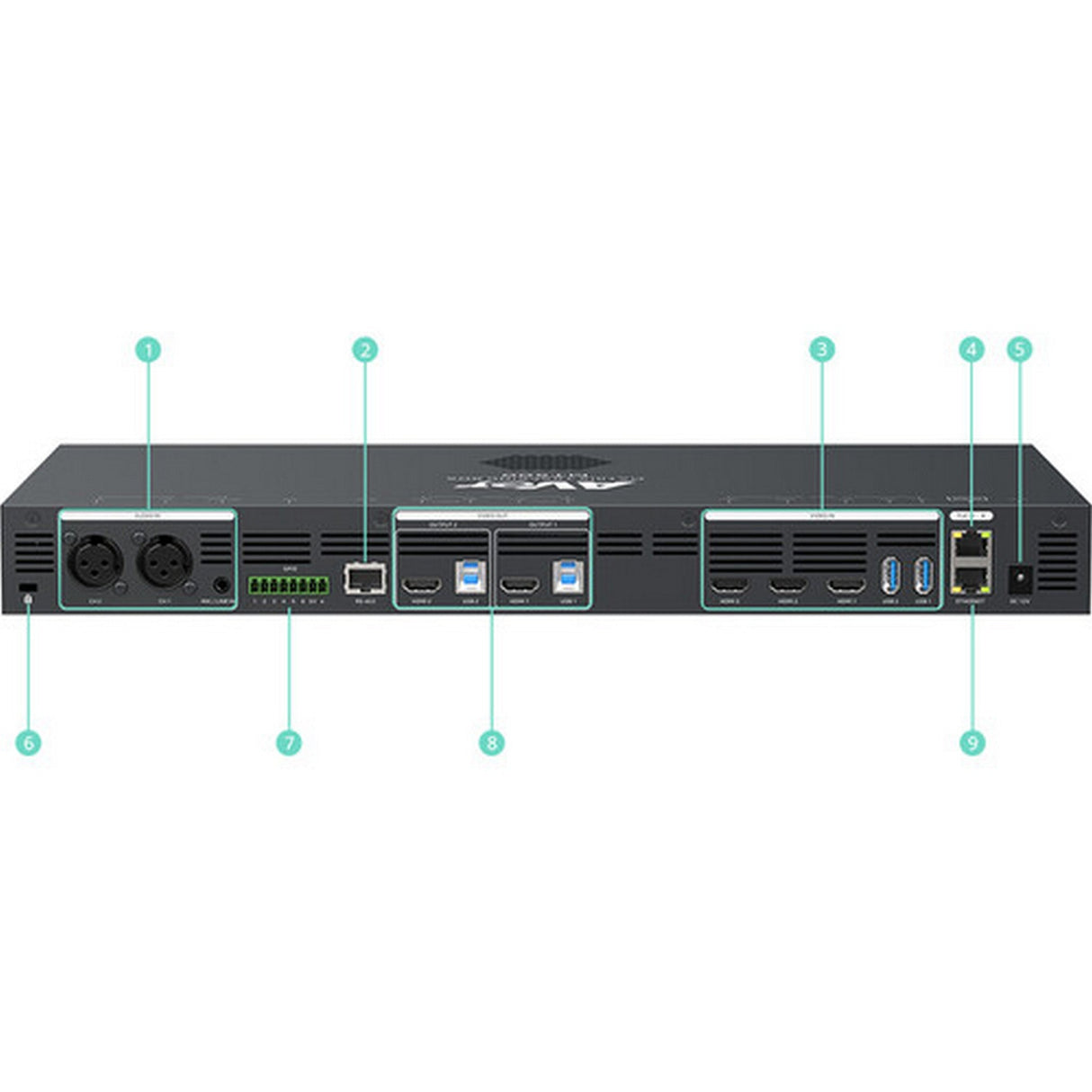

- Flexible Video I/O: Includes HDMI, USB, and IP-based inputs and outputs for complex professional AV environments.
- 8-Channel Matrix Mixer: Provides integrated audio mixing for multiple audio sources within the same system.
- AI Setup Tools: FaceFocus, IntelliSwitch, and InstaConfig help optimize camera angles, transitions, and microphone-to-camera mapping.
- Rack or Desk Installation: Included mounting hardware supports rack installation or under-desk placement.
Technical Specifications
- Model: MT500
- Manufacturer Part Number: PAT0MT500
- Product Type: 4K NDI matrix auto tracking box
- Physical Video Inputs: 2 x USB 3.0 Type-A, 3 x HDMI 2.0
- IP Stream Inputs: Up to 25
- Display Capabilities: IP/USB x 8 plus HDMI x 3
- Input AV-over-IP Protocols: RTSP, NDI HX2, NDI HX3, Dante AV-H
- Physical Video Outputs: 2 x HDMI 2.0, 2 x USB 3.0 Type-B UVC/UAC, 2 x IP
- Output AV-over-IP Protocols: RTSP, RTMP, HLS, NDI HX2
- Dual Independent Outputs: Content 1 via HDMI 1, USB 1, or IP 1; Content 2 via HDMI 2, USB 2, or IP 2
- Maximum Resolution: Up to 4K at 60 fps
- Video Codecs: H.264, H.265, MJPEG
- Analog Audio I/O: 2 x XLR balanced inputs, 1 x 3.5 mm mic/line input, 1 x 3.5 mm output
- Dante Audio: Yes
- USB Audio Bypass: Bi-directional UAC
- Audio Mixing: 8-channel matrix mixer
- Auto Layouts: Single, Side-by-Side, Active Speaker, PiP, Customize, Advanced
- Manual Layouts: Single, Side-by-Side, Main Speaker-3 Inputs, Main Speaker-4 Inputs, PiP, Quad View, Advanced
- GPIO: 6-pin configurable
- RS-422: 1
- Ethernet: 1
- PoE++: 1 x IEEE 802.3bt Class 5, 41.1V to 57V, 1.5A
- Control Protocols: VISCA over IP, CGI
- Management: Web UI

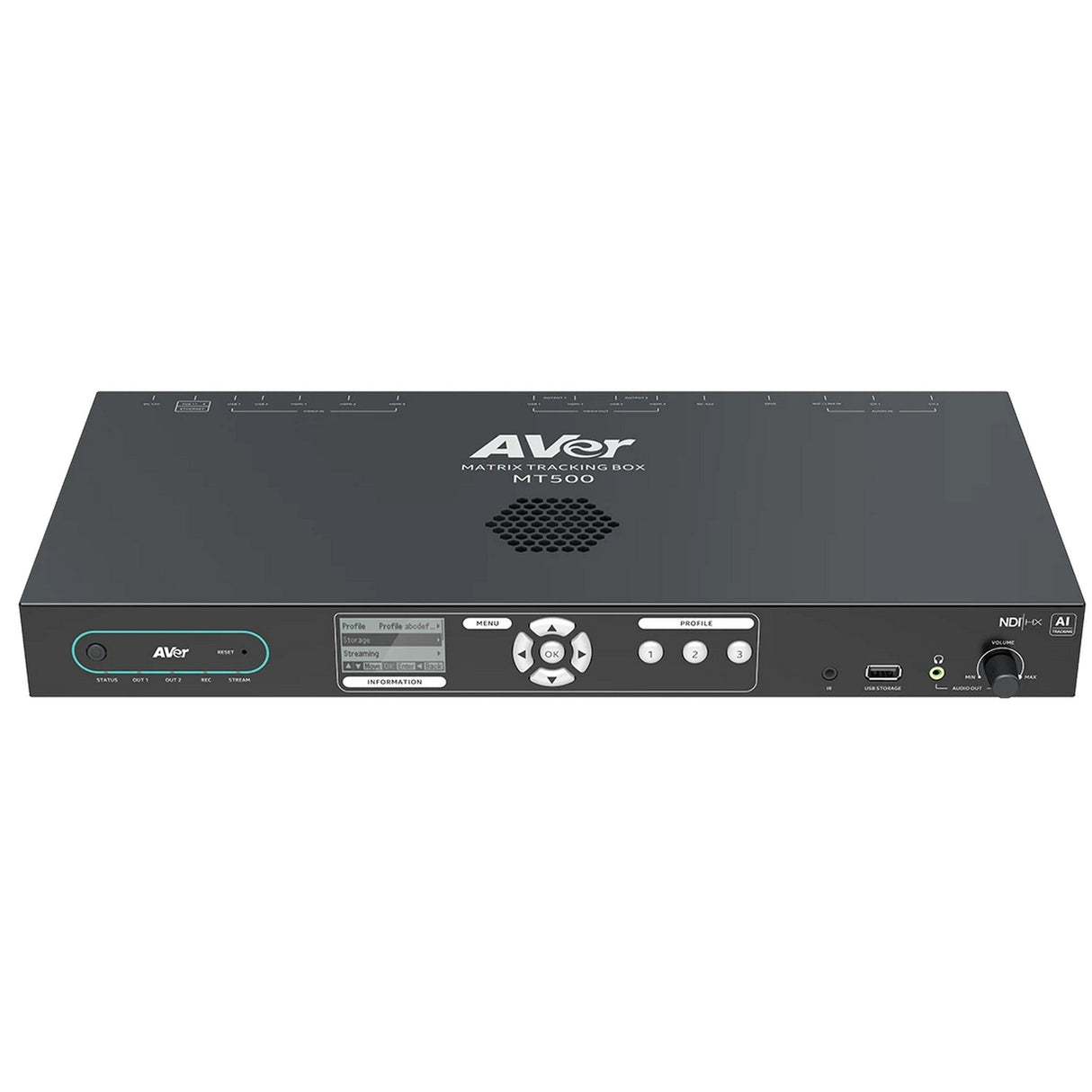

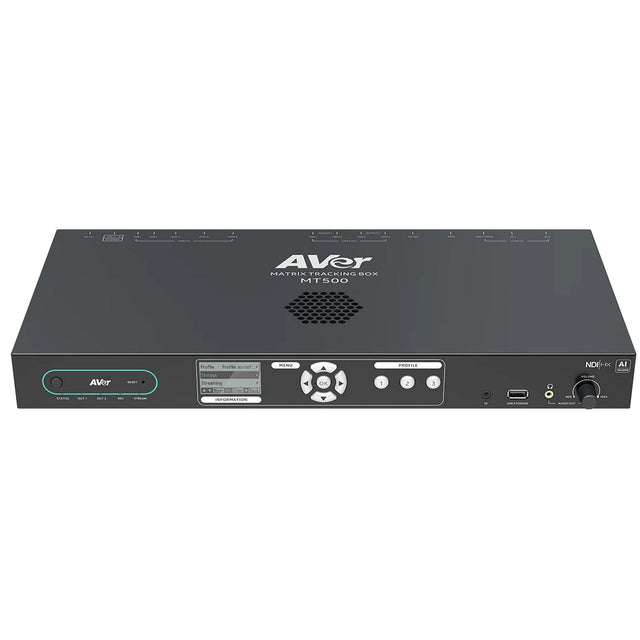

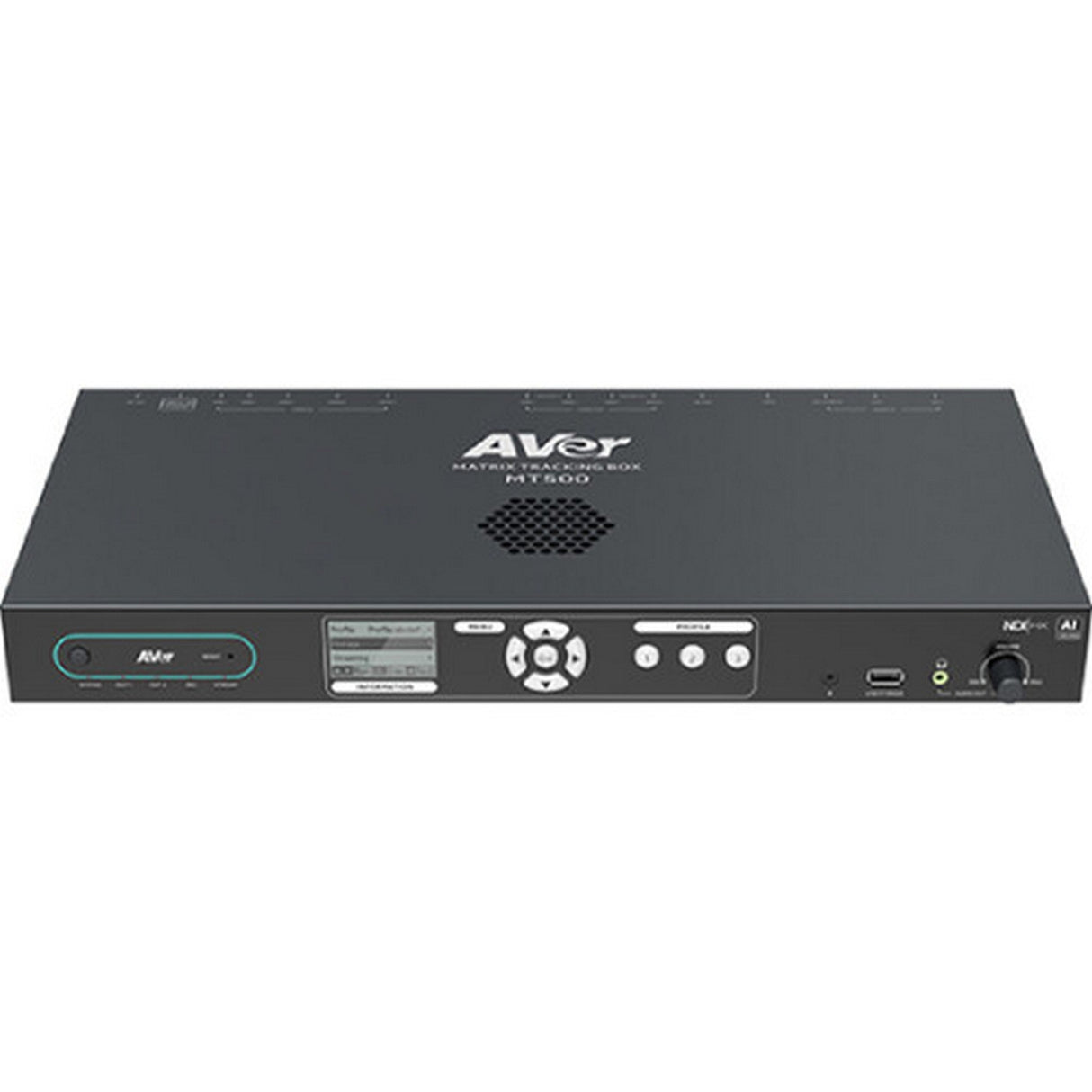

- On-Device Controls: Buttons, LCM screen
- Local Recording: Direct to USB storage device
- Network Recording: Direct to NAS
- AI Features: FaceFocus, IntelliSwitch, InstaConfig
- Device Utility: Supports Windows 10 or later and macOS 10.14 or later
- Enterprise Management: Supports Windows 10 or later
- Room Management: Supports Windows 7 or later and macOS 11.6 or later
- Cloud Management: Supports Chrome and Microsoft Edge browsers
- MT Control Panel: Supports Windows 7 or later, macOS 10.14 or later, and Android 8.0 or later
- PTZ Link Premium: Built in for voice tracking
- LCM Screen: 2-inch
- Buttons: Menu, Profile, Power, Reset, Volume Knob
- LED Indicators: Status, Output 1, Output 2, Record, Stream
- Power Requirement: AC 100–240V to DC 12V / 7.5A
- Power Consumption: 23W
- Security: Kensington slot
- Operating Temperature: 32°F to 104°F
What's Included
- MT500 Matrix Tracking Box: 1
- Power Adapter and Power Cord: 1
- USB 3.0 Type-A to Type-B Cables: 2
- Phoenix Combicon 8-Position Connector: 1
- Quick Start Guide: 1
- Cable Fixing Plate: 1
- 3.0 x 5 mm Truss Head Screws: 10
- Cable Ties: 9
- Mount Brackets: 2
- M3 x 10 mm Screws: 4
