AVMATRIX FE1121-12G Fiber Optic Extender, 12G-SDI
AVMATRIX FE1121-12G Fiber Optic Extender, 12G-SDI

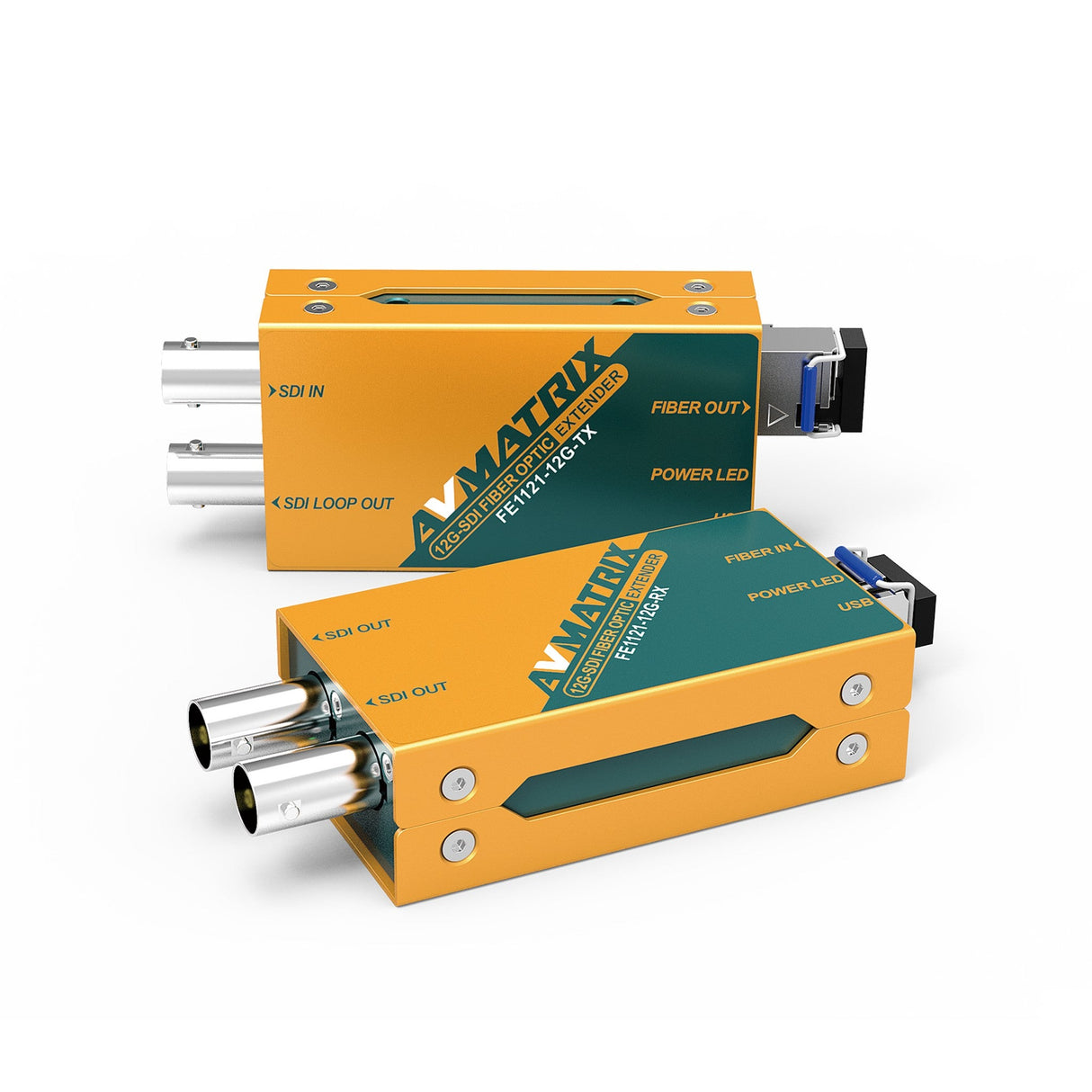

The AVMATRIX FE1121-12G is a 12G-SDI fiber optic extender. This supports 1310nm wavelength single-mode LC simplex fiber extensions up to 10km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 4K60 (Max Bandwidth: 12GBps) with audio and metadata.
Key Features
- 12G/6G/3G-SDI input & loop out on transmitter
- Dual 12G-SDI outputs on receiver
- Supports up to 12G bandwidth
- SDI input automatic switching SD, HD, 3G, 6G, 12G-SDI
- 10km transmission distance
- SFP/ LC Fiber transmitter & receiver
- SDI equalization and re-clocking
- USB power supply
Technical Specifications
Connections

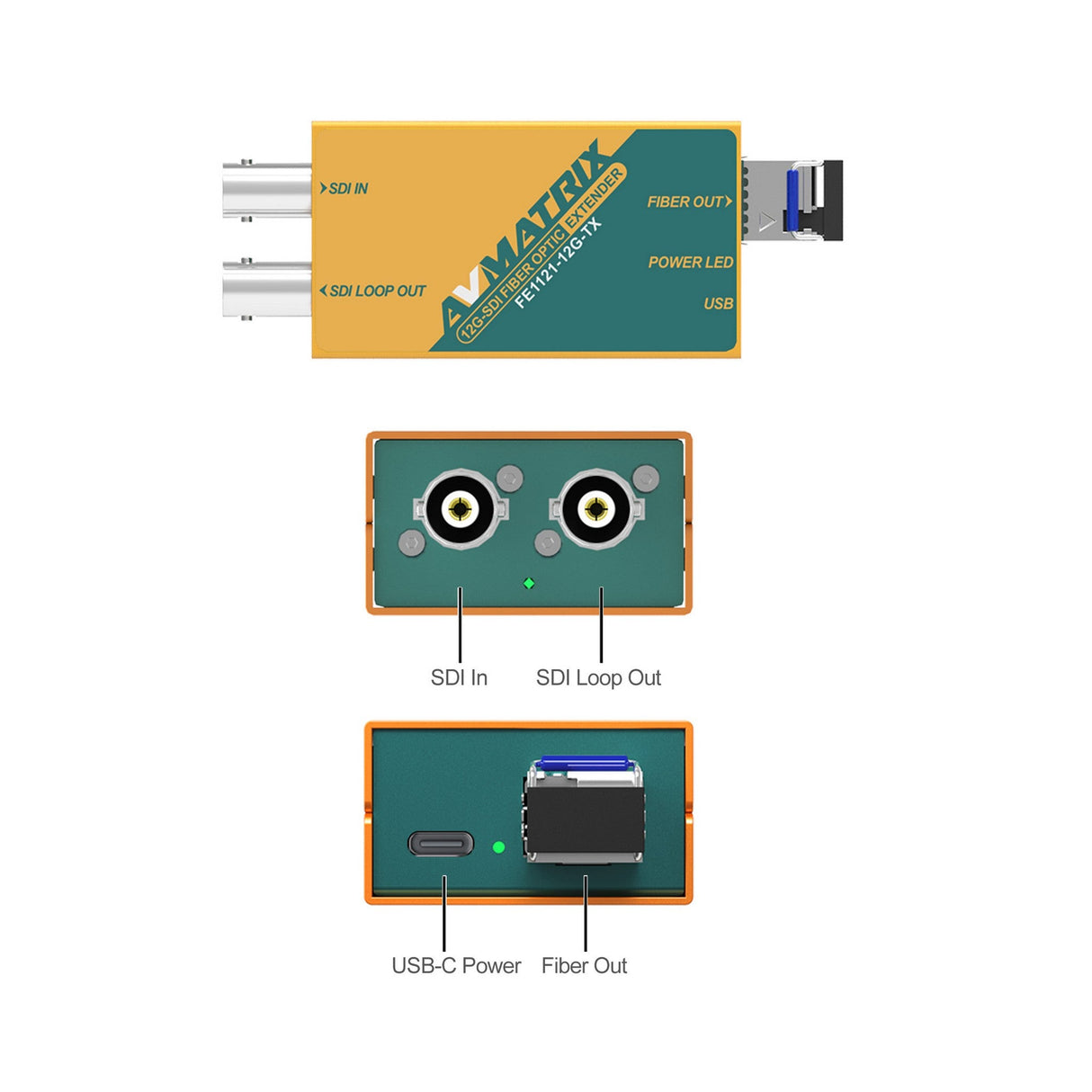

Transmitter
SDI Video Input: SD/HD/3G/6G/12G-SDI/ASI (75) x1
SDI Loop Output: SD/HD/3G/6G/12G-SDI/ASI (75) x1
Fiber Optical Input: SFP Module (LC) x1

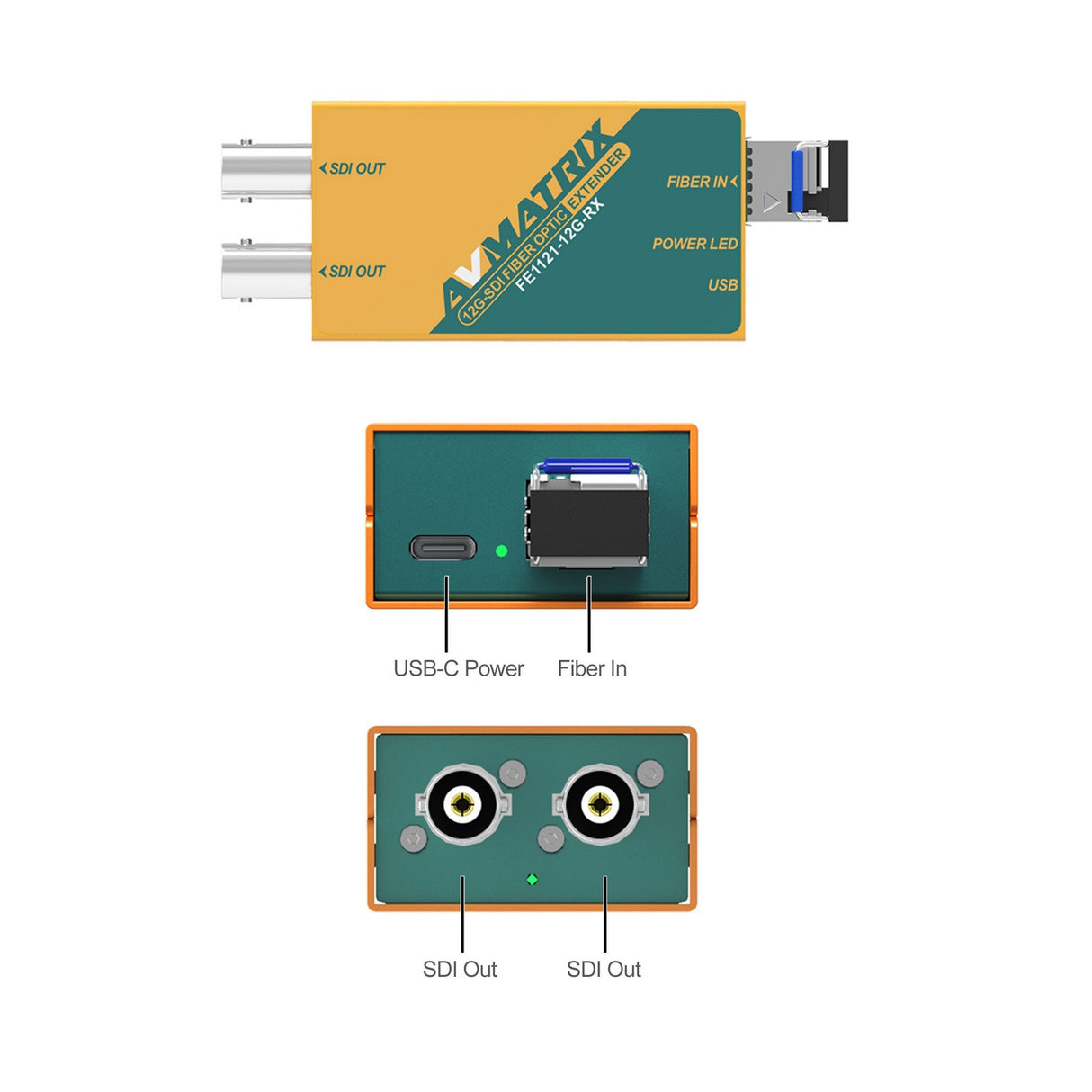

Receiver
Fiber Optical Input: SFP Module (LC) x1
SDI Video Output: SD/HD/3G/6G/12G-SDI/ASI (75) x2
Standards
Optical Fiber Module
SFP Module
Hot-Pluggable
Connector Style
LC
Fiber Type
Single-Mode
Optical Wavelength
1310nm
Max Bandwidth
12Gbps
Optical Transmit Power
-4dBm
Receiver Sensitivity
-12dBm
Single-Mode Max Distance
10km (12.5 Miles) for 12G (4K60P)
Optical Fiber Compliance
SMPTE 297M
SDI
Compliance
SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M
Auto Switching
SD/HD/3G/6G/12G-SDI on Input
Video Rate
SD/HD/3G/6G/12G-SDI
Color Space
YUV, RGB
Equalization and re-clocking
Yes, SDI input and output support up to 60m for 12G-SDI
Audio
Supports 32/16 Channels embedded
Physical
Dimensions (LxWxD)
2.79 x 1.61 x 0.90" (71 x 41 x 23mm)
Weight
0.88Lbs (400g)
Power
Micro USB
Power Consumption
1.5 Watts
Voltage Range
3.3 to 5 Volts
