AVPro Edge AC-10G-SFPP 10G SFP Plus Copper RJ45 Transceiver Module - 328 Feet

AVPro Edge AC-10G-SFPP 10G SFP+ Copper Module

The AVPro Edge AC-10G-SFPP 10G SFP+ Copper Module provides high-speed copper Ethernet connectivity through an RJ45 interface in a hot-pluggable SFP+ form factor. Three transmission-distance options support maximum cable runs of 98.4', 262.4', or 328', allowing integrators to match the module to different professional network layouts.

Designed for AV-over-IP and high-bandwidth network infrastructure, these modules connect compatible 10G TCVRs and the 10G CBOX with 10G network switches. They can also support stacking between MXNET 1G SW24 and SW48 network switches. Installers can choose the 30-meter, 80-meter, or 100-meter version according to required copper transmission distance and structured cabling conditions.

Each module uses an RJ45 copper connection, supports data rates up to 10Gbps, and operates from 32 to 158°F. SFP+ MSA compatibility supports standardized installation and replacement, while hot-pluggable operation simplifies service without requiring permanent module installation. The modules are tested for interoperability with AVPro Edge MXNet switching hardware and support established Ethernet and SFP+ interface standards.

Key Features

• Three Transmission Distances: Choose 98.4', 262.4', or 328' maximum cable reach to suit different network installations.
• 10Gbps Networking: Supports high-bandwidth Ethernet connections with maximum data rates up to 10Gbps.
• RJ45 Copper Interface: Connects compatible network equipment using standard copper twisted-pair cabling.
• Hot-Pluggable SFP+ Design: Allows convenient installation and replacement in compatible SFP+ network ports.
• MXNet Compatibility: Supports connections involving 10G TCVRs, the 10G CBOX, and compatible MXNet network switches.
• MSA Compliance: Follows SFP+ Multi-Source Agreement requirements for standardized module integration.
• Commercial Operating Range: Designed for operation from 32 to 158°F in professional networking environments.

Technical Specifications

• Product Family: AC-10G-SFPP
• Available Models: AC-10G-SFPP-C30, AC-10G-SFPP-C80, AC-10G-SFPP-C100
• Connector Type: RJ45
• Cable Type: Copper
• Maximum Data Rate: 10Gbps
• EMC: Supported
• Commercial Temperature Range: 32 to 158°F
• MTBF: 5,000,000 hours
• Protocols: IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431
• Additional Compliance: IEEE 802.3ae compliant; RoHS compliant
• Installation: Hot-pluggable
• Compatible Applications: 10G TCVRs, 10G CBOX, 10G network switches, and MXNET 1G SW24/48 switch stacking

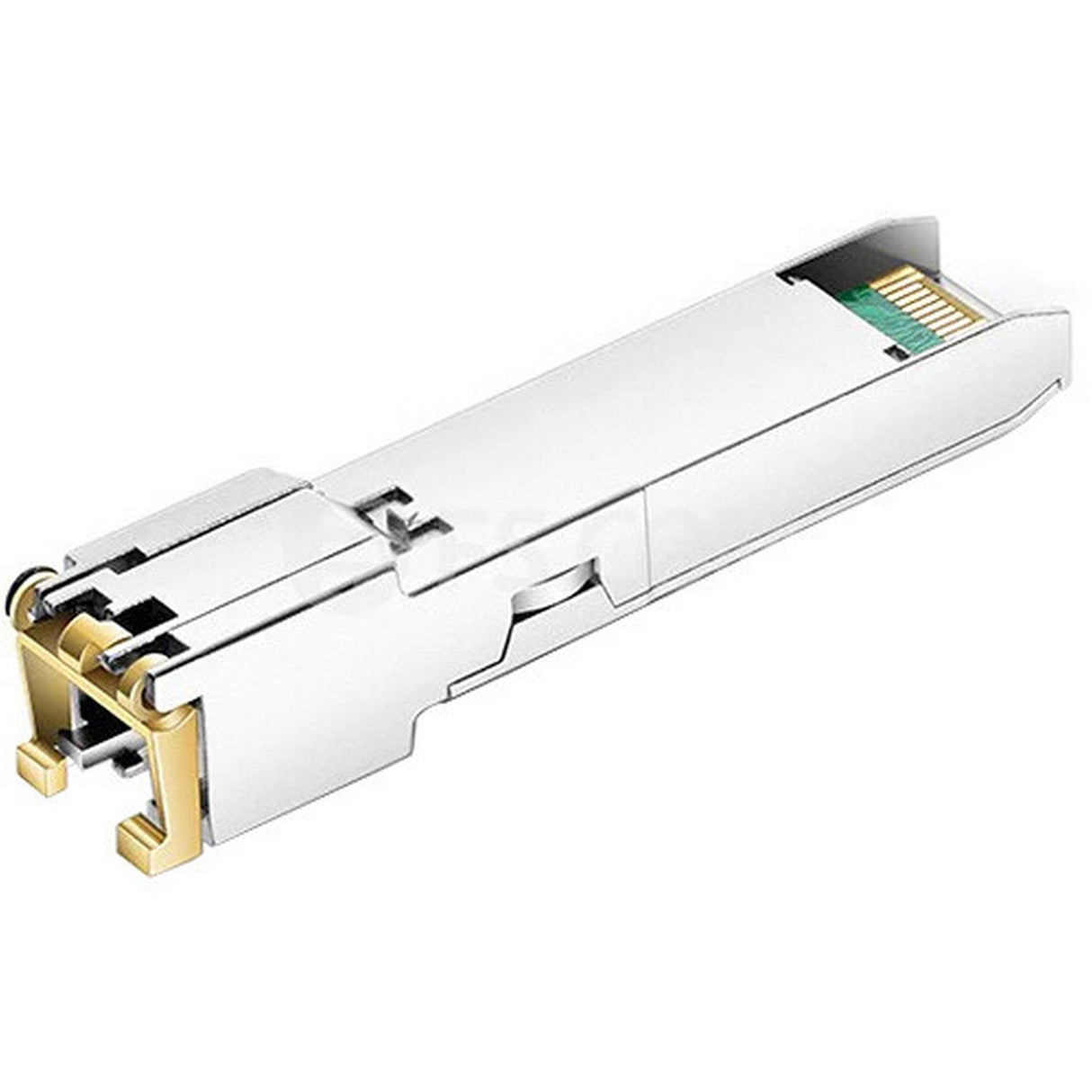

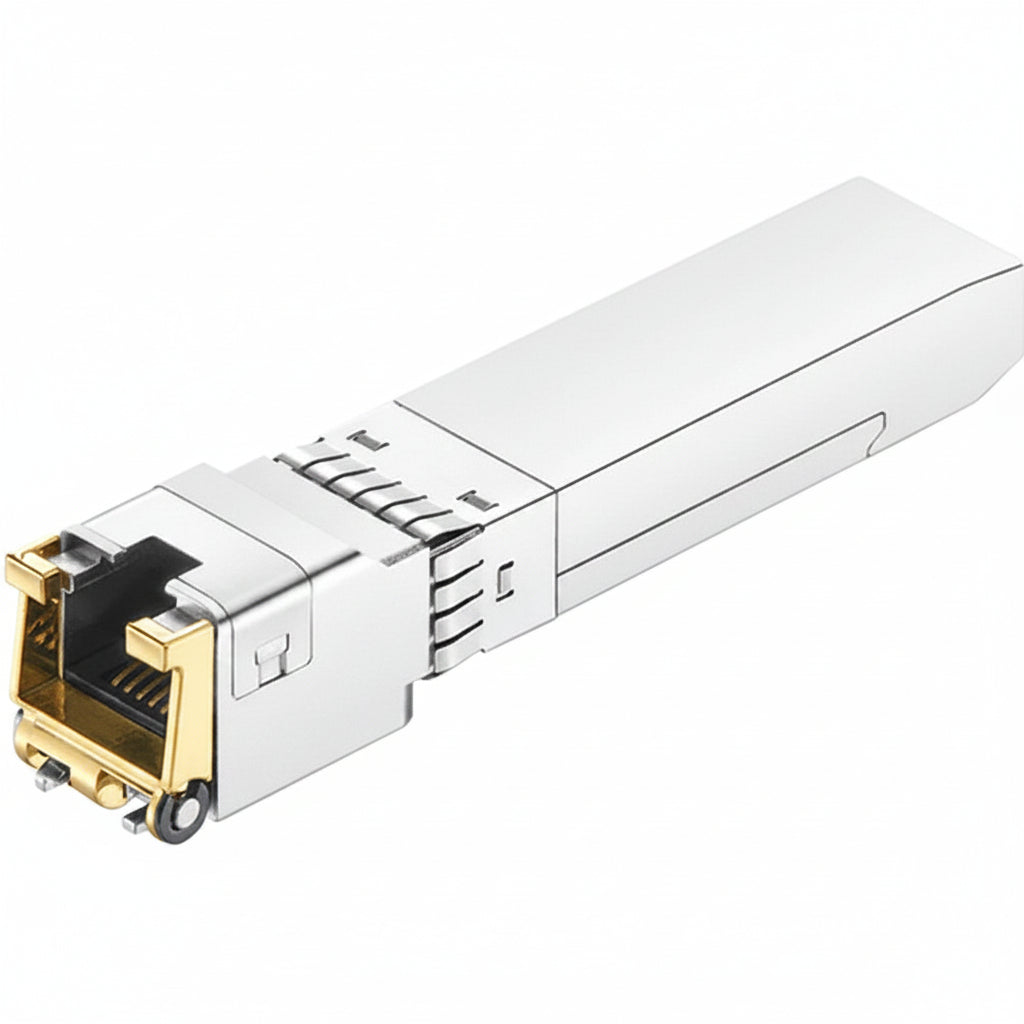

AC-10G-SFPP-C30 - 98.4' Variant

• Form Factor: SFP+
• Maximum Cable Distance: 98.4' using Cat6a/Cat7 or better
• Typical Power Consumption: ≤2.9 W

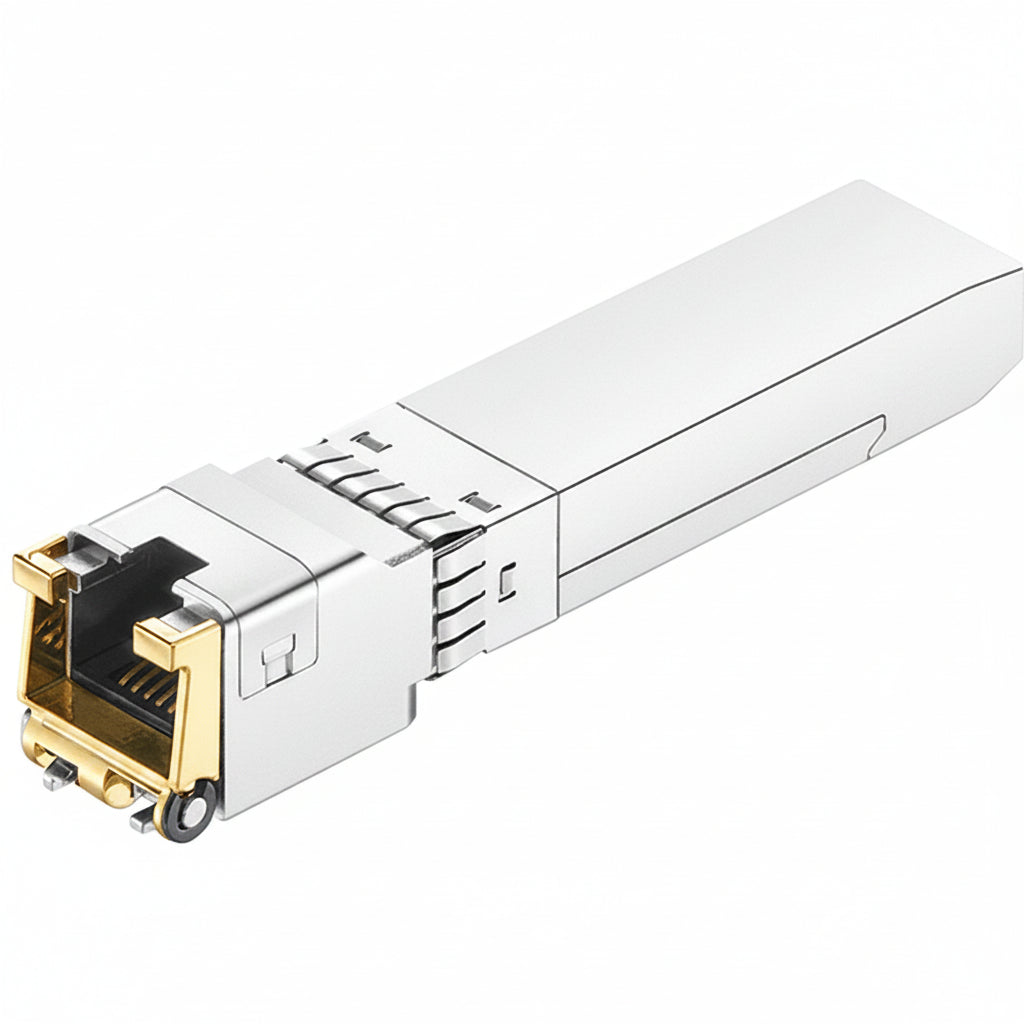

AC-10G-SFPP-C80 - 262.4' Variant

• Form Factor: SFP+
• Maximum Cable Distance: 262.4' using Cat6a/Cat7 or better
• Typical Power Consumption: ≤2.5 W

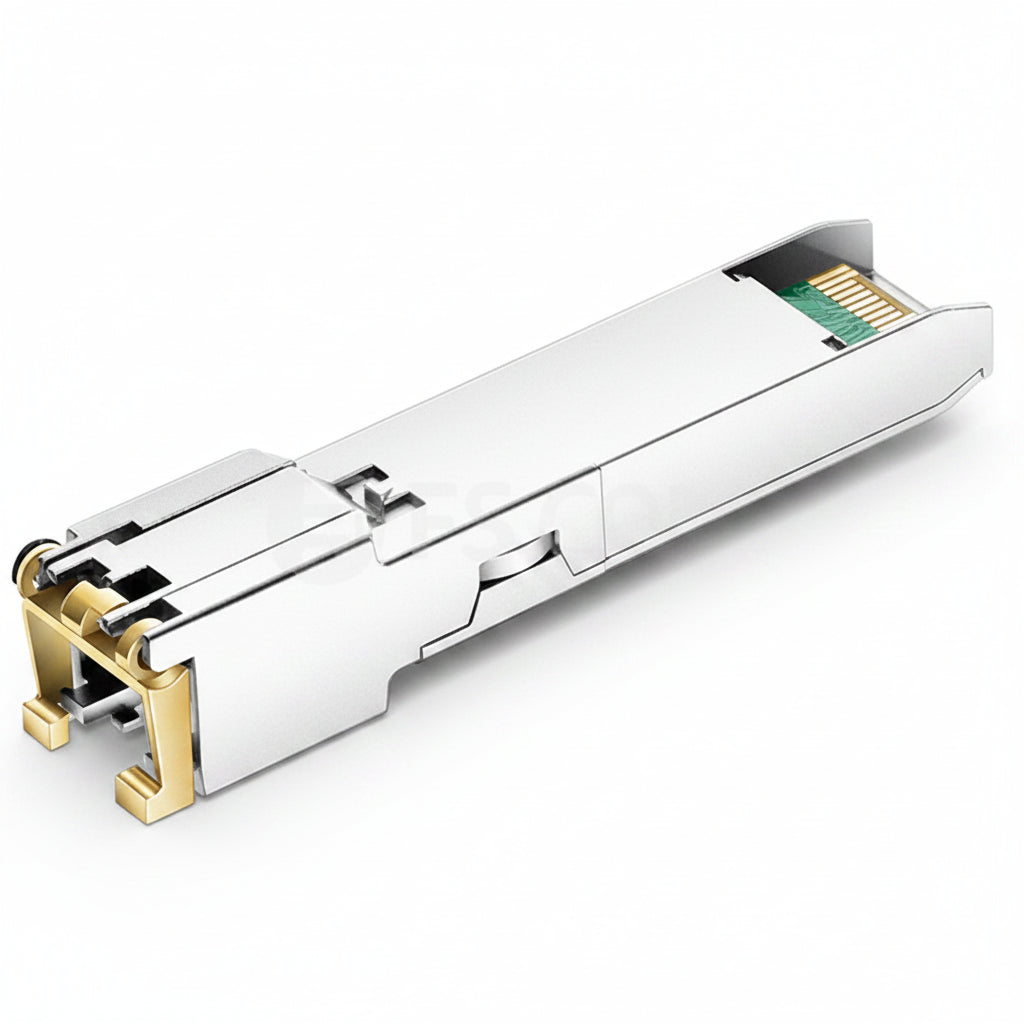

AC-10G-SFPP-C100 - 328' Variant

• Form Factor: SFP+ SGMII
• Maximum Cable Distance: 328' using Cat6a/Cat7
• Typical Power Consumption: ≤1.65 W
• 10G Media Support: Cat6a/Cat7
• 5G Media Support: Cat5e/Cat6 or better
• 100M/1G/2.5G Media Support: Cat5/Cat5e or better

What's In the Box

• AVPro Edge 10G SFP+ Copper Module
