AVPro Edge AC-CXWP-150-BKT ConferX HDMI Wall Plate Extender Kit - White

AVPro Edge AC-CXWP-150-BKT ConferX HDMI Wall Plate Extender Kit

The AVPro Edge AC-CXWP-150-BKT ConferX HDMI Wall Plate Extender Kit is a long-distance HDMI extension system with a clean wall plate transmitter and companion receiver. It extends 1080p signals up to 492 ft and 4K UHD signals up to 330 ft over Category cabling while supporting 18 Gbps HDMI 2.0 video.

Built for conference rooms, classrooms, residential retrofits, and commercial AV installations, the AC-CXWP-150-BKT helps integrators deliver a professional HDMI wall plate extender kit without replacing difficult legacy cabling. It works with challenging Category 5e infrastructure, including splices, couplers, and punch-down blocks, making it ideal for retrofit HDMI extension over Cat cable.

This matched transmitter and receiver kit supports HDR10, HDR10+, HLG, Dolby Vision, configurable EDID management, 4K to 1080p downscaling, and bidirectional RS-232 and IR control pass-through. White and black wall plate finish options support cleaner room integration, while PoH from a single power supply simplifies installation.

Long-Distance HDMI Wall Plate Extender Kit

• 150m 1080p Extension: Sends 1080p signals up to 492 ft over CAT6a cabling for long-distance display connections.
• 100m 4K UHD Extension: Extends 4K UHD signals up to 330 ft over CAT6a for professional AV installations.
• 18 Gbps HDMI 2.0 Support: Handles high-bandwidth 4K 60 Hz 4:4:4 signals for modern video sources and displays.
• Legacy Cable Support: Works with dated Category 5e wire, splices, couplers, and punch-down blocks in retrofit environments.
• HDR Format Support: Supports Dolby Vision, HDR10, HDR10+, and HLG for high dynamic range video systems.
• Configurable EDID Management: Helps stabilize source-to-display communication across mixed system designs.
• Control Pass-Through: Supports bidirectional RS-232 and IR control for integrated AV control systems.

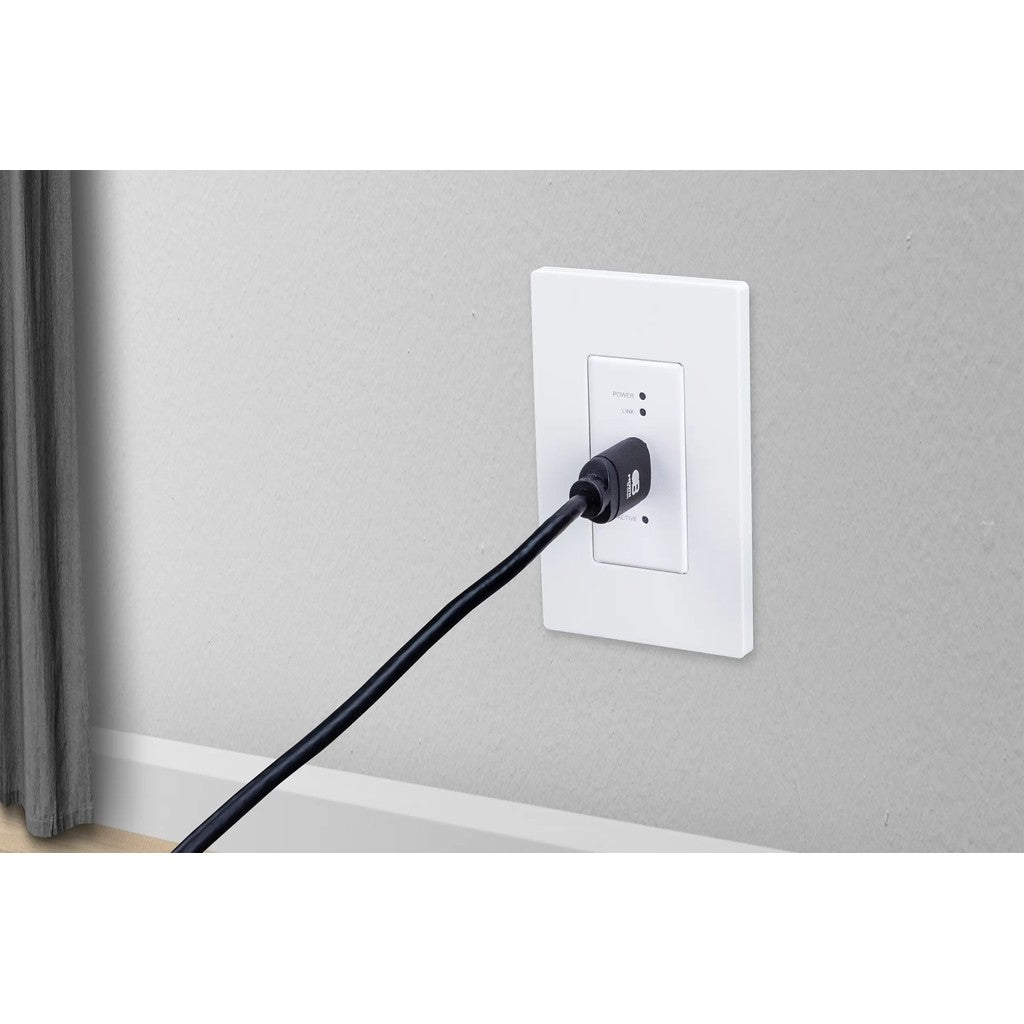

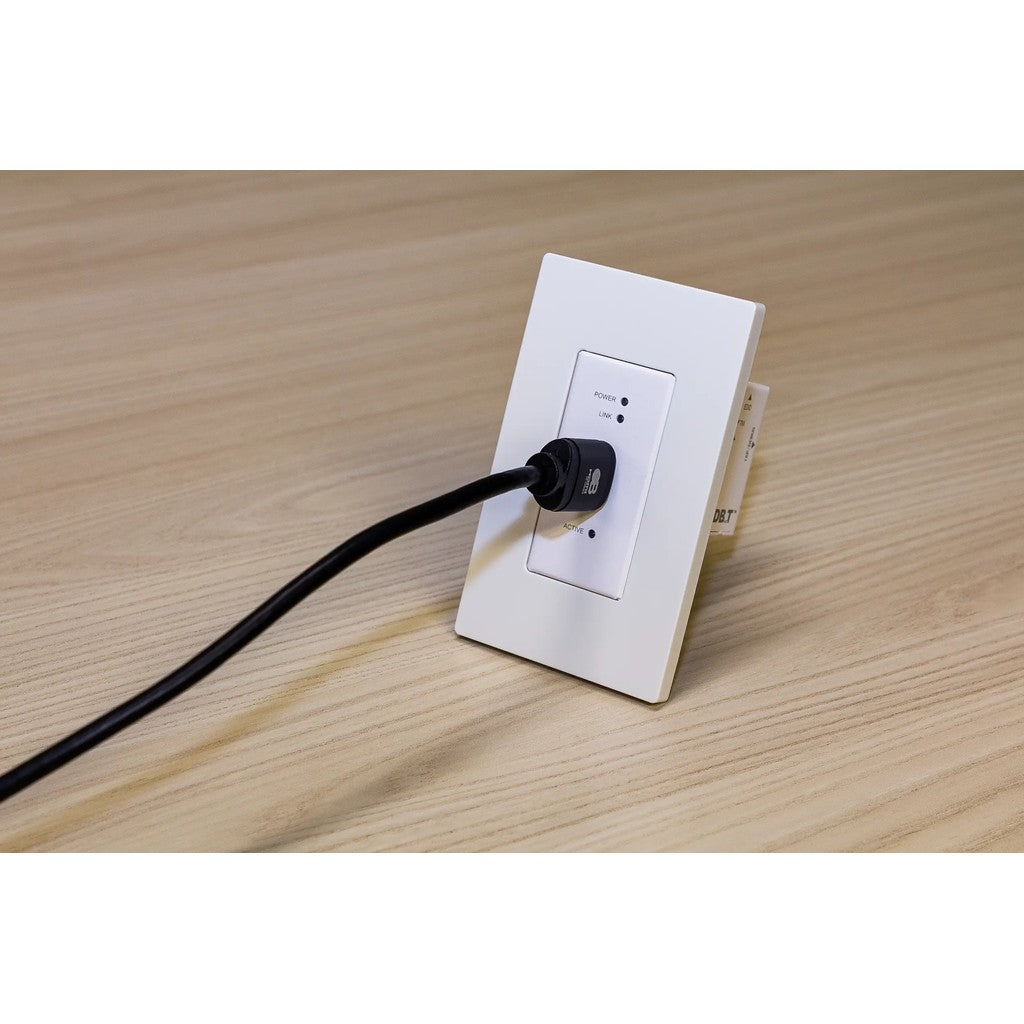

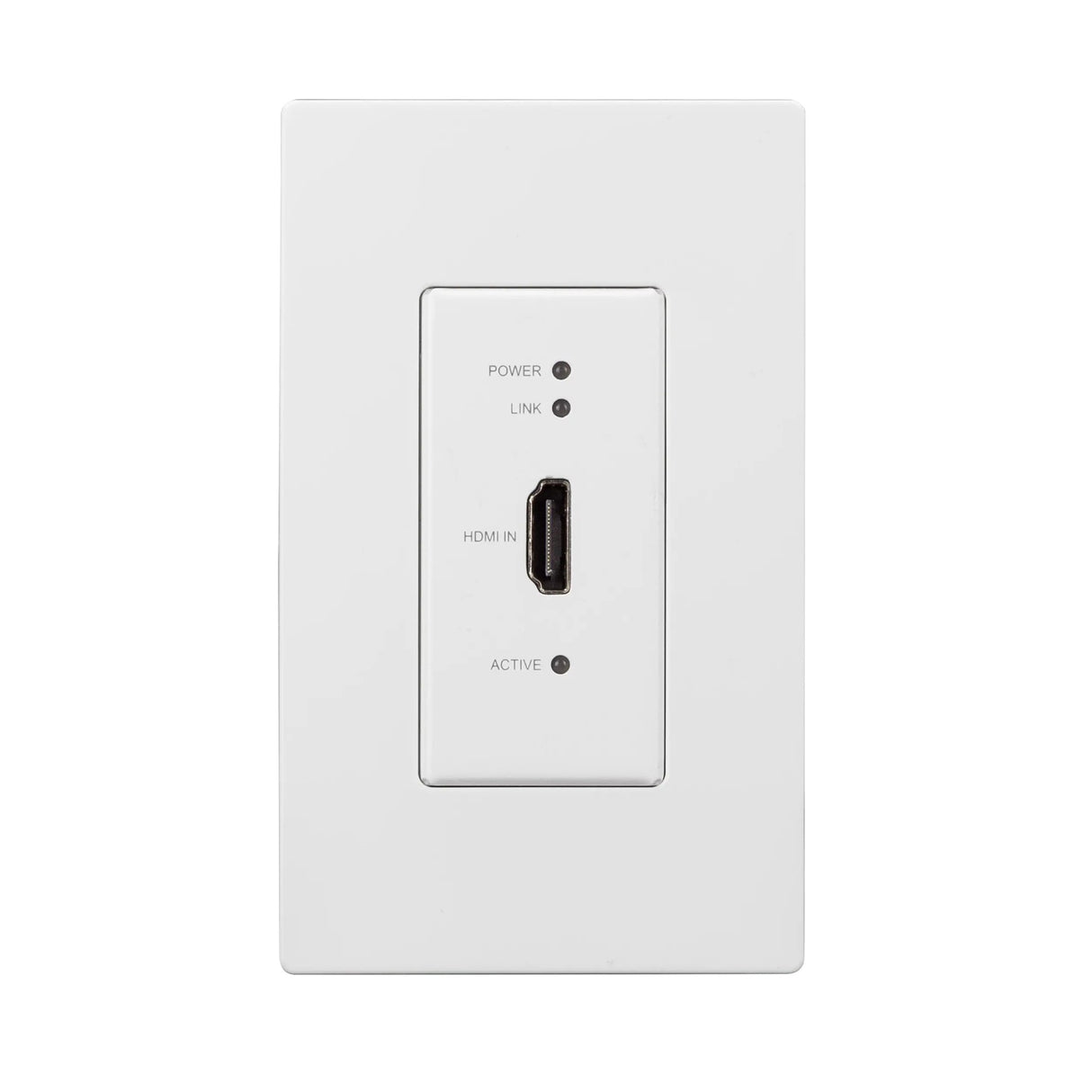

• Wall Plate Installation: Single-gang transmitter format provides a clean HDMI input point for rooms and presentation spaces.

ConferX HDMI Extension for Retrofit AV Systems

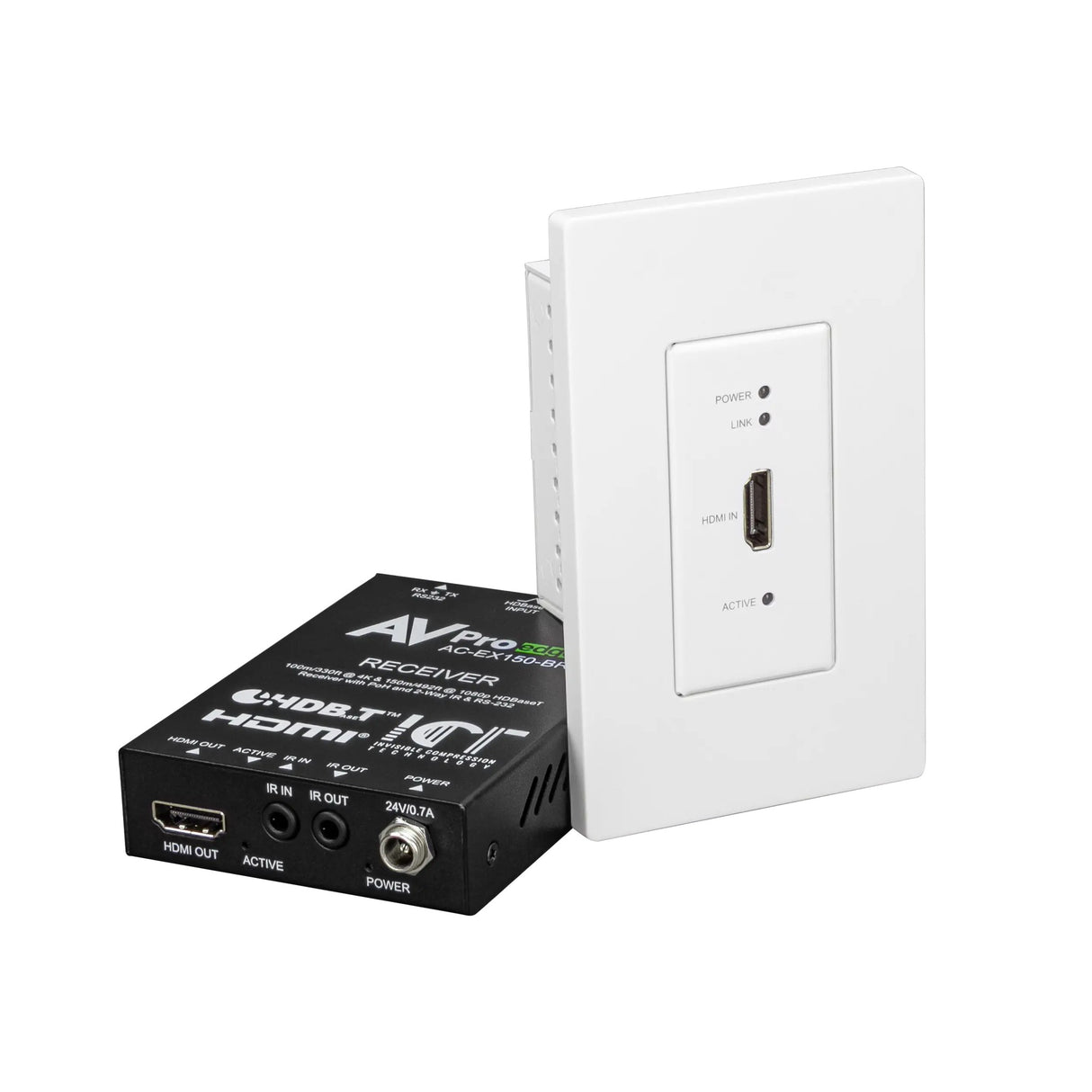

• Matched Kit Design: Includes a dedicated wall plate transmitter and receiver that must be used together.
• Downscaling Support: Provides 4K to 1080p downscaling for mixed-resolution display systems.
• PoH Power Design: Uses Power over HDBaseT from a single power supply to simplify system wiring.

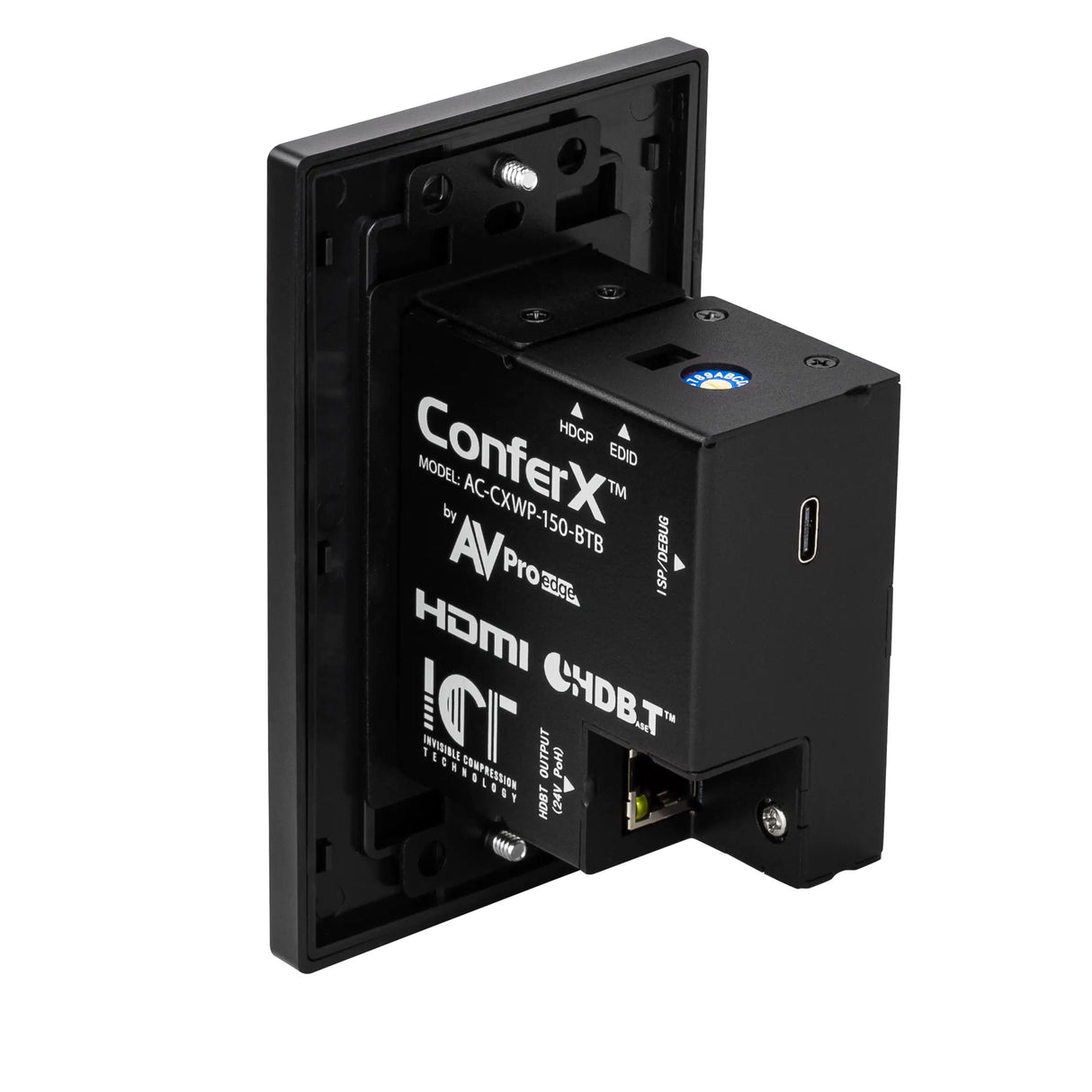

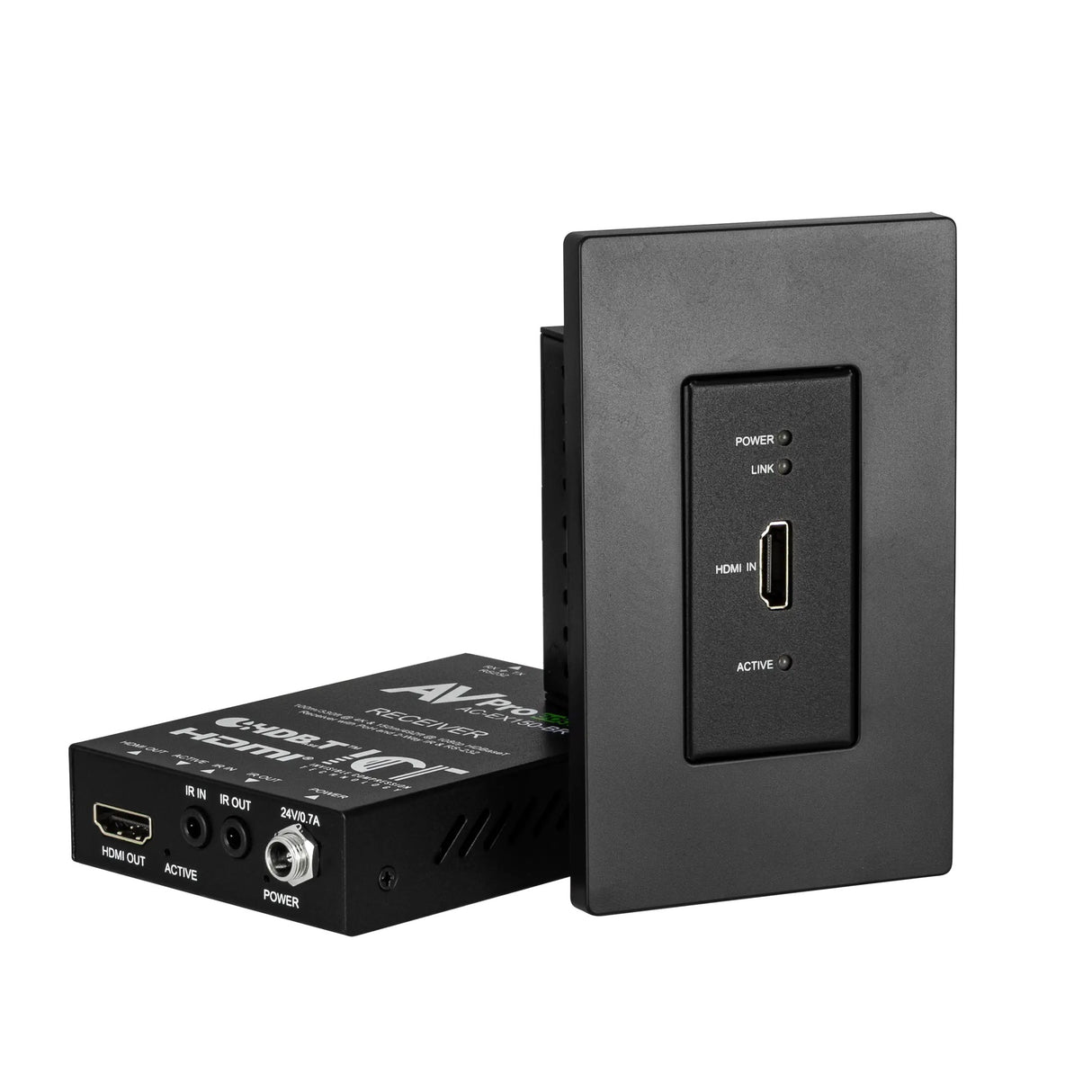

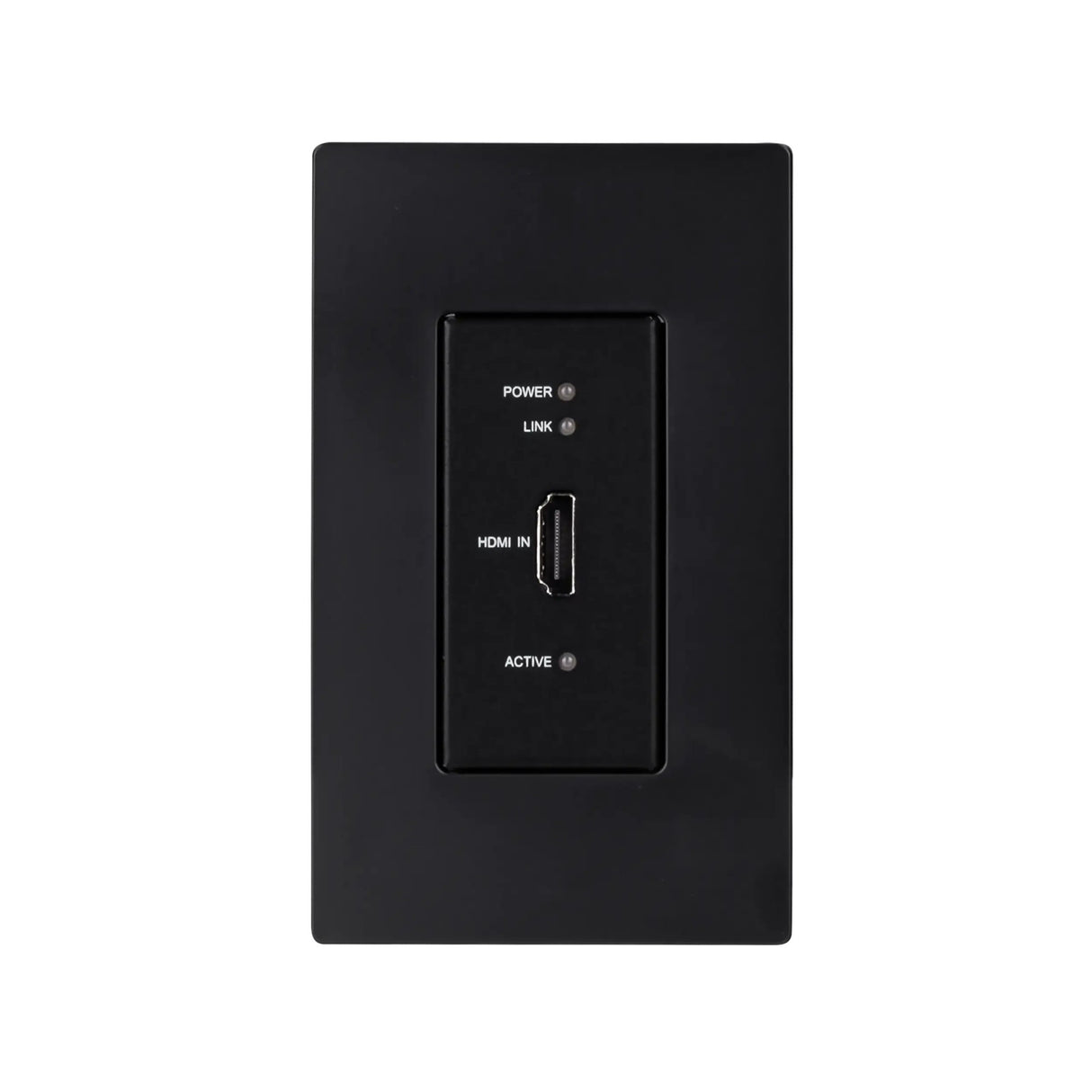

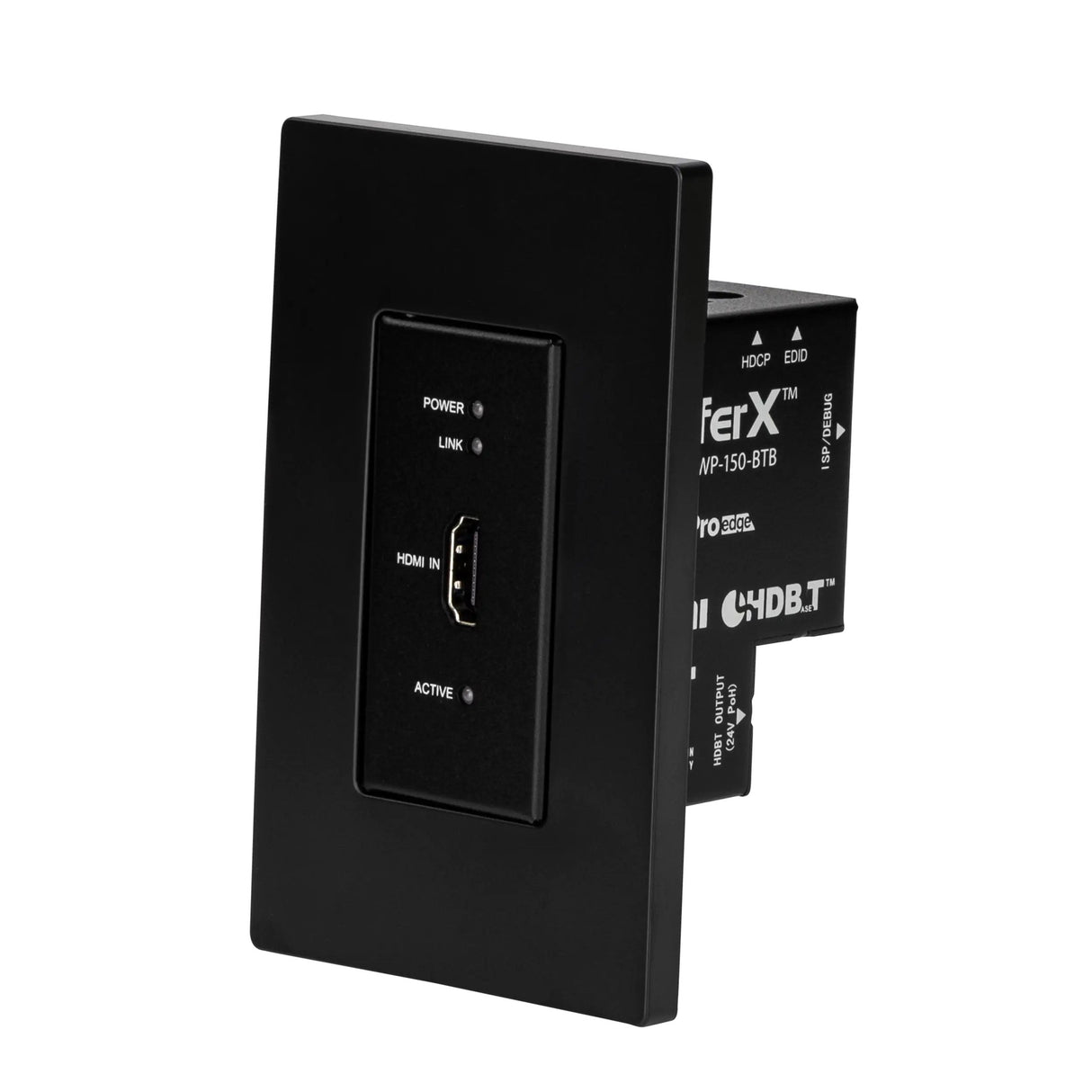

• Color Options: Available with white standard wall plate cover and optional black finish for installation matching.

Technical Specifications

• Model: AC-CXWP-150-BKT
• Product Type: Long-distance HDMI wall plate extender kit

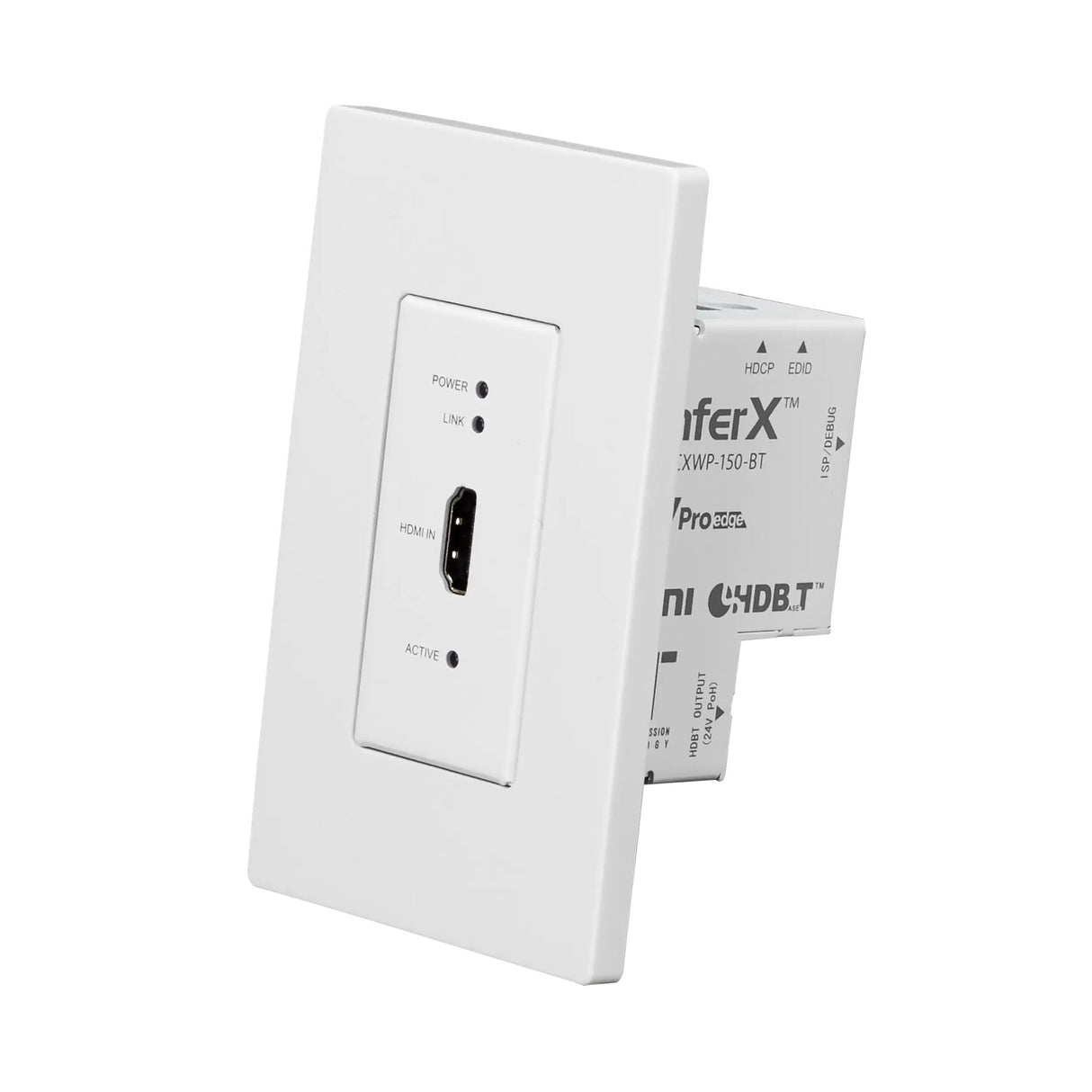

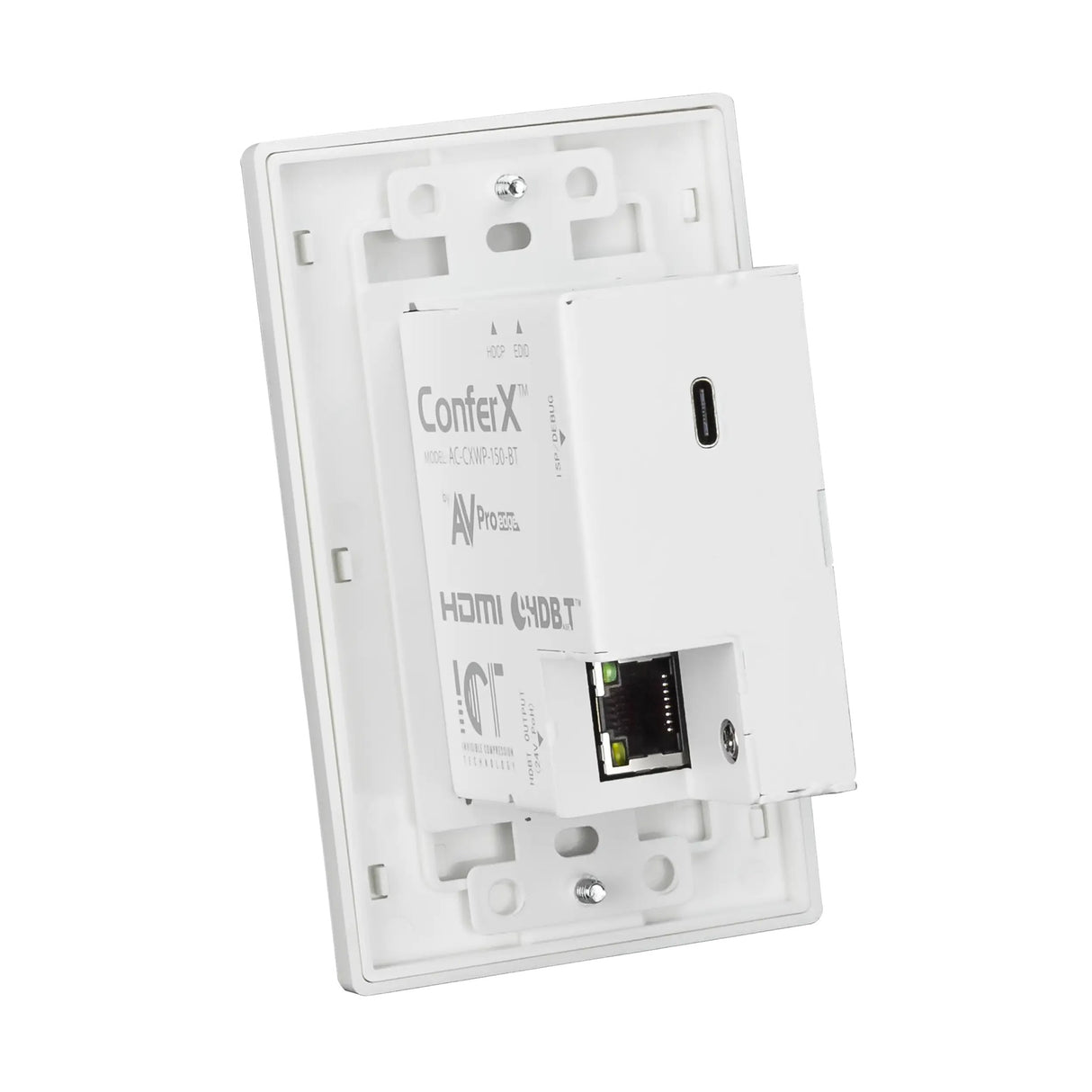

• Transmitter: AC-CXWP-150-BT wall plate transmitter
• Receiver: AC-EX150-BR receiver
• Color Options: White and black
• Video Resolutions: Up to 4K 60 Hz 4:4:4
• VESA Resolutions: Up to DCI 4K, 4096 x 2160
• HDR Formats: Dolby Vision, HDR10, HDR10+, HLG
• Color Space: YUV component and RGB
• Color Space Conversion: Rec. 601, Rec. 709, ITU-R BT.2020, DCI-P3-D65
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Deep Color: Up to 16-bit at 1080p; up to 12-bit at 4K
• HDMI Audio Formats: PCM 2.0-channel, LPCM 5.1 and 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
• 4K HDBaseT Distance: Up to 330 ft over CAT6a
• 1080p HDBaseT Distance: Up to 492 ft over CAT6a
• HDMI Lead In/Out: Up to 50 ft using compatible HDMI cable
• HDMI Lead In/Out With AOC Cable: Up to 130 ft using compatible AOC cable
• Bandwidth: 18 Gbps
• CEC: Yes
• HDCP: HDCP 2.3 and earlier
• HDMI Ports: Type A on transmitter and receiver
• HDBaseT Port: RJ45 with PoH
• RS-232 Port: 3-pin terminal block on receiver
• Power, Transmitter: RJ45 with PoH
• Power, Receiver: Barrel-type power input
• Operating Temperature: 23°F to 125°F
• Storage Temperature: -4°F to 140°F
• Humidity Range: 5% to 90% RH, non-condensing
• Power Consumption: 16.8 W maximum total
• Power Supply Input: AC 100-240V, 50/60 Hz
• Power Supply Output: DC 24V at 0.7 A
• Transmitter Dimensions Without Faceplate: 2.13" x 1.25" x 2.13"
• Receiver Dimensions: 3.94" x 2.69" x 0.88"
• Package Dimensions: 5.4" x 7.6" x 3.313"
• Transmitter Weight: 0.47 lbs
• Receiver Weight: 0.42 lbs
• Package Weight: 1.61 lbs
• Wall Space: Single-gang
• Compatible Box Types: Mud rings, stud mount, clamp mount, metal boxes, plastic boxes, and low-voltage boxes

What's In the Box

• AC-CXWP-150-BT Transmitter Wall Plate Unit x 1
• AC-EX150-BR Receiver Unit x 1
• Decora Wall Plate Cover x 1
• Mounting Bracket Pair with Screws x 1
• Long Electrical Mounting Screws x 2
• Short Electrical Mounting Screws x 2
• 3-Pin Phoenix Connector x 1
• USB-C to USB-A Cable x 1
• Power Supply x 1
