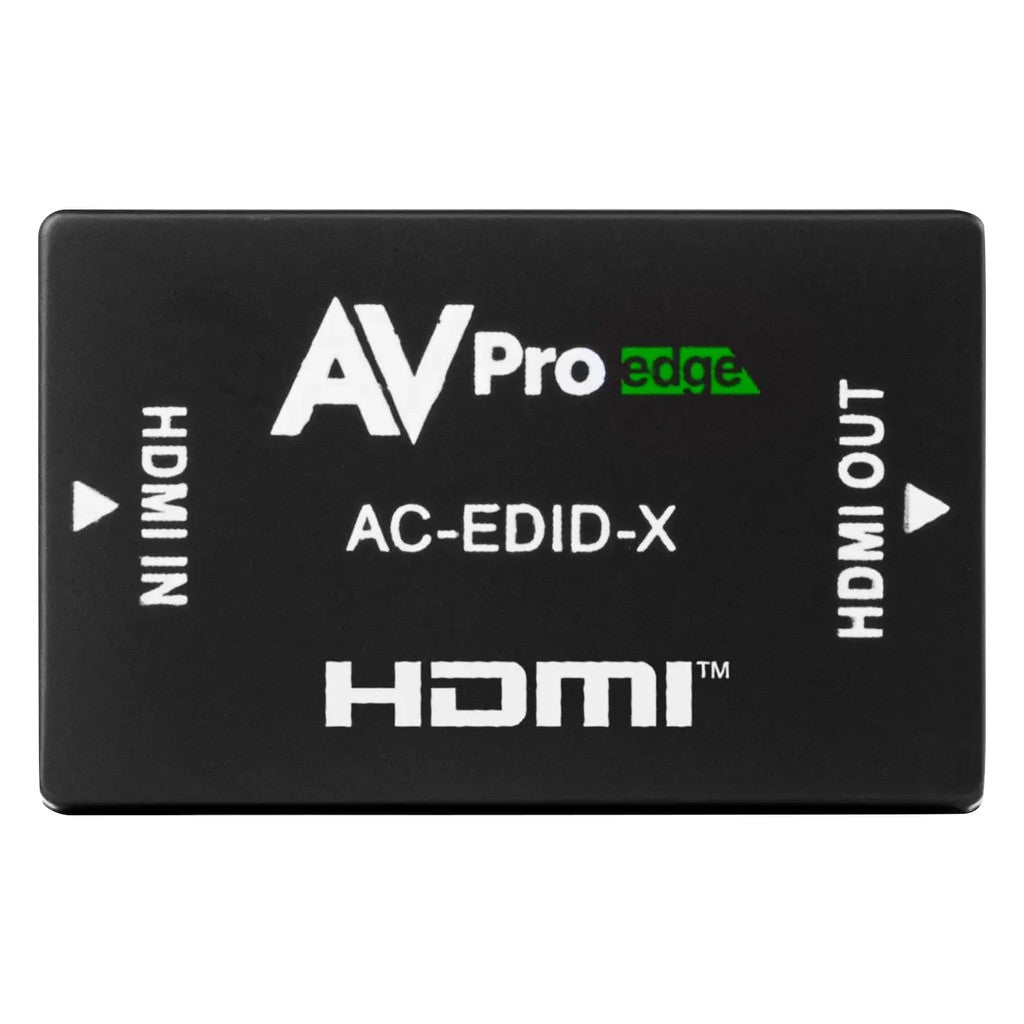

The AVPro Edge AC-EDID-X 48Gbps HDMI 2.1 EDID Manager is a compact inline tool for managing EDID between HDMI source and display devices. It supports up to 8K/60 Hz, 4K/120 Hz, 48Gbps FRL 6 bandwidth, HDR passthrough, and four DIP switches for precise EDID selection.

Designed for AV installers, integrators, home theater technicians, and commercial video systems, the AC-EDID-X helps solve HDMI handshake problems and maintain stable source-to-display communication. Use it as a compact HDMI EDID manager for troubleshooting, system commissioning, mixed-generation displays, and high-resolution 8K signal paths.

The AC-EDID-X supports 16 EDID settings, including a User Copy option that reads and stores EDID from the connected display. With HDMI 2.1a feature support, HDCP 2.3 compatibility, full HDR format passthrough, and high frame rate operation, it gives technicians a reliable field tool for modern video distribution workflows.

48Gbps HDMI 2.1 EDID Management for 8K AV Systems

• 48Gbps FRL 6 Bandwidth: Supports high-bandwidth HDMI 2.1 signal paths for modern 8K and 4K video systems.
• 8K and 4K High Frame Rate Support: Handles video resolutions up to 8K/60 Hz 4:4:4, 8K/30 Hz 4:4:4, and 4K/120 Hz.

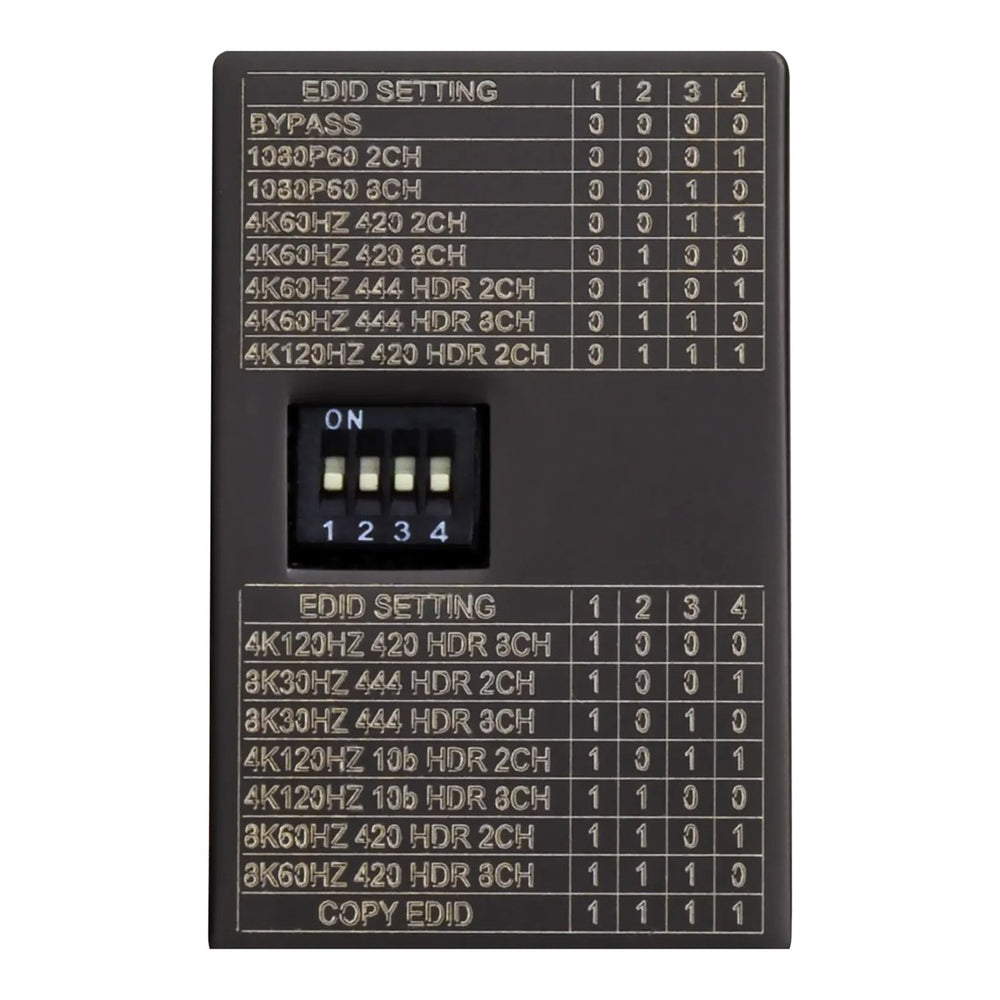

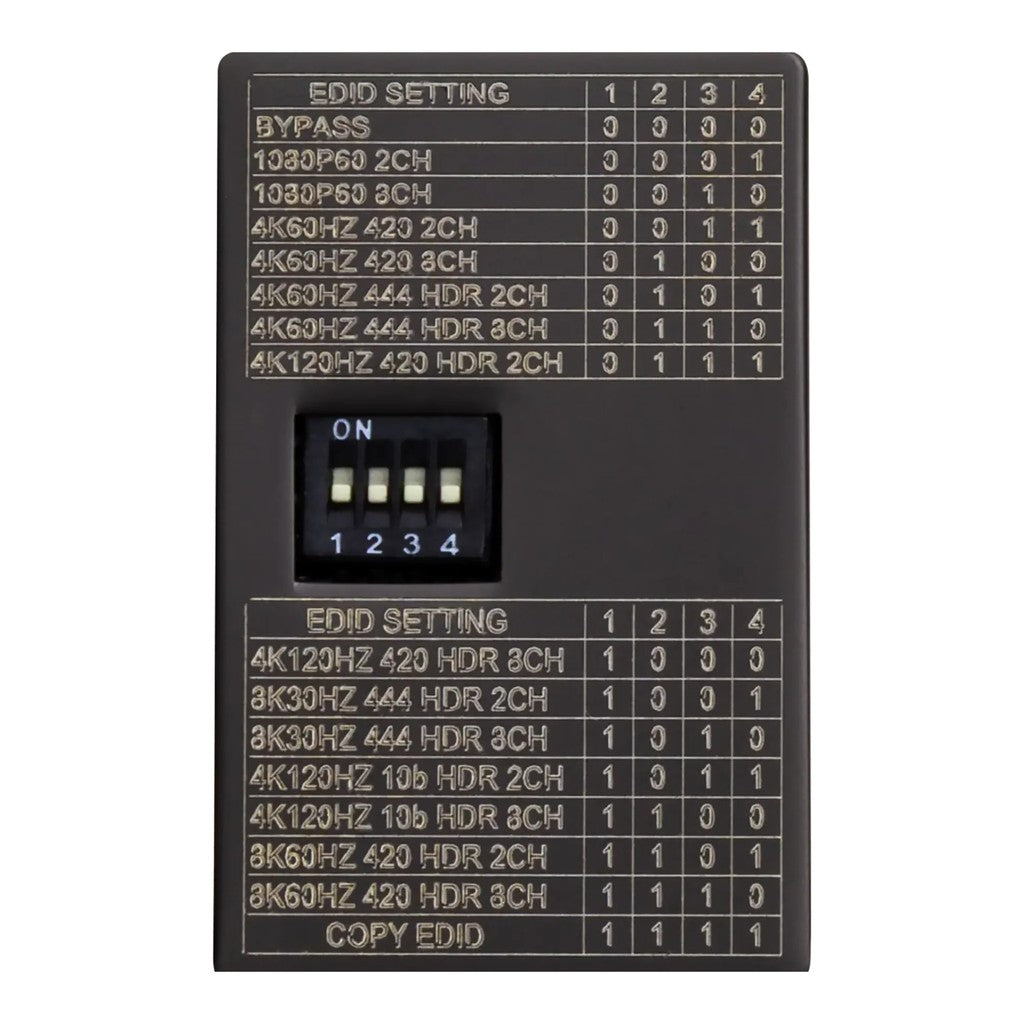

• 16 EDID Settings: Four DIP switches provide quick access to preset EDID configurations for system troubleshooting.
• User Copy Function: Reads and stores EDID from the connected display for more consistent source communication.
• HDMI Handshake Stabilization: Helps eliminate compatibility issues between HDMI sources, displays, processors, and signal chains.
• Full HDR Passthrough: Supports Dolby Vision, HDR10, HDR10+, and HLG for high dynamic range video workflows.
• HDMI 2.1a Feature Support: Supports VRR, ALLM, QMS, QFT, and SBTM for advanced video system compatibility.

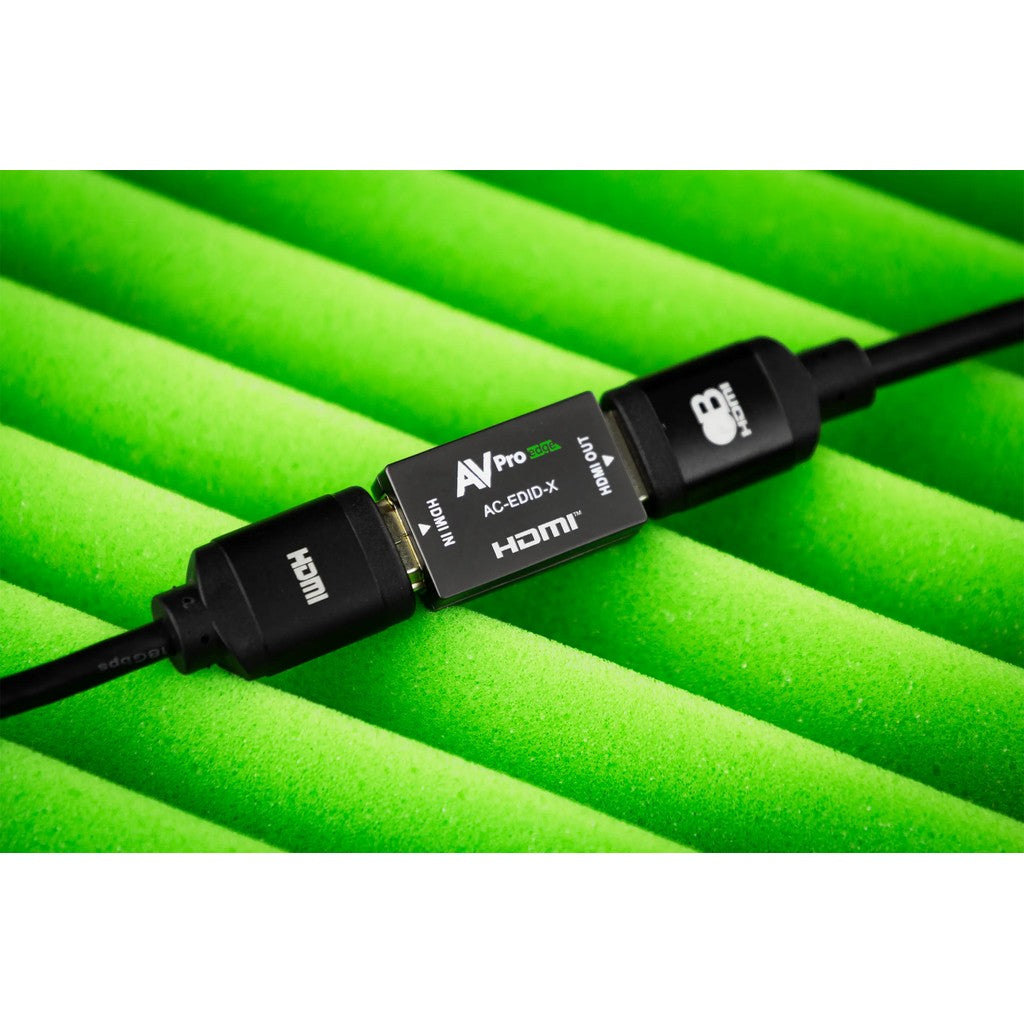

• Compact Inline Design: Small form factor installs directly between HDMI source and sink devices without taking rack space.

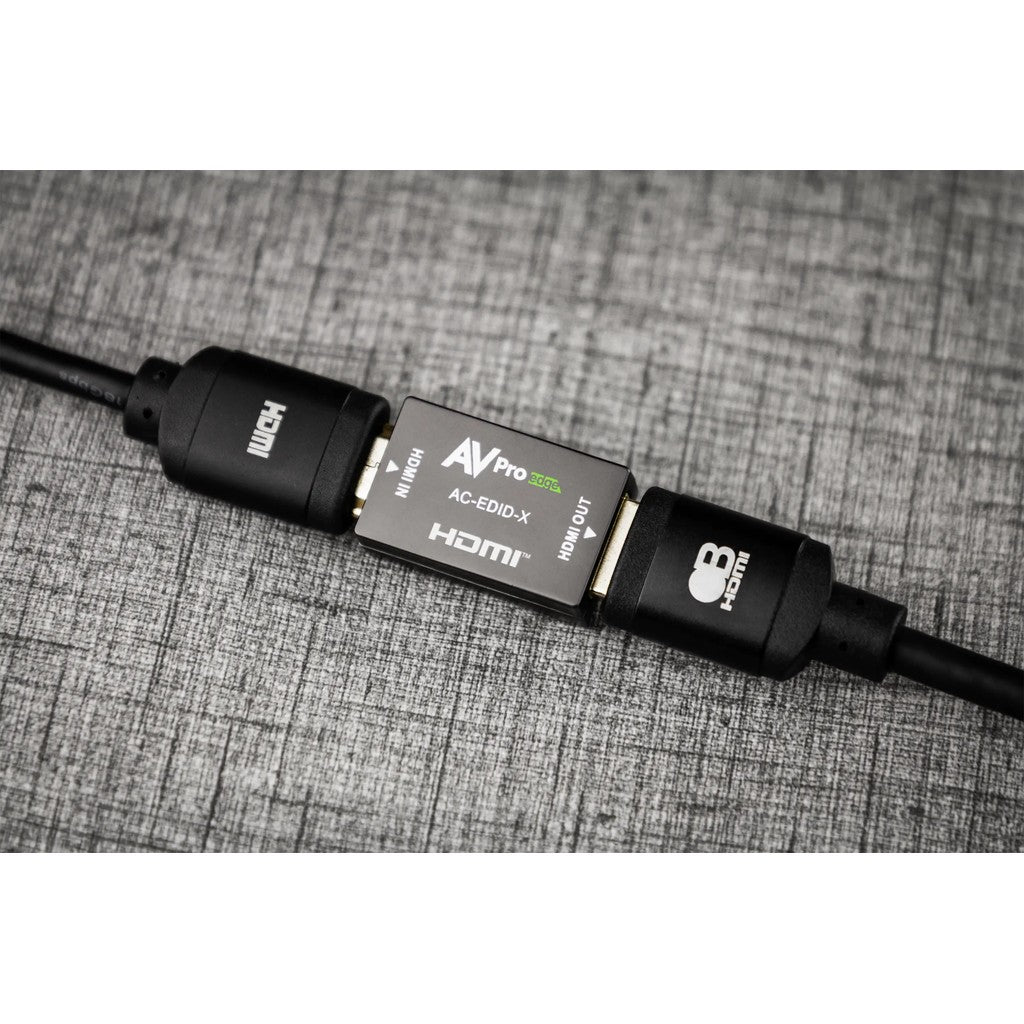

Compact Inline EDID Tool for Installers and Integrators

• Installer-Friendly Setup: DIP-switch EDID selection makes field configuration fast without software or network setup.
• Mixed-System Compatibility: Helps maintain stable output when older and newer HDMI devices are used in the same system.
• High Frame Rate Compatibility: Supports 120fps with 4K or 1080p signals for gaming, simulation, and high-performance displays.
• Broad Audio Support: Passes common HDMI audio formats including PCM, Dolby, DTS, Dolby Atmos, and DTS:X formats.

Technical Specifications

• Model: AC-EDID-X
• Product Type: 48Gbps HDMI EDID manager
• HDMI Compatibility: HDMI 2.1 compatible
• Bandwidth: 48 Gbps, FRL 6
• EDID Selection: Four DIP switches
• EDID Settings: 16
• User EDID: User Copy option reads and stores EDID from the connected display
• Video Resolutions: Up to 8K/60 Hz 4:4:4, 8K/30 Hz 4:4:4, and 4K/120 Hz
• HDR Formats: Dolby Vision, HDR10, HDR10+, HLG
• Color Space: YUV component and RGB
• Color Space Conversion: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Deep Color: Up to 16-bit
• HDMI Audio Formats: PCM 2.0-channel, LPCM 5.1 and 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
• HDMI 2.1a Features: VRR, ALLM, QMS, QFT, SBTM
• HDCP: HDCP 2.3 and earlier

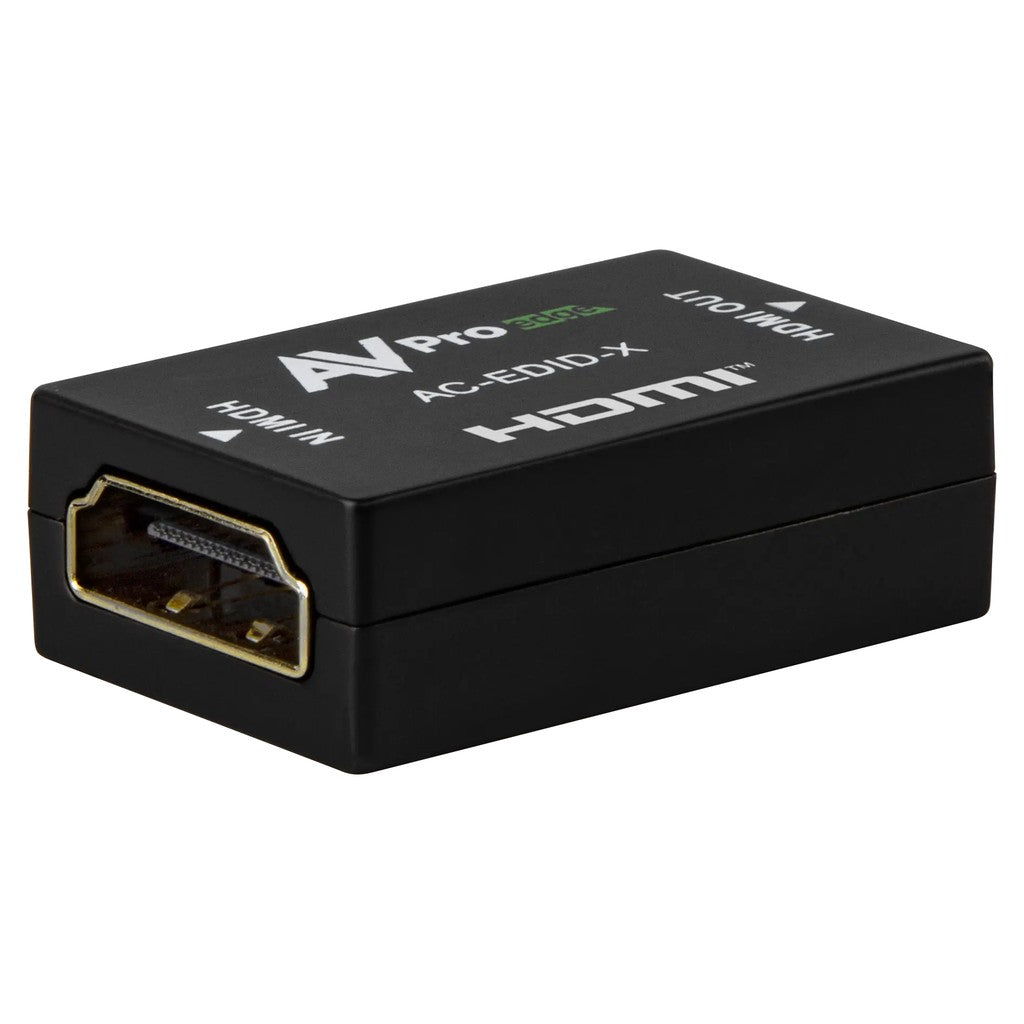

• HDMI Ports: Type A 19-pin female
• HDMI In/Out Distance at 4K/60 Hz 4:4:4: Up to 50 ft using compatible HDMI cable
• HDMI In/Out Distance With AOC Cable at 4K/60 Hz 4:4:4: Up to 130 ft using compatible AOC cable
• Operating Temperature: 23°F to 125°F
• Storage Temperature: -4°F to 140°F
• Humidity Range: 5% to 90% RH, non-condensing
• Power Consumption: 2.5 W maximum
• Unit Dimensions: 1.25" x 0.813" x 0.438"
• Packaged Dimensions: 2.719" x 2.344" x 1.219"
• Unit Weight: 0.04 lbs
• Packaged Weight: 0.07 lbs
