AVPro Edge AC-MXNET-10G-TCVR-TAA 10G SDVoE Transceiver

AVPro Edge AC-MXNET-10G-TCVR-TAA 10G SDVoE Transceiver

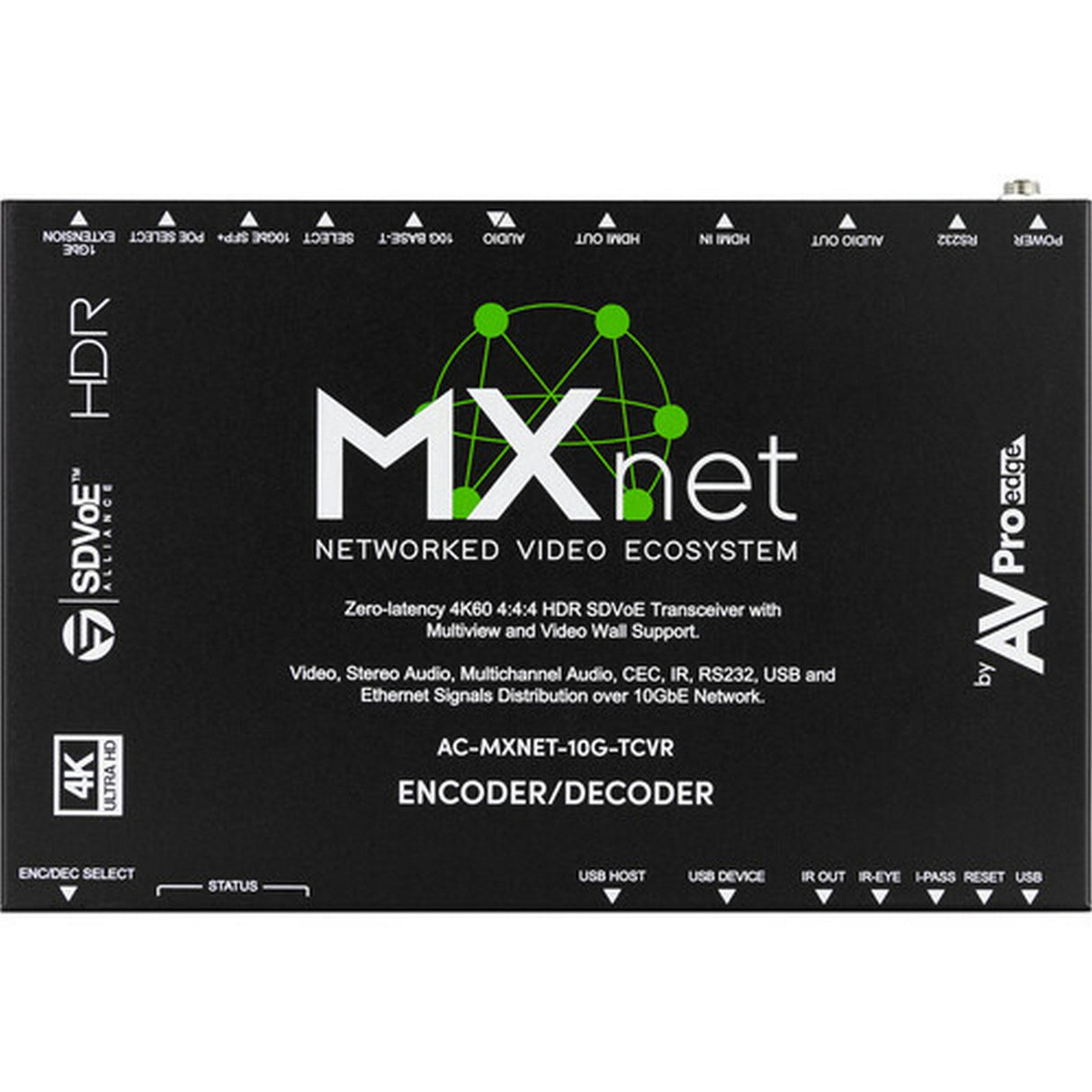

The AVPro Edge AC-MXNET-10G-TCVR-TAA 10G SDVoE Transceiver is a TAA-compliant AV-over-IP endpoint that operates as either an encoder or decoder. It transports HDMI video, audio, USB, Ethernet, IR, and RS-232 across scalable 10GbE copper or fiber networks while supporting resolutions through 4K60.

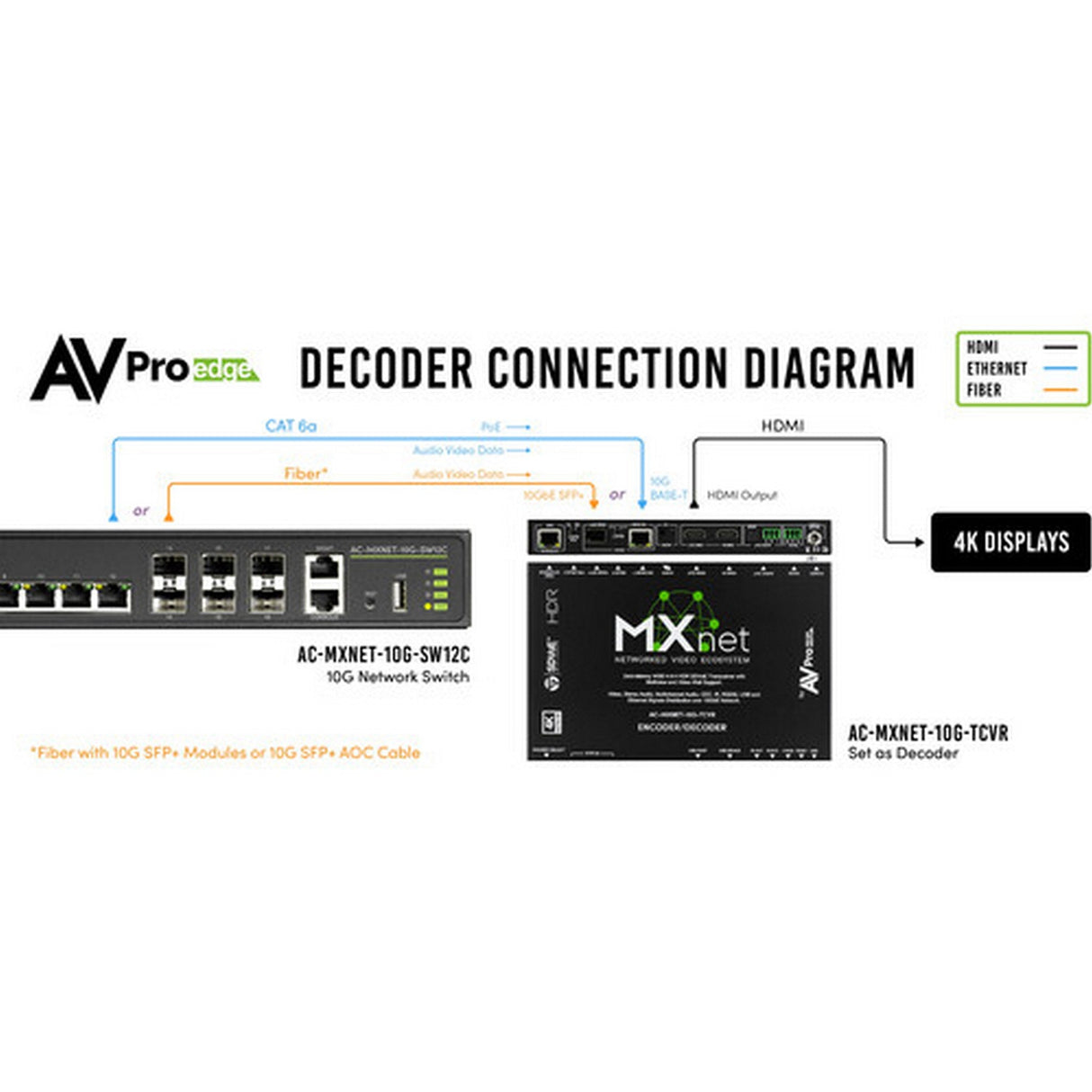

Designed for commercial AV, government, education, medical, hospitality, and control-room installations, the transceiver allows source and display endpoints to be positioned throughout a network instead of remaining centralized around a traditional matrix. Integrators can build 10G AV-over-IP distribution systems, configure point-to-point extension, create MultiView layouts, or assemble video walls while independently routing audio, video, USB, and control signals.

The unit supports HDMI 2.0 with 18Gbps bandwidth, HDR formats including Dolby Vision and HDR10+, onboard scaling, EDID management, and selectable Genlock operation for extremely low latency. Copper and SFP+ fiber connectivity provide flexible infrastructure choices, while AES-128 stream encryption and secured API communications support professional network deployment. This TAA configuration is identified by AVPro Edge as made in the USA.

Key Features

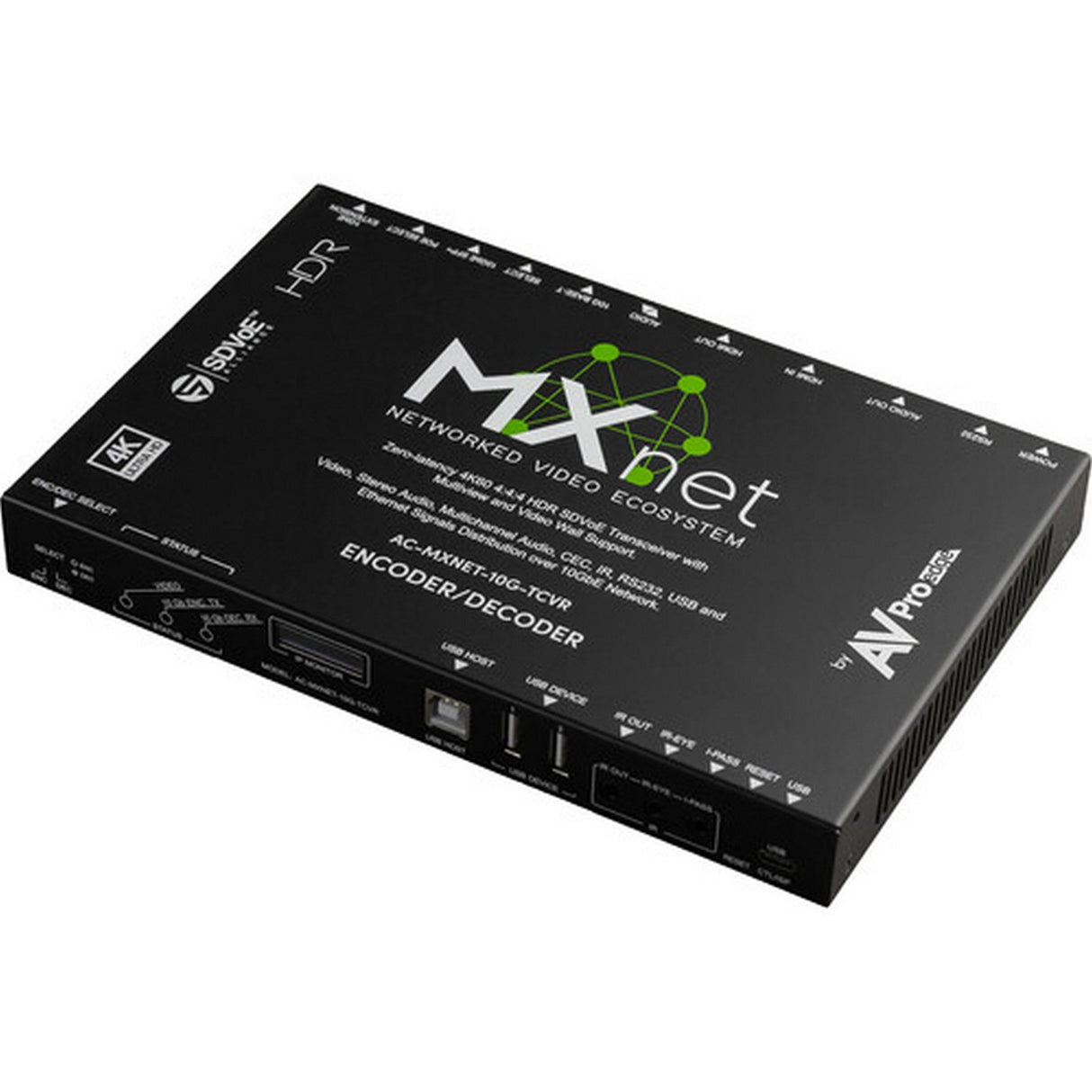

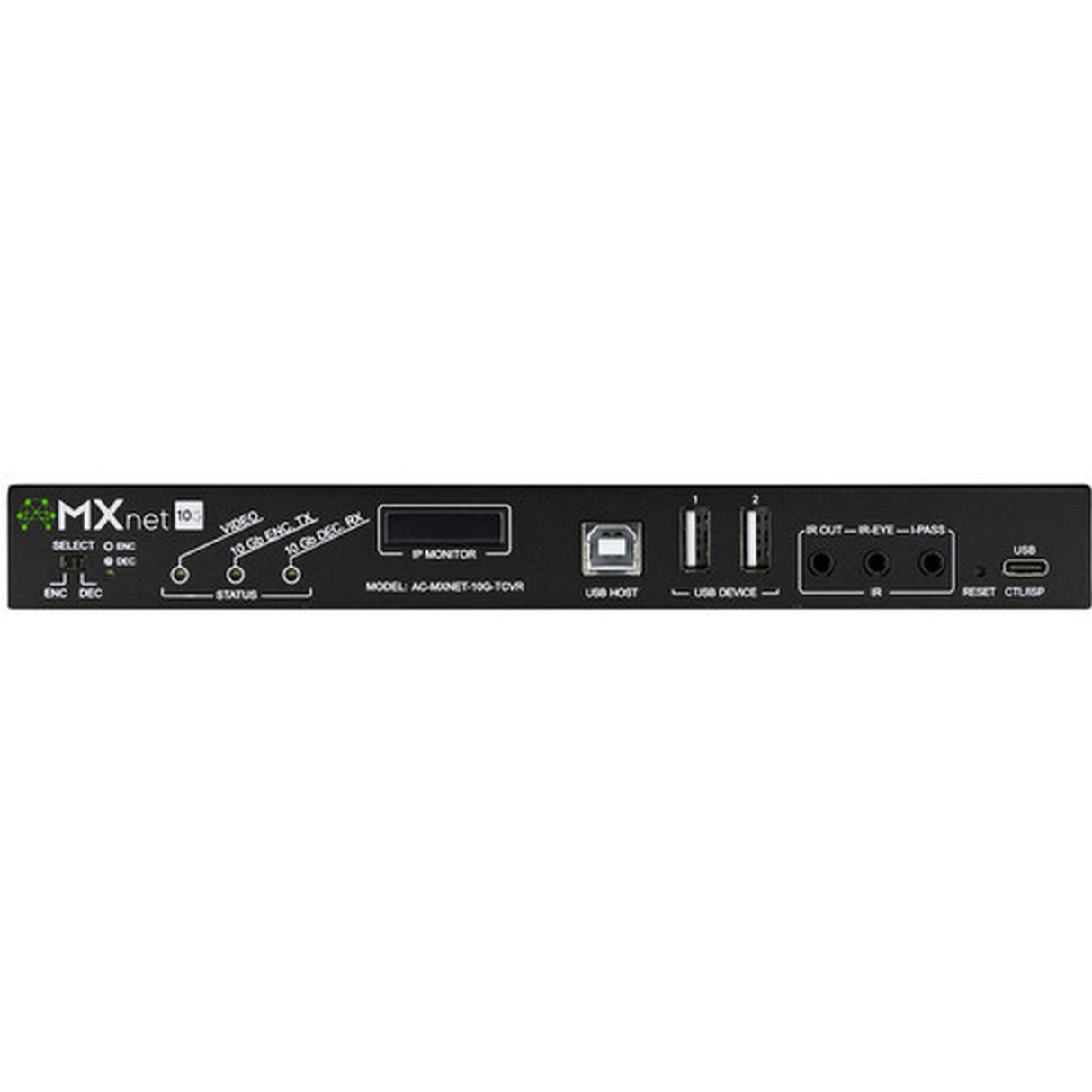

• Encoder or Decoder Operation: Front-panel configuration allows one transceiver design to serve source or display endpoints.
• 4K60 HDMI Transport: Handles HDMI 2.0 signals with 18Gbps bandwidth and high-resolution HDR video across a 10GbE network.
• TAA-Compliant Construction: Manufacturer identifies the AC-MXNET-10G-TCVR-TAA as TAA compliant and made in the USA.

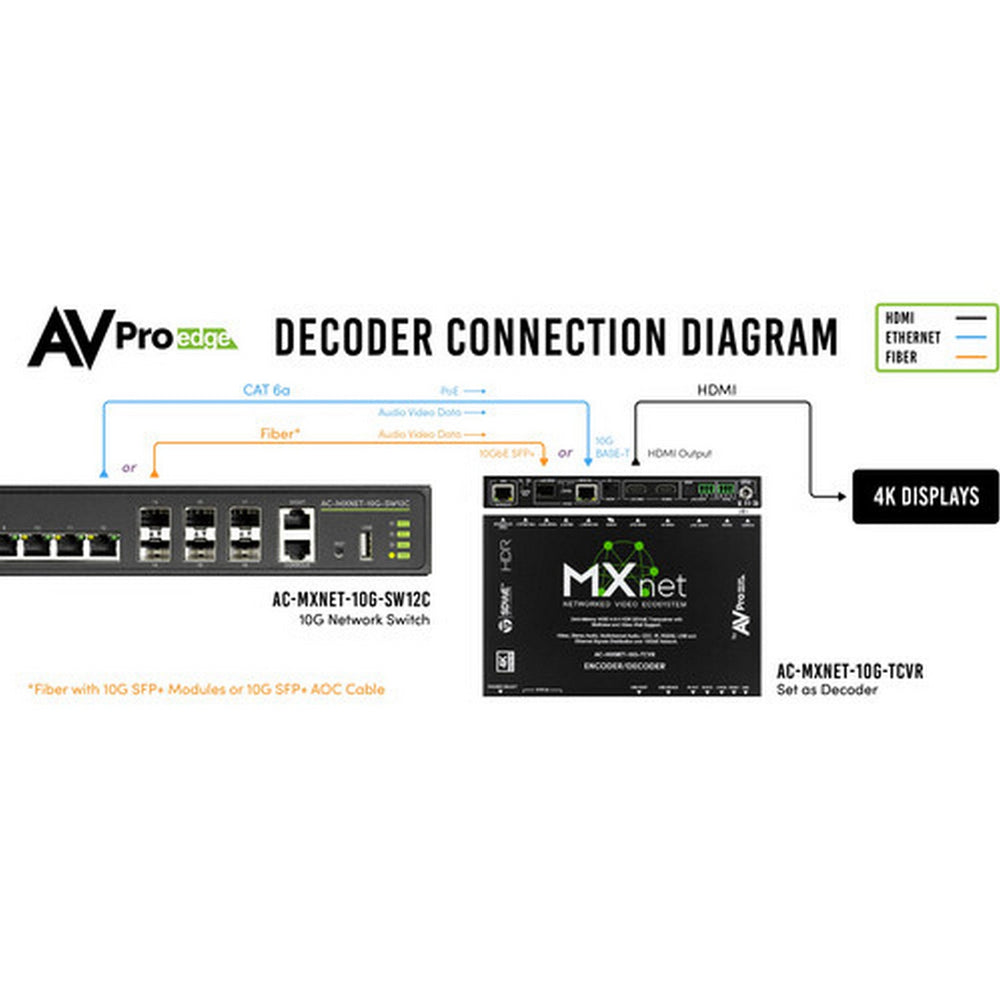

• Copper and Fiber Networking: Supports Cat6A, SFP+ active optical cable, multimode fiber, single-mode fiber, and SFP+ copper connections.
• MultiView and Video Walls: Creates multi-image compositions and video-wall arrays up to 8 x 8 without a separate video-wall processor.
• Independent Signal Routing: Routes video, audio, USB, Ethernet, IR, and RS-232 independently for flexible professional AV designs.
• Low-Latency Switching: Genlock operation reduces latency to a maximum of 0.1ms, while scaled switching operates within approximately one to two frames.
• Encrypted AV Transport: AES-128 stream encryption and secured control-plane communications protect networked video and audio distribution.

Technical Specifications

• Brand: AVPro Edge
• Model: AC-MXNET-10G-TCVR-TAA
• Product Type: 10G SDVoE AV-over-IP transceiver
• Compliance: TAA compliant
• Country of Manufacture: USA
• Operating Modes: Encoder/transmitter or decoder/receiver
• HDMI Standard: HDMI 2.0
• HDMI Bandwidth: 18Gbps
• Maximum Source Resolution: Up to 4K60
• Uncompressed Video: Up to 4K30 4:4:4 8-bit
• 4K60 4:4:4 Transport: 8-bit with visually lossless 1.3:1 compression and approximately 100-microsecond latency
• Additional 4K60 Formats: 4:2:2 10-bit and 4:2:0 12-bit
• HDR Support: Dolby Vision, HDR10, HDR10+, HLG, IMAX Enhanced
• Color Processing: Automatic RGB-to-YUV color-space conversion with API adjustment
• Genlock Latency: Maximum 0.1ms
• Scaled Switching Time: Approximately 17-34ms
• Scaling: 4K upscaling and downscaling in decoder mode
• MultiView Layouts: Simple Grid, Hybrid Grid, Window Tiling, Picture-in-Picture, Picture-and-Picture, and custom layouts
• MultiView Capacity: Up to 32 images
• Video Wall Support: Up to 8 x 8 with bezel correction and asymmetric-layout support
• HDMI Embedded Audio: Up to 8-channel LPCM, 24-bit/192kHz
• Supported Immersive Audio: Dolby Atmos and DTS:X passthrough
• Analog Audio Extraction: Up to 24-bit/48kHz stereo

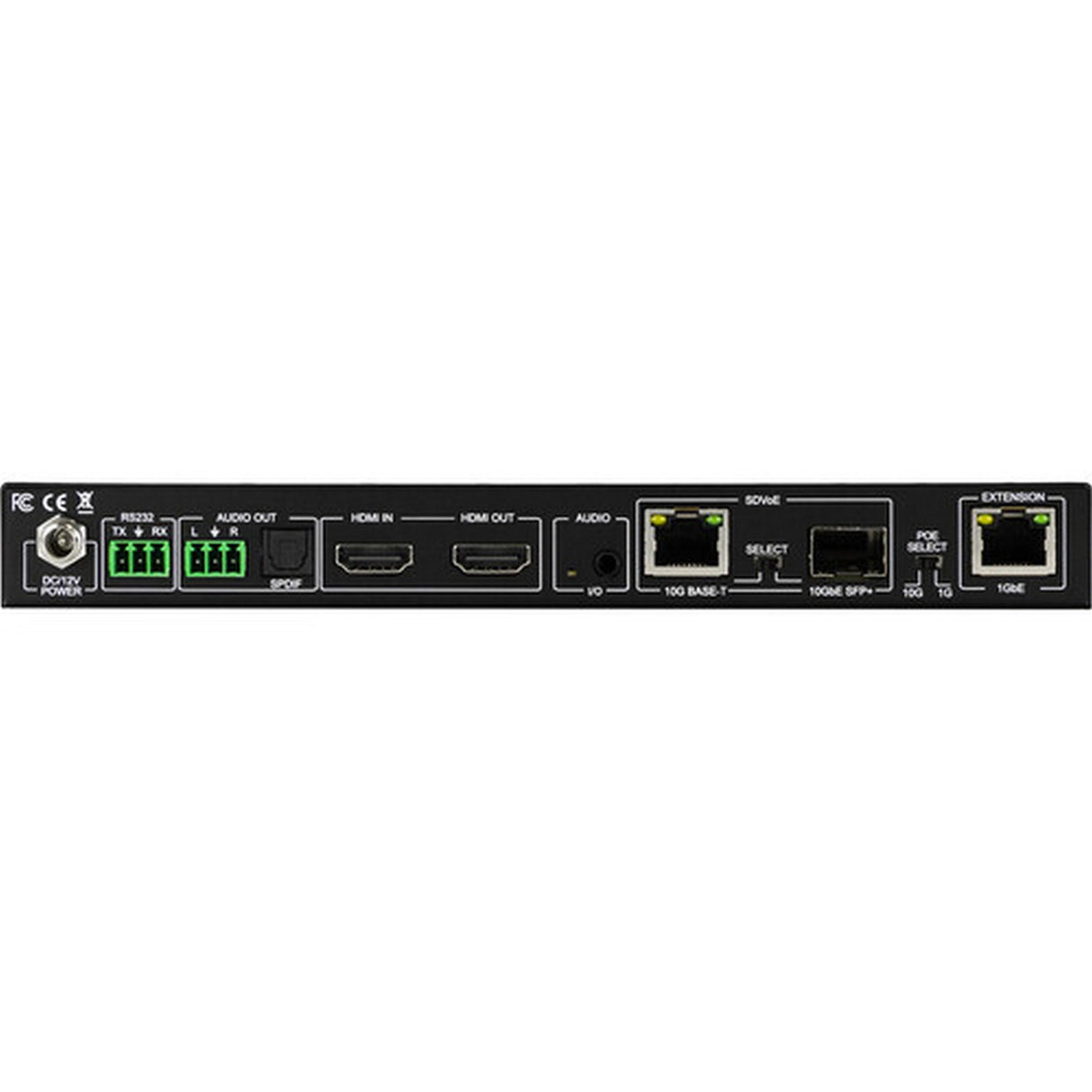

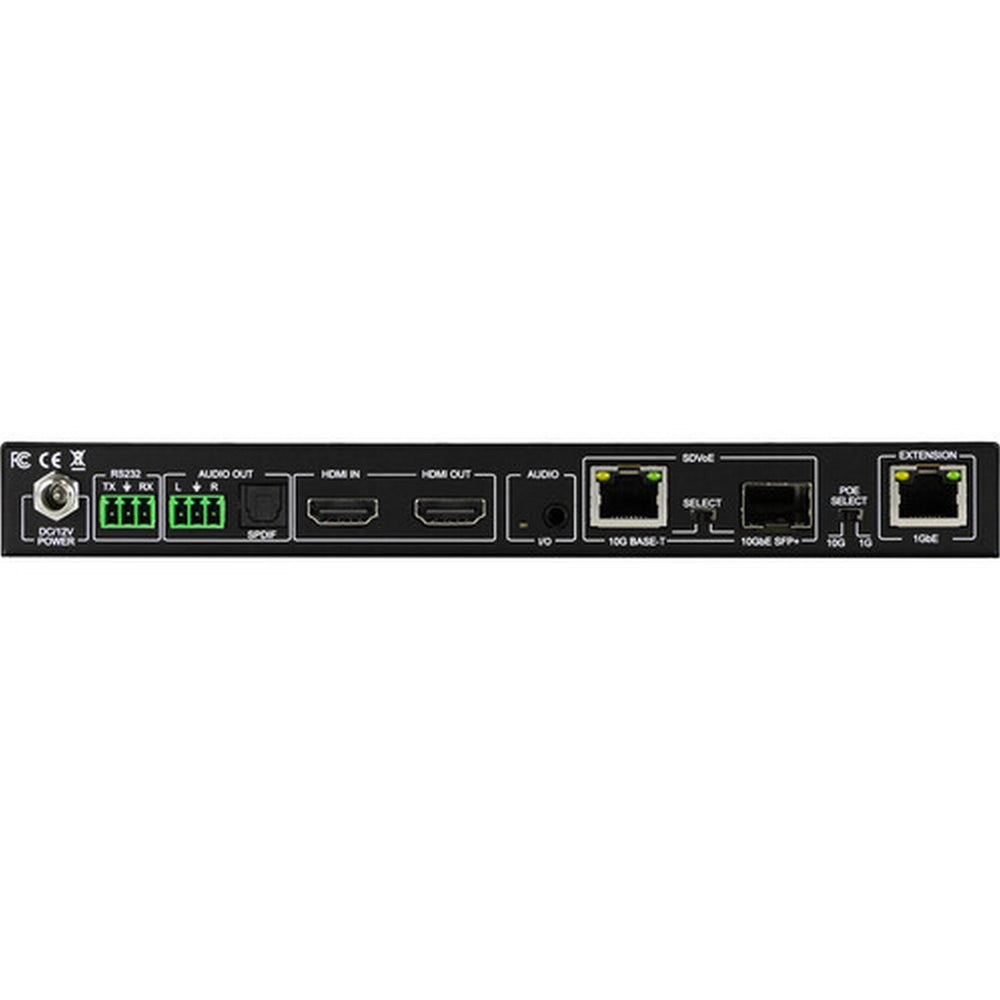

• 10G Ethernet: 1 x RJ45 for SDVoE transmission
• 1G Ethernet: 1 x RJ45 for Ethernet extension or control
• SFP+: 1 x 10G SFP+ port for SDVoE transmission
• HDMI Input: 1
• HDMI Output: 1
• Optical Audio: 1 x TOSLINK
• Terminal Audio: 1 x 3-pin terminal block
• Analog Audio: 1 x 3.5mm stereo input/output, mode dependent
• IR Output: 1 x 3.5mm
• IR Eye: 1 x 3.5mm
• IR Pass-Through: 1 x 3.5mm
• RS-232: 1 x 3-pin terminal block
• USB Service: 1 x USB Type-C
• USB Host: 1 x USB Type-B
• USB Device Ports: 2 x USB Type-A
• USB Support: Hi-Speed USB 2.0 and KVM control
• AV Stream Encryption: AES-128
• API and Control Security: HTTPS with AES-128-CTR, Poly1305-AES, ECDH key exchange, and SHA-256 integrity
• Cat6A Distance: Up to 330 feet
• Cat6 Distance: Up to approximately 180 feet
• 10G SFP+ AOC Distance: Up to 9.8 feet
• 10G SFP+ Multimode Fiber Distance: Up to approximately 1,804 feet
• 10G SFP+ Single-Mode Fiber Distance: Up to approximately 12.4 miles
• 10G SFP+ Copper Distance: Up to 330 feet over Cat6A
• Point-to-Point Operation: Two transceivers may operate as extenders outside a 10GbE network
• Power Consumption: 11.5W encoder, 9.816W decoder
• PoE: IEEE 802.3af, 15.4W
• Power Supply Input: 120-240 VAC, 50/60Hz, 0.8A
• Power Supply Output: 12 VDC, 2A
• Thermal Dissipation: 39.32 BTU/hr encoder, 33.56 BTU/hr decoder
• Operating Temperature: 23 to 125°F
• Storage Temperature: -4 to 140°F
• Operating Humidity: 5-90% RH, non-condensing
• Mounting: Rack and furniture mounting supported
• Dimensions: 8.5 x 5.5 x 1 inches
• Weight: 1.8 lb
• Packaged Dimensions: 12.2 x 7.1 x 2.1 inches
• Packaged Weight: 2.3 lb
• Regulatory: CE, FCC
• Manufacturer Warranty: 10 years

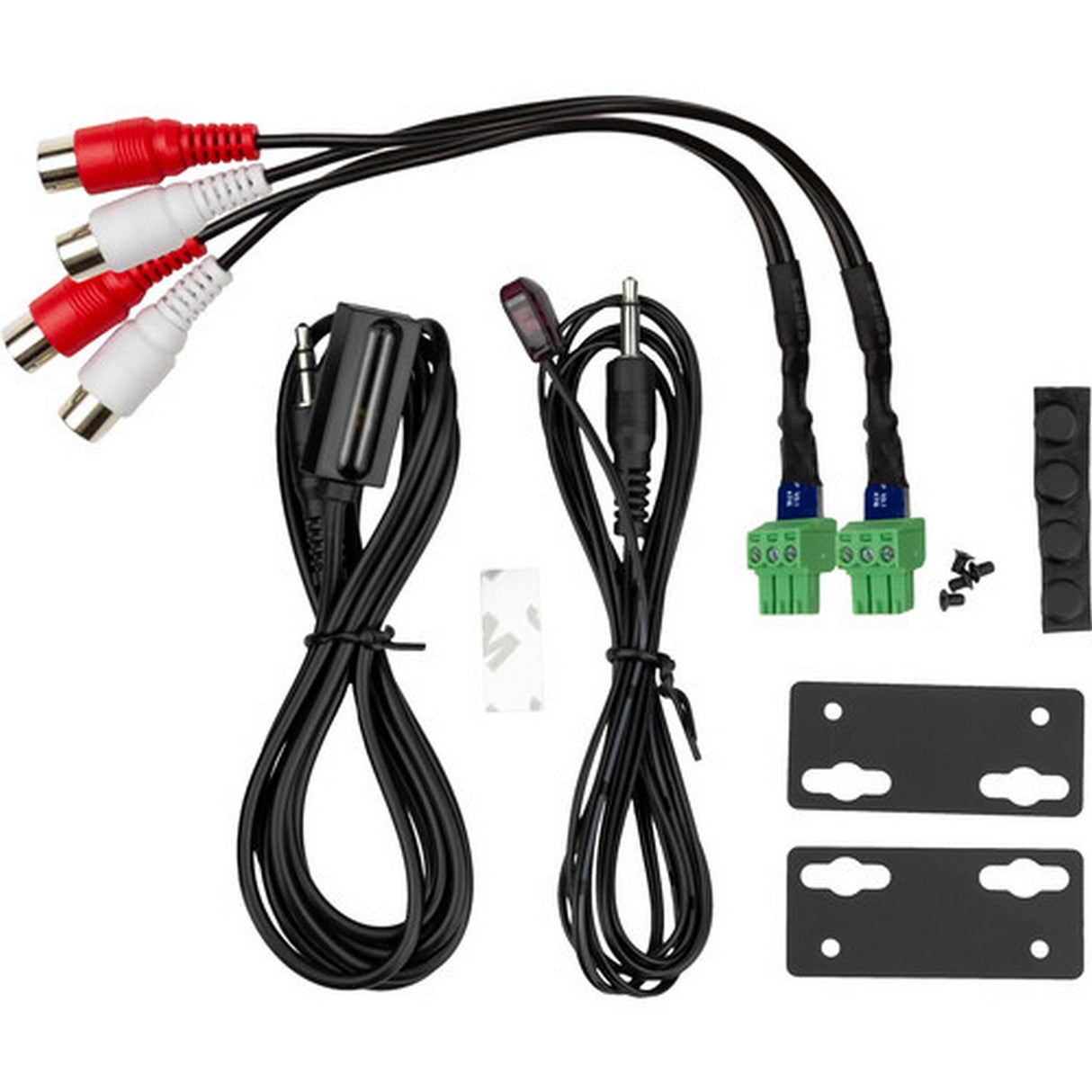

What's In the Box

• AVPro Edge AC-MXNET-10G-TCVR-TAA Transceiver
• 1 x IR transmitter
• 1 x IR receiver
• 2 x mounting brackets
• 4 x rubber feet
• 3 x 3-pin to left/right RCA audio cables
