AVPro Edge AC-MXNET-1G-E-TAA MXNet 1G AV-over-IP Encoder

AVPro Edge AC-MXNET-1G-E-TAA MXNet 1G AV-over-IP Encoder

The AVPro Edge AC-MXNET-1G-E-TAA MXNet 1G AV-over-IP encoder converts HDMI, audio, USB, RS-232, and IR signals for distribution across a managed 1 Gigabit network. The TAA-compliant endpoint supports HDMI 2.0b sources up to 4K30, HDCP 2.3, Power over Ethernet, fiber connectivity, and low-latency Motion JPEG processing.

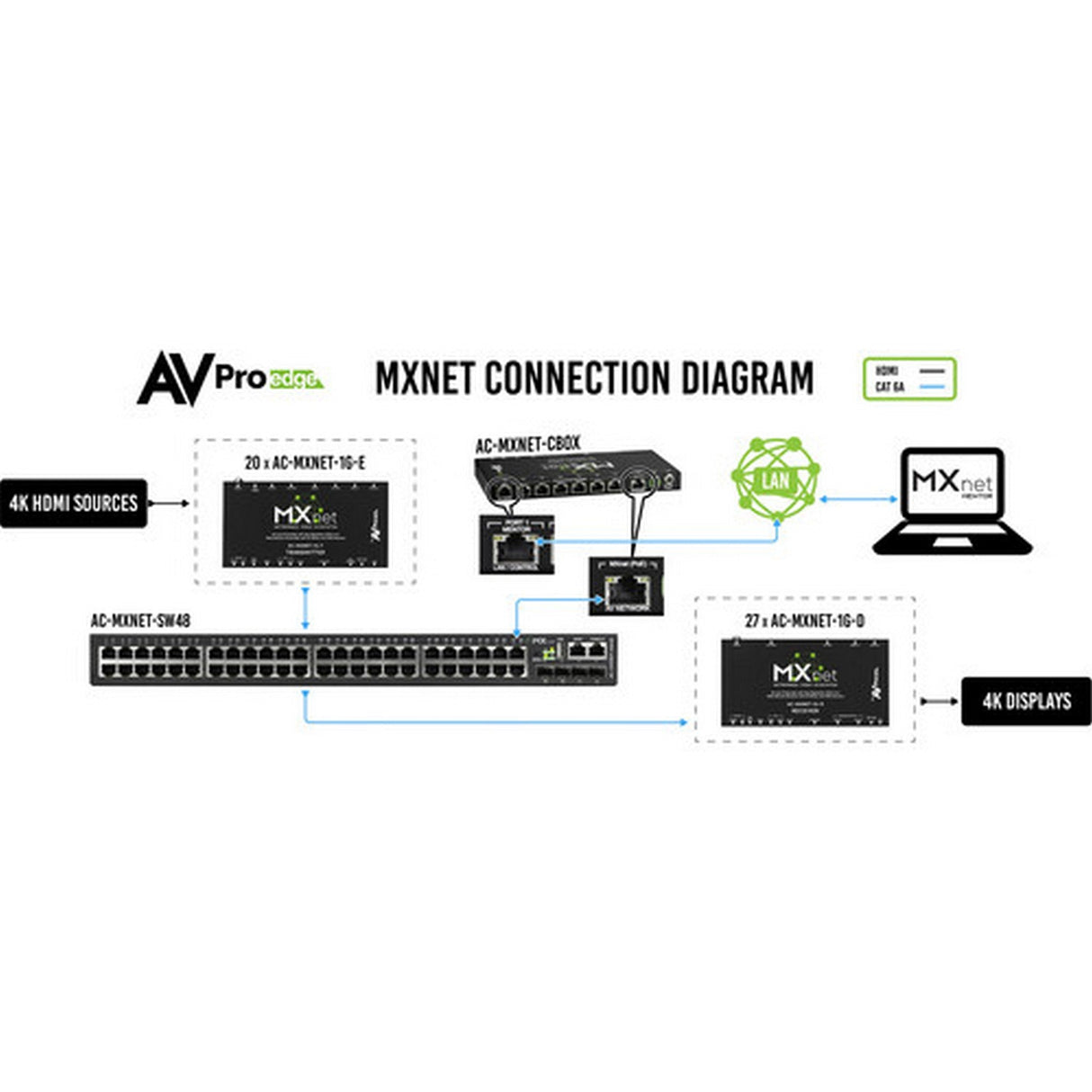

Built for government, education, corporate, command-and-control, and commercial AV installations, the encoder works as a scalable 4K AV-over-IP transmitter for distributed video systems. Integrators can route sources to compatible MXNet decoders, build video walls, extend keyboard and mouse control, and manage endpoints through the MXNet ecosystem without relying on dedicated point-to-point video cabling.

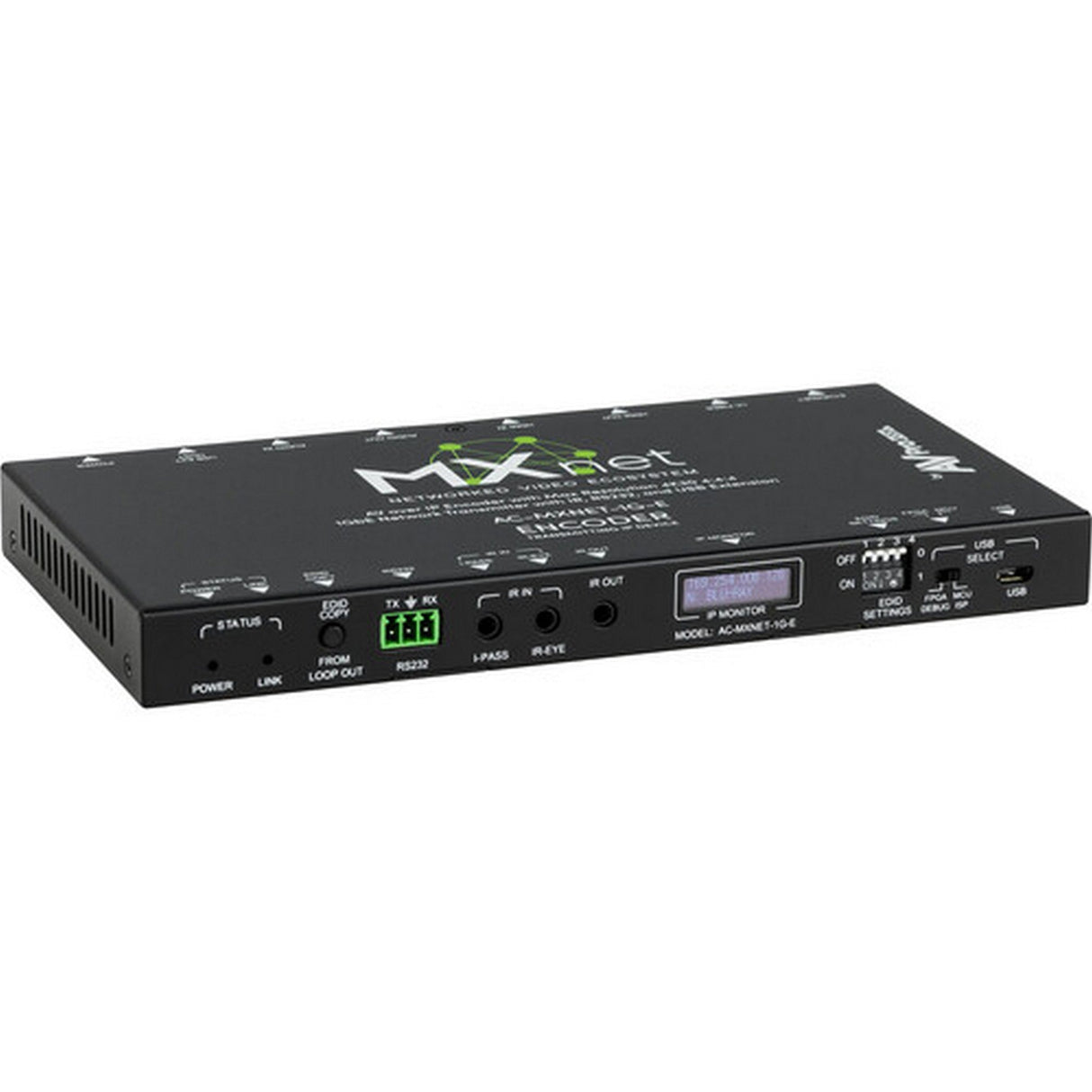

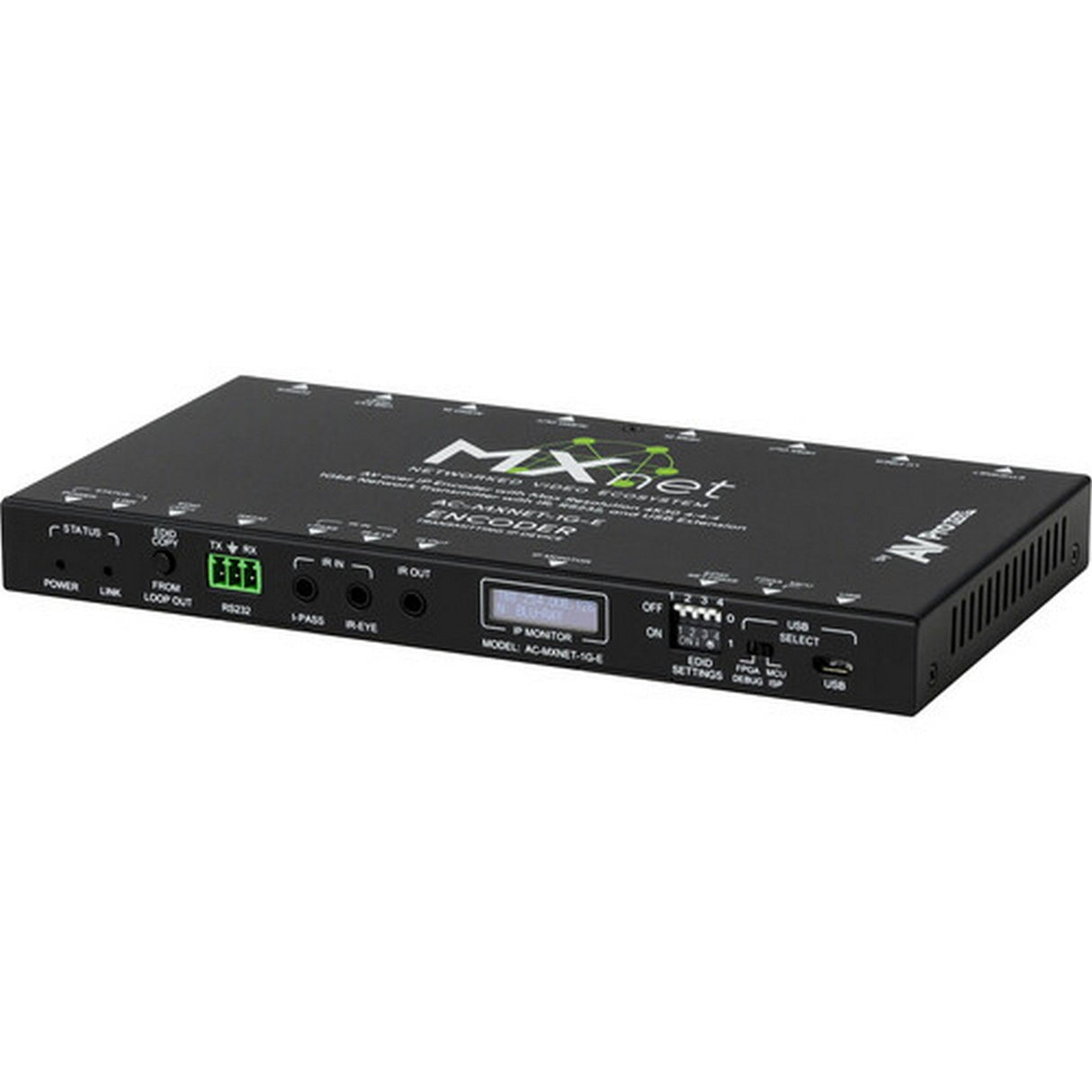

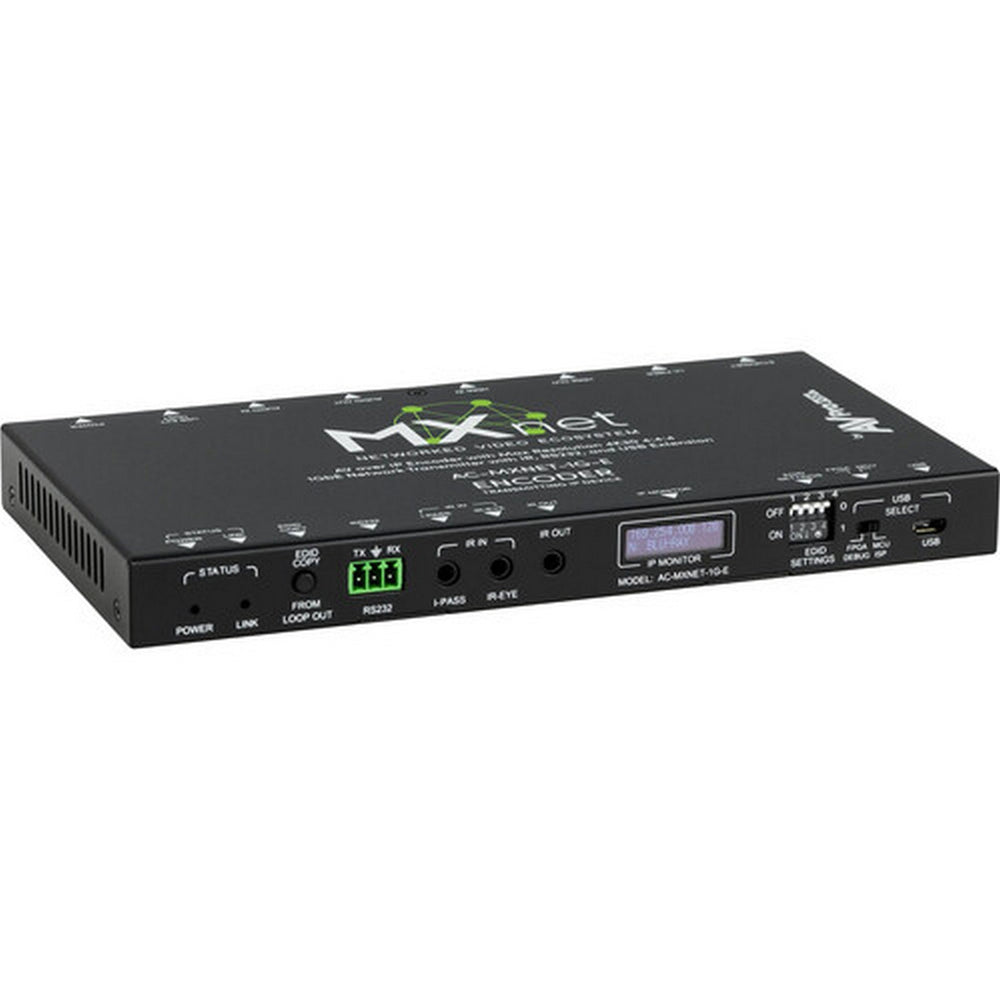

A front OLED data window assists with setup and troubleshooting by displaying network and source information. Genlock, which synchronizes video outputs across receiving devices, supports coordinated switching and video-wall applications. The encoder also provides EDID management, balanced audio de-embedding, analog audio embedding, bidirectional control routing, IEEE 802.3af PoE, and rack or furniture mounting support.

Key Features

• TAA-Compliant Design: Made in the USA for installations requiring Trade Agreements Act-compliant AV equipment.
• 4K AV-over-IP Encoding: Encodes video up to 4K30 for transport across compatible 1 Gigabit Ethernet networks.
• Low-Latency M-JPEG: Uses a proprietary Motion JPEG-based codec with latency rated at 16 ms at 60 Hz.
• HDMI Loop Output: Provides a local HDMI output alongside the encoded network stream for source monitoring or local display use.
• Genlock Support: Synchronizes receiving displays to help reduce visible switching artifacts in multi-display and video-wall systems.
• USB and KVM Extension: Routes HID-compliant keyboard and mouse signals through compatible MXNet endpoints.
• Integrated Control Routing: Carries bidirectional RS-232 and IR commands alongside AV signals across the network.
• PoE and Fiber Options: Supports IEEE 802.3af Power over Ethernet plus an SFP slot for compatible multimode or single-mode fiber modules.

Technical Specifications

• Product Type: TAA-compliant 1G AV-over-IP encoder/transmitter
• Model: AC-MXNET-1G-E-TAA
• Compliance: TAA compliant, made in the USA
• Video Codec: Proprietary codec based on M-JPEG
• Audio Codec: Proprietary codec
• Latency: 16 ms at 60 Hz
• Streaming Protocols: TCP, UDP, IP, and IGMP-V2
• HDCP: HDCP 2.3 support with HDCP 2.x and earlier compatibility
• Video Signal Types: HDMI 2.0b and DVI 1.0 ingestion with HDMI output
• Supported Video Resolutions: 720p at 50/60 Hz, 1080p at 24/50/60 Hz, and 4K at 30 Hz
• Chroma Subsampling: 4:4:4, 4:2:2, and 4:2:0 input with RGB output processing
• Color Depth: 1080p 8-bit or 10-bit; 4K 8-bit or 10-bit input with 8-bit output processing
• Visually Lossless Formats: 1080p60 SDR RGB 8-bit and 4K30 SDR RGB 8-bit
• End-to-End Audio: PCM 2-channel, 5.1, and 7.1; Dolby Digital 5.1; Dolby Digital Plus; DTS 5.1; DTS-ES; DTS-HD Master Audio
• HDMI Loop-Out Audio: Supports end-to-end formats plus Dolby MAT 8-channel
• Analog Audio Input: Stereo analog audio through 3.5 mm connection
• Analog Audio Output: Balanced stereo L/R through 5-pin terminal block
• USB: HID-compliant KVM support
• RS-232: Bidirectional device control and monitoring
• IR: Bidirectional device control and extension
• HDMI Control: EDID management at the encoder

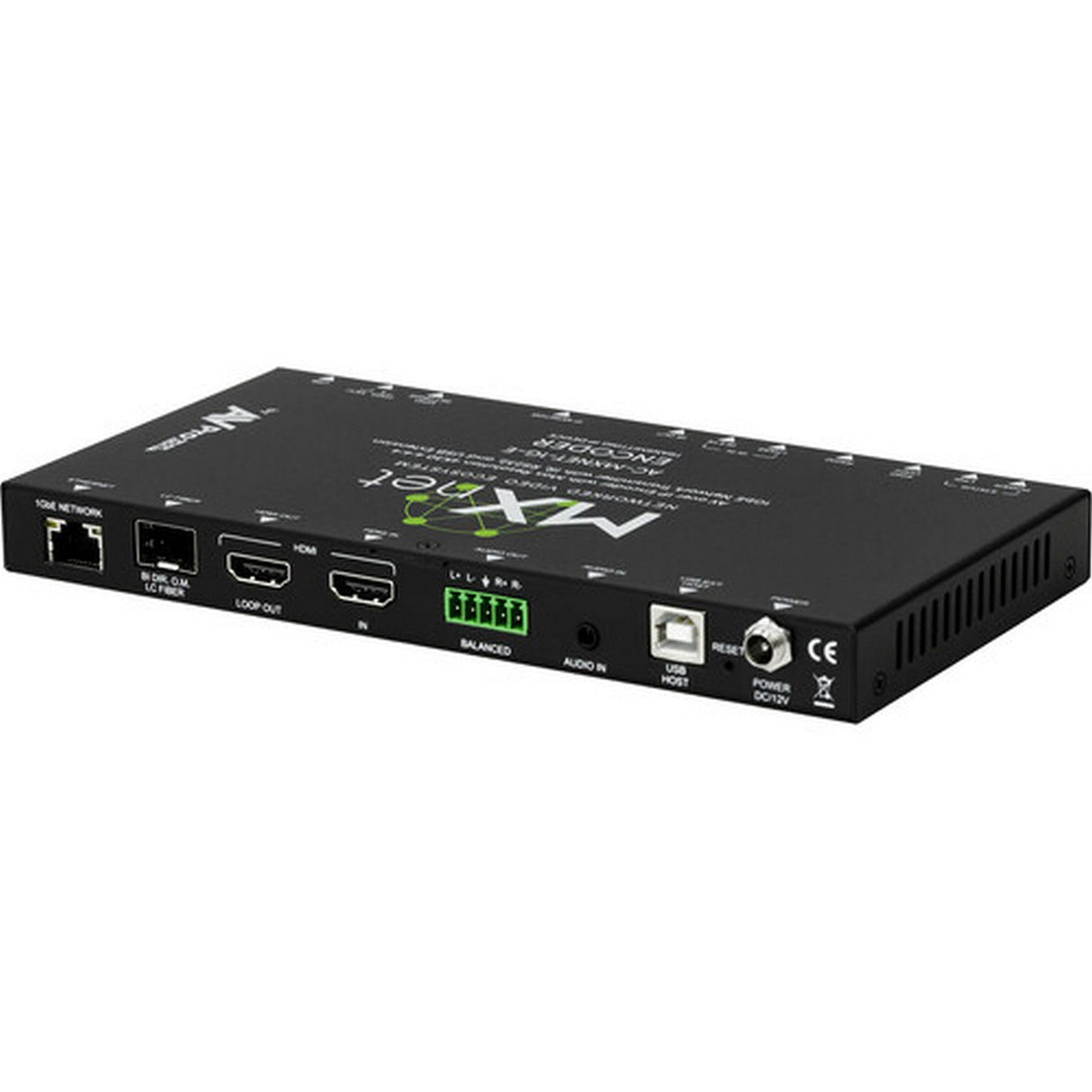

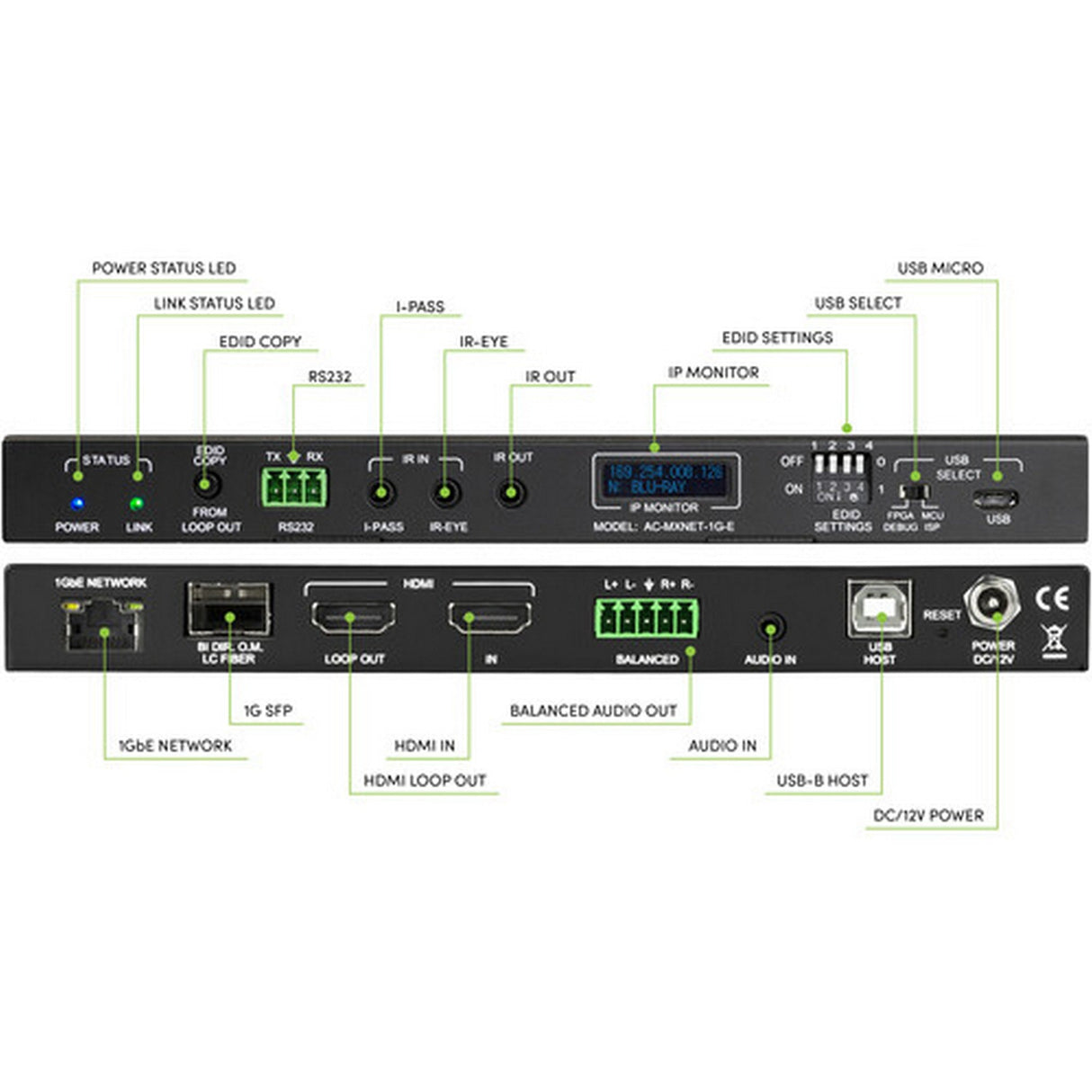

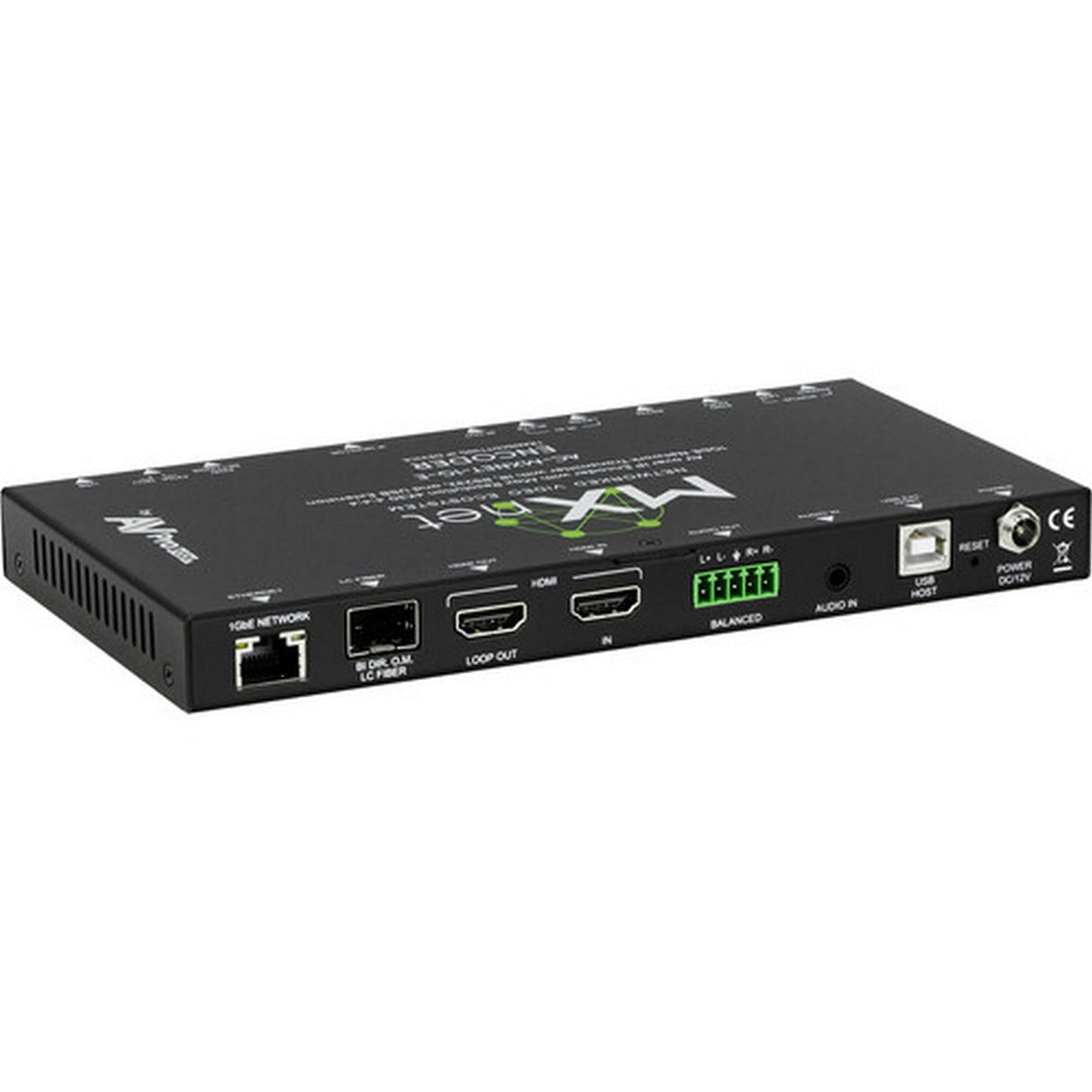

• Ethernet: 1 x RJ45 with PoE
• Fiber: 1 x SFP slot
• HDMI Connections: 1 x HDMI input and 1 x HDMI loop output
• Balanced Audio Connection: 1 x 5-pin terminal block output
• Analog Audio Connection: 1 x 3.5 mm stereo input
• IR Connections: IR-PASS, IR-EYE, and IR-OUT 3.5 mm connections
• RS-232 Connection: 1 x 3-pin terminal block
• KVM USB Connection: 1 x USB 2.0 Type-B
• Service Connection: 1 x USB Micro port
• Ethernet Transmission Distance: Up to 330 ft over Cat 5e or better
• Multimode Fiber Support: 1000BASE-SX SFP, 850 nm, up to approximately 1,804 ft
• Single-Mode Fiber Support: 1000BASE-LX/LH SFP, 1310 nm, up to approximately 6.2 miles

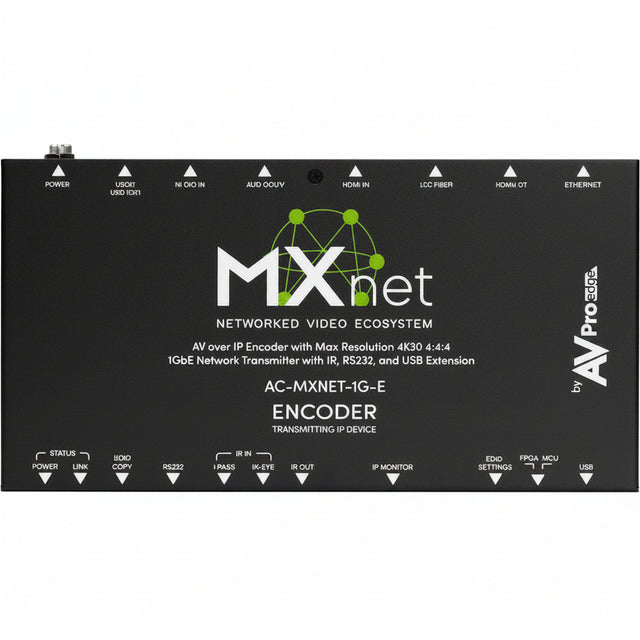

• Display: Front mini OLED data window
• PoE: IEEE 802.3af, 15.4 W
• Maximum Power Consumption: 6.5 W
• Local Power Supply Specification: 120-240 VAC, 50/60 Hz, 0.8 A input; 12 VDC, 2 A output
• Operating Temperature: 23 to 125 degrees F
• Storage Temperature: -4 to 140 degrees F
• Operating Humidity: 5% to 90% RH, non-condensing
• Mounting: Rack and furniture mounting supported
• Dimensions (W x D x H): 7.8 x 4.1 x 0.5 inches
• Weight: 1.3 lb
• Regulatory Compliance: CE, FCC, and UL
• Warranty: 10 years

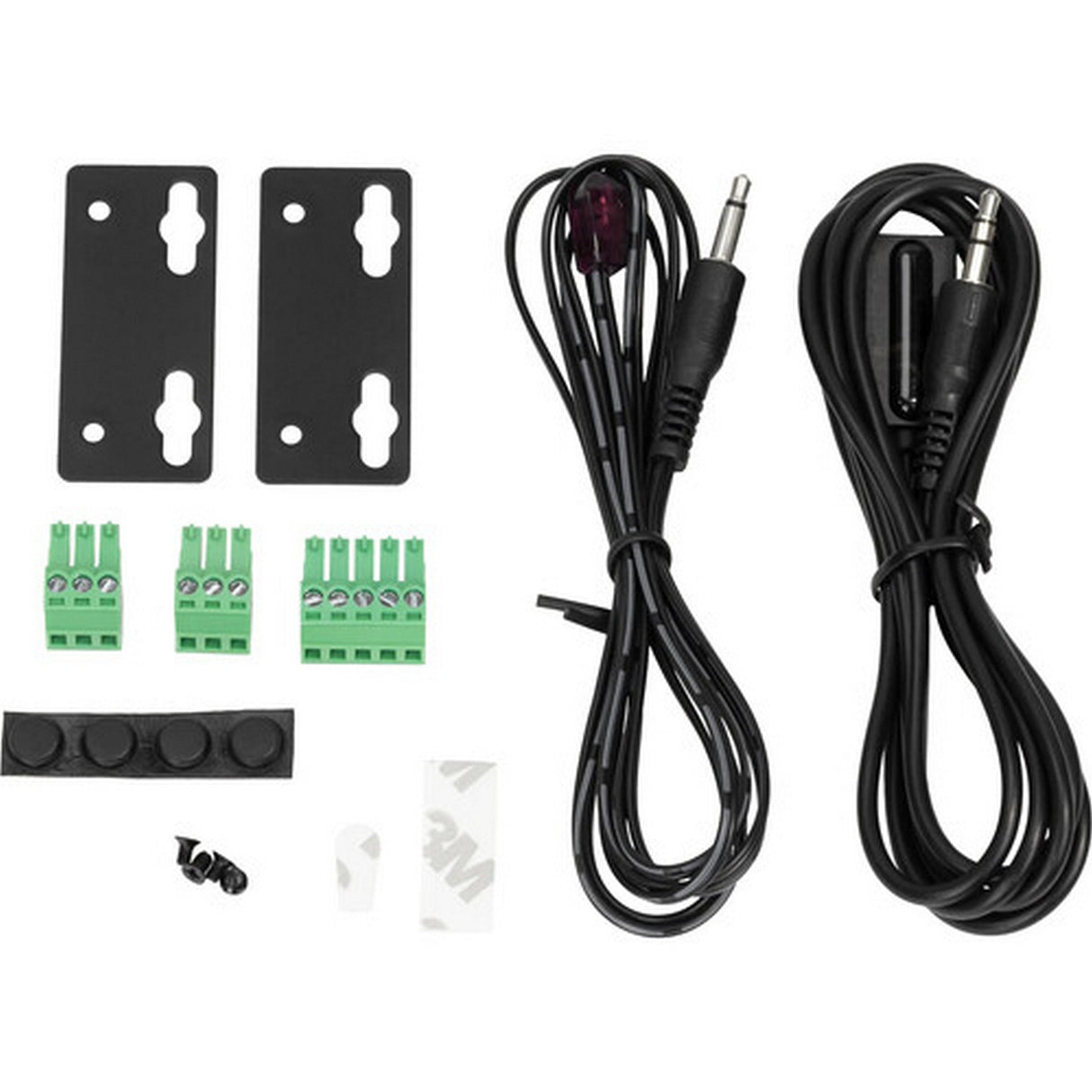

What's In the Box

• AVPro Edge AC-MXNET-1G-E-TAA Encoder/Transmitter
• IR emitter
• IR receiver
• 2 mounting brackets
• 4 mounting bracket screws
• 3-pin terminal block
• 5-pin terminal block
