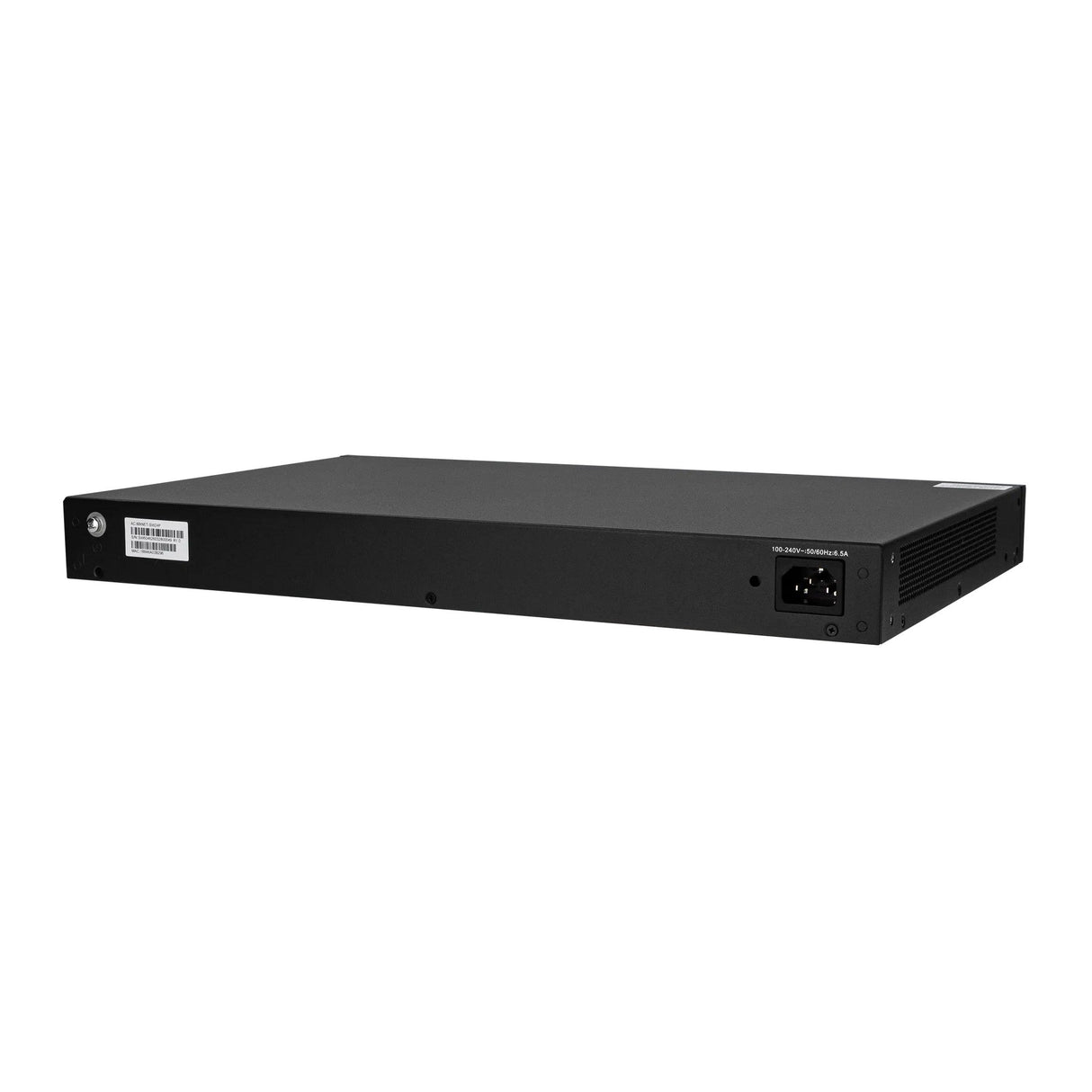

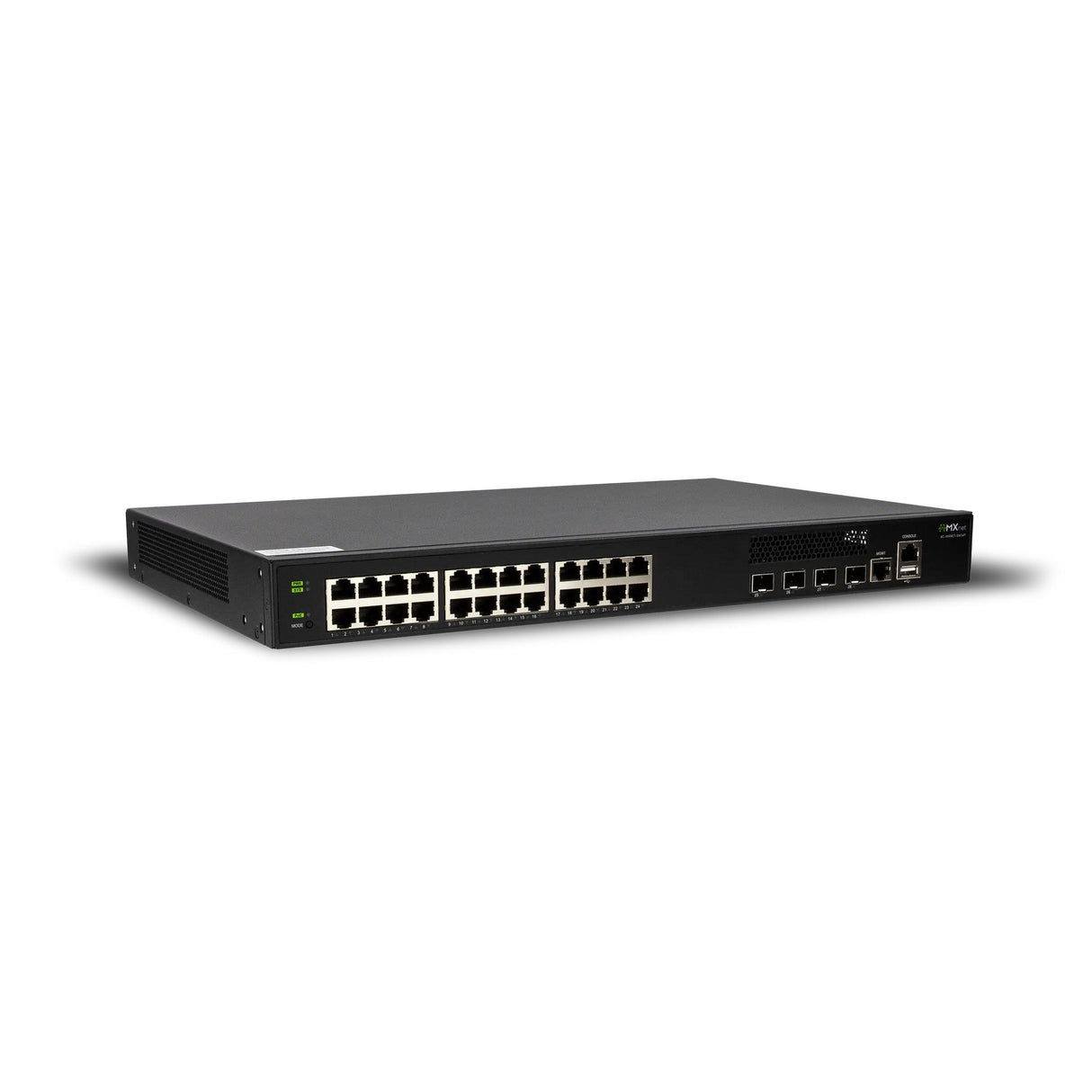

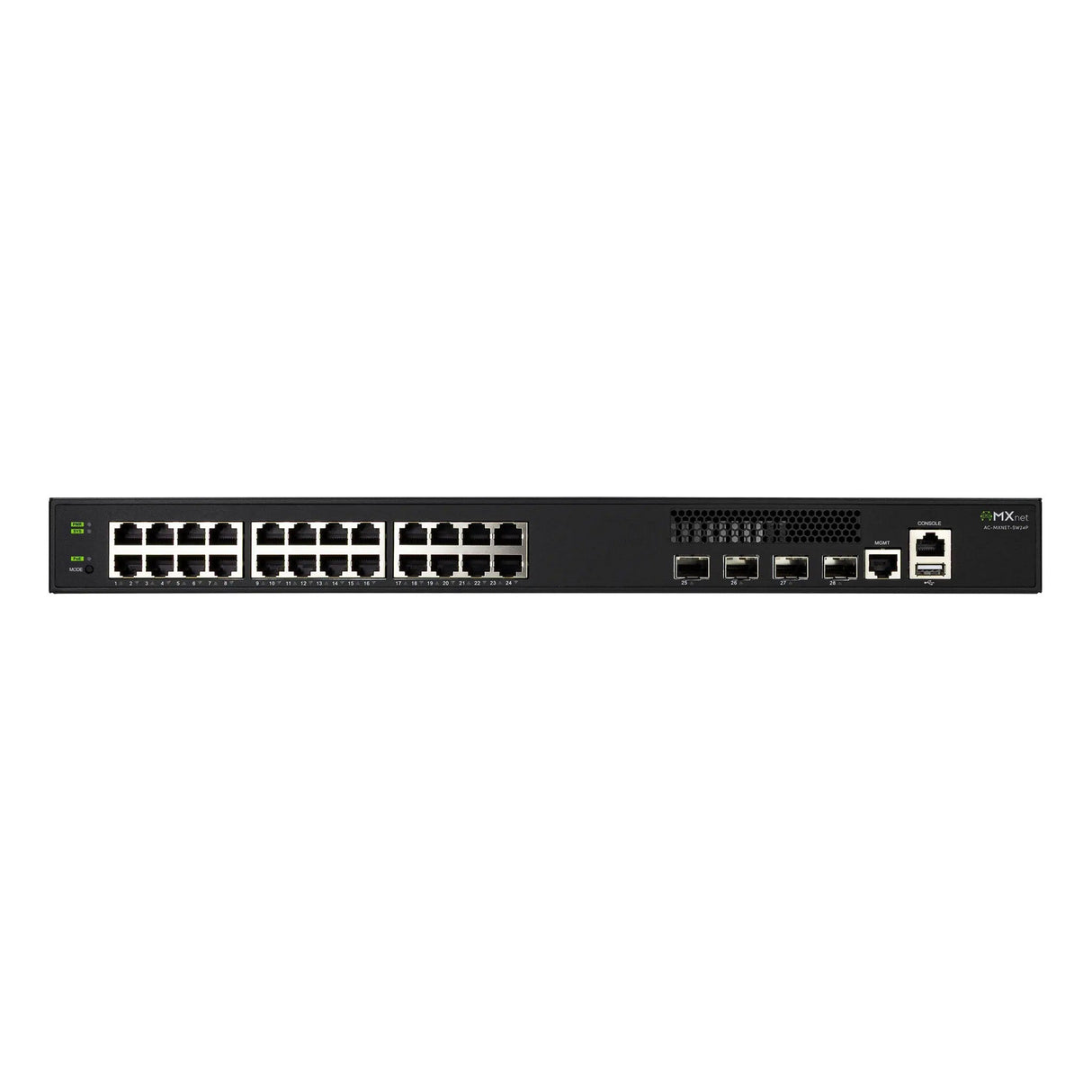

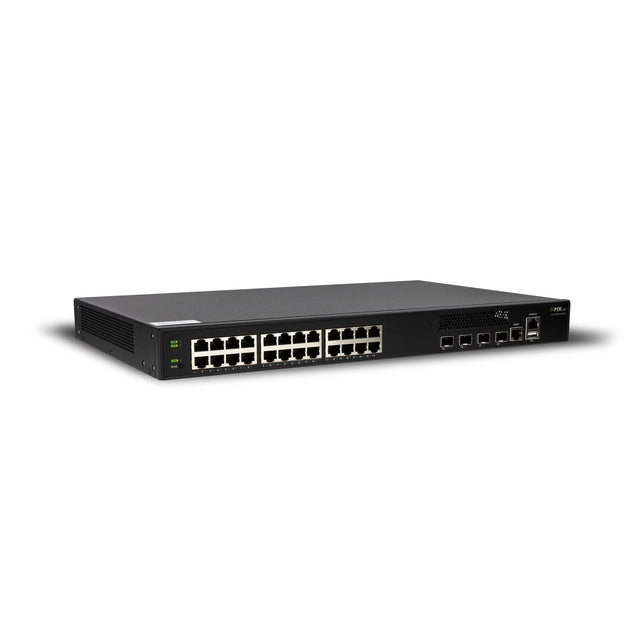

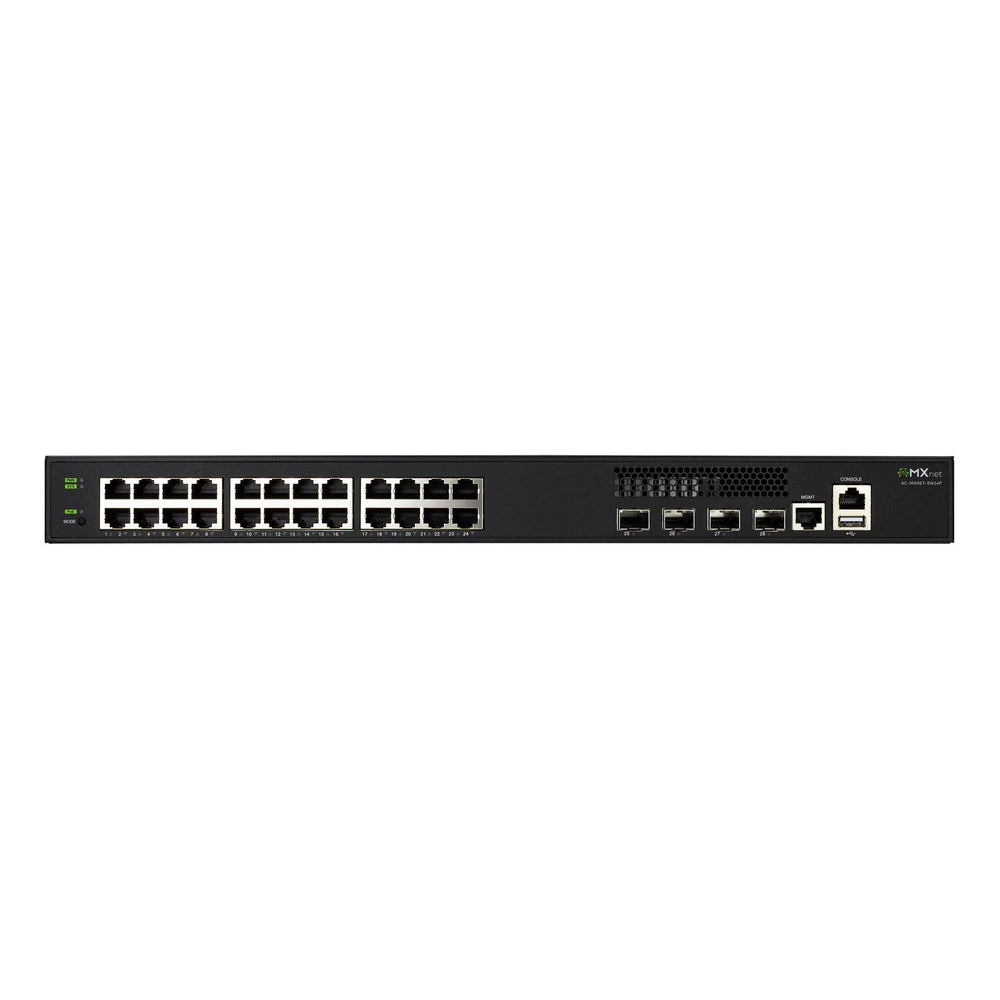

AVPro Edge AC-MXNET-SW24P 24-Port Managed PoE Plus Network Switch

AVPro Edge AC-MXNET-SW24P 24-Port Managed PoE Plus Network Switch

The AVPro Edge AC-MXNET-SW24P 24-Port Managed PoE+ Network Switch supports scalable MXnet 1G AV-over-IP systems. It combines 24 Gigabit PoE/PoE+ copper ports, four 10Gbps SFP+ uplinks, a 370W PoE budget, and factory-optimized multicast settings within a compact 1RU rackmount chassis.

Use this 24-port PoE+ switch for residential video distribution, hospitality systems, conference facilities, digital signage, and commercial AV installations. Its 40Gbps uplink pool provides 1.96 times the bandwidth of the published 20.4Gbps maximum MXnet access load, helping stacked systems carry active streams without uplink oversubscription.

A dedicated out-of-band management port, RJ45 console interface, and USB service connection support professional deployment and maintenance. IGMP Snooping manages multicast membership, VLAN segmentation separates network traffic, and Quality of Service prioritizes time-sensitive data. The switch supports MXnet 1G Version 1 and Version 2 endpoints across systems with up to four switch hops.

Key Features

• Twenty-Four Gigabit PoE+ Ports: Connects and powers compatible encoders, decoders, and AV devices through standard Ethernet cabling.
• Four 10Gbps SFP+ Uplinks: Provides up to 40Gbps of combined bandwidth for switch stacking and network expansion.
• Factory-Optimized Configuration: Includes preset IGMP Snooping, VLAN, and Quality of Service settings for MXnet deployments.
• Non-Blocking MXnet Architecture: Supplies 1.96 times the uplink capacity of the published maximum access-port load.
• 370W PoE Budget: Delivers PoE or PoE+ through all 24 access ports with up to 30W available per port.
• High Switching Performance: Provides 128Gbps switching capacity and a 95.24 Mpps forwarding rate.
• Dedicated Management Connections: Includes out-of-band Ethernet management, an RJ45 console port, and USB service access.
• Professional Rack Installation: Uses a metal 1RU enclosure with active cooling and included rack-mounting hardware.

Technical Specifications

System and Network Architecture

• Product Type: Managed PoE+ network switch for MXnet 1G AV-over-IP systems
• Supported MXnet Platforms: MXnet 1G Version 1 and Version 2
• Access Ports: 24 x 10/100/1000Base-T RJ45 PoE/PoE+
• SFP+ Uplink Ports: 4 x 10GE SFP+
• Supported SFP+ Speeds: 10GbE and 1GbE
• Default SFP+ Speed: 10GbE
• Total Uplink Bandwidth: 40Gbps
• Published Maximum MXnet 1G Access Load: 20.4Gbps
• Published Uplink Headroom: 1.96x
• Maximum Switch Hops: 4
• Preconfigured Network Functions: IGMP Snooping, VLAN segmentation, and Quality of Service
• Management Port: 1 x 10/100/1000Base-T RJ45 out-of-band management port
• Console Port: 1 x RJ45
• Service and Storage Port: 1 x USB 2.0 Type-A

Switching and Hardware Performance

• Switching Capacity: 128Gbps
• Forwarding Rate: 95.24 Mpps
• MAC Address Table: 16K
• Jumbo Frame Support: Up to 10,000 bytes
• Hardware Queues: 8 per port
• ARP Table: 788 entries
• Routing Table: 758 entries
• Switch ASIC: Marvell AC5 98DX2518
• RAM: 1GB
• Flash Memory: 8MB SPI and 256MB NAND

Power over Ethernet

• PoE Standards: IEEE 802.3af PoE and IEEE 802.3at PoE+
• Total PoE Budget: 370W
• PoE-Enabled Ports: Ports 1 through 24
• Maximum PoE Output Per Port: 30W
• Published USP-PR Capacity: Up to 16 endpoints
• Published USP-PL or USP-ES Capacity: Up to 24 endpoints

Power and Environmental Specifications

• Power Input: 100 to 240 VAC, 50/60 Hz
• Power Supply: Internal AC
• Maximum Power Consumption: Less than 880W
• Operating Temperature: 23 to 113 degrees Fahrenheit
• Storage Temperature: -40 to 158 degrees Fahrenheit
• Operating Humidity: 10% to 90%, noncondensing
• Storage Humidity: Up to 95%
• Cooling: Active cooling with side ventilation

Physical Specifications

• Rack Space: 1RU
• Mounting Method: Rackmount
• Material: Metal
• Dimensions (W x D x H): 17.4 x 11 x 1.5 inches
• Weight: 8.8 pounds
• Package Dimensions (W x D x H): 21.8 x 16.3 x 3.5 inches
• Package Weight: 11.1 pounds

What's In the Box

• AC-MXNET-SW24P network switch
• IEC power cable
• Grounding cable
• Console cable
• Two mounting brackets or rack ears
• Eight mounting-bracket screws
• Four 10-32 rackmount screws
• Four 10-32 cage nuts
• Four rubber feet
