AVPro Edge AC-MXNET-SW48P 48-Port Managed PoE+/PoE++ Network Switch

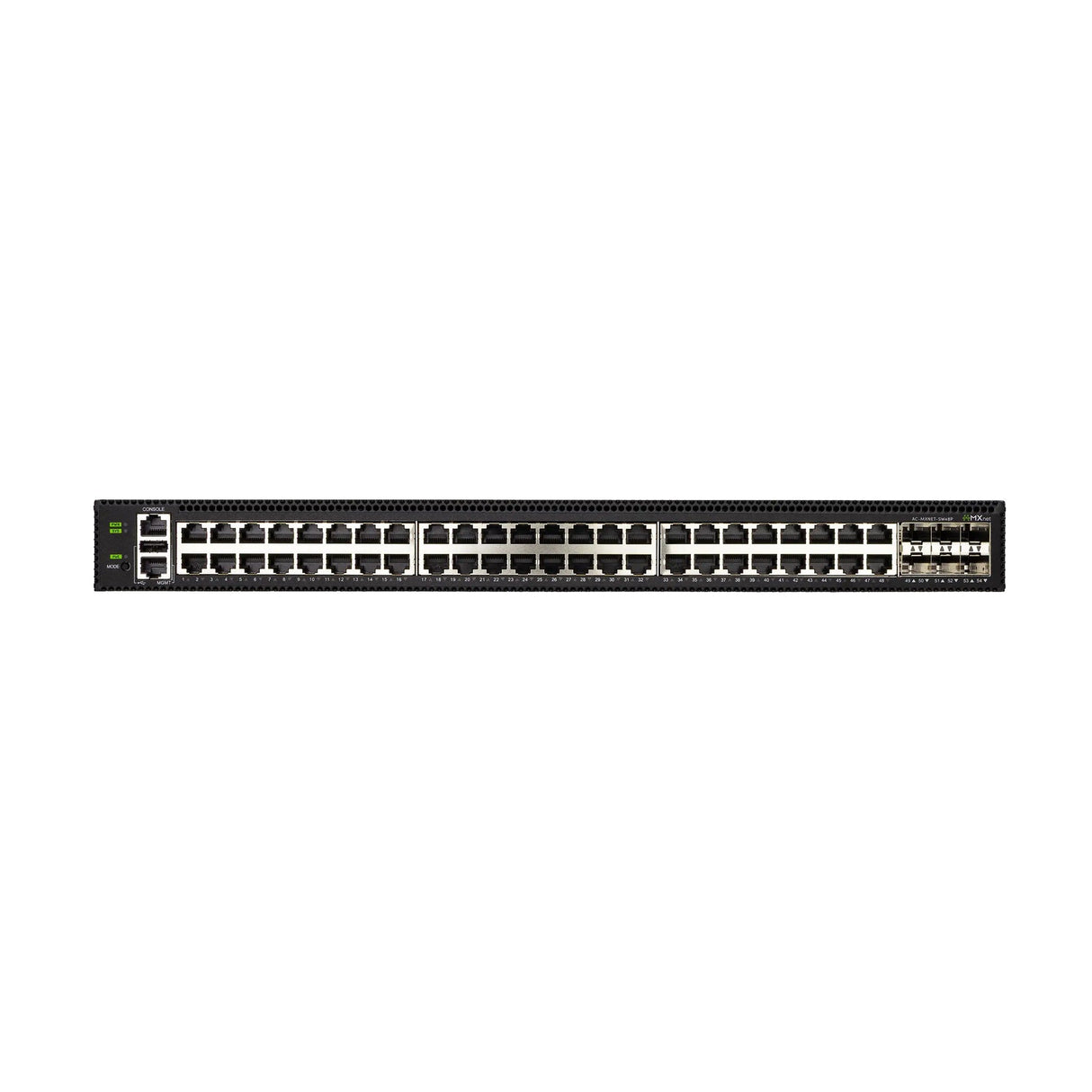

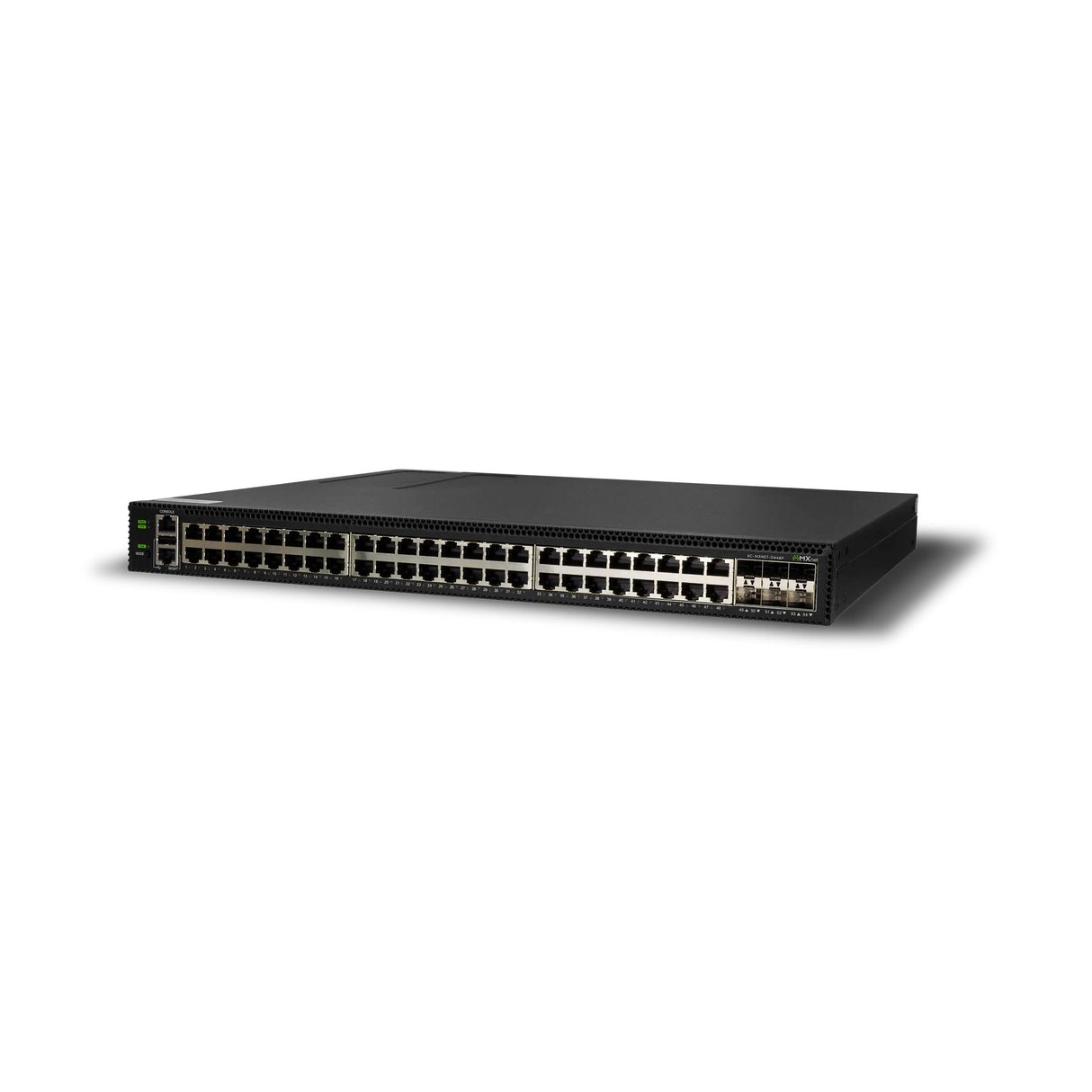

The AVPro Edge AC-MXNET-SW48P 48-Port Managed PoE+/PoE++ Network Switch is a high-density MXnet 1G platform for large AV-over-IP systems. It combines 48 Gigabit copper ports, six 25Gbps SFP28 uplinks, a shared 740W PoE budget, and preconfigured multicast controls in a 1U rackmount chassis.

This 48-port PoE network switch suits whole-building video distribution, hospitality, casino, education, corporate, and large residential installations. Its 150Gbps uplink capacity provides substantial bandwidth for stacked MXnet deployments, while PoE++ support on ports 41 through 48 accommodates compatible endpoints requiring up to 90W from a single connection.

AVPro Edge preconfigures IGMP Snooping, VLAN segmentation, and Quality of Service for MXnet 1G Version 1 and Version 2 systems. A 396Gbps switching fabric, 295 Mpps forwarding rate, large address tables, and jumbo-frame support help maintain predictable multicast performance as the endpoint count grows. The system supports up to four switch hops without recurring licensing costs.

Key Features

• Forty-Eight Gigabit Access Ports: Connects MXnet encoders, decoders, and other networked AV devices through copper Ethernet cabling.
• High-Capacity PoE Delivery: Provides a shared 740W budget across PoE, PoE+, and selected PoE++ connections.
• Eight PoE++ Ports: Ports 41 through 48 deliver up to 90W each for compatible high-power endpoints.
• Six 25Gbps Uplinks: Supplies 150Gbps of combined SFP28 bandwidth for switch stacking and network aggregation.
• Non-Blocking MXnet Design: Uplink capacity exceeds the published maximum 40.8Gbps load from all 48 access ports.
• Preconfigured AV Networking: Optimized IGMP Snooping, VLAN, and Quality of Service settings simplify commissioning.
• Enterprise-Class Performance: A 396Gbps switching capacity and 295 Mpps forwarding rate support high-density traffic.
• Professional Rack Installation: The 1U metal chassis includes mounting brackets, rack hardware, grounding equipment, and rubber feet.

Technical Specifications

System Configuration

• Product Type: Managed PoE+/PoE++ network switch for MXnet 1G AV-over-IP systems
• Supported MXnet Platforms: MXnet 1G Version 1 and Version 2
• Access Ports: 48 x 10/100/1000Base-T RJ45
• PoE/PoE+ Ports: Ports 1 through 48
• PoE++ Ports: Ports 41 through 48
• SFP28 Uplink Ports: 6
• Supported Uplink Speeds: 25GbE and 10GbE
• Default Uplink Speed: 25GbE
• Total Uplink Bandwidth: 150Gbps
• Published Maximum MXnet 1G Access Load: 40.8Gbps
• Published Uplink Headroom: 3.68x
• Maximum Switch Hops: 4
• Licensing: No recurring license required

Management and Network Functions

• Management Port: One RJ45 Ethernet management port
• Console Port: One RJ45 console port
• USB Port: One USB 2.0 port
• Preconfigured Functions: IGMP Snooping, VLAN segmentation, and Quality of Service
• Management Options: MXnet Mentor, command-line interface, and web graphical interface
• Monitoring Support: Port status, data rates, packet statistics, temperature, and PoE consumption
• Network Monitoring Protocols: SNMP and Syslog

Switching Performance

• Switching Capacity: 396Gbps
• Forwarding Rate: 295 Mpps
• MAC Address Table: 32K
• Jumbo Frame Support: Up to 10,000 bytes
• Hardware Queues: 8 per port
• ARP Table: 8K entries
• Routing Table: 32K entries

Internal Hardware

• Switch ASIC: Marvell AC5X 98DX3510
• RAM: 1GB
• SPI Flash Memory: 32MB
• NAND Flash Memory: 256MB

Power over Ethernet

• PoE Standards: IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt
• Total PoE Budget: 740W
• Ports 1-40 Maximum Output: 30W per port
• Ports 41-48 Maximum Output: 90W per port
• Published USP-PR Capacity: Up to 32 endpoints
• Published USP-PL or USP-ES Capacity: Up to 48 endpoints

Power and Environmental Specifications

• Power Input: 100 to 240 VAC, 50/60 Hz
• Power Supply: Internal AC
• Maximum Power Consumption: Less than 880W
• Operating Temperature: 23 to 113 degrees Fahrenheit
• Storage Temperature: -40 to 158 degrees Fahrenheit
• Operating Humidity: 10% to 90%, noncondensing
• Storage Humidity: Up to 95%

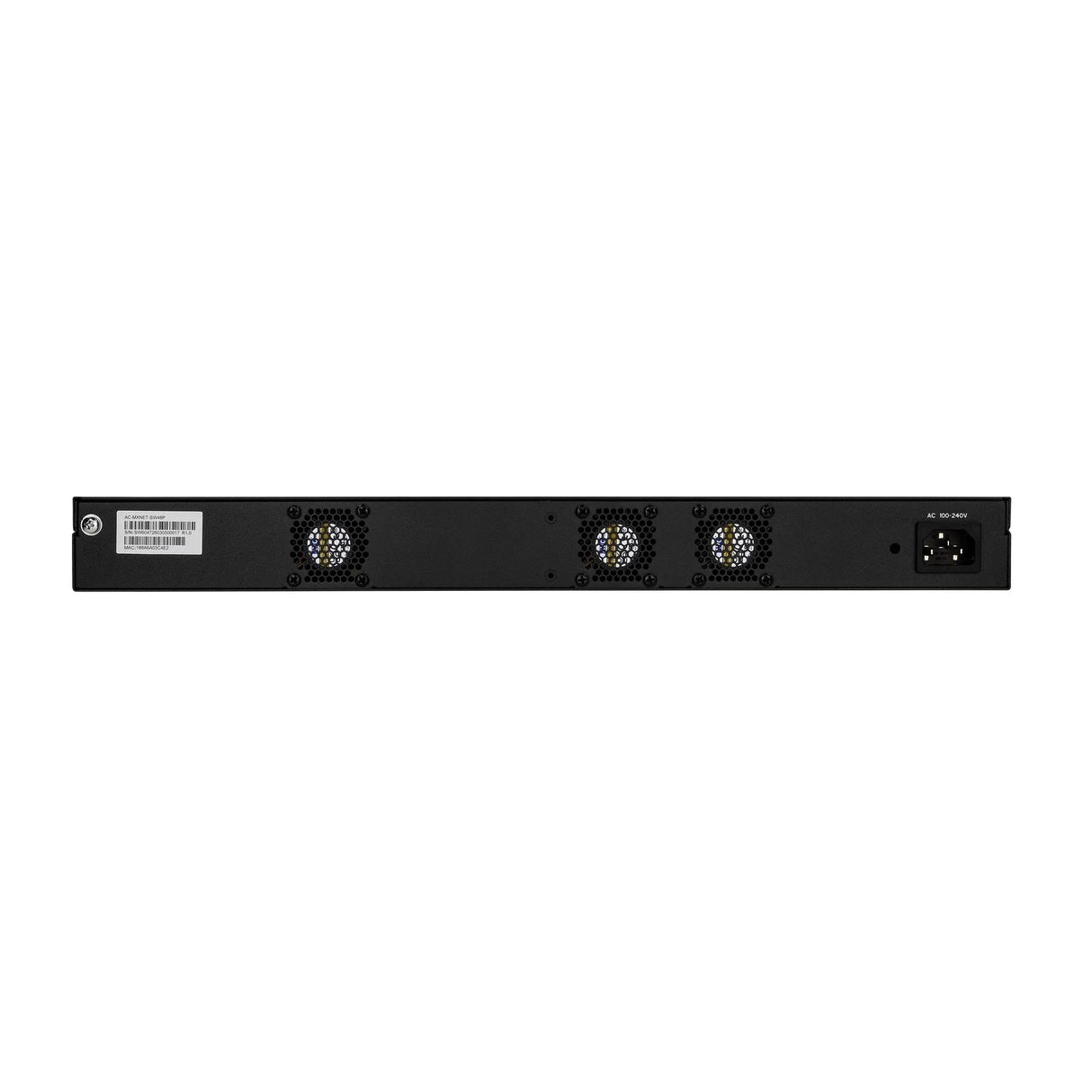

• Cooling: Active cooling with side ventilation

Physical Specifications

• Installation: Desktop or rack mounting
• Rack Height: 1U
• Dimensions (W x D x H): 17.4 x 16.5 x 1.5 inches
• Weight: 11.9 pounds
• Package Dimensions (W x D x H): 25.8 x 22 x 6 inches
• Package Weight: 16.5 pounds

What's In the Box

• AVPro Edge AC-MXNET-SW48P network switch
• IEC power cable
• Grounding cable
• Console cable
• Two mounting brackets
• Eight mounting-bracket screws
• Four 10-32 rackmount screws
• Four 10-32 cage nuts
• Four rubber feet
