AVPro Edge MXNet 10G SDVoE Transceiver

The AVPro Edge MXNet 10G SDVoE Transceiver family provides configurable encoder and decoder endpoints for distributing HDMI video, audio, USB, control, and Ethernet across 10GbE AV-over-IP networks. Four configurations address standard signal transport, multichannel audio downmixing, extended USB applications, and combined ExtremeUSB plus Dante audio workflows.

Each transceiver supports HDMI 2.0 with 18Gbps bandwidth, copper or fiber network transport, fast switching, MultiView processing, and video-wall applications. Integrators can deploy the units across commercial AV, education, broadcast, medical, hospitality, and control-room systems where scalable 4K video distribution and flexible endpoint placement are required. Copper Cat6A links reach up to 330 feet, while compatible SFP+ fiber modules support substantially longer infrastructure runs.

The four models share the core MXNet 10G platform while adding application-specific capabilities. AC-MXNET-10G-TCVR provides the standard configuration, AVDM adds multichannel-to-stereo audio downmixing, USBX incorporates Icron ExtremeUSB technology, and PRO combines ExtremeUSB with Dante networking. All four use the same compact mounting format, support PoE, and carry CE and FCC regulatory listings with a 10-year manufacturer warranty.

Available Configurations

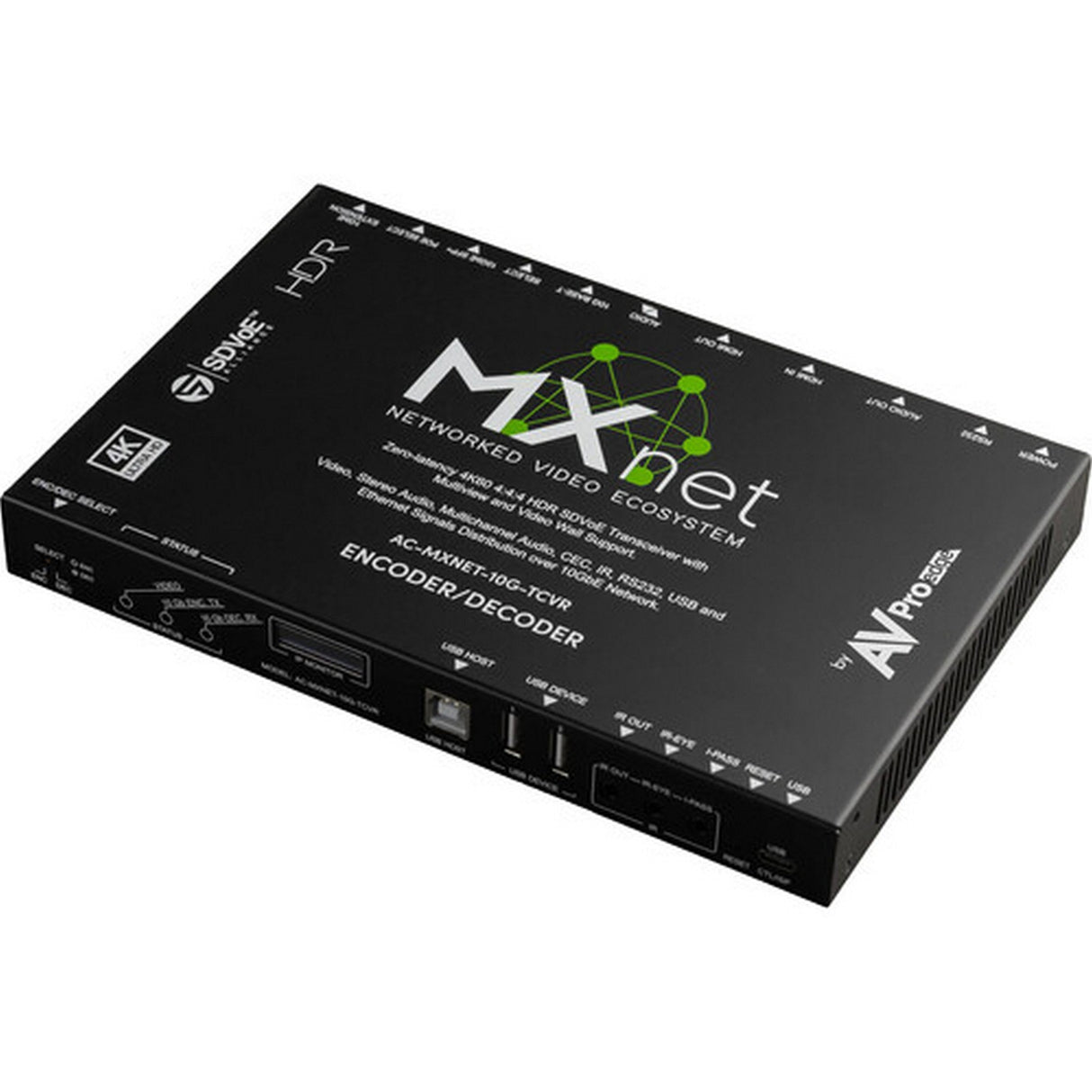

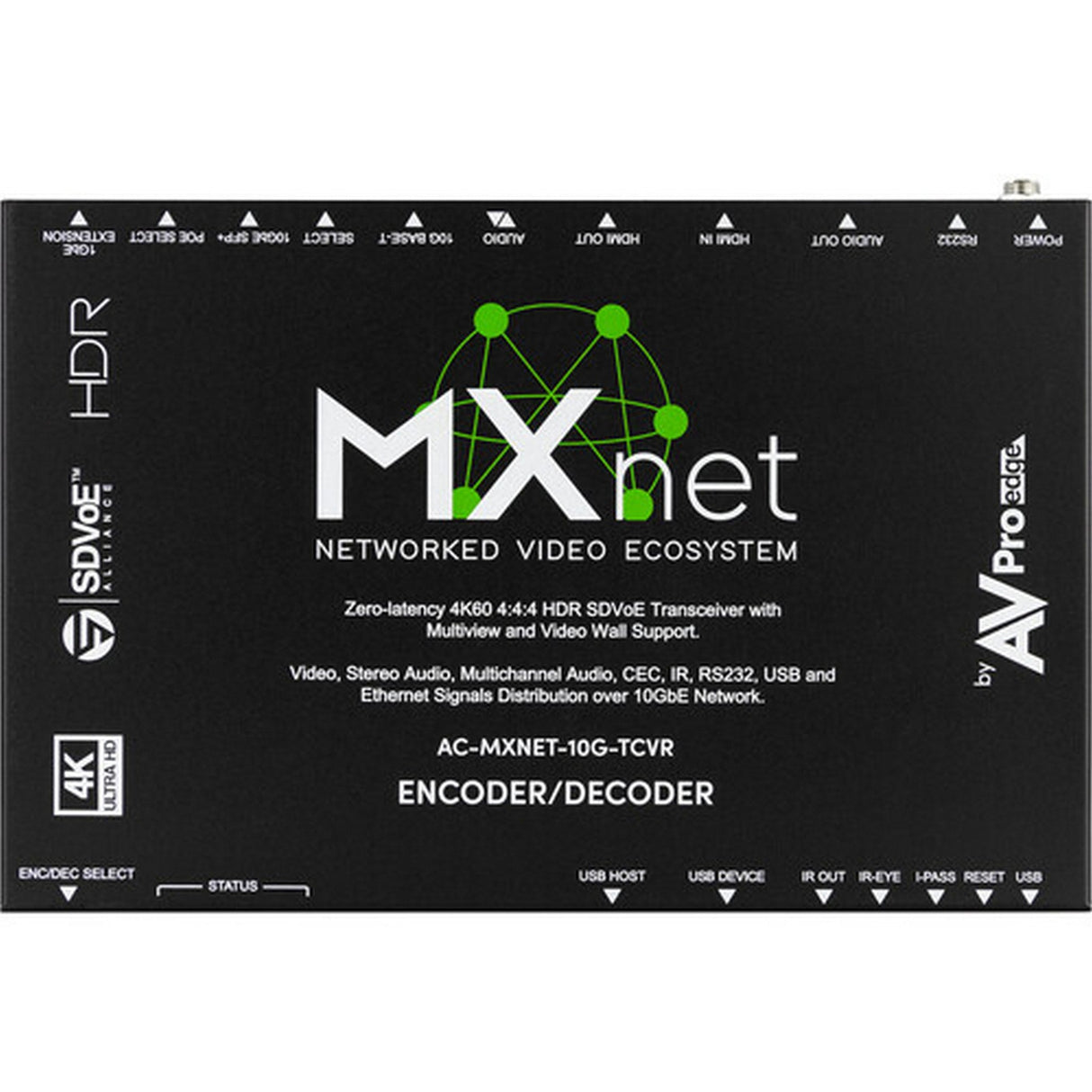

• AC-MXNET-10G-TCVR: Standard MXNet 10G SDVoE encoder/decoder transceiver for video, audio, control, USB, Ethernet, MultiView, and video-wall distribution.

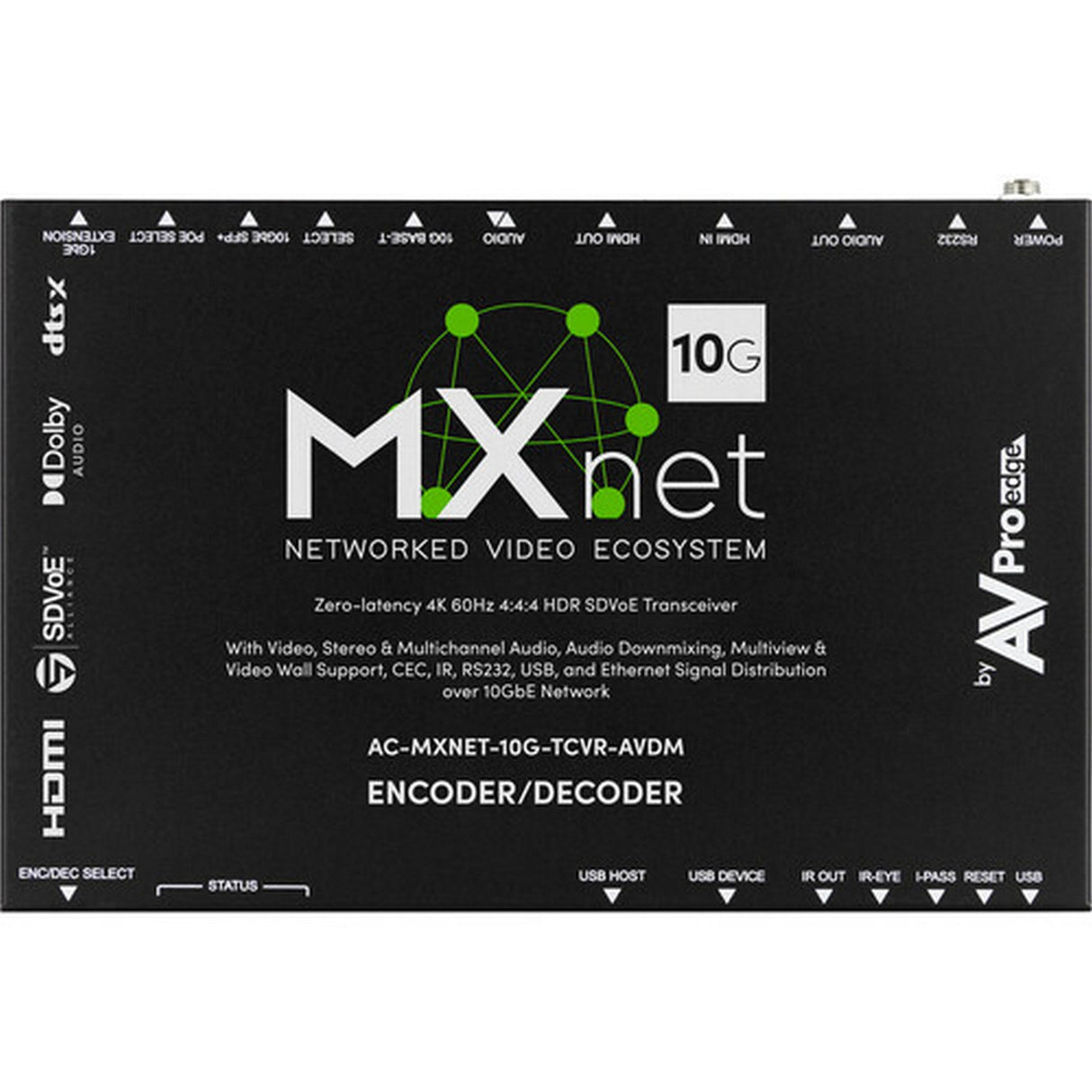

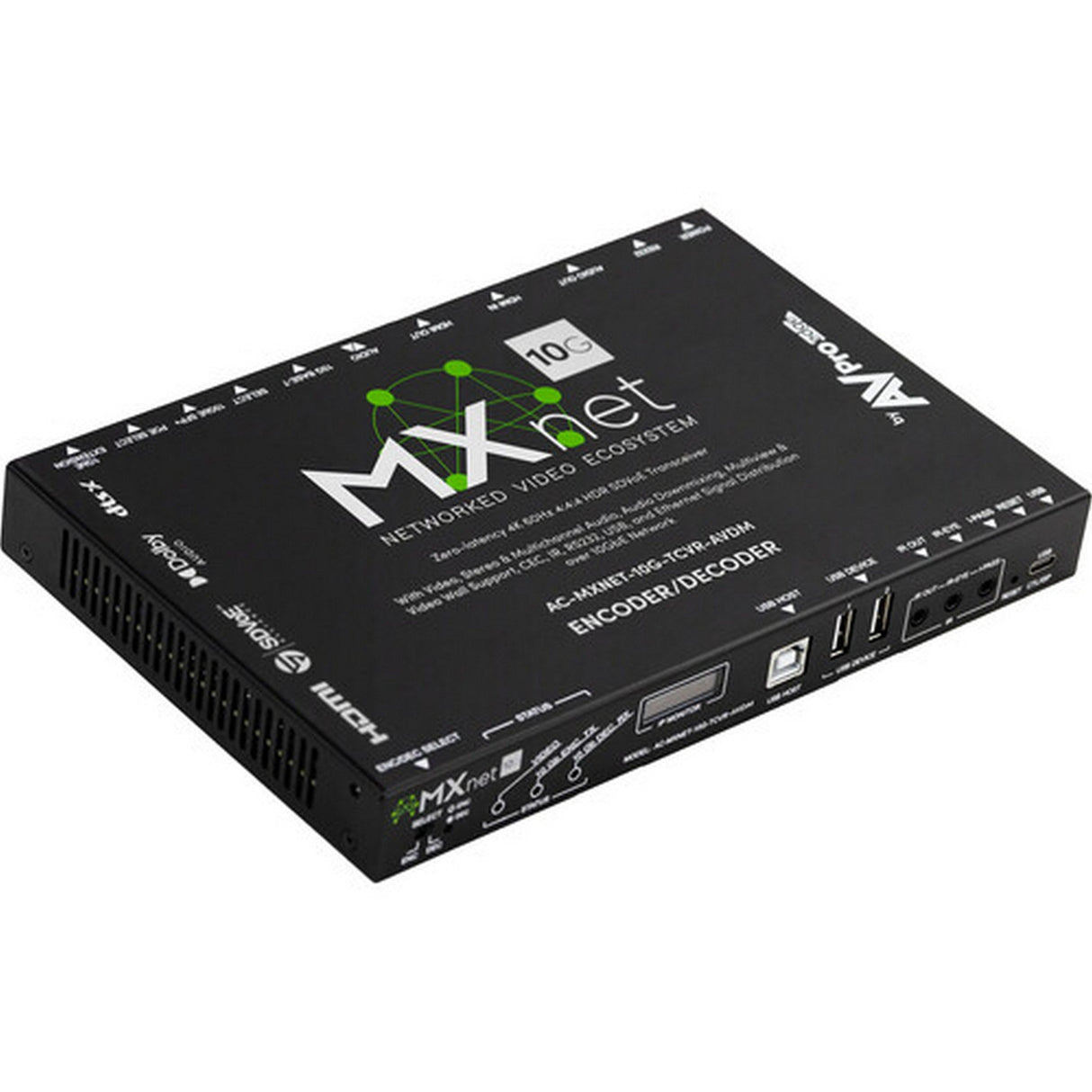

• AC-MXNET-10G-TCVR-AVDM: Adds eight-channel audio downmixing to two-channel balanced analog stereo, with extracted audio supporting up to 24-bit/48kHz operation.
• AC-MXNET-10G-TCVR-USBX: Adds Icron ExtremeUSB technology for extended USB routing, driverless operation, and support for up to 31 USB devices including hubs.

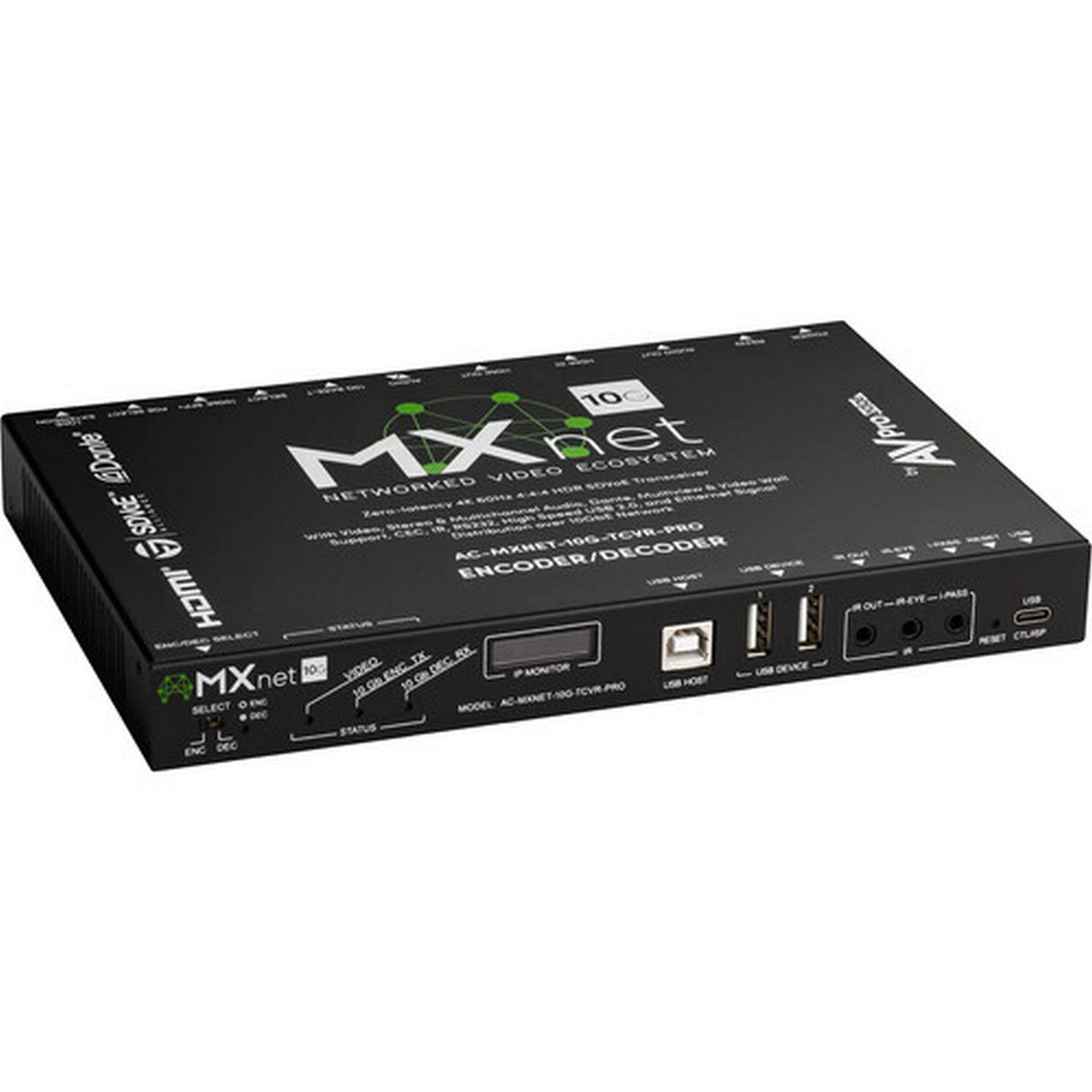

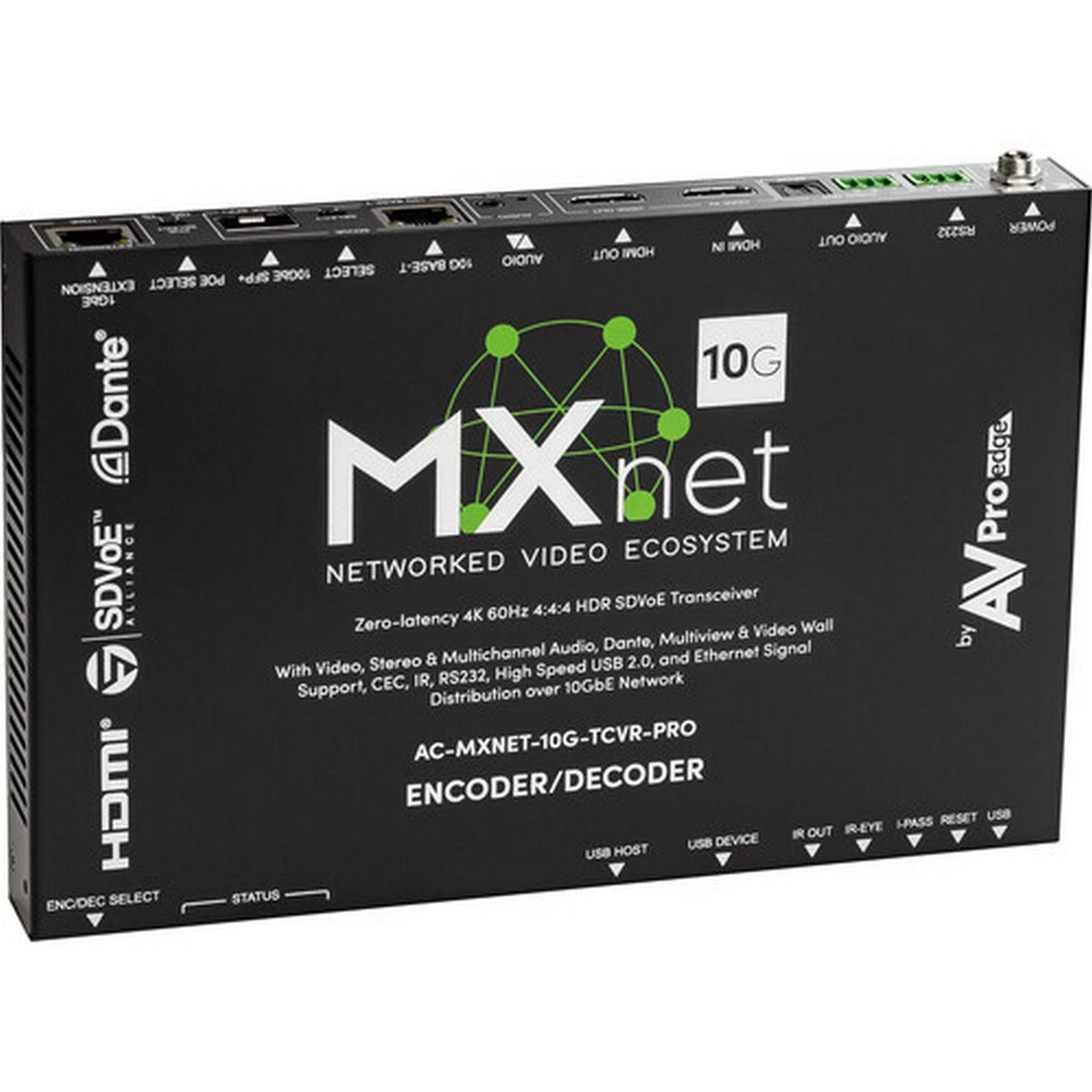

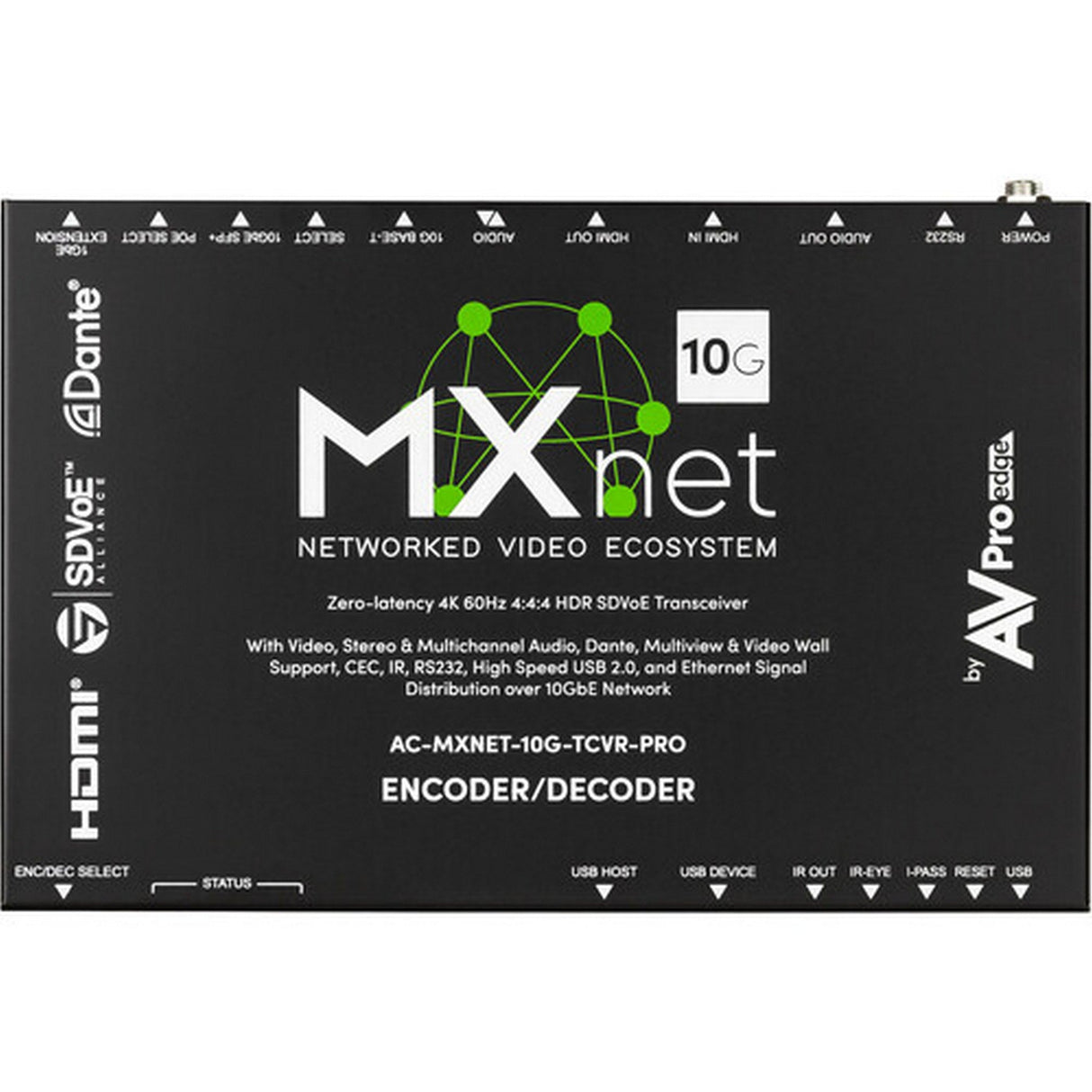

• AC-MXNET-10G-TCVR-PRO: Combines Icron ExtremeUSB with Dante audio networking for advanced professional AV, KVM, and networked-audio applications.

Key Features

• Selectable Encoder or Decoder: A single transceiver design can operate as the transmitting source endpoint or receiving display endpoint.
• 4K HDMI Distribution: Supports HDMI 2.0, 18Gbps bandwidth, and video formats through 4K/60 with HDR compatibility.

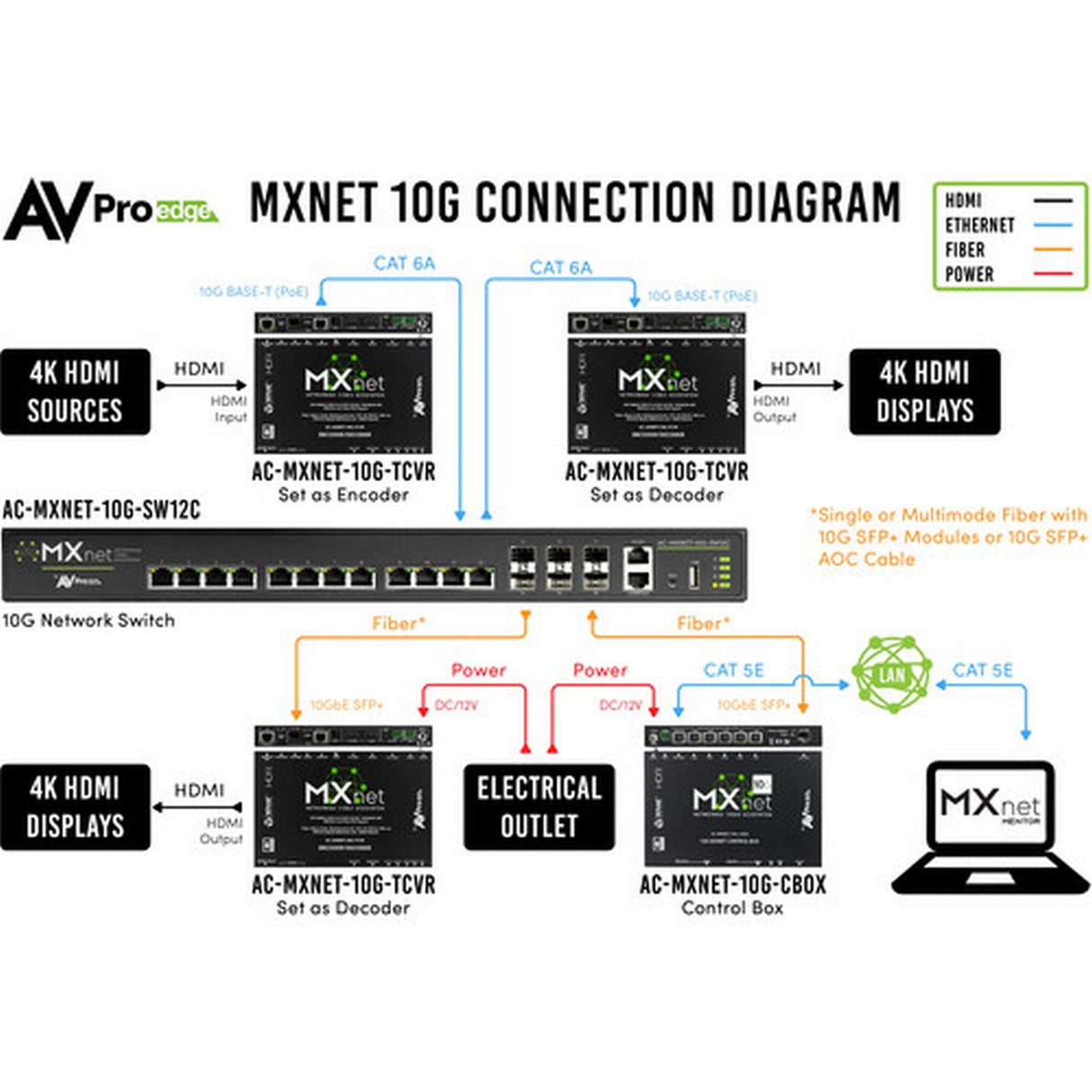

• Copper or Fiber Networking: Uses 10GbE RJ45 or SFP+ connectivity to accommodate short, campus-scale, and long-distance installations.
• Low-Latency Video: Genlock operation can reduce transport latency to 0.1ms, while fast switching operates within approximately one to two frames.
• MultiView and Video Walls: Enables software-defined multi-image layouts and video-wall arrays without requiring separate processors at each endpoint.
• Independent AV and Control Routing: Supports HDMI audio, analog audio, IR, RS-232, USB, and Ethernet alongside video distribution.
• Application-Specific Variants: Choose standard, audio-downmixing, ExtremeUSB, or ExtremeUSB plus Dante functionality within one product family.

Technical Specifications

• Product Family: MXNet 10G SDVoE transceivers
• Available Models: AC-MXNET-10G-TCVR, AC-MXNET-10G-TCVR-AVDM, AC-MXNET-10G-TCVR-USBX, AC-MXNET-10G-TCVR-PRO
• Operating Modes: Encoder/transmitter or decoder/receiver
• HDMI Standard: HDMI 2.0
• HDMI Bandwidth: 18Gbps
• Uncompressed Video: Up to 4K/30 4:4:4 8-bit
• 4K/60 Support: 4:4:4 8-bit, 4:2:2 10-bit, and 4:2:0 12-bit
• 4K/60 4:4:4 Transport: Visually lossless 1.3:1 compression with approximately 100 microseconds latency
• HDR Formats: Dolby Vision, HDR10, HDR10+, HLG, IMAX Enhanced
• Genlock Latency: Up to 0.1ms
• Fast Switching: Approximately 17 to 34ms when scaling is active
• Scaling: 4K upscaling and downscaling in decoder mode
• MultiView: Simple Grid, Hybrid Grid, Window Tiling, Picture-in-Picture, Picture-and-Picture, and custom layouts
• MultiView Capacity: Up to 32 images depending on layout and system configuration
• Video Wall Support: Up to 8 x 8 with bezel correction and asymmetric-layout support

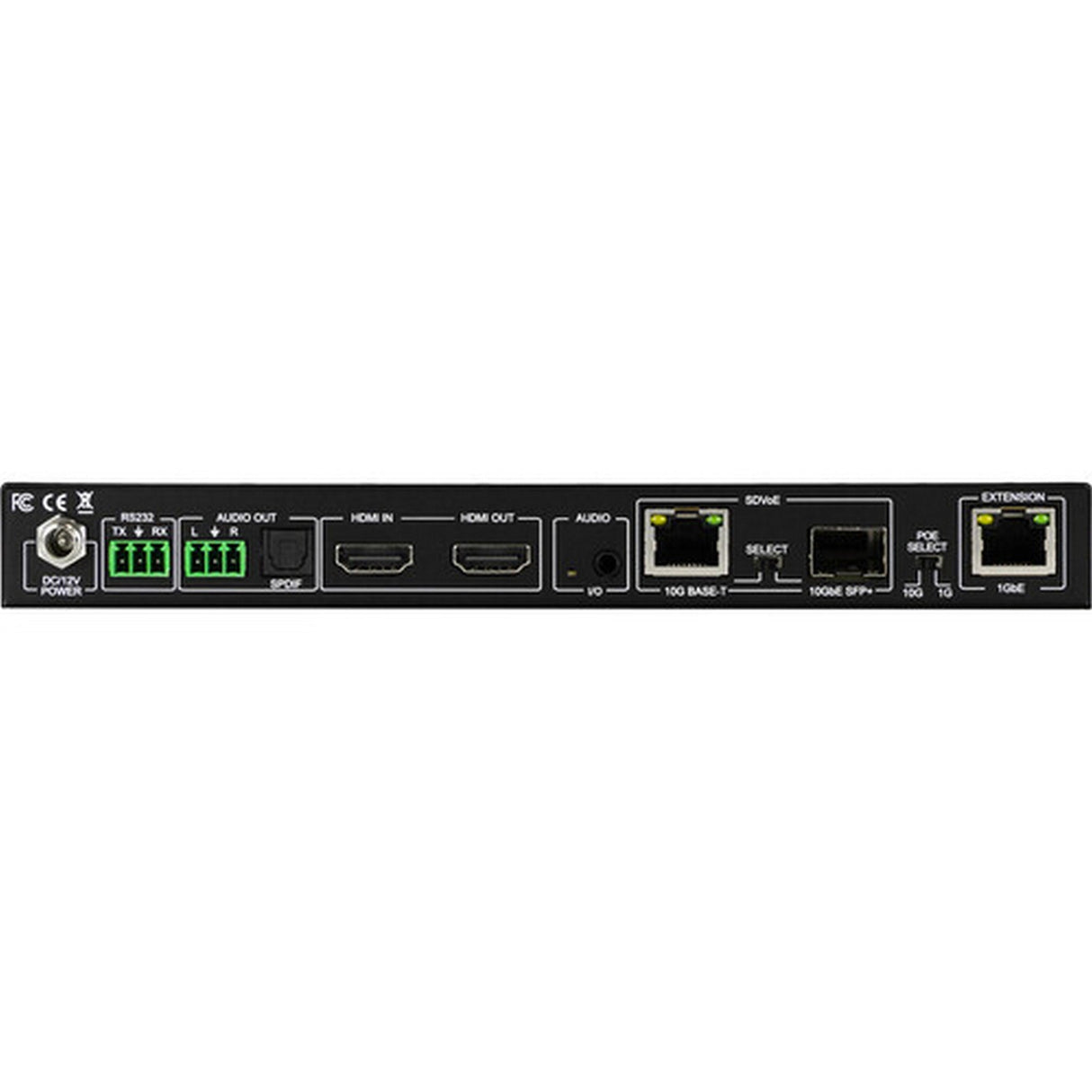

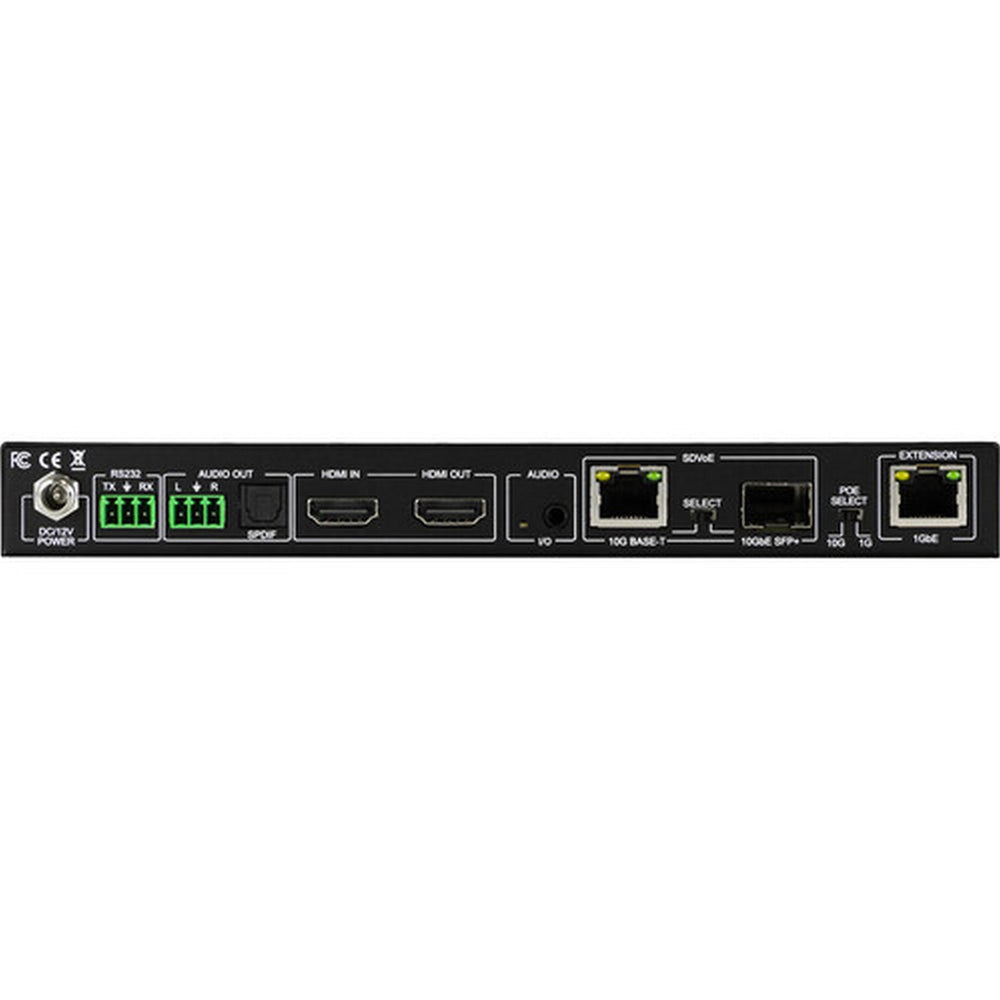

• Ethernet Ports: 1 x 10G RJ45 for SDVoE transport and 1 x 1G RJ45 for Ethernet extension or system control
• SFP+ Port: 1 x 10G SFP+
• HDMI Connections: 1 x HDMI input, 1 x HDMI output
• Audio Connections: 1 x TOSLINK, 1 x 3-pin terminal block, 1 x 3.5mm stereo jack
• IR Connections: 1 x 3.5mm IR output, 1 x 3.5mm IR-EYE, 1 x 3.5mm I-PASS
• RS-232: 1 x 3-pin terminal block

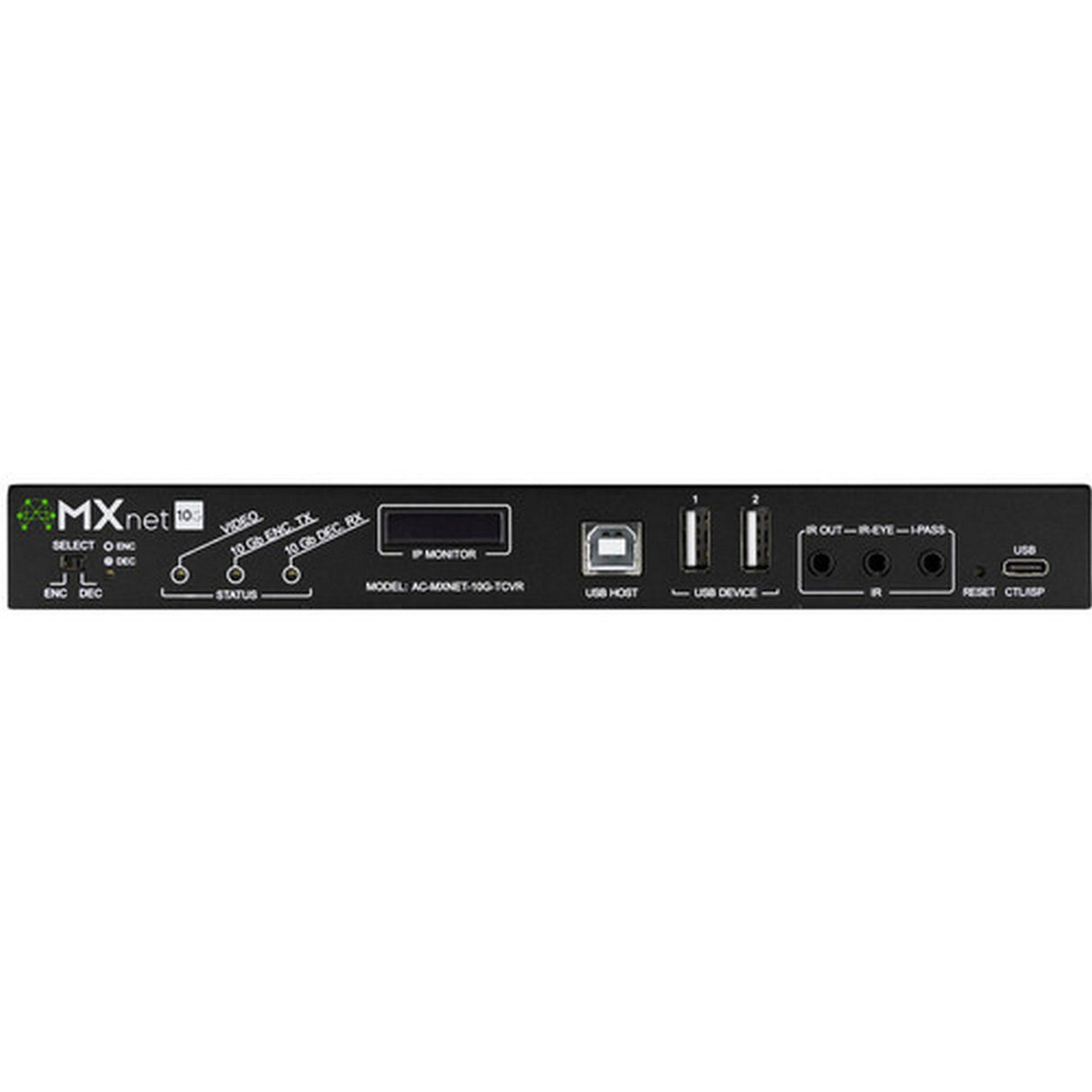

• USB Connections: 1 x USB Type-C service port, 1 x USB Type-B, 2 x USB Type-A
• AV Stream Encryption: AES-128 for HDMI video and audio streams
• Control-Plane Security: HTTPS with AES-128-CTR, Poly1305-AES, ECDH key exchange, and SHA-256 integrity
• Cat6A Network Distance: Up to 330 feet
• 10G SFP+ AOC Distance: Up to 9.8 feet
• 10G SFP+ Multimode Fiber Distance: Up to approximately 1,804 feet
• 10G SFP+ Single-Mode Fiber Distance: Up to approximately 12.4 miles
• 10G SFP+ Copper Distance: Up to 330 feet over Cat6A
• PoE: IEEE 802.3af, 15.4W
• Power Supply Input: 120-240 VAC, 50/60Hz, 0.8A
• Power Supply Output: 12 VDC, 2A
• Standard Model Power Consumption: Approximately 9.1W encoder, 9.2W decoder
• AVDM Power Consumption: Approximately 10.1W encoder, 9.8W decoder
• USBX Power Consumption: Approximately 9.7W encoder, 12.4W decoder
• PRO Power Consumption: Approximately 10.8W encoder, 14.2W decoder
• Thermal Dissipation: 39.32 BTU/hr encoder, 33.56 BTU/hr decoder
• Operating Temperature: 23 to 125°F
• Storage Temperature: -4 to 140°F
• Operating Humidity: 5-90% RH, non-condensing
• Mounting: Rack and furniture mounting supported
• Dimensions: 8.5 x 5.5 x 1 inches
• Weight: 1.8 lb
• Packaged Dimensions: 12.2 x 7.1 x 2.1 inches
• Packaged Weight: 2.3 lb
• Regulatory: CE, FCC
• Manufacturer Warranty: 10 years

AC-MXNET-10G-TCVR-AVDM Audio Downmixing

• Downmixing: Converts supported eight-channel high-bitrate audio into two-channel balanced analog stereo.
• Extracted Analog Audio: Up to 24-bit/48kHz
• HDMI Loop Output: Passes the original digital audio codec for connection to compatible surround-processing equipment.

AC-MXNET-10G-TCVR-USBX ExtremeUSB

• USB Device Capacity: Up to 31 USB devices including hubs
• ExtremeUSB Cat6A Range: Up to approximately 328 feet
• ExtremeUSB Multimode Fiber Range: Up to approximately 1,640 feet
• ExtremeUSB Single-Mode Fiber Range: Up to approximately 6.2 miles
• Computer Compatibility: Windows, Mac OS, Linux
• Driver Requirement: Driverless operation

AC-MXNET-10G-TCVR-PRO ExtremeUSB and Dante

• ExtremeUSB Throughput: Up to 480Mbps
• USB Device Capacity: Up to 31 devices including hubs
• Dante Audio: Lossless networked audio at 24-bit or 32-bit
• Dante Sample Rates: 44.1kHz through 192kHz
• Dante Latency: Less than 1ms with sub-microsecond synchronization
• Dante Channel Capacity: Up to 512 x 512 channels at 48kHz/24-bit with compatible equipment
• Dante Operation: Encodes stereo HDMI audio into Dante streams; Dante decoding is not supported by this model

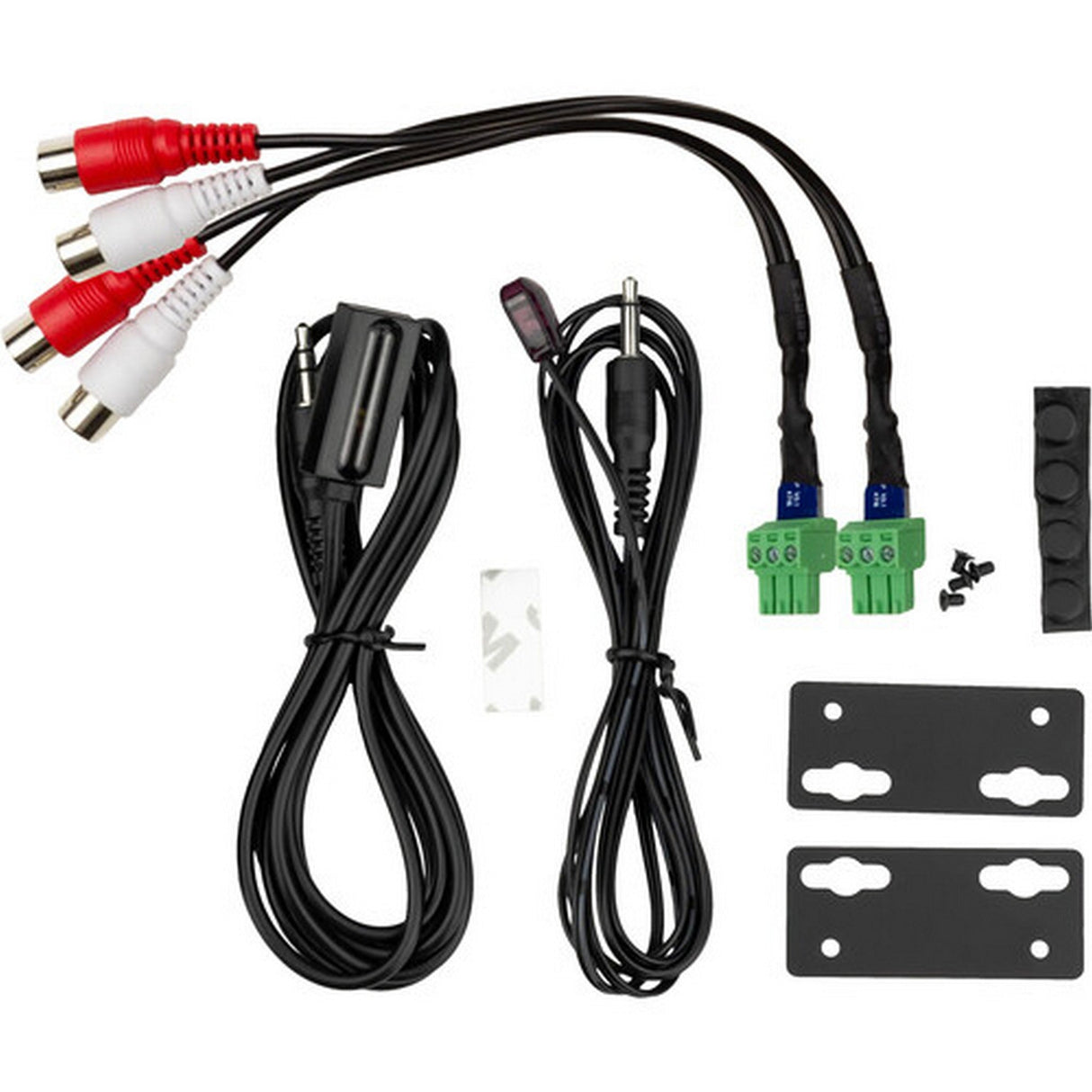

What's In the Box

• Selected AVPro Edge MXNet 10G transceiver
• 1 x IR transmitter unit
• 1 x IR receiver unit
• 2 x mounting brackets
• 4 x rubber feet
• AC-MXNET-10G-TCVR-AVDM only: 3 x 3-pin to left/right RCA audio cables
