AVPro Edge MXNet 1G AV-over-IP Encoder/Decoder - Downmixing Encoder/Transmitter

AVPro Edge MXNet 1G AV-over-IP Encoder/Decoder

The AVPro Edge MXNet 1G AV-over-IP Encoder/Decoder family distributes HDMI video, audio, USB, IR, and RS-232 across Gigabit Ethernet networks. This umbrella listing covers three verified configurations: the AC-MXNET-1G-E encoder, AC-MXNET-1G-AVDM-E downmixing encoder, and AC-MXNET-1G-D decoder.

Built for commercial AV distribution, digital signage, monitoring systems, video walls, and multi-room installations, MXNet 1G endpoints use multicast networking over Cat5e or better cabling. An SFP slot supports compatible fiber modules for longer transmission distances. The encoders provide source-side HDMI and USB host connectivity, while the decoder converts network streams back to HDMI for display endpoints.

All three models use proprietary M-JPEG-based processing with 16ms latency at 60Hz and support video through 4K at 30Hz according to current manufacturer specifications. PoE, bidirectional IR, RS-232, USB/KVM functionality, rack or furniture mounting, and MXNet MENTOR management support professional integration. The AVDM encoder additionally downmixes supported multichannel audio into balanced stereo.

Available Configurations

• AC-MXNET-1G-E: Standard encoder/transmitter with HDMI input and loop output, balanced audio output, analog audio input, USB host connectivity, and network AV encoding.
• AC-MXNET-1G-AVDM-E: Encoder/transmitter with multichannel audio downmixing for installations requiring a separate balanced stereo output.
• AC-MXNET-1G-D: Decoder/receiver with HDMI output, analog stereo output, dual USB Type-A device ports, and network AV decoding.

Key Features

• Three Endpoint Options: Choose a standard encoder, audio-downmixing encoder, or decoder within one MXNet 1G product family.
• 4K Network Video: Current manufacturer specifications support encoded and decoded video through 4K at 30Hz.
• Low-Latency Processing: Proprietary M-JPEG-based transport operates with 16ms latency at 60Hz.
• Copper or Fiber Infrastructure: Extends signals over Cat5e or better cabling and supports optional SFP fiber modules for longer runs.
• USB and KVM Support: Routes HID-compliant keyboard and mouse signals between compatible encoder and decoder endpoints.
• Integrated Control: Bidirectional IR and RS-232 transport allows control signals to share the AV-over-IP network.
• Audio Downmixing Option: The AC-MXNET-1G-AVDM-E converts supported multichannel audio into balanced two-channel analog audio while preserving multichannel HDMI audio.
• Professional Installation: PoE, OLED Data Window functionality, MXNet MENTOR management, and rack or furniture mounting simplify system integration.

Technical Specifications

• Product Family: MXNet 1G Evolution I AV-over-IP endpoints
• Available Models: AC-MXNET-1G-E, AC-MXNET-1G-AVDM-E, AC-MXNET-1G-D
• Network Data Rate: Up to 1G
• Video Codec: Proprietary codec based on M-JPEG
• Audio Codec: Proprietary codec
• Latency: 16ms at 60Hz
• Streaming Protocols: TCP, UDP, IP, IGMP-V2
• Signal Type: DVI 1.0 ingestion with HDMI output, HDMI 2.0b
• Supported Resolutions: 720p at 50/60Hz, 1080p at 24/50/60Hz, 4K at 30Hz
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Visually Lossless Formats: 1080p60 SDR RGB 8-bit and 4K30 SDR RGB 8-bit
• USB: HID compliant
• RS-232: Bidirectional device control and monitoring
• IR: Bidirectional device control and extension
• Ethernet: 1 x RJ45
• SFP: 1 x SFP slot
• IR Connections: 1 x IR-PASS, 1 x IR-EYE, 1 x IR-OUT
• RS-232 Connection: 1 x 3-pin terminal block
• Service Port: 1 x USB Micro
• Ethernet Distance: Up to 330 feet over Cat5e or better
• Multimode Fiber: 1000BASE-SX, 850nm, up to approximately 1,804 feet with compatible SFP transceiver
• Single-Mode Fiber: 1000BASE-LX/LH, 1310nm, up to approximately 6.2 miles with compatible SFP transceiver
• PoE: IEEE 802.3af, 15.4W
• Power Supply Input: 120-240 VAC, 50/60Hz, 0.8A
• Power Supply Output: 12 VDC, 2A
• Operating Temperature: 23 to 125°F
• Storage Temperature: -4 to 140°F
• Operating Humidity: 5-90% RH, non-condensing
• Mounting: Rack and furniture mounting supported
• Regulatory: CE, FCC, UL
• Manufacturer Warranty: 10 years

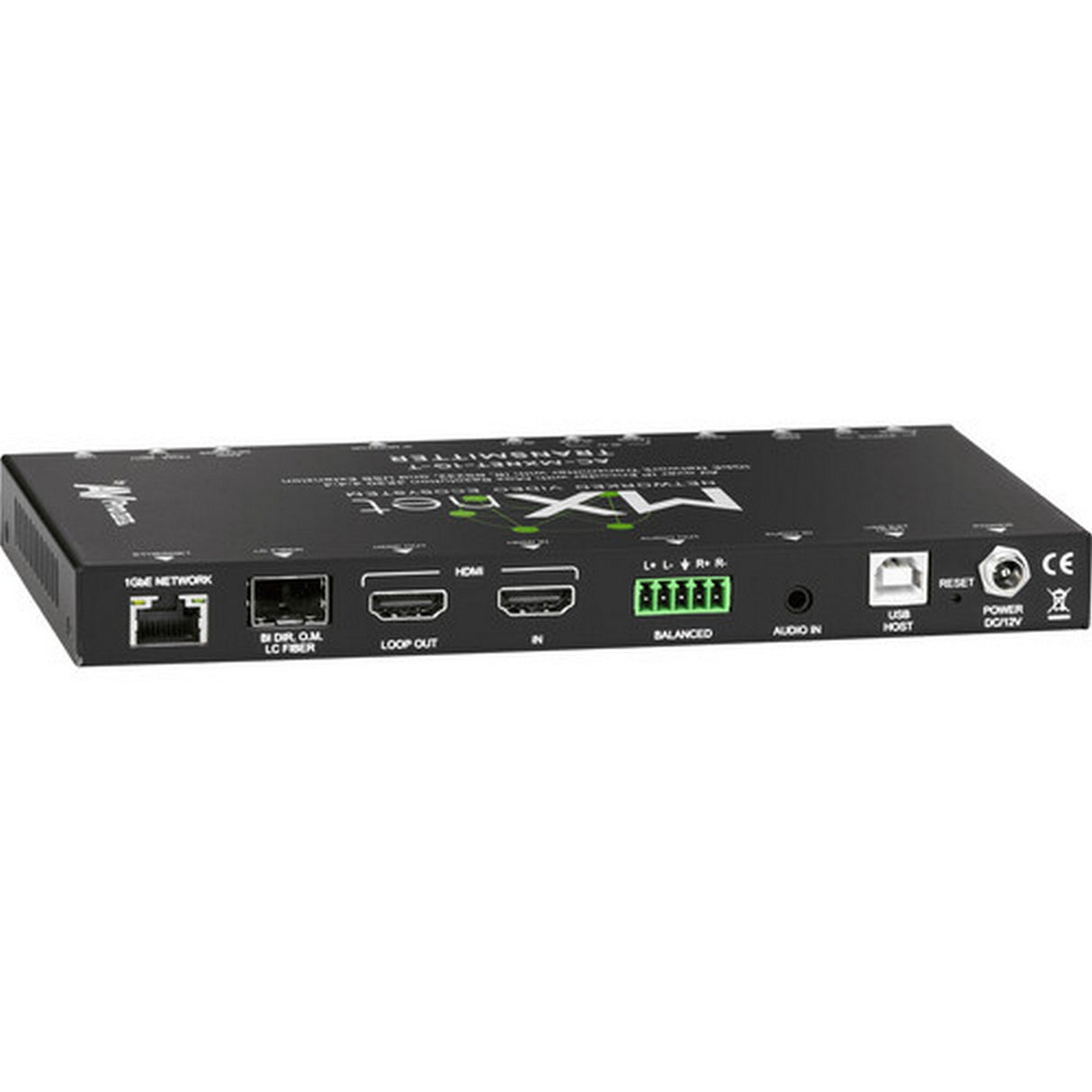

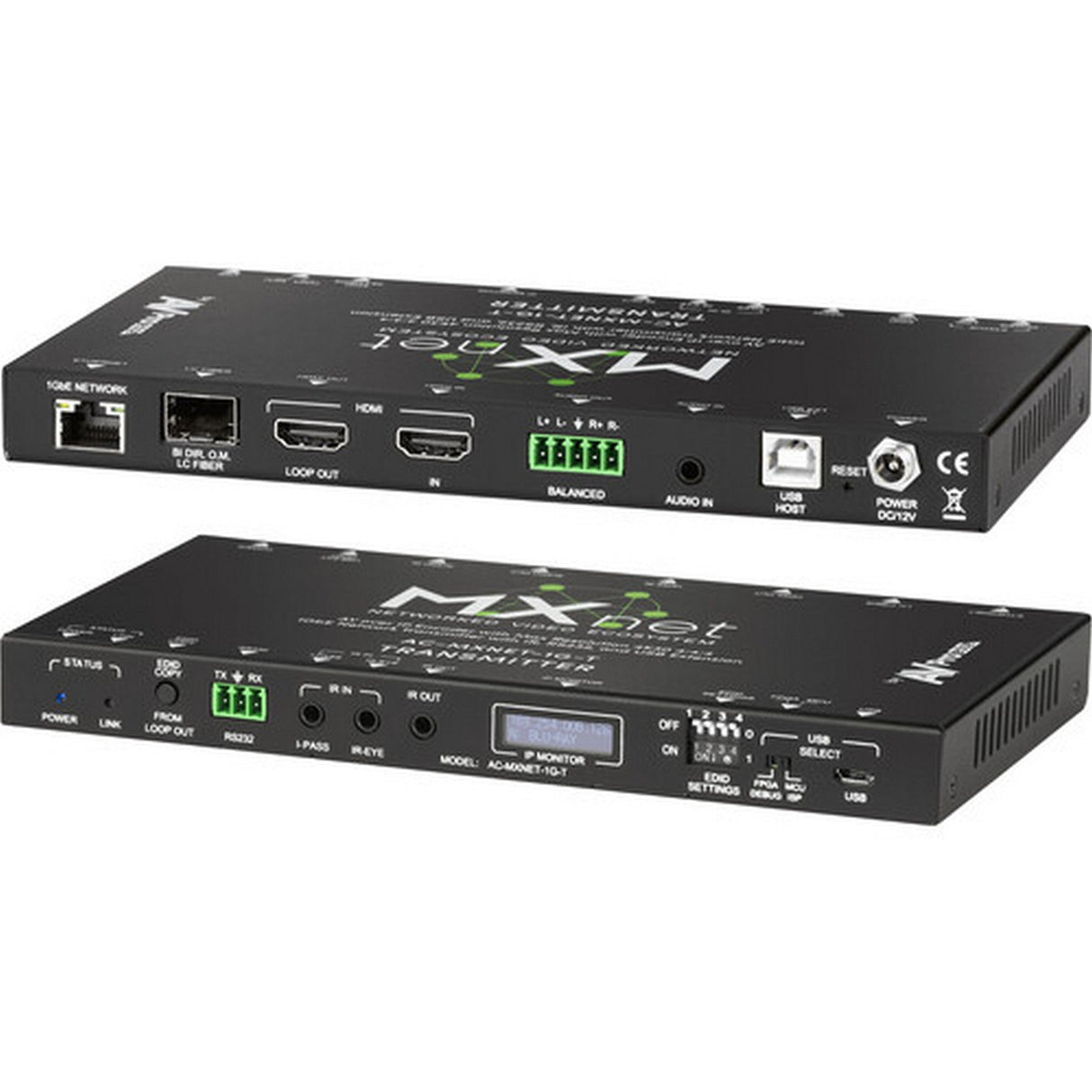

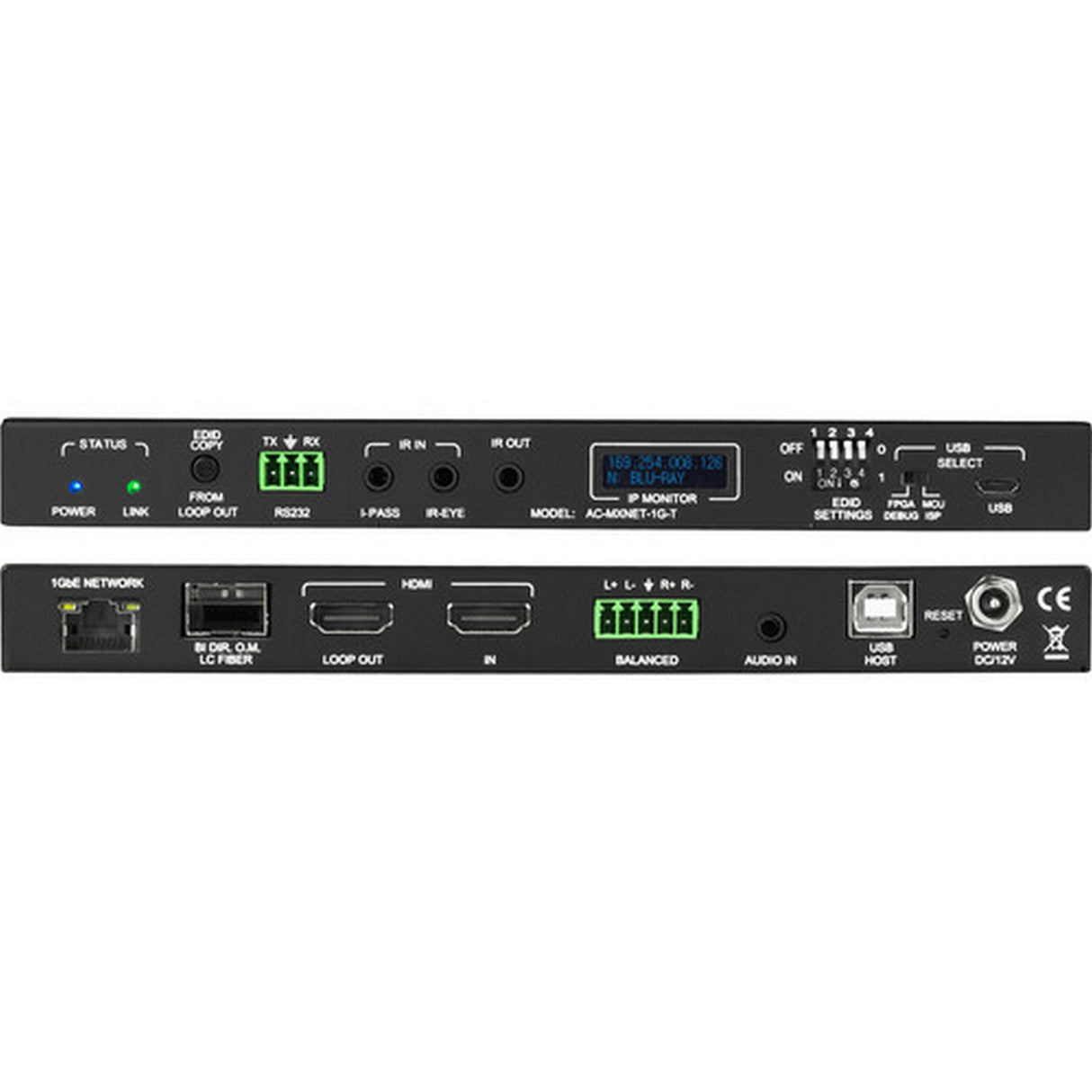

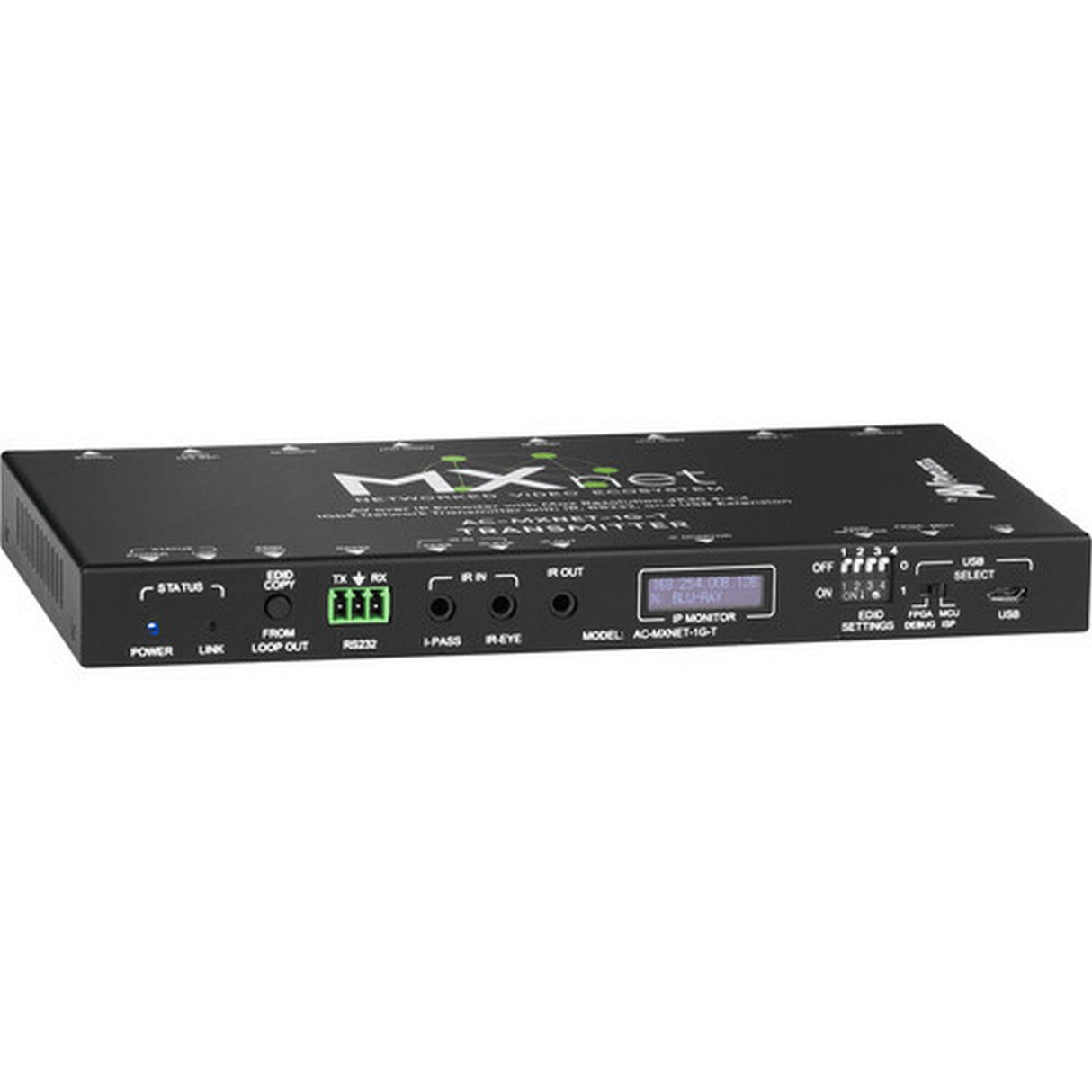

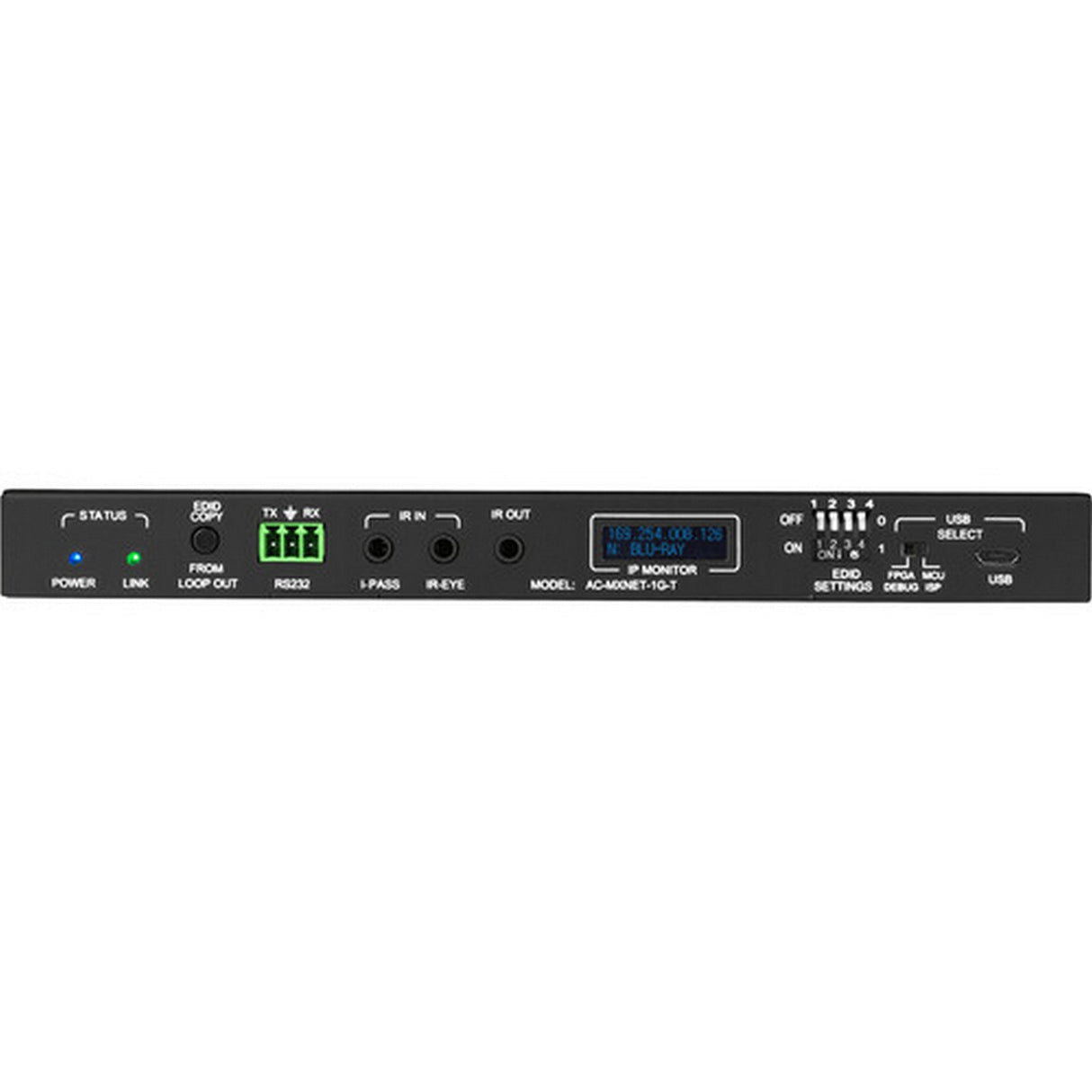

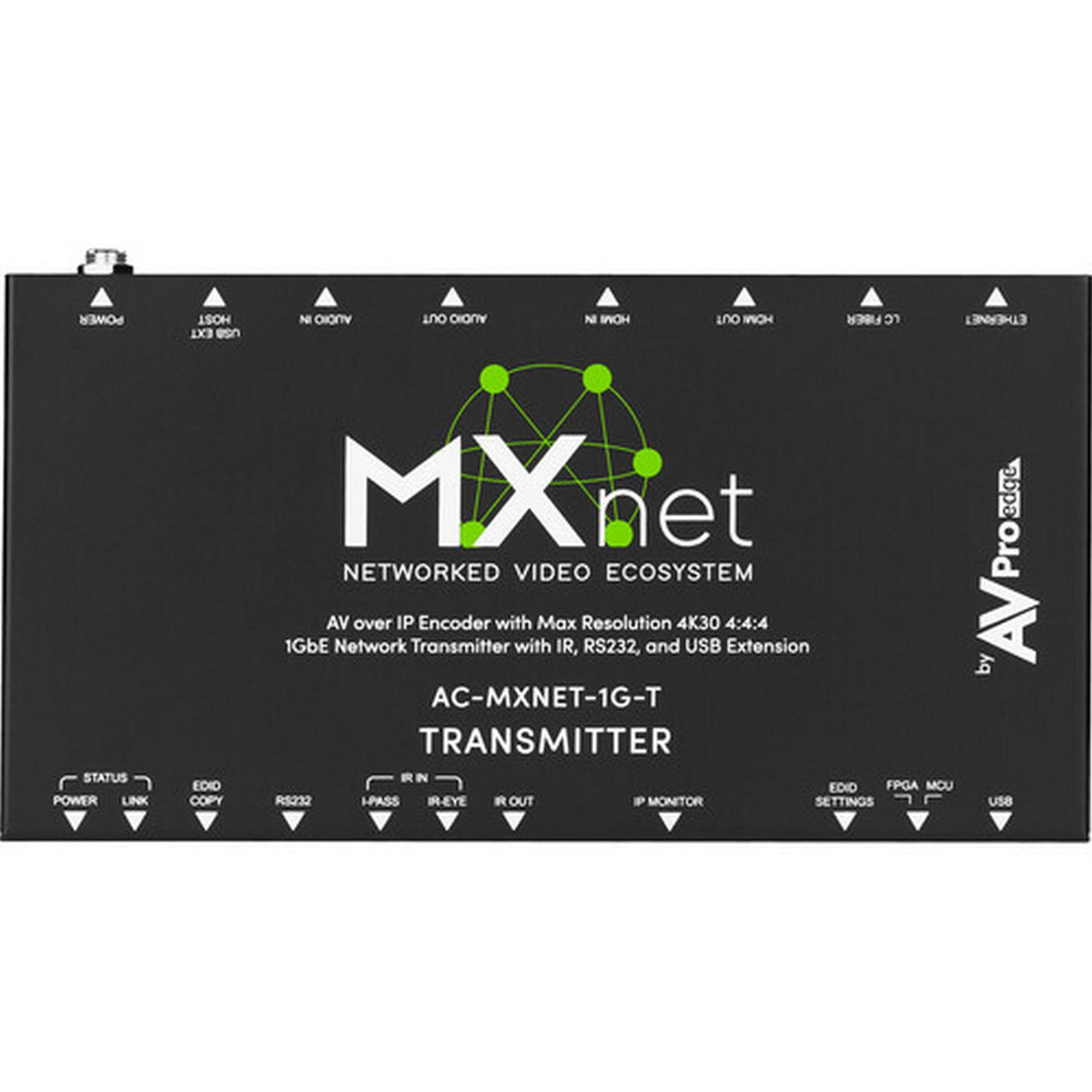

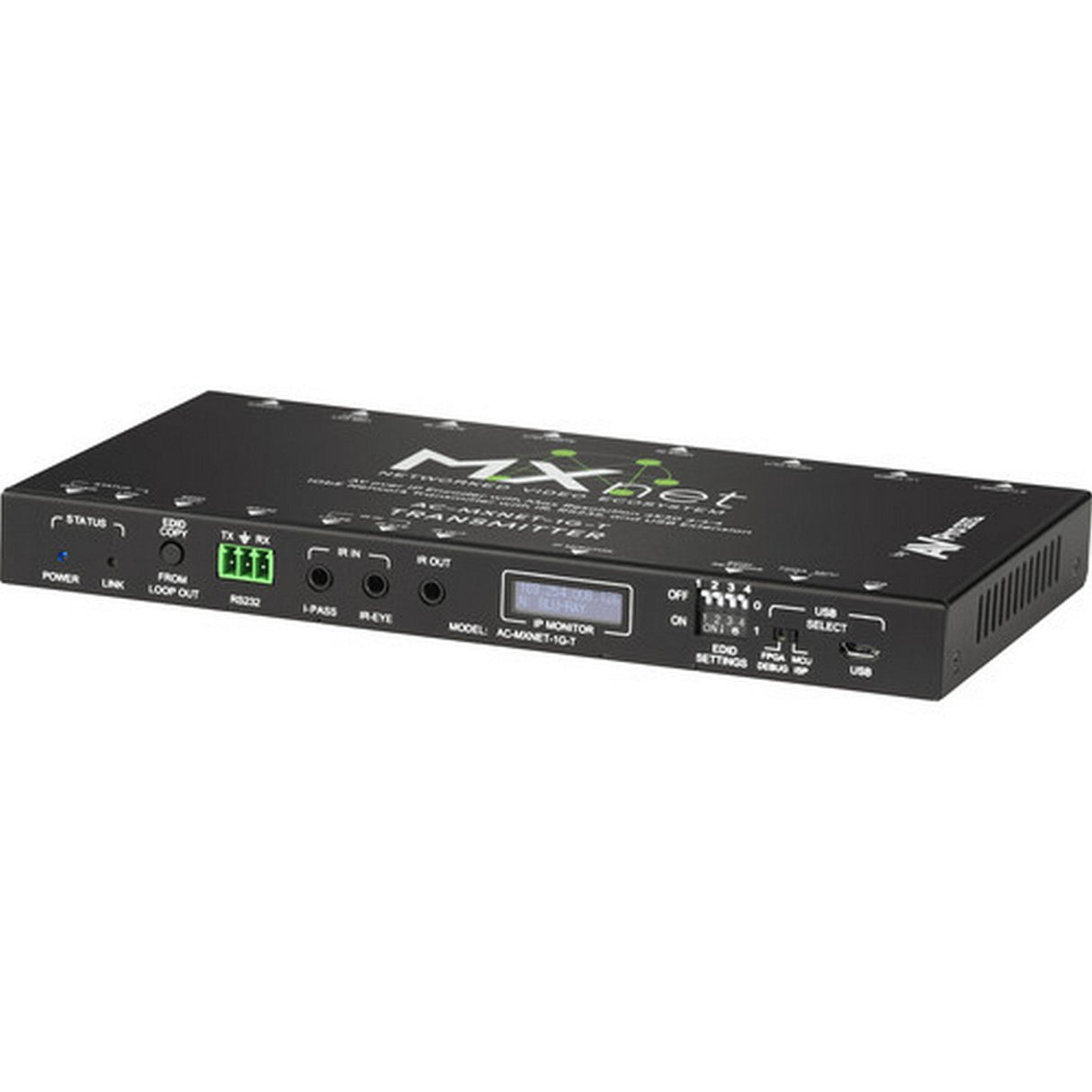

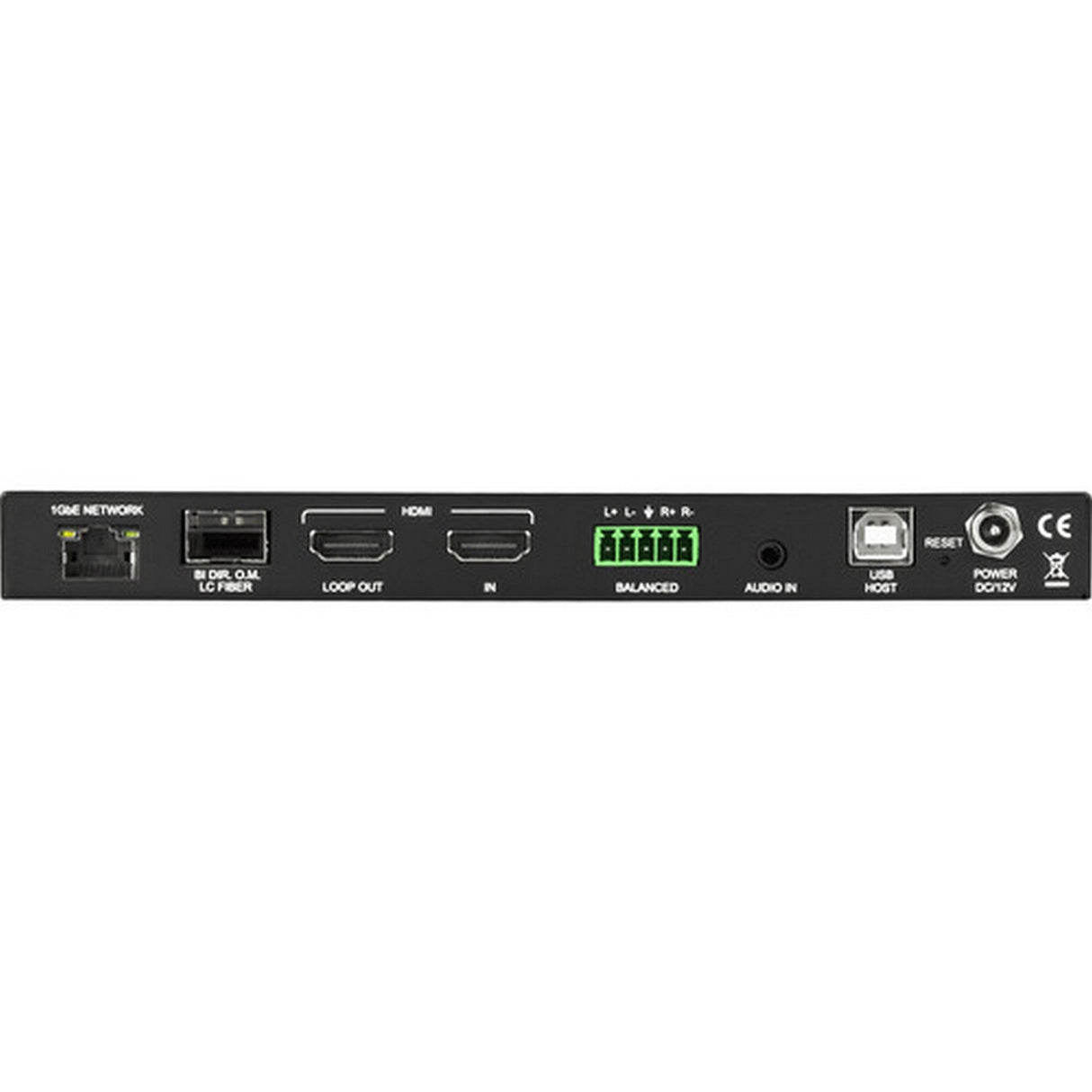

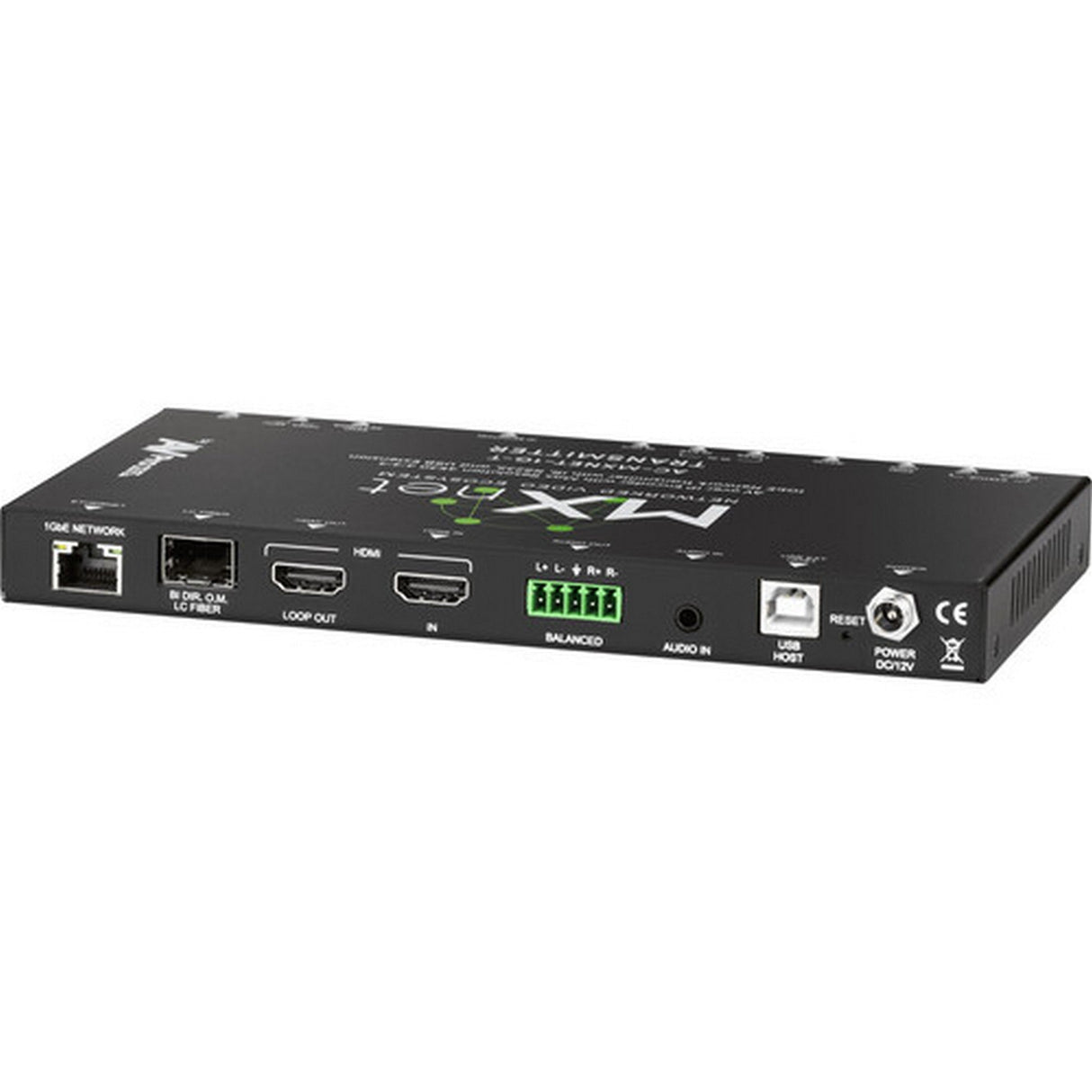

AC-MXNET-1G-E Encoder/Transmitter

• Function: AV-over-IP encoder/transmitter
• Copy Protection: HDCP 2.x and earlier
• 1080p Bit Depth: 8-bit and 10-bit
• 4K Bit Depth: 8-bit and 10-bit, compressed to 8-bit output
• End-to-End Audio: PCM 2-channel, 5.1-channel, and 7.1-channel; Dolby Digital 5.1; Dolby Digital Plus; DTS 5.1; DTS-ES; DTS-HD Master Audio
• HDMI Loop Audio: End-to-end formats plus Dolby MAT 8-channel
• HDMI Ports: 1 x HDMI input, 1 x HDMI loop output
• Analog Audio Input: 1 x 3.5mm stereo jack
• Balanced Audio Output: 1 x 5-pin terminal block
• USB Host: 1 x USB 2.0 Type-B
• Maximum Power Consumption: 6.5W
• Dimensions (W x D x H): 7.8 x 4.1 x 0.5 inches
• Weight: 1.3 lb
• Packaged Dimensions (W x D x H): 12.2 x 7.1 x 2.1 inches
• Packaged Weight: 1.7 lb

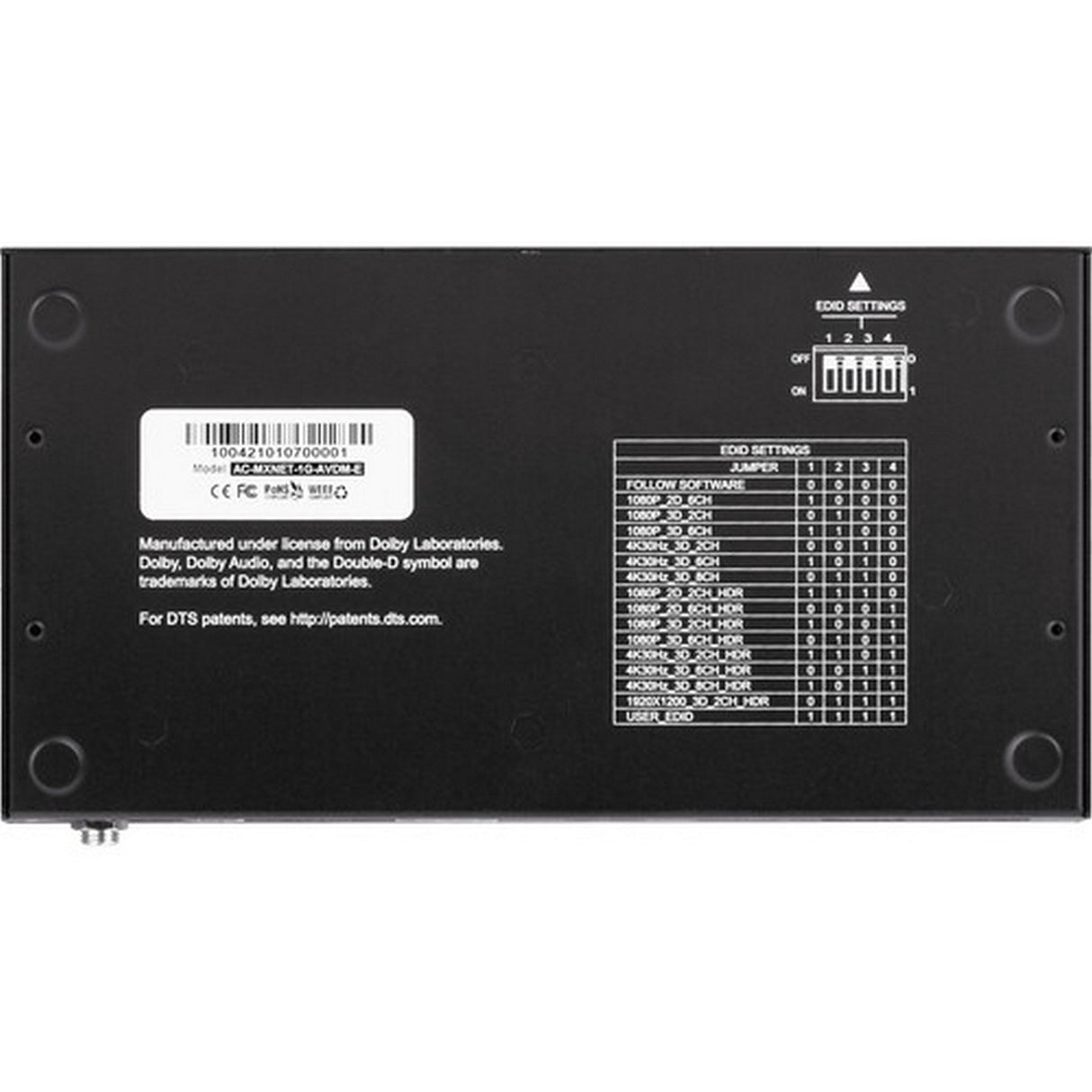

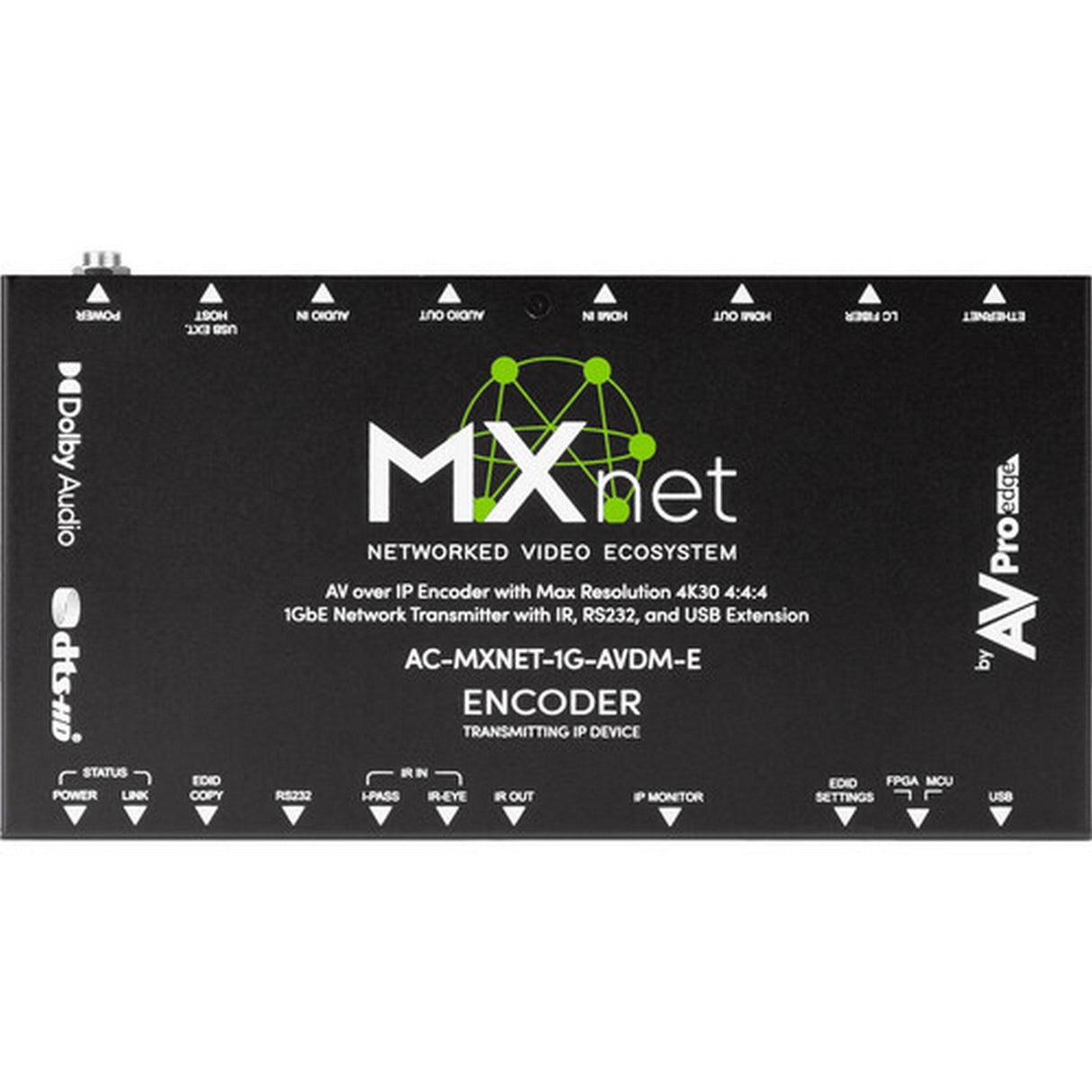

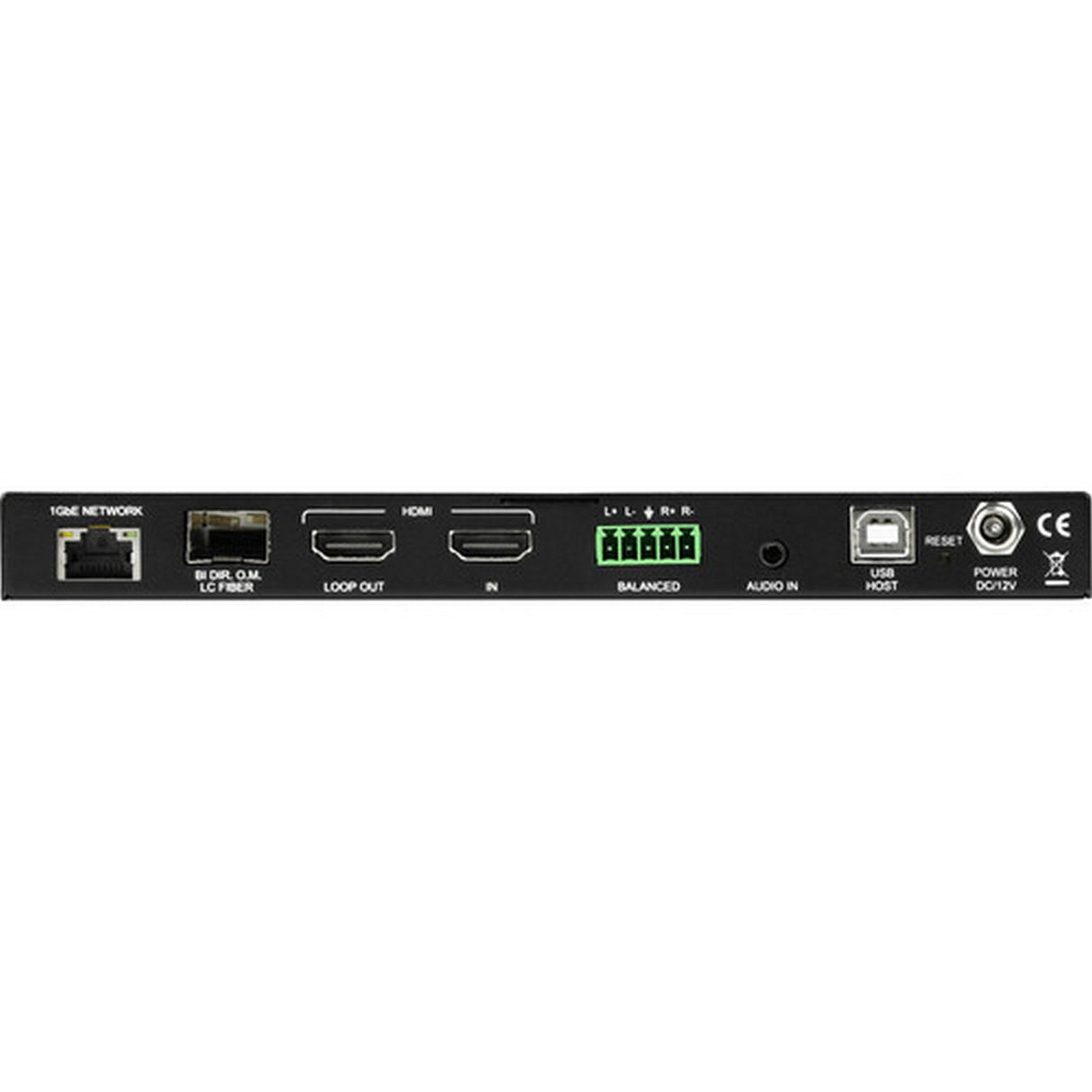

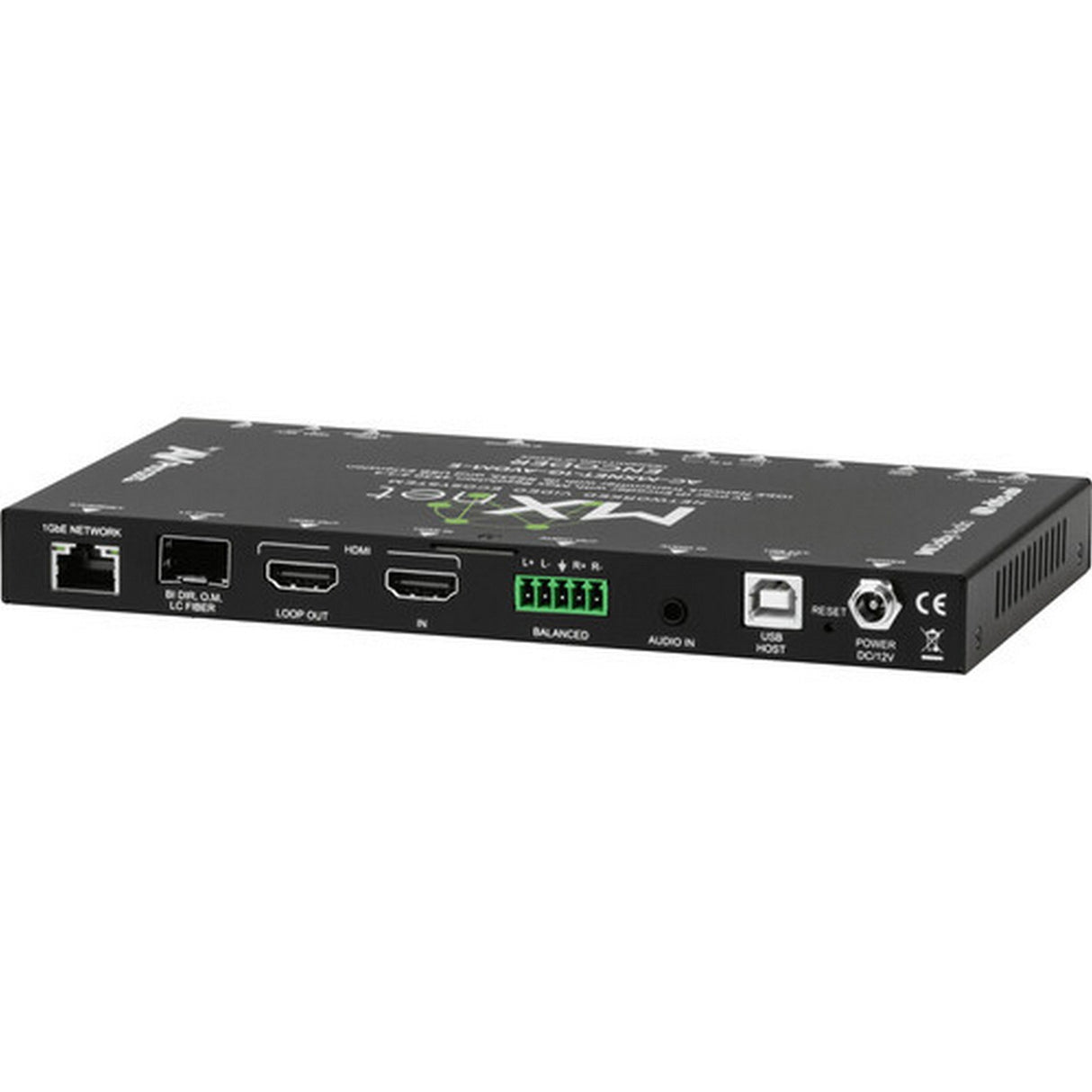

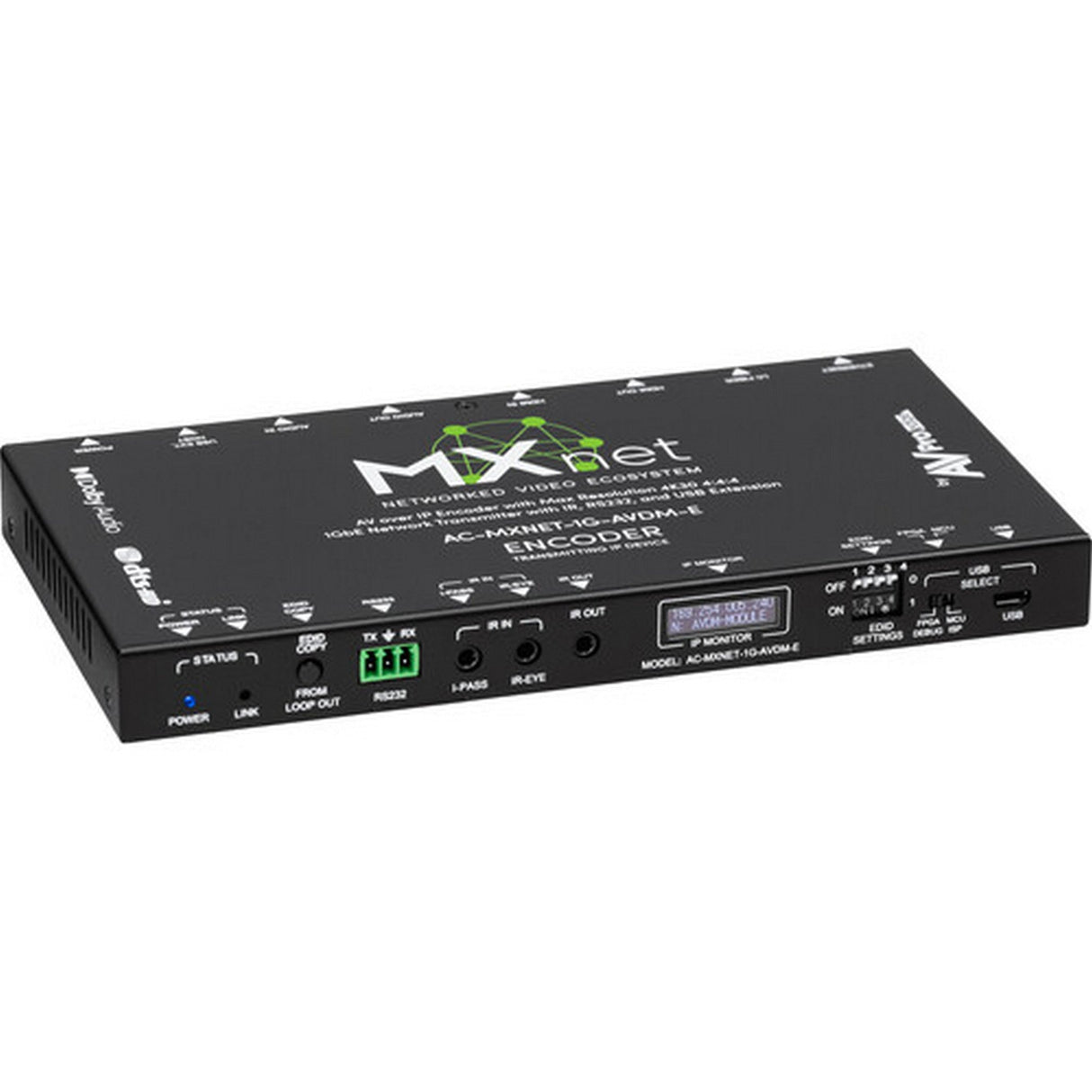

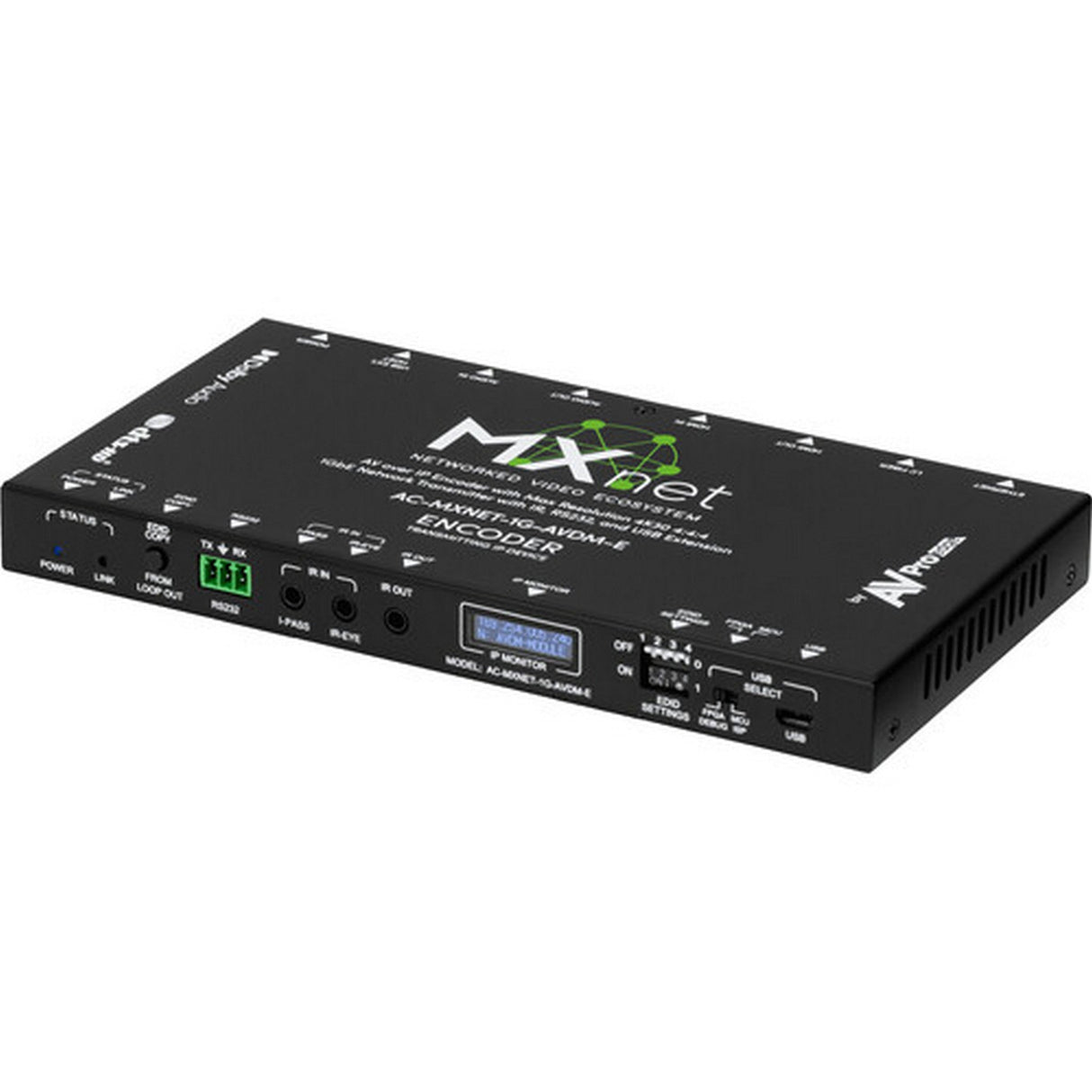

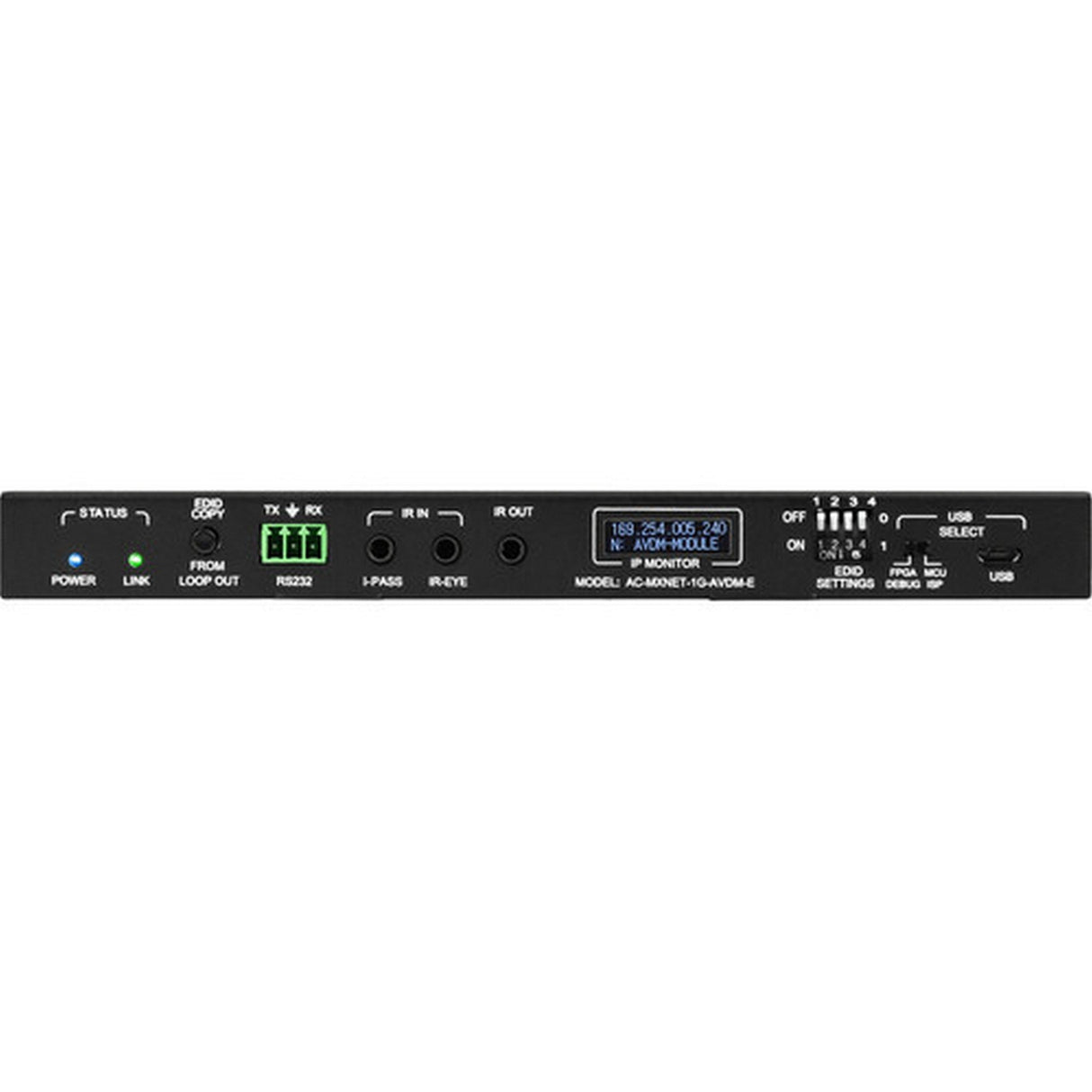

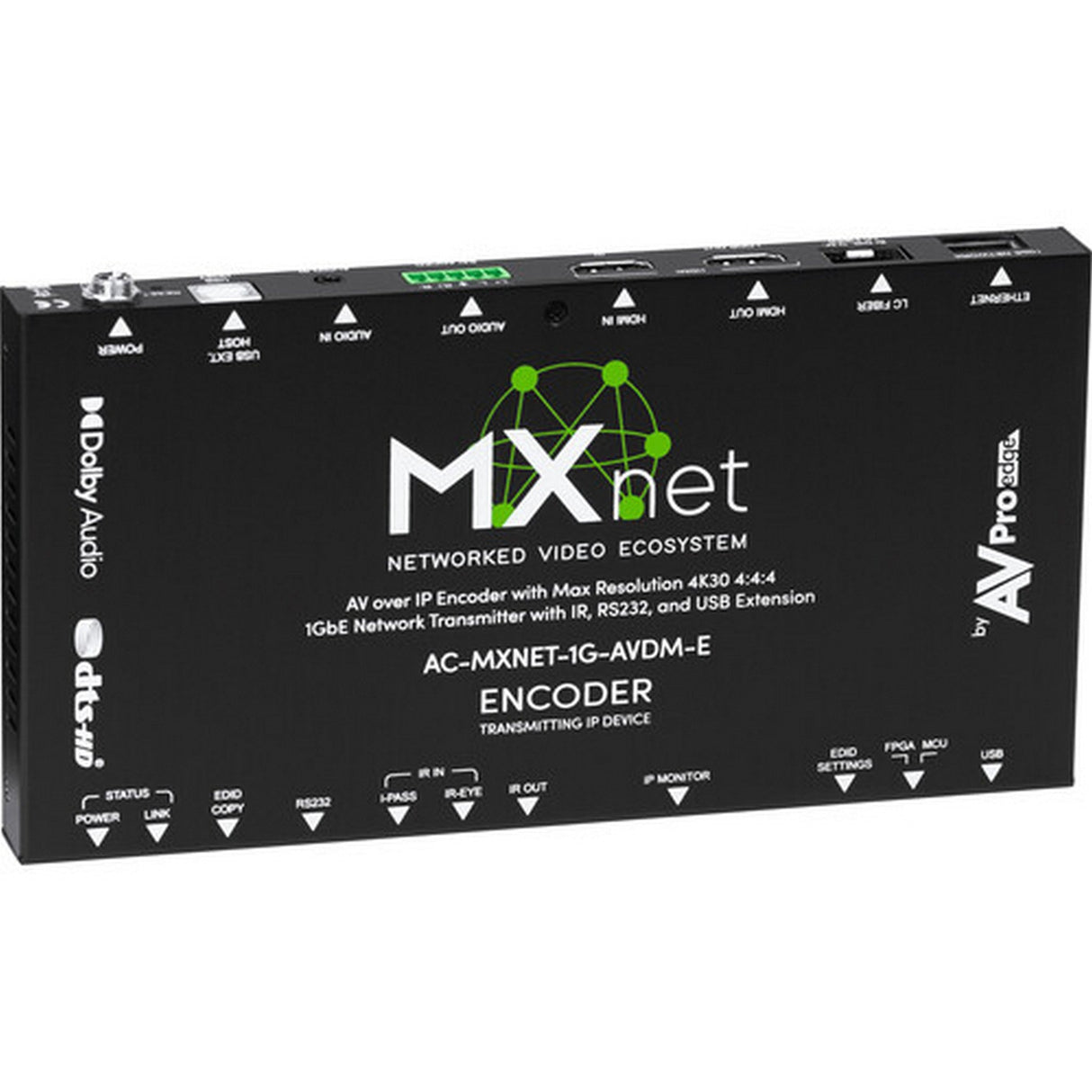

AC-MXNET-1G-AVDM-E Downmixing Encoder/Transmitter

• Function: AV-over-IP encoder/transmitter with audio downmixing
• Copy Protection: HDCP 2.2 and earlier
• 1080p Bit Depth: 8-bit, 10-bit, 12-bit, and 16-bit
• 4K Bit Depth: 8-bit, 10-bit, and 12-bit, compressed to 8-bit output
• End-to-End Audio: PCM 2-channel, 5.1-channel, and 7.1-channel; Dolby Digital 5.1; Dolby Digital Plus; DTS 5.1; DTS-ES; DTS-HD High Resolution
• HDMI Loop Audio: End-to-end formats plus Dolby MAT 8-channel
• Audio Downmixing: Supported multichannel audio to balanced stereo analog output
• HDMI Ports: 1 x HDMI input, 1 x HDMI loop output
• Analog Audio Input: 1 x 3.5mm stereo jack
• Balanced Downmixed Audio Output: 1 x 5-pin terminal block
• USB Host: 1 x USB 2.0 Type-B
• Cooling: Fanless
• Acoustic Noise: 0dB
• Maximum Power Consumption: 8.5W
• Dimensions (W x D x H): 7.8 x 4.1 x 0.5 inches
• Weight: 1.3 lb
• Packaged Dimensions (W x D x H): 12.2 x 7.1 x 2.1 inches
• Packaged Weight: 1.7 lb

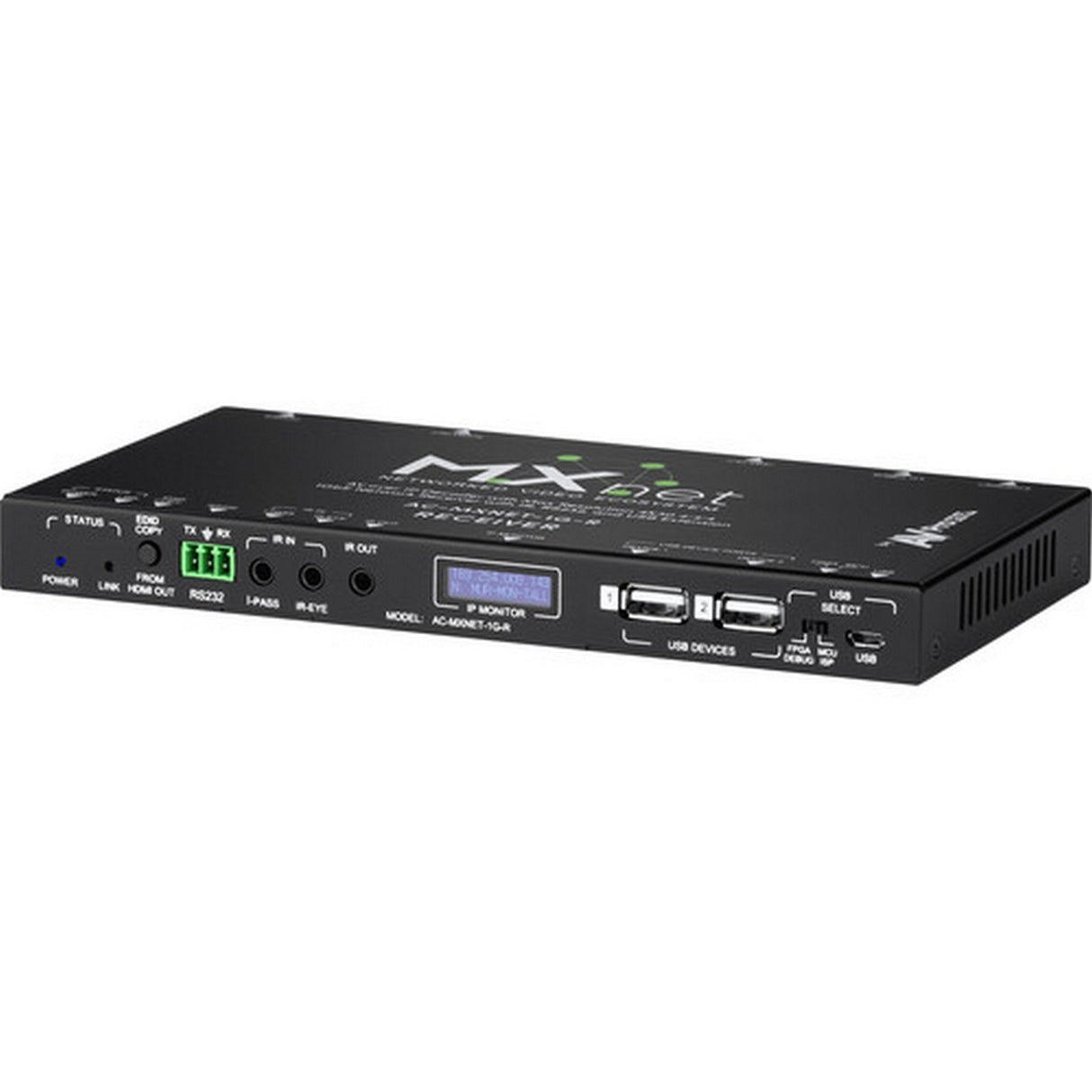

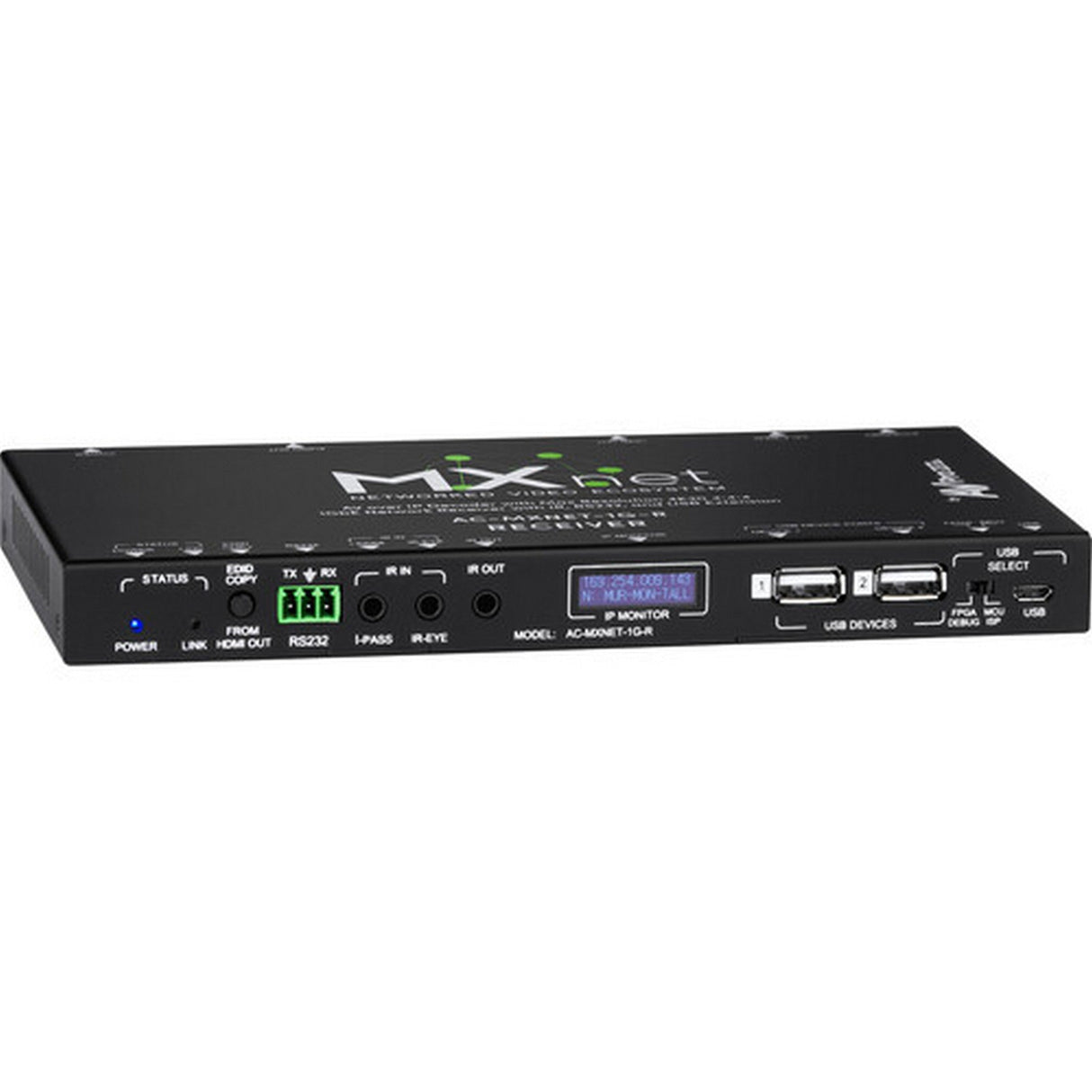

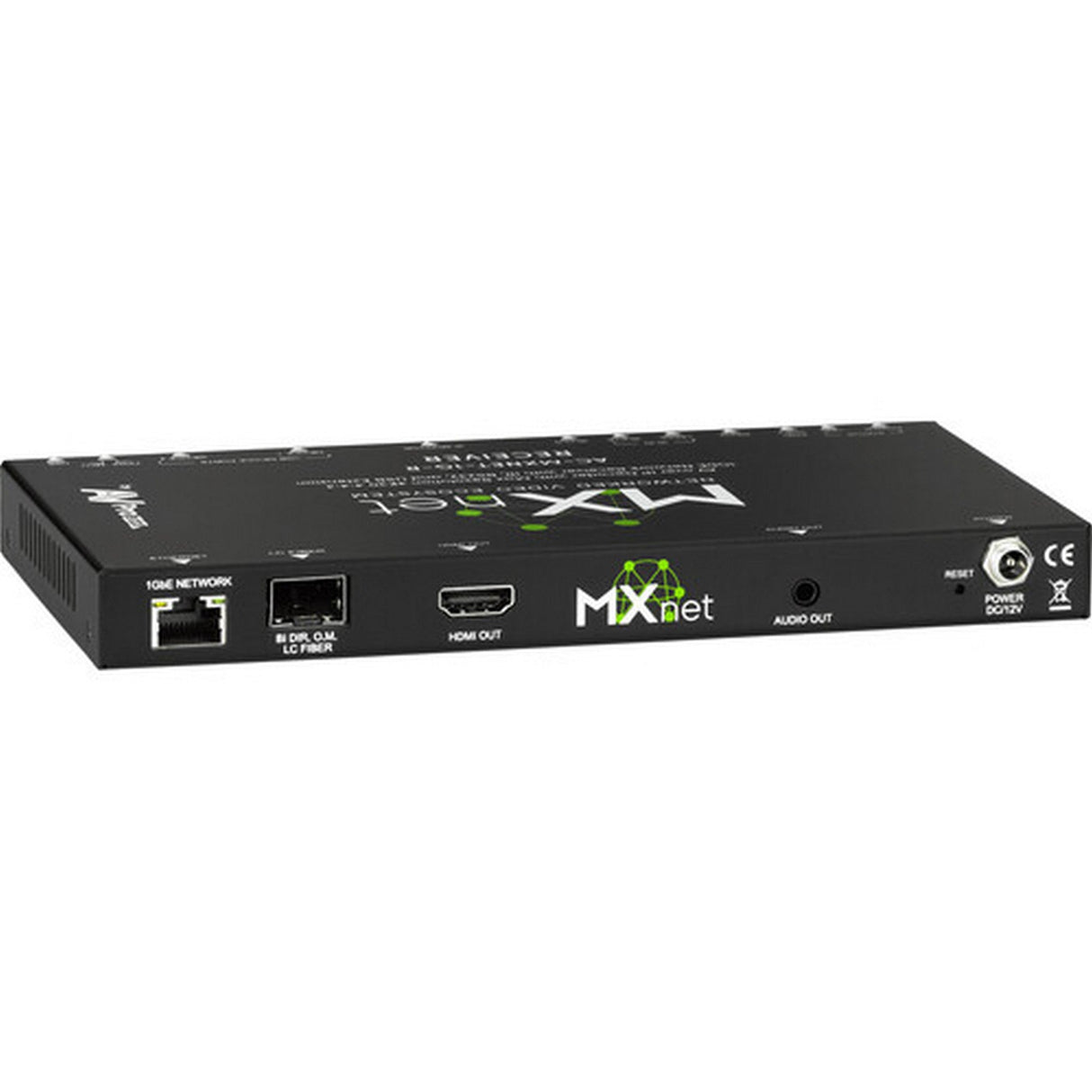

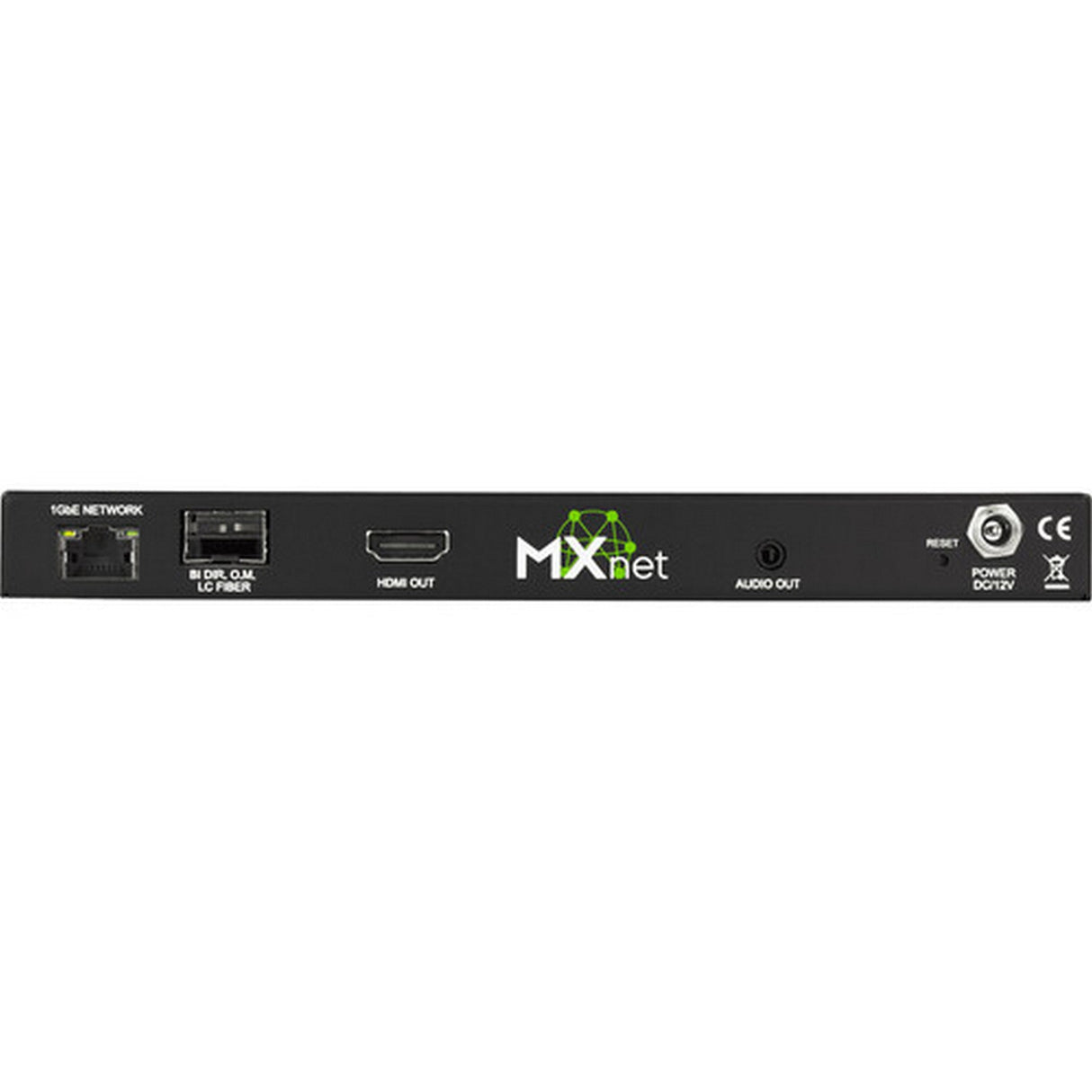

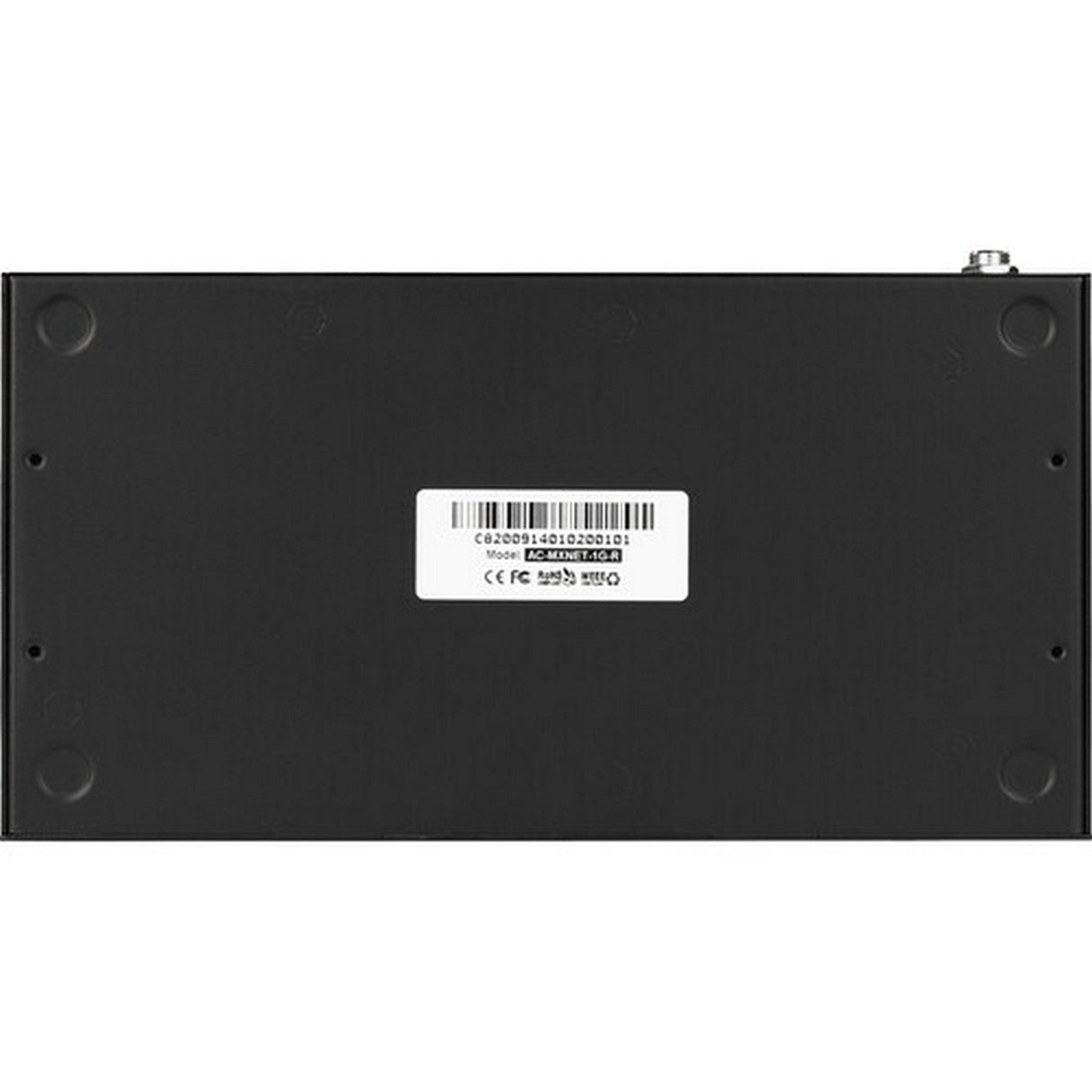

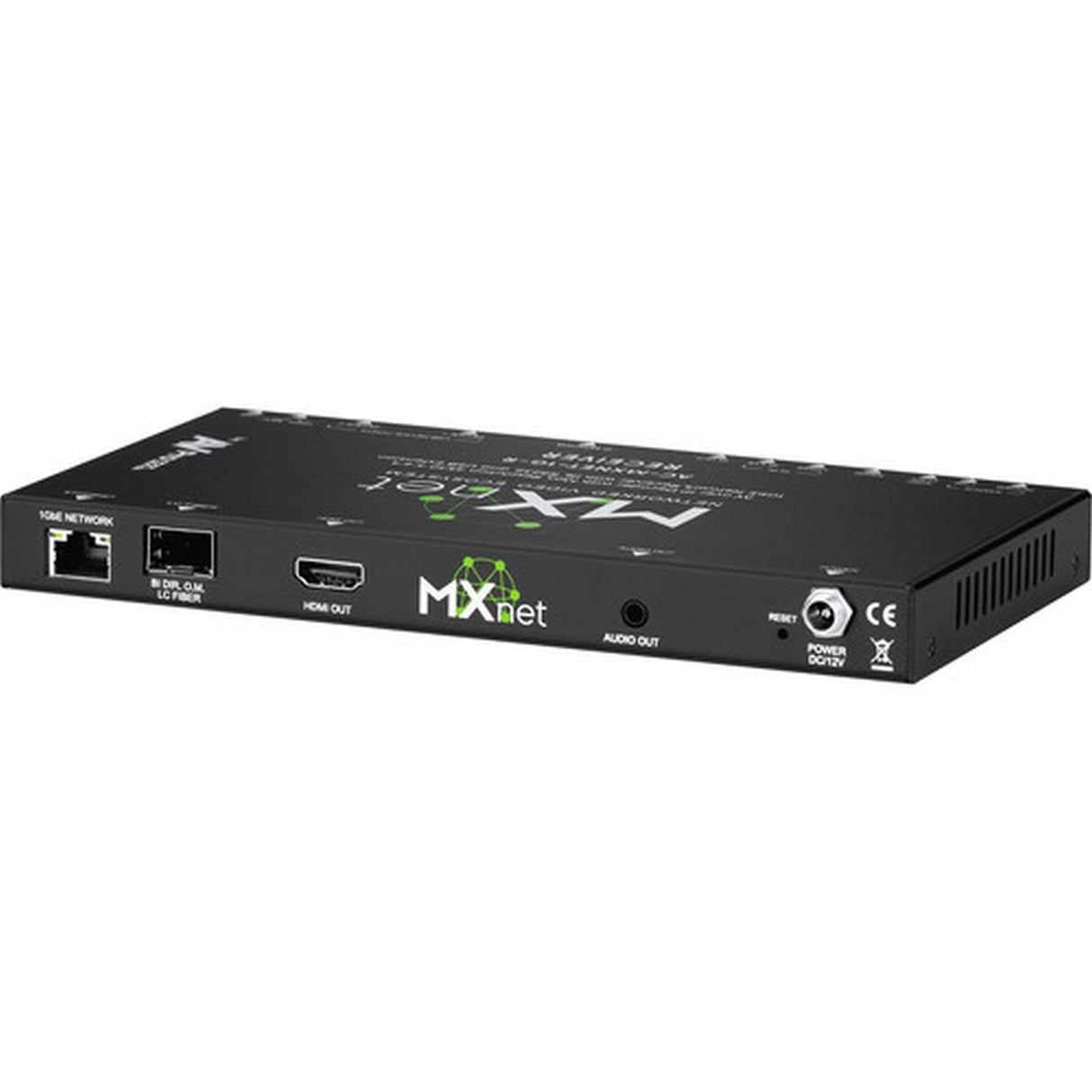

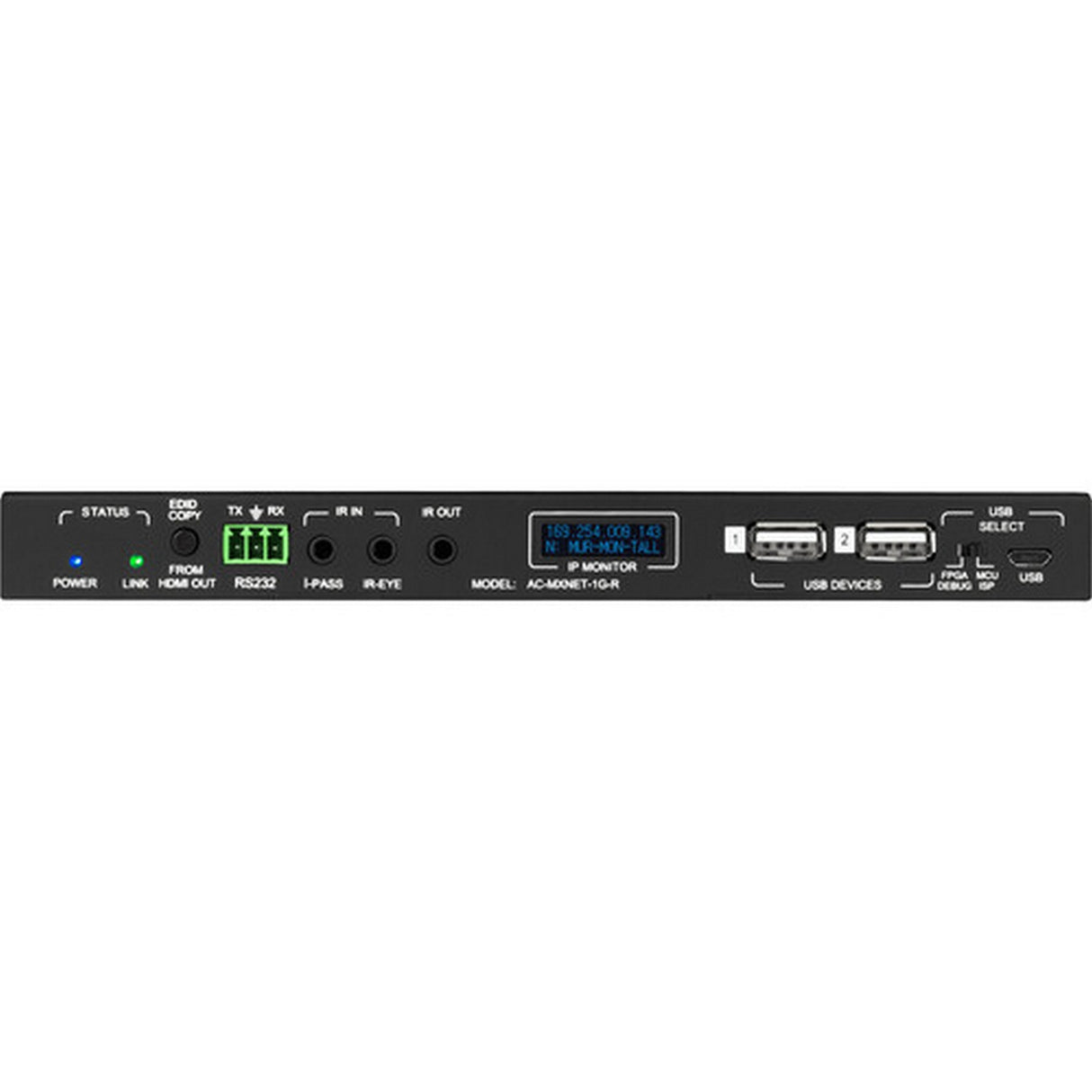

AC-MXNET-1G-D Decoder/Receiver

• Function: AV-over-IP decoder/receiver
• Copy Protection: HDCP 2.2 and earlier
• 1080p Bit Depth: 8-bit and 10-bit
• 4K Bit Depth: 8-bit and 10-bit, compressed to 8-bit output
• End-to-End Audio: PCM 2-channel, 5.1-channel, and 7.1-channel; Dolby Digital 5.1; Dolby Digital Plus; DTS 5.1; DTS-ES; DTS-HD High Resolution
• HDMI Output: 1 x HDMI Type-A
• Analog Audio Output: 1 x 3.5mm stereo jack
• USB Device Ports: 2 x USB 2.0 Type-A for USB extension and KVM
• CEC: Supported on decoder
• Maximum Power Consumption: 5.6W
• Dimensions (W x D x H): 7.8 x 4.1 x 0.5 inches
• Weight: 1.2 lb
• Packaged Dimensions (W x D x H): 12.2 x 7.1 x 2.1 inches
• Packaged Weight: 1.7 lb

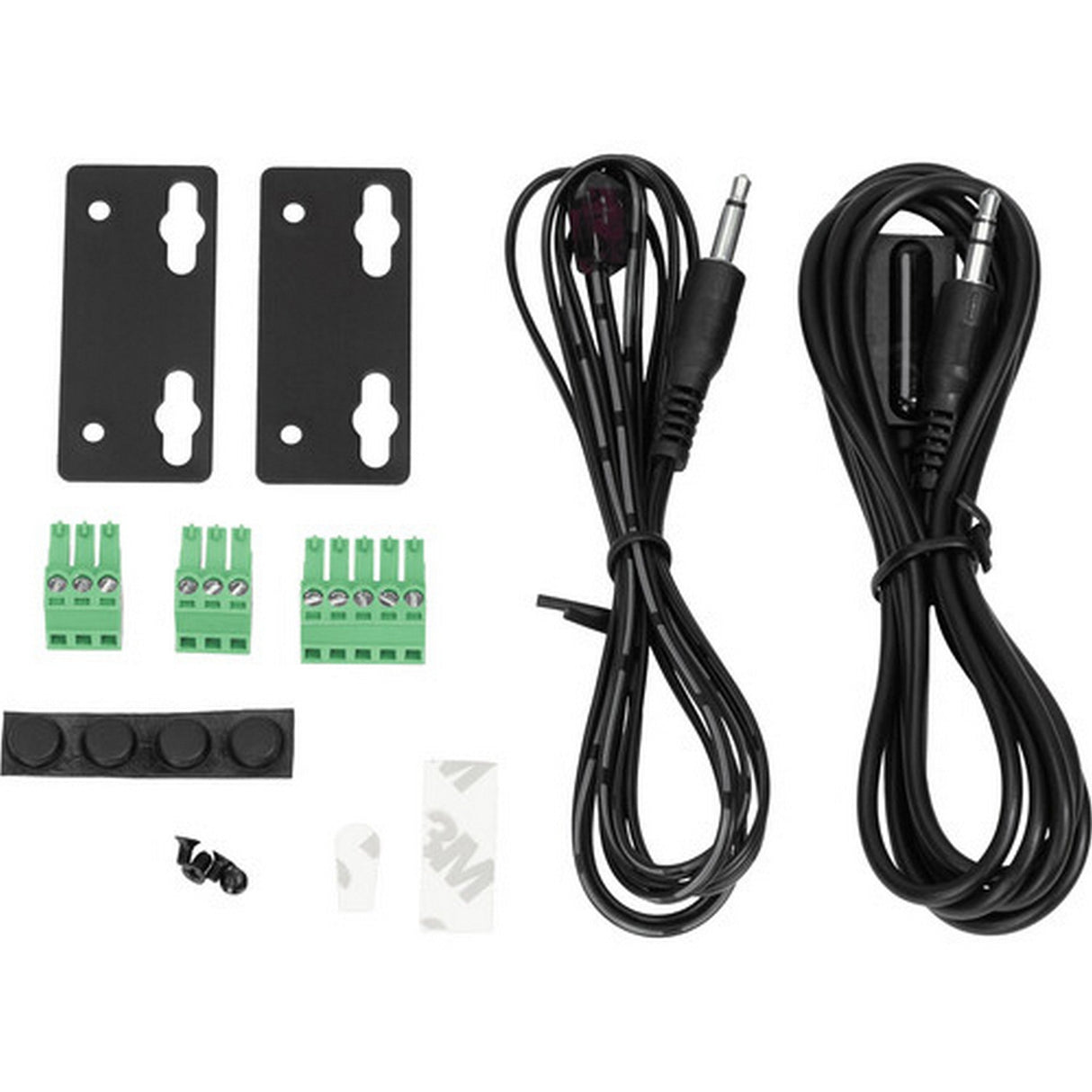

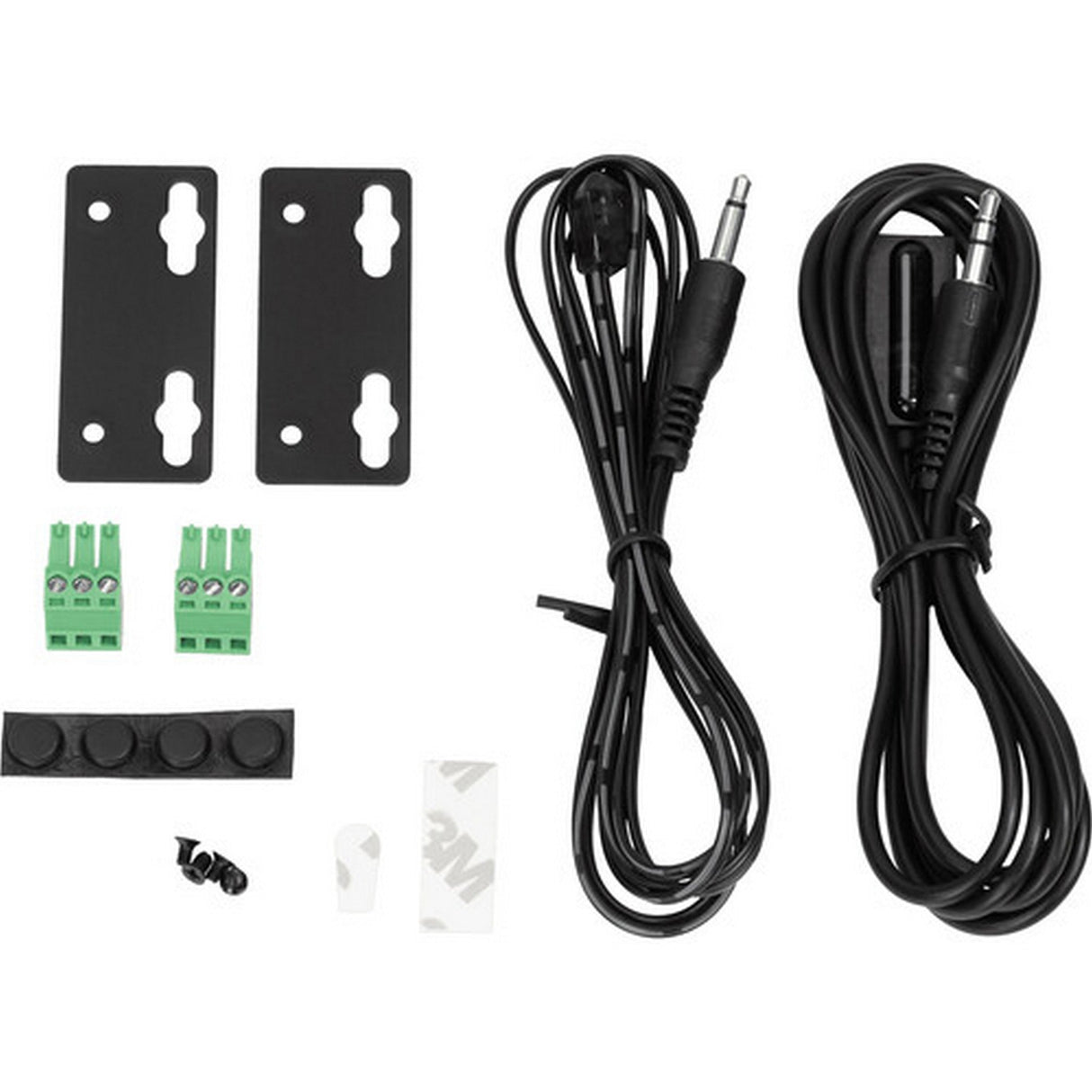

What's In the Box

AC-MXNET-1G-E

• AC-MXNET-1G-E Encoder/Transmitter
• 1 x IR emitter
• 1 x IR receiver
• 2 x mounting brackets
• 4 x mounting bracket screws
• 1 x 3-pin terminal block
• 1 x 5-pin terminal block

AC-MXNET-1G-AVDM-E

• AC-MXNET-1G-AVDM-E Downmixing Encoder/Transmitter
• 1 x IR emitter
• 1 x IR receiver
• 2 x mounting brackets
• 4 x mounting bracket screws
• 1 x 3-pin terminal block
• 1 x 5-pin to 2-channel audio extraction cable

AC-MXNET-1G-D

• AC-MXNET-1G-D Decoder/Receiver
• 1 x IR emitter
• 1 x IR receiver
• 2 x mounting brackets
• 4 x mounting bracket screws
• 1 x 3-pin terminal block
