AVPro Edge MXNet 1G Evolution II AV-over-IP Encoder/Decoder - Encoder

AVPro Edge MXNet 1G Evolution II AV-over-IP Encoder/Decoder

The AVPro Edge MXNet 1G Evolution II AV-over-IP Encoder/Decoder family distributes professional video, audio, control, and USB signals across managed 1Gb networks. Available encoder, decoder, Dante, audio-downmixing, and weatherproof configurations support systems requiring native video up to DCI 4K60 with 4:4:4 chroma and high-bitrate immersive audio.

MXNet Evolution II endpoints suit commercial AV distribution, video walls, multi-zone systems, KVM applications, and networked installations that need flexible source-to-display routing. Standard encoder and decoder models cover core AV-over-IP transport, while Dante versions integrate network audio, the downmixing encoder provides two-channel analog extraction, and the weatherproof decoder supports demanding installation environments.

Evolution II endpoints use AVPro Edge video-processing technology with optimized compression, Genlock synchronization, USB and KVM routing, RS-232 and IR control, and Ethernet or SFP fiber connectivity. The platform supports HDR formats, multichannel audio, and managed Layer 3 network infrastructure while retaining compatibility with MXNet system control through MXNet Mentor.

Key Features

• Six Converter Configurations: Choose standard encoding, standard decoding, Dante encoding, Dante decoding, audio-downmixing encoding, or weatherproof decoding.
• Native 4K60 Video: Supports resolutions up to DCI 4K60 with 4:4:4 chroma and up to 12-bit color processing.
• HDR Format Support: Handles HDR10, HDR10+, HLG, and Dolby Vision content across supported Evolution II configurations.
• Immersive Audio Support: Accommodates high-bitrate formats including Dolby Atmos and DTS:X for IMAX Enhanced applications.
• Network and Fiber Transport: Connects through Gigabit Ethernet or compatible SFP fiber modules for flexible AV-over-IP deployment.
• USB and KVM Routing: Routes bidirectional USB signals between designated encoder hosts and downstream decoder endpoints.
• Professional Control: Supports IR, RS-232, network management, Genlock synchronization, and front-panel status monitoring.
• Specialized Audio and Environmental Options: Dante models add network-audio transport, the AVDM encoder adds stereo downmixing, and the weatherproof decoder provides IP68 protection.

Technical Specifications

Converter Type Variants

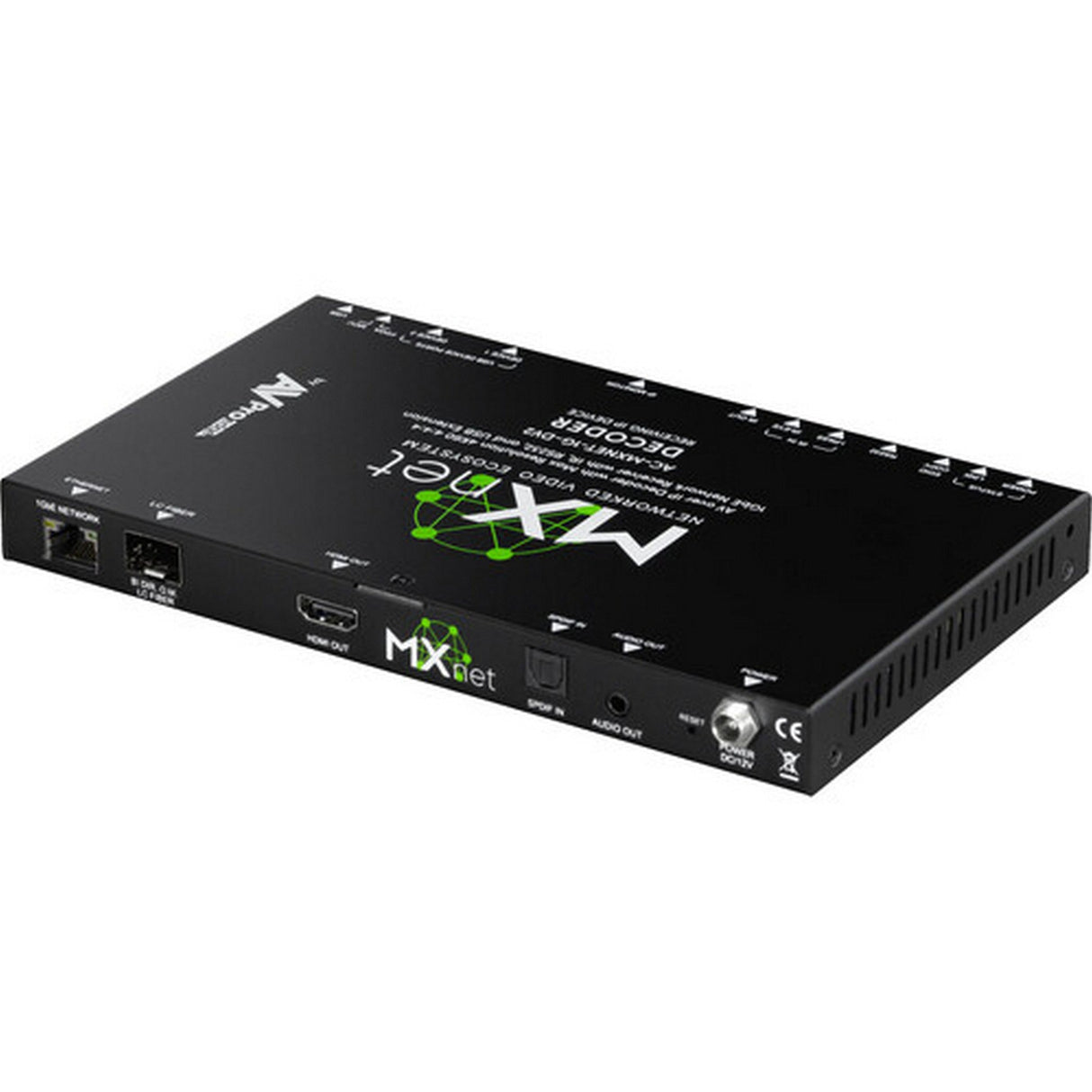

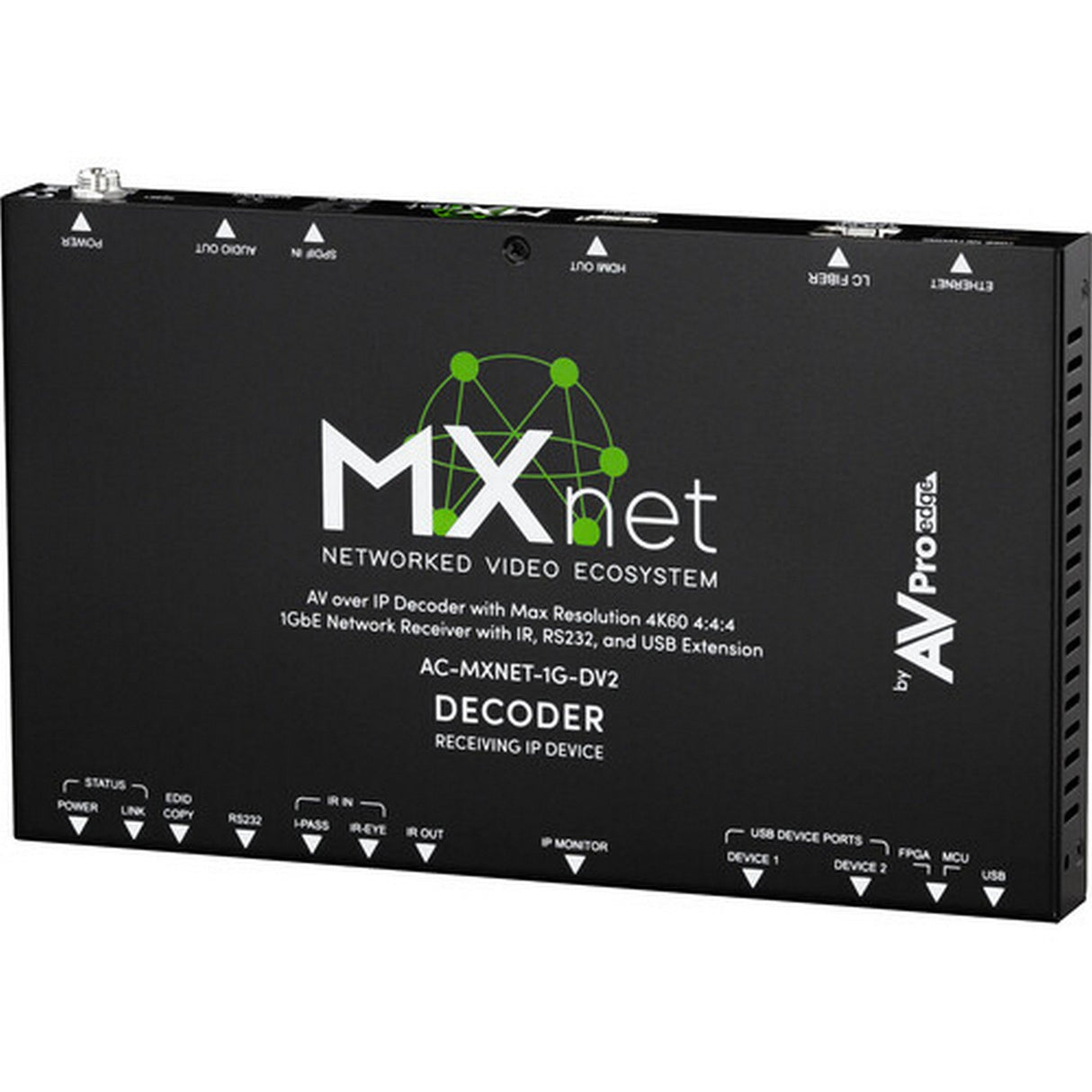

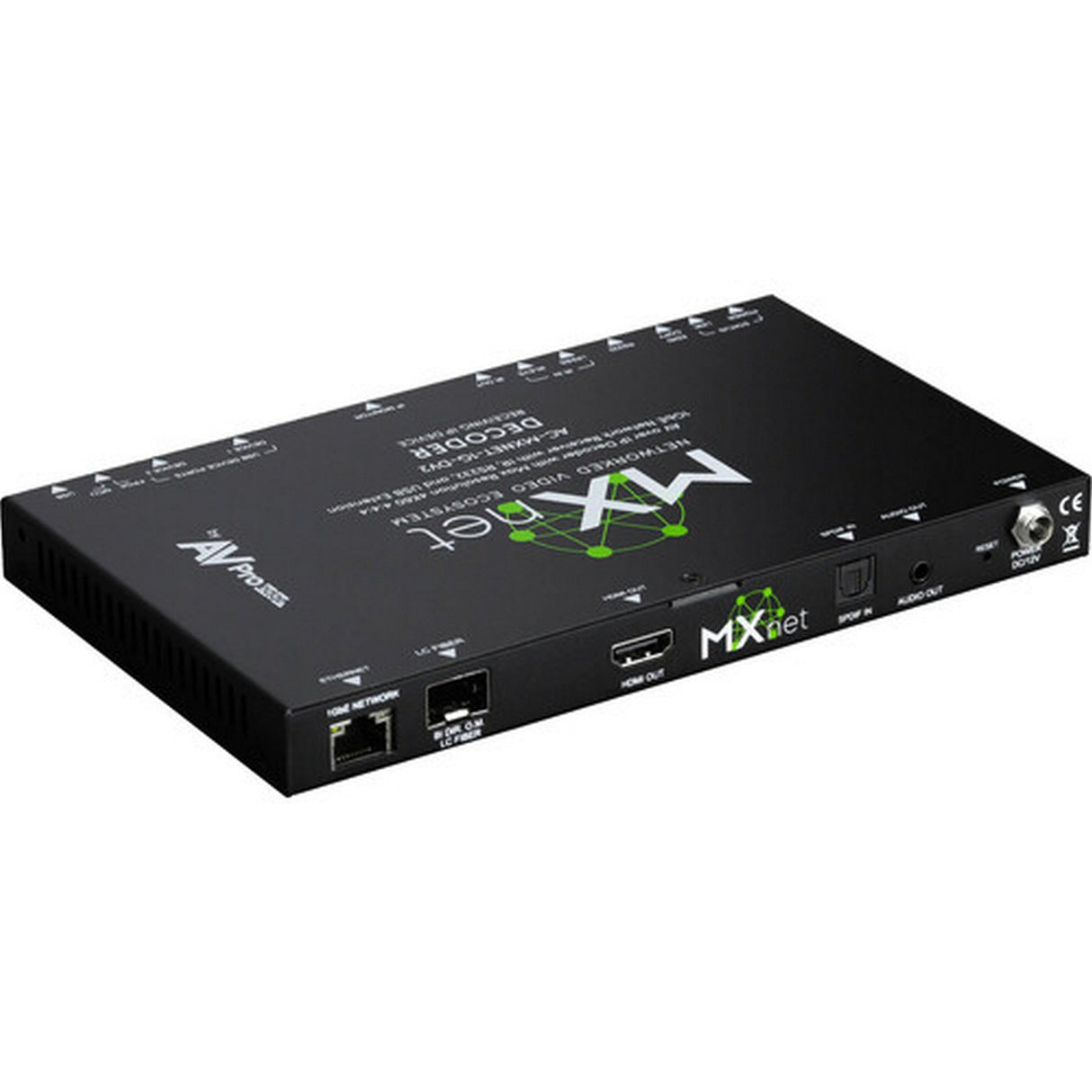

• Decoder: AC-MXNET-1G-DV2
• Encoder: AC-MXNET-1G-EV2
• Decoder with Dante: AC-MXNET-1G-DANTE-DV2

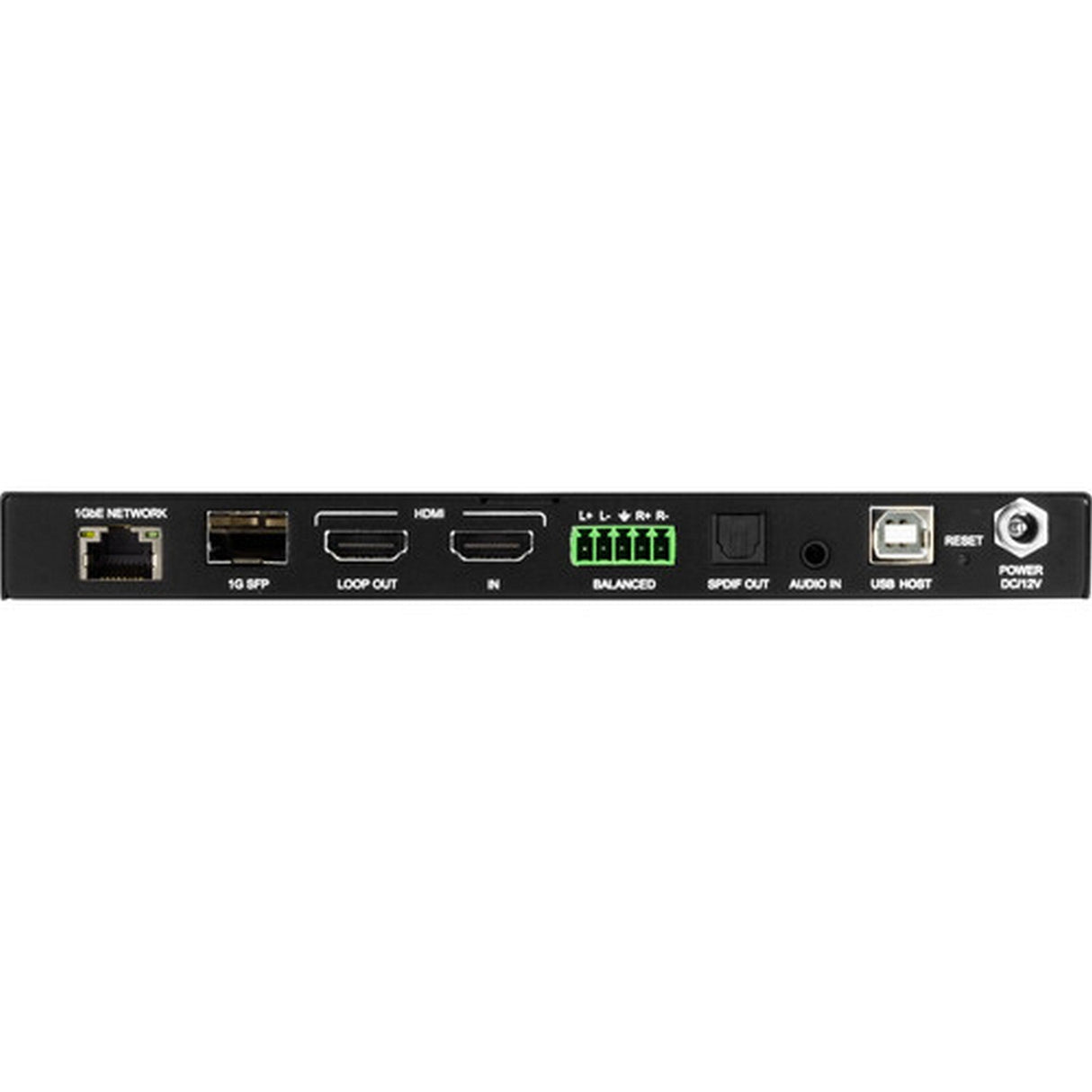

• Encoder with Dante: AC-MXNET-1G-DANTE-EV2
• Encoder with Audio Downmixer: AC-MXNET-1G-AVDM-EV2
• Weatherproof Decoder: AC-MXNET-1G-DV2-SEA

Video and Signal Support

• Platform: MXNet 1G Evolution II AV over IP
• Maximum Resolution: DCI 4K 4096 x 2160 at 60 fps
• Additional Supported Resolutions: UHD 4K at 24, 30, 50, and 60 fps; 1080p at 24, 50, and 60 fps; 720p at 50 and 60 fps
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0, RGB
• Color Depth: 8-, 10-, and 12-bit support depending on resolution and signal format
• HDR: HDR10, HDR10+, HLG, Dolby Vision
• Video Interface: HDMI 2.0/2.0b depending on configuration
• Synchronization: Genlock support for synchronized multi-display and video-wall applications

Audio Support

• PCM Audio: 2-, 5.1-, and 7.1-channel
• Dolby Formats: Dolby Digital, Dolby Digital Plus, Dolby Atmos
• DTS Formats: DTS, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X for IMAX Enhanced

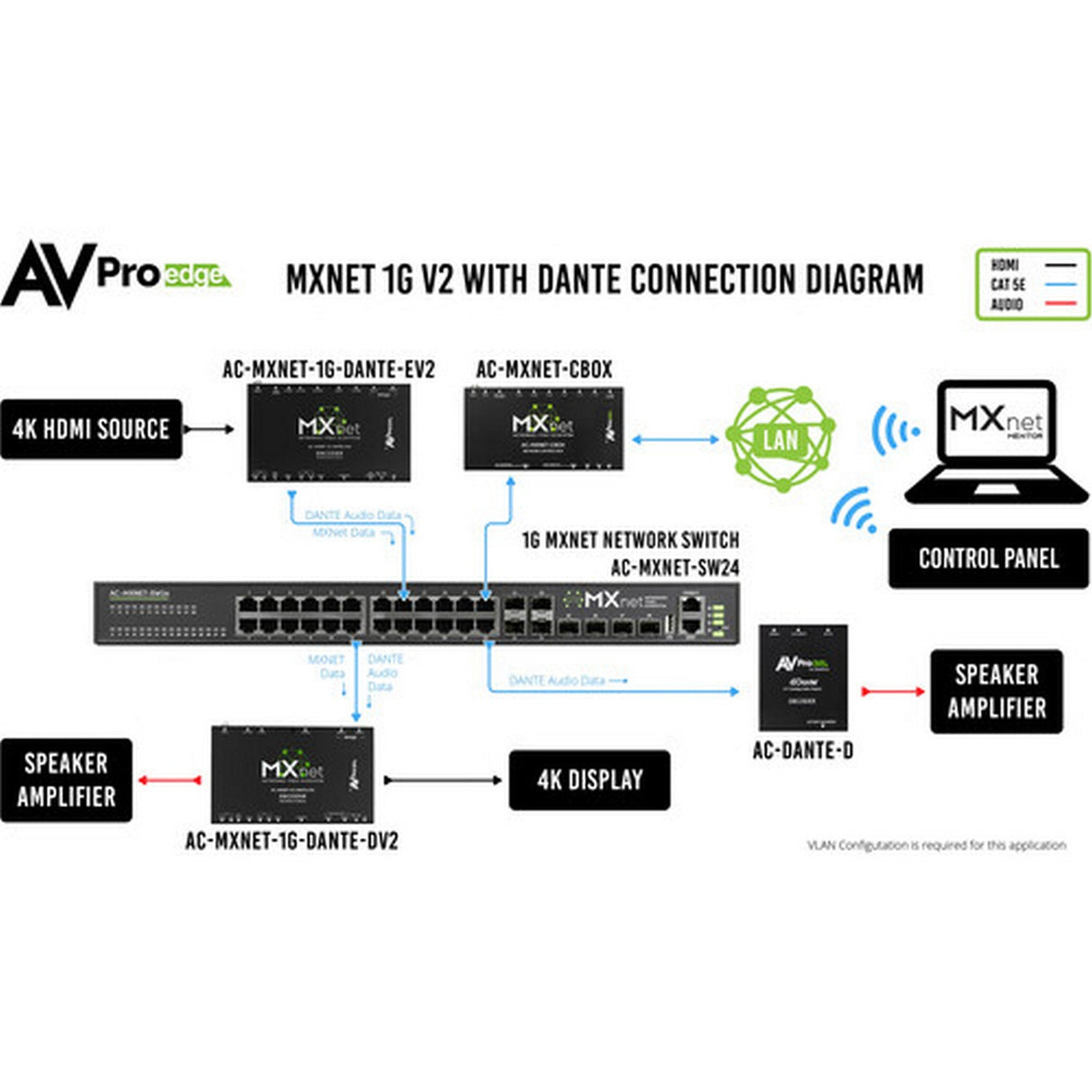

• Dante Models: Dante audio pass-through and break-out capability on AC-MXNET-1G-DANTE-EV2 and AC-MXNET-1G-DANTE-DV2

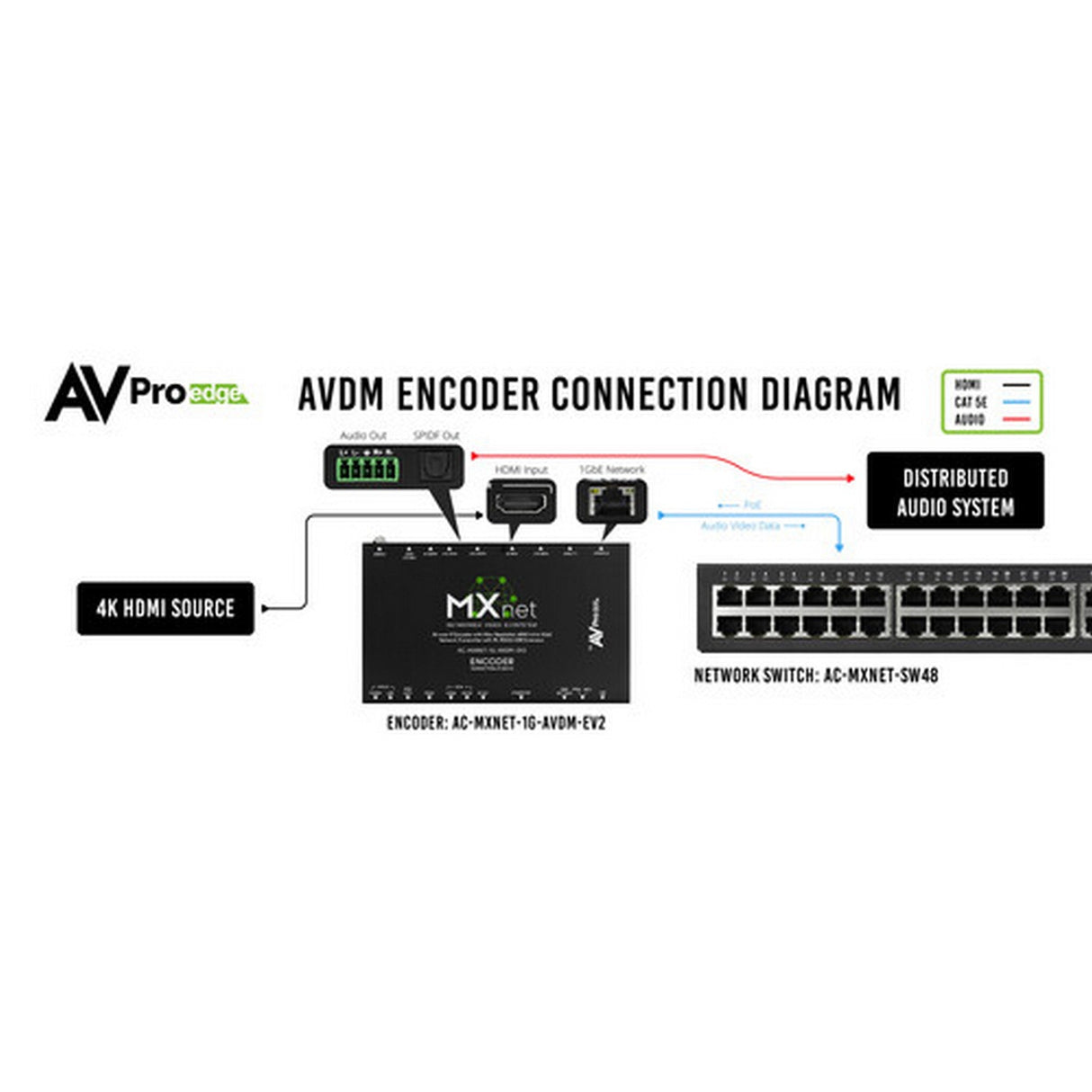

• Audio Downmixing Model: AC-MXNET-1G-AVDM-EV2 extracts two-channel balanced analog audio from supported multichannel formats
• Downmixed Audio Output: Balanced stereo through 5-pin terminal connection

Network, Control, and USB

• Network Interface: Gigabit Ethernet
• Recommended Category Cabling: Cat 6A
• Category Cable Distance: Up to 330 ft over Cat 5e or better on supported configurations
• Fiber Expansion: SFP slot support for compatible 1000BASE-SX and 1000BASE-LX/LH modules
• Streaming Protocols: TCP, UDP, IP, IGMP-V2 on supported configurations

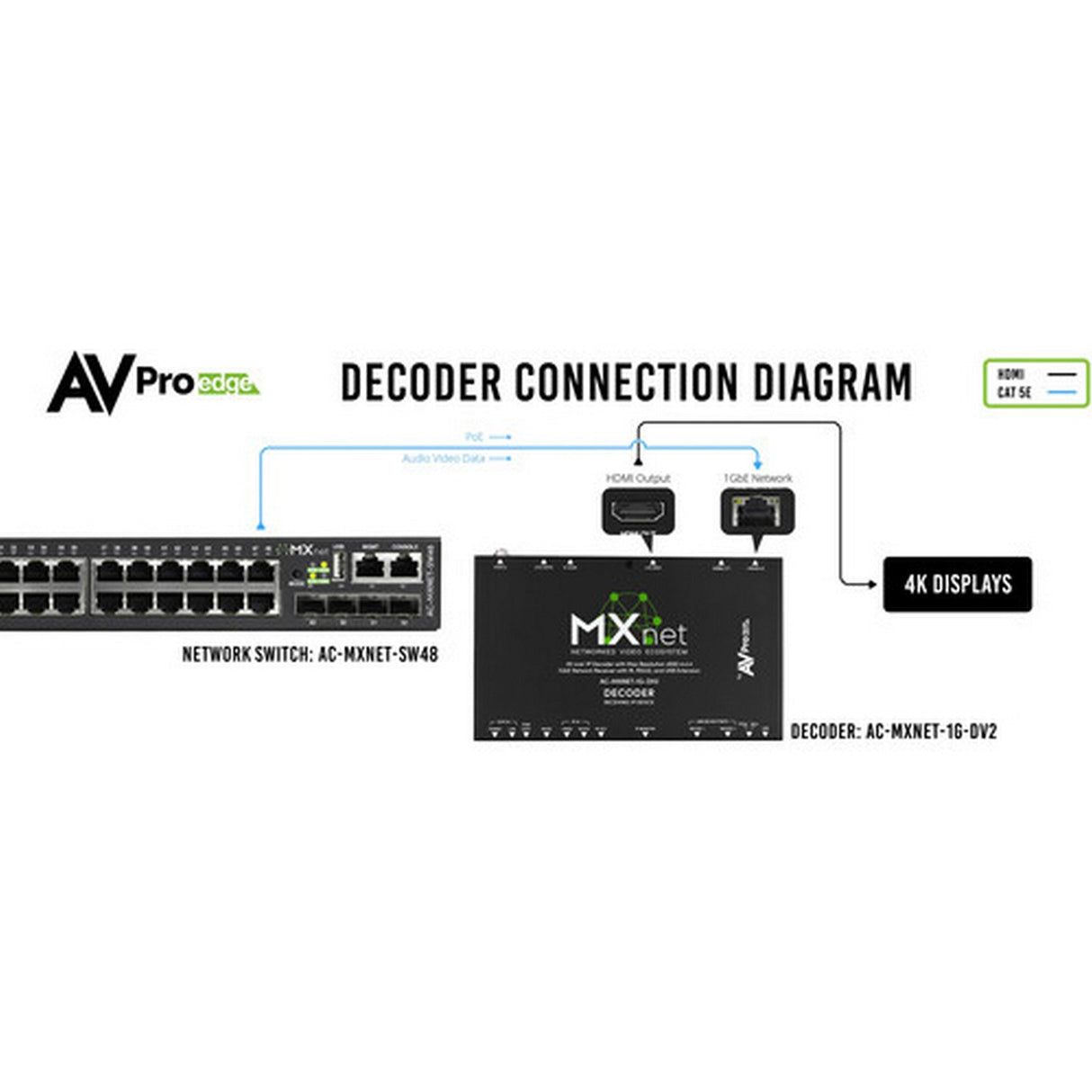

• Network Infrastructure: MXNet switch or compatible multicast-capable managed Layer 3 switch
• Control: RS-232, IR, Ethernet
• USB: USB 2.0 extension and KVM support
• USB Video Support: Up to 1920 x 1080 at 30 Hz on supported Evolution II endpoints
• System Management: MXNet Mentor

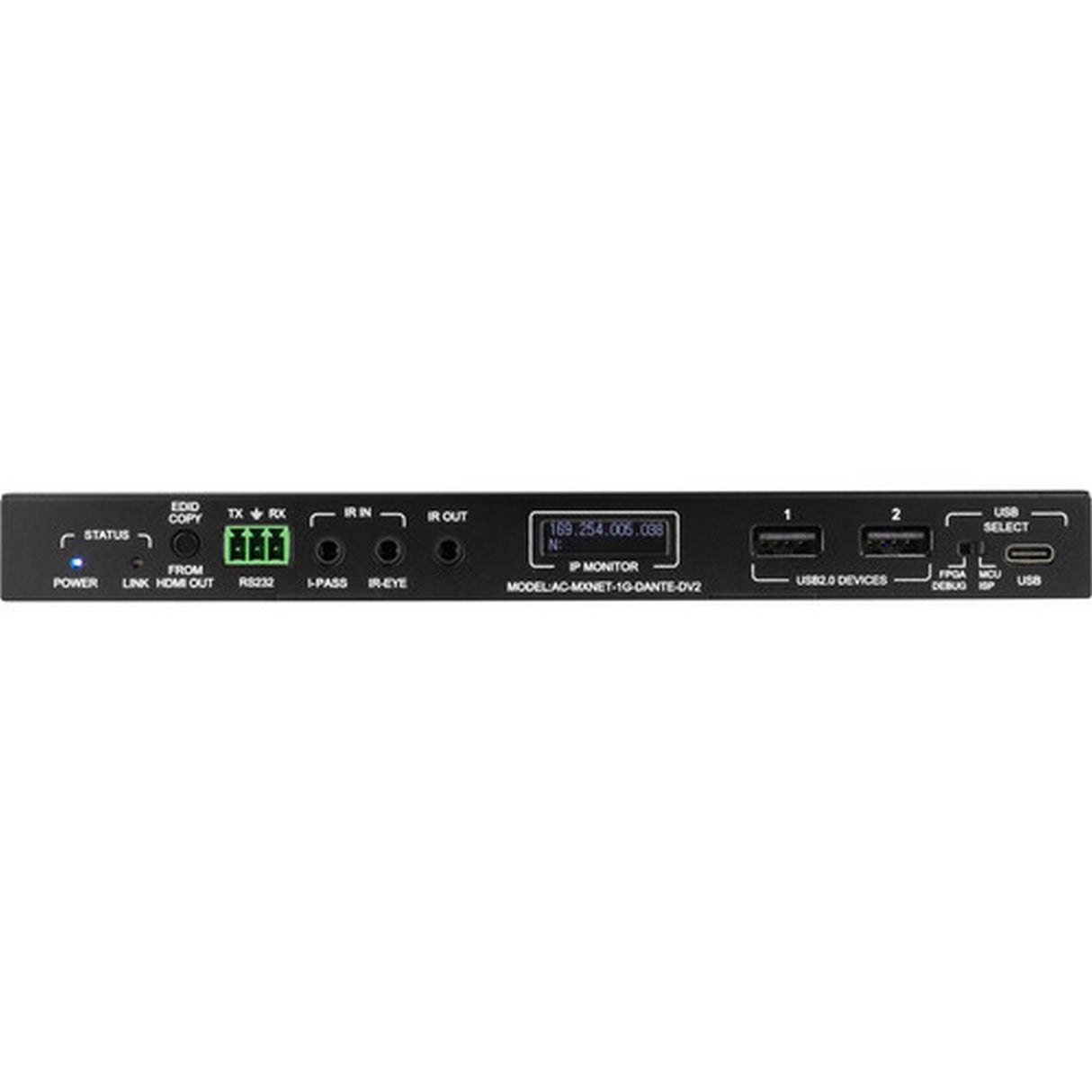

• Status Display: Front-panel OLED data window on standard Evolution II configurations

Specialized Variant Features

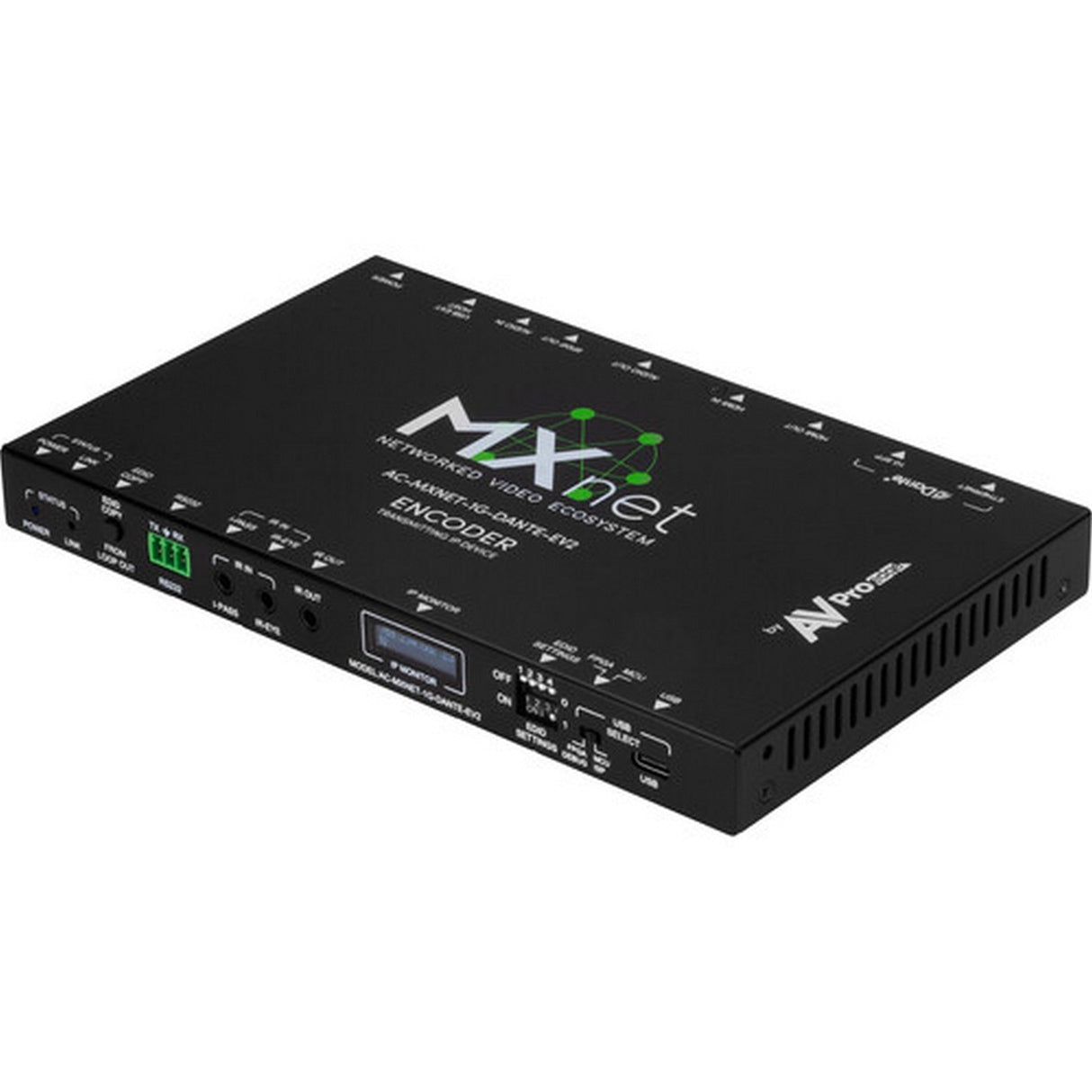

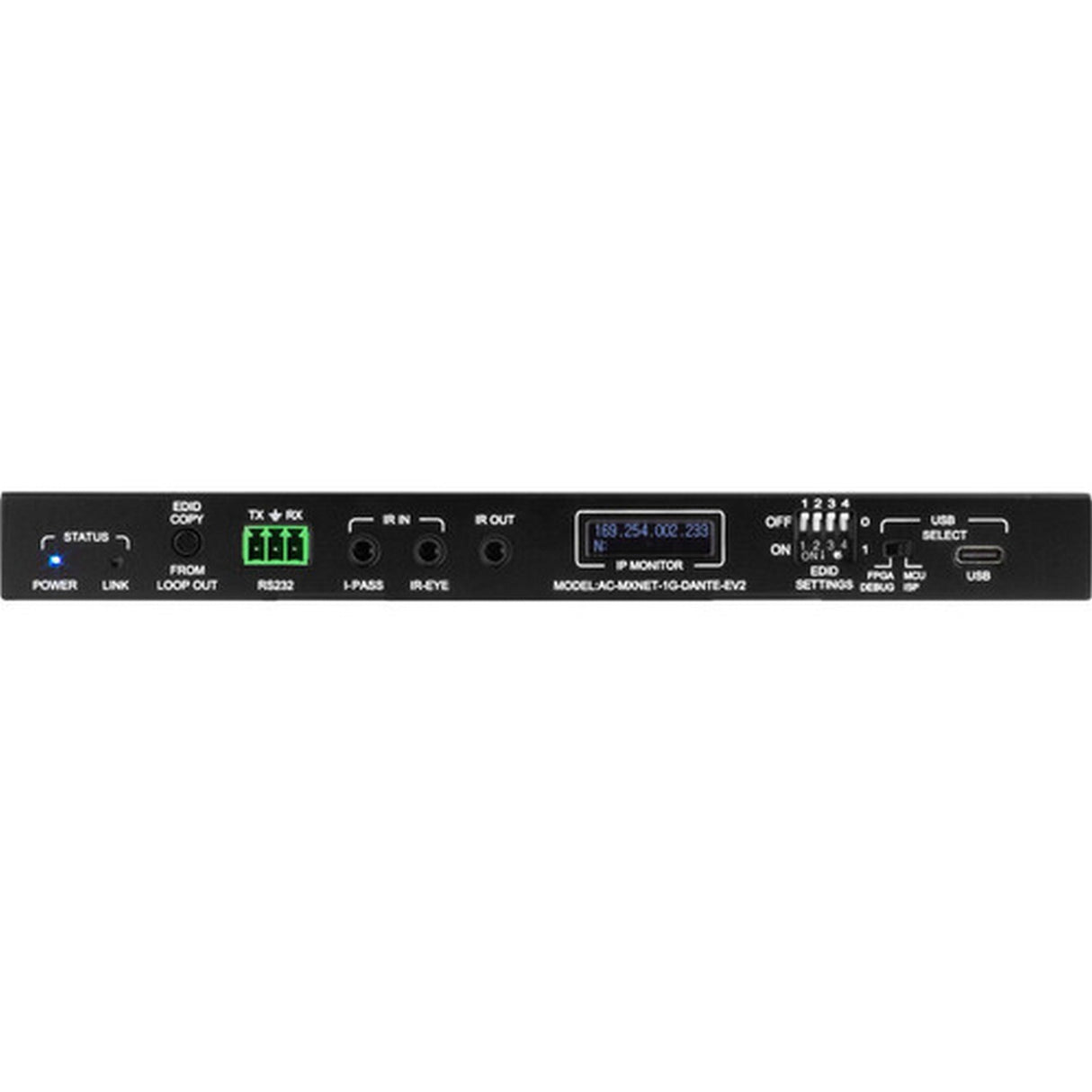

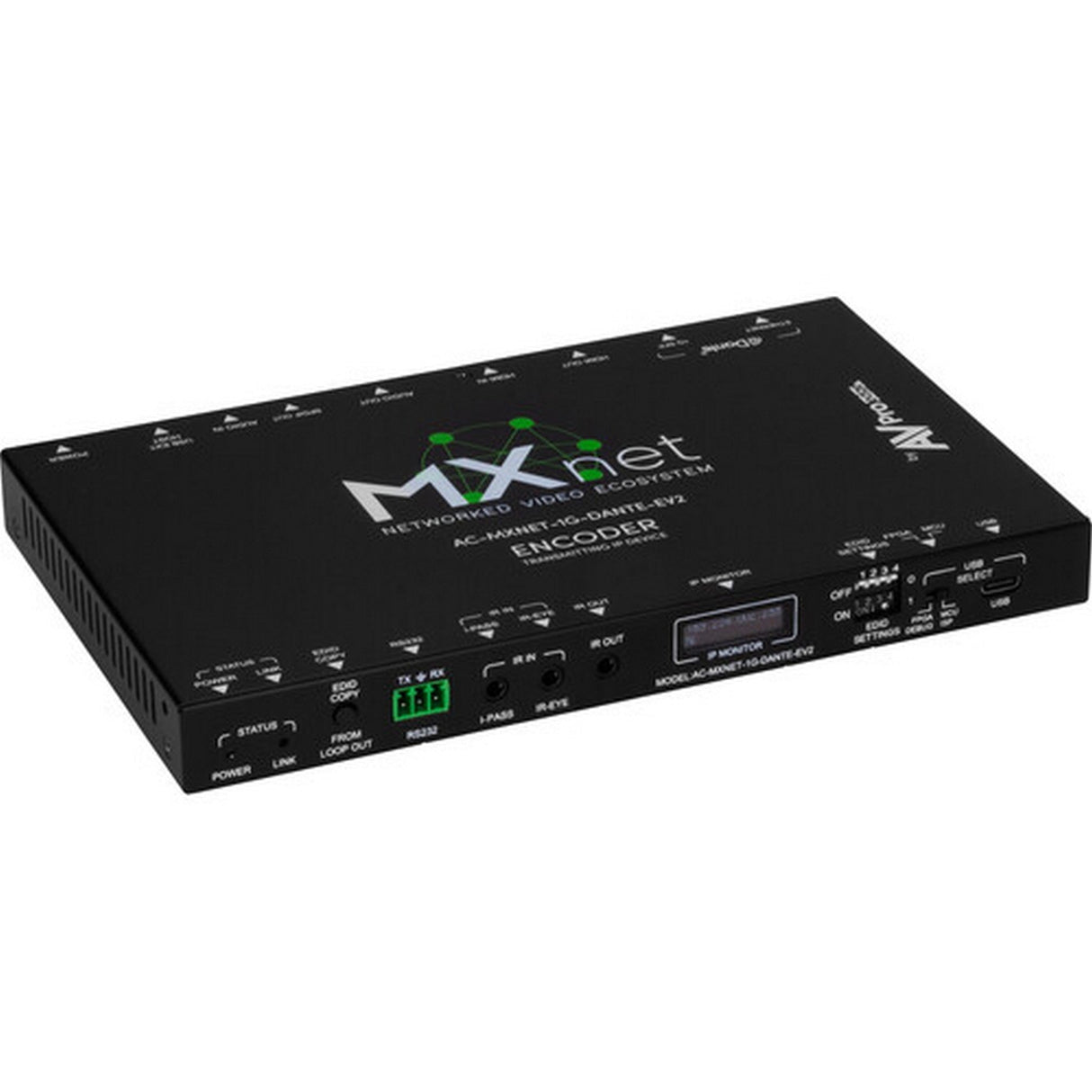

• AC-MXNET-1G-DANTE-EV2: Dante-enabled encoder with proprietary M-JPEG-based video codec, 16 ms latency at 60 Hz, and 2 to 4 ms ultra-low-latency mode at 60 Hz

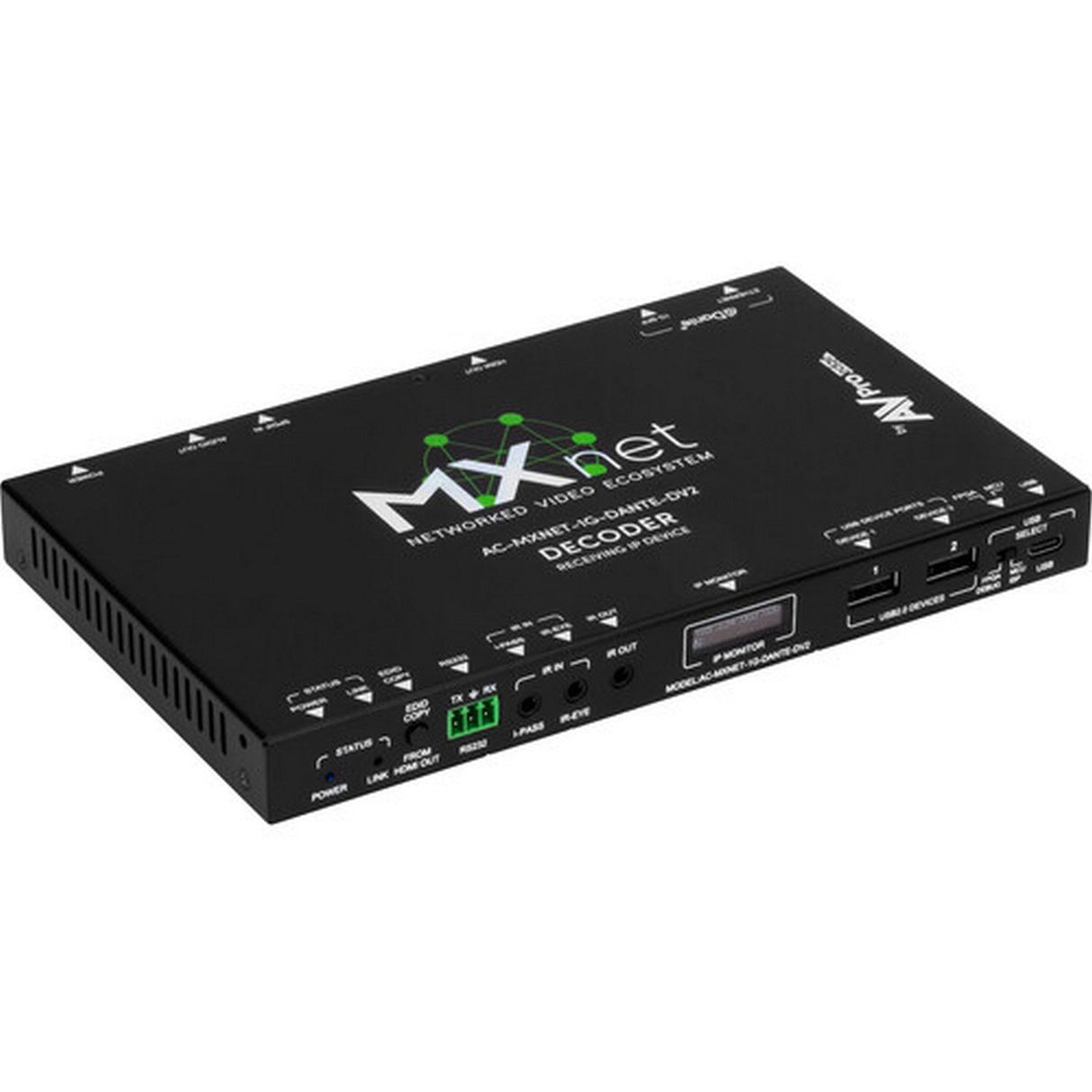

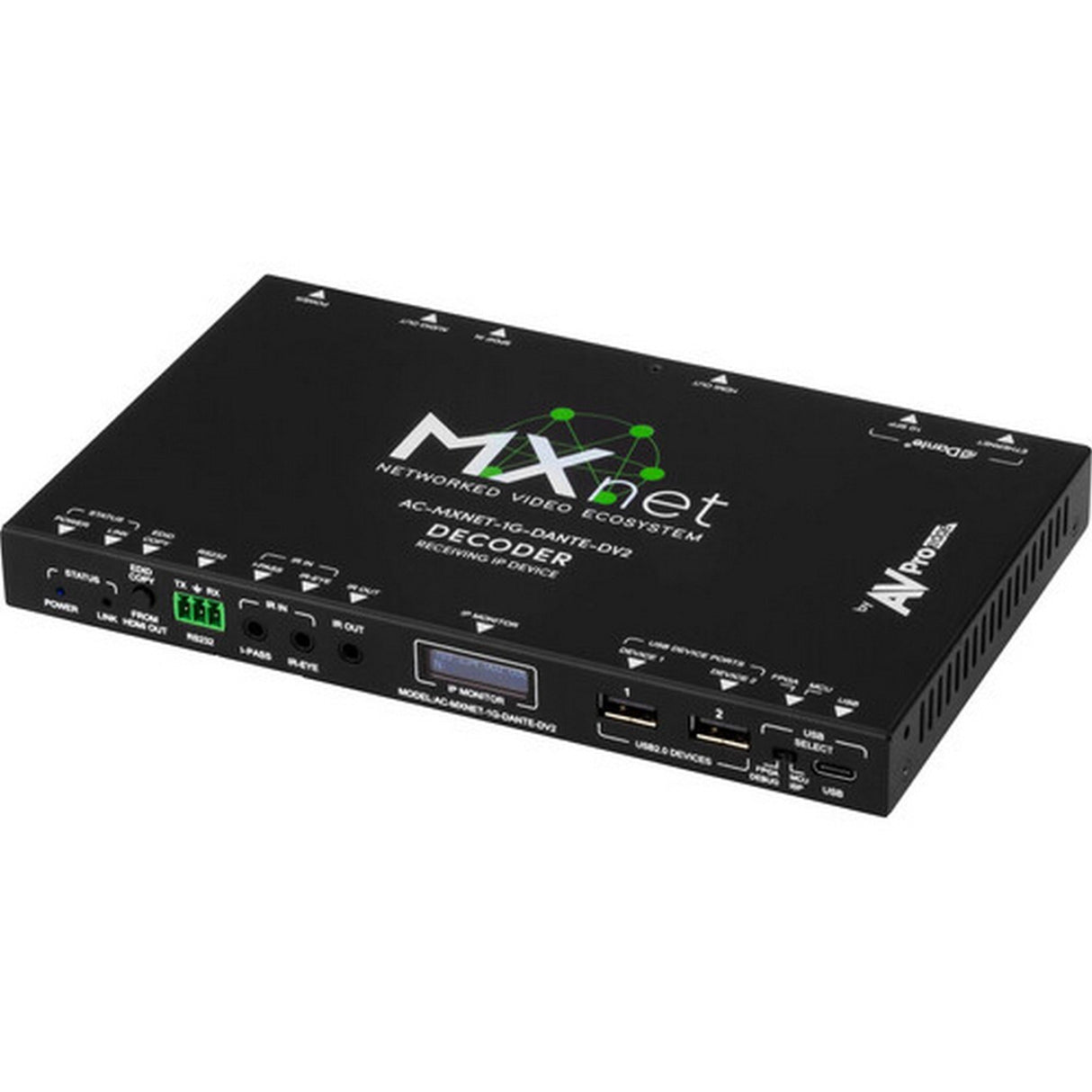

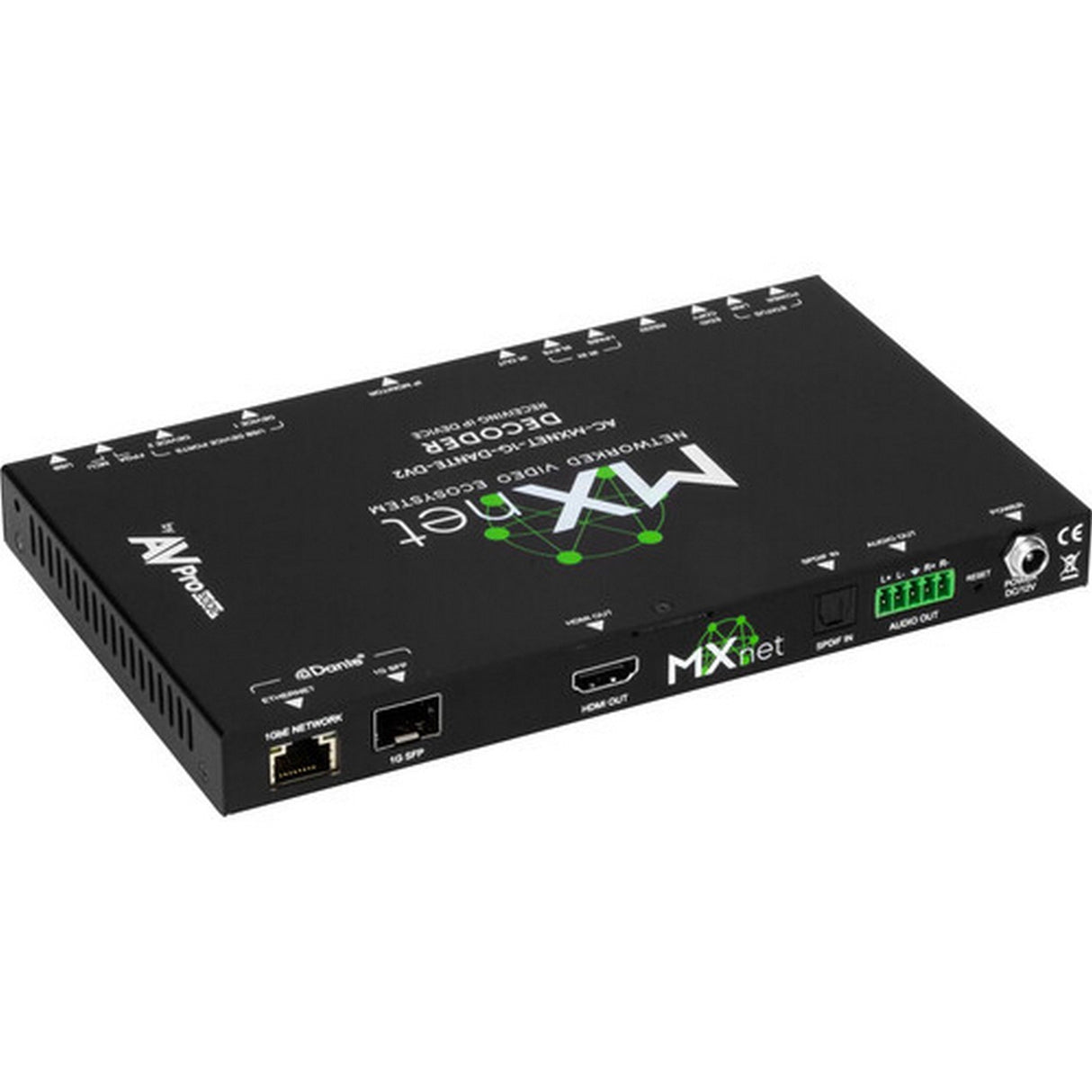

• AC-MXNET-1G-DANTE-DV2: Dante-enabled decoder with Dante break-out capability, 16 ms latency at 60 Hz, and 2 to 4 ms ultra-low-latency mode at 60 Hz

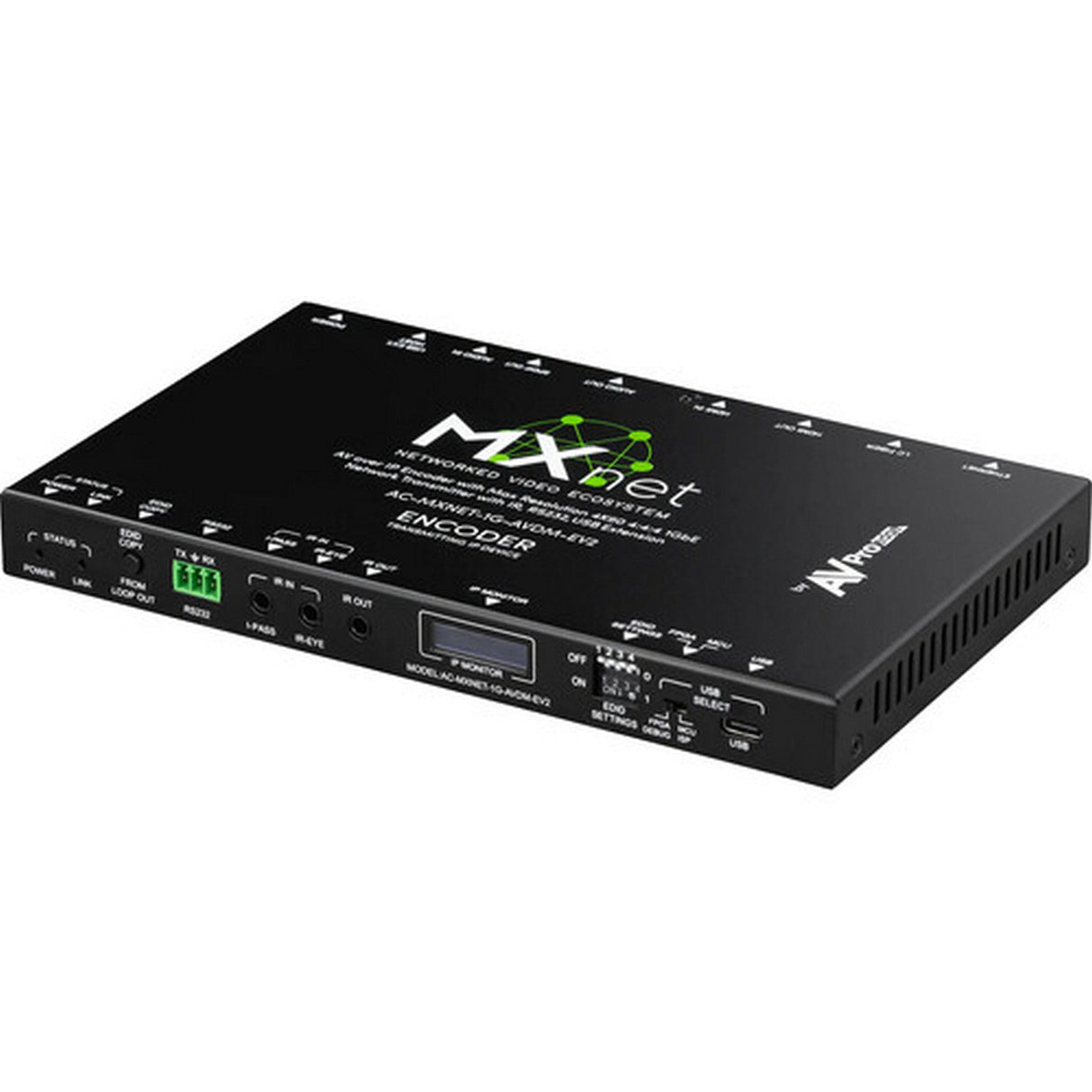

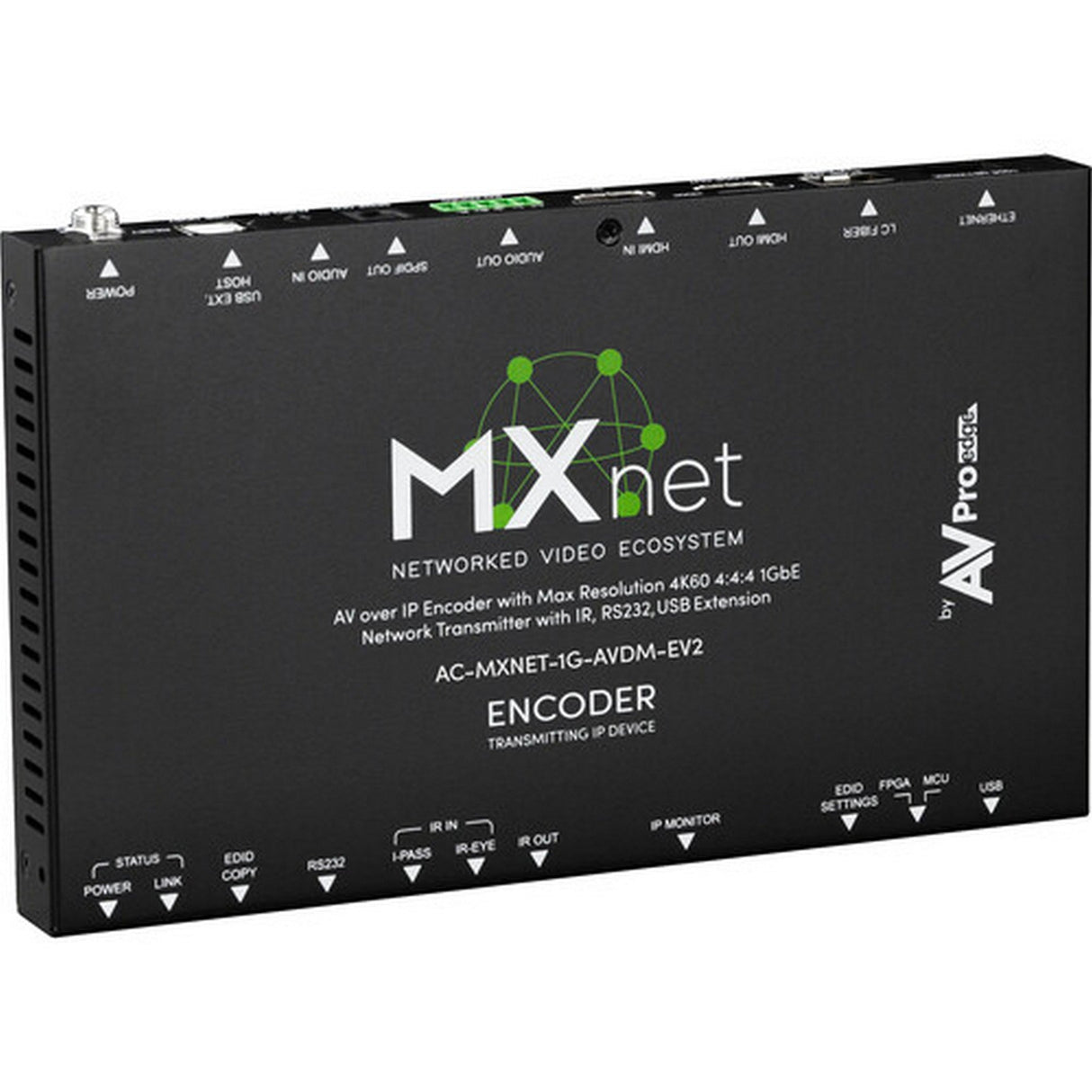

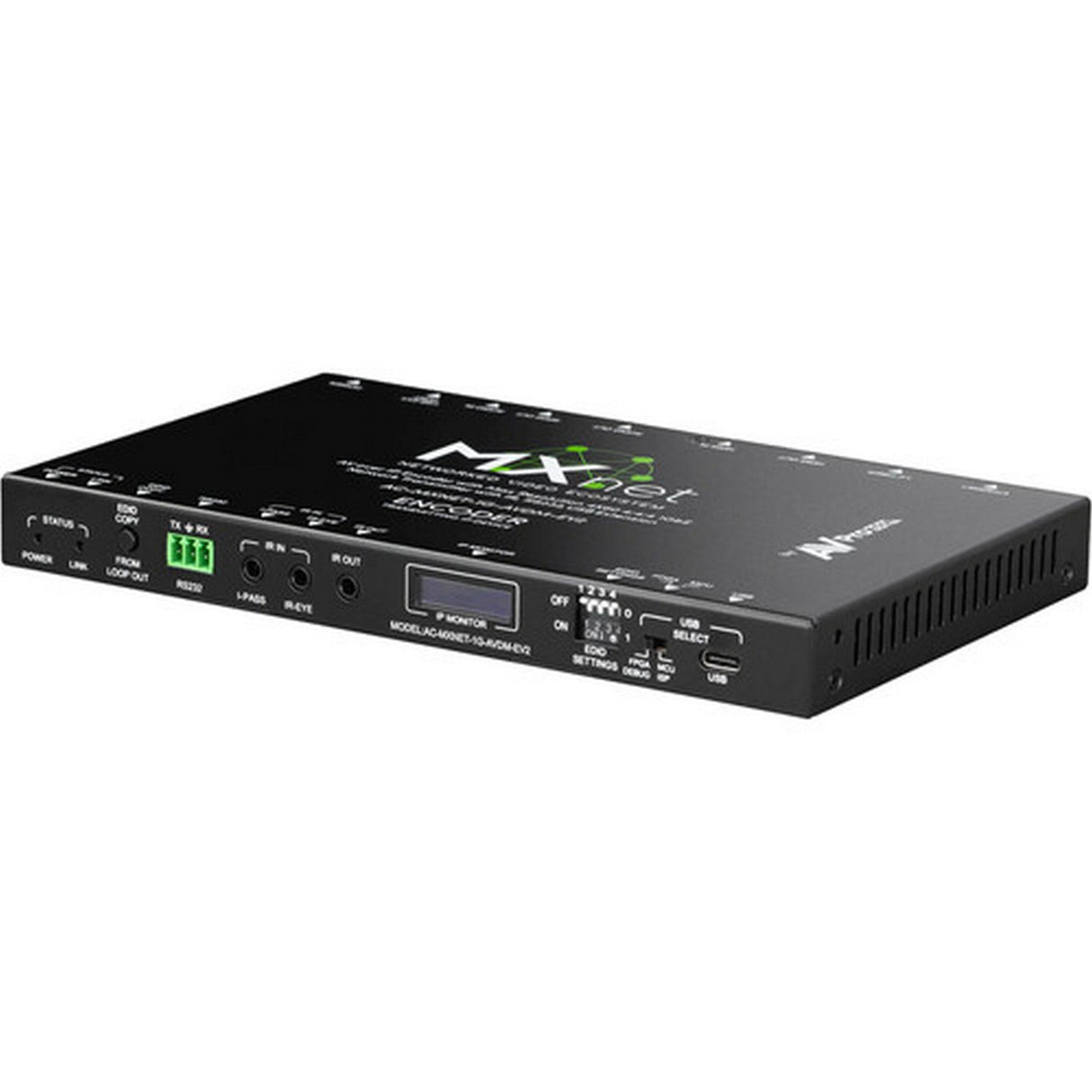

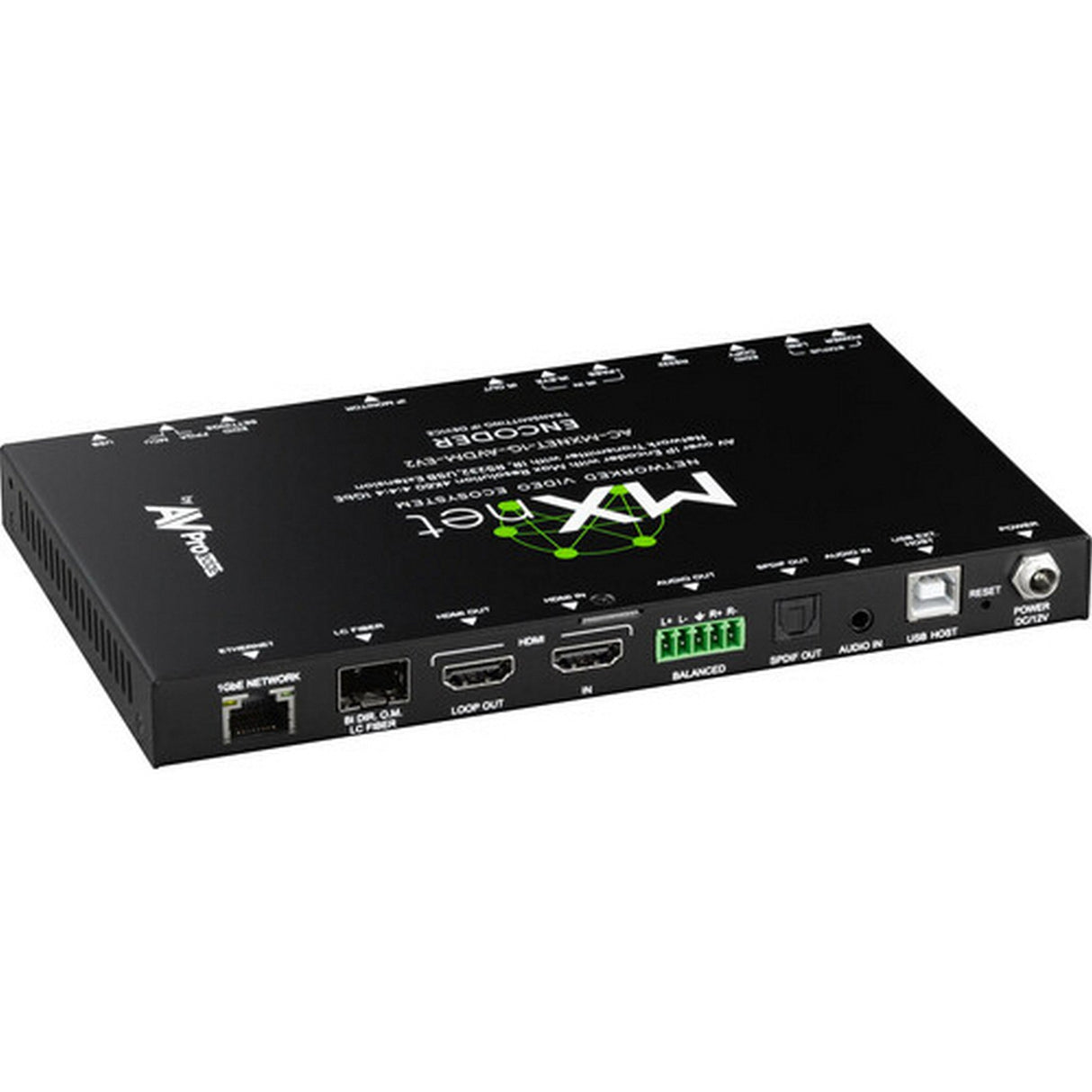

• AC-MXNET-1G-AVDM-EV2: Encoder with onboard audio decoder for balanced two-channel analog downmixing

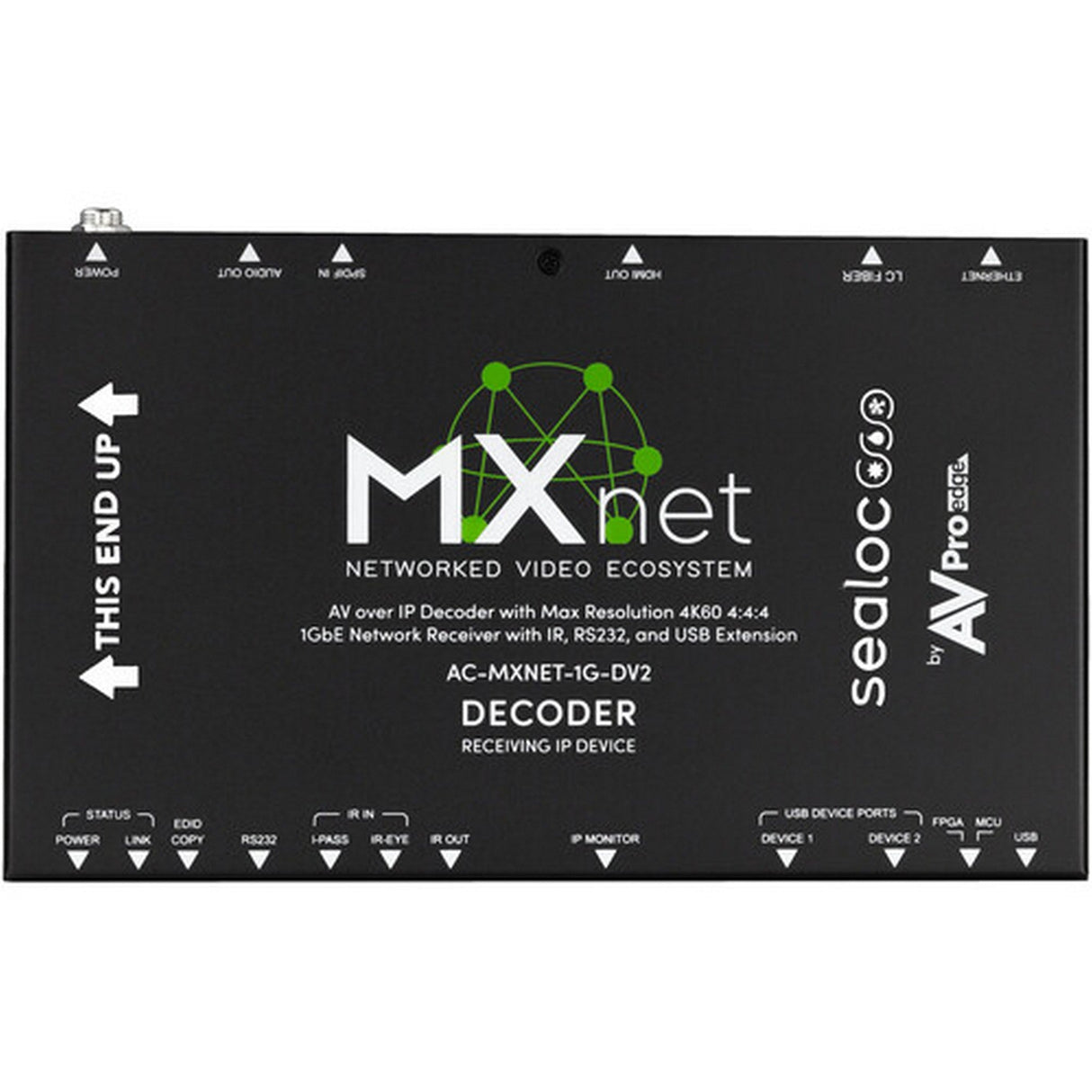

• AC-MXNET-1G-DV2-SEA: Sealed weatherproof decoder with protective nano-coating and IP68-rated chassis

Power and Environmental

• Standard Encoder Power Consumption: 9.5 W
• Standard Decoder Power Consumption: 9.5 W
• Dante Encoder Maximum Power Consumption: 9.7 W
• Dante Decoder Maximum Power Consumption: 9.7 W
• Audio Downmixing Encoder Power Consumption: 10.3 W
• Weatherproof Decoder Power Consumption: 9.5 W
• PoE: IEEE 802.3af on supported configurations
• External Power Supply: 120 to 240 VAC, 50/60 Hz input; 12 VDC, 2 A output on supported configurations
• Operating Temperature: 23 to 125°F
• Storage Temperature: -4 to 140°F
• Operating Humidity: 5 to 90% RH, non-condensing
• Cooling: Fanless on standard and Dante Evolution II endpoints
• Acoustic Noise: 0 dB on Dante configurations

Physical Specifications

• Standard Encoder Dimensions: 7.9 x 4.7 x 0.8"
• Standard Encoder Weight: 1.2 lb
• Standard Decoder Dimensions: 7.9 x 4.7 x 0.8"
• Standard Decoder Weight: 1.2 lb
• Dante Encoder Dimensions: 7.8 x 4.7 x 0.8"
• Dante Encoder Weight: 1.4 lb
• Dante Decoder Dimensions: 7.8 x 4.7 x 0.8"
• Dante Decoder Weight: 1.4 lb
• Audio Downmixing Encoder Dimensions: 7.8 x 4.7 x 0.8"
• Audio Downmixing Encoder Weight: 1.4 lb
• Weatherproof Decoder Dimensions: 7.9 x 4.7 x 0.8"
• Weatherproof Decoder Weight: 1.2 lb
• Certifications: CE, FCC, UL; weatherproof decoder additionally carries IP68 protection
• Manufacturer Warranty: 10 years

Variant UPCs

• AC-MXNET-1G-DV2: 810108230083
• AC-MXNET-1G-EV2: 810108230076
• AC-MXNET-1G-DANTE-DV2: 810108231066
• AC-MXNET-1G-DANTE-EV2: 810108230670
• AC-MXNET-1G-AVDM-EV2: 810108230472
• AC-MXNET-1G-DV2-SEA: 810108230458
