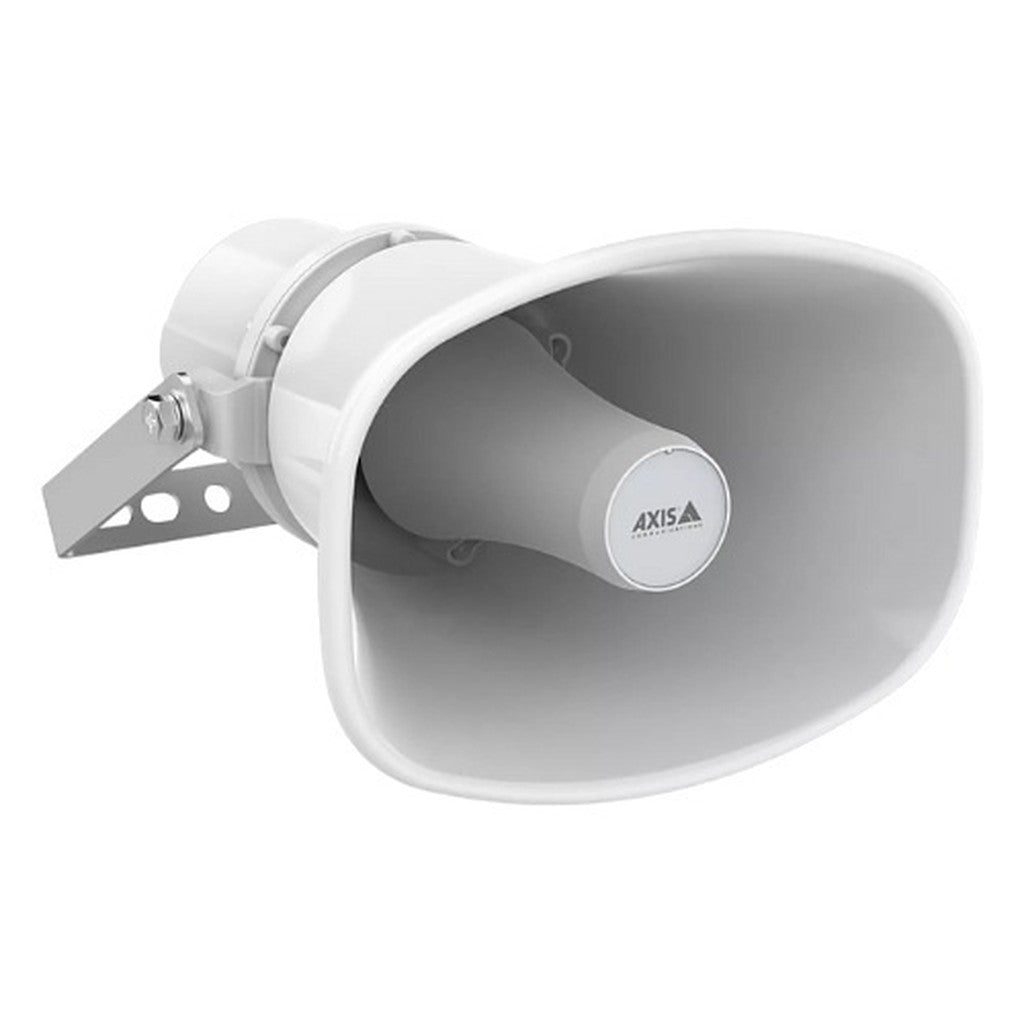

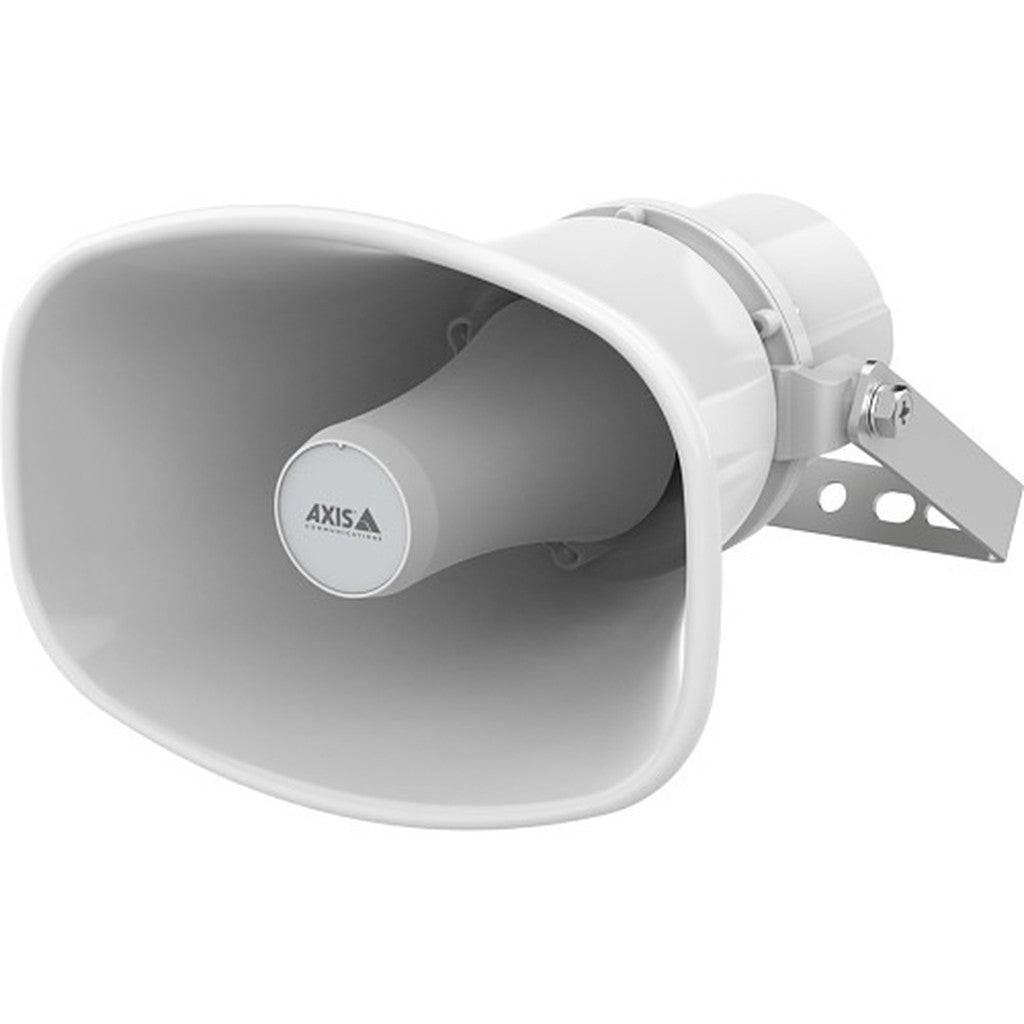

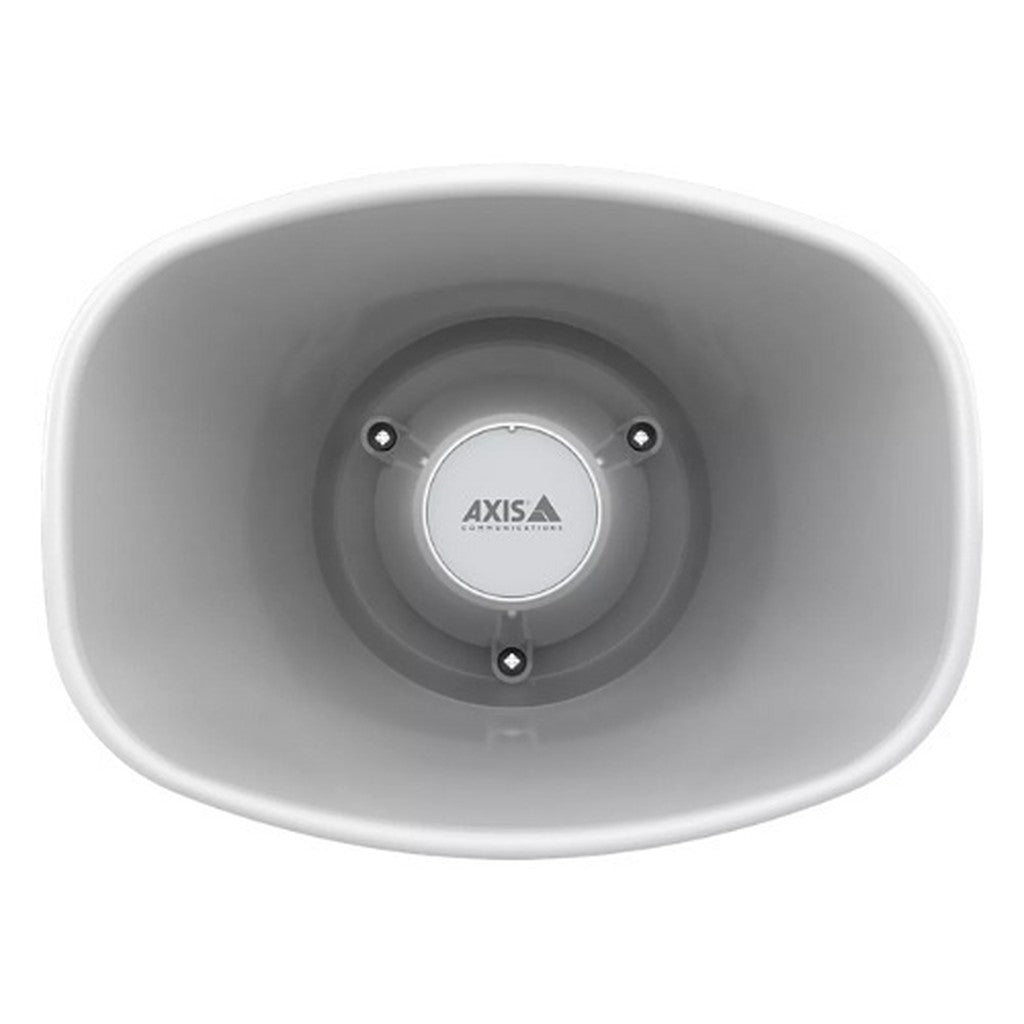

AXIS C1310-E Mk II Outdoor Network Horn Speaker

AXIS C1310-E Mk II Network Horn Speaker

The AXIS C1310-E Mk II Network Horn Speaker is an outdoor IP audio device built for clear, long-range voice messages, live security intervention, emergency instructions, and scheduled announcements. It combines a horn loudspeaker, 7W Class D amplifier, digital signal processing, microphone, network interface, and onboard audio management in one PoE-powered enclosure.

This all-in-one speaker suits schools, transportation facilities, industrial sites, parking areas, campuses, and secured outdoor spaces. Organizations can use the outdoor PoE horn speaker for prerecorded announcements, event-triggered warnings, two-way communication, and real-time security instructions. A single network cable carries power and data, simplifying installation where conventional audio wiring would add cost or complexity.

Open integration standards support compatible video management systems, SIP-based VoIP platforms, access control, mass notification software, and audio analytics. The IP66- and NEMA 4X-rated housing supports demanding outdoor installations, while automated speaker testing verifies operation remotely. TAA compliance, recognized safety approvals, secure boot, signed operating software, and Axis Edge Vault help support professionally managed security and communications systems.

Key Features

• Long-Range Voice Reproduction: Delivers more than 121 dB maximum sound pressure for clear announcements across outdoor areas.
• All-in-One Network Audio: Integrates the horn, amplifier, microphone, DSP, storage, and network connection inside one enclosure.
• Single-Cable PoE Installation: Receives power and network data through one standard Ethernet connection.
• Two-Way Communication: The built-in microphone supports live interaction, audio monitoring, and acknowledgment of instructions.
• Automatic Health Testing: Auto Speaker Test uses the microphone to verify speaker operation remotely.
• Scheduled and Triggered Messages: Plays prerecorded clips, live announcements, and event-driven warnings through onboard audio management.
• Outdoor-Rated Construction: IP66 and NEMA 4X protection supports exposed installations in demanding climates.
• Scalable System Integration: Supports SIP, VAPIX, ACAP applications, mass notification platforms, and compatible video management systems.

Technical Specifications

Product Information

• Manufacturer: Axis Communications
• Model: C1310-E Mk II
• Manufacturer Part Number: 02813-001
• ADI Part Number: Z4-02813001
• Product Series: C13
• Product Type: Outdoor Network Horn Speaker
• Country of Origin: Poland
• Color: White, RAL 9010

Audio Hardware

• Enclosure Type: Re-entrant horn loudspeaker with compression driver
• Maximum Sound Pressure Level: Greater than 121 dB
• Frequency Response: 280 Hz to 12.5 kHz
• Coverage Pattern: 70° horizontal by 100° vertical at 2 kHz
• Audio Input and Output: Built-in microphone and built-in speaker
• Microphone Frequency Response: 50 Hz to 12 kHz
• Microphone Control: Can be mechanically disabled
• Amplifier: Built-in 7W Class D amplifier
• Digital Signal Processing: Built-in and preconfigured

Audio Management

• Included Management Software: AXIS Audio Manager Edge
• Zone Management: Supports dividing up to 200 speakers into 20 zones
• Content Management: Supports music and live or prerecorded announcements
• Scheduling: Controls when and where content plays
• Content Prioritization: Allows urgent messages to interrupt scheduled content
• Health Monitoring: Supports remote discovery of system errors
• User Management: Controls access to system features
• Multisite Management: Supports AXIS Audio Manager Center
• Advanced System Compatibility: Supports separately available AXIS Audio Manager Pro

Streaming and Audio Encoding

• Streaming: One-way or two-way mono audio with optional half-duplex echo cancellation
• AAC LC: 8, 16, 32, and 48 kHz
• G.711 PCM: 8 kHz
• G.726 ADPCM: 8 kHz
• Axis µ-Law: 16 kHz
• File Formats: WAV and MP3
• MP3 Bit Rate: 64 to 320 kbps in mono or stereo
• Bit Rate Modes: Constant and variable
• Sampling Rate: 8 to 48 kHz

System Integration

• Application Interfaces: Open API, VAPIX, one-click cloud connection, and AXIS Camera Application Platform
• Video Management Compatibility: AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and supported partner platforms
• Mass Notification Compatibility: Singlewire InformaCast, Intrado Revolution, Lynx, and Alertus
• Verified SIP Clients: 2N, Yealink, Cisco, Linphone, and Grandstream
• Verified PBX and SIP Servers: Cisco Call Manager, Cisco BroadWorks, Avaya, Asterisk, and Grandstream
• Cloud Communication Compatibility: Webex and Zoom
• SIP Features: Secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF, ICE, STUN, and TURN
• SIP Methods: INVITE, CANCEL, BYE, REGISTER, OPTIONS, and INFO

Events and Monitoring

• Audio Event Conditions: Audio clip playing and speaker test result
• Call Event Conditions: Call state and state changes
• Device Event Conditions: Blocked or removed IP address, active live stream, network loss, new IP address, and system readiness
• Storage Event Conditions: Recording activity, storage disruption, and storage health alerts
• I/O Event Conditions: Digital input, manual trigger, and virtual input
• Additional Event Conditions: MQTT subscription and scheduled or recurring events
• Audio Event Actions: Run automatic speaker tests and play or stop audio clips
• Additional Event Actions: Toggle I/O, control compatible light and siren functions, publish MQTT messages, send notifications, record audio, send SNMP traps, and flash the status LED
• Installation Aids: Test-tone verification and identification
• Functional Monitoring: Auto Speaker Test through the built-in microphone

Audio Analytics

• Included Application: AXIS Audio Analytics
• Detection Technology: Adaptive audio detection
• Audio Classes: Scream, shout, glass break, and speech
• Event Metadata: Audio detection and classification data
• Application Support: Supports compatible third-party ACAP applications

Network and Security

• Network Protocols: IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, DynDNS, NTP, PTP, RTSP, RTP, TCP, UDP, IGMP v1/v2/v3, RTCP, ICMP, DHCP, ARP, LLDP, CDP, SOCKS, SSH, NTCIP, and SIP
• Audio Synchronization: Supported with IPv4
• Software Security: Signed OS, brute-force delay protection, digest authentication, password protection, and Axis Cryptographic Module
• Hardware Security: Axis Edge Vault, CC EAL 6+ secure element, Axis device ID, secure keystore, and secure boot
• Network Security: IEEE 802.1X, IEEE 802.1AE MACsec, IEEE 802.1AR, HTTPS/HSTS, TLS 1.2 and 1.3, Network Time Security, X.509 Certificate PKI, and host-based firewall
• Cryptographic Module: FIPS 140-2 Level 1

System Hardware

• System-on-Chip: NXP i.MX 8M Nano
• Memory: 1024 MB RAM and 1024 MB flash

Construction and Environmental

• Environmental Rating: IP66 and NEMA 4X
• Construction: Aluminum back can with stainless steel bracket
• Operating Temperature: -40°F to 140°F
• Operating Humidity: 10% to 100% RH, condensing
• Storage Temperature: -40°F to 149°F
• Storage Humidity: 5% to 95% RH, non-condensing
• Reliability: Designed for continuous 24/7 operation

Power and Connections

• Power Source: Power over Ethernet
• PoE Standard: IEEE 802.3af/802.3at Type 1, Class 3
• Power Consumption: 2W typical, 12.95W maximum
• Network Connector: RJ45 10BASE-T/100BASE-TX with PoE
• I/O Connector: 4-pin 0.10" terminal block for two supervised configurable I/Os
• Indicators: Status LED and front-facing LED

Approvals and Compliance

• Product Markings: CSA, UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM, and BSMI
• Supply Chain Compliance: TAA compliant
• EMC Standards: EN 55035, EN 55032 Class B, EN 50121-4, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class B, ICES-3(B)/NMB-3(B), VCCI Class B, KS C 9835, KS C 9832 Class B, FCC Part 15 Subpart B Class B, and IEC 62236-4
• Safety Standards: CAN/CSA C22.2 No. 62368-1 Edition 3 and IEC/EN/UL 62368-1 Edition 3
• Environmental Standards: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, NEMA 250 Type 4X, MIL-STD-810G 509.5, and MIL-STD-810H 509.7
• Cybersecurity Standards: ETSI EN 303 645, BSI IT Security Label, and FIPS 140
• Environmental Compliance: EU RoHS, REACH, and PVC-free construction according to JEDEC/ECA Standard JS709

Physical Specifications

• Dimensions: 12.17" x 8.84" x 6.54"
• Weight: 2.9 lbs

What's In the Box

• AXIS C1310-E Mk II Horn Speaker
• Installation Guide
• Terminal Block Connector
• Connector Guard
• Cable Gasket
• Ring Terminal
• Owner Authentication Key
