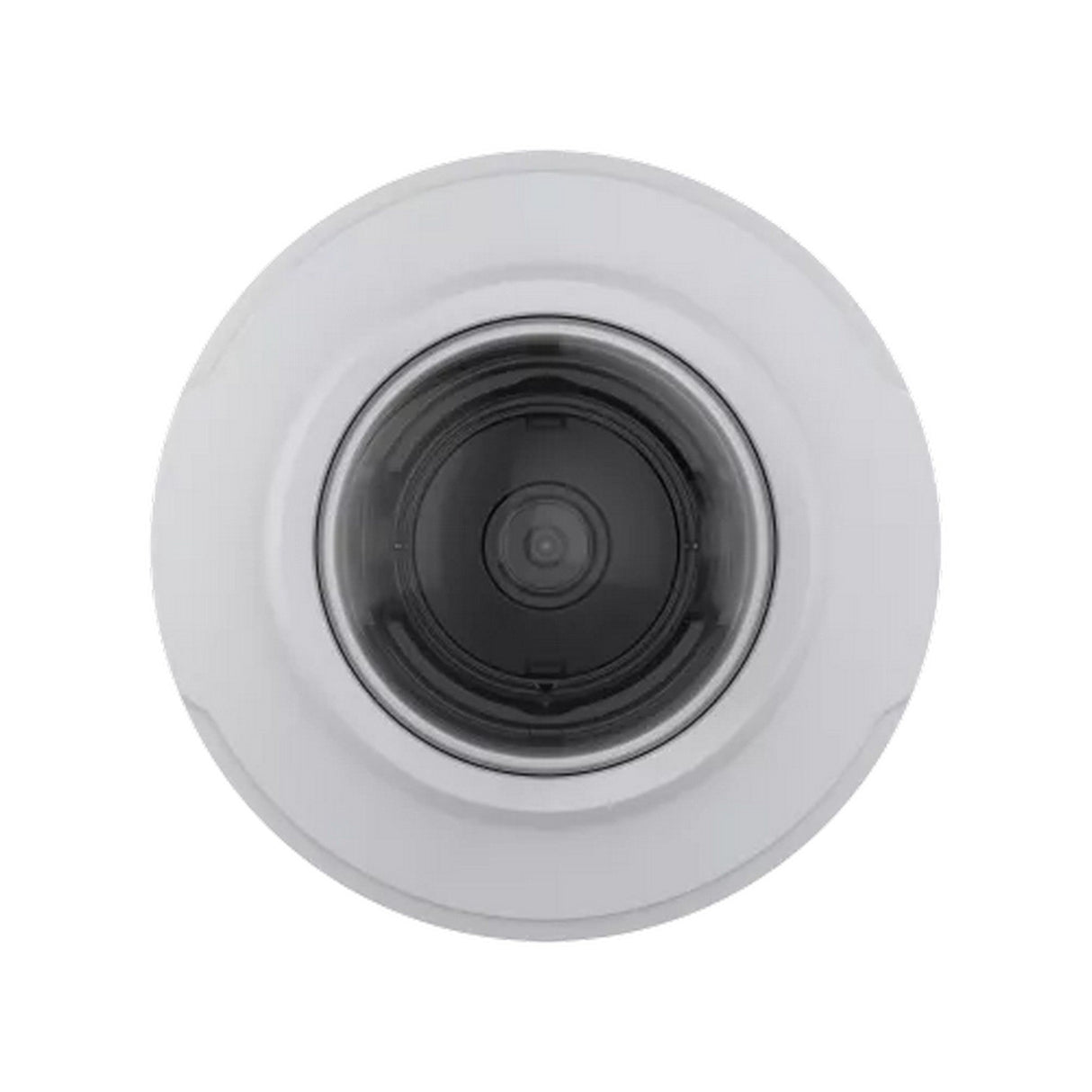

AXIS M3064-V M30 Series WDR HDTV 720p Fixed Dome Camera

Are you looking for an attractively priced, ultra-compact mini dome that delivers sharp HDTV 720p video quality even in poor light? From retail stores to hotel interiors, AXIS M3064-V offers flexible installation options as well as support for intelligent analytics.

Great value for money
AXIS M3064-V features Wide Dynamic Range (WDR) for clarity when there's both dark and light areas in the scene. It offers HDTV 720p video quality and day/night functionality to ensure light sensitivity and high quality black and white images in poor light. This discreet fixed mini dome supports intelligent analytics such as AXIS People Counter for improved business efficiency. And, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.

Cost-efficient installation
To keep implementation costs low, AXIS M3064-V is designed for fast and easy installation. It comes factory focused so there's no manual focusing required. The sleek design benefits from no visible screws, and the casing simply snaps on. Plus, the camera's connectors are easily accessible so you can quickly insert a new SD card. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.

Fits in anywhere
Designed for reliable and effortless installation, this ultra-compact camera can be easily mounted on walls or ceilings. Kits are also available for recessed and pendant mounting as well as installation on conduits. The impact-resistant, IP42-rated casing can be repainted to blend in discreetly and seamlessly with any interior color scheme. Plus, there's an optional black casing available. Furthermore, this product is made with 52% recycled plastics and it's free of hazardous brominated and chlorinated flame retardants (BFR/CFR free). This not only helps to increase the cameras health and performance; it also lowers environmental impacts.

Key Features

• HDTV 720p video quality
• WDR and Day/night functionality
• Zipstream supporting H.264 and H.265

Technical Specifications

Field of View
Horizontal field of view: 83 Degree; Vertical field of view: 45 Degree
HD Recording
Yes
Lens Type
Fixed
Maximum Aperture
f/2
Maximum Focal Length (mm)
3.1
Maximum Frame Rate
30 fps
Night Vision
Yes
Video Formats
H.264, H.265, MJPEG, MPEG-4
Camera
Image Sensor Type
CMOS
Display & Graphics
Color Supported
Color
Maximum Video Resolution
1280 x 720
Minimum Illumination (lux)
0.04
Environmental Conditions
Maximum Operating Temperature
113 Degrees F (45 Degrees C)
Maximum Operating Temperature (Degrees F)
113
Minimum Operating Temperature
32 Degrees F (0 Degrees C)
Minimum Operating Temperature (Degrees F)
32
Operating Humidity
85%
Exposure
Longest Shutter Speed
1/5 Second
Minimum Illumination
0 lux
Shortest Shutter Speed
1/32500 Second
Interfaces/Ports
Network (RJ-45)
Yes
Lens
Lens Included
Yes
Maximum Focal Length
3.10 mm
Network & Communication
Remote Management
Yes
Physical Characteristics
Color
White
Diameter (mm)
101
Durability
Dust Resistant, Impact Resistant, Vandal Resistant, Water Resistant
Form Factor
Mini Dome
Height
2.2”
Height (mm)
56
Weight (Approximate)
5.29 oz
Product Information
Diameter
4”
Mount Type
Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats
HD
Storage Type
Memory Card
Video
Maximum Frame Rate (fps)
30
Warranty
Limited Warranty
5 Year
Miscellaneous
Country of Origin
Mexico
Environmental Certification
RoHS, WEEE
Environmentally Friendly
Yes
Features
Day/Night, HTTPS Encryption, Password Protection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact Protection Rating
IK08
Indoor/Outdoor
Indoor
Ingress Protection Rating
IP42
