Barco ClickShare C‑10 Wireless Presentation System, 2nd Generation, 2-Buttons

ClickShare C-10 brings interactive wireless presentation to any meeting space. Content sharing is simple, with just one click on the ClickShare Button (Windows or Mac) or the ClickShare App (laptop, mobile or tablet). Start presenting within seconds: no cables, no software to download, no training needed.

Key Features

• Interactive features: touchback, annotation and blackboarding
• Increased collaboration with 2 sources on screen
• Iconic ClickShare Button(s) for employees and guests
• 100% secure, encrypted and cloud-managed

Technical Specifications

ClickShare Base Unit dimensions
Power consumption
Operational: 5-10W, 24W Max
Power supply
Standard 110/220 V AC plug or USB-C (only Gen2)
Weight
900 gr
Dimensions (HxWxD)
34 mm x 135 mm x 135 mm
General
Frequency band
2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Humidity
Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Local view
Yes
Management and reporting
Yes
Maximum number of simultaneous connections (with Buttons and/or App)
32
Native protocols
Airplay, Google Cast, Miracast*
Network connection
LAN & WiFi
Noise Level
Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Operating system
Windows 10 and higher macOS 11 (BigSur) and higher
Android v9 and higher (ClickShare App) *
iOS 12 and higher (ClickShare App) *
Reach
Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz
Room Dock (peripheral support)
No
Temperature range
Operating: 0 Degrees C to +40 Degrees C (+32 Degrees F to +104 Degrees F)
Max: 35 Degrees C (95 Degrees F) at 3000m
Storage: -20 Degrees C to +60 Degrees C (-4 Degrees F to +140 Degrees F)
Touch screen support & Interactivity
Yes
USB
1 X USB-A, 1 X USB-C
Video outputs
4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
Warranty
1 year standard. 5 years coverage via SmartCare
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1

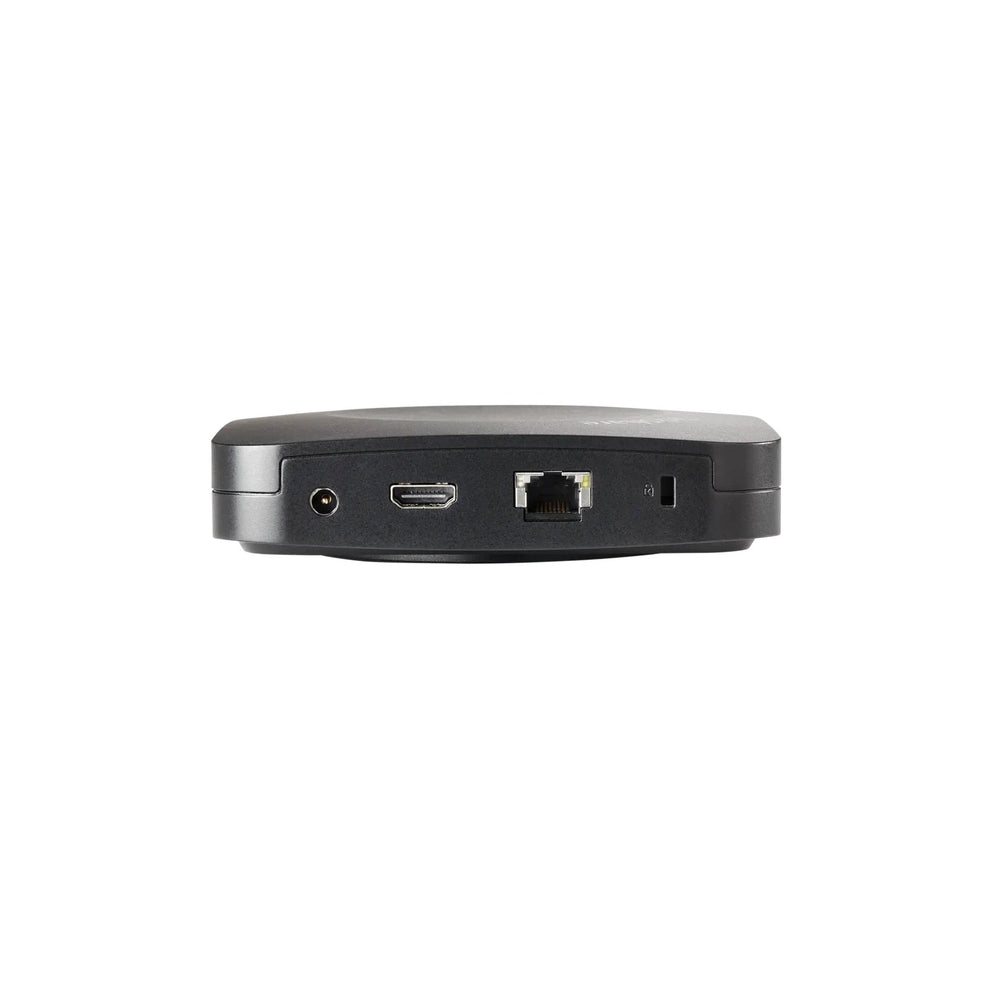

Connections
1x Ethernet LAN 1Gbit

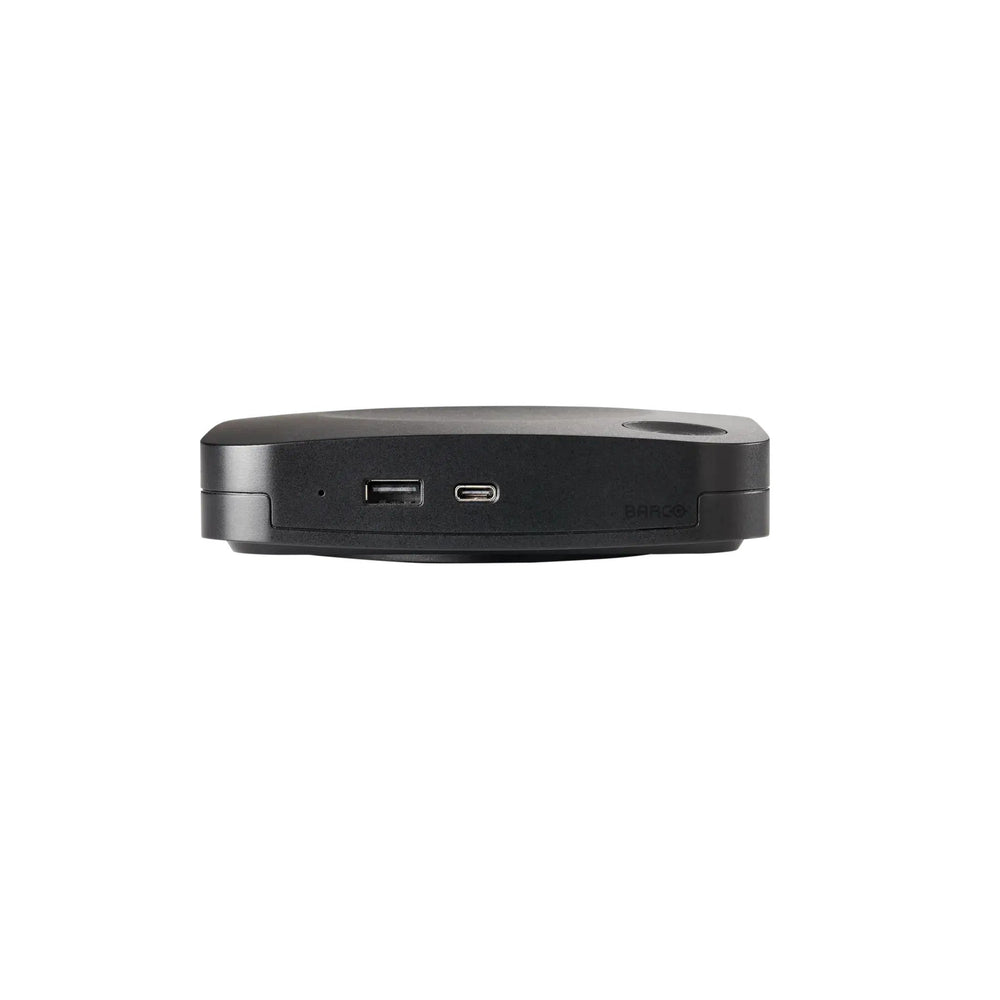

1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)

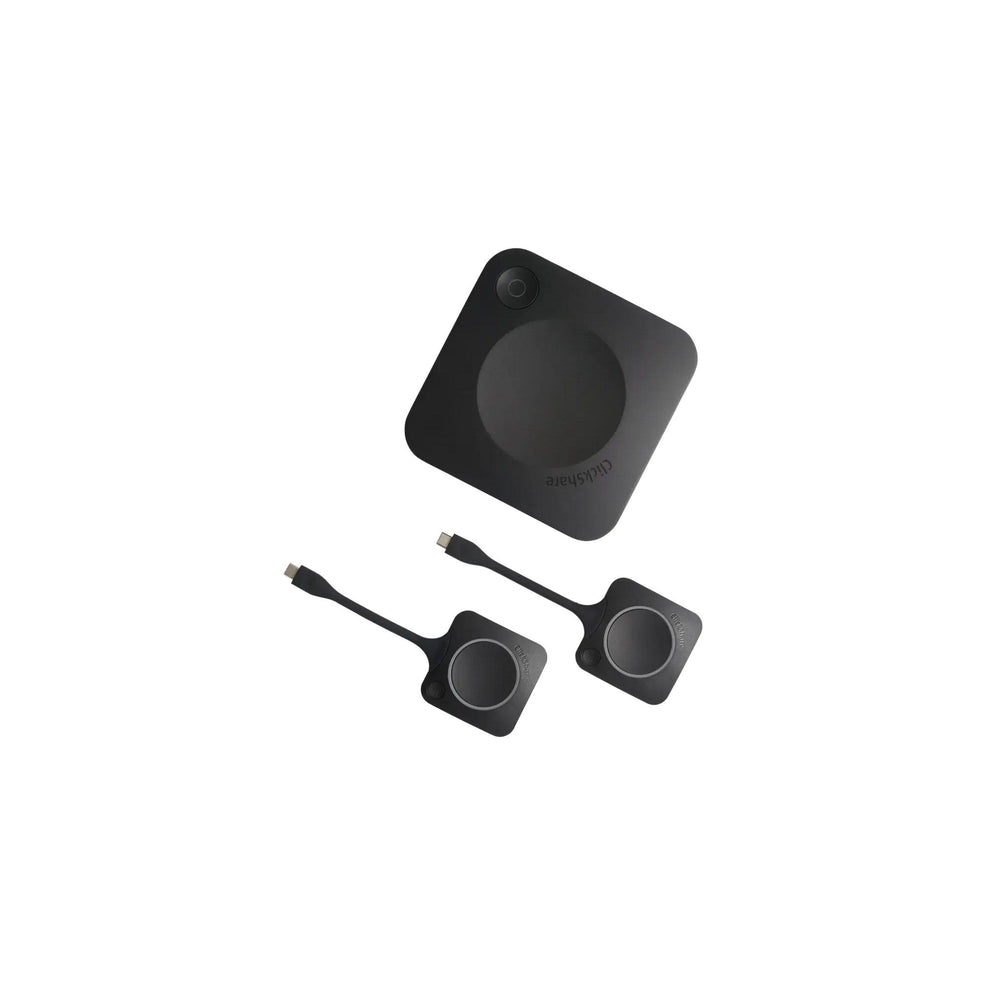

ClickShare Buttons
1 or 2
ClickShare App
Desktop & Mobile
Certifications
FCC/CE
Authentication protocol
WPA2-PSK in standalone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Audio output
HDMI
Anti-theft system
Kensington lock
