Behringer 2600 VCO Eurorack Analog Oscillator Module
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

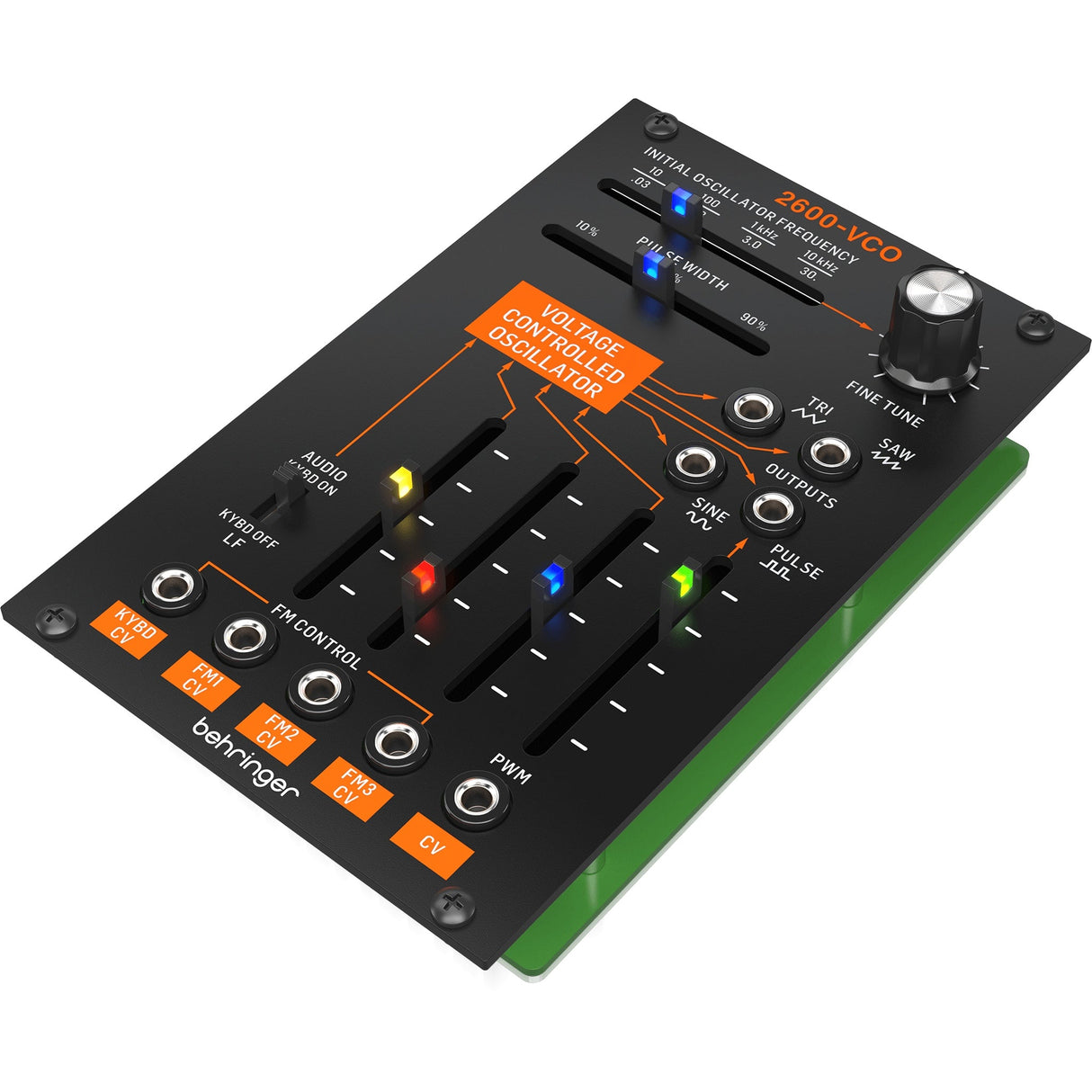

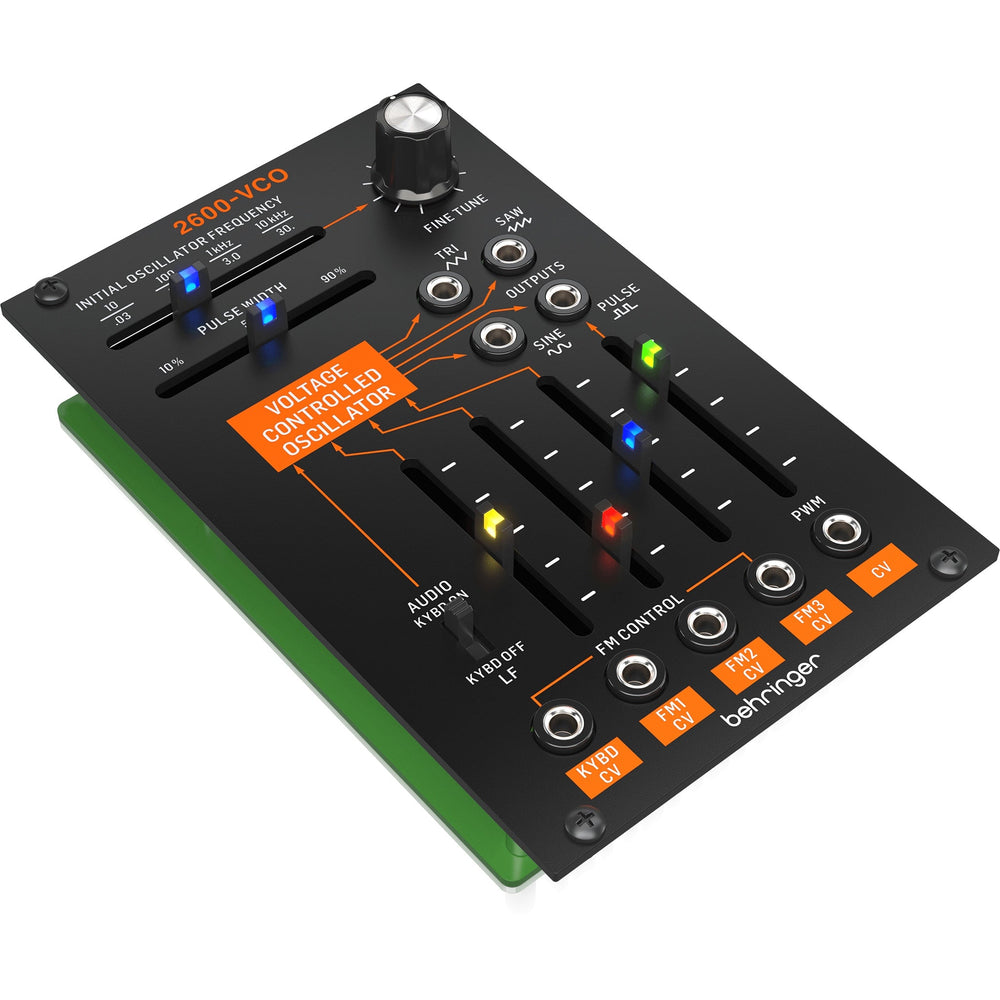

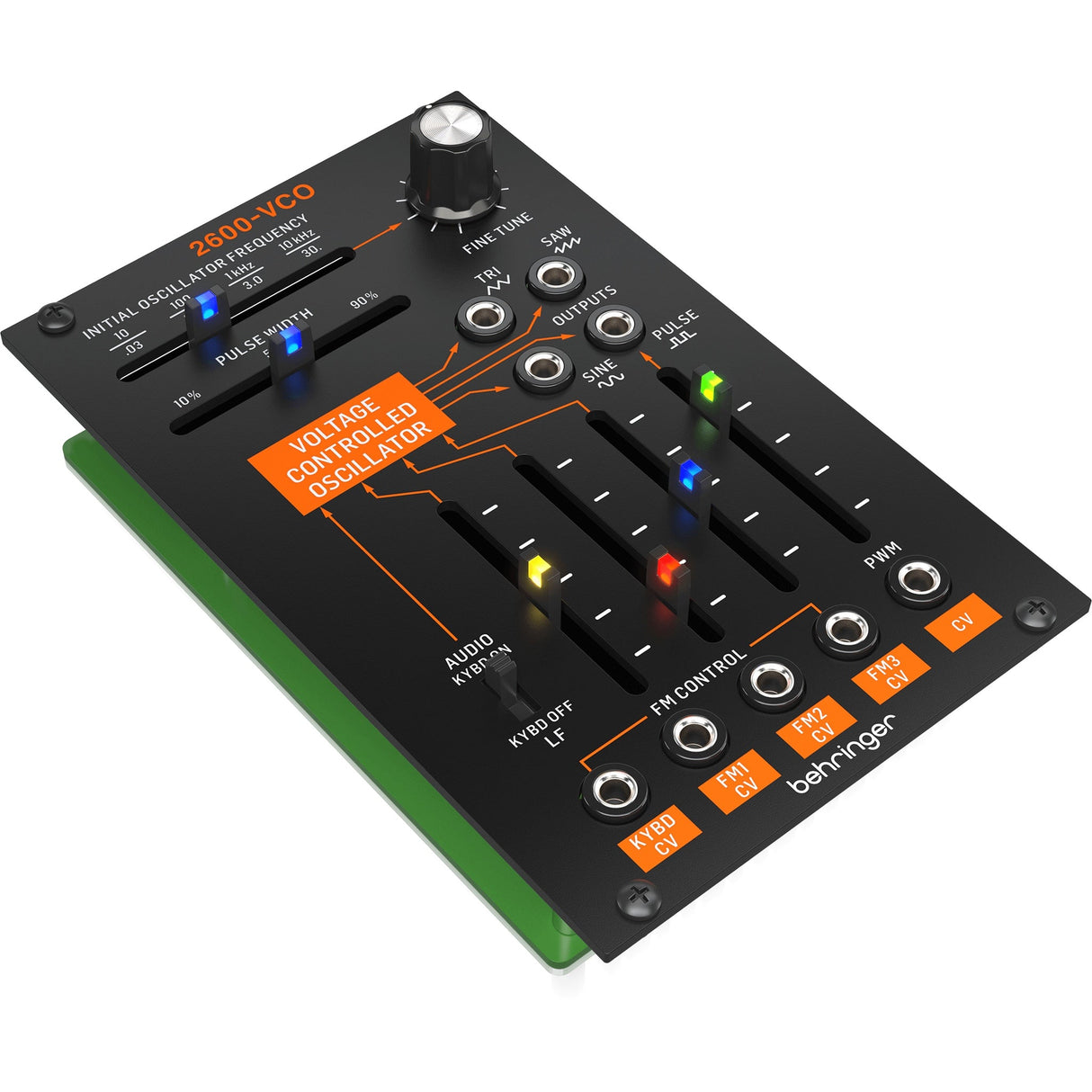

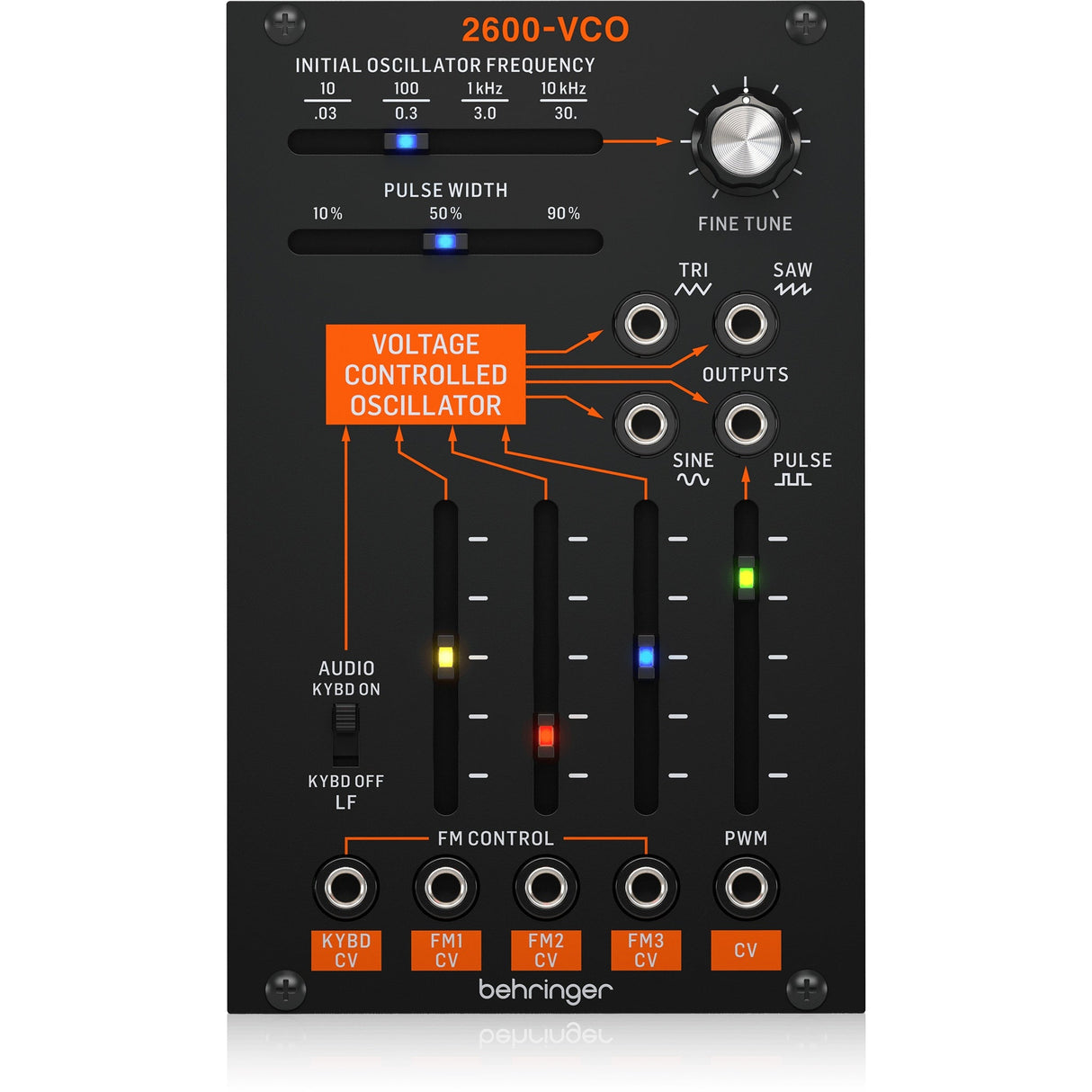

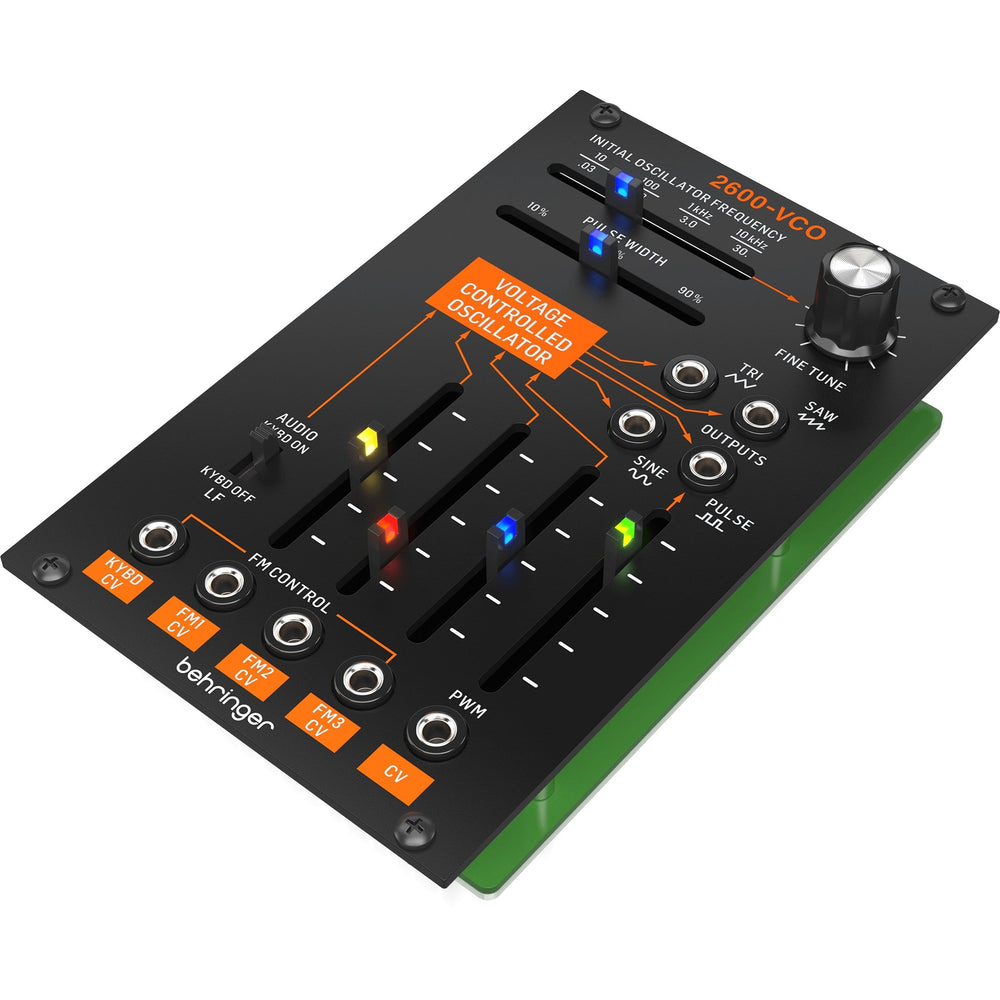

Behringer 2600 VCO Eurorack Analog Oscillator Module
The Behringer 2600-VCO is a Eurorack-format analog oscillator module based on the classic oscillator design used in the legendary ARP 2600 synthesizer. Designed for modular synthesizer systems, it provides authentic vintage oscillator behavior while integrating seamlessly into modern Eurorack setups. With multiple simultaneous waveform outputs and extensive control options, the module enables a wide range of sound design possibilities.
The oscillator generates four simultaneous waveforms including sine, triangle, saw, and pulse, each available through dedicated outputs for flexible patching. The module supports wide frequency ranges covering both audio-rate and low-frequency operation, making it suitable for both tone generation and modulation duties within modular systems.
Multiple CV inputs allow precise pitch control and pulse-width modulation, while manual controls provide immediate access to core parameters. With its compact Eurorack format and faithful circuit design, the Behringer 2600-VCO is ideal for musicians and modular enthusiasts seeking classic analog oscillator performance in a modern modular environment.
Key Features
- Authentic Analog Oscillator: Faithful recreation of the classic ARP 2600 oscillator circuit
- Four Simultaneous Waveforms: Generates sine, triangle, saw, and pulse outputs at the same time
- Wide Frequency Range: Operates from 10 Hz to 10 kHz in audio mode and 0.03 Hz to 30 Hz in LF mode
- Flexible Pulse Width Modulation: PWM adjustable manually or via external control voltage input
- Multiple CV Inputs: Five control voltage inputs for pitch modulation and pulse width control
- Eurorack Compatibility: Compact 16 HP module designed for standard Eurorack modular systems
Technical Specifications
Module TypeAnalog VCO oscillator module
Waveforms
Sine
Triangle
Saw
Pulse
Frequency Range
Audio mode: 10 Hz to 10 kHz
Low frequency mode: 0.03 Hz to 30 Hz
Control Voltage Inputs
Five CV inputs for pitch control and PWM
Controls
Eight controls and switches for oscillator parameters
Inputs
Keyboard CV
Type: 1 x 3.5 mm TS jack, DC coupled
Impedance: 100 kΩ, unbalanced
CV range: 10 V, 1 V/oct.
FM1 / 2 / 3 CV:
Type: 3 x 3.5 mm TS jacks, DC coupled
Impedance: 50 kΩ, unbalanced
CV range: 10 V, 1 V/octave
PWM CV
Type: 1 x 3.5 mm TS jack, DC coupled
Impedance: 75 kΩ, unbalanced
CV range: 10 V, typically 1 V/10%
Outputs
TRI/SINE/SAW/PULSE
Type: 4 x 3.5 mm TS jacks, DC coupled
Impedance: 1 kΩ, unbalanced
TRI level: ±5 V
SINE level: ±5 V
SAW level: 0 V / +10 V
PULSE level: 0 V / +10 V
Controls
Initial oscillator frequency fader: Sets oscillator frequency (10 oct. range)
Fine tune knob: Oscillator fine tune adjustment (±0.4 oct.)
Audio (Kybd on) / LF (Kybd off) slide switch: Select audio band (10 Hz to 10 kHz) or LFO (0.03 Hz to 30 Hz)
FM 1 / 2 /3 faders: Attenuate FM inputs (-∞ to unity gain)
Pulse width fader: Pulse width adjustment (10% to 90%)
PWM fader: Pulse width modulation attenuator (-∞ to unity gain)
Power
Power supply: Eurorack
Current draw: 140 mA (+12 V), 5 mA (-12 V)
Dimensions (H x W x D)
129 x 81 x 42 mm
(5.08 x 3.19 x 1.65")
Rack units
16 HP
Weight
0.15 kg (0.33 lbs)
