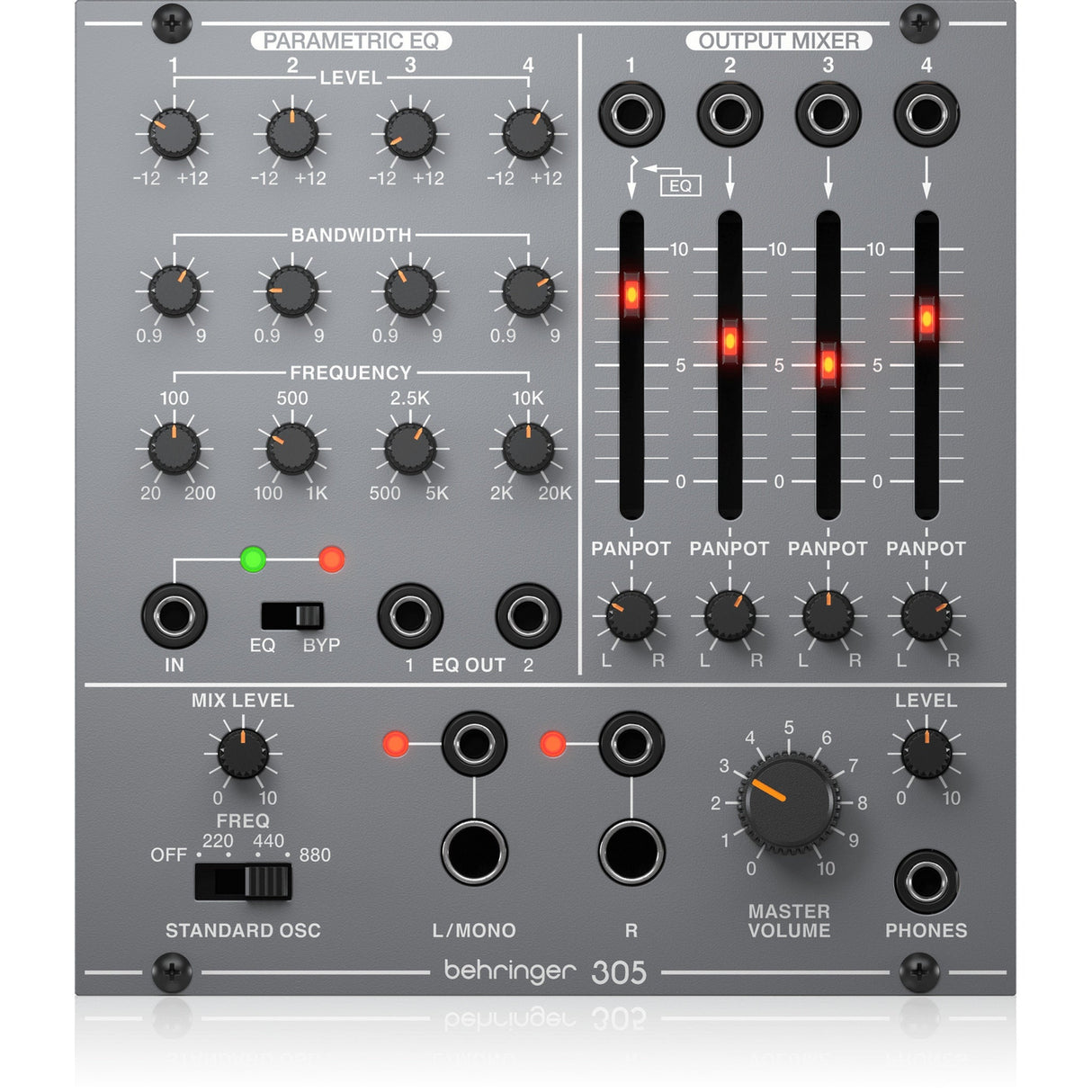

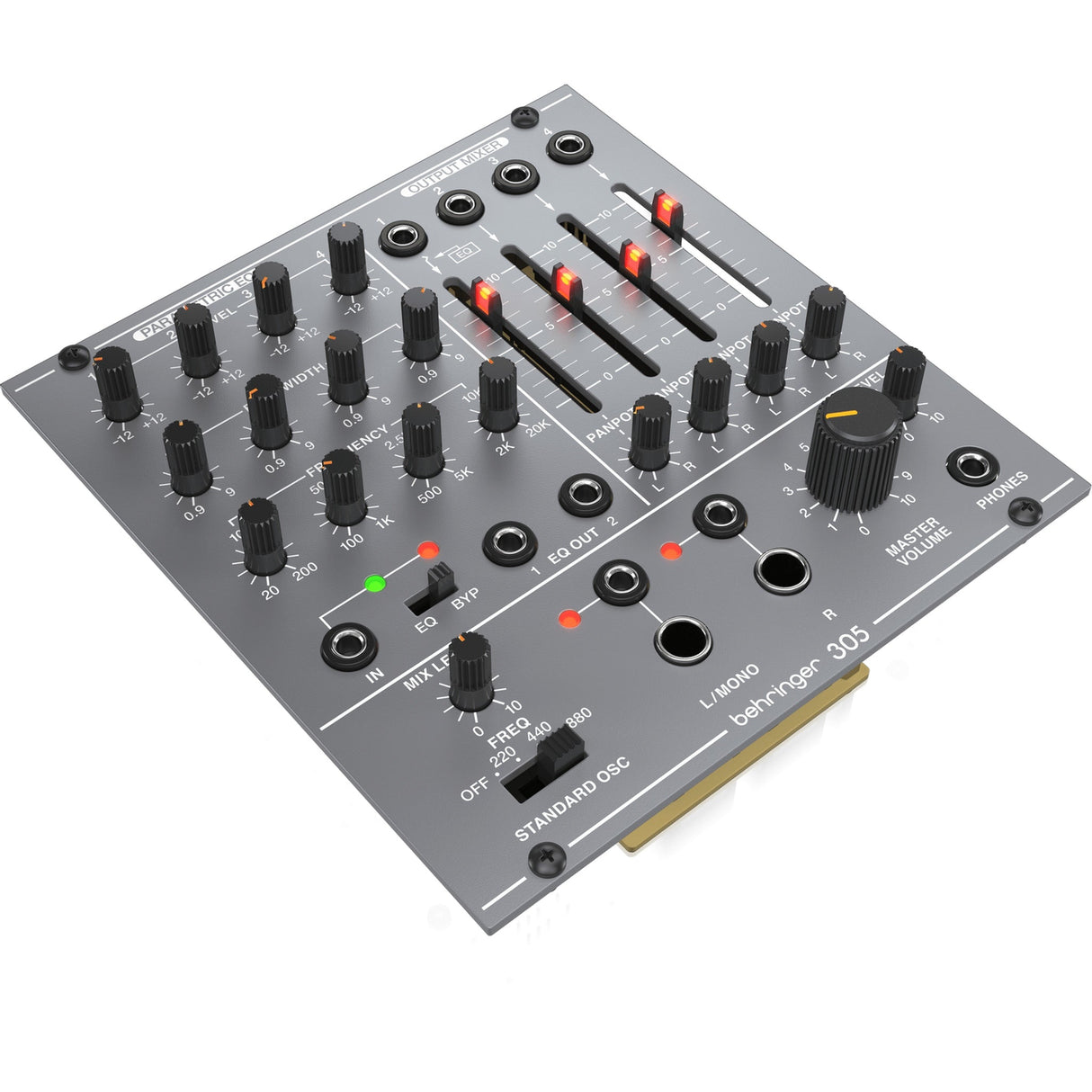

Behringer 305 EQ Mixer Output Eurorack Module
Behringer 305 EQ Mixer Output is a Eurorack module designed for modular synthesizer systems. It enables parametric equalization, signal mixing, and output monitoring for modular users, supporting audio shaping and signal routing workflows. This makes it ideal for Eurorack setups where tonal control, signal mixing, and monitoring are required.
The module combines a multi-band parametric EQ section, a mono mixer, and a headphone output amplifier in a single Eurorack module. It also includes an internal oscillator for reference tones and signal testing within modular patching environments.
Within a modular system, it can be used to shape frequencies, combine multiple signals, and route audio to monitoring outputs. Its EQ bypass and multiple output paths support patch evaluation and signal routing to mixers, interfaces, or other modules.
Key Features
- Parametric EQ Section: Four-channel EQ section with level, bandwidth, and frequency controls
- System 100M Circuitry: Authentic reproduction of original System 100M analog circuit design
- Integrated Mono Mixer: Four-input mixer with pan control and adjustable master outputs
- Tuning Oscillator: Built-in oscillator with selectable reference frequencies
- Headphone Monitoring: Independent headphone output with level control
- EQ Bypass Control: Dedicated switch allows quick comparison of processed and unprocessed signals
- Extensive Control Surface: Twenty-five front panel controls provide direct parameter access
- Eurorack Compatibility: Designed for Eurorack systems with twenty-four HP width
Technical Specifications
InputsEQ input
Type: 3.5 mm TS jack, AC coupled
Impedance: 40 kΩ, unbalanced
Max input level: +18 dBu
Mixer input
Type: 4 x 3.5 mm TS jacks, AC coupled
Impedance: > 25 kΩ, unbalanced
Max input level: +21 dBu
Outputs
EQ output
Type: 2 x 3.5 mm TS jacks, DC coupled
Impedance: 330 Ω, unbalanced
Max output level: +18 dBu
Noise with EQ set flat: < -90 dBu, 22 Hz to 22 kHz
Master output
Type: 2 x 3.5 mm TS jacks 2 x ¼" TS jacks AC coupled
Impedance: 700 Ω, unbalanced
Max output level: +8 dBu
Noise with 1 channel open: < -100 dBu, 22 Hz - 22 kHz
Phones output
Type: 3.5 mm TRS stereo jack, AC coupled
Impedance: 50 Ω, unbalanced
Max output level: +18 dBu
Controls
EQ level: ±12 dB, 0 dB center detent
EQ bandwidth Q range: 0.9 to 9
EQ frequency range 1: 20 Hz to 200 Hz
EQ frequency range 2: 100 Hz to 1 kHz
EQ frequency range 3: 500 Hz to 5 kHz
EQ frequency range 4: 2 kHz to 20 kHz
EQ bypass switch: Off / on
OSC frequency switch: Off / 220 Hz / 440 Hz / 880 Hz
OSC mix level: -∞ to unity gain
Mixer input fader: -∞ to unity gain
Master volume: -∞ to -10 dBu
Phones level: -∞ to +10 dBu
Power
Power supply: Eurorack
Current draw: 120 mA (+12 V), 100 mA (-12 V)
Dimensions
53 x 122 x 129 mm
(2.1 x 4.8 x 5.1")
Rack units
24 HP
Weight
0.28 kg (0.62 lbs)
