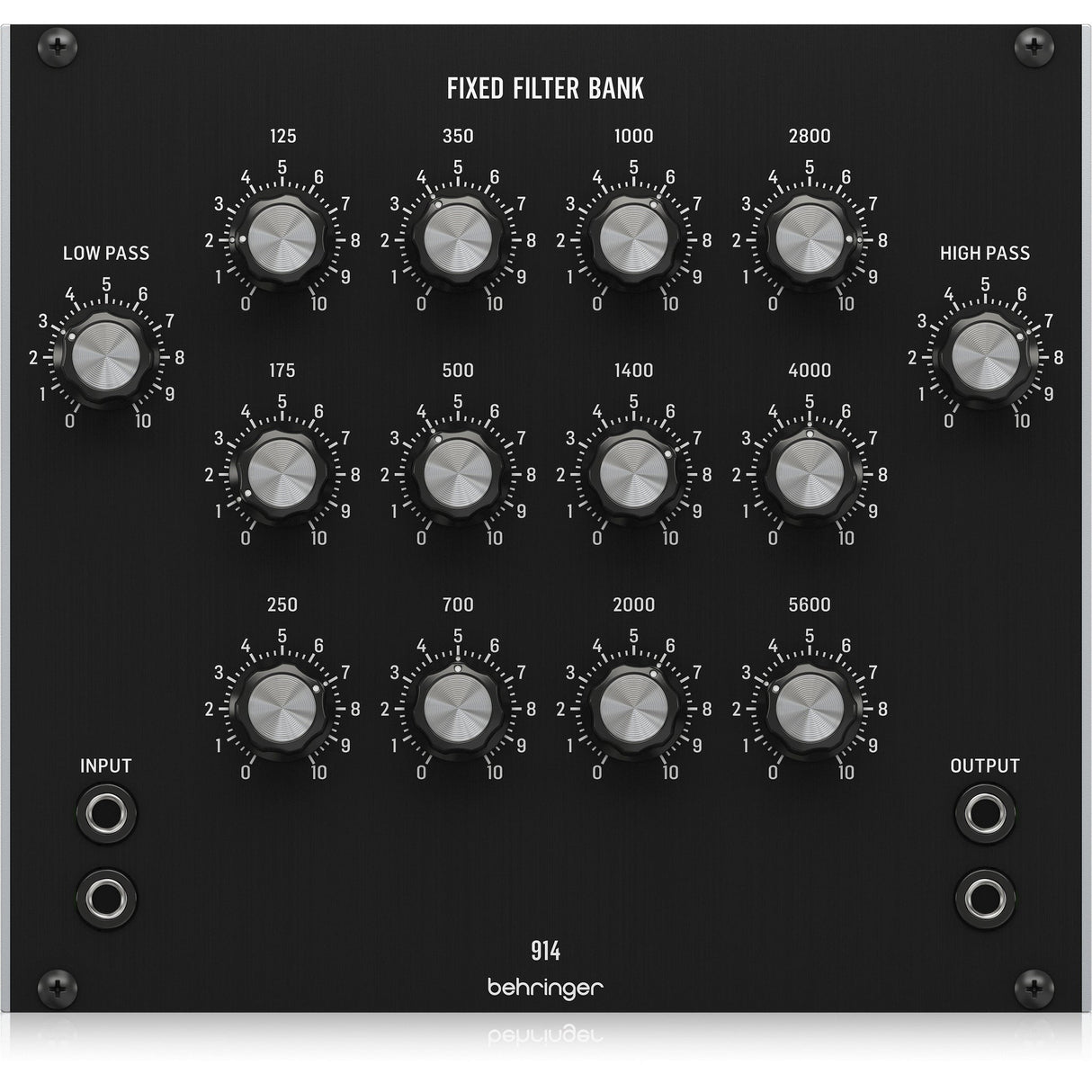

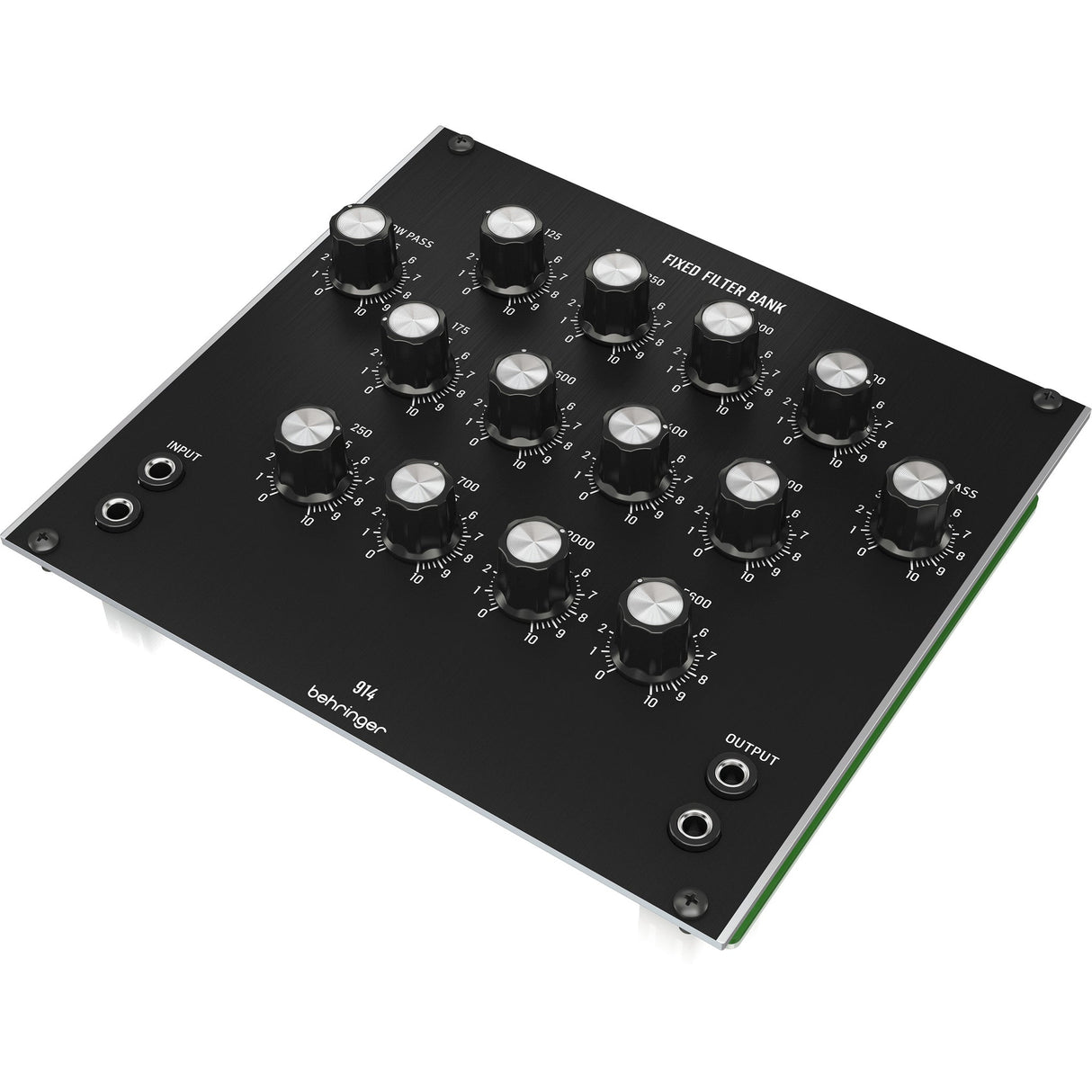

Behringer 914 Fixed Filter Bank Eurorack Module

Behringer 914 Fixed Filter Bank Eurorack Module

Behringer 914 Fixed Filter Bank is an analog filter bank module designed for Eurorack modular synthesizer systems. It enables frequency shaping and harmonic filtering for modular users, supporting sound sculpting and spectral control workflows. This makes it ideal for Eurorack setups where multi-band filtering and tonal shaping are required.

The module operates as a fixed filter bank with multiple bandpass filters covering a range of frequencies. Additional lowpass and highpass filters allow broader tonal control within a modular patch.

Within a modular system, it can be used to emphasize or reduce specific frequency bands for complex timbral shaping. Its filter network supports routing signals through multiple spectral bands to create detailed tonal textures.

Key Features

• Fixed Filter Bank Module: Analog filter bank designed for modular synthesizer systems
• Vintage Modular Circuitry: Reproduction of discrete I O circuitry from classic Modular 55 systems
• Twelve Bandpass Filters: Active filter bands covering frequencies from 125 Hz to 5.6 kHz
• Additional Filters: Includes dedicated lowpass and highpass filtering stages
• Dual Signal Connections: Two input and two output jacks for flexible patching
• Spectral Sound Shaping: Allows control over multiple frequency bands for detailed tonal sculpting
• Eurorack Compatibility: Designed for standard Eurorack systems with twenty eight HP module width

Technical Specifications

Module Type
Analog fixed filter bank module

Filter Structure
12 active bandpass filters
Lowpass filter
Highpass filter

Bandpass Frequency Range
125 Hz to 5.6 kHz

Connections
Dual input jacks
Dual output jacks

Power
Power supply: Eurorack
Current draw: 60 mA (+12 V), 70 mA (-12 V)

Rack units
28 HP
