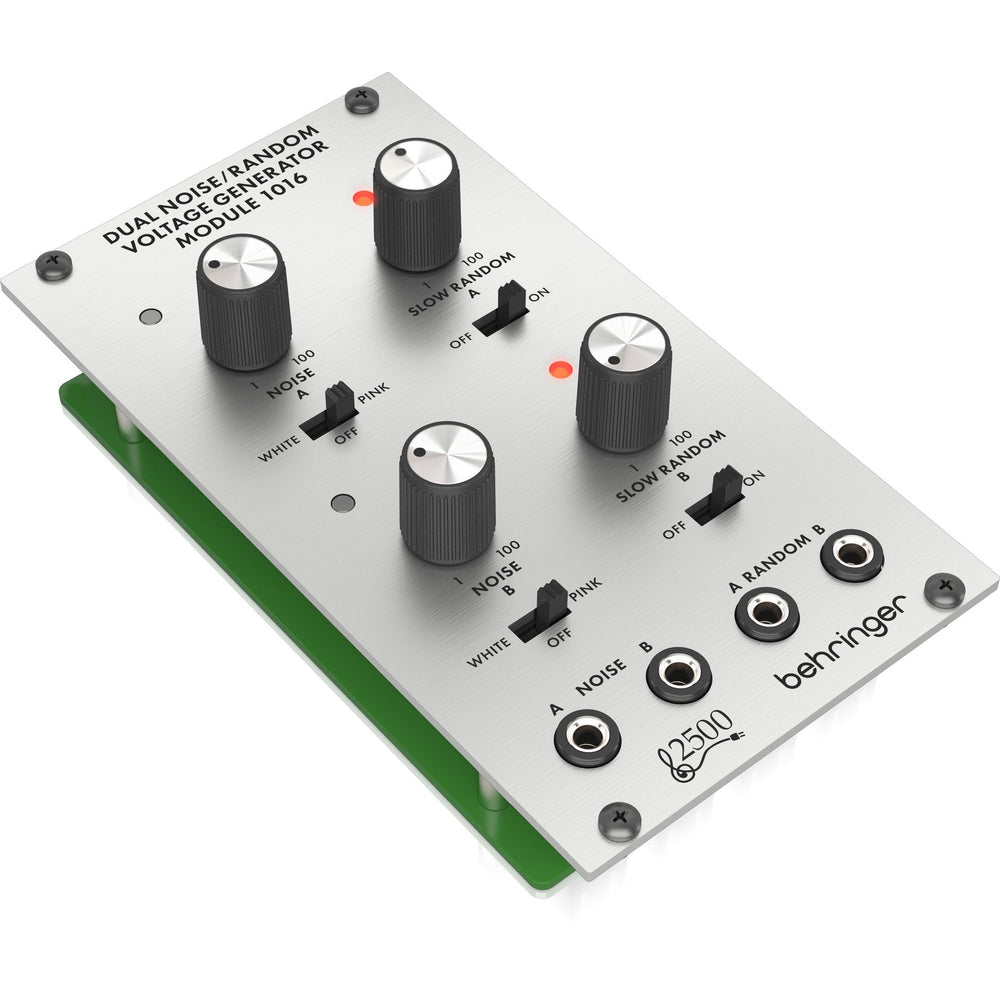

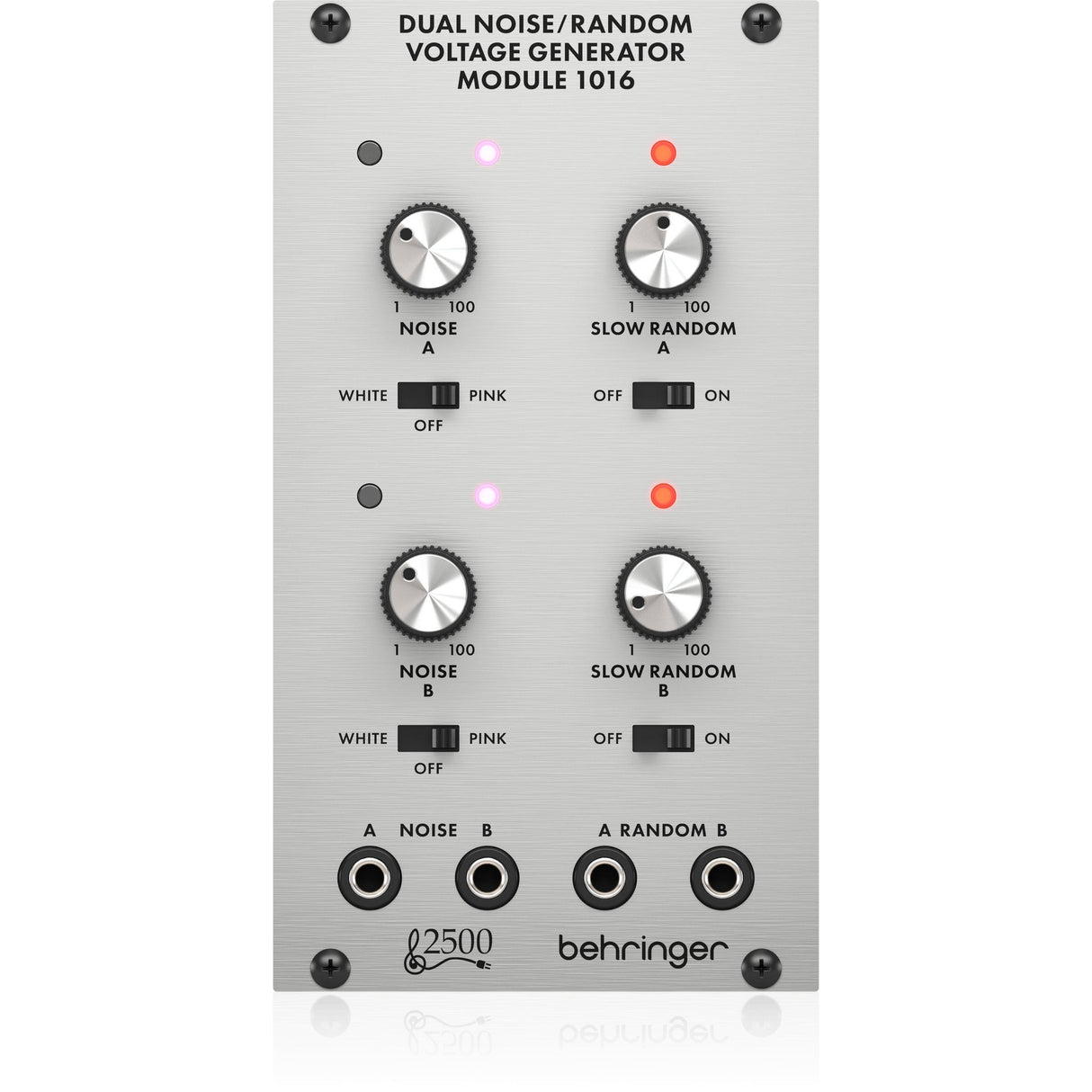

Behringer Dual Noise Random Voltage Generator Module 1016 Eurorack Synth Module
Behringer Dual Noise Random Voltage Generator Module 1016 is a Eurorack synthesizer module designed for generating noise and random control voltages in modular synthesis systems. It enables sound designers and musicians to introduce noise sources and random modulation signals, supporting experimental sound design and modulation workflows. This makes it ideal for Eurorack modular systems where noise generation and random voltage modulation are required.
The module operates with two independent analog noise sources capable of producing white noise, pink noise, and random voltage signals. Filtering and switching circuits allow users to select noise types and enable or disable random voltage generation.
This architecture allows modular synthesizer users to generate noise textures and unpredictable modulation signals for patch creation. It supports flexible signal routing and modulation within Eurorack synthesis environments.
Key Features
- Classic Analog Design: Dual analog noise and random voltage generator based on the vintage 2500 series circuitry.
- Dual Noise Generators: Two identical modules generating white noise, pink noise, and random voltage signals.
- Independent Noise Sources: Noise outputs generated from two independent transistor noise circuits.
- Noise Filtering: White noise can be filtered to produce pink noise or slow random voltage signals.
- Output Attenuators: Two attenuators allow control of output signal levels.
- Selectable Noise Types: Slide switch selects white noise or pink noise with LED indication.
- Random Voltage Control: Random voltage generator can be enabled or disabled via switch with LED indicator.
- Wide Noise Range: White noise spans 5 Hz to 20 kHz while pink noise balances energy per octave.
- Random Voltage Modulation: Slow random voltages provide modulation signals with peak energy between 1 Hz and 10 Hz.
- Eurorack Compatibility: Designed for Eurorack modular synthesizer systems.
Technical Specifications
OutputsNoise Type: 2 x 3.5 mm TS jacks, DC coupled
Noise Impedance: 1 kOhm unbalanced
Noise Max Output Level: ±5 V
Random Type: 2 x 3.5 mm TS jacks, DC coupled
Random Impedance: 1 kOhm unbalanced
Random Max Output Level: ±5 V
Controls
Noise: Attenuates noise generator output
Random: Attenuates voltage output
White Pink Off: Selects white noise or pink noise or off
Random On / Off: Engages or disengages voltage generator
Power
Power Supply: Eurorack
Current Draw: 45 mA (+12 V), 15 mA (-12 V)
Physical
Dimensions: 42 x 71 x 129 mm (1.7 x 2.8 x 5.1")
Rack Units: 14 HP
Weight: 0.13 kg (0.29 lbs)
