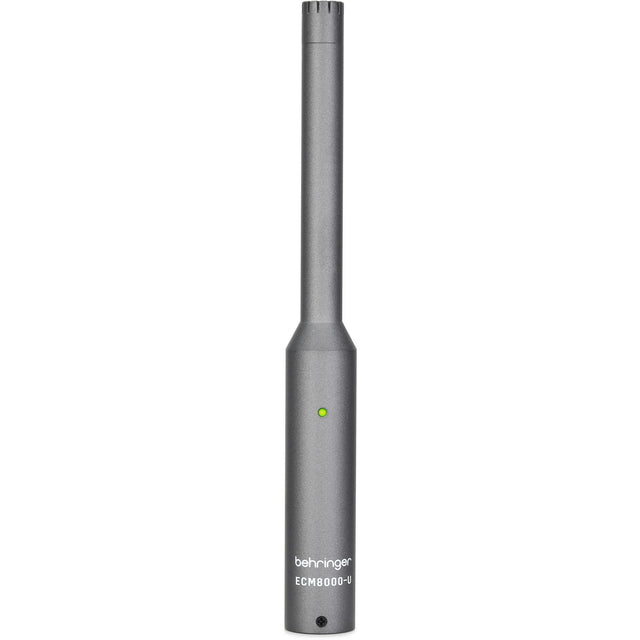

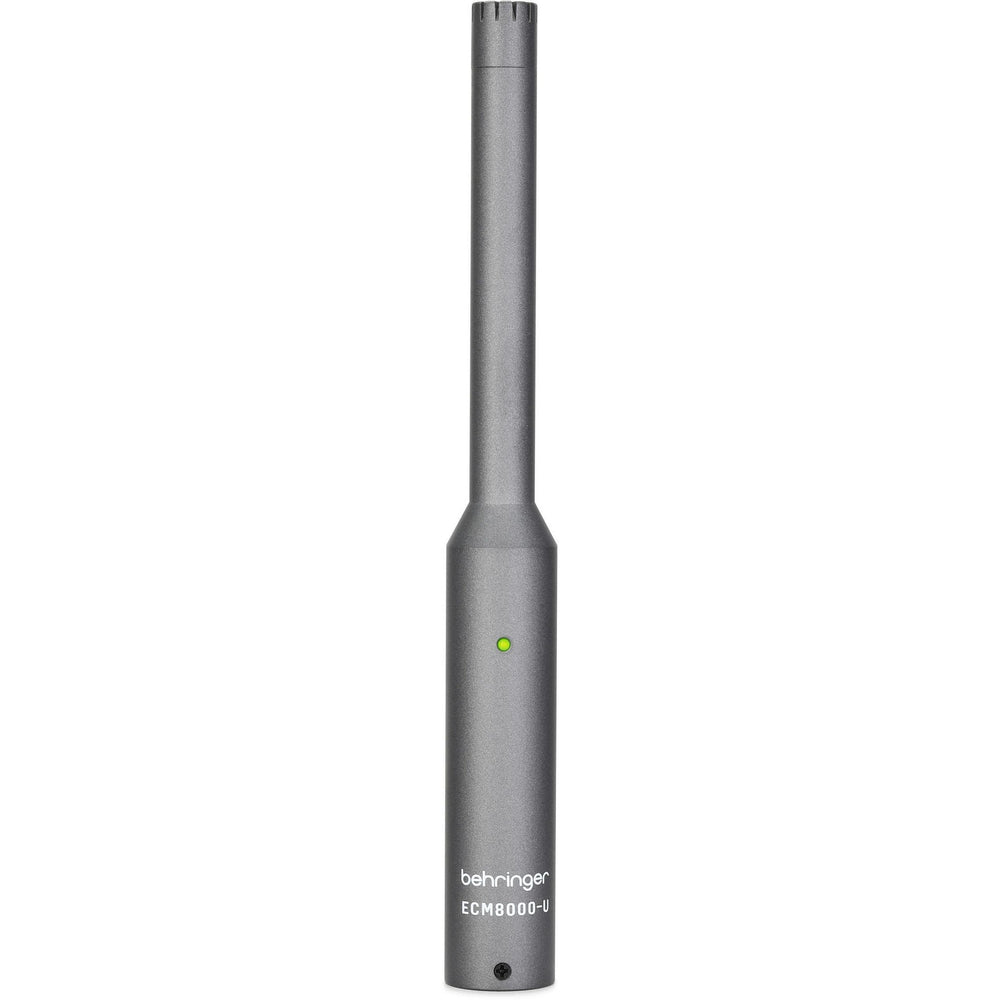

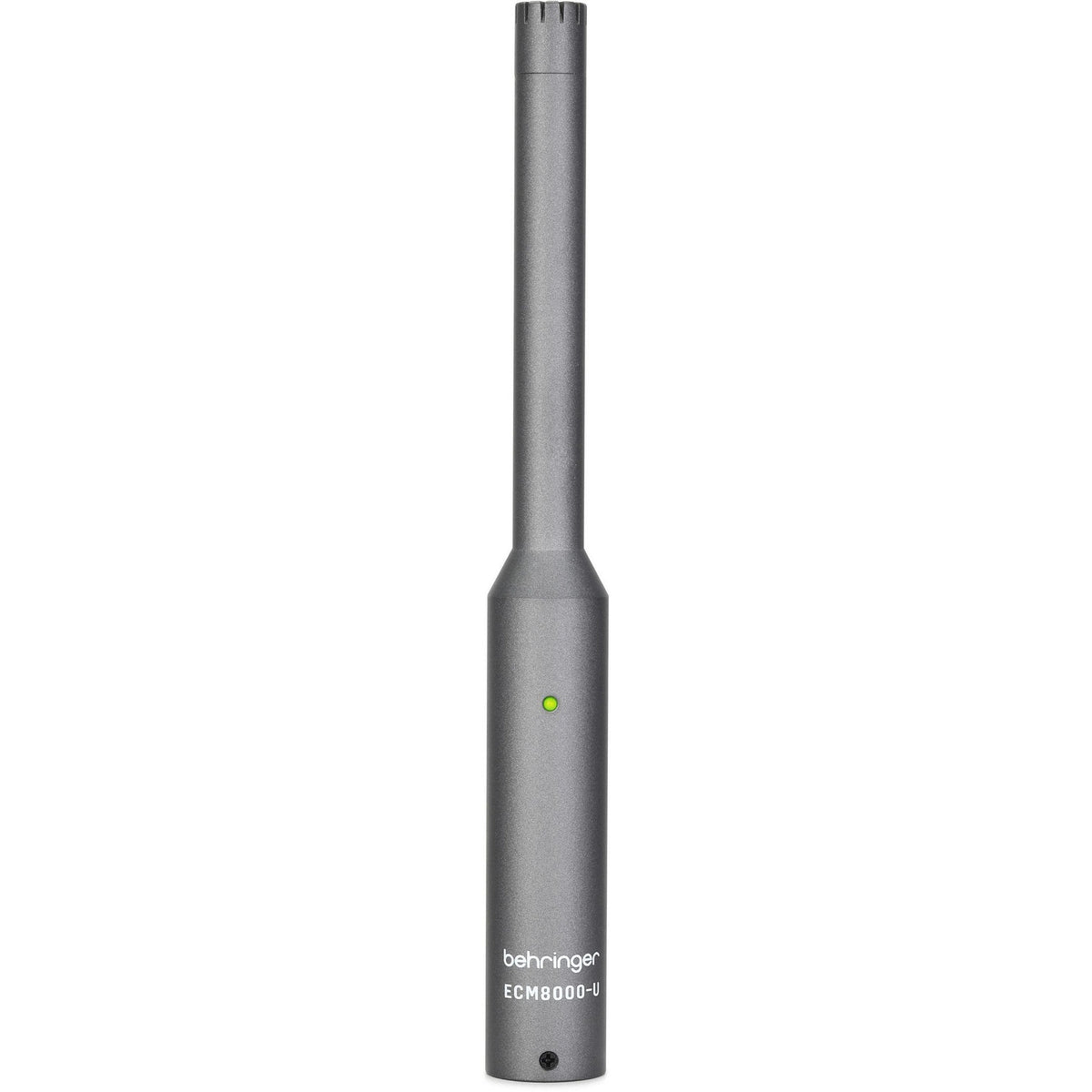

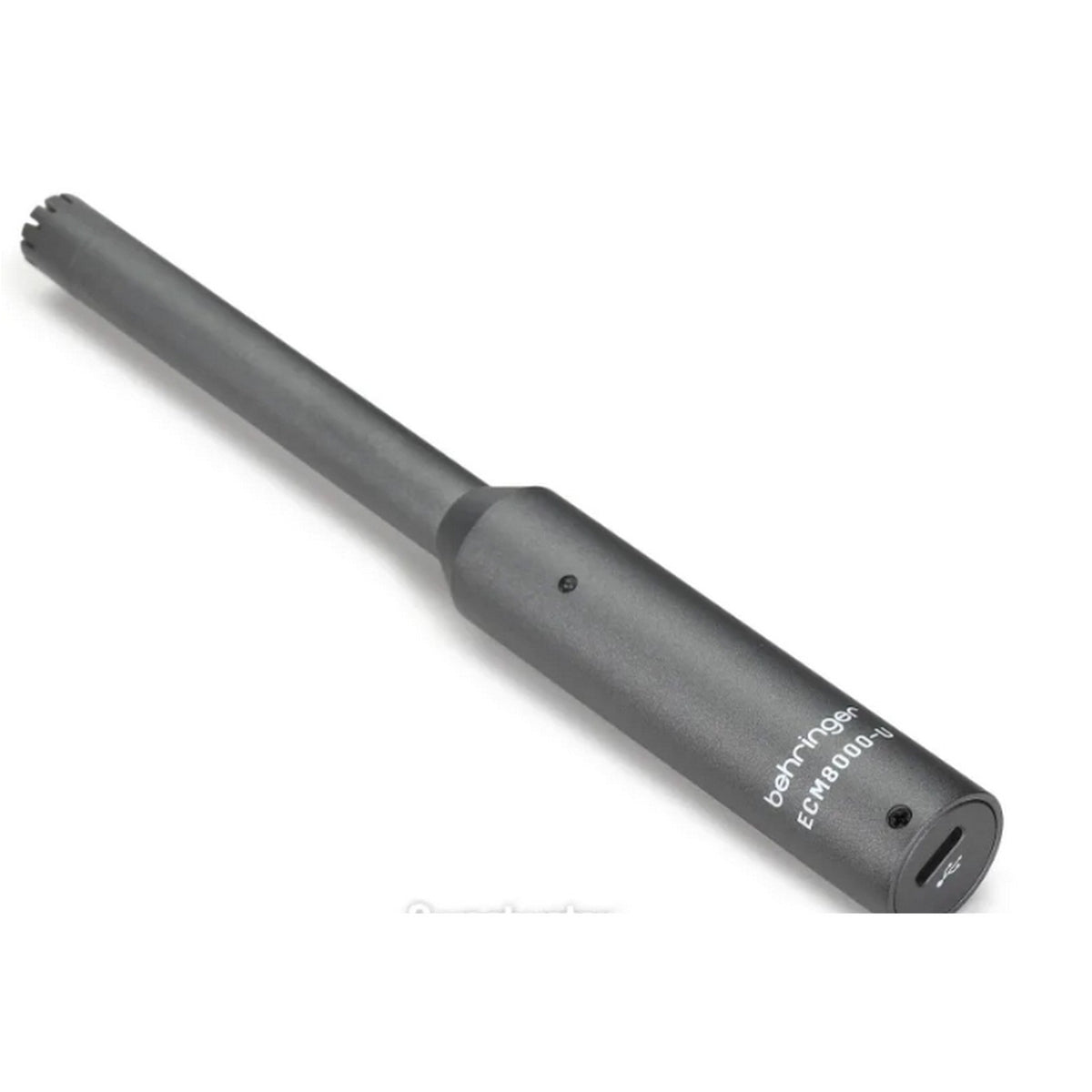

Behringer ECM8000-U USB Measurement Condenser Microphone

Behringer ECM8000-U USB Measurement Condenser Microphone

The Behringer ECM8000-U USB Measurement Condenser Microphone is a plug-and-play acoustic measurement tool designed for room analysis, speaker calibration, and sound system optimization. Featuring a precision 6 mm omnidirectional electret capsule, a 20 Hz to 20 kHz frequency response, and integrated 24-bit/48 kHz digital conversion, it connects directly to compatible computers through USB-C.

Designed for audio engineers, studio technicians, system integrators, and live sound professionals, the ECM8000-U simplifies acoustic measurement without requiring a separate audio interface or external phantom power. Its omnidirectional pickup pattern captures sound arriving from multiple directions, making it suitable for evaluating room frequency response, identifying acoustic problems, and adjusting speaker equalization. Engineers can use this USB measurement microphone for studio monitor calibration, PA system alignment, control room acoustic analysis, and home theater optimization. The microphone also supports measurement applications in automotive audio systems, rehearsal rooms, and live performance venues. With its integrated digital interface, users can connect the microphone to compatible measurement software and begin analyzing their listening environment.

The ECM8000-U incorporates a low-noise electret condenser design with a specified 65 dB A-weighted signal-to-noise ratio and maximum sound pressure handling of 134 dB SPL under the manufacturer's stated test conditions. Its USB Type-C connection supports plug-and-play operation with compatible Windows, macOS, and Linux computers, while manufacturer documentation also identifies Android compatibility. The microphone operates from 5V USB power and features a green status LED. An included microphone clamp and protective carrying case support convenient installation, transportation, and storage for professional measurement applications.

Key Features

• USB Measurement Microphone: Connects directly to compatible computers through USB-C, eliminating the need for a separate audio interface or phantom power supply during acoustic measurements.
• Precision Omnidirectional Capsule: Uses a 6 mm electret condenser element to capture acoustic information from multiple directions for room analysis and speaker calibration.
• Wide Frequency Response: Covers 20 Hz to 20 kHz, allowing measurement of bass, midrange, and high-frequency performance across the audible spectrum.
• 24-Bit Digital Conversion: Provides 24-bit audio resolution at a 48 kHz sampling rate for detailed acoustic measurement and analysis.
• High Sound Pressure Handling: Supports sound pressure levels up to 134 dB SPL at 1% THD under specified gain conditions, making it suitable for evaluating loudspeaker systems.
• Plug-and-Play Connectivity: Supports compatible Windows, macOS, and Linux computers without requiring an external audio interface.
• Professional Acoustic Applications: Suitable for studio monitor alignment, live PA tuning, room equalization, home theater calibration, and automotive audio analysis.
• Portable Measurement Design: Includes a microphone mounting clamp and protective zippered case for convenient positioning, transportation, and storage.

Technical Specifications

General Specifications

• Brand: Behringer
• Model: ECM8000-U
• Manufacturer Product Code: 0506-ABU
• Product Type: USB Measurement Condenser Microphone
• Microphone Technology: Electret Condenser
• Primary Application: Acoustic Measurement, Room Equalization, and Sound System Calibration

Microphone and Acoustic Specifications

• Capsule Type: Precision Electret Condenser
• Capsule Diameter: 0.2" (6 mm)
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: -6 dBFS/Pa at +20 dB Gain Setting
• Maximum Sound Pressure Level: 134 dB SPL at 1% THD, 1 kHz, and -14 dB Gain Setting
• Signal-to-Noise Ratio: 65 dB (A-Weighted)

Digital Audio Specifications

• Digital Audio Resolution: 24-Bit
• Sampling Rate: 48 kHz

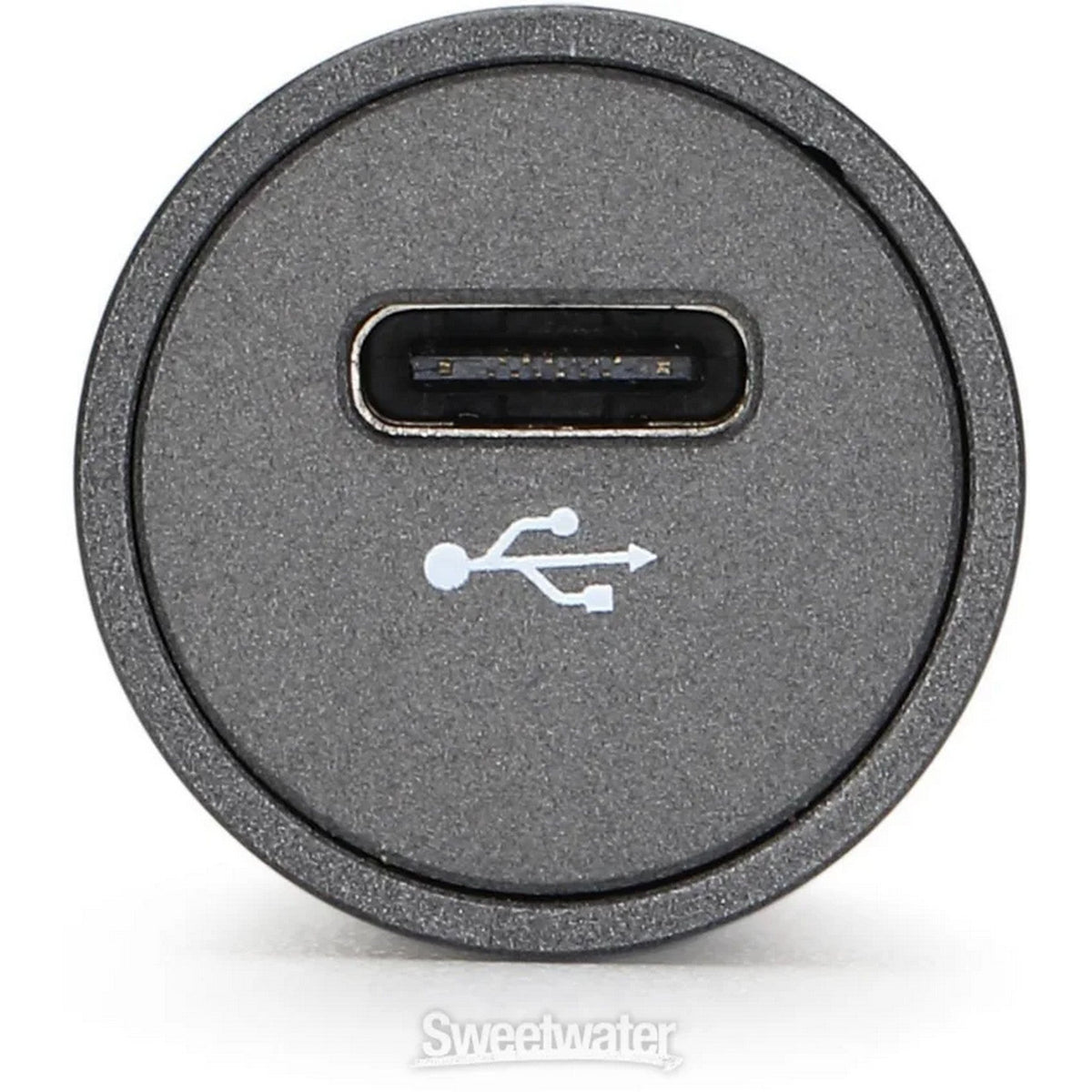

• Audio Connection: USB Type-C
• Connection Type: Direct USB Digital Audio

Power and Compatibility

• Power Source: USB Bus Power
• Operating Voltage: 5V DC
• Current Consumption: 18 mA
• Power Indicator: Green LED
• External Phantom Power Required: No
• External Audio Interface Required: No
• Supported Operating Systems: Windows, macOS, Linux, and Compatible Android Devices

Physical Specifications

• Microphone Length: 7.1"
• Microphone Body Diameter: 0.8"
• Microphone Dimensions (L x W x H): 7.1" x 0.8" x 0.8"
• Microphone Weight: 0.3 lb
• Operating Temperature: 41 to 113 degrees Fahrenheit

What's in the Box

• Behringer ECM8000-U USB Measurement Condenser Microphone
• Microphone Clamp / Swivel Stand Mount
• Protective Zippered Carrying Case
