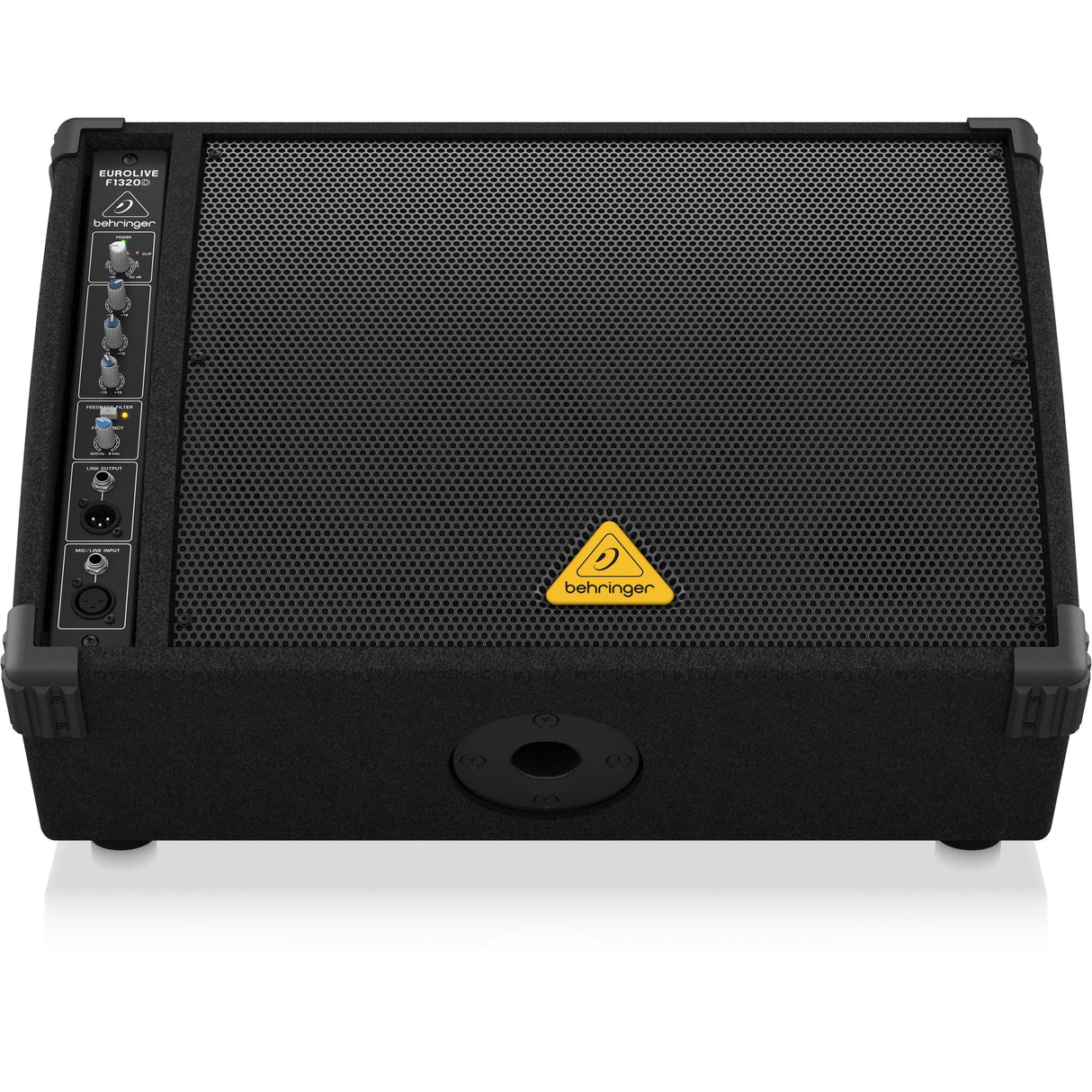

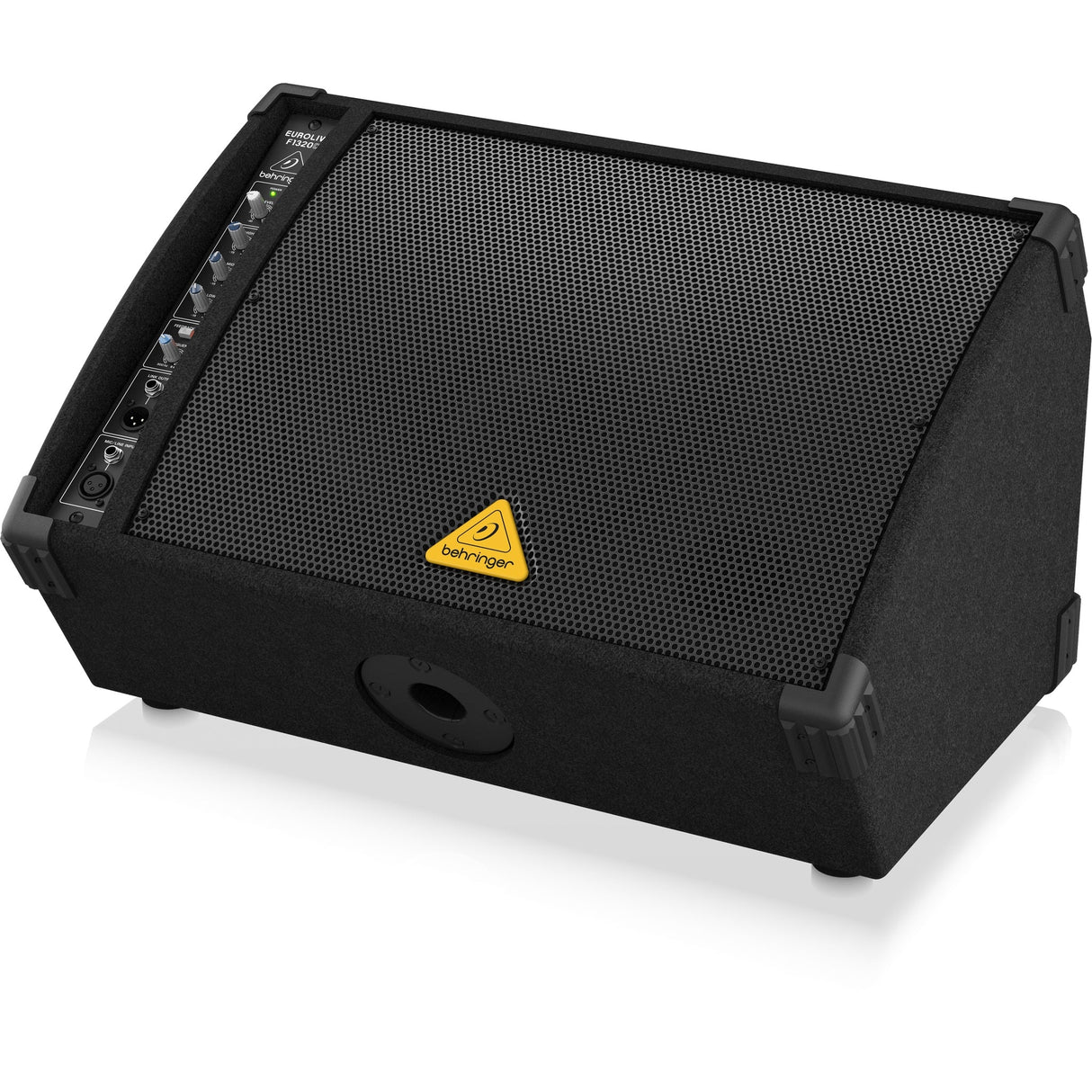

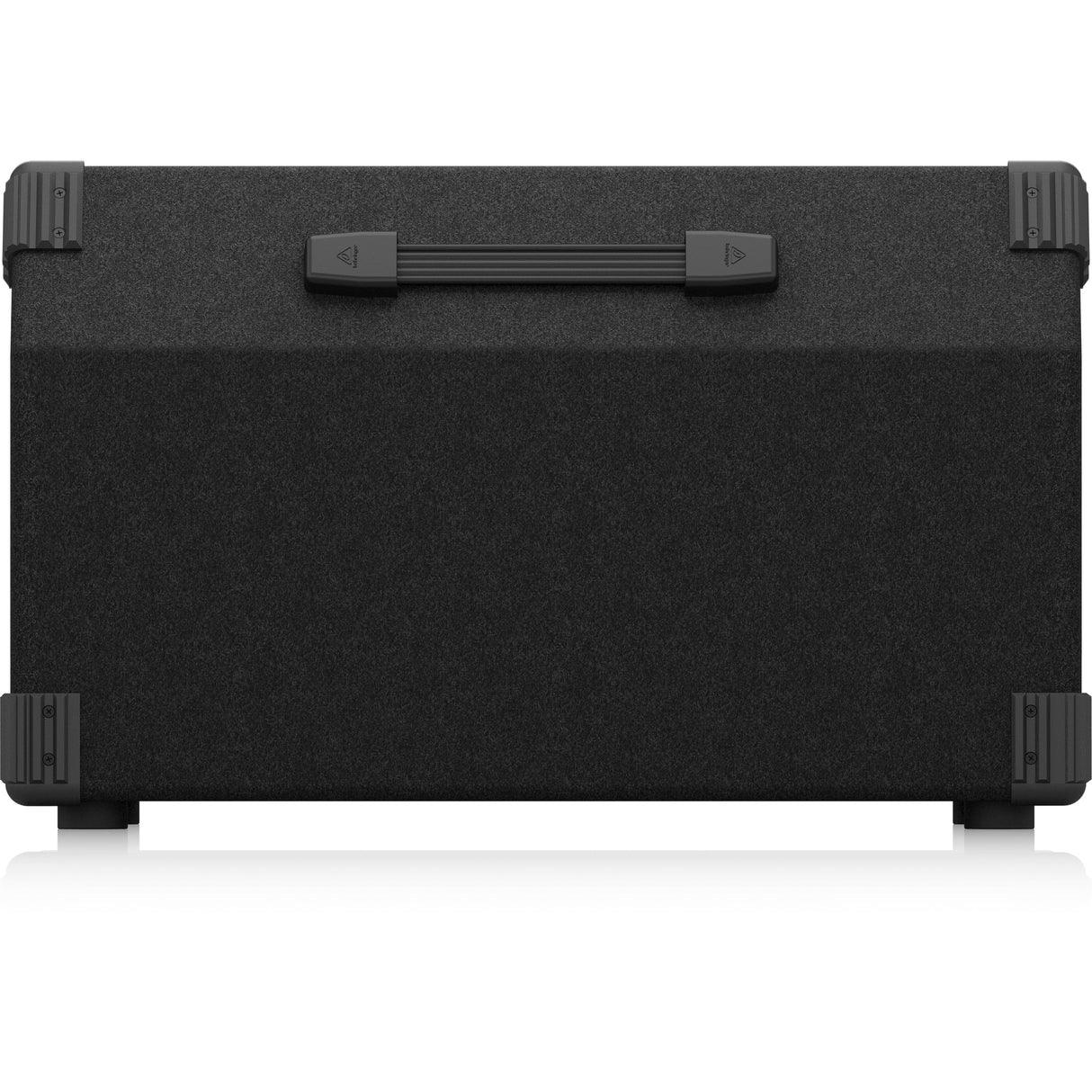

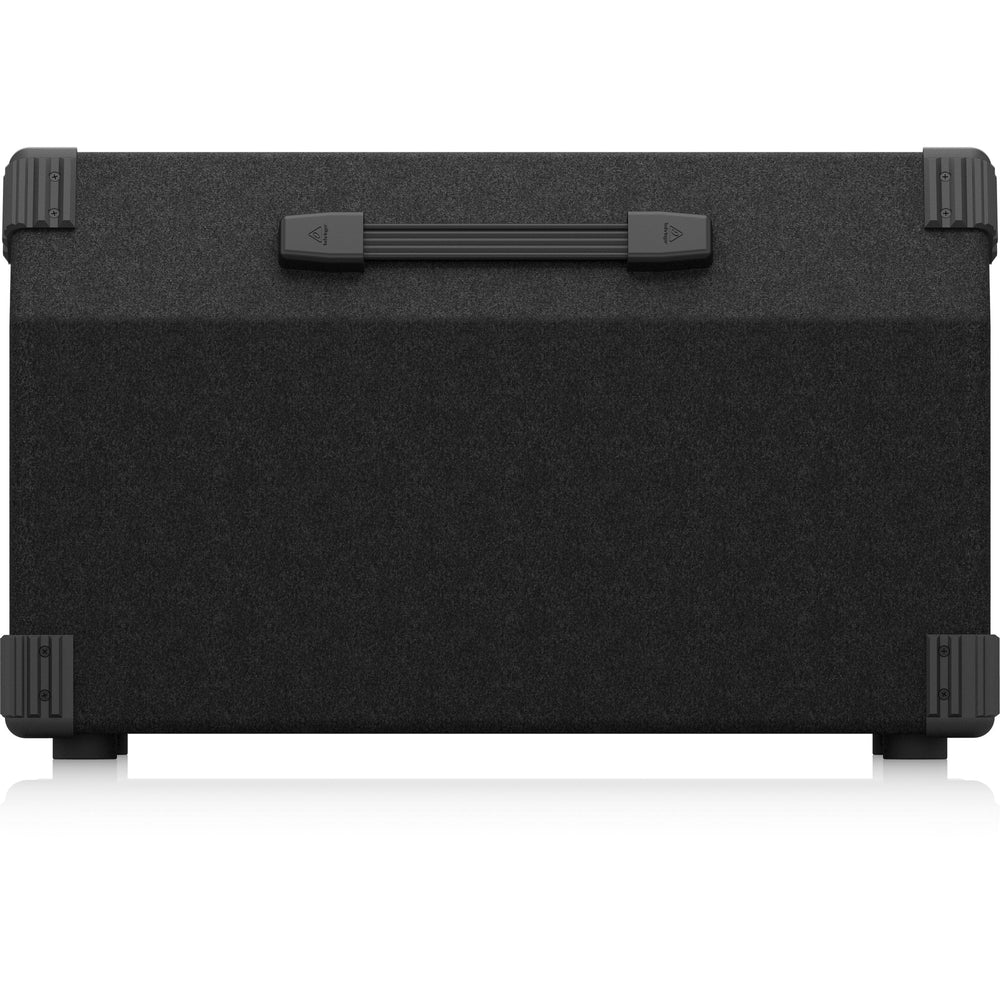

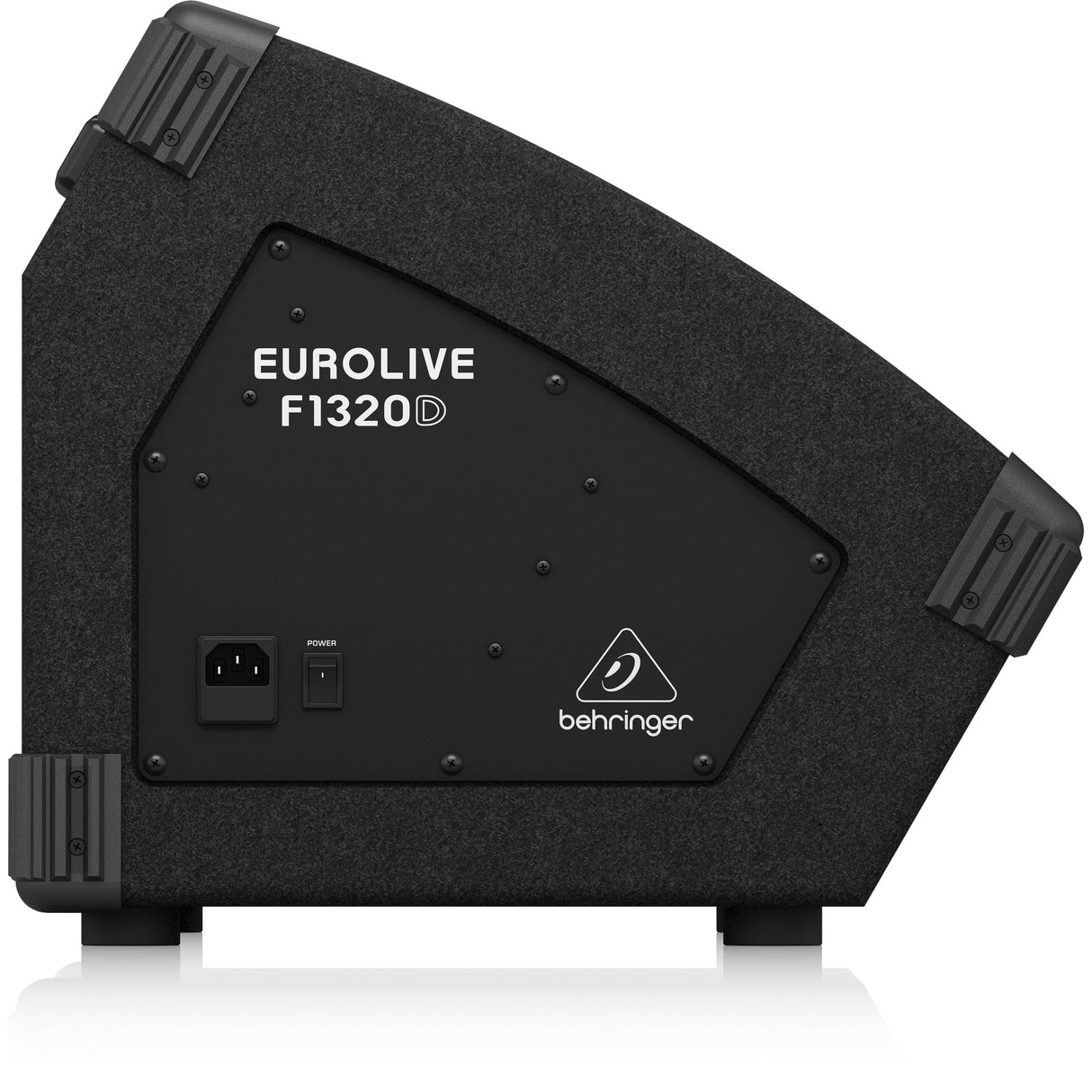

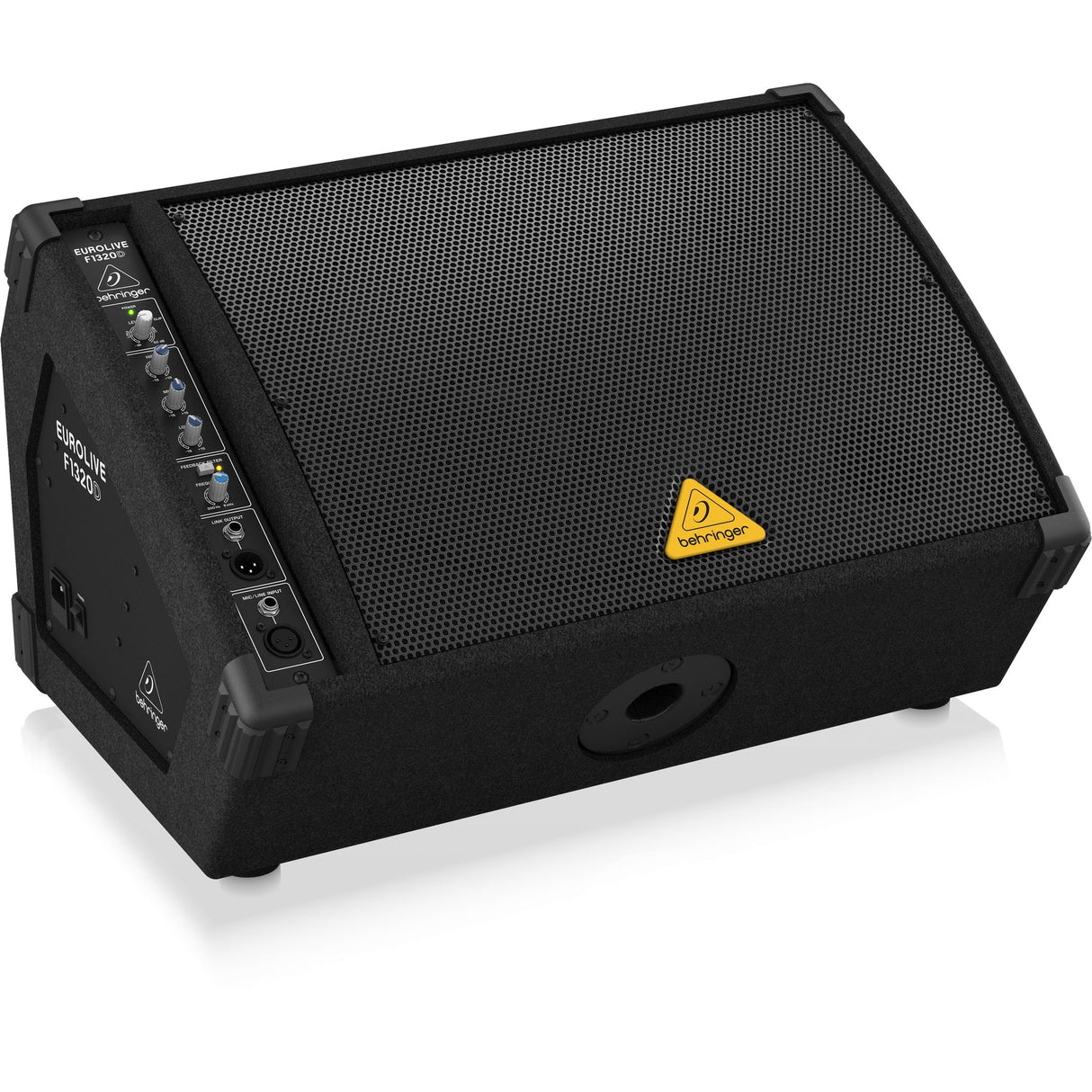

Behringer F1320D Active 300W 2-Way Monitor Speaker System with 12" Woofer, 1" Compression Driver and Feedback Filter

Behringer F1320D Active 300W 2-Way Monitor Speaker System with 12" Woofer, 1" Compression Driver and Feedback Filter

The Behringer F1320D is a high-power active stage monitor designed for live sound reinforcement and playback applications. It provides performers with clear on-stage monitoring while delivering strong acoustic output suitable for live venues, rehearsal spaces, and portable PA systems.

The monitor uses a 300 W Class-D bi-amplified system paired with a 12" long-excursion woofer and a high-resolution 1" compression driver. This design delivers wide frequency response, high sound pressure levels, and efficient power performance while maintaining a lightweight enclosure for portable setups.

An integrated feedback filter, limiter, and digital sound processor help optimize system performance while protecting the speaker from overload conditions. Built-in microphone and line inputs with EQ controls allow the speaker to function as a standalone monitor or as part of a larger PA system.

Key Features

• 300 W Powered Monitor: High-power 2-way active monitor for live stage monitoring and playback.
• 12" Long-Excursion Woofer: Produces deep bass and strong acoustic output.
• 1" Compression Driver: High-resolution HF driver delivers clear high-frequency reproduction.
• Class-D Amplifier Technology: Efficient amplifier design provides high output with reduced weight.
• Integrated DSP: Built-in sound processor optimizes performance and protects the system.
• Feedback Control: Adjustable feedback filter helps eliminate stage feedback.
• Integrated Limiter: Protects the amplifier and speaker components.
• Mic/Line Input: Ultra-low noise input with volume control and clip indicator.
• 3-Band EQ: Dedicated high, mid, and low controls for sound shaping.
• Pole Mount Capability: Integrated 35 mm pole socket allows use as a PA speaker.

Technical Specification

Output Power
Low-Frequency Range: RMS @ 1% THD: 160 W @ 8 Ω
Peak Power: 225 W @ 8 Ω
High-Frequency Range: RMS @ 1% THD: 40 W @ 8 Ω
Peak Power: 72 W @ 8 Ω

Mic/Line Inputs
XLR Connector: Sensitivity: -50 dBu to 0 dBu
Impedance: 20 kΩ balanced, 30 kΩ unbalanced
¼" TRS Connector: Sensitivity: -50 dBu to 0 dBu
Impedance: 20 kΩ balanced, 30 kΩ unbalanced

Link Output
XLR connector

Equalizer
High: 12 kHz / ±15 dB
Mid: 2.5 kHz / ±15 dB
Low: 80 Hz / ±15 dB

Feedback Filter
Filter frequency: 300 Hz to 6 kHz
Level reduction: max. 15 dB
Q factor: 20

Loudspeaker System Data
Frequency range: 60 Hz to 16 kHz (-10 dB)
Maximum sound pressure level: 115 dB / 118 dB (half space) @ 1 m
Limiter: optical

Power Supply / Voltage (Fuses)
UK/Australia: 240 V~, 50 Hz (T 2.0 A H 250 V)
Europe: 230 V~, 50 Hz (T 2.0 A H 250 V)
Korea: 220 V~, 60 Hz (T 2.0 A H 250 V)
China: 220 V~, 50 Hz (T 2.0 A H 250 V)
Japan: 100 V~, 50/60 Hz (T 4.0 A H 250 V)

Power
Power consumption: max. 300 Watts
Power supply: switch mode
Mains connection: standard IEC receptacle

Dimensions / Weight
Dimensions (H x W x D): appr. 360 x 580 x 406 mm (14.2 x 22.8 x 16.0")
Weight: appr. 15 kg (33.0 lbs)
