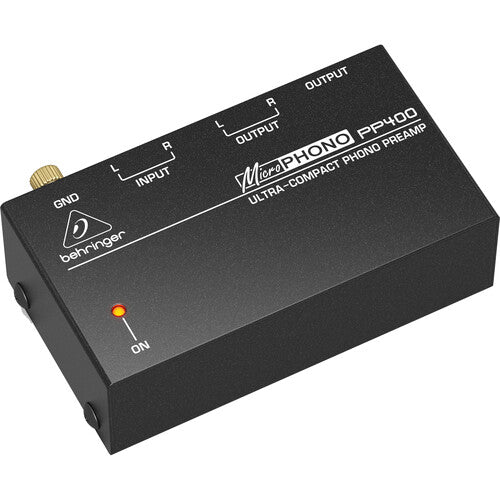

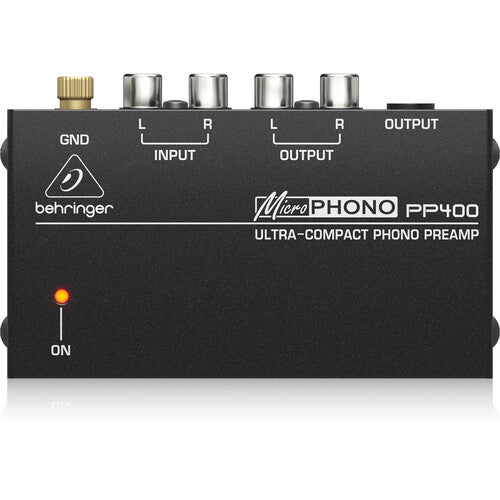

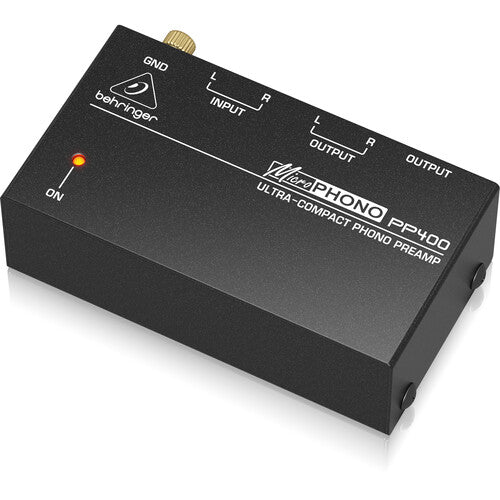

Behringer PP400 Microphono Ultra-Compact Phono Preamp

Behringer PP400 Microphono Ultra-Compact Phono Preamp

The Behringer PP400 Microphono phono preamp converts the low-level signal from a turntable's magnetic cartridge into a line-level signal for mixers, amplifiers, recording equipment, and stereo systems without dedicated phono inputs. It also applies the RIAA equalization required for proper playback of vinyl records.

Designed as a compact problem solver for vinyl playback systems, the PP400 accepts stereo RCA input from a turntable and provides both stereo RCA and 1/4-inch TRS output options. Its approximately 47 kOhm input impedance accommodates magnetic phono cartridges, while 35 dB of gain raises the cartridge signal to a usable line level. A grounding terminal provides a connection point for a turntable ground lead to help establish the intended phono setup.

The PP400 uses an external 12 VDC power supply and consumes approximately 1.5 watts, making it easy to integrate into home audio, DJ, and recording configurations. The compact metal-format unit weighs only 0.4 lb and measures approximately 4.1 x 2.5 x 1.3 inches. Its straightforward fixed-gain design requires no complex setup: connect the turntable, select either output format, and route the resulting line-level signal to the receiving audio equipment.

Key Features

• Phono-to-Line Conversion: Raises low-level turntable output to line level for equipment without a dedicated phono input.
• RIAA Equalization: Applies the standard playback equalization required for records mastered using the RIAA curve.
• Magnetic Cartridge Support: Approximately 47 kOhm input impedance accommodates magnetic phono pickups.

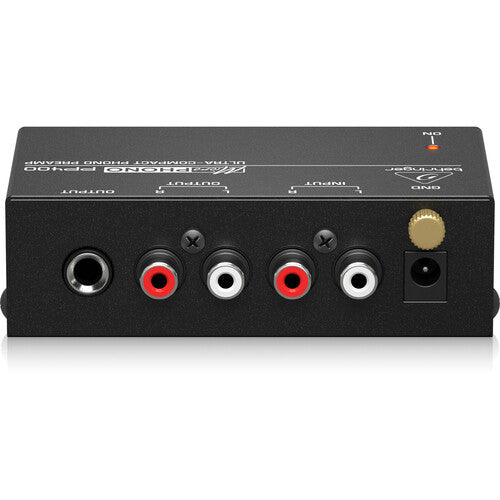

• Dual Output Formats: Provides stereo RCA outputs plus a stereo 1/4" TRS output for flexible system integration.
• 35 dB Gain: Amplifies the incoming phono signal to a suitable level for downstream audio equipment.
• Ground Connection: Dedicated grounding terminal accepts a compatible turntable ground lead.
• Compact Chassis: Small footprint fits easily into DJ, home stereo, and recording setups.
• Included Power Supply: Operates from the supplied 12 VDC adapter without requiring phantom or USB power.

Technical Specifications

• Model: PP400
• Manufacturer Part Number: 0703-AAA86-US1
• Product Type: Phono preamplifier
• Supported Pickup Type: Magnetic phono pickups
• Audio Inputs: 2 x RCA
• Input Impedance: Approximately 47 kOhms
• Maximum Input Level: -23.5 dBV at 1 kHz
• Input Sensitivity: 5.3 mV at 1 kHz
• Audio Outputs: 2 x RCA, 1 x 1/4" TRS stereo
• Output Impedance: Approximately 50 Ohms
• Maximum Output Level: +11.5 dBV at 1 kHz
• Frequency Response: RIAA
• Gain: 35 dB
• THD and Noise: 0.06% typical at -40 dBu / 1 kHz
• Signal-to-Noise Ratio: 68 dBu at 0 dBu, A-weighted
• Power Input: 12 VDC at 150 mA
• AC Input Power: 120 VAC, 60 Hz
• Power Consumption: Approximately 1.5 W
• Operating Current: 150 mA
• Color: Black
• Dimensions: 4.1 x 2.5 x 1.3"
• Weight: 0.4 lb

What's In the Box

• Behringer PP400 Microphono Phono Preamp
• 12 VDC Power Supply
