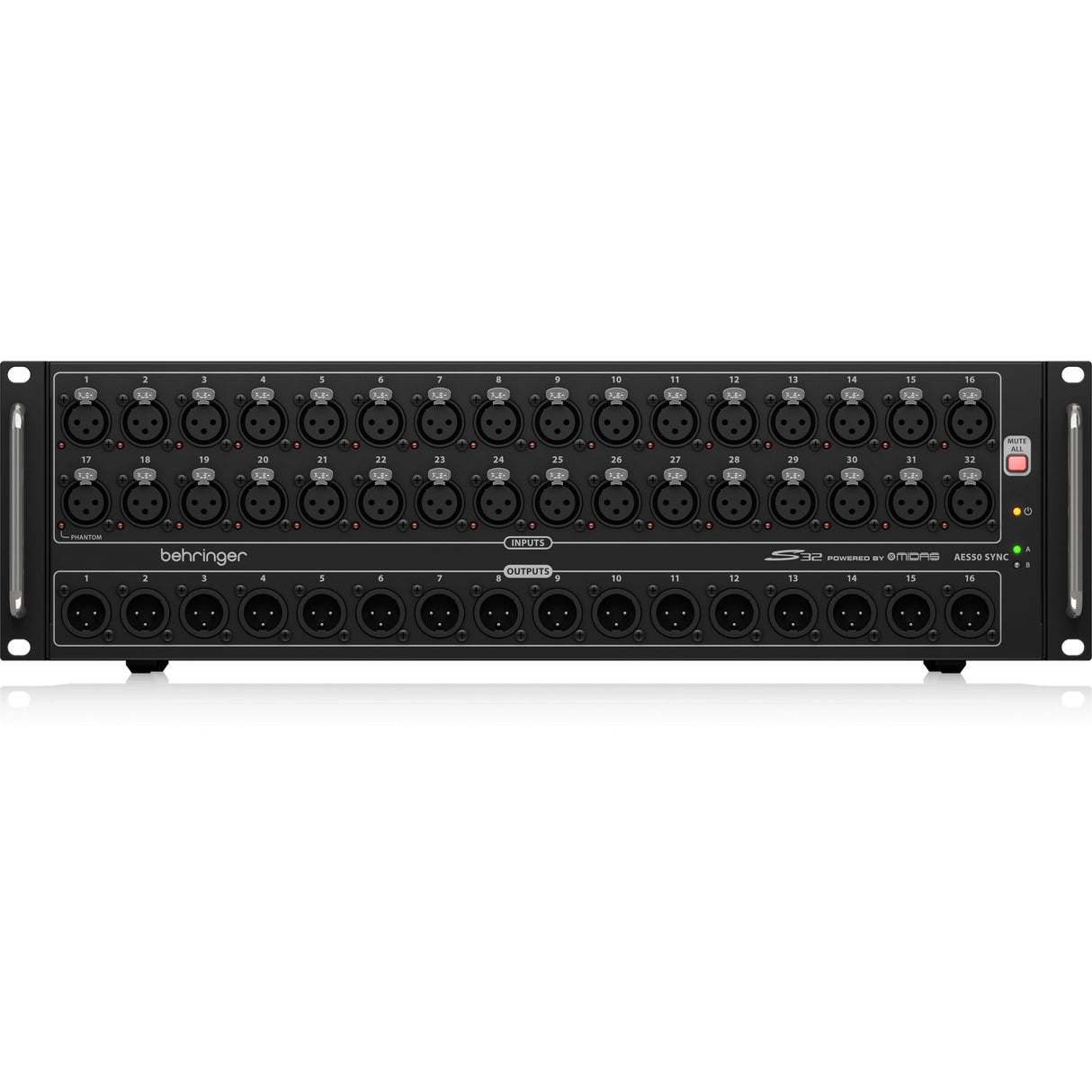

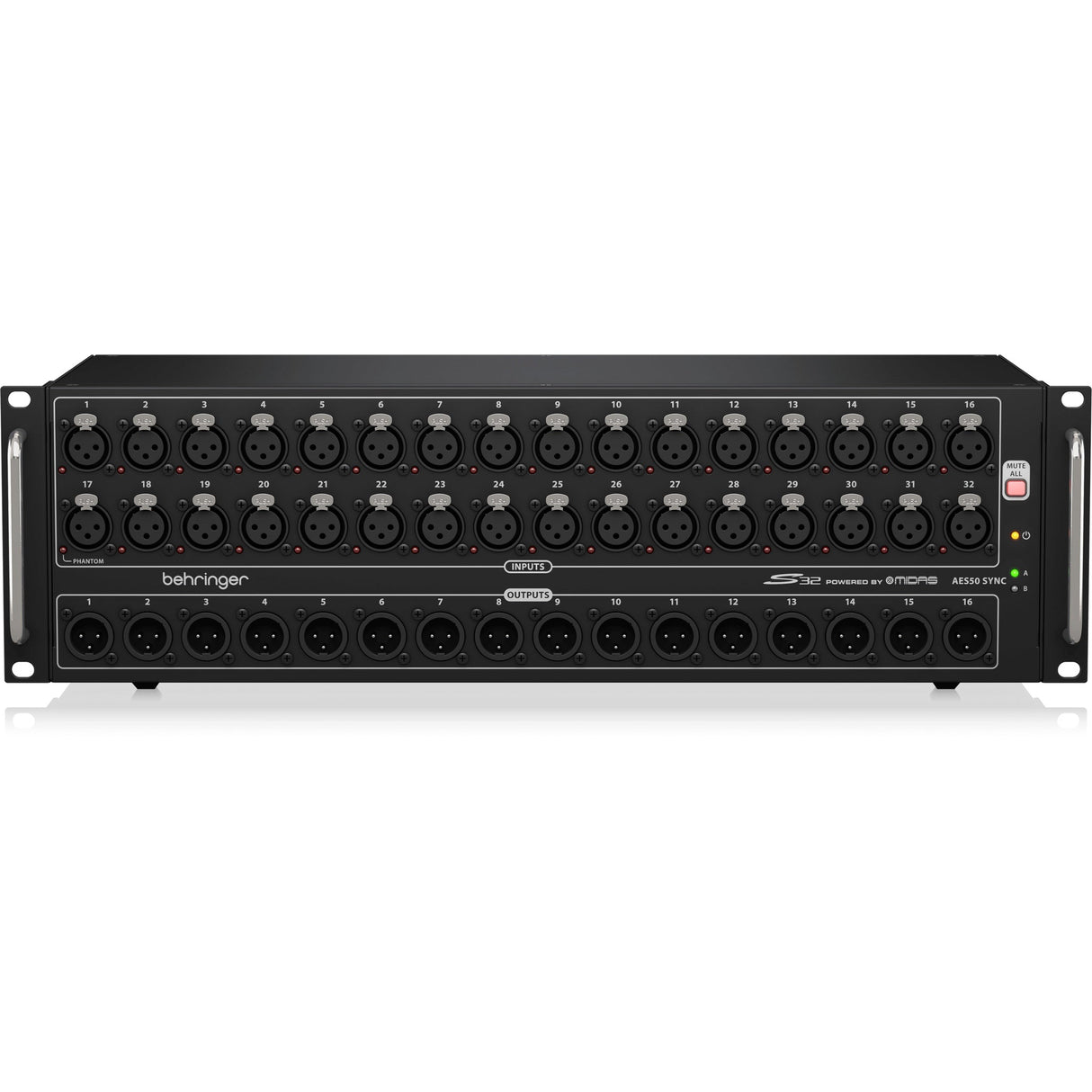

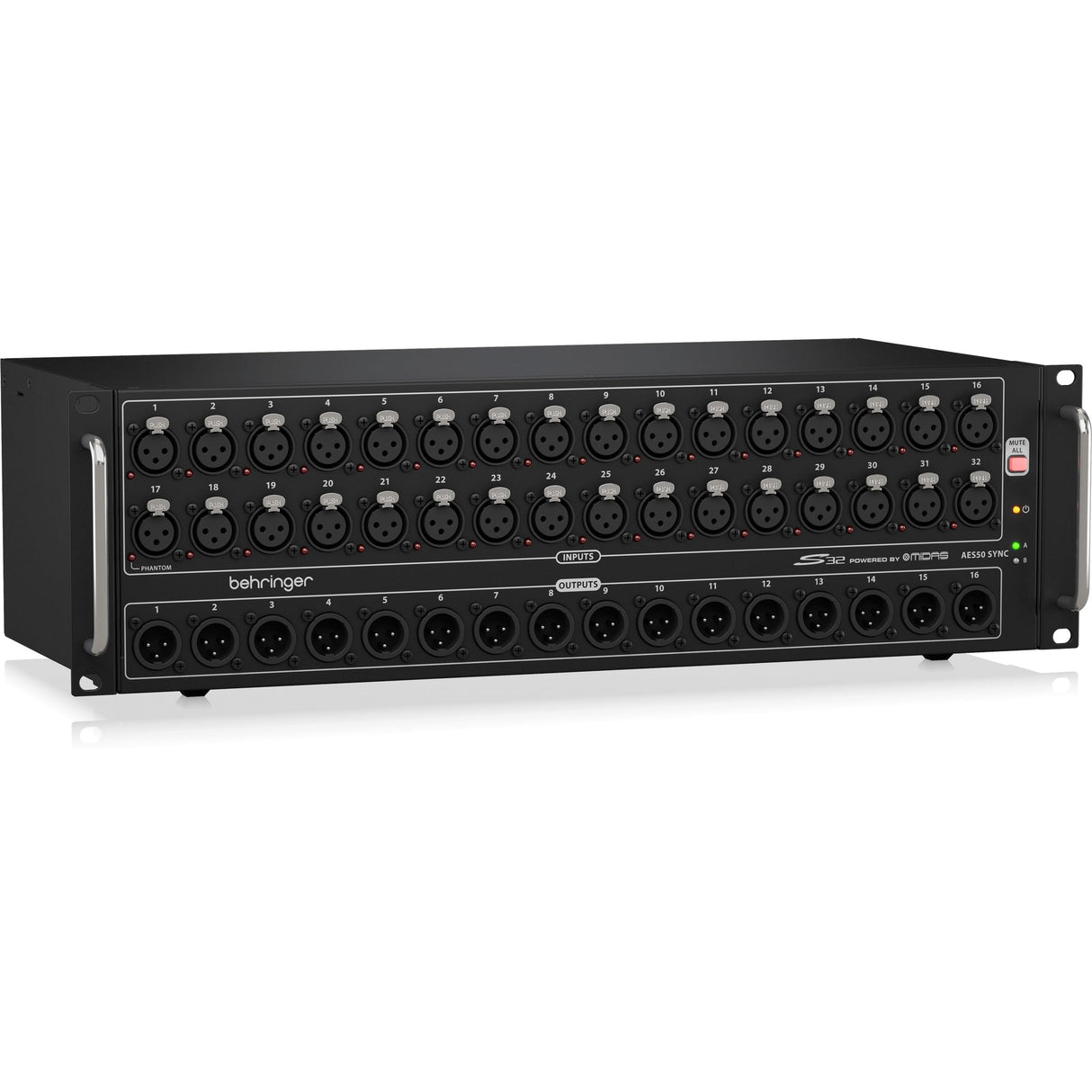

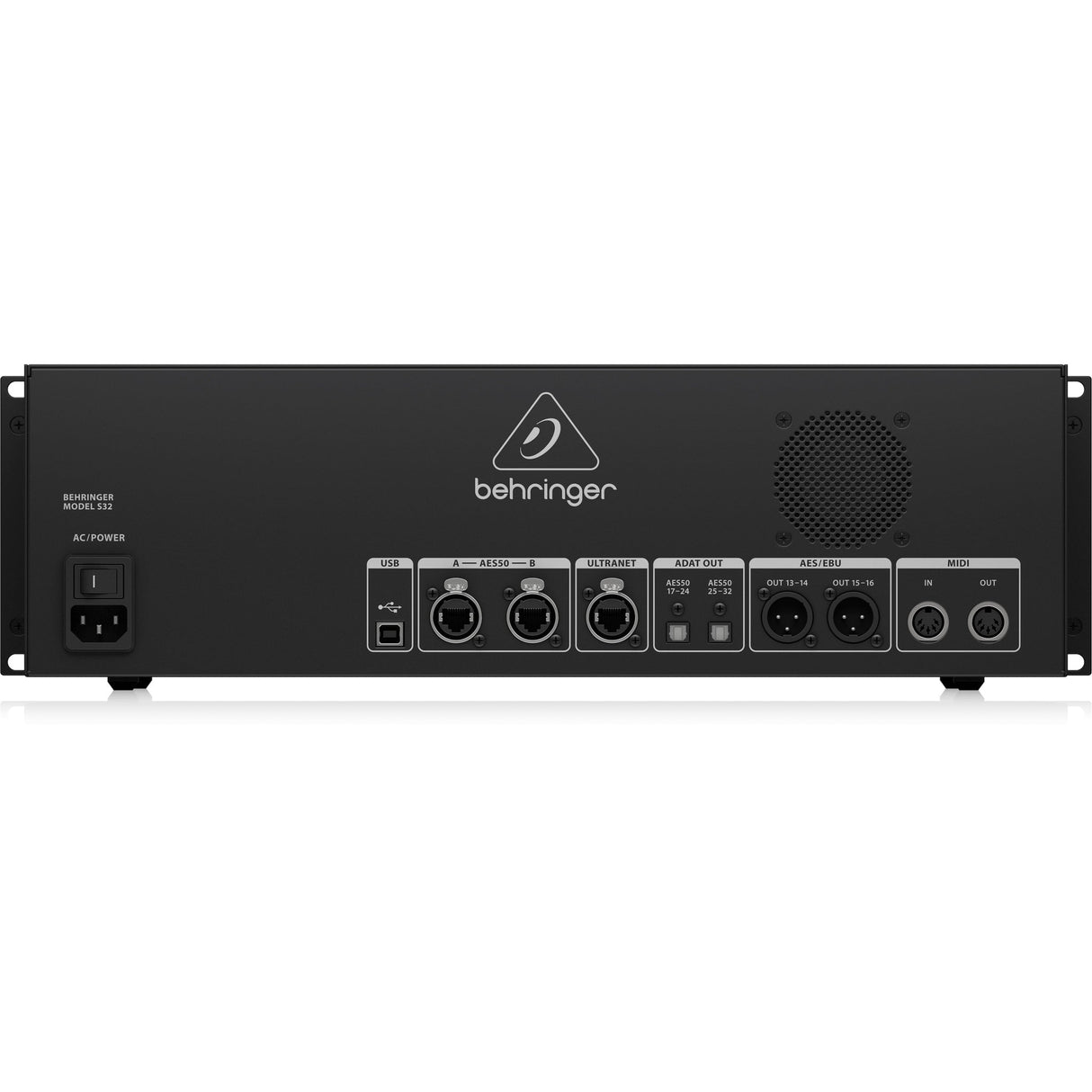

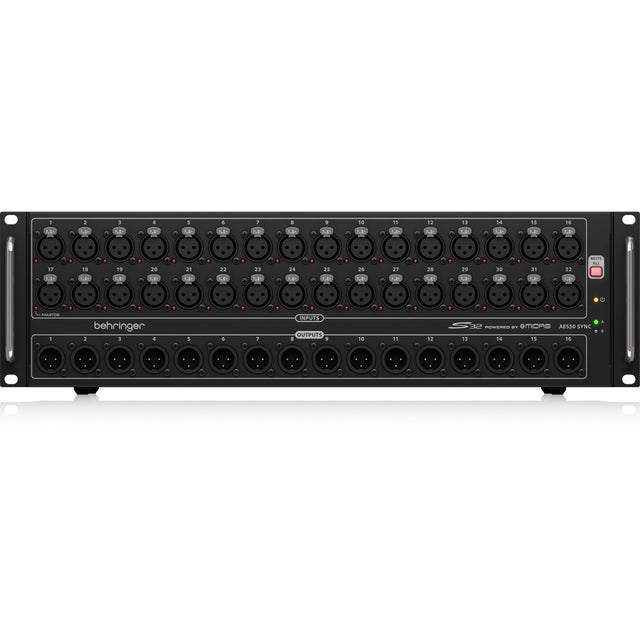

Behringer S32 Digital Stage Box with 32 Midas Preamps and AES50 Networking
Free Shipping
Last 1
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
Behringer S32 Digital Stage Box with 32 Midas Preamps and AES50 Networking
The Behringer S32 is a professional digital stage box designed to expand the input and output capabilities of X32 and other AES50-enabled digital mixing consoles. Featuring 32 remote-controllable Midas-designed microphone preamps and 16 servo-balanced XLR outputs, the S32 delivers exceptional audio quality, flexible routing, and reliable stage connectivity for live sound and installed audio systems.
Built around Klark Teknikās SuperMAC AES50 networking technology, the S32 provides ultra-low latency and high-performance digital audio transmission over standard CAT5e cable. With ULTRANET connectivity for personal monitoring systems, dual AES50 ports for cascading multiple stage boxes, and AES/EBU digital outputs, the S32 offers powerful integration for professional touring, broadcast, and installation environments.
Key Features
- 32 Midas Microphone Preamps: Fully programmable remote-controllable preamps designed for high-end audio performance.
- 16 Balanced XLR Outputs: Servo-balanced analog outputs for reliable signal distribution.
- AES50 Networking: Klark Teknik SuperMAC technology provides ultra-low latency digital audio transmission.
- ULTRANET Connectivity: Direct integration with Behringer P16 personal monitoring systems.
- Dual AES50 Ports: Allows cascading additional stage boxes such as S16, SD16, or SD8.
- AES/EBU Digital Outputs: Two AES-3 ports for direct connection to digital PA system processors.
- Dual ADAT Outputs: 16-channel digital output via optical TOSLINK connectors.
- Stage-Split Capability: Automatic AES50 stage split when connected between FOH and monitor consoles.
- MIDI Connectivity: MIDI In/Out ports enable communication with on-stage MIDI devices.
- Remote Operation: Control and audio transmission over shielded CAT5e cable up to 100 m (330 ft).
- Universal Power Supply: Auto-ranging power supply (100ā240 V) for worldwide operation.
- Rugged Rackmount Design: Durable all-steel 3U chassis built for touring and professional installation.
Technical Specifications
Microphone Preamps32 remote-controllable Midas-designed preamps
Analog Outputs
16 Ć XLR servo-balanced outputs
AES50 Ports
2 Ć AES50 network ports (Klark Teknik SuperMAC)
Digital Audio Outputs
2 Ć AES-3 (AES/EBU)
2 Ć ADAT optical outputs (16 channels total)
ULTRANET
Personal monitoring connectivity for Behringer P16 system
MIDI
MIDI In
MIDI Out
Networking Cable
Shielded CAT5e, up to 100 m (330 ft)
USB
USB port for system updates
Power Supply
100 ā 240 V~, 50/60 Hz universal switching power supply
Rack Size
3U rackmount chassis
Weight
12.4 lbs
Height
5.4"
Width
19"
Length
9.5"
Whatās in the Box
(1) Behringer S32 Digital Stage Box(1) Power cable
User documentation
