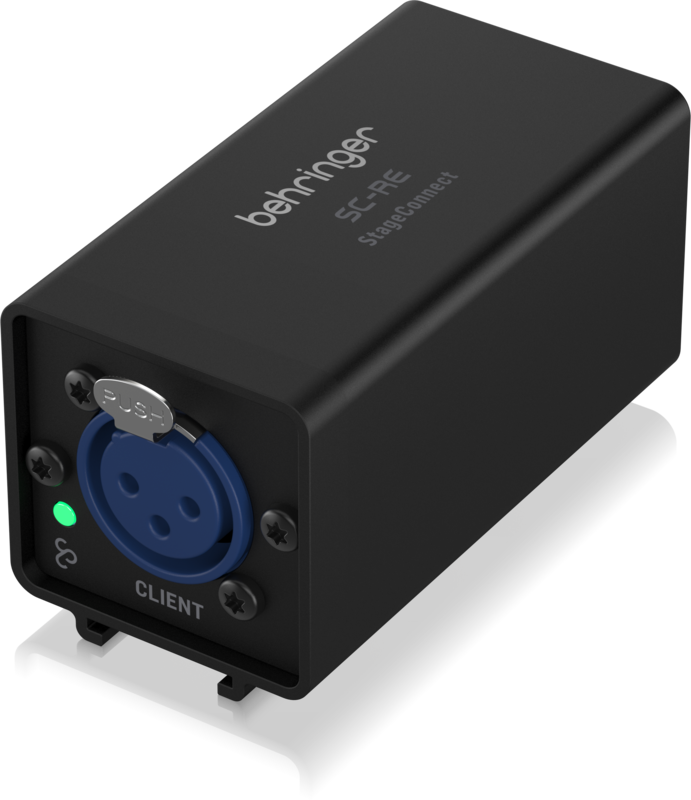

Behringer SC-RE StageConnect Range Extender for 80m Cable Runs

The Behringer SC-RE StageConnect Range Extender doubles the reach of your StageConnect digital snake system, extending the maximum cable length from 40 meters to a full 80 meters (262 feet) over standard 110-ohm XLR/DMX cable. Roughly the size of a power adapter, this in-line extender solves the long-run problem for festival stages, houses of worship, theaters and installed systems where the console simply cannot sit close to the stage.

The SC-RE passes all 32 bi-directional StageConnect audio channels at 24-bit/44.1-48 kHz with sub-millisecond latency, and it is powered directly over the StageConnect line — no wall wart, no extra cabling. It even relays StageConnect's 12V remote power downstream. Locking XLR connectors keep connections secure on stage, status LEDs confirm link health at a glance, and a USB-C port handles firmware updates. An included mounting bracket makes clean touring-rack or fixed-install integration easy across the whole StageConnect ecosystem: WING consoles, SC-U bridges, P24 personal monitoring and FLOW stageboxes.

Features

• Doubles StageConnect cable length from 40 m to 80 m (262 ft) over 110-ohm XLR cable
• Carries up to 32 bi-directional audio channels, 24-bit / 44.1-48 kHz, sub-millisecond latency
• Powered via StageConnect — no external power supply needed; passes 12V/18W remote power
• Locking XLR in/out connectors, status LEDs, USB-C firmware port
• Full-metal construction with included mounting bracket
• Works with WING consoles, SC-U, P24 monitoring and FLOW stageboxes

Technical Specifications

• Model: SC-RE (0606-AEA)
• Channels: up to 32 bi-directional, 24-bit PCM, 44.1/48 kHz
• Connections: 2x locking XLR (StageConnect), USB-C (firmware)
• Max extension: 80 m / 262 ft total run; one SC-RE per StageConnect system
• Power: via StageConnect line (passes 12 VDC / 18 W remote power)
• EAN: 4033653001038

What's Included

• Behringer SC-RE Range Extender
• Mounting bracket
