Behringer TD-3-TG Analog Bass Line Synthesizer, Tangerine

Behringer TD-3-TG Analog Bass Line Synthesizer - Tangerine

The Behringer TD-3-TG Analog Bass Line Synthesizer is a monophonic desktop synth built around a fully analog VCO, low-pass VCF, VCA signal path, and 16-step sequencer. This Tangerine version combines classic acid-style bass sequencing with sawtooth and pulse waveforms, resonant filtering, accent, slide, and onboard distortion for hands-on electronic music production.

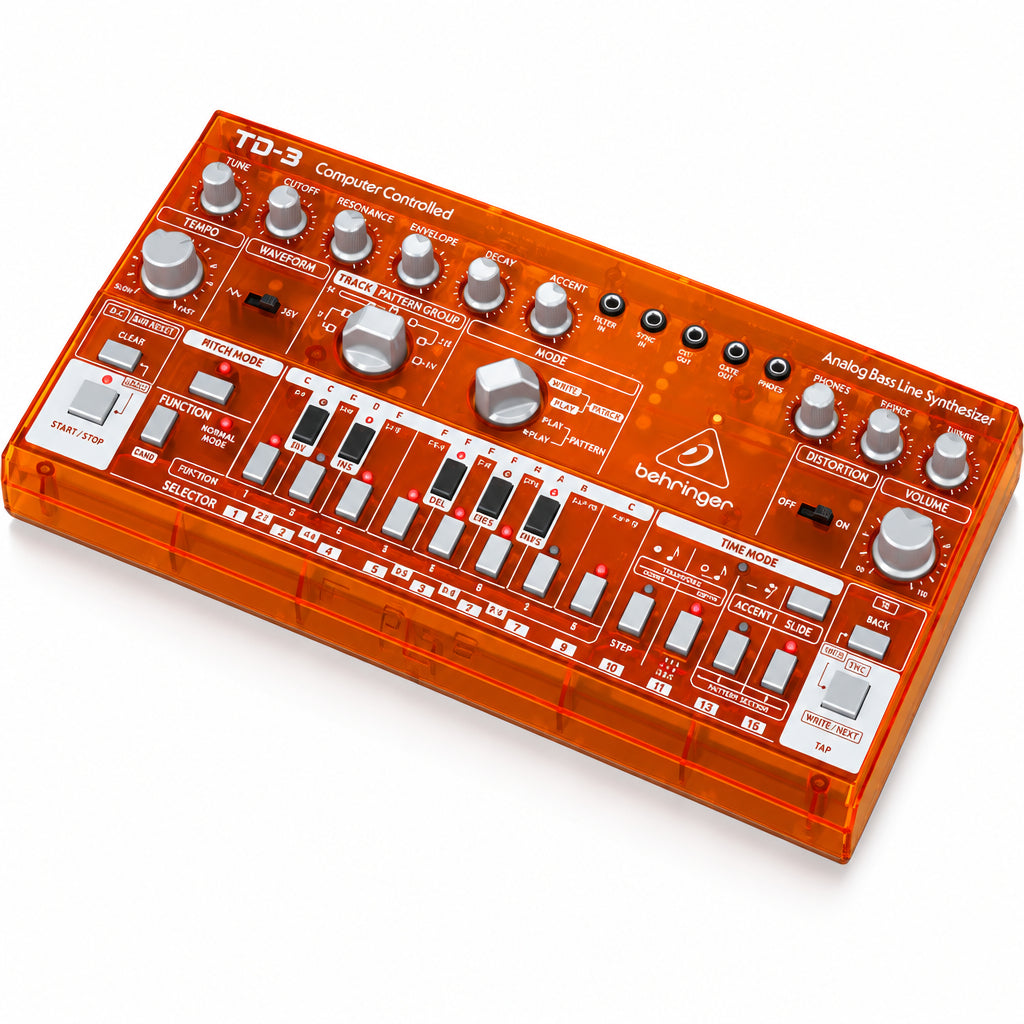

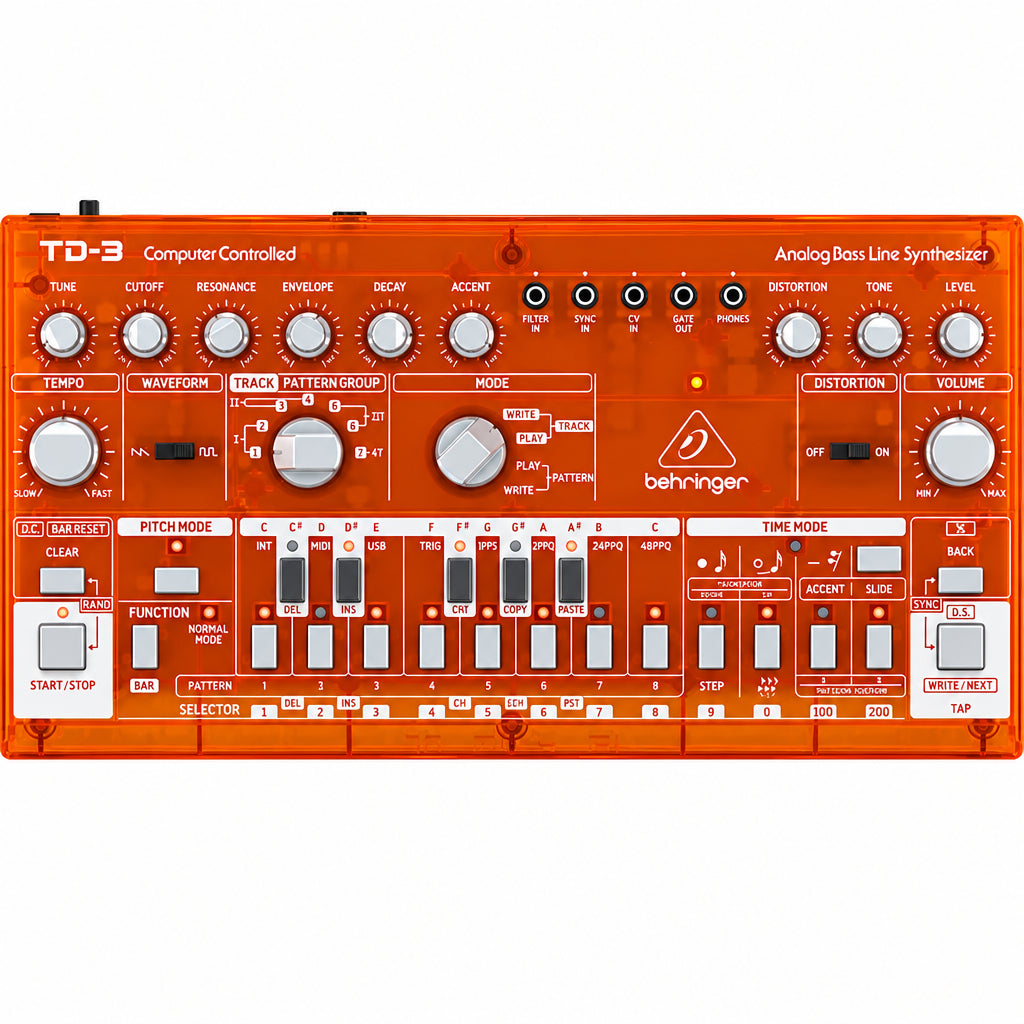

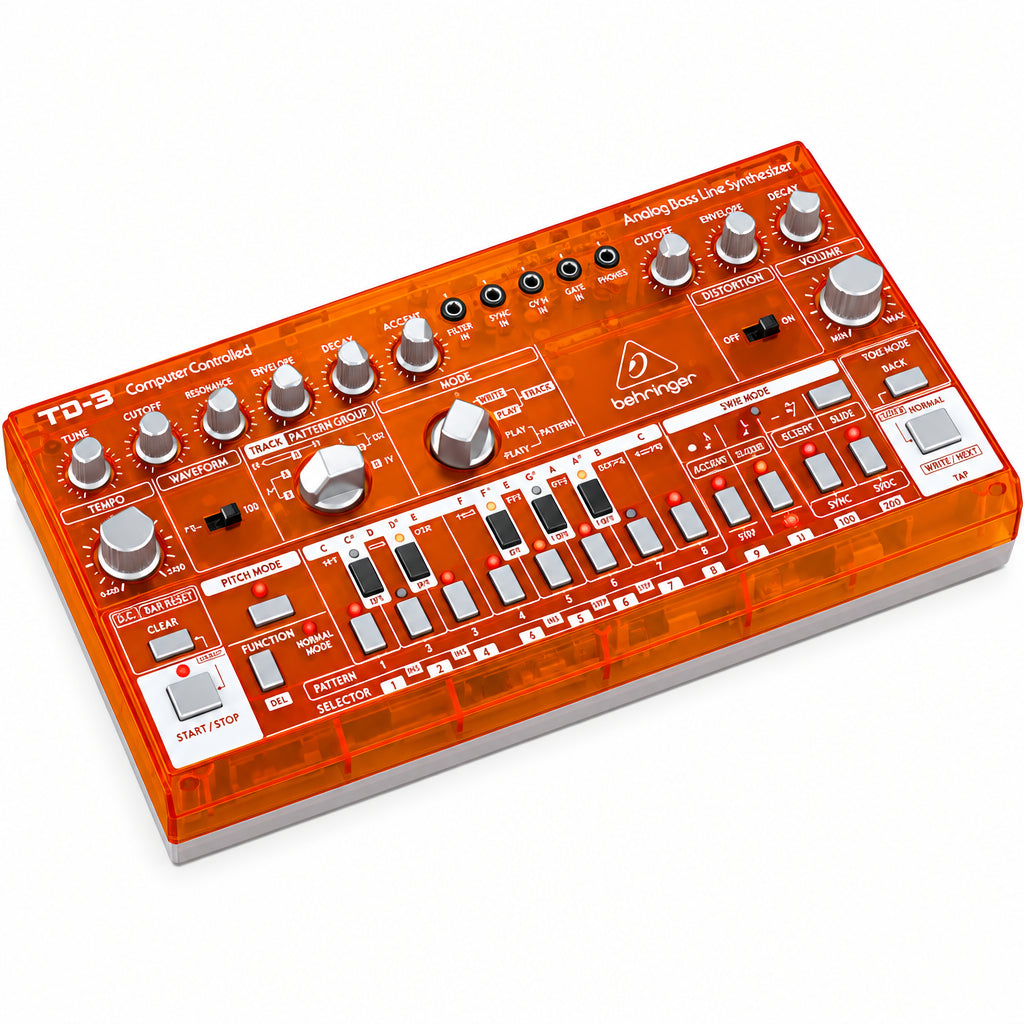

The TD-3-TG suits producers, live electronic performers, and hardware-based studios that want immediate bass-line programming without relying on software. Its sequencer provides seven tracks plus dedicated pitch and timing entry modes, while the 13-note button keyboard supports pattern creation directly from the front panel. Cutoff, resonance, envelope, decay, accent, tempo, and distortion controls provide direct sound shaping during performance.

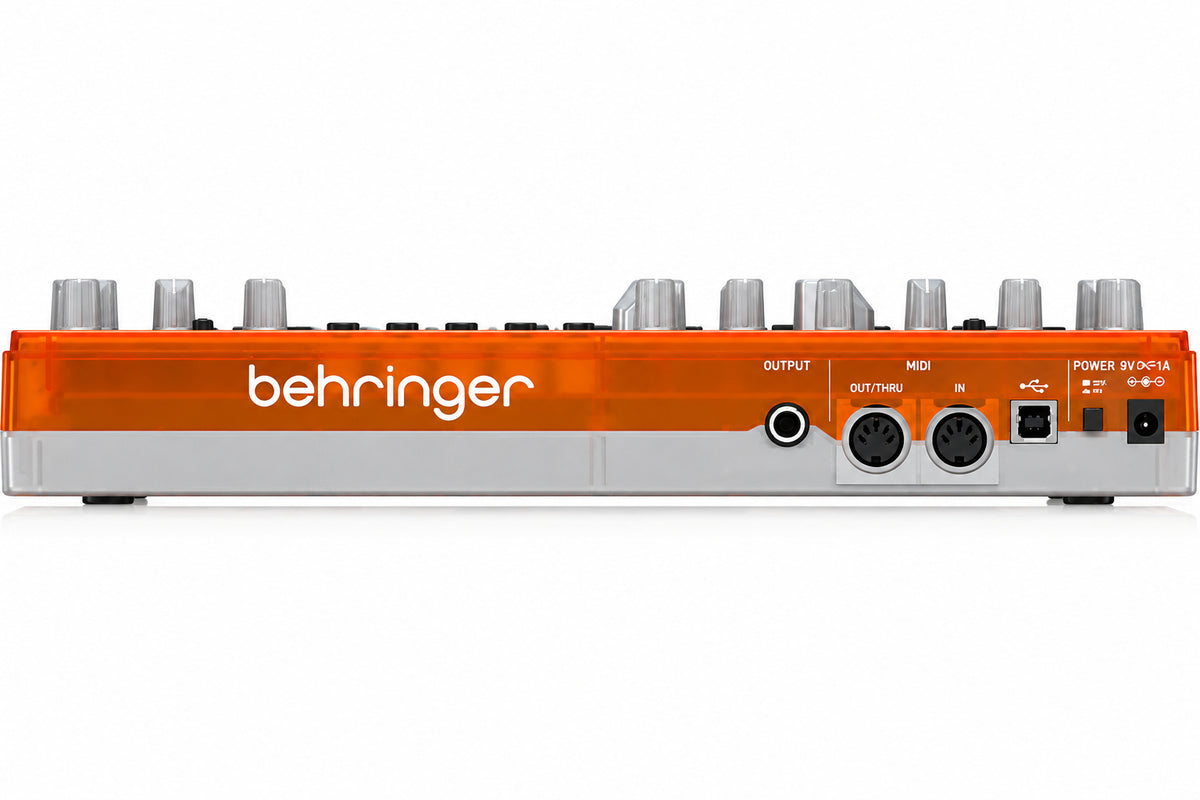

External integration includes MIDI In and Thru, USB MIDI, filter and sync inputs, plus CV and gate outputs for connecting compatible synthesizers and modular equipment. Multiple TD-3 units can also operate through poly-chain functionality. A dedicated 1/4" line output and 3.5 mm headphone output handle monitoring and recording, while the supplied 9 VDC adapter powers the compact desktop chassis.

Key Features

• True Analog Signal Path: Uses analog VCO, VCF, and VCA circuitry for classic bass synthesis and hands-on tone shaping.
• Dual VCO Waveforms: Selects reverse-sawtooth or pulse waveforms for contrasting bass and lead textures.
• 4-Pole Low-Pass Filter: Provides 24 dB-per-octave filtering with cutoff, resonance, envelope, decay, and accent controls.
• 16-Step Sequencer: Programs notes, rests, ties, accents, and slides for rhythmic bass patterns.
• Seven Sequencer Tracks: Organizes patterns into tracks for creating longer arrangements and performance sequences.
• Built-In Distortion: Adds adjustable drive, tone, and output level directly within the analog signal path.
• MIDI, USB, CV, and Gate: Connects with computers, MIDI equipment, and compatible analog or modular synthesizers.
• 16-Voice Poly Chain: Links multiple compatible synthesizers when a larger multi-unit setup is required.

Technical Specifications

• Manufacturer Part Number: 0718-ABW86-US1
• Model: TD-3-TG
• Product Type: Desktop Analog Bass Line Synthesizer
• Color: Tangerine Orange
• Synthesis Type: Analog
• Polyphony: Monophonic; poly-chain capable with multiple units
• Oscillators: 1
• Oscillator Waveforms: Reverse Sawtooth, Pulse
• Filter: 1 x Analog 4-Pole Low-Pass VCF
• Filter Slope: 24 dB/Octave
• Envelope Generators: 1
• Built-In Effect: Distortion
• Sequencer: 16-Step
• Sequencer Tracks: 7
• Pattern Groups: 4
• Keyboard: 13-Note Button Keyboard
• Line Output: 1 x 1/4" TRS, unbalanced
• Maximum Line Output Level: +8 dBu
• Line Output Impedance: 1.5 kOhms
• Headphone Output: 1 x 3.5 mm TRS
• Maximum Headphone Output: 50 mW into 32 Ohms at 1 kHz, 1% THD
• Headphone Output Impedance: 15 Ohms
• MIDI Input: 1 x 5-Pin DIN
• MIDI Thru: 1 x 5-Pin DIN
• USB: USB 2.0 Type-B, class-compliant MIDI
• Filter Input: 1 x 3.5 mm TS, +12 dBu
• Sync Input: 1 x 3.5 mm TS, greater than 2.5 V
• CV Output: 1 x 3.5 mm TS, +1 V to +5 V at 1 V/Octave
• Gate Output: 1 x 3.5 mm TS, 0 V off / +12 V on
• Supported Operating Systems: Windows 7 or later; Mac OS X 10.6.8 or later
• Power Supply: 9 VDC, 670 mA external adapter
• Power Consumption: 2 W maximum
• Operating Temperature: 41 to 104°F
• Dimensions: 12 x 6.5 x 2.2"
• Weight: 1.8 lb

What's In the Box

• Behringer TD-3-TG Analog Bass Line Synthesizer - Tangerine
• Power Adapter
