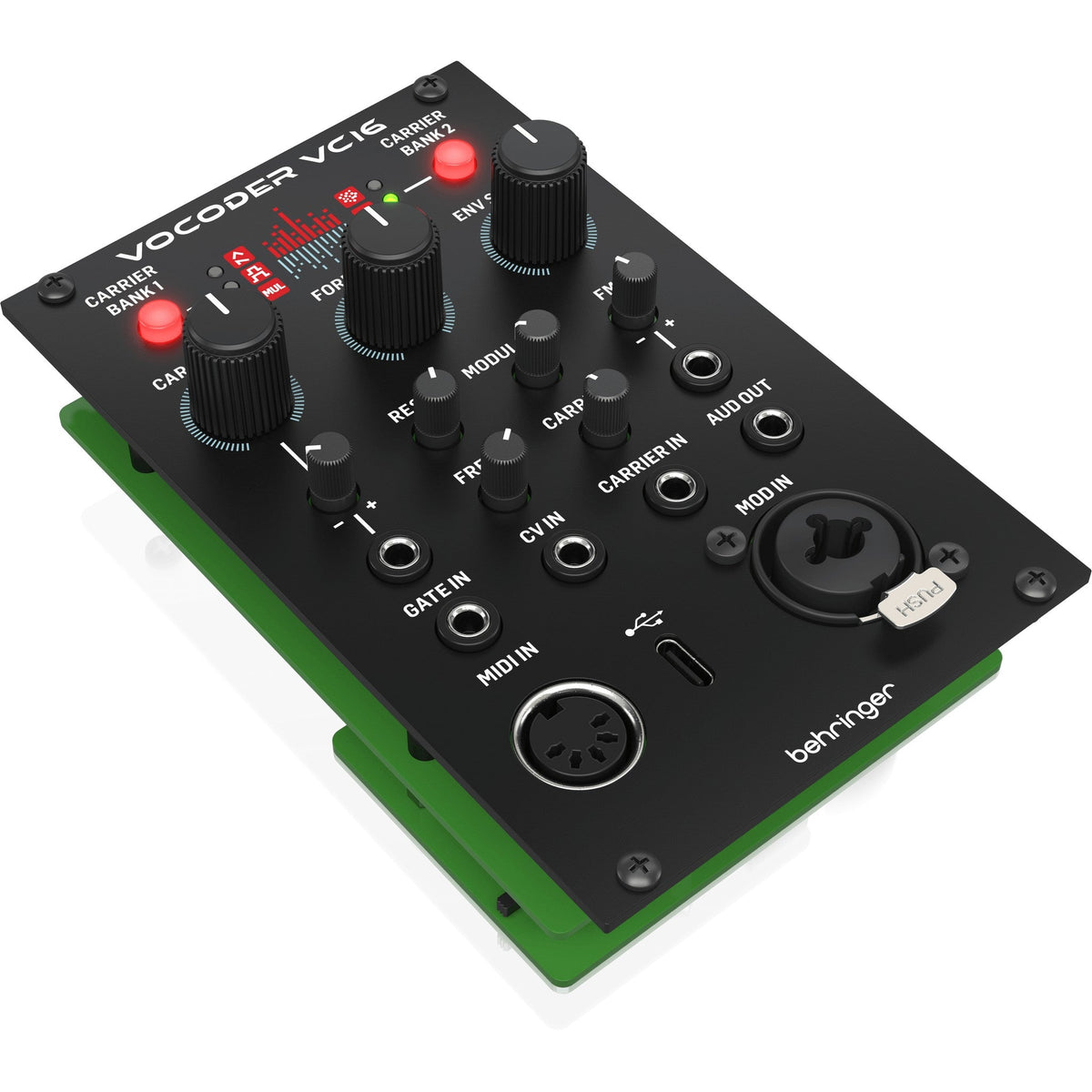

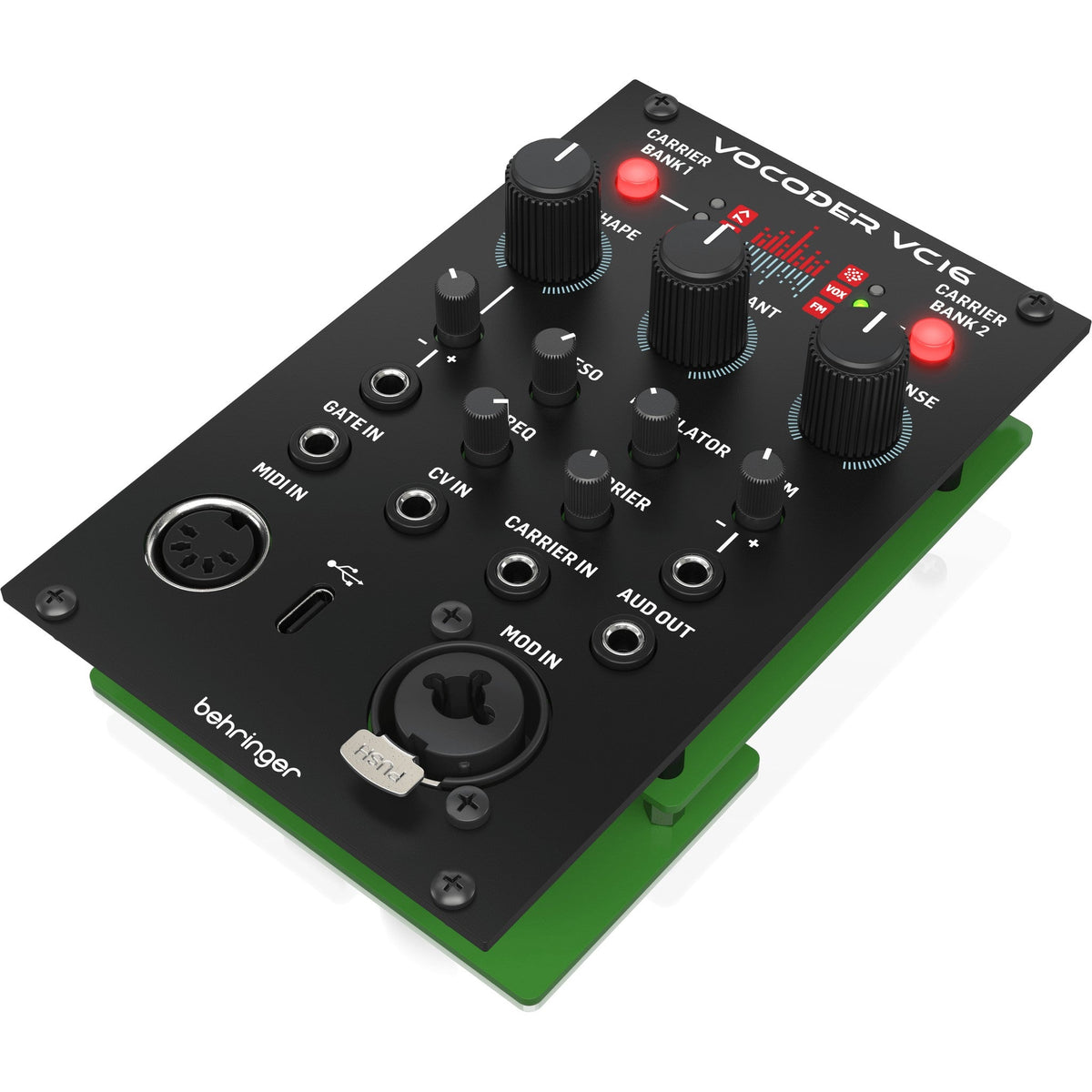

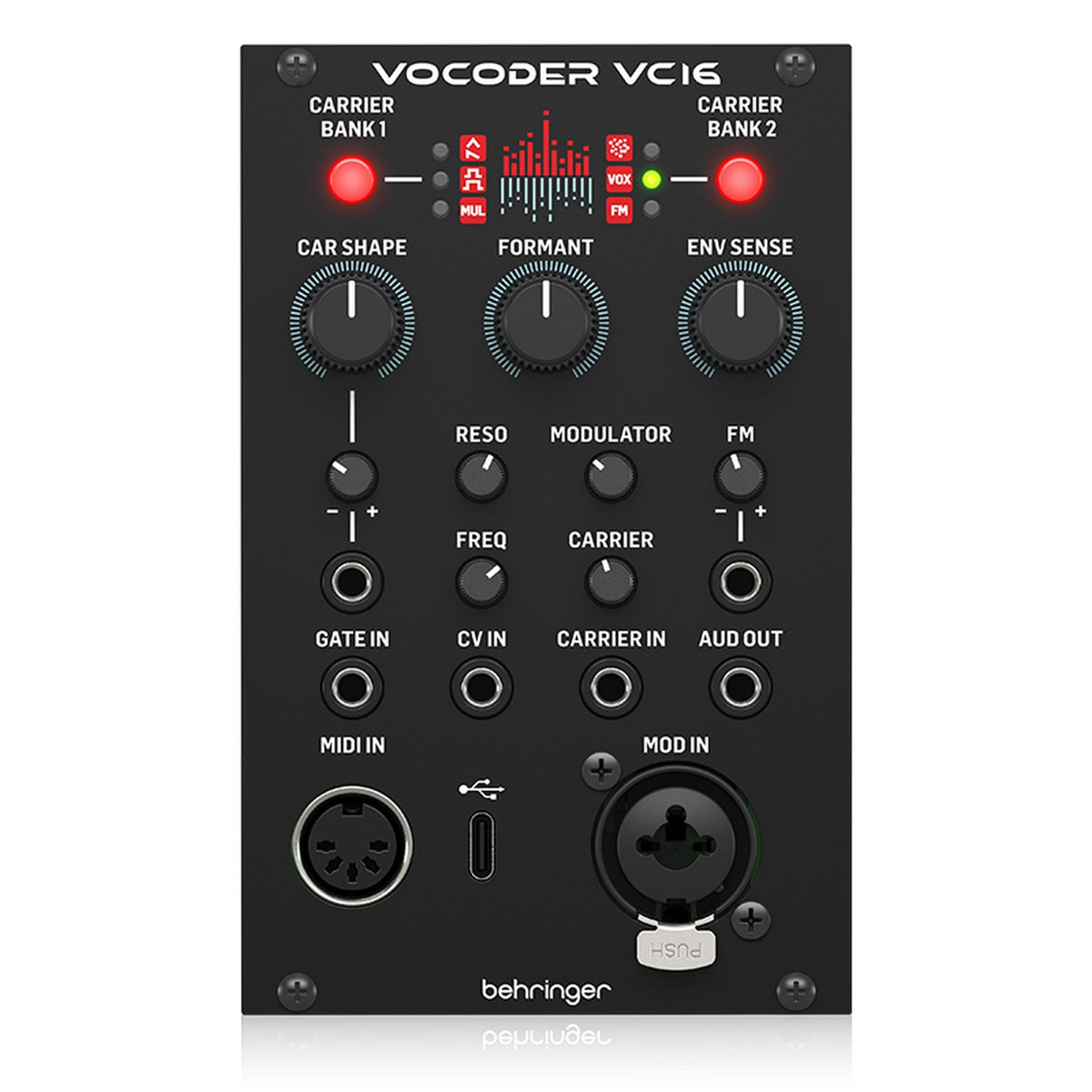

Behringer VOCODER VC16 16-Band Eurorack Vocoder Module

Behringer VOCODER VC16 16-Band Eurorack Vocoder Module

The Behringer VOCODER VC16 16-Band Eurorack Vocoder Module combines a high-resolution 16-band vocoder with six digital synthesis engines in a 16 HP modular format. It accepts microphone, line, carrier, MIDI, gate, and control-voltage sources, giving musicians a compact way to create synthesized vocal effects and externally controlled vocoder textures.

The VC16 suits modular synthesizer rigs, electronic music production, live performance, and experimental sound design. Six carrier choices cover triangle/ramp, square/pulse, multiple-wave, noise, Vox, and FM synthesis. An external carrier input expands the module beyond its internal oscillators, while dedicated formant, envelope, resonance, frequency, modulator, and carrier controls provide hands-on shaping.

Eurorack, a standardized modular synthesizer format, makes the VC16 straightforward to integrate into compatible cases and power systems. MIDI input supports connection to MIDI-equipped instruments, while gate and CV inputs provide analog modular control. A USB Type-C connection supports firmware updates, and the combined XLR/1/4-inch modulator input accommodates microphone- or line-level sources.

Key Features

• 16-Band Vocoder: Processes modulator and carrier signals through a high-resolution vocoder architecture for articulated synthesized vocal effects.
• Six Synthesis Engines: Provides triangle/ramp, square/pulse, multiple-wave, noise, Vox, and FM carrier options across two banks.
• Three-Voice Polyphony: Supports polyphonic performance when controlled through compatible MIDI or USB workflows.
• External Carrier Input: Accepts an outside audio source so synthesizers, drum machines, and other signals can serve as the vocoder carrier.
• Mic and Line Modulator Input: Uses a combined XLR and 1/4-inch TS connection with adjustable input level.
• CV and Gate Control: Integrates with modular systems through carrier-shape CV, pitch CV, gate, and FM control inputs.
• MIDI and USB Connectivity: Includes 5-pin DIN MIDI input plus USB Type-C for integration and firmware updating.
• 16 HP Eurorack Format: Fits standard Eurorack cases while drawing 100 mA at +12V and 20 mA at -12V.

Technical Specifications

General

• Manufacturer: Behringer
• Model: VOCODER VC16
• Manufacturer Part Number: 0720-ADC86-001
• Product Type: 16-Band Eurorack Vocoder Module
• Eurorack Width: 16 HP
• Synthesis Engines: 6
• Carrier Types: Triangle/Ramp, Square/Pulse, Multiple Wave, Noise, Vox, FM
• Polyphony: 3 voices

Carrier Section

• Carrier Bank Controls: Carrier Bank 1 and Carrier Bank 2 buttons
• Sound Controls: Carrier Shape, Formant, Envelope Sensitivity, Resonance, Frequency, and Carrier Level
• Carrier Shape CV Control: Attenuverter
• Carrier Shape CV Input: 3.5 mm TS, -5V to +5V range, 100 kOhm impedance
• Carrier Input: 3.5 mm TS, 100 kOhm impedance
• Carrier Input Level: Adjustable
• CV Input: 3.5 mm TS, -3V to +7V range, 100 kOhm impedance
• Gate Input: 3.5 mm TS, -3V to +7V range, 100 kOhm impedance

Modulator and Frequency Modulation

• Modulator Input: Combined XLR/1/4-inch TS unbalanced connection
• Modulator Input Impedance: 100 kOhm
• Modulator Control: Input level
• FM Control: FM input attenuverter
• FM Input: 3.5 mm TS, -8V to +8V range, 100 kOhm impedance

MIDI, USB, and Audio Output

• MIDI Input: 5-pin DIN
• USB: USB Type-C
• USB Function: Firmware updates
• Audio Output: 3.5 mm TS
• Audio Output Impedance: 100 kOhm
• Output Level: Eurorack level

Power and Physical

• Power Format: Eurorack
• Current Draw: 100 mA at +12V / 20 mA at -12V
• Dimensions: 3.2 x 2.1 x 5.1 inches (W x H x D)
• Weight: 0.4 lb
• Color: Black

What's In the Box

• Behringer VOCODER VC16 Eurorack Module
• Eurorack Ribbon Power Cable
• Mounting Screws
