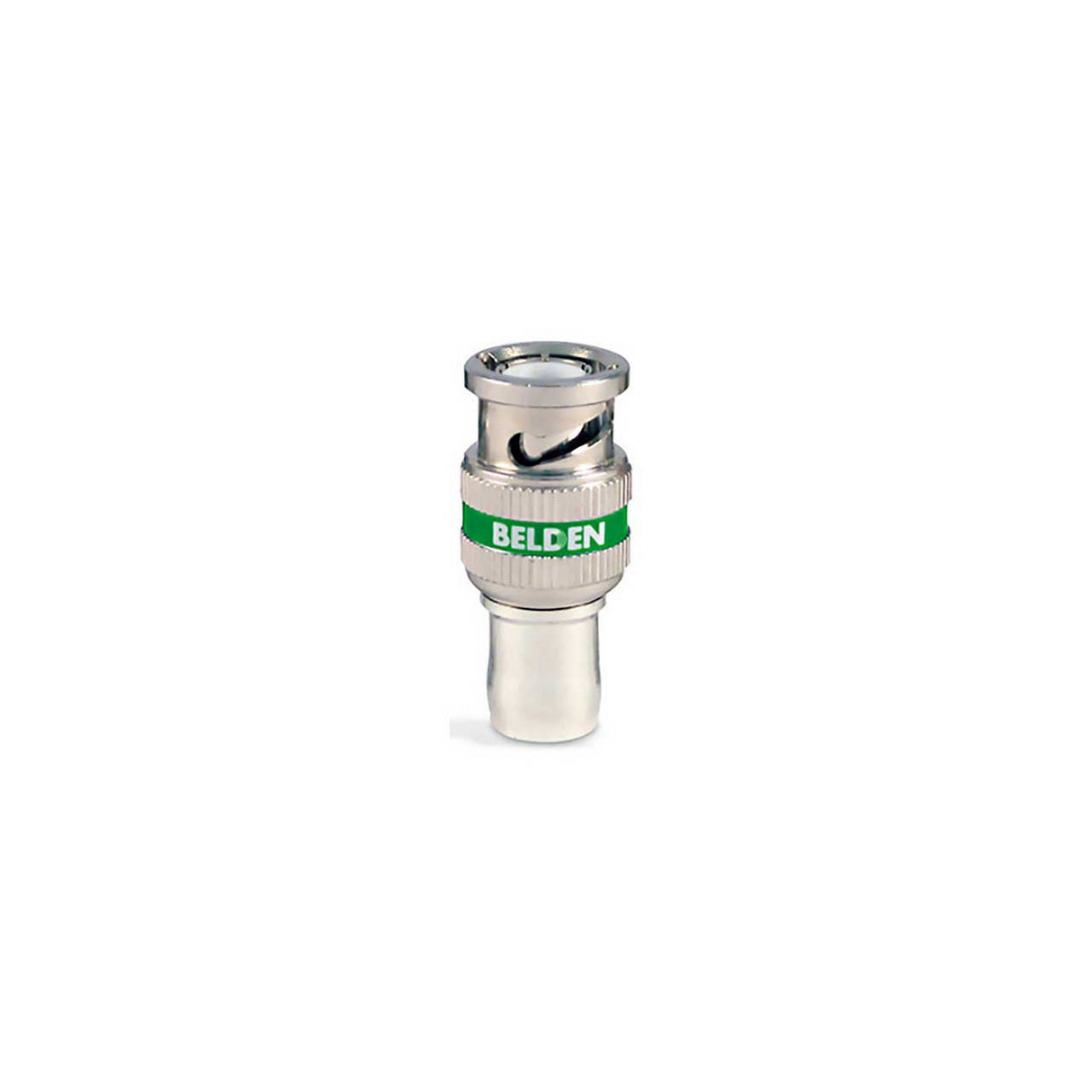

Belden 1694ABHD1 6G-SDI BNC HD Compression Connector for 1694A RG6 Cable
The Belden 1694ABHD1 is a precision BNC HD compression connector engineered for use with Belden 1694A / RG-6 coaxial cable. It maintains 6G-SDI signal integrity and ensures reliable, low-loss connections for high-definition video transmission. Offered either individually or as a 50-piece bulk pack for installers and pro-AV systems.
Machined for a tight fit, this connector provides durable mechanical strength and coaxial shielding necessary for professional video setups. The compression style ensures proper impedance matching with RG-6 cable to minimize signal reflections and maintain 75-ohm performance up to gigabit-rate video. Ideal for broadcast, CCTV, or any application requiring HD video over RG-6 cable runs.
With its rugged build and precision engineering, it is particularly suitable for settings where connections may be subject to movement or frequent reconnections. Use it in wall plates, patch bays, rack installations, or outdoor junctions when paired with appropriate weatherproofing.
Key Features
- 6G-SDI capable for high-definition video (up to 6 Gbit/s)
- Compression-type BNC connector for RG-6 / 1694A cable
- 75-ohm impedance maintenance for signal integrity
- Low return loss and minimal signal attenuation
- Solid mechanical grip and reliable shielding
- Offered in single piece or 50-pack for bulk needs
Technical Specifications
- Connector Type: BNC compression HD
- Cable Compatibility: Belden 1694A / RG-6 coaxial cable
- Impedance: 75 Ω
- Signal Standard: Supports up to 6G-SDI
- Material: Machined metal body, gold- or nickel-plated contact (exact plating not verified)
- Pack Sizes: Single piece; 50 pieces per pack
What’s in the Box
- Belden 1694ABHD1 BNC HD Compression Connector – single unit or 50-pack
