Belden 1694ABHD1 HD BNC Compression Connector for RG6 Cable - 50 Pack

Belden 1694ABHD1 HD BNC Compression Connector for RG6 Cable

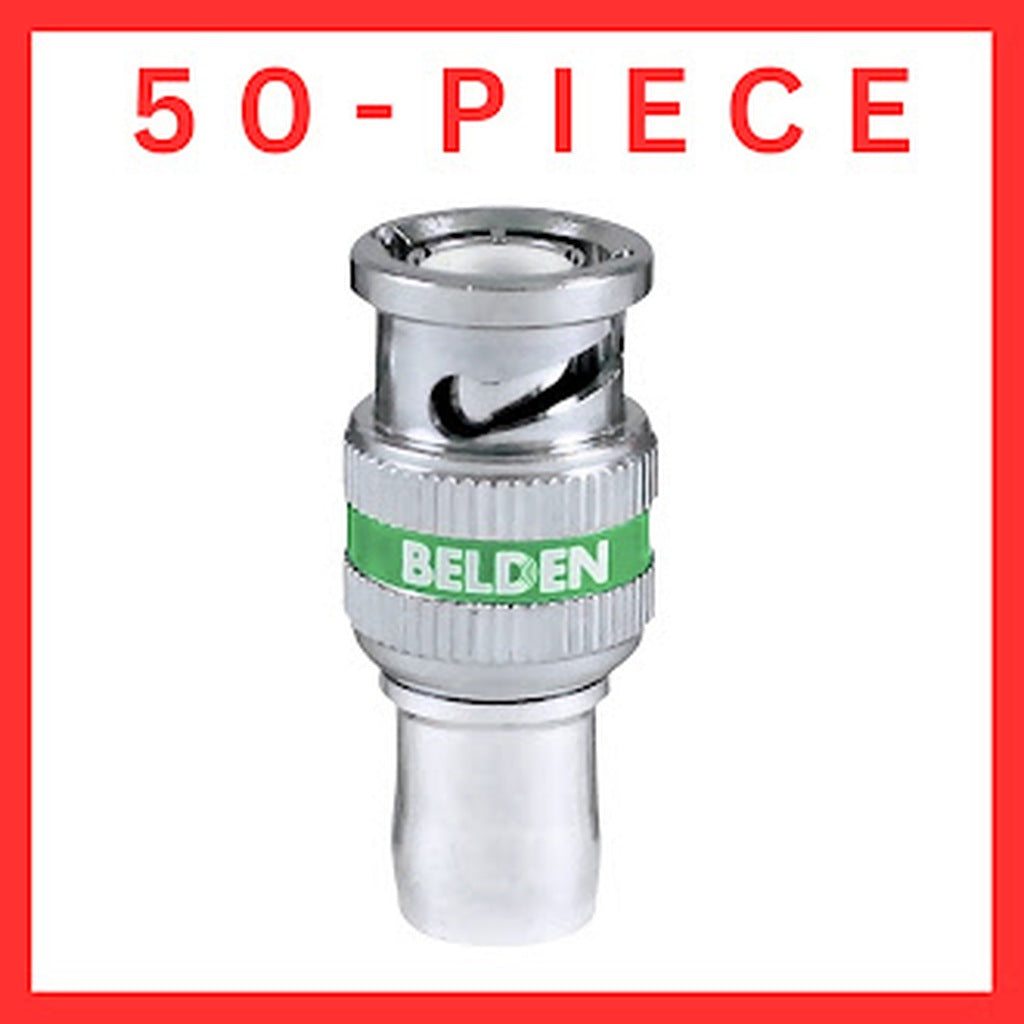

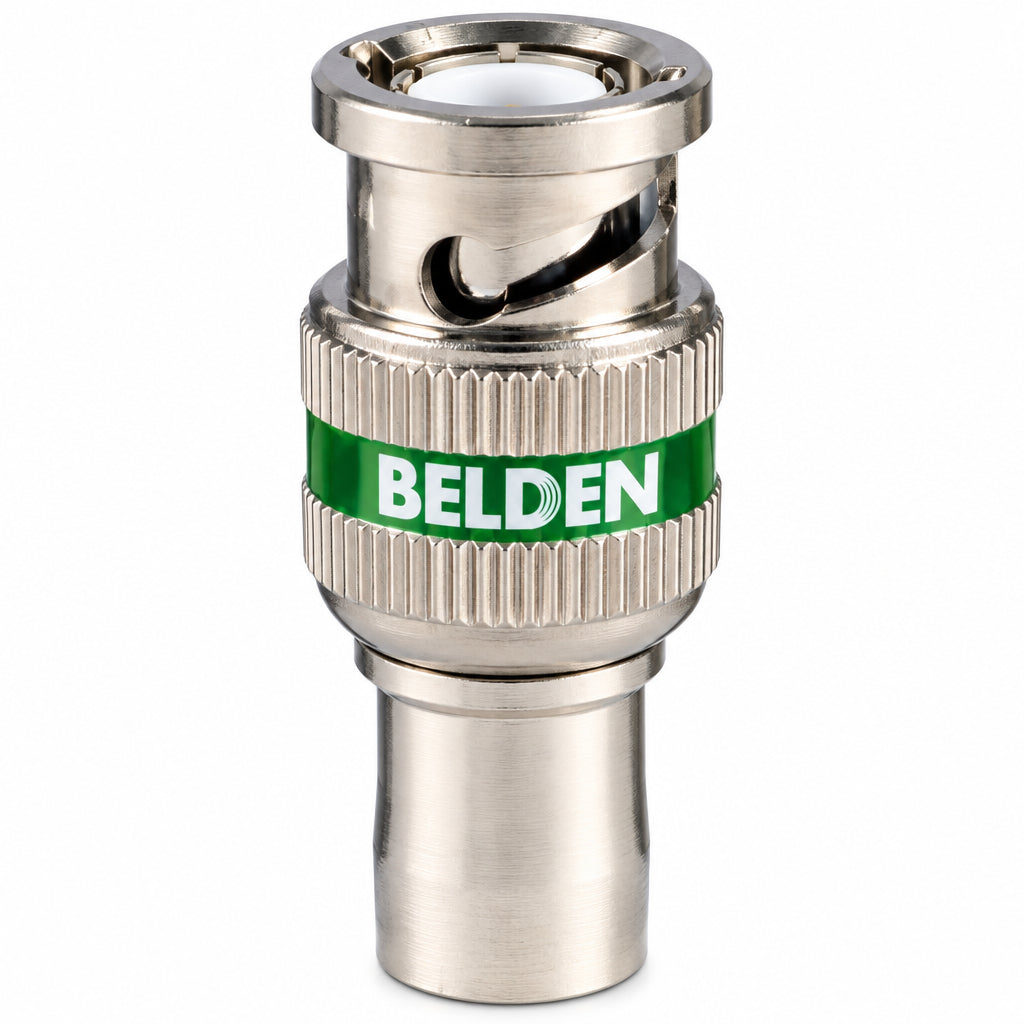

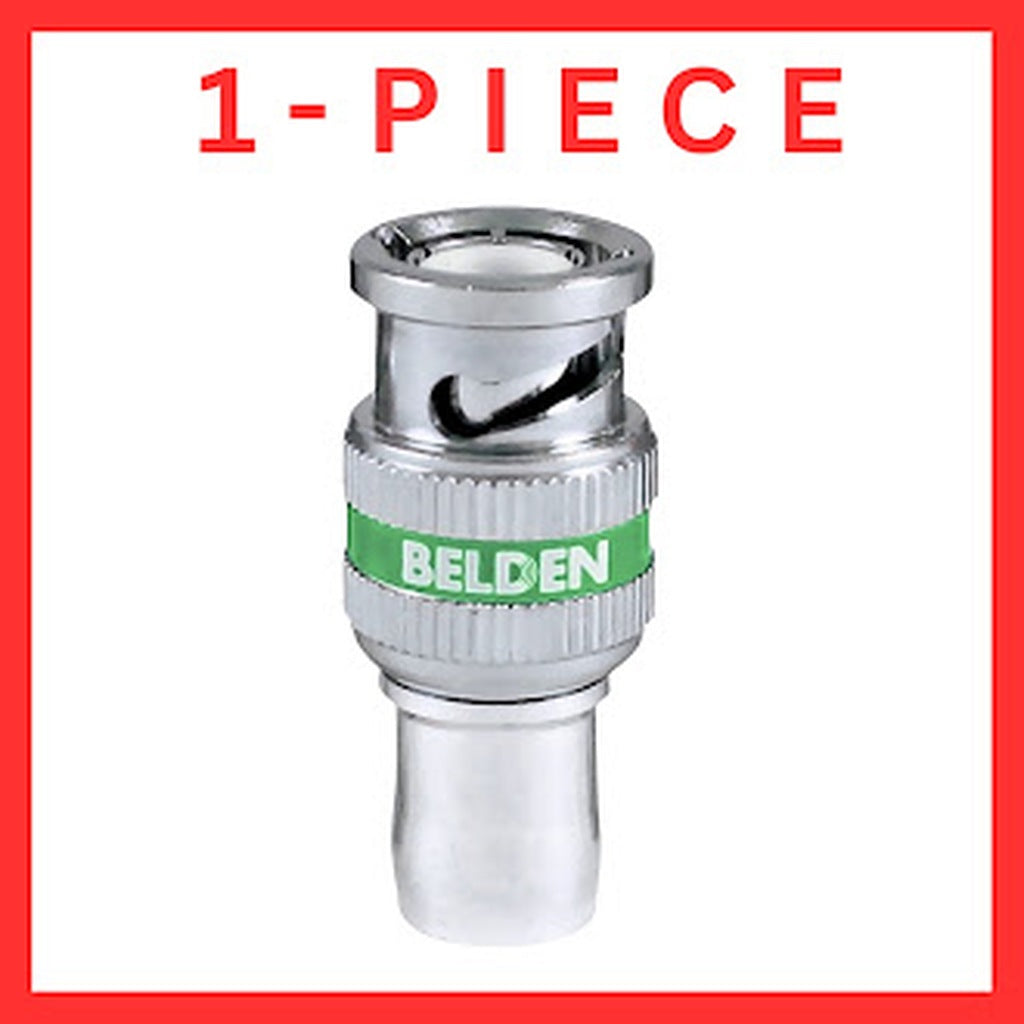

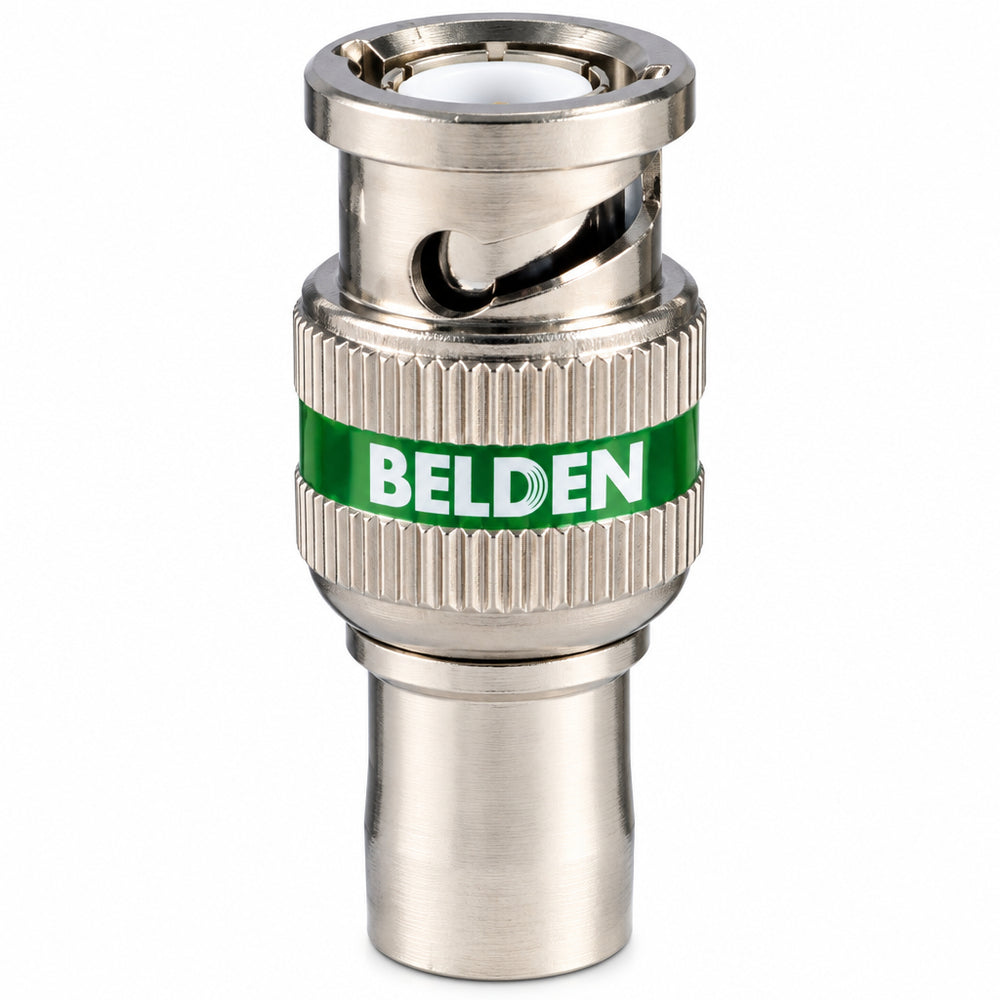

The Belden 1694ABHD1 HD BNC Compression Connector is a 75-ohm male BNC plug engineered for RG6 precision video cable in HD-SDI, digital video, and UHD broadcast installations. This umbrella listing offers the same one-piece compression connector as either a Single Piece or 50-Pack content option for individual repairs or larger cable-assembly projects.

The connector uses a brass body with nickel plating, a gold-plated brass center contact, and a PTFE insulator. Its green identification band matches Belden's RG6 connector system, while the compression termination provides a practical approach for field-built and installation-grade coax assemblies. Applications include HD-SDI video, SMPTE 424M 3 Gb/s HD-SDI, and SMPTE 2081-1 6 Gb/s UHDTV signal paths.

Belden specifies the 1694ABHD1 as a 6 GHz RG6 BNC connector with a 75-ohm nominal impedance and SMPTE 2081-1 return-loss performance. The connector works with the CPLCRBC-BR compression tool and PSA59/6 stripping tool. It is intended for indoor, non-plenum installations and is particularly suited to professional broadcast, production, routing, and fixed AV cabling.

Key Features

• Content Options: Available as a Single Piece or 50-Pack while retaining the same 1694ABHD1 connector design.
• 6 GHz BNC Interface: Supports professional high-bandwidth coaxial video applications including UHD and HD-SDI workflows.
• 75-Ohm Impedance: Matches professional video coax systems designed around 75-ohm signal paths.
• One-Piece Compression Design: Simplifies field termination compared with multi-piece connector assemblies.
• RG6 Compatibility: Designed around Belden RG6 precision video cable applications, including 1694A installations.
• Broadcast Video Support: Suitable for SMPTE 424M 3 Gb/s HD-SDI and SMPTE 2081-1 6 Gb/s UHDTV applications.
• Durable Metal Construction: Uses nickel-plated brass body components and a gold-plated brass center contact.
• Green Identification Band: Provides quick visual identification within Belden's coax connector system.

Technical Specifications

• Model: 1694ABHD1
• Product Type: HD BNC Compression Connector
• Content Variations: Single Piece; 50-Pack
• Connector System Compatibility: Coaxial
• Connector Interface: BNC
• Connector Series: HD
• Gender: Male Plug
• Body Type: Straight
• Termination Type: Compression
• RG Type: RG6
• Nominal Characteristic Impedance: 75 Ohms
• Rated Frequency: Up to 6 GHz
• Return Loss, 5 to 1485 MHz: Minimum 15 dB
• Return Loss, 1485 to 3000 MHz: Minimum 10 dB
• Return Loss, 3000 to 6000 MHz: Minimum 7 dB
• Return Loss Standard: SMPTE 2081-1 or better
• Voltage Rating: 500 VRMS
• Insulation Resistance: Greater than 5000 Megohms at 100 VDC
• Durability: 500 mating cycles
• Cable Retention Force: Greater than 100 lb
• Nut Material: Nickel-Plated Brass
• Body Material: Nickel-Plated Brass
• Contact Material: Brass
• Contact Plating: Gold
• Insulator Material: PTFE
• Color Band: Green
• Locking: No
• Compression Tool Compatibility: CPLCRBC-BR
• Strip Tool Compatibility: PSA59/6
• Suitable Applications: HD-SDI, Video, Digital Video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p
• Environmental Space: Indoor
• Outdoor Suitability: No
• Plenum Rated: No
• RoHS 2 Compliance: Yes
• WEEE Compliance: Yes

What's In the Box

• Single Piece: 1 x Belden 1694ABHD1 HD BNC Compression Connector
• 50-Pack: 50 x Belden 1694ABHD1 HD BNC Compression Connectors
