Belden 1695ABHD1 6GHz HD BNC Compression Connector for 1695A Plenum Cable - Single

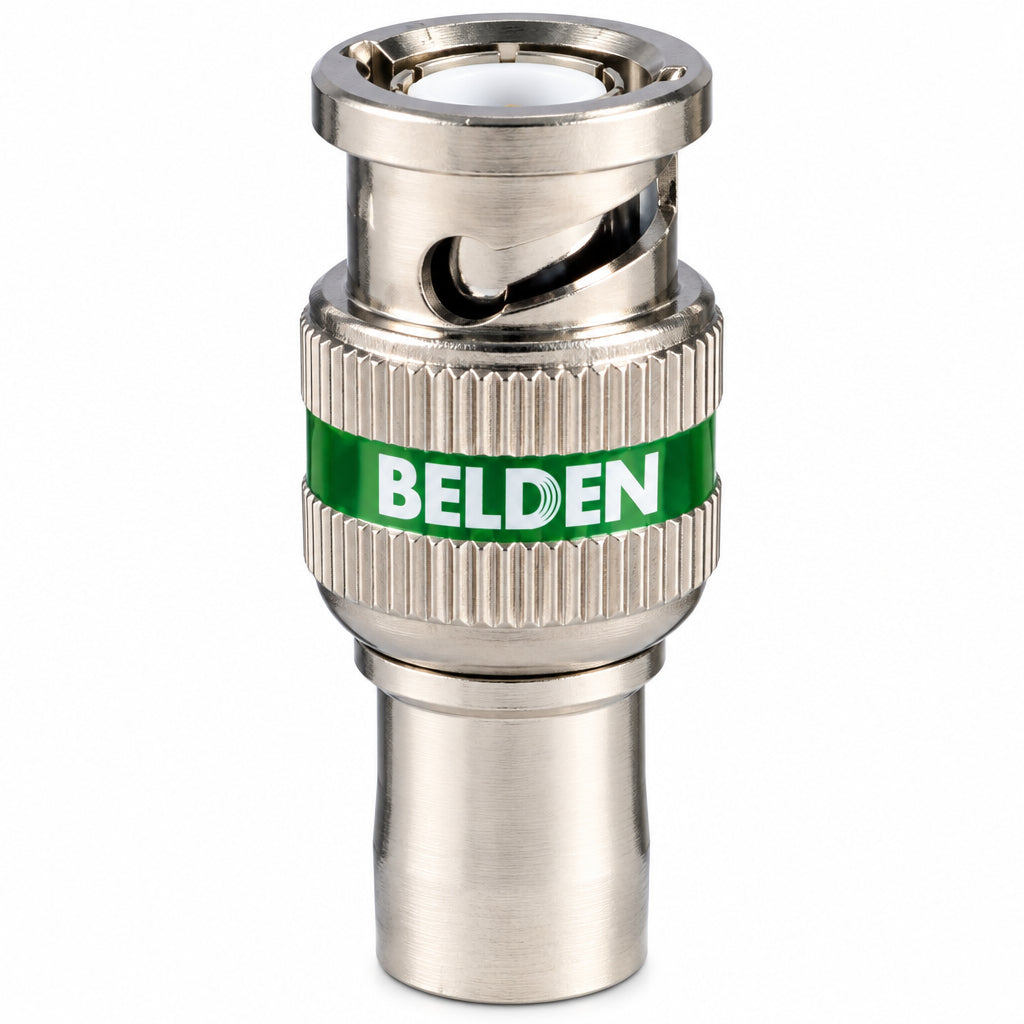

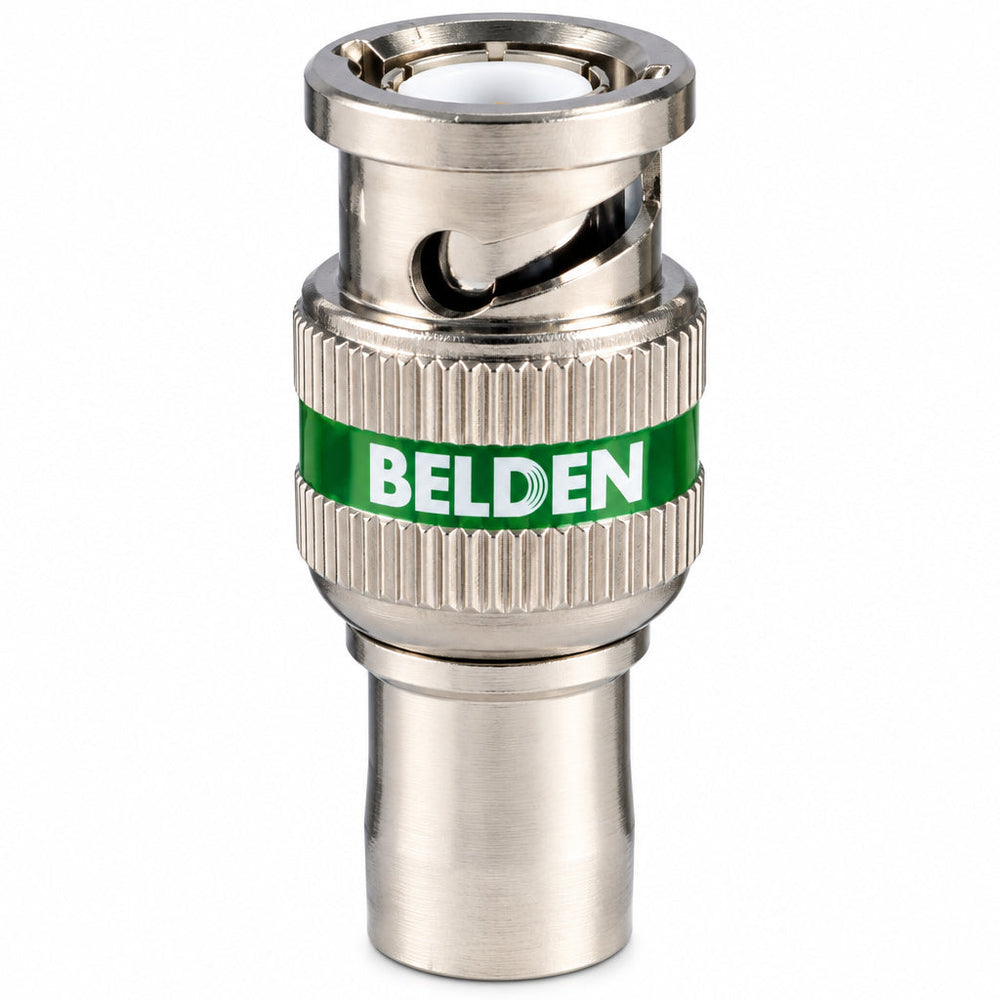

Plenum ceilings and raised-floor runs wired with Belden 1695A call for a matching connector, and the Belden 1695ABHD1 is that plug: a one-piece, 75-ohm HD BNC male compression connector for 1695A 18 AWG plenum RG6 precision video cable, offered as a single piece or in 10-, 25- and 50-packs.

It carries the same HD BNC design as Belden's 1694ABHD1 with a plenum rating, supporting HD-SDI, digital video, SMPTE 424M 3 Gb/s HD-SDI 1080p and SMPTE 2081-1 6 Gb/s UHDTV signal paths. Belden specifies SMPTE 2081-1 return loss or better to 4.5 GHz, with a nickel-plated brass body, gold-plated brass contact and PTFE insulator.

Terminate it with the Belden PSA59/6 strip tool and CPLCRBC-BR compression tool; non-blind entry and compression rings keep every termination consistent. Indoor use, green Belden color band.

Features

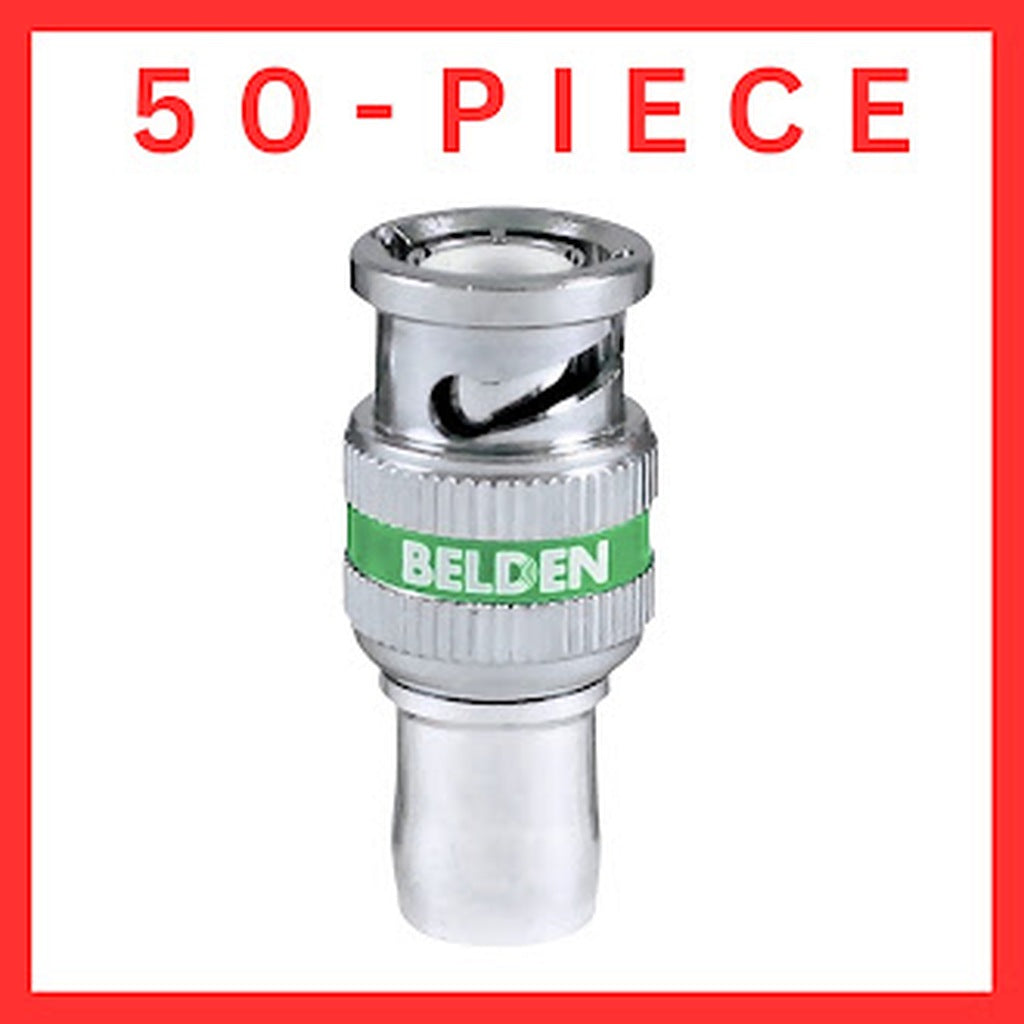

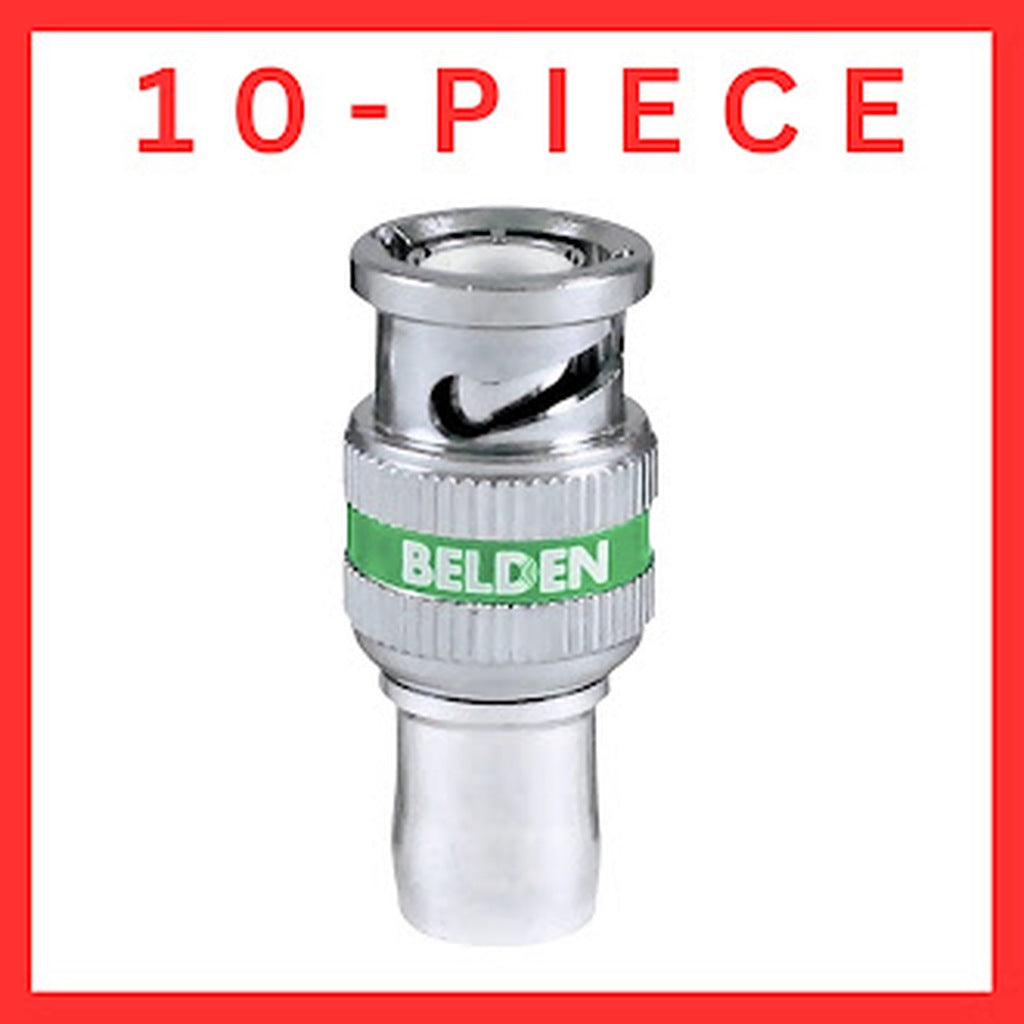

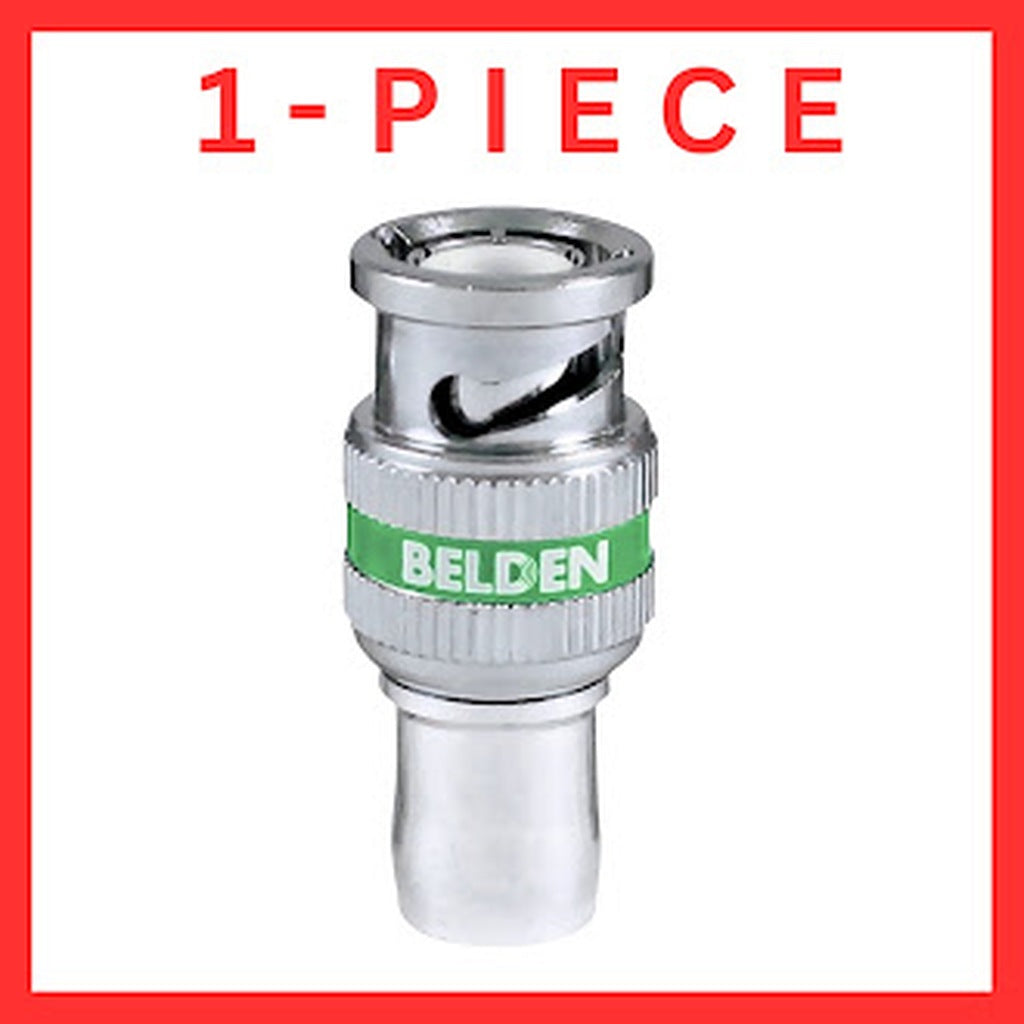

• Available as a single connector or in 10-, 25- and 50-packs
• Fits Belden 1695A 18 AWG plenum RG6 precision video cable
• 6 GHz rated one-piece HD BNC male plug, 75-ohm
• Compression termination with non-blind entry
• Nickel-plated brass body and nut, gold-plated brass contact, PTFE insulator
• Green Belden color band for quick identification
• Plenum-rated, indoor use

Technical Specifications

• Belden part number: 1695ABHD1
• Connector interface: BNC, male plug
• Connector series: HD, 1 piece
• Termination: compression
• Impedance: 75 ohm
• RG type: RG6
• 5-1485 MHz: 15 dB minimum return loss
• 1485-3000 MHz: 10 dB minimum return loss
• 3000-4500 MHz: 7 dB minimum return loss (SMPTE 2081-1 return loss or better to 4.5 GHz)
• Applications: HD-SDI, video, digital video, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p
• Tools: CPLCRBC-BR (compression), PSA59/6 (strip)
• Color band: green
• Locking: no
• Plenum-rated, indoor use

What's Included

• Single: 1 x Belden 1695ABHD1 connector
• 10 Pack: 10 connectors
• 25 Pack: 25 connectors
• 50 Pack: 50 connectors
