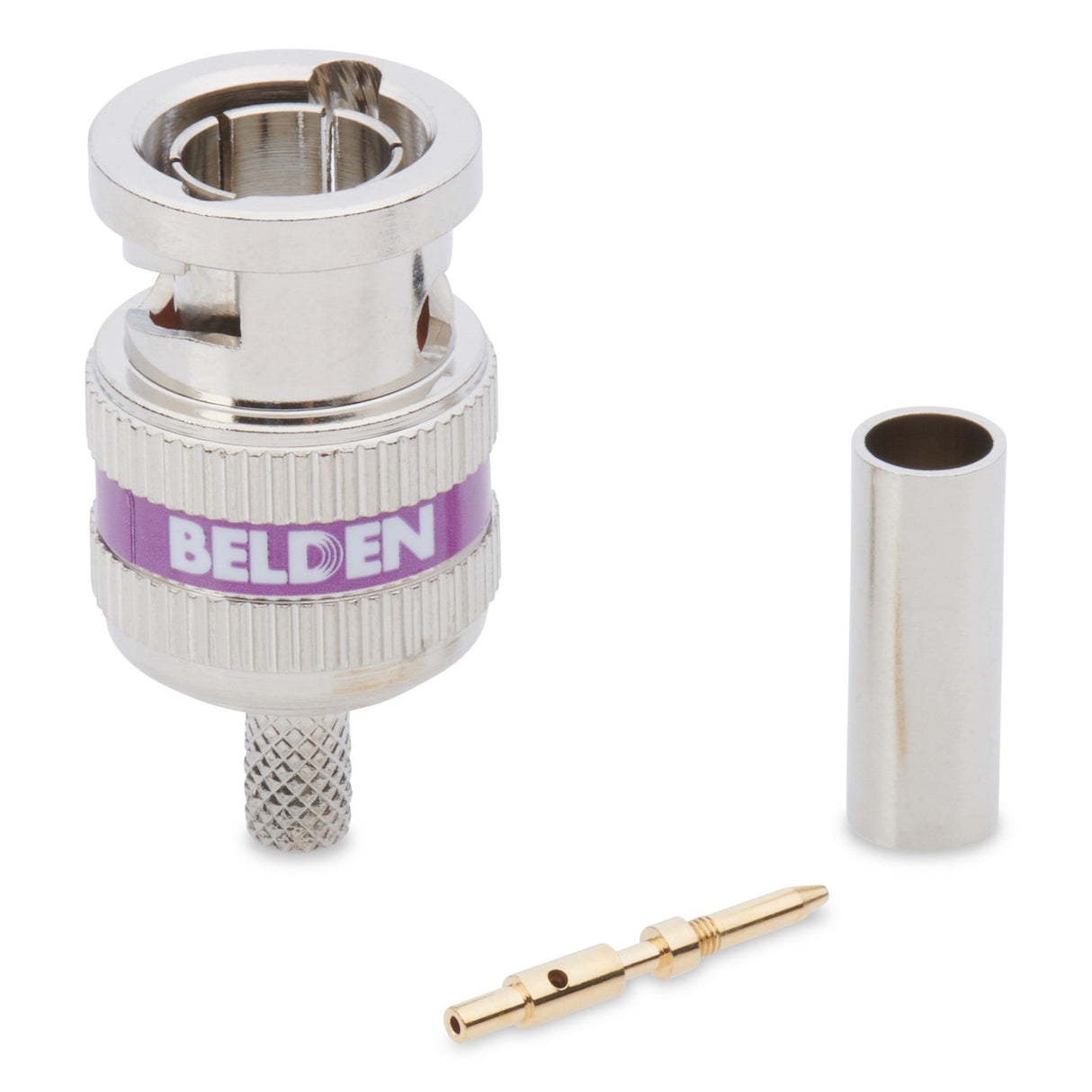

Belden 4855RBUHD3 B50 12G-SDI 3-Piece UHD BNC Crimp Connector for 4855R/Mini-RG59 Cable, Violet Band, 50-Pack
The 4855RBUHD3 B50 is a 50-piece pack of Mini RG-59, 12 GHz, UHD, BNC, 3-piece crimp connectors that work with Belden 4855R cable.
BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. Rated for 6 GHz and 12 GHz broadcast applications, one-piece and three-piece connector types are available. The connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.
Key Features
- Mini RG-59
- Suitable for Indoor Use
- Nickel Plated Brass with Gold Plated Brass Contact
- BNC Type Male/Plug Crimp Connector
- UHD Series
- Violet Band
- Non-Locking
Technical Specifications
Trim Code 3-661-1
A = 0.624”/ B = 0.312” / C = 0.155”
Center Pin Crimp Size
0.046”
Center Pin Crimp Cavity
0.042”
Ferrule Crimp Size
0.278”
Ferrule Crimp Cavity
0.178
AWG Size
23
Packaging
50 Pack
Number of Pieces
3
Nominal Characteristic Impedance
75Ω
Footprint/Type
Coax
Connector Interface Type
BNC
Gender
Male - plug
Connector Series Name
UHD
Color Band
Violet
Locking
No
Tool Compatibility
BB3PHCT (crimp), BB3PST (strip)
Termination Type
Crimp
Cable Center Conductor Diameter Limits
0.0208 - 0.0244 in
Cable Dielectric Diameter Limits
0.0964 - 0.1019 in
Cable Outer Jacket Diameter Limits
0.1574 - 0.1692 in
RG Type
Mini 59
Item Includes
4855RBUHD3 B50 BNC Crimp Connector for 4855R/Mini-RG59 Cable - Violet Band - 50 Pack
Warranty
Limited Lifetime Connector Warranty when partnered with Belden Cable
