Belden 8233WB Video Triax Cable RG11 CPE Jacket, 2000-Feet
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

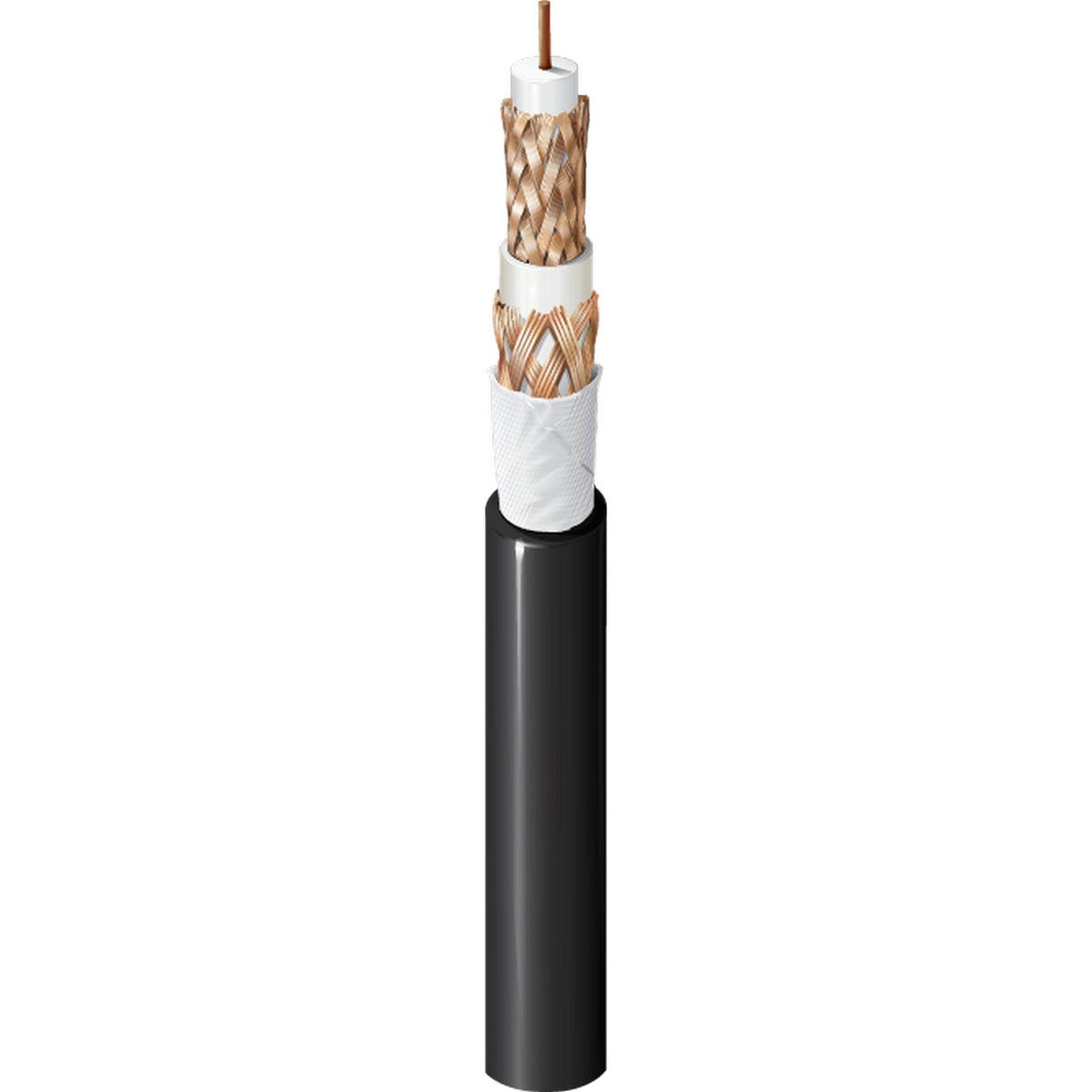

Belden 8233WB Video Triax Cable RG11 CPE Jacket, 2000-Feet
Belden 8233WB 14 AWG solid .064” bare copper conductor, gas-injected foam HDLPE insulation, bare copper braids (95% & 80% coverage), flooded, CPE jacket.
Technical Specifications
AWG
14
Stranding
Solid
Material
Bare Copper
Nom. Diameter
0.064in
Conductors
1
Nominal Conductor DCR
2.6 Ohm/1000ft
Nominal Inner Shield DCR
1.7 Ohm/1000ft
Nominal Outer Shield DCR
1.5 Ohm/1000ft
Nom. Capacitance Conductor to Shield
16.1 pF/ft
Nominal Inductance
0.097 µH/ft
Nominal Characteristic Impedance
75 Ohm
UL Voltage Rating
300 V RMS
Installation Temp Range
-20 Degrees C To +75 Degrees C
UL Temp Rating
75 Degrees C
Storage Temp Range
-30 Degrees C To +90 Degrees C
Operating Temp Range
-30 Degrees C To +75 Degrees C
UV Resistance
Yes
Bulk Cable Weight
130 lbs/1000ft
Max. Pull Tension
240 lbs
Min Bend Radius/Minor Axis
4.75 in
Environmental Space
Indoor/Outdoor
UL Flammability
UL1581 Vertical Tray
CSA Flammability
FT1
UL Voltage Rating
300 V RMS
