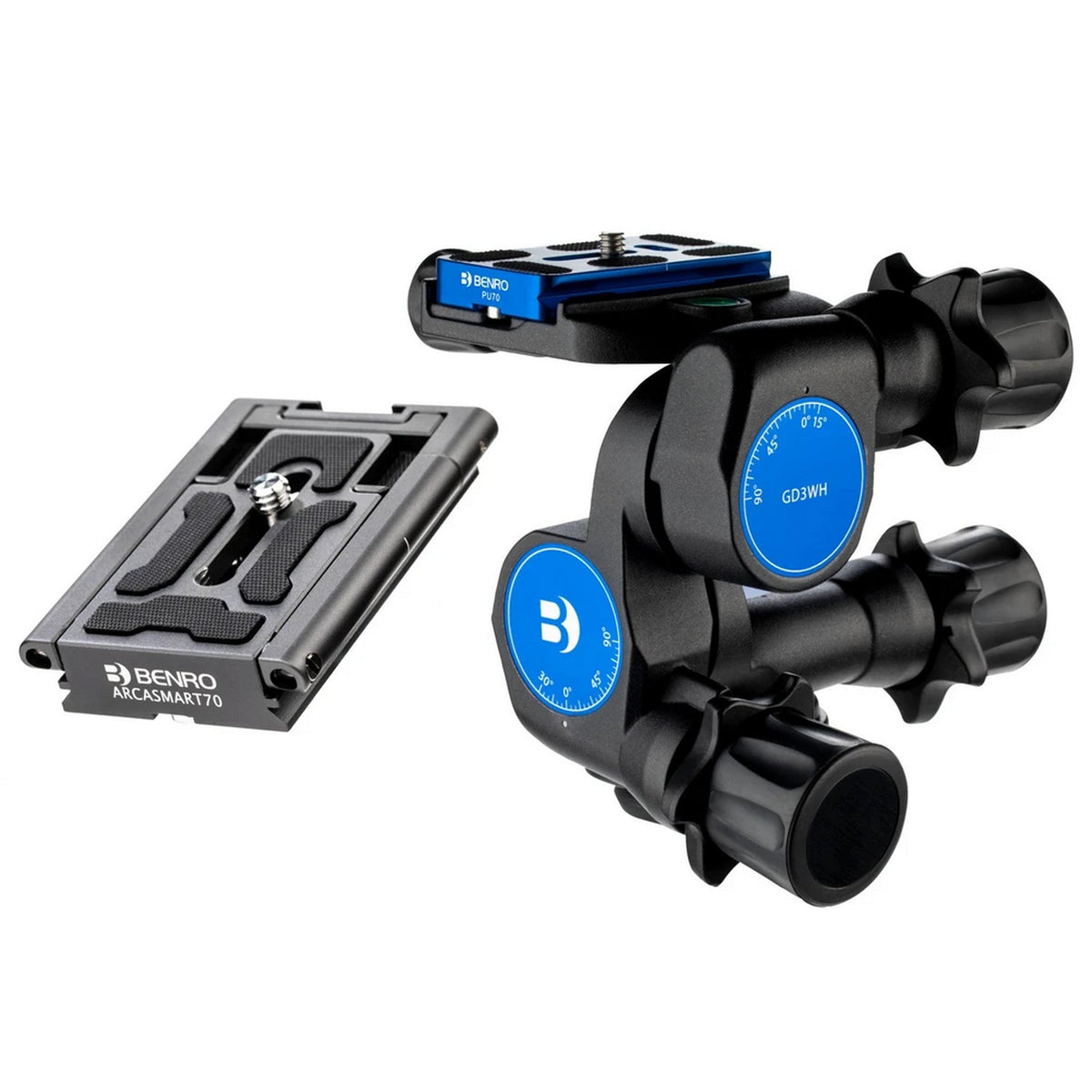

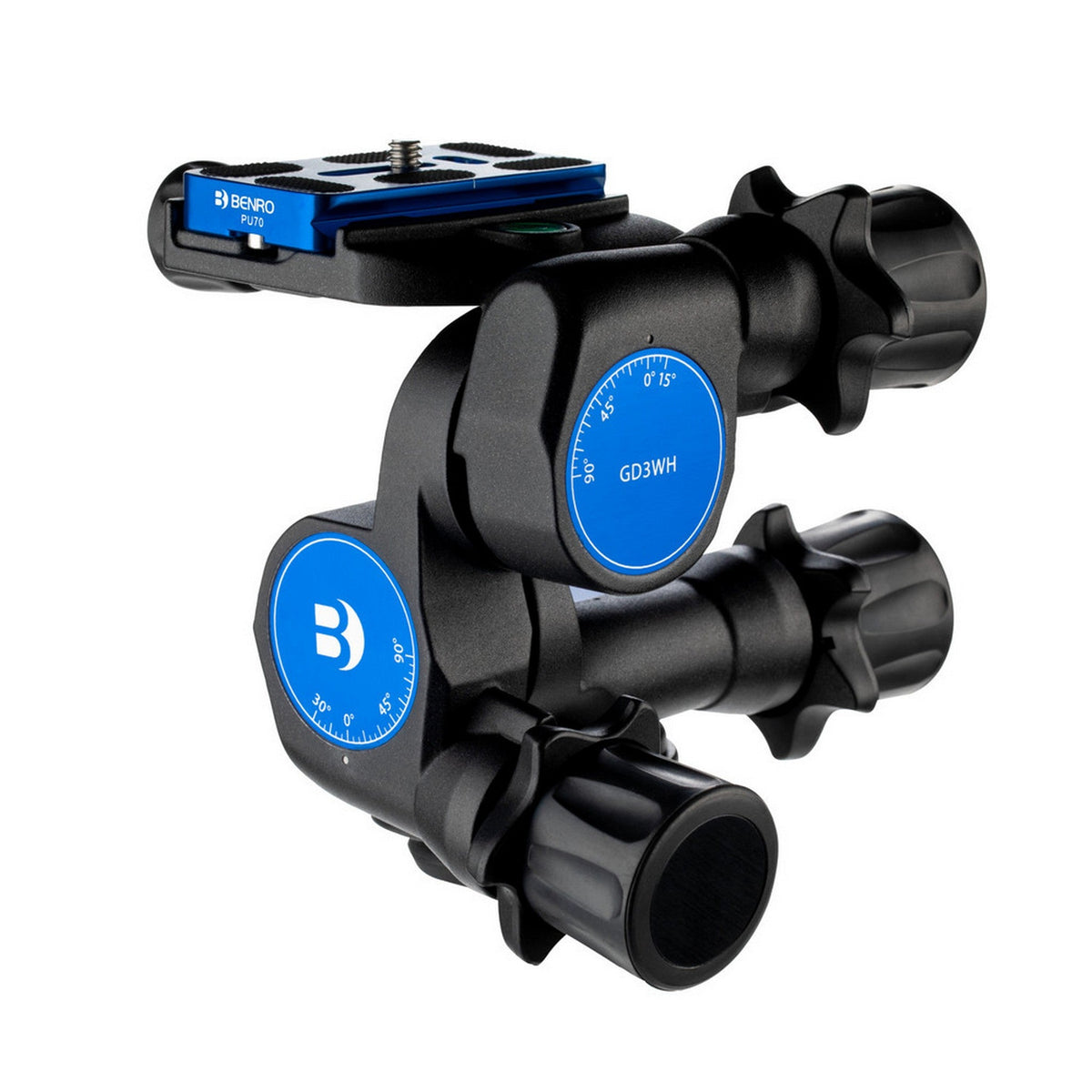

Benro GD3WHACS70 3-Way Geared Head with ArcaSmart70 Plate

Benro GD3WHACS70 3-Way Geared Head with ArcaSmart70 Plate

The Benro GD3WHACS70 3-Way Geared Head with ArcaSmart70 Plate provides precise three-axis camera positioning for photography that demands careful framing. Independent release controls handle larger adjustments, while dedicated rotating knobs provide fine movement. The bundle supports up to 13.2 lb and adds an ArcaSmart70 camera and smartphone plate.

Designed for studio still life, landscape, architecture, macro, and other precision photography, the GD3WH lets photographers establish an approximate composition before making controlled incremental adjustments. Three integrated bubble levels assist with alignment, while the Arca-compatible quick release system simplifies switching between compatible support equipment. The additional ArcaSmart70 expands the setup for both conventional cameras and smartphones.

Benro uses magnesium alloy in the geared head to control overall weight while incorporating carbon steel and bronze in the movement system. The head mounts to compatible supports through a 3/8-inch connection and accepts cameras through a 1/4"-20 quick release screw. The ArcaSmart70 adds CNC-machined aluminum construction, stainless steel smartphone-support rods, and a cold shoe for compatible accessories.

Key Features

• Three-Way Geared Control: Independent adjustment across three directions supports precise camera positioning and carefully composed photographs.
• Independent Release Controls: Quickly reposition the camera for broad adjustments before switching to fine geared movement.
• Precision Control Knobs: Individual rotating knobs provide small, controlled movements for detailed framing.
• 13.2 lb Load Capacity: Supports compatible camera and lens combinations weighing up to 13.2 lb.
• Arca-Compatible Quick Release: Works with compatible Arca-style plates and support equipment for a more flexible photography setup.
• Three Bubble Levels: Integrated levels assist with accurate alignment when shooting landscapes, architecture, products, and other critical compositions.
• ArcaSmart70 Included: The additional 70 mm plate works as both a camera plate and smartphone adapter and includes a cold shoe accessory mount.
• Durable Construction: Magnesium alloy, carbon steel, bronze, CNC-machined aluminum, and stainless steel components support dependable professional use.

Technical Specifications

GD3WH 3-Way Geared Head

• Bundle SKU: GD3WHACS70
• Head Model: GD3WH
• Head Type: 3-Way Geared Head
• Movement: Independent movement in 3 directions
• Bubble Levels: 3
• Load Capacity: 13.2 lb
• Head Mount: 3/8 in
• Base Mount Diameter: 2 in
• Quick Release Type: Arca
• Quick Release Camera Thread: 1/4"-20
• QR Plate Length: 2.8 in
• QR Plate Width: 1.5 in
• Product Dimensions (L x W x H): 5.7 x 5.5 x 4.3 in
• Product Weight: 1.9 lb

ArcaSmart70 Plate

• Model: ARCASMART70
• Type: Arca-Swiss Camera Plate and Smartphone Adapter
• Quick Release Type: Arca-Swiss
• Camera Thread: 1/4"-20
• Accessory Mount: Cold Shoe
• Plate Construction: CNC-Machined Aluminum
• Smartphone Rod Construction: Stainless Steel
• Dimensions (L x W x H): 2.8 x 1.9 x 0.5 in
• Weight: 0.2 lb

What's In the Box

• Benro GD3WH 3-Way Geared Head
• PU70 Arca-Swiss Style Camera Plate
• ArcaSmart70 Camera Plate and Smartphone Adapter
