Biamp CM10TB 5.5-Inch Full-Range Ceiling Mount Loudspeaker, Pair
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

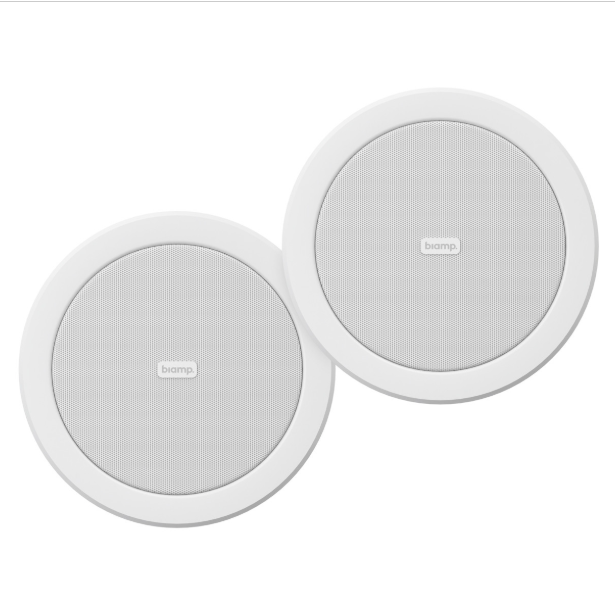

Biamp CM10TB 5.5-Inch Full-Range Ceiling Mount Loudspeaker, Pair
The lowest cost back can speaker in Biamp’s lineup, the CM10TB is ideal for applications such as paging and background music in a variety of venues but is specifically designed to provide exceptional performance when paired with Vocia voice communication system. The CM10TB delivers crystal-clear voice intelligibility-a critical requirement for any speech reinforcement application - while its wide, uniform coverage surpasses that of competitors.

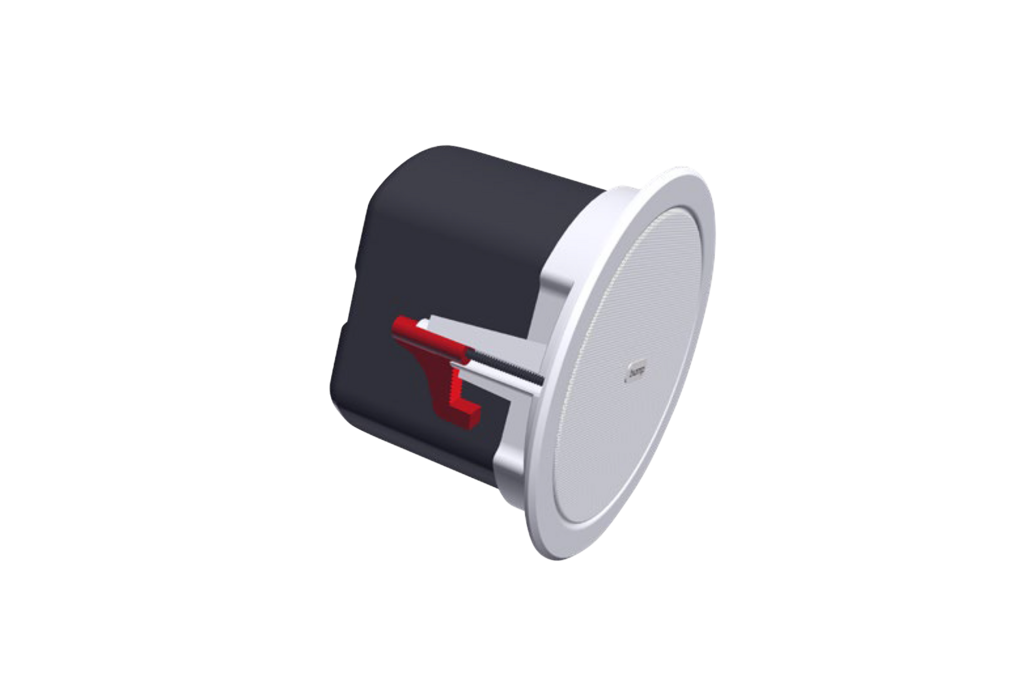

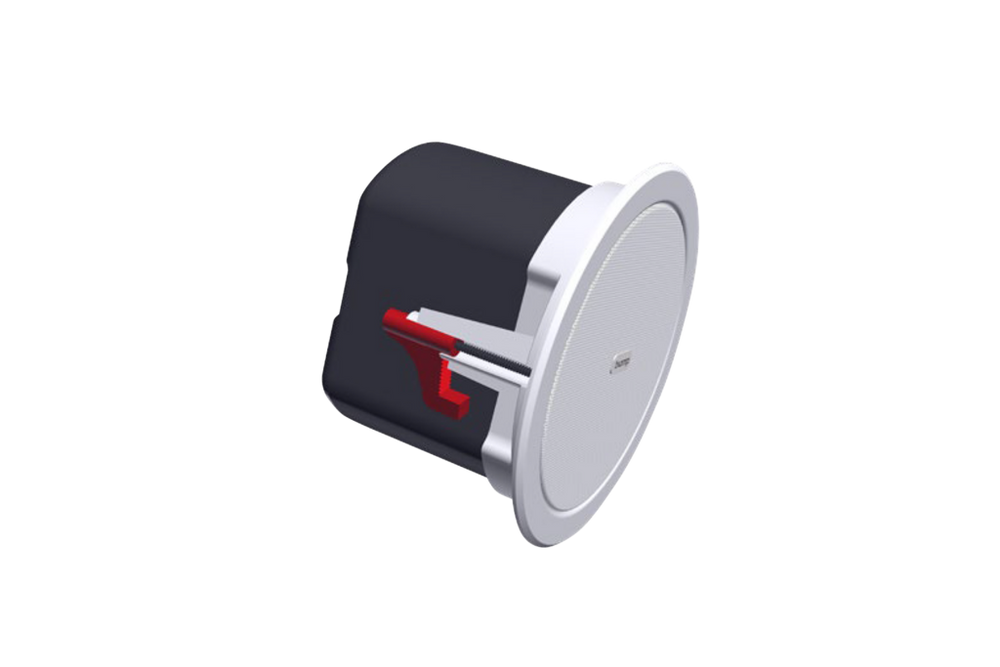

The CM10TB uses preassembled back-can construction that allows it to be easily mounted on ceiling tiles or drywall ceilings, providing unmatched simplicity for significant installation cost savings. UL1480A and UL2043 certified, the CM10TB also meets the City of Chicago plenum space wiring requirements and comes with additional accessories for new construction installation and safety cable attachment.
The CM10TB offers the flexibility of low impedance or 70 V/100 V operation while featuring a front face wattage selector switch for adjusting tap levels before installing the grille.
Key Features
- Full-range 5.5-inch ceiling loudspeaker: Designed for paging and background music
- Vocia system compatibility: Designed for use with any Vocia paging system
- Selectable low-impedance or 70V/100V operation: Flexible integration into commercial audio systems
- Higher sensitivity with 20% wider coverage pattern: Broad, uniform sound coverage
- Preassembled back-can construction: Simplifies ceiling tile and drywall installation
- Low-profile design: Less than 151 mm (6") total depth
- Front-face wattage selector switch: Tap adjustment before grille installation
- Conduit knock-outs on input cover: Meets plenum air space handling requirements
- Quick and easy installation: Built for reduced installation time and cost
Technical Specifications
-
General
- Product Type: Full-Range Ceiling Mount Loudspeaker
- Model: CM10TB
- Operating Mode: Passive with selectable low-impedance or 70V/100V operation
- Operating Environment: Indoor
- Model Variant: Loudspeaker with white grille
-
Driver
- Transducer: 1 x 5.5" (140 mm) full-range paper diaphragm driver
-
Performance
- Operating Range (-10 dB): 120 Hz to 20 kHz
- Nominal Beamwidth: 145° conical
- Sensitivity: 94 dB (2.83 V, 1 m), 94 dB (1 W, 8 Ω)
- Nominal Maximum SPL (Processed): 103 dB continuous, 109 dB peak @ 1 m
- Rated Maximum SPL (Processed): 103 dB continuous, 115 dB peak @ 1 m
-
Amplification
- Nominal Continuous Power Handling: 10 W @ 8 Ω
- Rated Continuous Voltage: 9 V (19 dBV)
- Recommended Amplifier Power: 10 W – 20 W, 8 Ω (9 V – 13 V)
- Required Accessories: 130 Hz, 12 dB/oct Butterworth high-pass filter; DSP presets for Tesira or ALCs
-
Electrical
- Transformer Taps (70V): 10 W, 5 W, 2.5 W, 1.25 W, 0.625 W
- Transformer Taps (100V): 10 W, 5 W, 2.5 W, 1.25 W
- Controls: Wattage / low-impedance selector switch
- Input Connection: 4-position terminal block
-
Physical
- Dimensions (Diameter x Depth): 223 mm x 159 mm (8.80" x 6.28")
- Weight: 2.1 kg (4.6 lbs)
- Depth Profile: Less than 151 mm (6") total depth
-
Installation & Mounting
- Mounting Provisions: 2 mounting clamps with 46 mm (1.8") grip range
- Installation Type: Ceiling tile or drywall ceiling
- Back Can: Preassembled
-
Compliance
- Listings: ETL listed to comply with UL1480, UL2043, and CSA62368-1
- Air Handling Spaces: Suitable for use per NFPA 70 and NFPA 90
- Additional Requirement: Meets City of Chicago plenum space wiring requirements
Use Cases
- Commercial paging systems
- Background music systems
- Vocia voice communication installations
- Ceiling tile and drywall ceiling audio installations
- Speech reinforcement in plenum-rated commercial spaces
Package Contents
- Biamp CM10TB Ceiling Mount Loudspeakers (Pair)
Frequently Asked Questions
What is the Biamp CM10TB used for?
The Biamp CM10TB is a full-range ceiling loudspeaker designed for paging and background music applications in commercial audio systems.
Is the Biamp CM10TB compatible with Vocia paging systems?
Yes, the CM10TB is designed for use with any Vocia paging system.
Does the Biamp CM10TB support low-impedance and 70V/100V systems?
Yes, the CM10TB supports selectable low-impedance or 70V/100V operation.
What type of installation is the CM10TB designed for?
The CM10TB is designed for ceiling tile or drywall ceiling installation and uses a preassembled back-can construction for simplified mounting.
What makes the Biamp CM10TB suitable for speech applications?
The CM10TB is designed to deliver crystal-clear voice intelligibility and wide, uniform coverage, making it well suited for speech reinforcement.
Does the Biamp CM10TB meet plenum installation requirements?
Yes, it is ETL listed to comply with UL1480, UL2043, and CSA62368-1, and is suitable for use in air handling spaces per NFPA 70 and NFPA 90.
