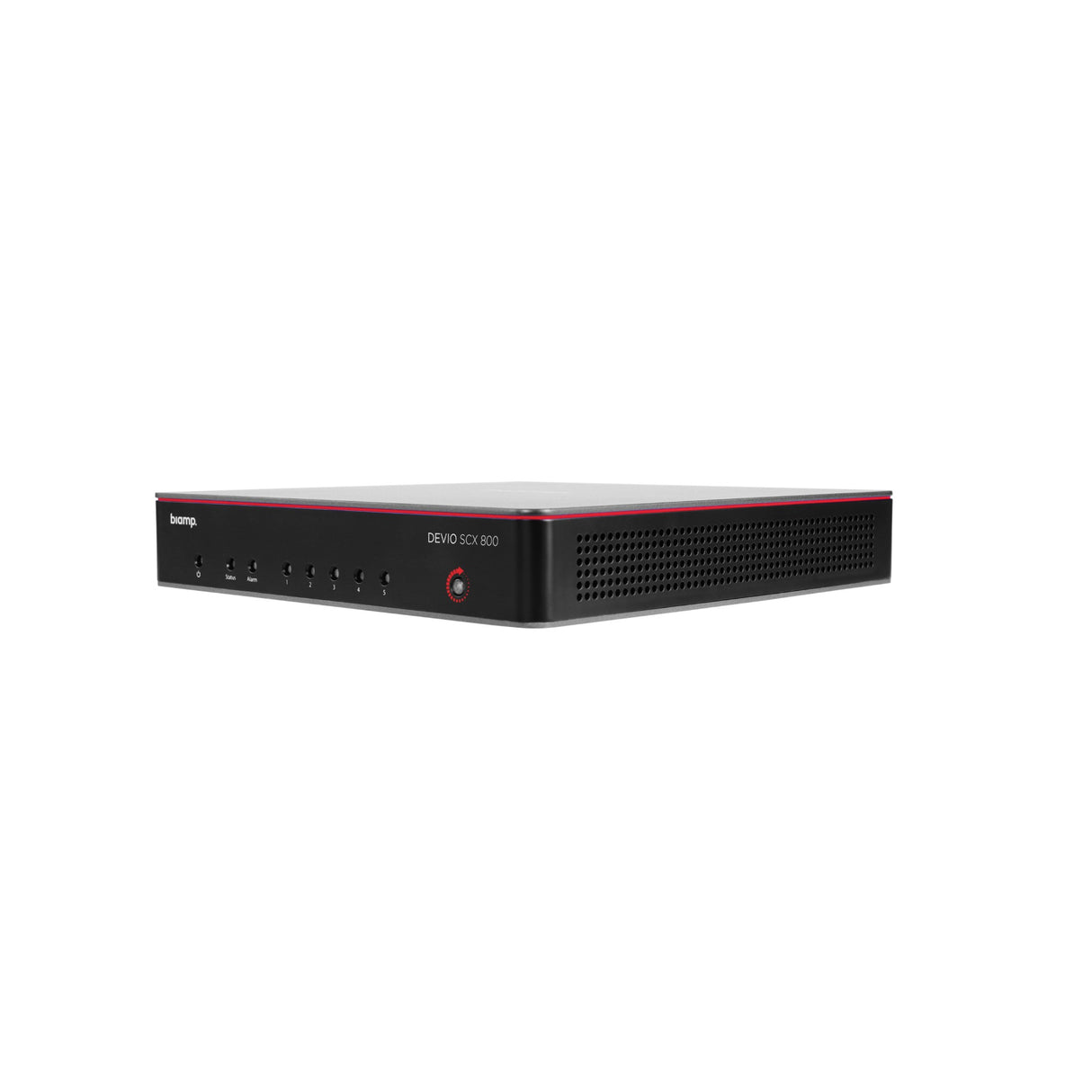

Biamp Devio SCX 800 Conference Room Hub with SIP VoIP & USB Audio

Biamp Devio SCX 800 Conference Room Hub for Unified Communications

The Biamp Devio SCX 800 is a conference room hub compatible with Biamp network audio and control devices, designed to simplify deployment while delivering professional conferencing performance. It supports USB audio and HID synchronization, allowing it to function as a conference audio peripheral when connected with Biamp Modena devices or Unified Communications systems.

Built for modern meeting spaces, the SCX 800 includes a SIP VoIP interface via Gigabit Ethernet that supports one line and two call appearances. It also features onboard acoustic echo cancellation (AEC) and processing capable of handling up to eight Biamp Parlé microphones—helping teams achieve clearer voice pickup and a more natural conversation experience in conference rooms.

Automated Setup With Biamp Launch

The Devio SCX 800 includes Biamp’s Launch feature, an automated discovery and tuning system that detects and configures attached Biamp devices. After the process completes, Launch provides a full acoustic and performance report indicating the results of the automatic configuration—useful for validating room readiness and installation outcomes.

Web-Based Control and Centralized Management

All aspects of the SCX 800 can be controlled using a web interface hosted on the device, and it also supports monitoring and management through SageVue, Biamp’s platform for management and monitoring.

Key Features

• Conference Room Hub Integration: Compatible with Biamp network audio and control devices for streamlined room system connectivity.
• USB Audio + HID Synchronization: Operates as a conferencing audio peripheral when connected with Biamp Modena devices or Unified Communications systems.
• SIP VoIP via Gigabit Ethernet: Built-in SIP VoIP interface supports one line and two call appearances for VoIP calling needs.
• Onboard Acoustic Echo Cancellation: Includes enough AEC and processing to handle up to 8 Biamp Parlé microphones.
• Biamp Launch Automated Discovery & Tuning: Detects and configures attached Biamp devices and generates an acoustic/performance report upon completion.
• Device-Hosted Web Interface Control: Configure and control all aspects of the SCX 800 through the built-in web interface.
• SageVue Monitoring & Management: Supports Biamp SageVue for device management and monitoring.
• Certified for Leading Platforms: Microsoft Teams Certified and Zoom Certified for common conferencing deployments.

Technical Specifications

• Height: 1.47 in (37.3 mm)
• Width: 8.11 in (206 mm)
• Depth: 8.11 in (206 mm)
• Weight: 1.9 lb (0.86 kg)
• SIP VoIP Interface: Gigabit Ethernet; supports 1 line and 2 call appearances
• USB Audio: Up to 2x2 channels
• USB Bit Depth: 16-bit / 24-bit
• USB Sample Rate: 48 kHz
• Ambient Operating Temperature Range: 32–104°F (0–40°C)
• Humidity: 0–95% RH (non-condensing)
• Altitude: 0–6,600 ft (0–2000 m) MSL
• Power Consumption: 100–240 VAC, 50/60 Hz, <150 W
• Microsoft Teams: Microsoft Teams Certified
• Zoom: Zoom Certified
• TAA Compliance: TAA Compliant
• Regulatory Compliance: FCC Part 15B (USA); Canada ICES-003 (A) / NMB-003 (A); CE marked (Europe); UL and C-UL listed (USA/Canada); RCM (Australia); RoHS Directive (Europe)

What’s Included

• CAT5e Cables: C5E-10-P and C5E-25-P (10-foot and 25-foot pre-terminated plenum rated CAT5e cables)
• Universal Rack Shelf: RMX 100
• Plenum Box: Plenum Box 12x12 (Chicago compliant)
• Power Extension Cable: PEX (50-foot / 15 m)
