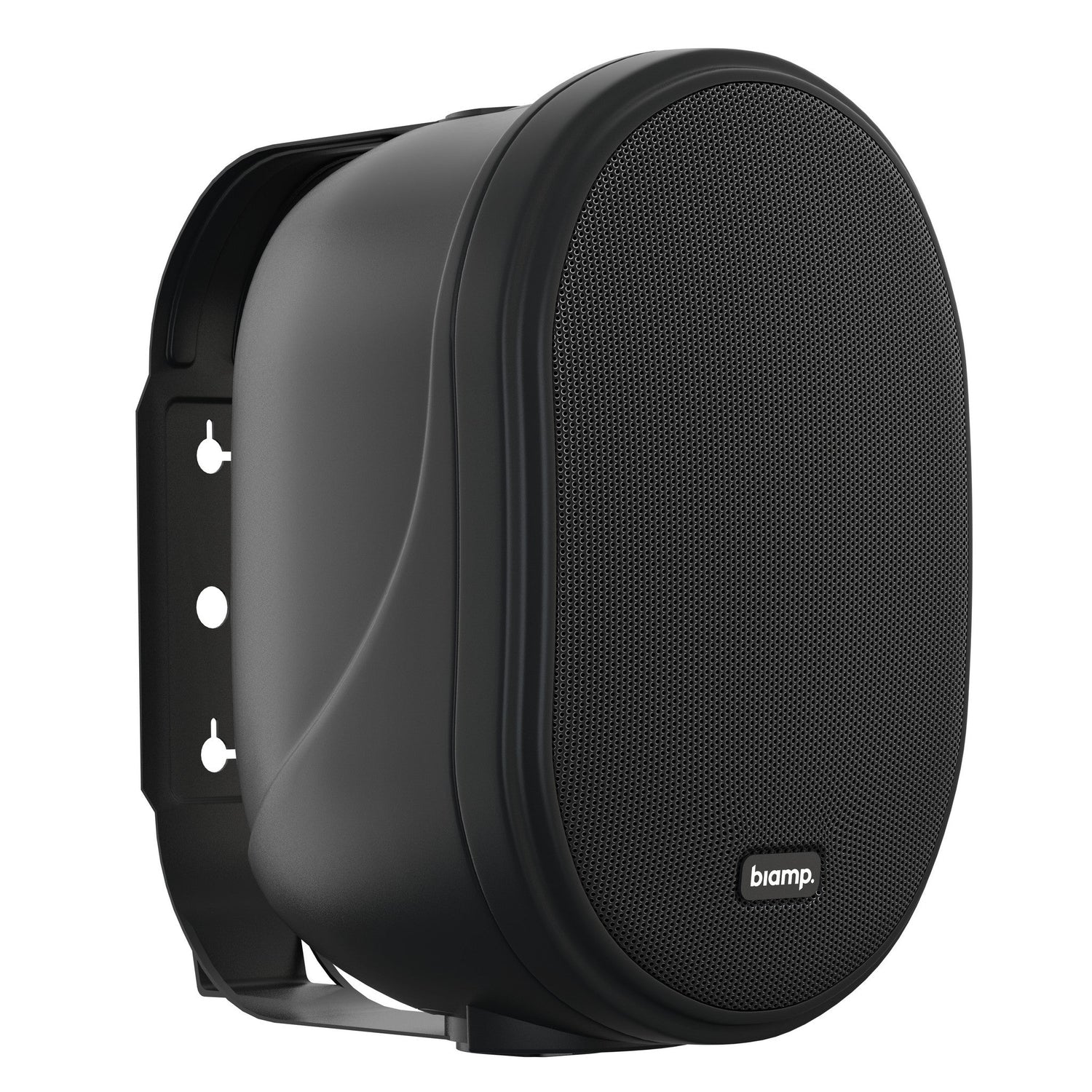

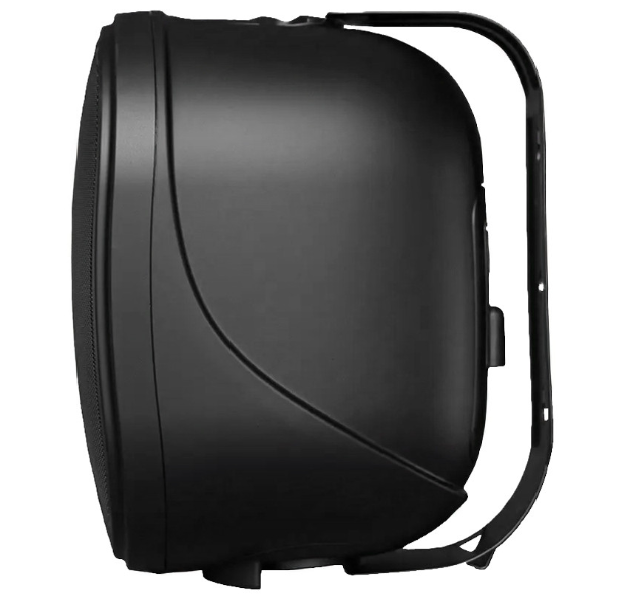

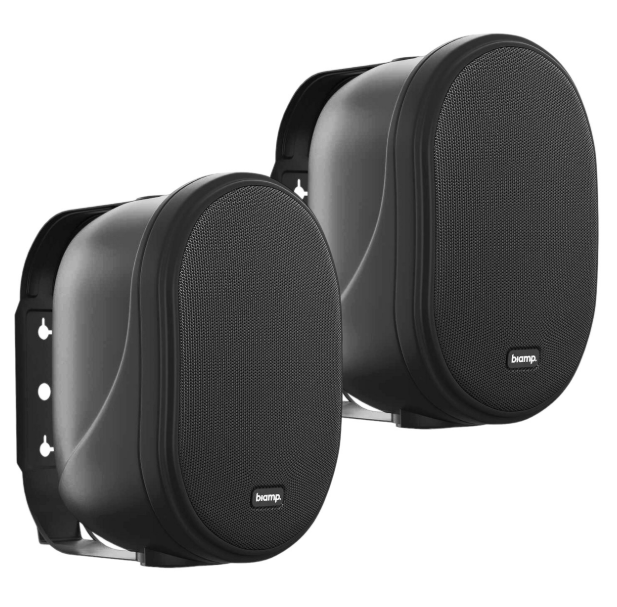

Biamp OVO5T 5.25-Inch 2-Way Loudspeaker, Black, Pair

OVO5T is a 5.25-inch, two-way 70/100 volt or low impedance cabinet loudspeaker that can be used for background music and paging purposes both indoor and (covered) outdoor. This speaker produces 80 watts @ 16 ohms or when used in 100 volt you can select 30 - 15 - 6 - 3 watts and when used with 70 volt you can select 30 - 15 - 7.5 - 3 - 1.5 watts -- with an easily accessible selection switch at the back.

Install as many speakers as you want in large-surface projects like company buildings, neighborhood centers, commercial applications -- thanks to the fresh design this speaker fits into any area, whatever its décor or interior style.

The sturdy ABS plastic housing guarantees years of trouble-free musical enjoyment. OVO5T has a 5.25-inch paper cone woofer and 1-inch silk dome tweeter.

The OVO5T can be mounted with the included wall bracket while the Quick-Fit cable clamps ensure quick and easy mounting in a wide range of positioning. The speaker can also be placed freestanding on a shelf or desk. This loudspeaker can be painted in any color of choice.

Key Features

• Contemporary design, small, budget-friendly
• High output and wide coverage pattern are ideal for larger spaces
• Full-range, 2-way design ideal for background music and voice paging
• Integrated pan and down-tilt U-bracket included
• Included input wiring cover

Technical Specifications

Operating Mode
Passive with selectable low-impedance or 70 V/100 V operation, single amplified with DSP
Operating Environment
Indoor
Operating Range (-10 dB)
74 Hz to 20 kHz
Nominal Beamwidth (H x V)
130 x 100 Degrees
Transducers
LF 1 x 5.25” (133 mm) coated paper cone
HF 1 x 1” (25 mm) silk dome tweeter
Sensitivity
86 dB (2.83 V) 89 dB (1 W, 16 Ω)
Nominal Continuous Power Handling
25 V (40 W, 16 Ω Nominal Impedance)
Nominal Maximum SPL (Processed)
@ 1 m
Continuous
102 dB
Peak
108 dB
Rated Continuous Voltage
20.0 V (26 dBV)
Rated Maximum SPL (Processed)
@ 1 m
Continuous
100 dB
Peak
112 dB
Transformer
70 V: 30 W, 15 W, 7.5 W, 3 W, 1.5 W
100 V: 30 W, 15 W, 7.5 W, 3 W
Required Accessories
80 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers
40 W - 80 W, 8 Ω (18 V - 25 V)
PHYSICAL
Input Connection
Spring-lever terminals with wiring cover
Controls
Wattage / low impedance selector switch
Mounting Provisions
Pan and tilt U-bracket
Compliance
IEC 62368-1 certified
Environmental Rating
IP40 per IEC 60529
Dimensions H x W x D
256 mm x 167 mm x 189 mm
<10.07” x 6.56” x 7.44>
Weight (loudspeaker/mount)
3.08 kg <6.8 lbs>
