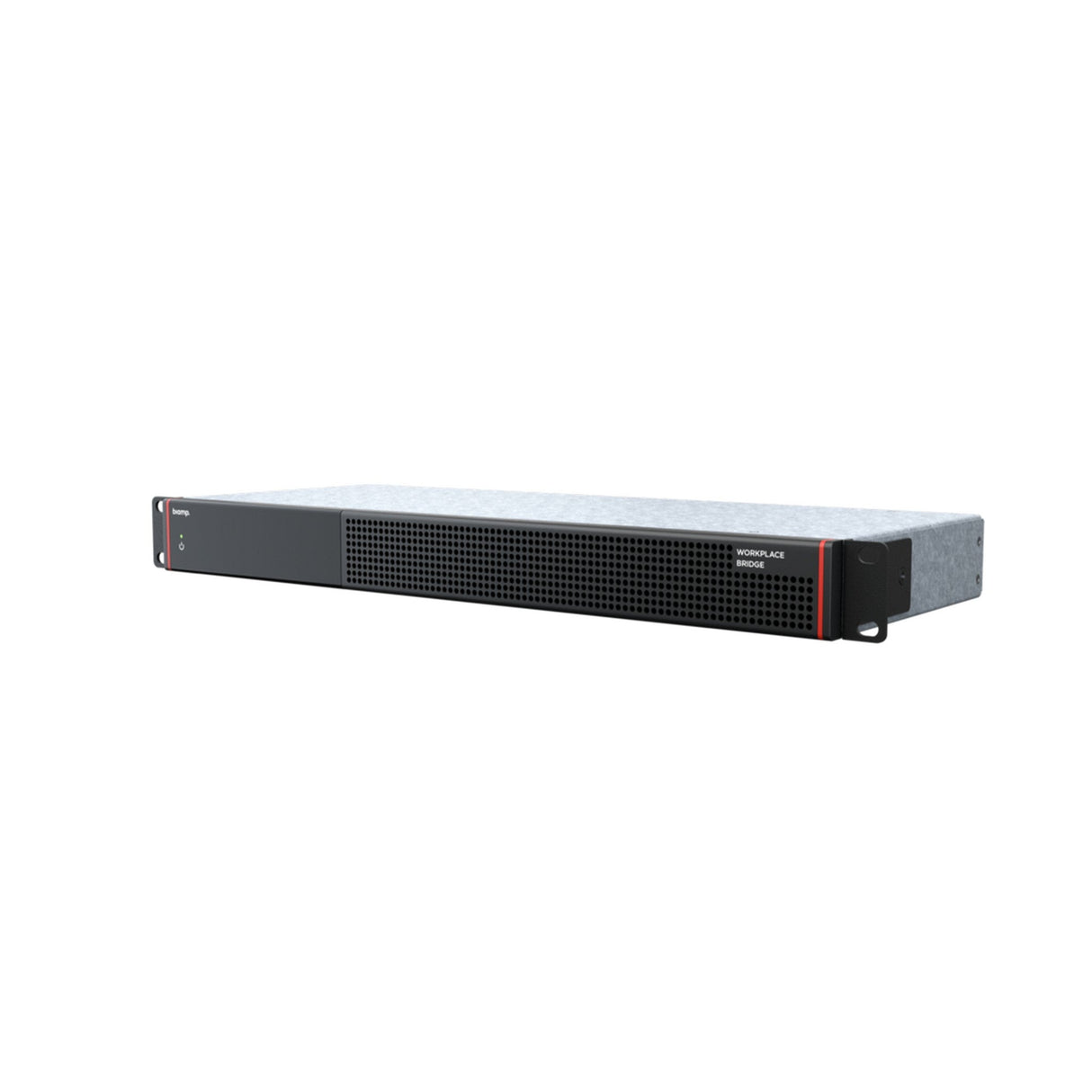

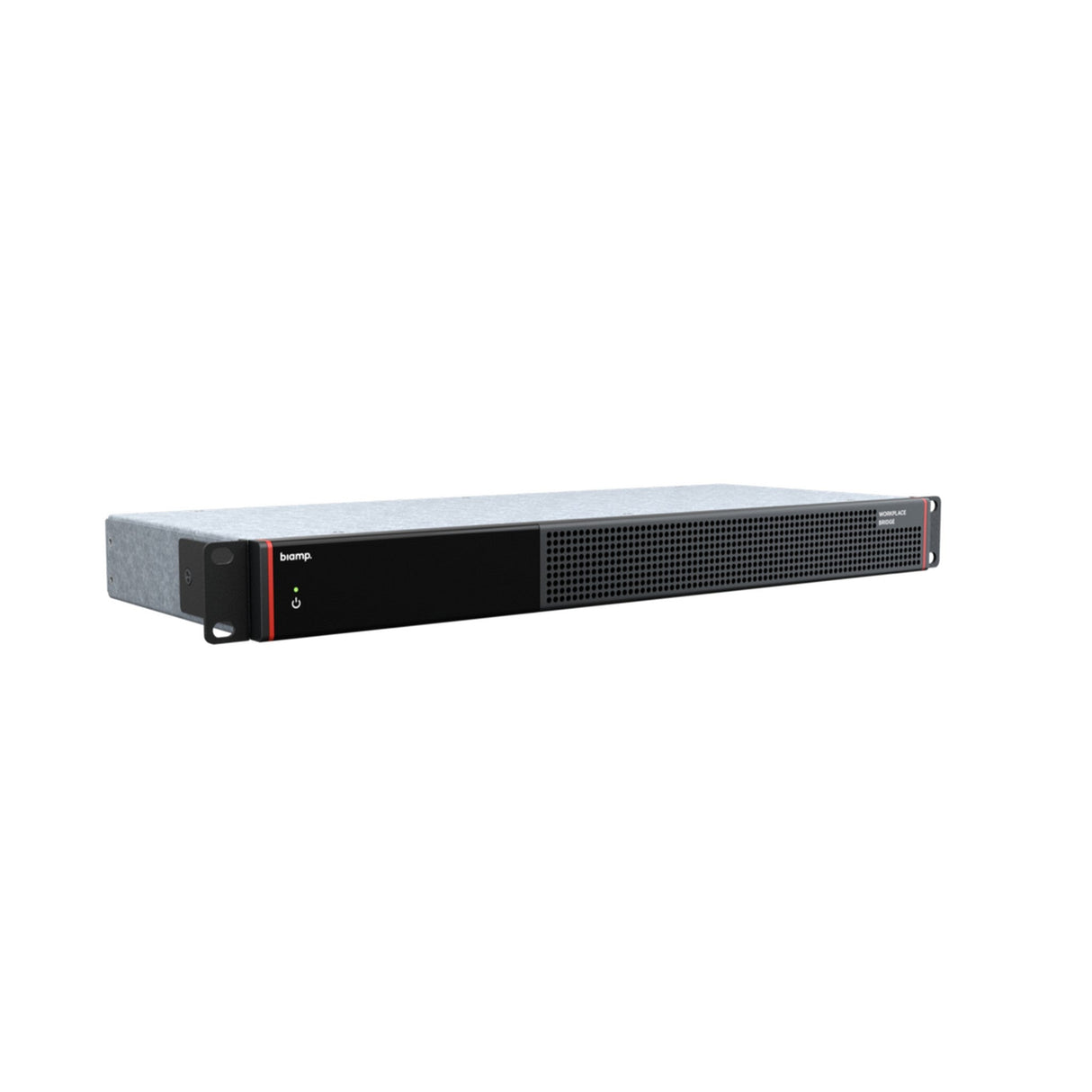

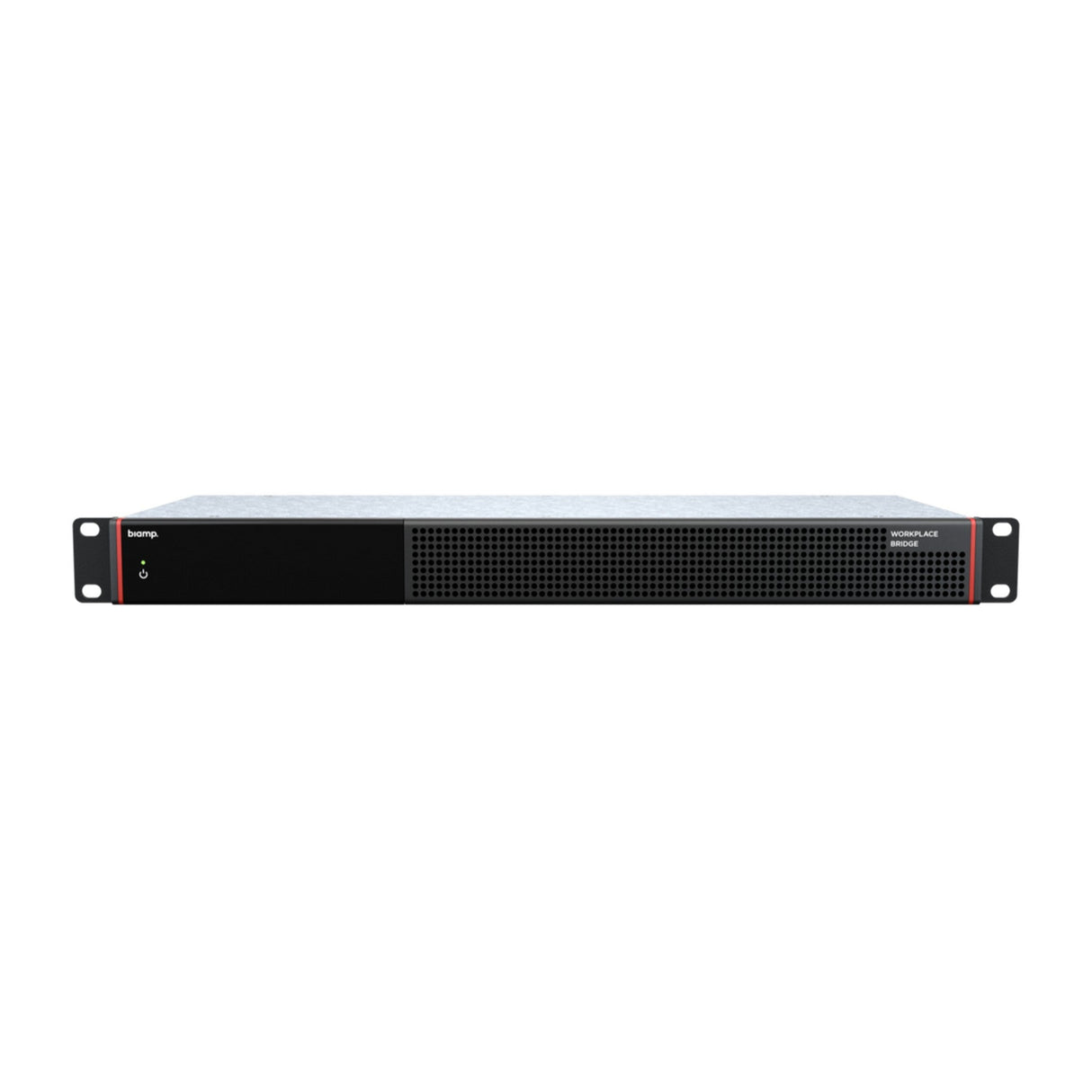

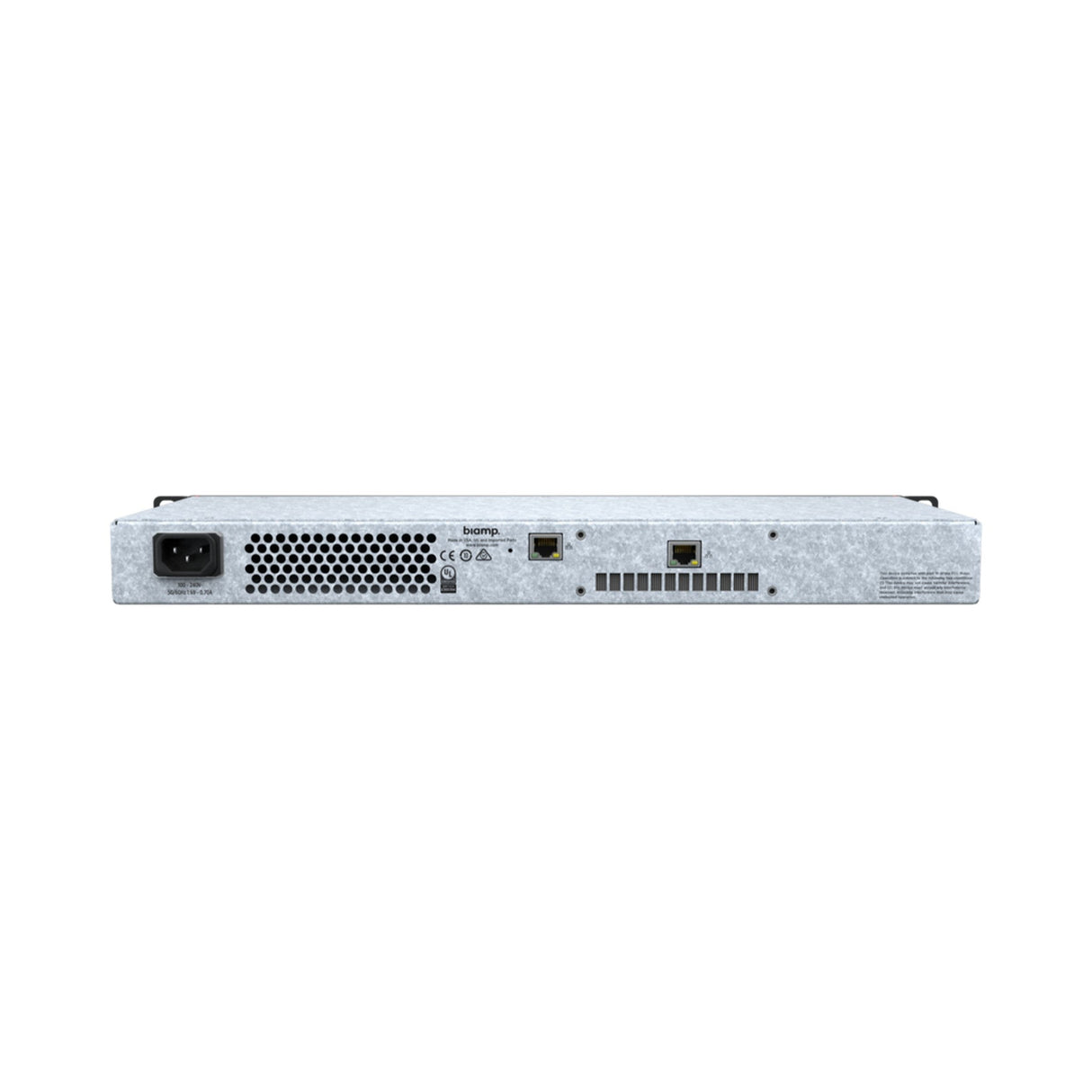

Biamp Workplace Bridge 920-01902-00001 Network Gateway

Biamp Workplace Bridge 920-01902-00001 Network Gateway

The Biamp Workplace Bridge 920-01902-00001 Network Gateway connects supported Biamp systems to the Biamp Workplace cloud platform through one secure gateway device. It helps AV and IT teams add cloud monitoring, analytics, and remote management to compatible installations while keeping network exposure controlled.

Designed for enterprise AV deployments, Workplace Bridge provides a single point of presence for Workplace cloud traffic. It is ideal for conference rooms, multi-room campuses, and existing Tesira installations that need centralized visibility without redesigning every device connection. Legacy Tesira Server and Forté rev A systems can be brought into Biamp Workplace through the Bridge.

The rack-mountable hardware supports modern AV network management with two Gigabit Ethernet connections, TAA compliance, and Biamp Workplace Ready operation. It is built for integrators who need secure cloud access, simpler IT coordination, and long-term management across connected Biamp environments.

Key Features

• Secure Workplace gateway: Provides one controlled connection point between supported Biamp AV devices and the Biamp Workplace cloud platform.
• Legacy Tesira support: Enables Workplace compatibility for legacy Tesira devices, including Forté rev A and Tesira Server systems.
• Network isolation support: Maintains AV network isolation for non-Workplace traffic while centralizing cloud-bound communication.
• Enterprise deployment: Rack-mountable hardware simplifies large room, building, and campus-wide AV management.
• Dual Gigabit Ethernet: Includes two 1000 Base-T network connections for flexible AV and corporate network deployment.
• Biamp Workplace Ready: Supports cloud-based monitoring, analytics, and remote management through Biamp Workplace.
• TAA compliant: Meets Trade Agreements Act requirements for eligible government and federal procurement projects.

Technical Specifications

• Brand: Biamp
• Model: Workplace Bridge
• Part Number: 920-01902-00001
• Product Family: Network Gateway
• Product Group: Workplace Bridge
• Supported Platform: Biamp Workplace
• Supported Legacy Devices: Forté rev A, Tesira Server
• Network Connections: 2x 1000 Base-T
• Power: 100-240 VAC, 50/60 Hz, 1.69A - 0.7A
• Power Consumption: 170W
• Height: 1.7 inches
• Width With Rack Ears: 19 inches
• Width Without Rack Ears: 17.3 inches
• Depth: 6.6 inches
• Weight: 5.3 lb
• Humidity: 85% non-condensing
• Certified Solutions: TAA Compliant
• Compliance: RoHS, UL, CE, RMC
