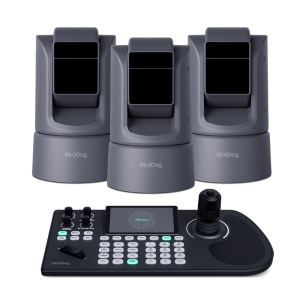

BirdDog 3x O4 PTZ Cameras and KBD Controller Combo (Gray)
Free Shipping
Estimated Shipping Widget will be displayed here!
Condition: New
Description
BirdDog 3x O4 PTZ Cameras and KBD Controller Combo (Gray)
BirdDog's O4 Combo in gray equips outdoor productions with three O4 PTZ cameras and a KBD Controller, targeting stadiums, outdoor venues, city infrastructure, and 24/7 perimeter monitoring. The O4 is engineered for extreme environments, combining professional-grade image quality with IP66-rated durability, an integrated heater, and a hydrophobic, anti-mildew, anti-fouling glass coating built for sustained exposure to the elements.
Behind the weatherized housing sits a Sony 1/1.8 inch CMOS sensor capturing 2160p at up to 60 fps, with 30x optical zoom in 4K, 60x in HD, and 8x digital reach. A laser IR illuminator covers distances to 500 m for night operation, while AI auto tracking, gesture control, and FreeD support handle automated and virtual workflows. Outputs include 12G-SDI and RJ-45, and the included KBD Controller manages cameras over NDI, VISCA, ONVIF, RS-232, and RS-422.
Key Features
- Three O4 outdoor PTZ cameras in gray with IP66-rated weatherproof construction
- Sony 1/1.8 inch CMOS sensor; 2160p60 capture with HDR and REC.2020 color support
- 30x optical zoom in 4K, 60x in HD, plus 8x digital zoom
- Laser IR illumination to 500 m for night vision; integrated heater for harsh climates
- 12G-SDI and network video outputs with NDI High Bandwidth support; FreeD over UDP and embedded in NDI
- AI auto tracking with zone, stage, and auto-framing modes, plus gesture control
- KBD Controller included with multi-camera screen and NDI, VISCA, ONVIF, RS-232, RS-422 control
Specifications
- Imaging Sensor: Sony 1 / 1.8” CMOS – ULTRA HD
- Lens: f=6.9mm~215mm
- Optical Zoom: Optical 30x (4k) – 60x (HD), 8x Digital
- Video Format: "2160p @ 60/59.94/50/30/29.97/25fps
- 1080p @ 60/59.94/50/30/29.97/25fps
- 1080i @ 60,59.94,50fps
- 720p @ 30/29.97/25fps"
- Horizontal angle of view: 60°~2°
- Vertical angle of view: 34°~1.1°
- Diagonal angle of view: 67°~2.3°
- Aperture: f1.35~f4.6
- Focus: Auto (Global/Centre/Upper/Lower/Left/Right), Manual
- Exposure: Auto, Manual Shutter Priority, Iris Priority, Brightness Priority
- Exposure Metering: Average, Centre, Top, Bottom, Left, Right
- Backlight Compensation: Yes
- Exposure Compensation: Yes
- Flicker Reduction: Outdoor / 50Hz / 60Hz
- White Balance: Auto / One Push / Indoor / Outdoor / Manual / Color Temperature
- Digital Noise Reduction: 2D/3D Noise Reduction
- SNR: >50dB
- Effective Pixels: 8.4MP
- HDR: Supported, REC.2020 Color Space
- Pan/Tilt rotation: ±170°, -30° ~ +90°
- Pan Control Speed: 0.05-90°/sec
- Tilt Control Speed: 0.05-90°/sec
- Preset Number: 255 Presets
- IR Laser: Included, 500m illumination distance
- FreeD Support: Included, UDP, and Embedded in NDI Stream
- Integrated Heater: Included
- Glass Coating: High-strength Aerospace/Marine grade Hydrophobic, Anti-mildew, Anti-fouling coating.
- AI Auto Tracking: Area Management, Framing Adjustment, Sensitivity Adjustment, Auto Framing, Stage
- Tracking, Zone Tracking
- AI Gesture Control: Supported
- Video Output Interfaces: 12G-SDI, RJ-45
- Video Compression Formats: h.264, h.265, NDI High Bandwidth
- Audio I/O: Stereo Unbalanced 1/4” TRS Input/Output
- Network Interface: SFP+ Fibre Optic, RJ45 1GbBaseT adaptive Ethernet port; PoE++
- Encoder Network Protocols: NDI|HX2, NDI|HX3, High Bandwidth NDI, RTSP, RTMP, SRT, Dante AV-H
- (unlocked via Dante Activator)
- Control Interfaces: Ethernet, Serial
- Control Protocols: NDI, VISCA-IP
- API Control: BirdDog RESTful API 2.0
- Input Voltage: DC 24V, PoE++
- Input Current: 1.2A
- Power Consumption: 40W Max.
- Operating Temperature: -40°C ~ +60°C
- IP Rating: IP66
- Dimensions (W*H*D): 200x330x226mm
- Weight: 7.6Kg
- PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
- Fine PTZ Control: VISCA-IP, NDI
- Focus Control: Auto Focus, Manual Focus buttons
- Auto Exposure: Direct Button
- Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
- Auto White Balance: Direct Button
- Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
- Auto Focus: Direct Button
- Manual Focus: Direct Button (Near/Far)
- BLC (Backlight Compensation): Direct Button
- Zoom Ring on Joystick: Yes (enable/Disable)
- Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
- AI Camera Mode Control: Camera Dependent, supported
- Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)
- Max. Cameras support: 255
- Direct Camera access keys: 6
- Direct Preset access keys: 10
- Max Preset support: 255 per camera
- OSD Camera Menu: Menu Button / Interaction with Joystick
- Display Resolution: 1280x720
- Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
- Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
- IP Video CODEC support: h.264, h.265
- Tally Borders: Selectable, Multiview and Full Screen mode
- On Screen Menu: Fully configurable
- Light/Dark Mode: YES
- NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
- NDI Multiview: NDI HX2, NDI HX3
- NDI Router: Yes, follows current active camera
- NDI Discovery: Supported
- NDI Access Manager: Supported
- NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)
- WebUI: BirdUI for setup and firmware updates
- Light/Dark Mode: YES
- API-based Camera Selection: YES
- RS-232: D-Sub connector (9-pin)
- RS-422: Phoenix connector
- Joystick Type: 4D (Integrated Trigger button)
- Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
- Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
- Zoom Rocket: Spring loaded, adjustable
- Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
- Construction Material: Aluminium; OBP Ocean-Bound Plastic
- Integrated Carry Handle: YES
- Operating Temperature: -10°C - +55°C; 14°F - 130°F
- Storage Temperature: -10°C - +55°C; 14°F - 130°F
- Operating Humidity: 20% - 80% (Non-condensing)
- Storage Humidity: 0% - 90% (Non-condensing)
- Power Supply: PoE (802.3af), DC12V
- Power Consumption: ≤5W
- Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
- BirdDog O4 Outdoor Camera Specs
- IMAGING
- MECHANICAL
- AI FUNCTIONS
- I/O INTERFACE
- GENERAL
- BirdDog KBD PTZ Controller Specs
- Camera Control
- Camera Access
- Display
- NDI Support
- Setup/Configuration
- Serial Connections
- Mechanical
What's Included
- 3 x BirdDog O4 Outdoor Camera - Grey
- 1 x BirdDog KBD PTZ Controller with Integrated Screen
